- Stock: In Stock
- Model: ST220031018
- SKU: ST220031018
Description:
-This mini OLED is design for Raspberry Pi computers, to give you a little display.
-The

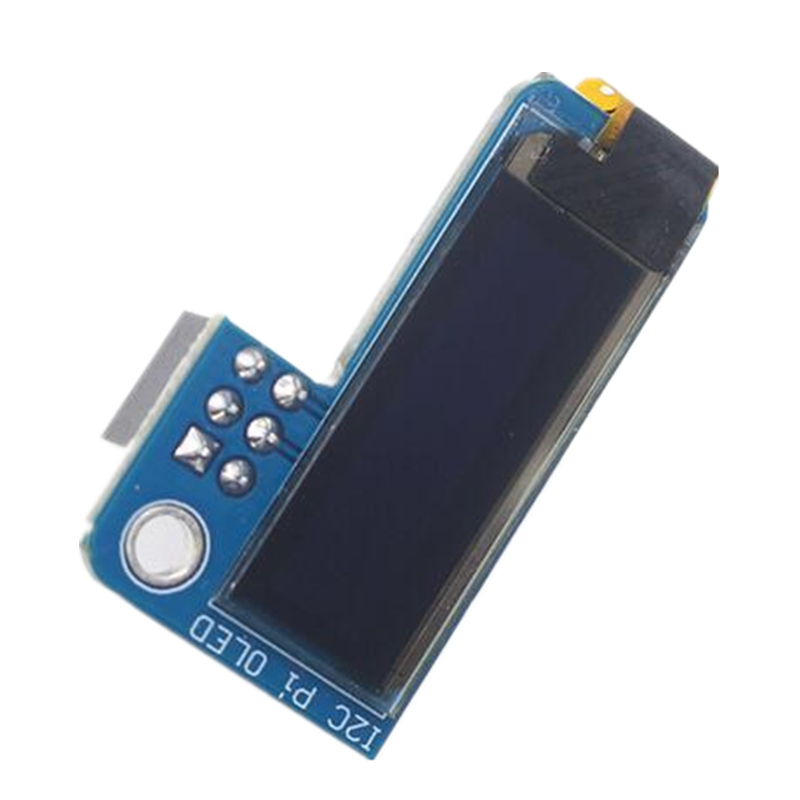

PiOLED comes with a monochrome 128x32 OLED, with blue pixels. The OLED
uses only the I2C pins so you have plenty of GPIO connections available
for buttons, LEDs, sensors, etc. It's also nice and compact so it will
fit into any case.
-These displays are small, only about 1" diagonal,
but very readable due to the high contrast of an OLED display. This
screen is made of 128x32 individual blue OLED pixels and because the
display makes its own light, no backlight is required. This reduces the
power required to run the OLED and is why the display has such high
contrast; we really like this miniature display for its crispness!
-Using
the display is very easy, we have a Python library for the SSD1306
chipset. Our example code allows you to draw images, text, whatever you
like, using the Python imaging library. Our tests showed 30 FPS update
rates so you can do animations or simple video.
-Comes completely
pre-assembled and tested so you don't need to do anything but plug it in

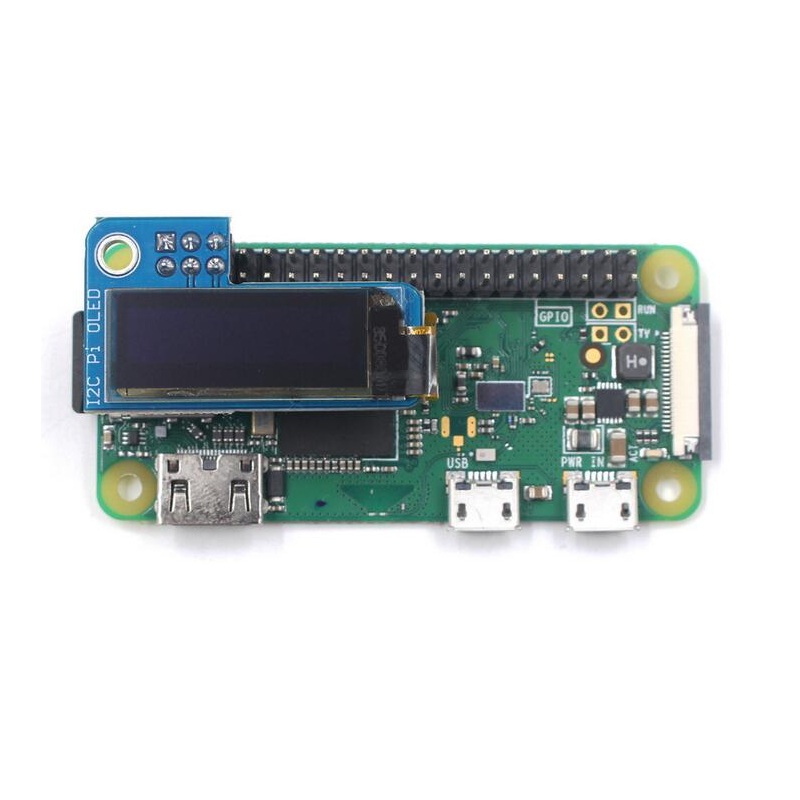

and install our Python code! Works with any Raspberry Pi computer,
including the original Pi 1, B+, Pi 2, Pi 3 and Pi Zero.
Feature:
Voltage: 3.3v
Interface: IIC
Color: Blue
Dimensions: 35.0mm x 20.0mm x 10.5mm
WIKI: https://github.com/IOT-MCU/IIC-Pi-OLED/wiki
Package Included:
1* OLED Module
