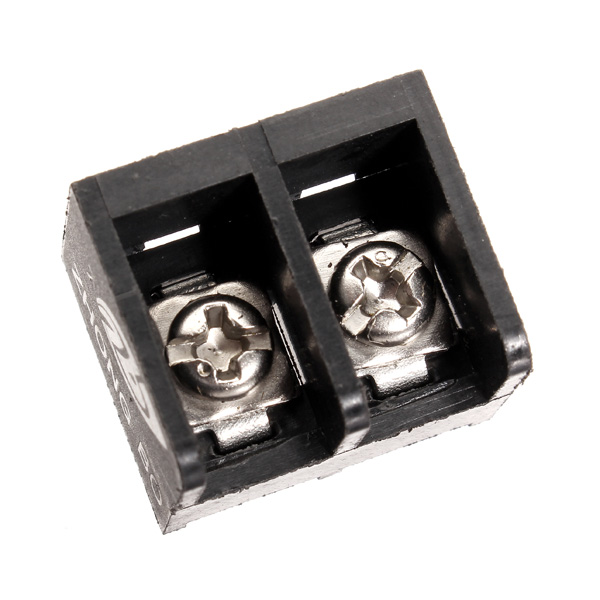

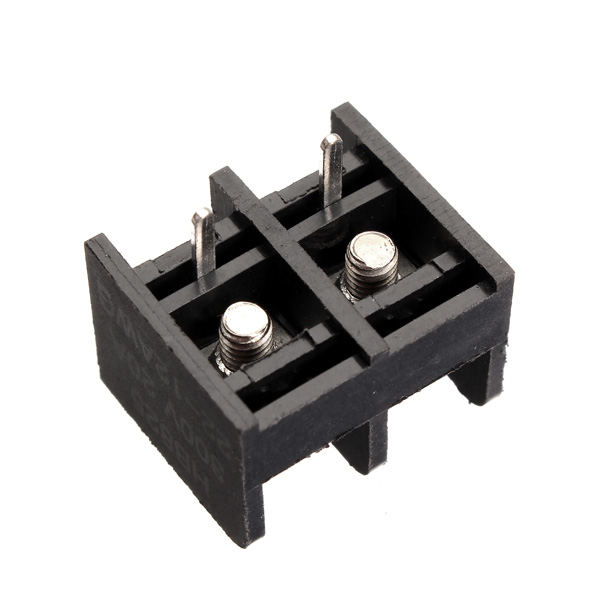

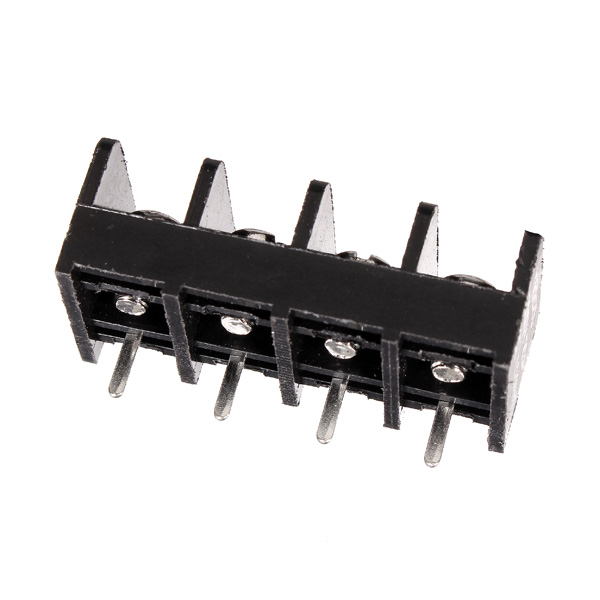

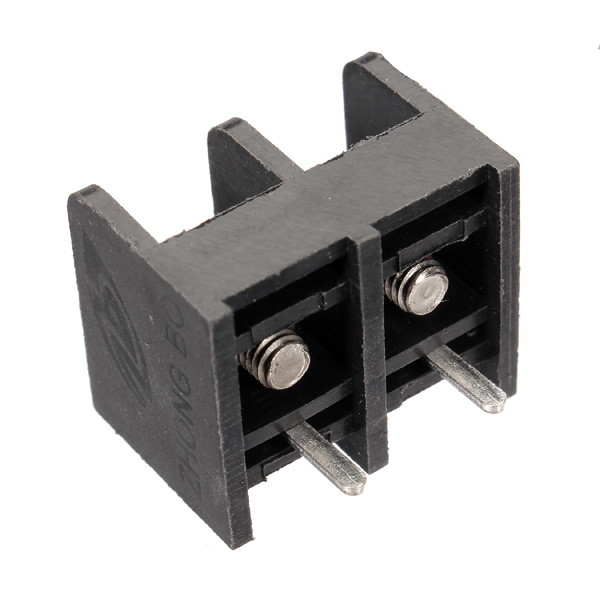

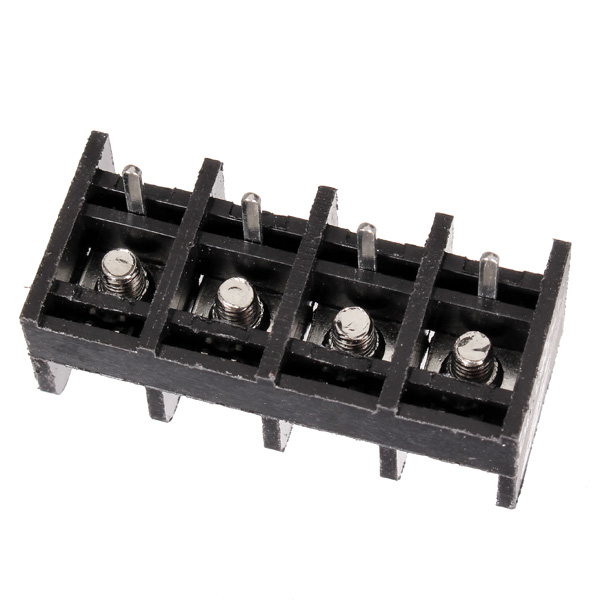

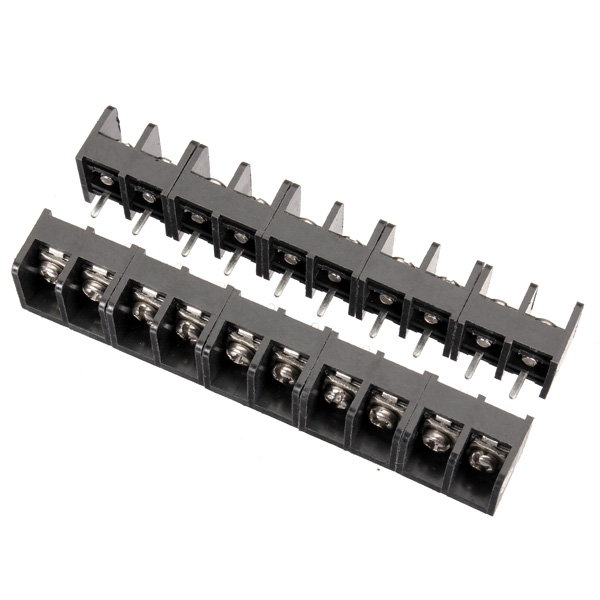

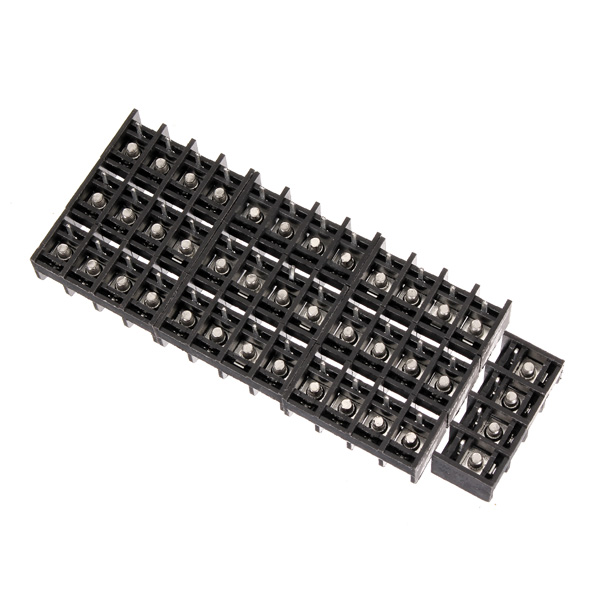

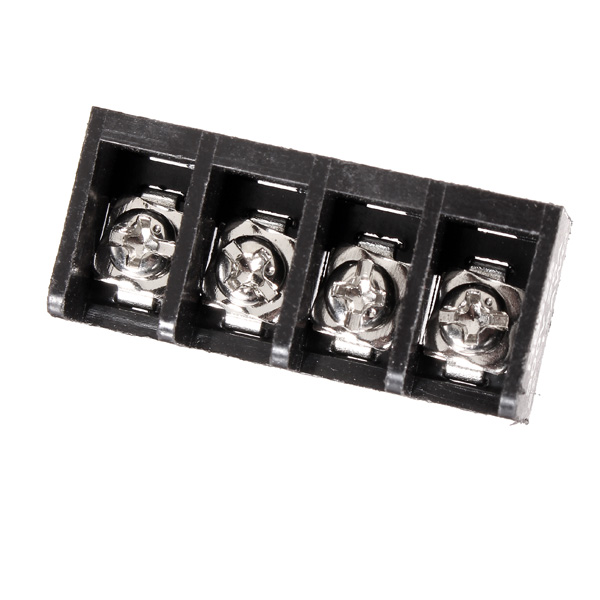

10pcs 2-4 Pin 8.25mm Barrier Screw Terminal Blocks Connectors Black
- Stock: In Stock
- Model: ST220015480
- SKU: ST220015480
$10.99
Ex Tax: $10.99
Description:
10pcs 2-4 Pin 8.25mm Barrier Screw Terminal Blocks Connectors Black
Specifications :
Product Name: Barrier Screw Terminal Blocks
Material: Plastic
Rated Value: 300V, 20A
Poles: 2pin, 4pin
Quantity: 10
Color: Black
Parameter:
Size Drawing:

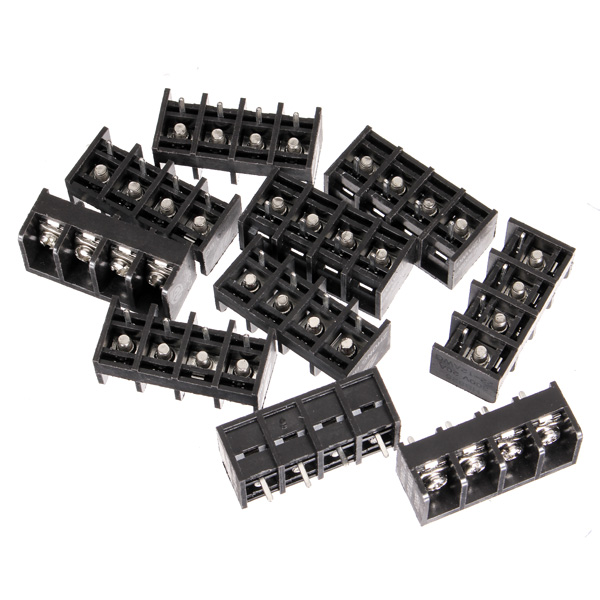

Package included: 10X 2 Pin/ 4 Pin Barrier Screw Terminal Blocks
10pcs 2-4 Pin 8.25mm Barrier Screw Terminal Blocks Connectors Black
Specifications :
Product Name: Barrier Screw Terminal Blocks
Material: Plastic
Rated Value: 300V, 20A
Poles: 2pin, 4pin
Quantity: 10
Color: Black
Parameter:
| ELECTRICAL | |
| Rated Voltage | 300V |
| Rated Current | 20A |
| Wire Range | 22-12AWG |
| Withstanding Voltage | AC1600V/ 1min |
| The Insulation Resistance | 500MΩ/ DC500V |
| Certification | UL |
| MECHANICAL | |
| Temp range | -40℃-- +105℃ |
| Torque | 0.5N.m 4.4Lb.in |
| Max Soldering | +250℃for 5s. |
| MATERIAL | |
| Pitch | 8.25mm |
| Poles | 2P, 4P |
| Pin Header | Brass, 0.8mm thickness , Tin Plated |
| Housing | PA66.UL94V-0 |
| Screw | Steel, M3 Nickel Plated |

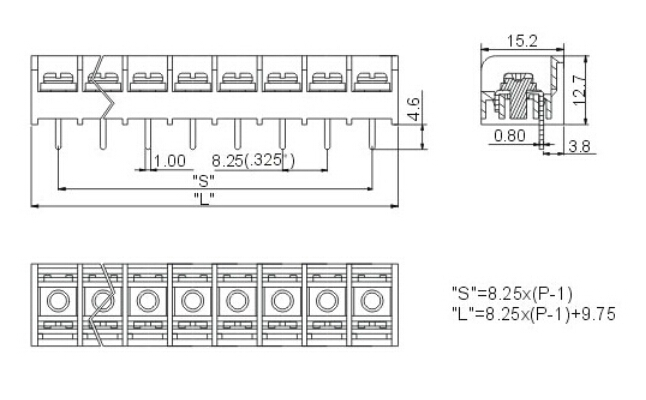

Size Drawing:
Package included: 10X 2 Pin/ 4 Pin Barrier Screw Terminal Blocks
