- Stock: In Stock
- Model: ST220016656
- SKU: ST220016656
Specification:

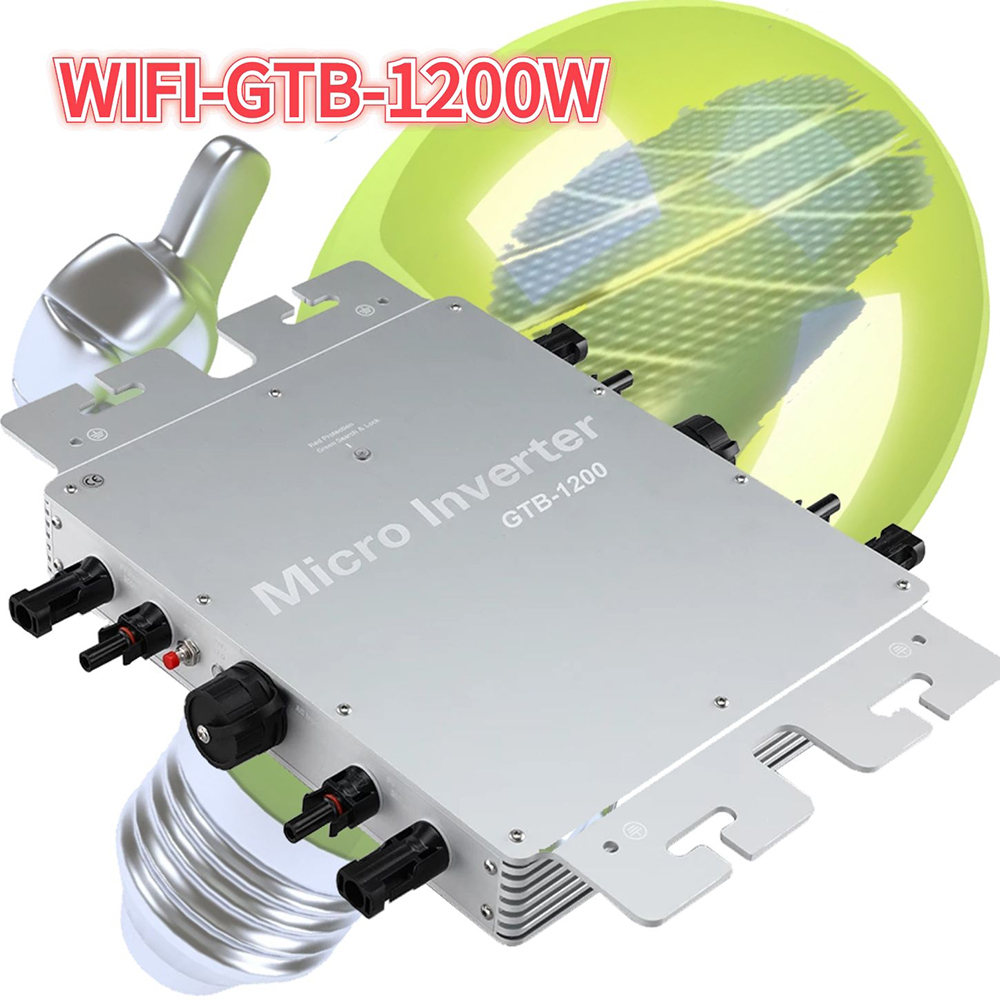

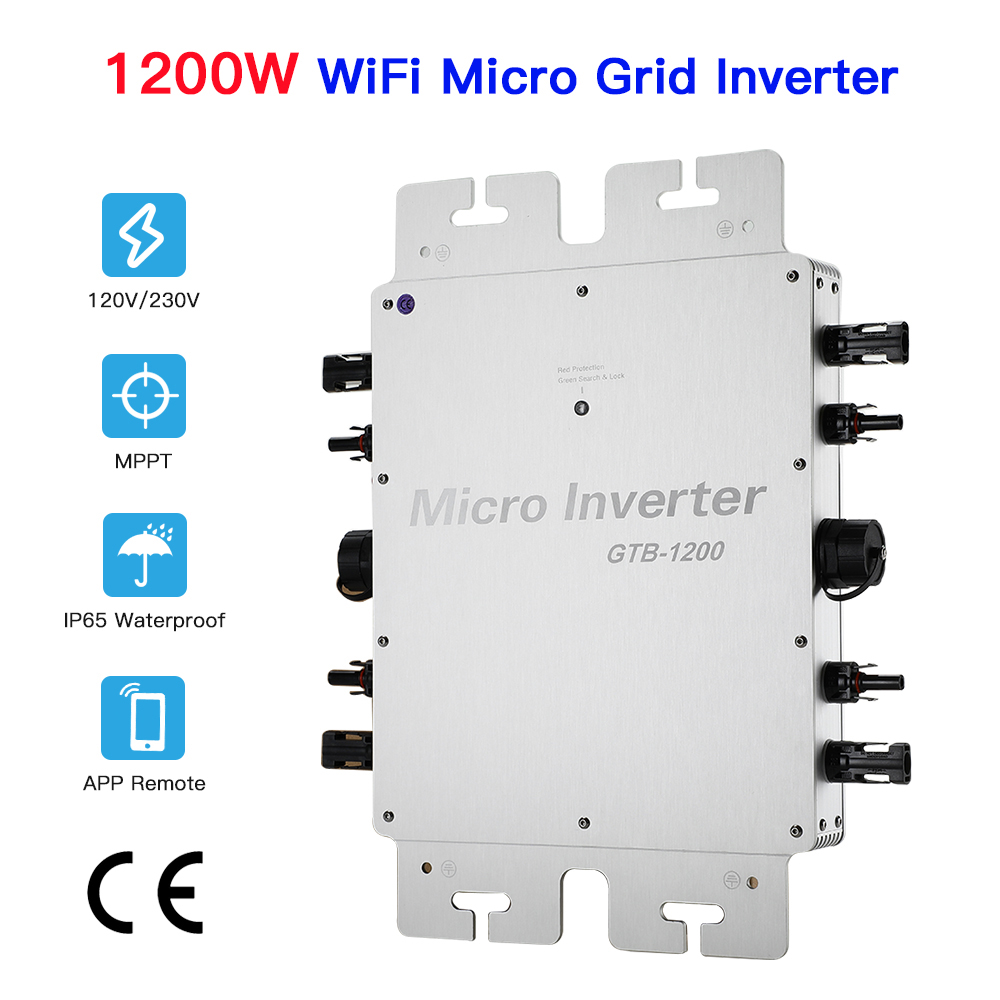

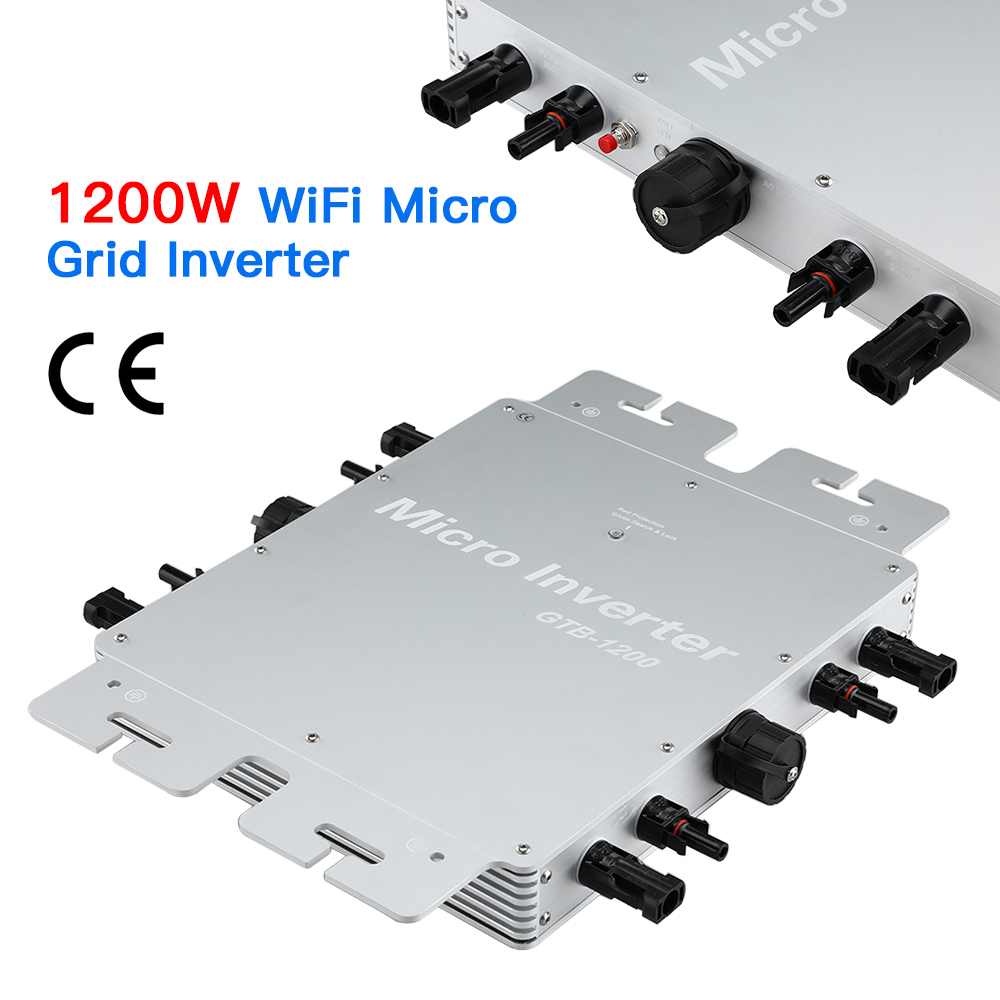

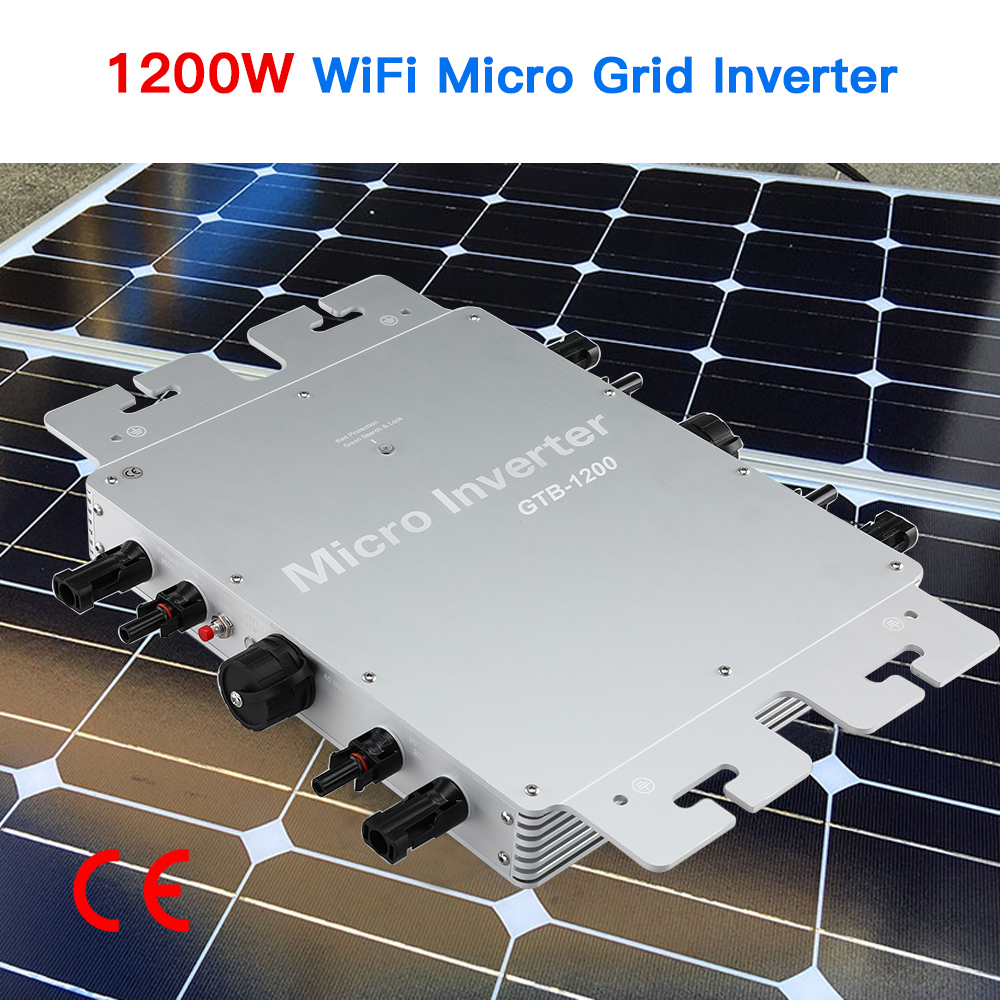

| Model | GTB-1200 | |
| Color | Black, White | |
| Maximum input power | 1200Watt | |
| Peak power tracking voltage | 22-50V | |
| Min / max starting voltage | 22-55V | |
| Maximum DC short-circuit | 60A | |
| Maximum input operating current | 54.5A | |
| Output Data Output Eifficiency | AC 120V | AC 240V |
| Peak power output | 1200Watt | 1200Watt |
| Rated output power | 1200Watt | 1200Watt |
| Rated output current | 10A | 5.2A |
| Rated voltage range | 80-160VAC | 180-260VAC |
| Rated frequency range | 48-51/58-61Hz | 48-51/58-61Hz |
| Power Factor | >99% | >99% |

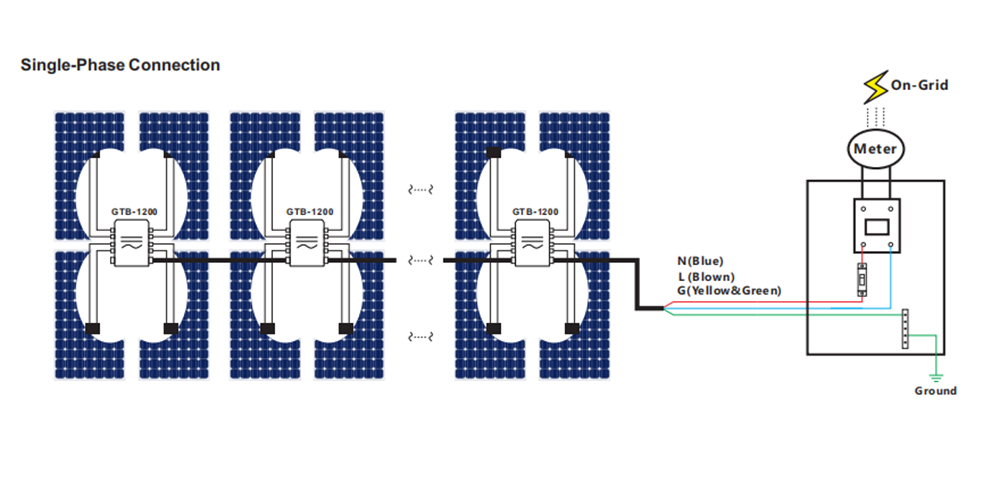

| Max unit per branch circuit | 3pcs（Single-phase） | 5pcs（Single-phase） |
| Output Efficiency | ||
| Static MPPT efficiency | 99.50% | |
| Maximum output efficiency | 95% | |
| Night time power consumption | <1W | |
| THD | <5% | |
| Exterior & Feature | ||
| Ambient temperature range | -40°C to +60°C | |
| Dimensions (L × W × H) | 365mm×300mm×40mm | |
| Weight | 2.81kg | |
| Waterproof rating | IP65 | |
| Cooling | Self-cooling | |
| Communication Mode | WiFi mode | |
| Power transmission mode | Reverse transfer，load priority | |
| Monitoring System | Mobile APP, PC browser | |
| Electromagnetic Compatibility | EN50081.Part1 EN50082.Part1 | |
| Grid disturbance | EN61000-3-2 Safety EN62109 | |
| Grid detection | CE EN-50438 | |
| Certificate | CE | |
LED Display:
1.Red light 3 second---Red LED light 3 second while device starts , then in working condition;
2.Green flash fast---MPPT searching;
3.Green flash slow---MPPT + searching;
4. Red flash slow---MPPT - searching;
5.Green lights on 3s and off 0.5s---MPPT locked;
6.Red light steady---a. Islanding protection; b.Over-temperature protection; c.Over / low AC voltage protection; d. Over / low DC voltage protection; e.Fault
Remarks:
LED flashing in the process of being working condition:inverters connected to AC & DC sides→ Red LED light 3 second→Green LED flash fast(MPPT searching)→Green LED flash slow(MPPT + searching) / Red LED flash slow (MPPT - searching) / reen LED lights on 3s and off 0.5s (MPPT locked).

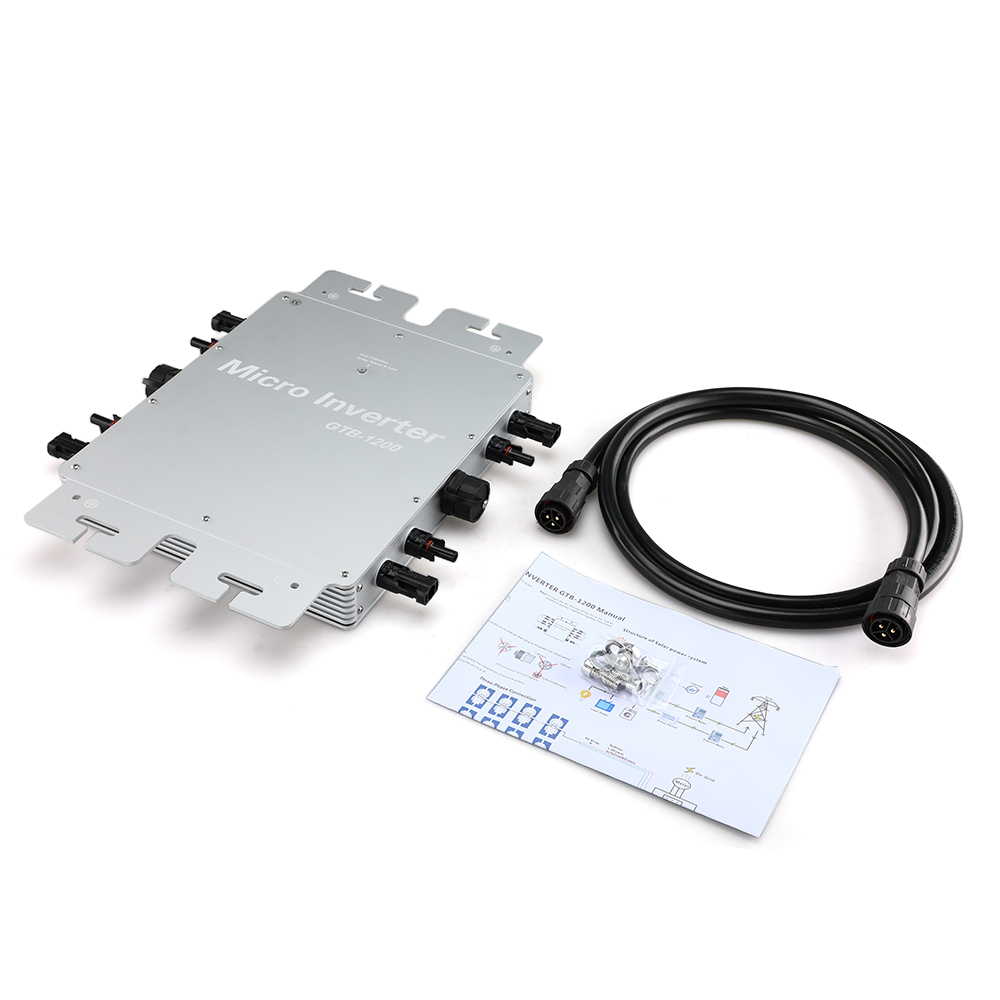

Package included:
1x Inverter
1x Warranty card
1 Pouch of screw for micro inverter installation
1x AC Cable
1x User manual
1x Certificate of quality
Notes:

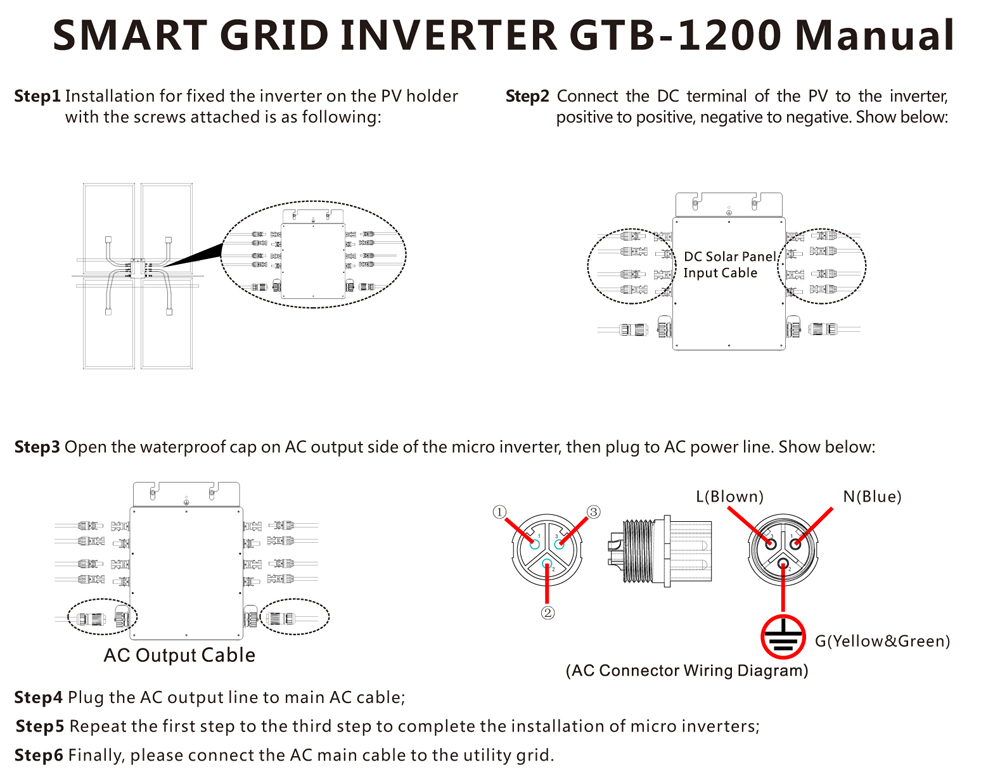

★Please connect the inverter following the operation instruction show above. If have any question please contact with relative persons.
★Non-professionals do not disassemble. Only qualified personnel may repair this product.
★Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
★When using this product, avoid children touching, playing, to avoid electric shock.
★Connected solar panels, battery or wind generators DC input DC power supply cable.
