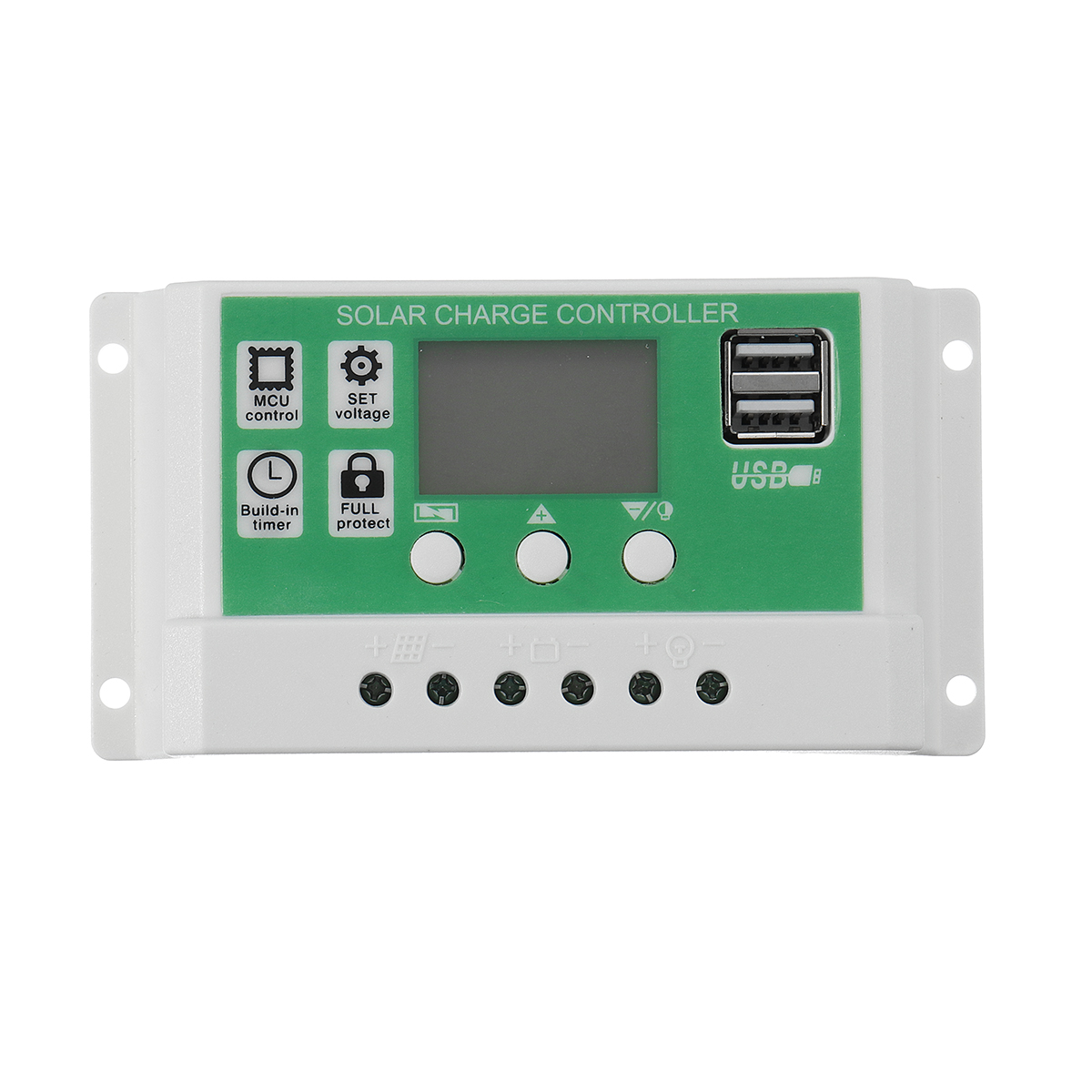

12V/24V 10A/20A/30A Dual USB Output Lithium Battery PWM Solar Controller LCD display Street Lamp Controller Build-in Industrial Micro Controller
- Stock: In Stock
- Model: ST220016094
- Dimensions: 133.50mm x 70.00mm x 35.00mm
- SKU: ST220016094
$16.99
Ex Tax: $16.99
Features:
1.Build-in industrial micro controller.
2.Big LCD display, all adjustable parameter.
3.Fully 3-stage PWM charge management.
4.Buiid-in short-circuit protection, open-circult protection, reverse protection, over-load protection.
5.Dual USB output, the maximum current of 2.5A, to support Apple's mobile phone charging.
6.Dual Mos Prevent Reverse current protection, low heat production.
Specification:
Package Included: 1x Solar Street Lamp Controller
Tips:
2.Big LCD display, all adjustable parameter.
3.Fully 3-stage PWM charge management.
4.Buiid-in short-circuit protection, open-circult protection, reverse protection, over-load protection.
5.Dual USB output, the maximum current of 2.5A, to support Apple's mobile phone charging.
6.Dual Mos Prevent Reverse current protection, low heat production.
Specification:
| Batt Voltage | 12V-24V |
| Charge current | 10A/20A/30A |
| Discharge current | 10A |
| Max solar input | 12V battery, the highest23V;24V battery when the highest 46V |
| Battery type |
B1=Lead acid battery 12V /24Vauto B2=Lithium-ion battery (lithium battery) 3 strings 3.7V=11.1V B3=Lithium iron phosphate battery 4 strings 3.2V=12.8V |
| Equalization | 14.4V(B1) 12.6V(B2) 14.6V(B3) |
| Discharge stop | 10.7V(B01) 9V(B2) 10V(B3) |
| Discharge reconnect | 12.6V(B1) 10.5(B2) 12V(B3) |
| Voltage of openlight | Solar panel 8V(Light lights delay) |
| Voltage of closelight | Solar panel 8V(Light off delay) |
| USB output | 2 way USB output, 5V/2.5A(MAX) |
| Self-consume | <10 mA |
| Operating temperature | -35~+60°C |

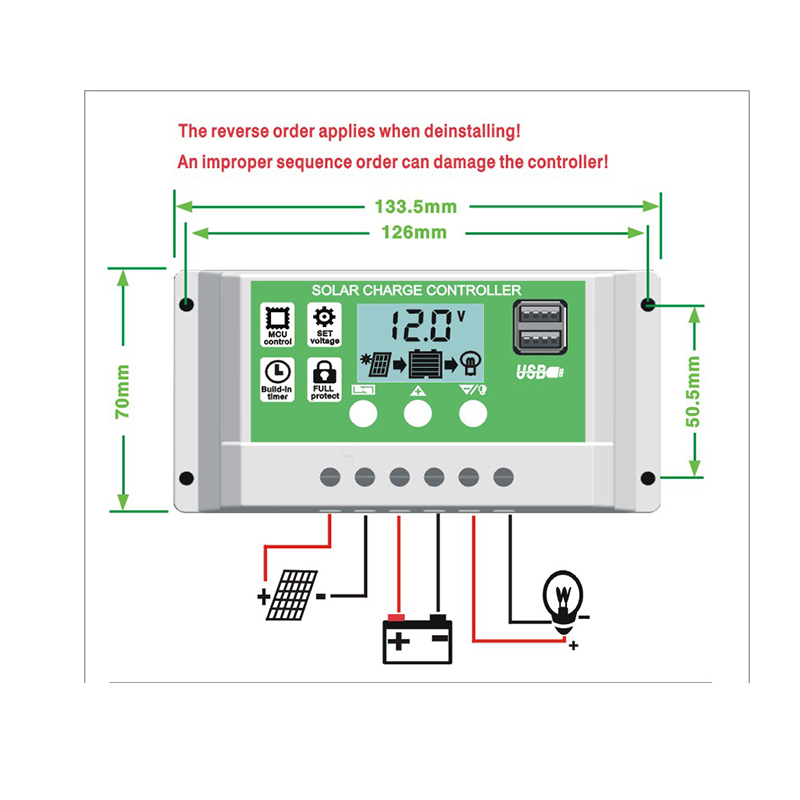

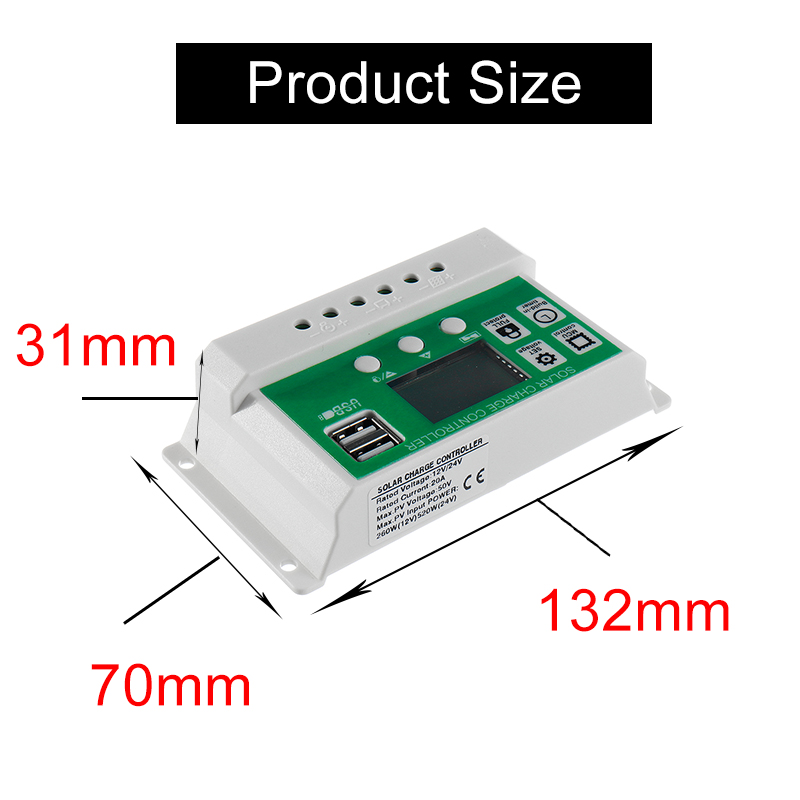

| Size | 133.5*70*35mm |
| Weight | 165g |
Package Included: 1x Solar Street Lamp Controller
Tips:
1. This controller is suitable for 3 types of batteries, lead-acidbatteries(12V/24V auto), lithium-ion batteries(3 strings of 111V lithiumbatteries); lithium iron phosphate batteries(4 strings of 128V) Dontused in Other battery.Battery type descriptionB1 is a lead-acid battery(12V/24V auto)B2 is a lithium ion battery (3 strings of 111V lithium batteries);B3 is lithium iron phosphate battery(4 strings 128V)
2.The battery cable should be as short as possible to minimize loss.
3. When installation for the first time, set the battery type according tothe type of battery and make sure that the battery has enough voltageso that the controller can recognize the correct battery type.
4. The charge regulator is only suitable for regulating solar modules.Never connect another charging source to the charge regulator.
3. When installation for the first time, set the battery type according tothe type of battery and make sure that the battery has enough voltageso that the controller can recognize the correct battery type.
4. The charge regulator is only suitable for regulating solar modules.Never connect another charging source to the charge regulator.
