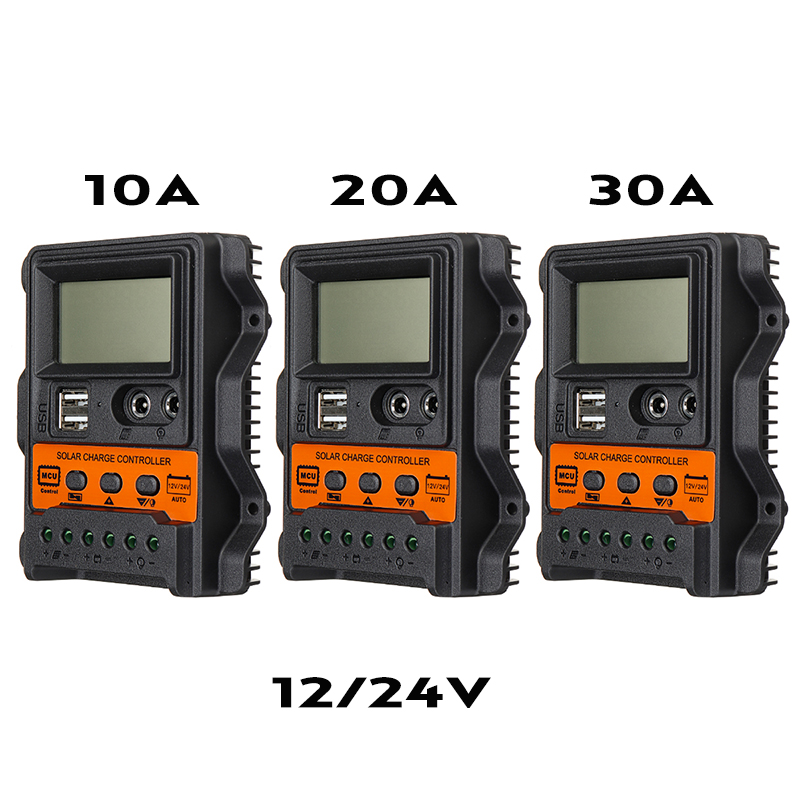

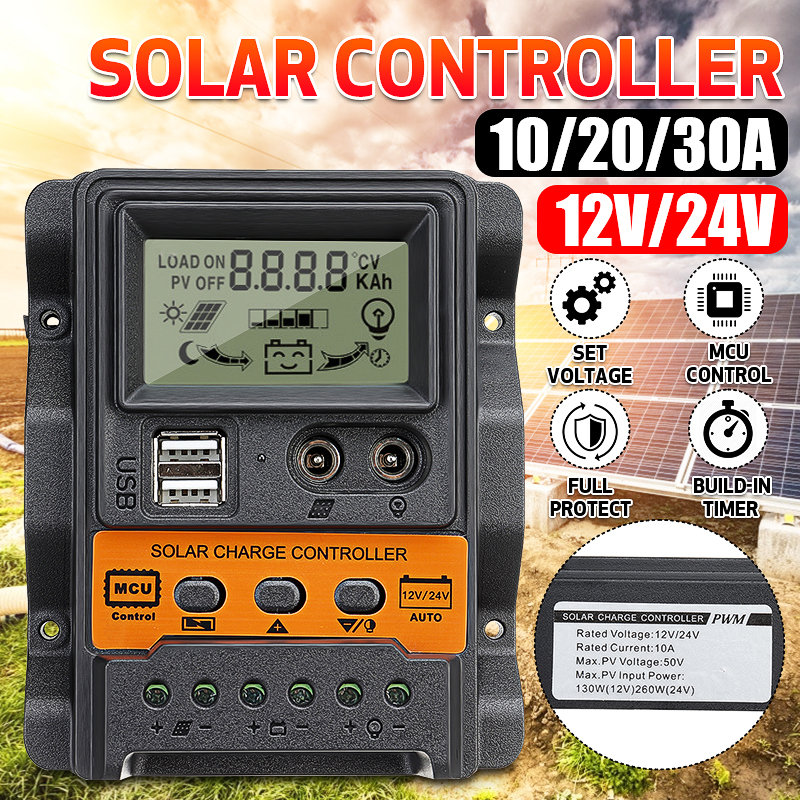

12V/24V 10A/20A/30A Solar Panel Battery Regulator Auto Charge Controller
- Stock: In Stock
- Model: ST220015740
- SKU: ST220015740
$11.99
Ex Tax: $11.99
Specification:

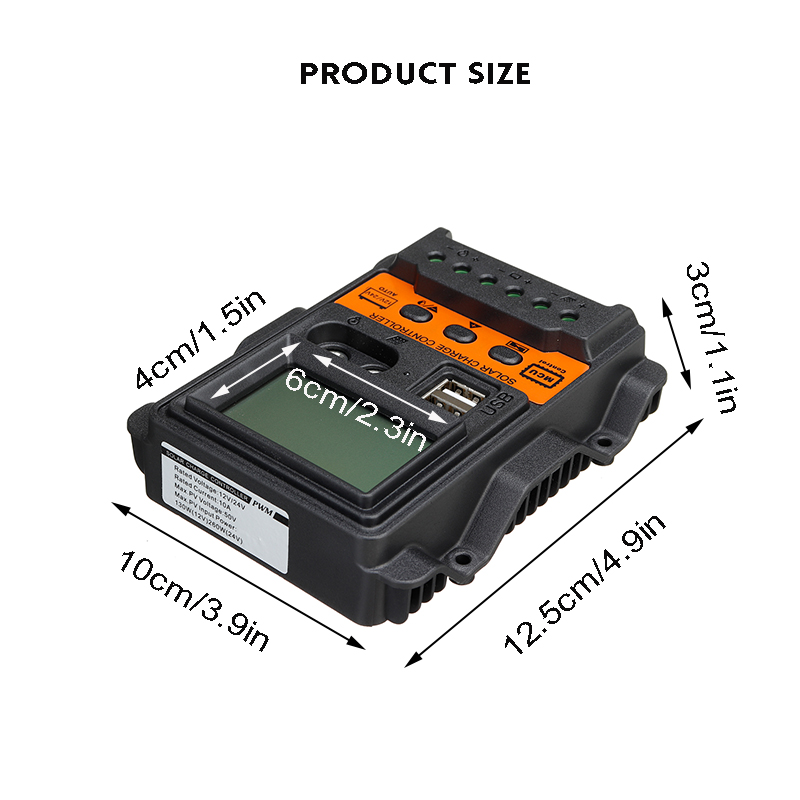

-Size:4.9x3.9x1.1in（12.5x10x3cm）
-USB output: 5V/2.5A
-Standby current: <10mA
-Rated Voltage:12V/24V
-Rated Current:20A
-Max.PV Voltage:50V
-Max.PV Input Power:260W(12V)520W(24V)
-Rated charging current: 10A/20A/30A
-Rated discharge current: 10A/20A/30A
-Working temperature: -35 to +60 degrees
-Ncrease charging voltage: 14.4V (sealed type)
-Floating charge voltage: 13.7V (default, adjustable)
-Discharge cut-off voltage: 10.7V (default, adjustable)
-Discharge recovery voltage: 12.6V (default, adjustable)
Features:
-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.
- Automatic focusing ，tracking charging, high charging efficiency, non-stop detection
During charging, bidirectional focusing tracking.

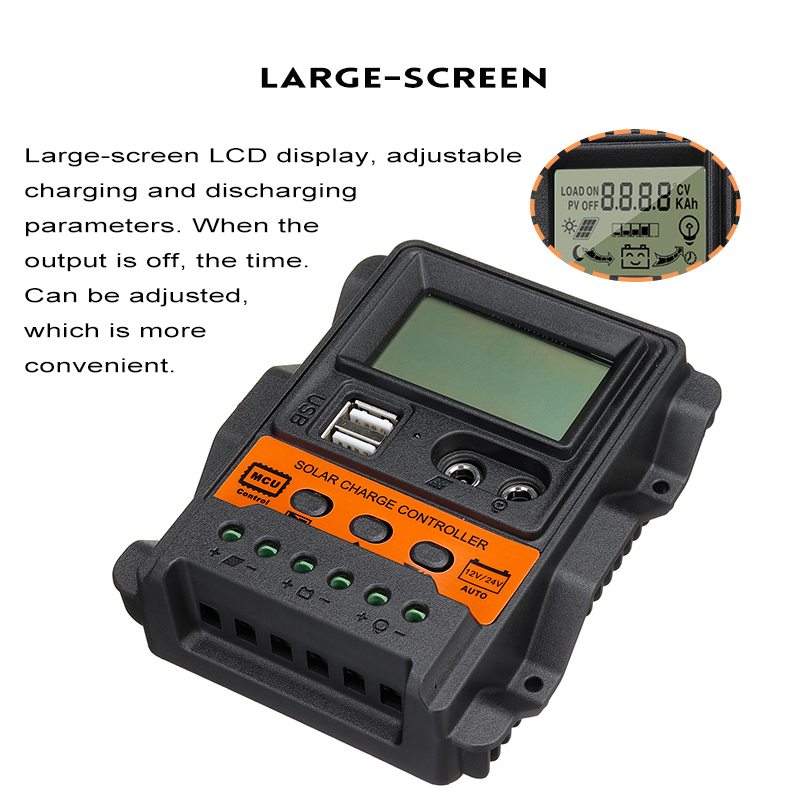

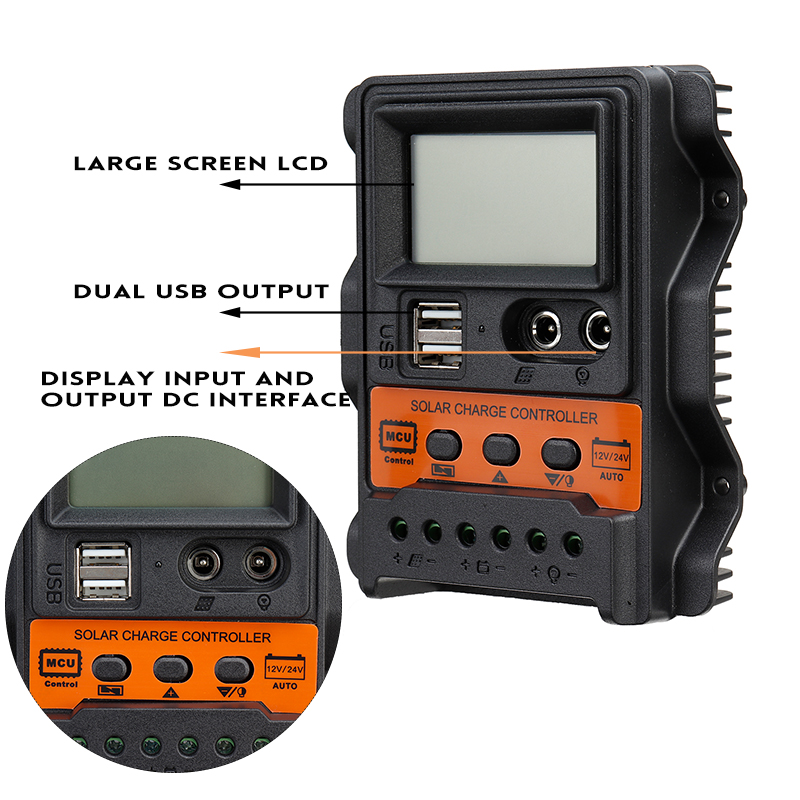

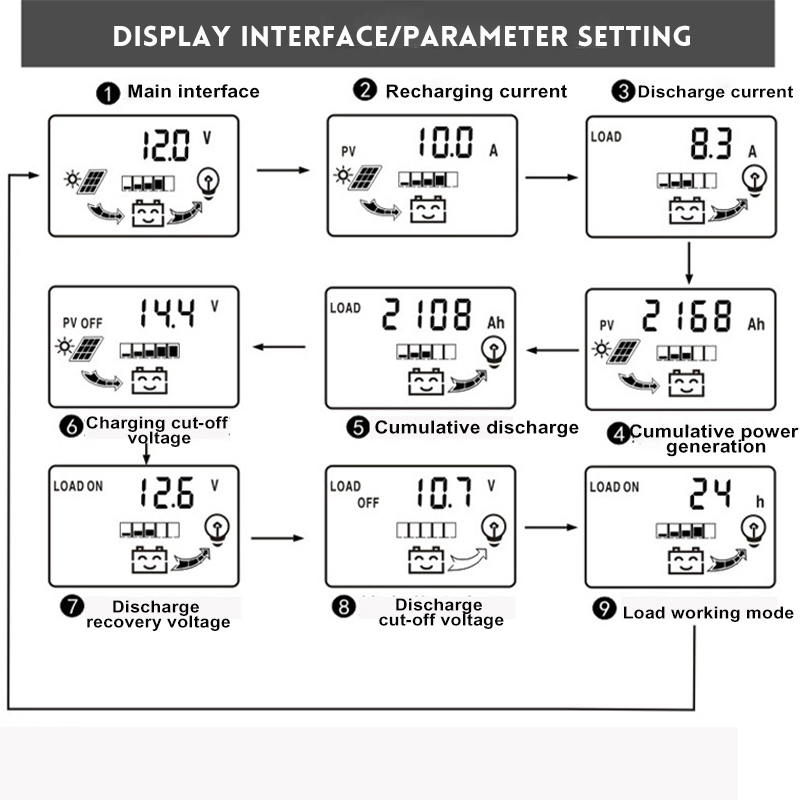

-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time.Can be adjusted, which is more convenient.
-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.
-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection.Protection,when the fault is eliminated, the controller automatically recovers, does not damage
The device.

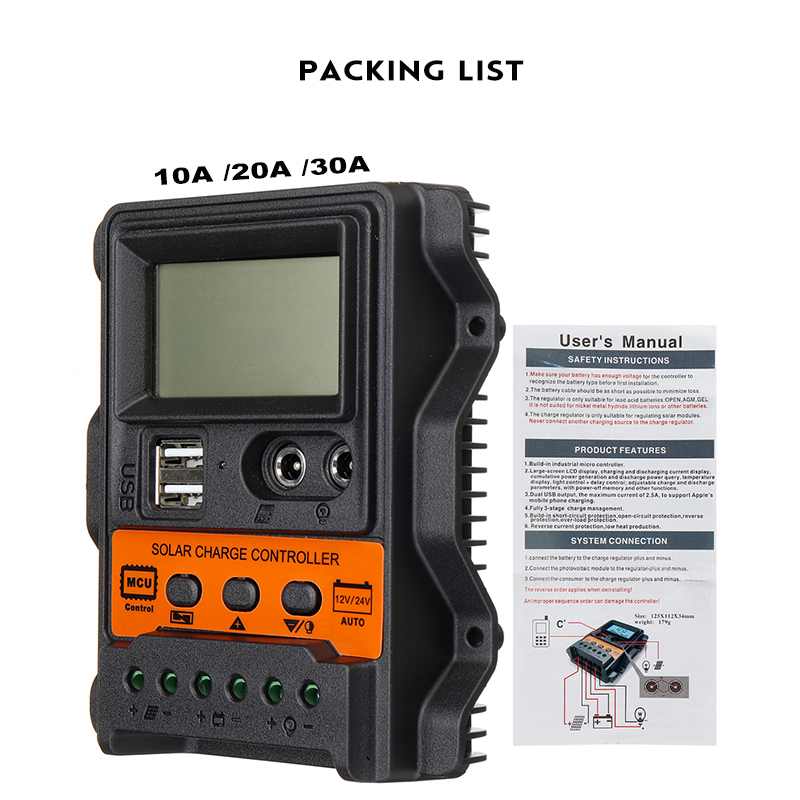

Packing List:
1 x Solar Panel Battery Regulator Charge Controller
1 x User Manual
More Details:
