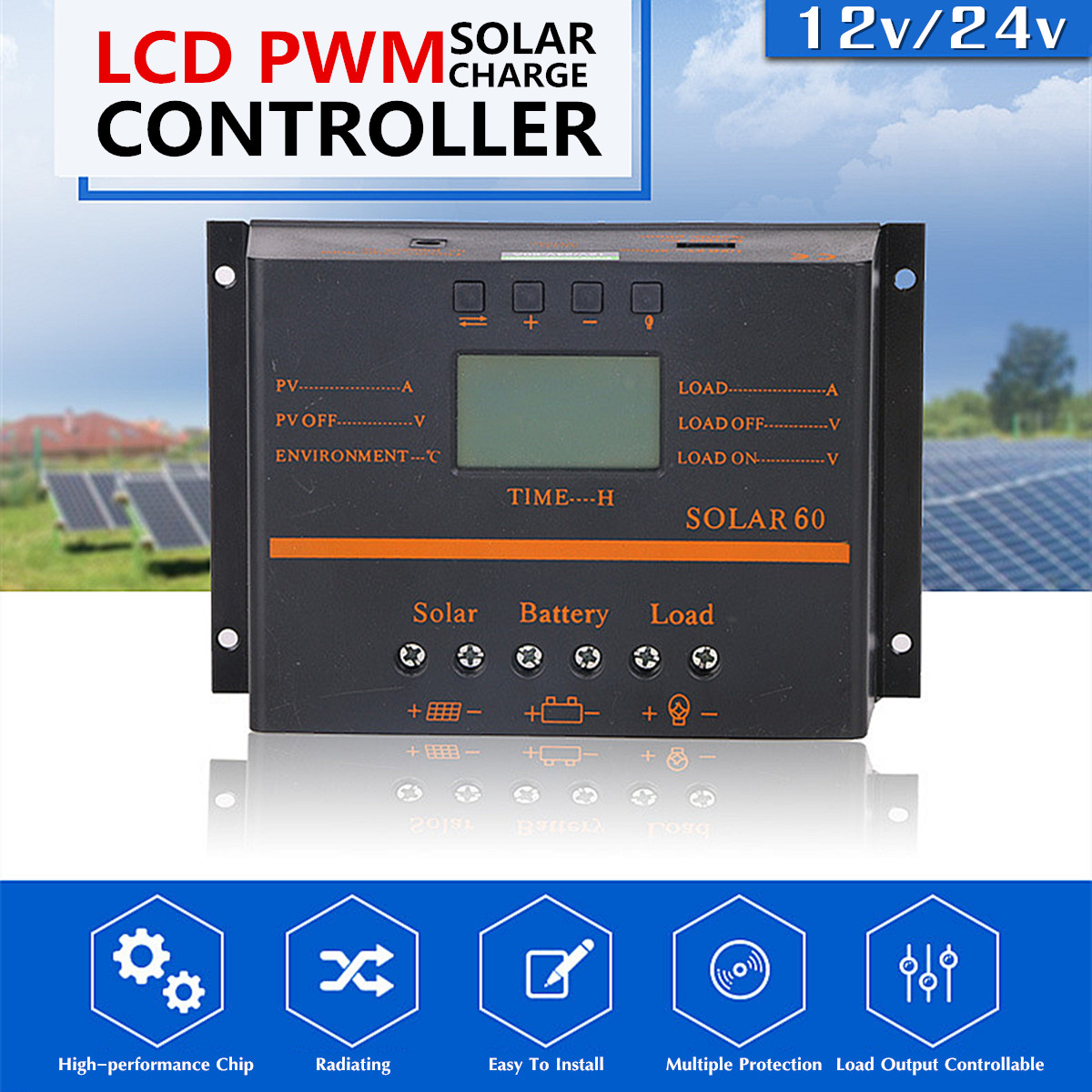

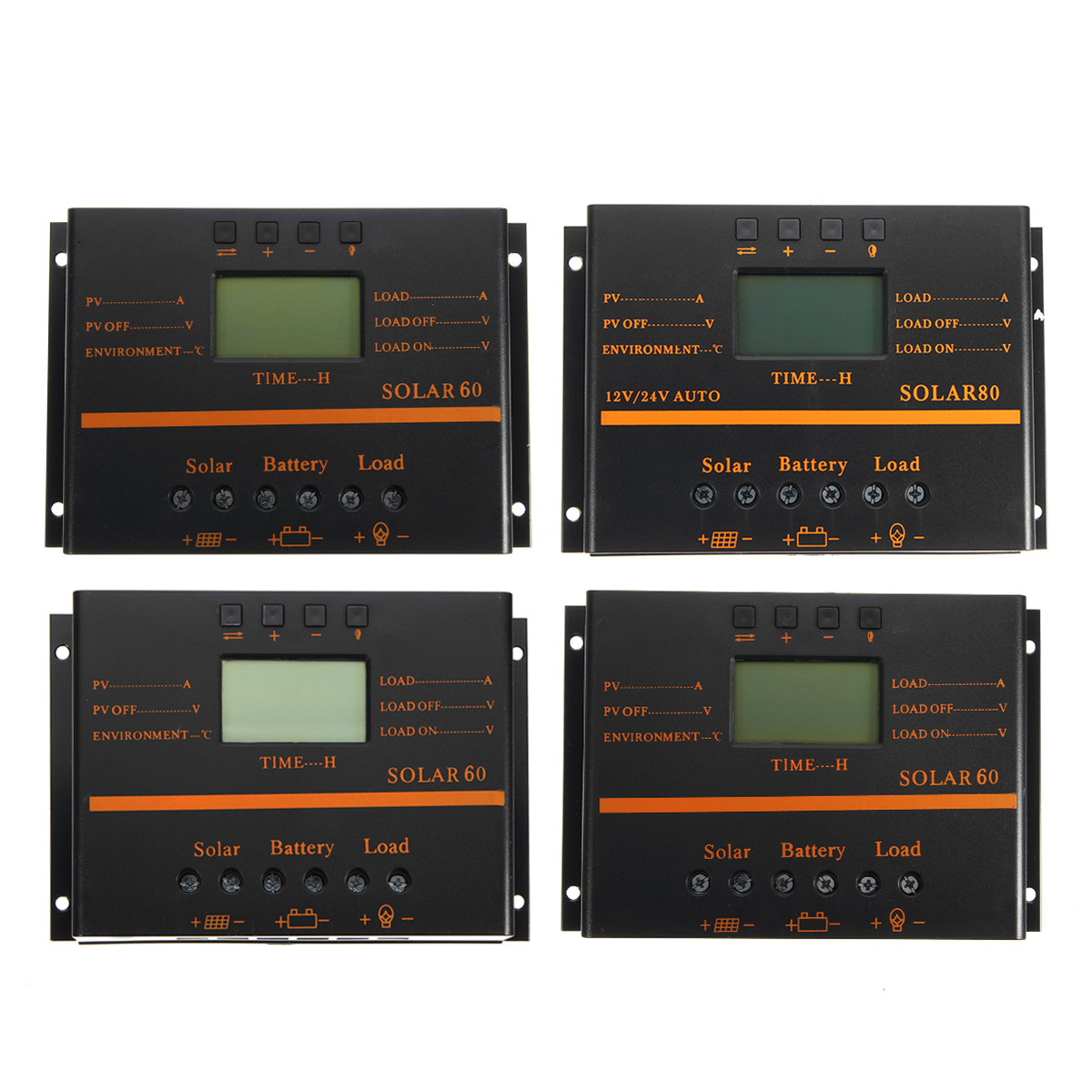

12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator

12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
12V/24V 40A/50A/60A/80A PWM Solar Controller LCD Function 5V DC Solar Panel Battery Charge Regulator
  • Stock: In Stock
  • Model: ST220017682
  • SKU: ST220017682
$67.99
Ex Tax: $67.99

Available Options

Specifications:

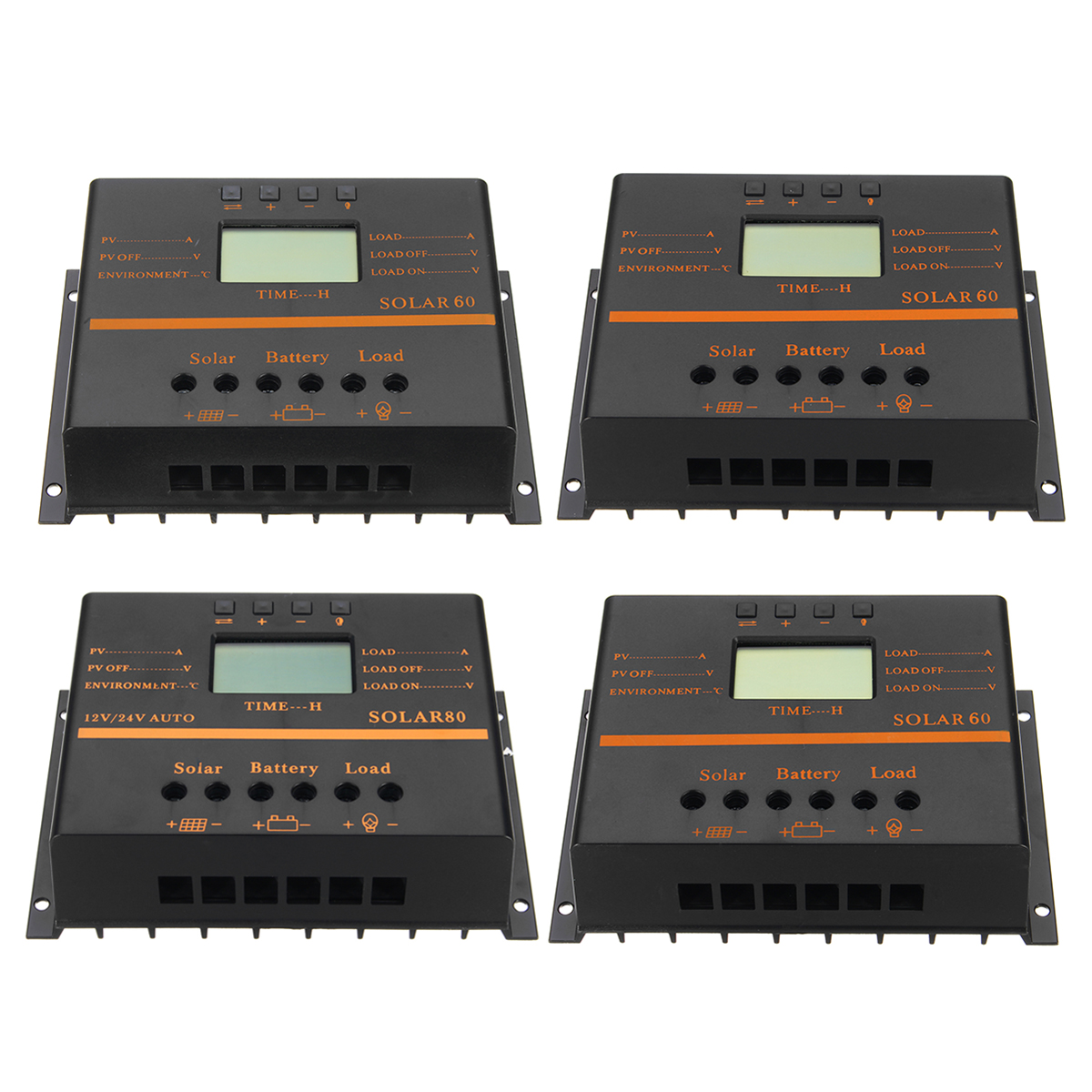

- Current: 40A, 50A, 60A, 80A
- Note: Please kindly leave us a PAYPAL NOTE specifying your favorite current, otherwise we will send it in Random.

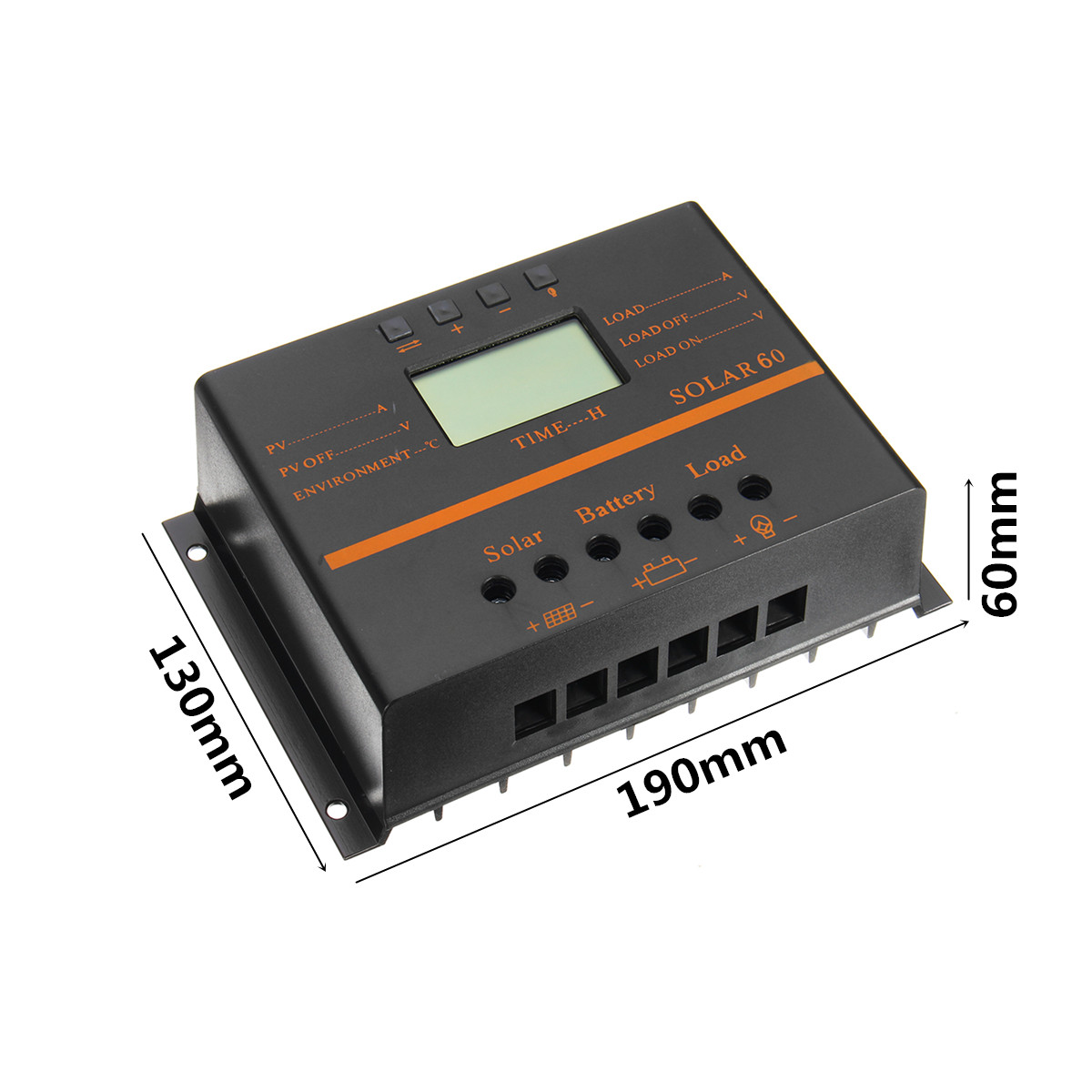

- Controller Size: Approx. 190x130x60mm/7.48x5.12x2.36"
- Installation Size: Approx. 178x97mm/7.01x3.82"
- Battery Float Voltage: 13.8V(12V system)/27.6V(24V system)
- Battery Protection: 10.6V(12V system)/21.2V(24V system)
- Battery Recovery: 12.6V(12V system)/25.2V(24V system)
- Charge Mode: MPPT+PWM MODE
- Working Temperature: -10°C ~ 60°C
- Storage Temperature: -30°C ~ 70°C
- Humidity Requirements: ≤90%, No condensation
- Temperature Compensation: -4mV/Cell/°C
- Solar Panels Voltage: ≤48V
- System Load Loss: ≤13mA
- Loop Buck: ≤100mV

Features:

- LCD screen display
- Easy operation interface

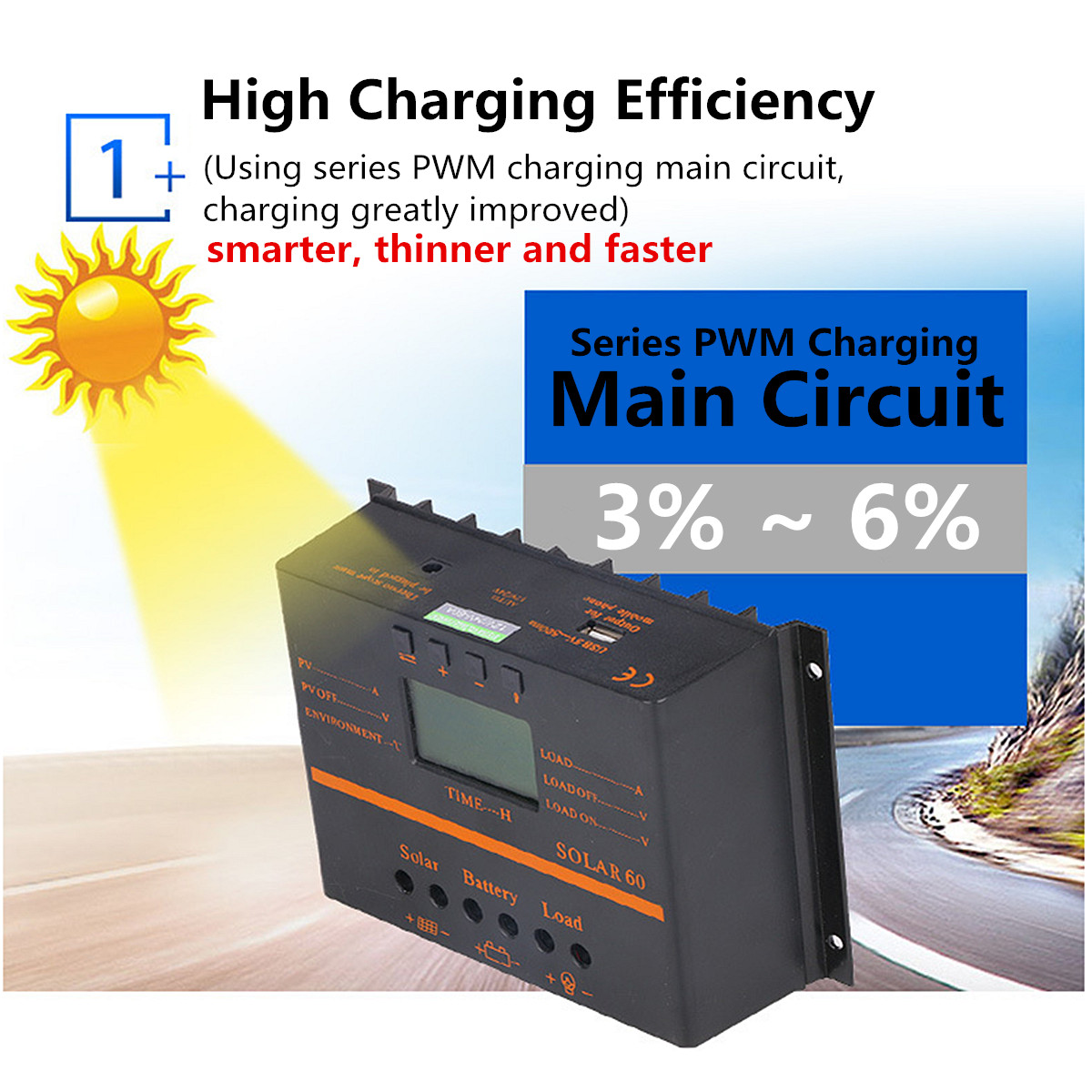

- PWM charging mode
- Parameter user can reset
- A key to open and close the load
- A key to restore the factory settings

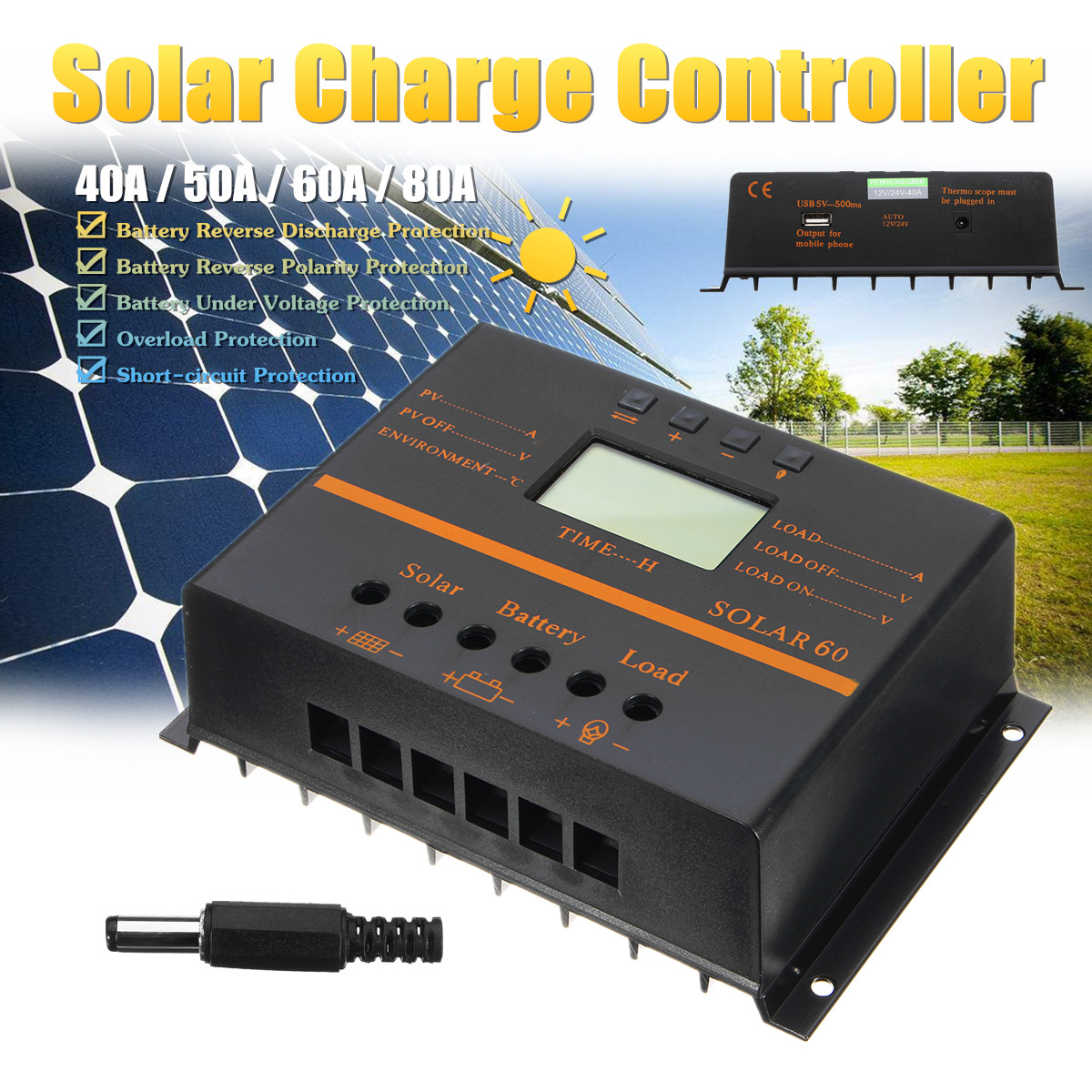

- Battery reverse discharge protection
- Battery reverse polarity protection
- Battery under voltage protection
- Overload protection
- Short-circuit protection
- Automatic temperature compensation function

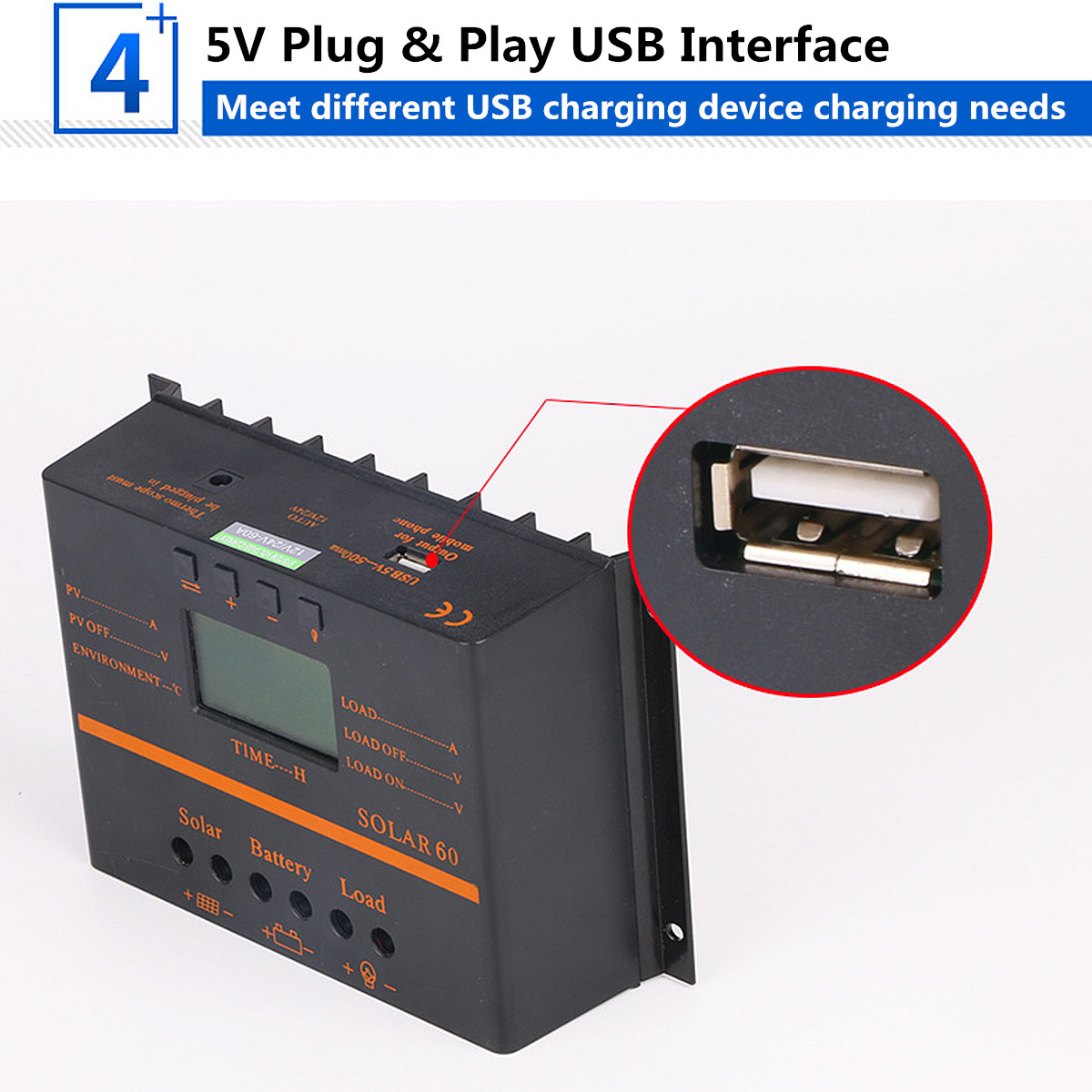

- USB 5V charging (for 500mA) for mobile phone

Package Included:

- 1 x Solar Controller
- 1 x Temp Sensor
- 1 x English User Manual
