14 Million Pixels Full HD Color Screen Digital Magnifier Microscope 1 / 2.3 Inch Electron Digital Micro
- Stock: In Stock
- Model: ST22011973
- SKU: ST22011973
$175.99
Ex Tax: $175.99
Feature:
14 megapixel sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43*1.43um
Frame rate:60fps
Display:FULL HD
Material:metal,glass
Lens:CS for test, custom provide
White balance:Auto/manual
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 5pcs of transverse lines/vertical lines, moveable
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface :Standard usb2.0 interface (Type B)
Specification:
Model: Camera with HDMI USB2.0 two output
Image format: jpg,png,tiff
Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920 *1080 @ 60FPS (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese

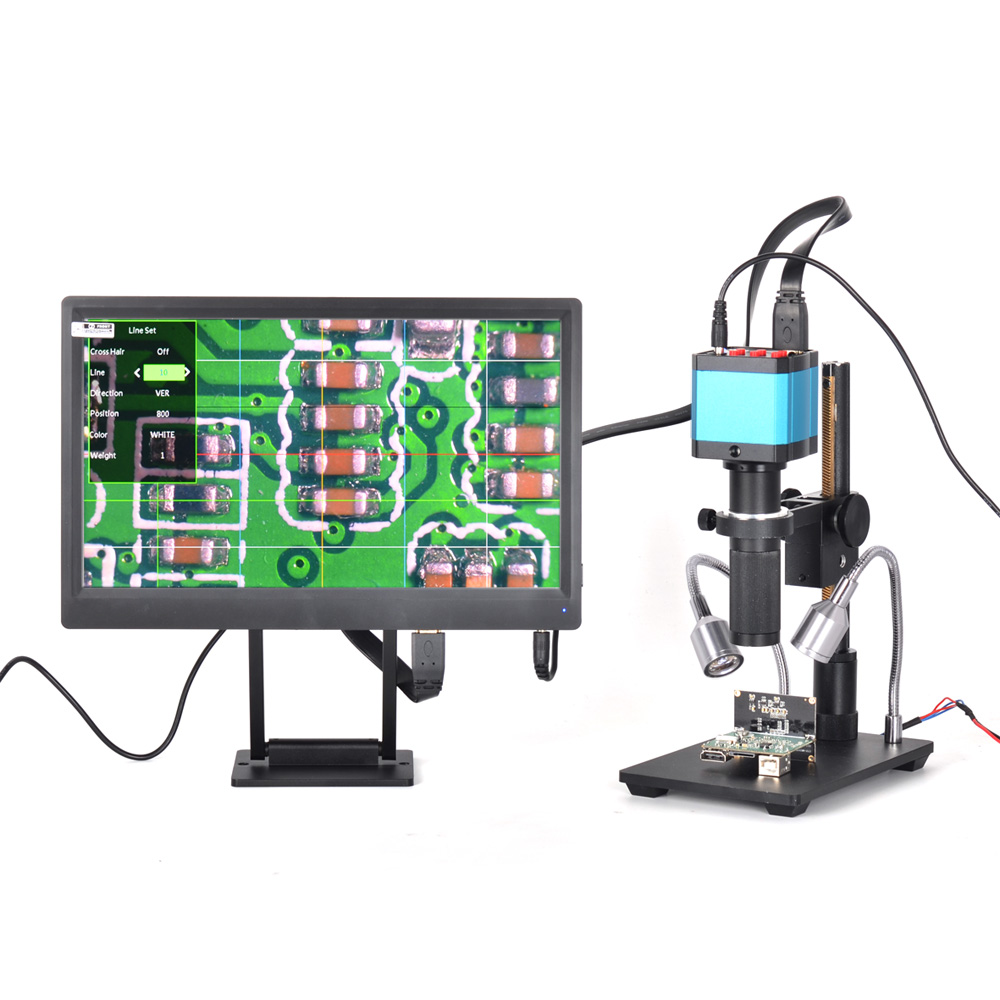

Line: different color,5 horizontal line , 5 vertical line,any positions
C-MOUNT Lens parameter:
C-MOUNT Lens parameter:
Working distance: 55mm-200mm
Field of view: 2.4mm-36mm
zoom c-mount Lens:
Magnification Power by 8X~120X
Size: 100mm(L) * 25mm(DIA)

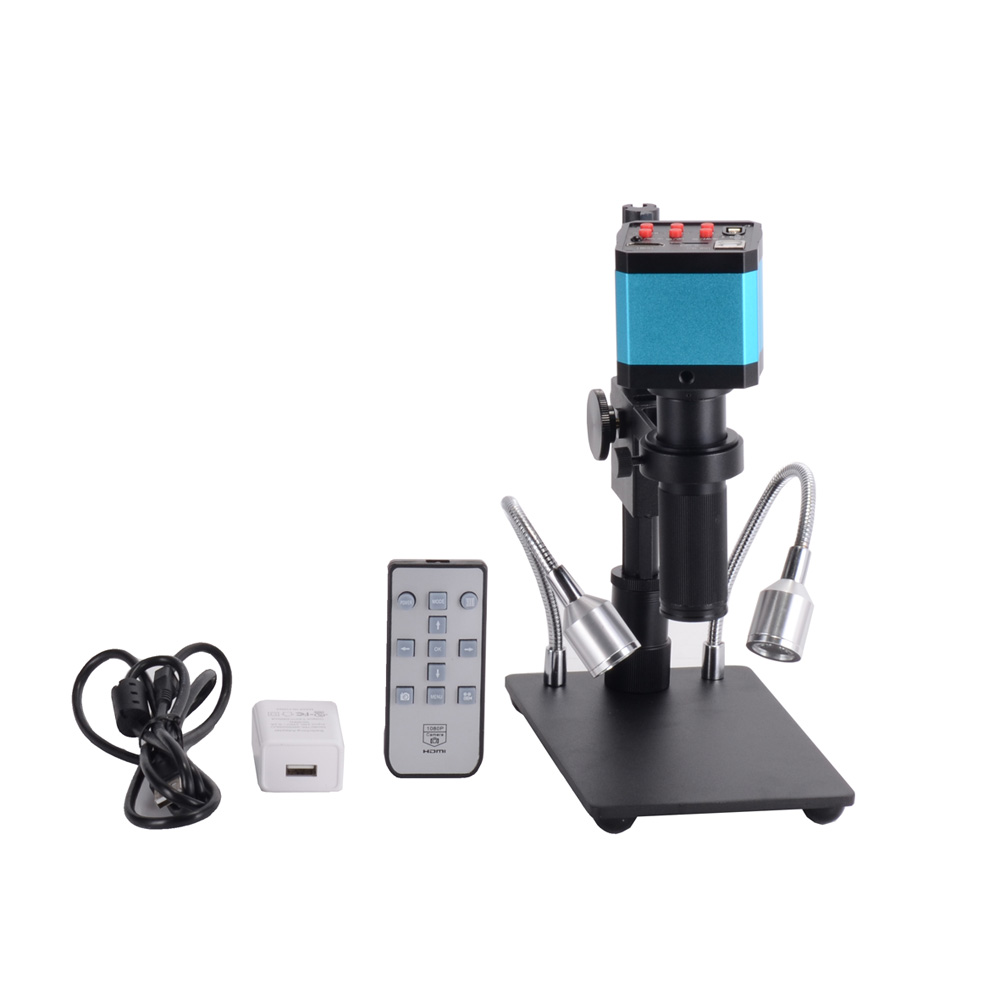

Package includes:
1 * HDMI camera
1 * HDMI cable
1 * remote control
1 * C-MOUNT Lens
1 * 12V power supply
1 * Table Stand
Note:
We will send you a plug adapter according to your country.
This product does not include a monitor.
