- Stock: In Stock
- Model: ST230038394
- SKU: ST230038394
Description:
Tesla on the basis of the general increase of the music player, you can play phone / computer music, a clear sound. 15-24V DC input voltage.

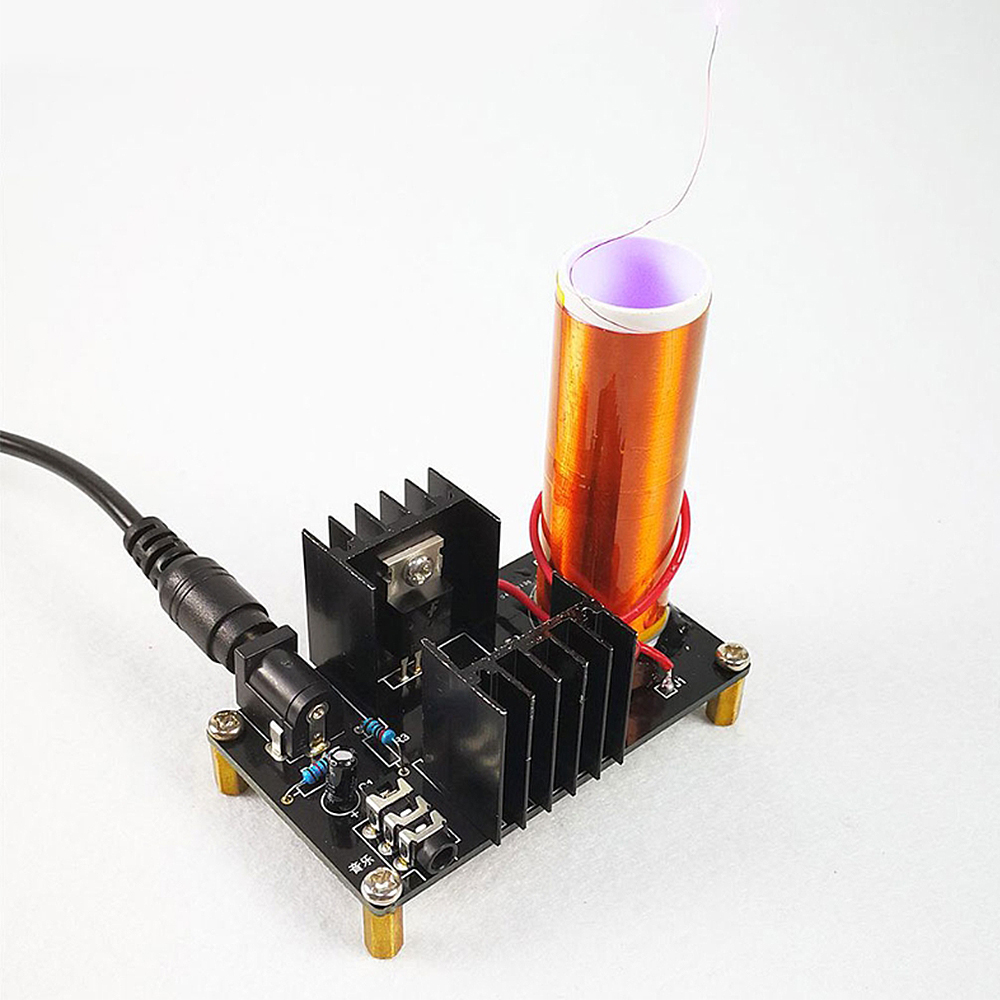

At 24V, the arc length of 5-10mm is ideal, with small volume, large power range and large power. It can work continuously for a long time, and can also be lit with LED. Foam energy-saving lamp and frequency conversion flash tube can play wireless power transmission, arc rotation, etc.
Specifications:
【Material】: Electrical components
【Color】: See pictures

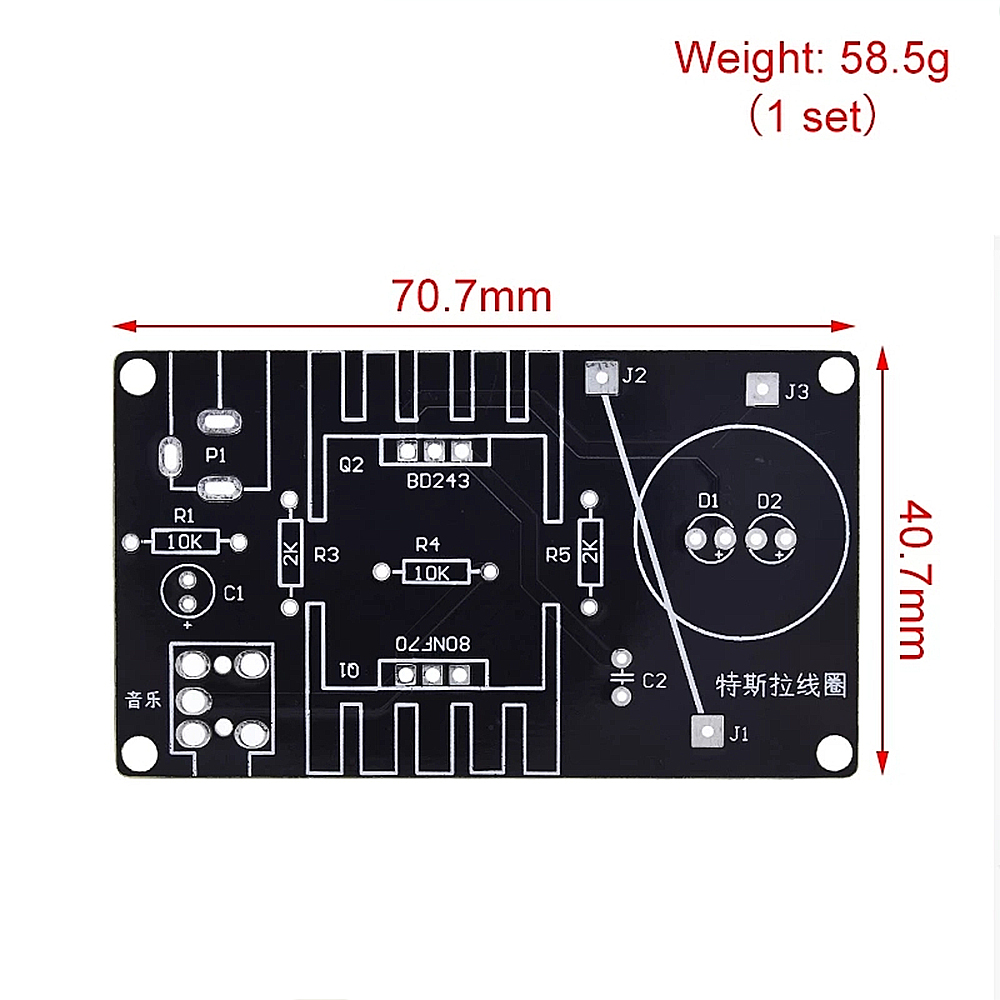

【Size】: 38×79mm.
【Power】: 15w
【Power Input】: DC 15-24V, Current 2A, DC5.5 Interface.
【Audio input】: 3.5 jack, you can connect your phone, mp3, computer audio

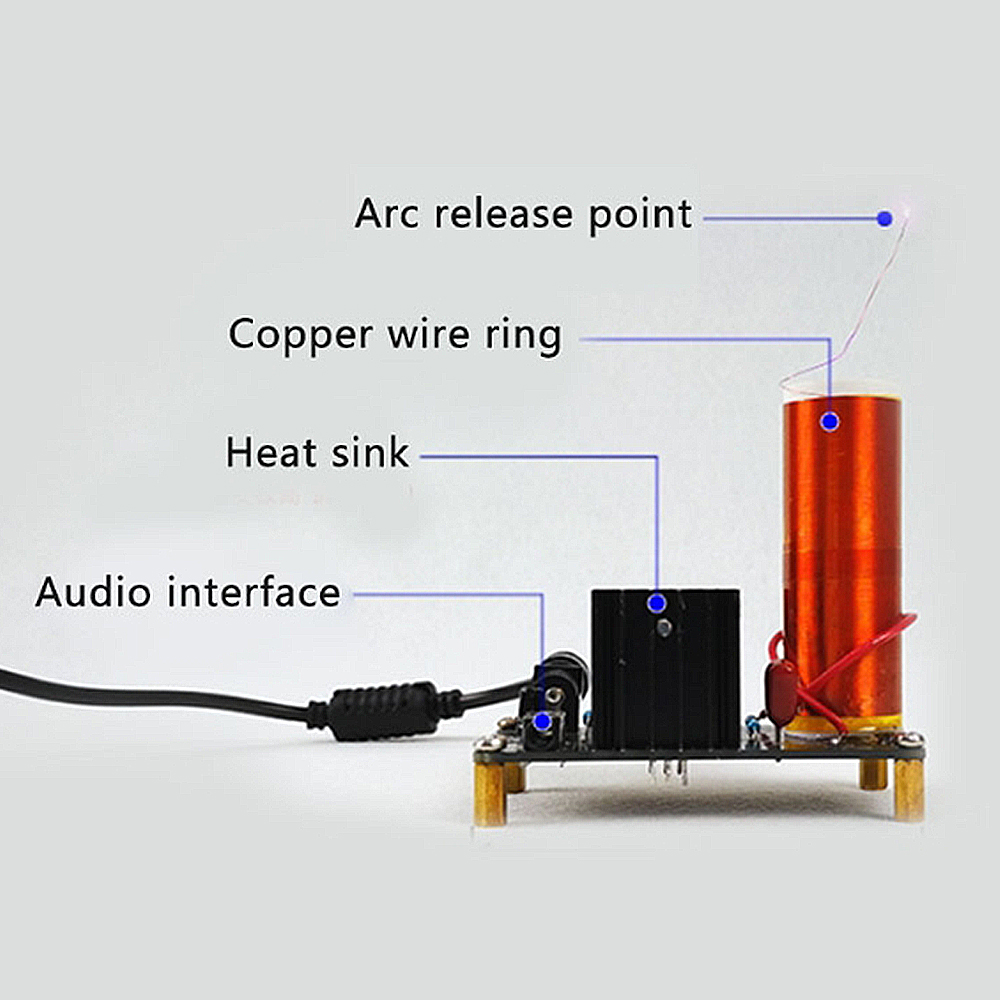

【Plasma speaker stereo speakers】: the principle is to stimulate the plasma arc of air turned into air vibrations generated by the expression of a new concept, you can access your phone, mp3, computer audio input, this mini speaker Tesla plasma arc speaker compared to the actual real experience better sound high-frequency response, and spark plasma arc speakers have good sound quality, stable and safe, you can play any song without earthing, easy to Use resources compared; There is no doubt as a new member stereo home player!

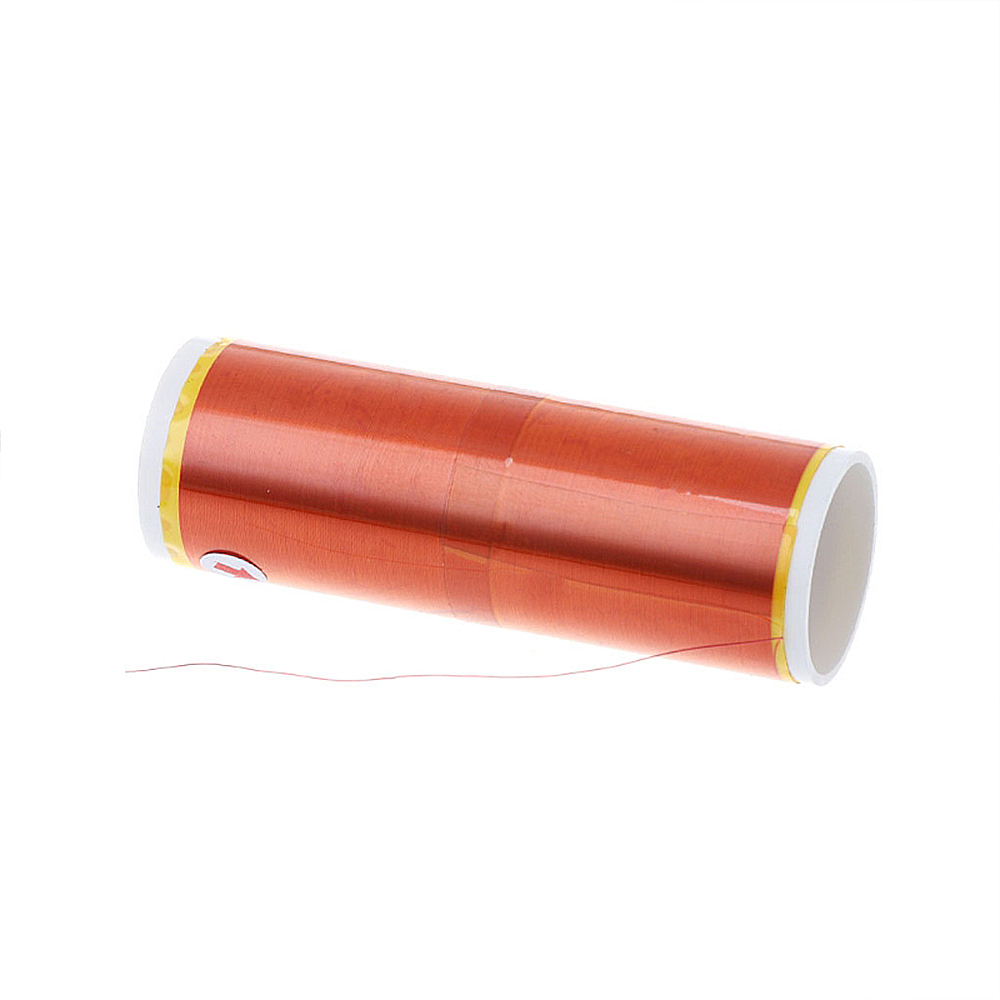

【Principle of wireless transmission】: a coil connected at both ends with both ends LED, near-emitter device, Qiliang LED, the principle is resonant wireless power transfer
Precautions:
1. Product safety, power is not high, not because of an electric shock, but is not recommended to touch the top of the arc coil, there will be a burning sensation.

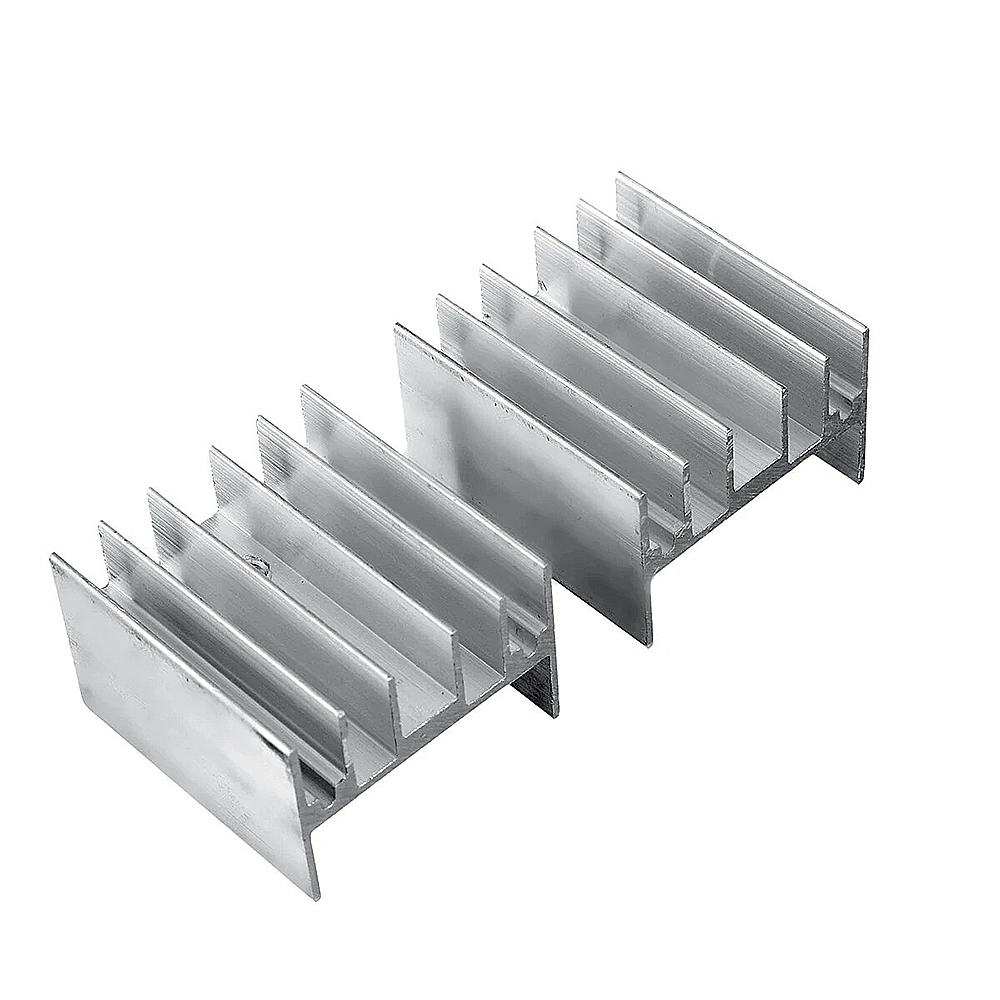

2. After a long time the power does not touch the heat sink, the temperature is very
high, especially when using a huge 24V high-voltage heat, reserve a fan interface, plus
cooling fan if necessary.
3. It is not recommended to work on the body or other objects near the coil Tesla coil, the coil within half a meter next to other objects can not be left blank, because other objects such as a good conductor coil will form a good Loop, coil to absorb energy, then pull the coil or unable to Water demonstrate the effect of the demo variation! please, note;
4. Not for the phone, mp3 and other electronic equipment near the coil, the coil generates a high frequency magnetic field would interfere with these mobile phones, mp3 and other equipment failure or damage!
Package Include:

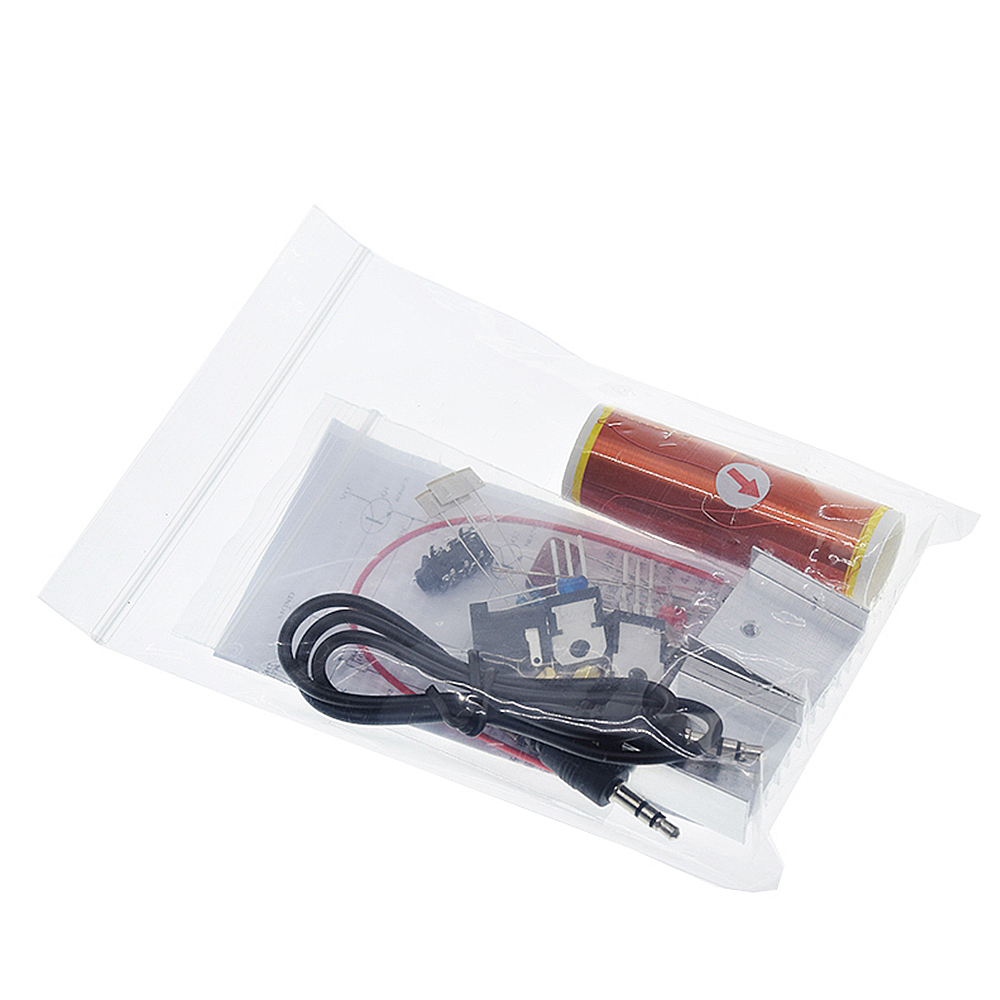

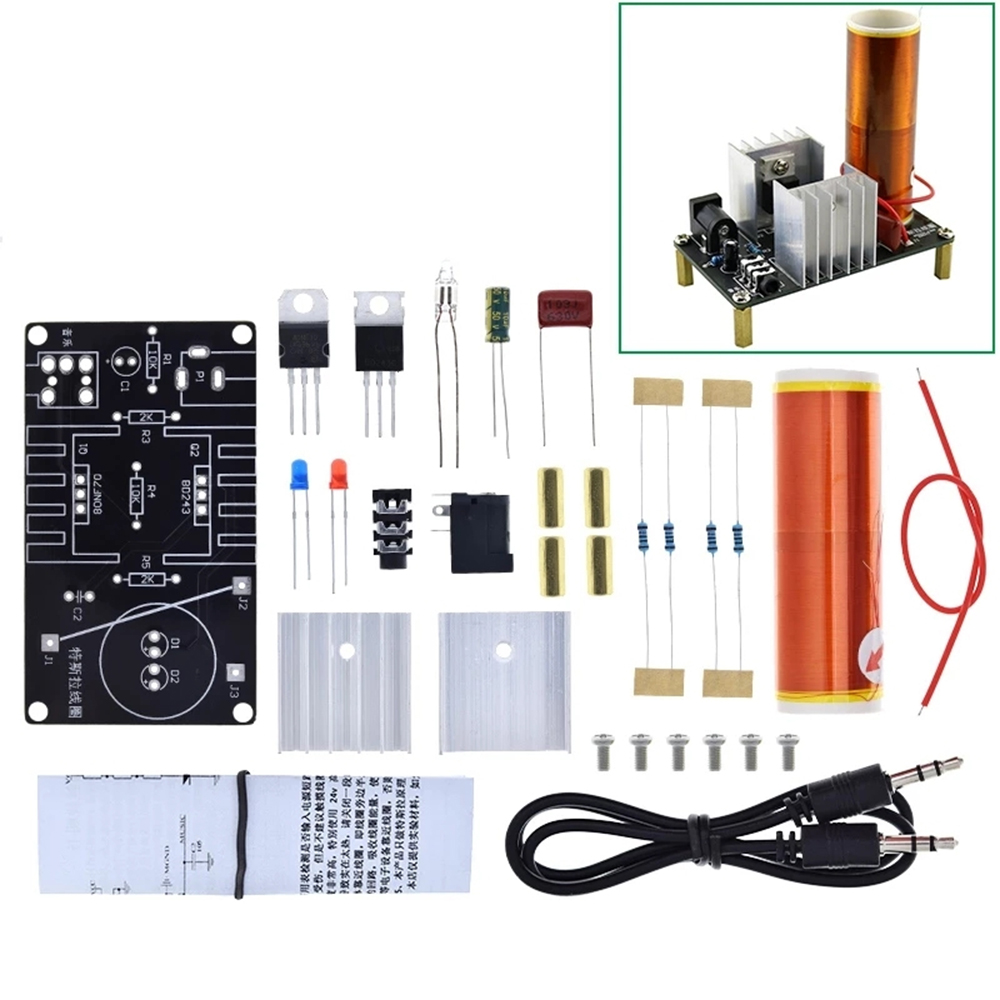

1×DIY 15W Mini Speaker Music Tesla Coil Kits
