164Pcs Polyolefin Shrinking Assorted Heat Shrink Tube Wire Cable Insulated Sleeving Tubing Set
- Stock: In Stock
- Model: ST22008677
- SKU: ST22008677
$8.04
Ex Tax: $8.04
Features:

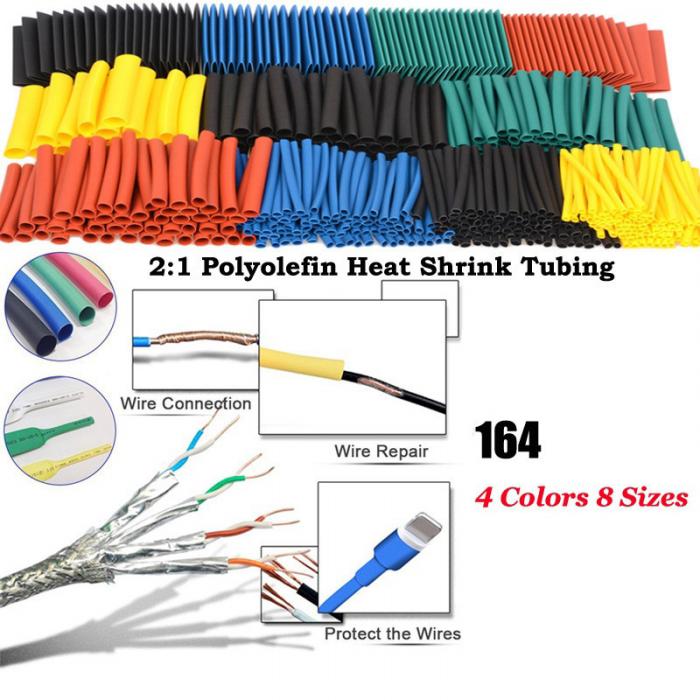

Big collection of heat shrink tubing, 8 Specifications, 5 colors, 164pcs
Supplied Internal Diameter: 1.0mm, 2.0mm, 3.0mm, 4.0mm,6.0mm, 8.0mm, 10.0mm, 14.0mm
Material: Polyolefin
Shrinkage Ratio: 2:1 (will maximum shrink to 1/2 its supplied diameter)
Operating Temperature: -55°C to +125°C
Minimum Shrinkage Temp: +70°C
Full Shrinkage Temp: +110°C Maximum
Tensile Strength: 10.4 Mpa
Dielectric Strength:15 kV/mm
Flammability: Flame Retardant
Approvals: UL ApprovedSet Includes:

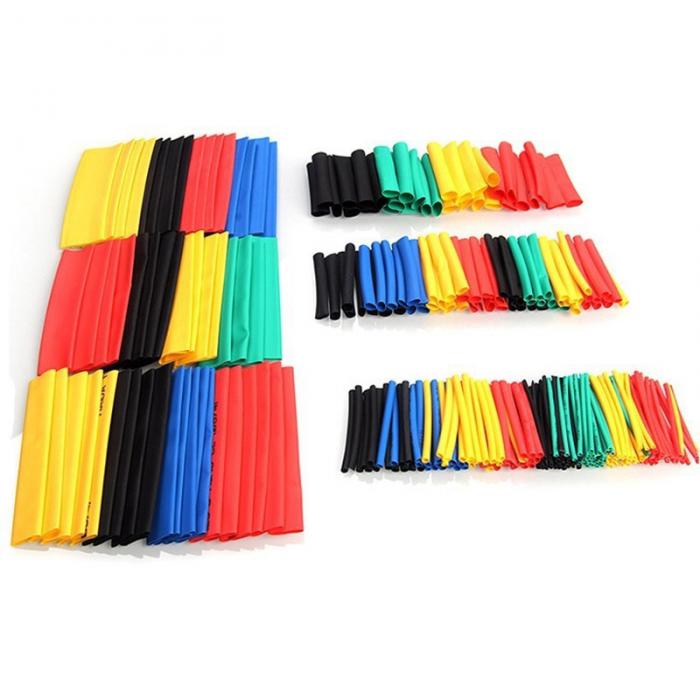

(Quantity x Supplied Internal Diameter x Single Length)
60pcs x φ1.0 x 40mm (Yellow,Black,Red,Green)
30pcs x φ2.0 x 40mm (Yellow,Black,Red,Blue)
16pcs x φ3.0 x 40mm (Yellow,Black,Red,Green)
16pcs x φ4.0 x 40mm (Yellow,Black,Red,Blue)
16pcs x φ6.0 x 40mm (Yellow,Black,Red,Green)
10pcs x φ8.0 x 80mm (Yellow,Black,Red,Blue)
8pcs x φ10.0 x 80mm (Yellow,Black,Red,Green)
8pcs x φ14.0 x 80mm (Yellow,Black,Red,Blue)
Package Included:
164 x Heat Shrink Tubing

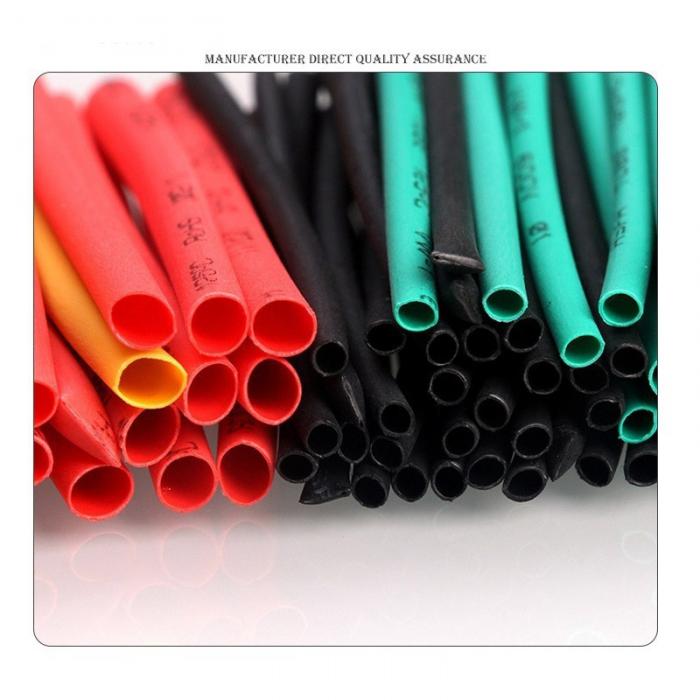

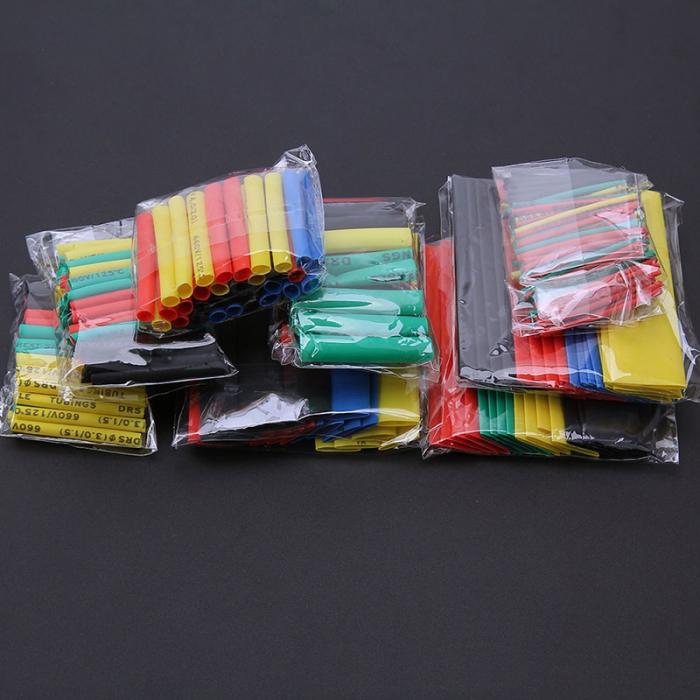

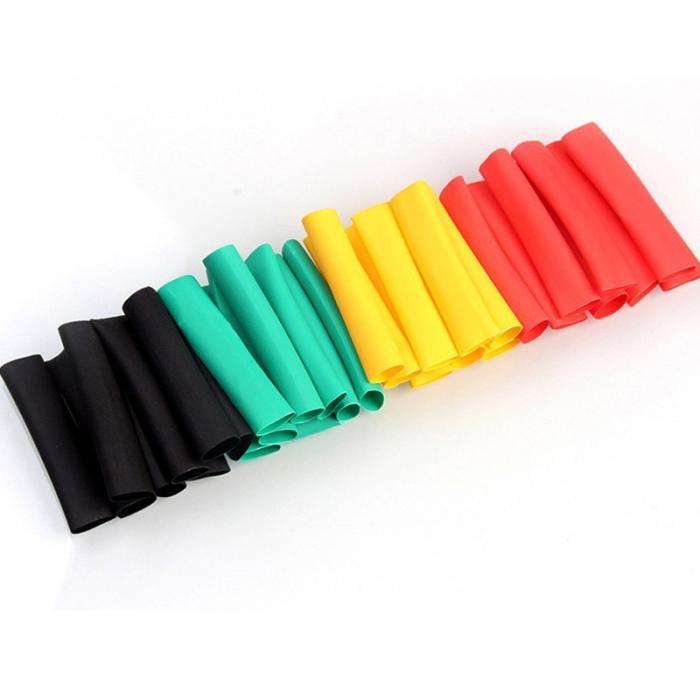

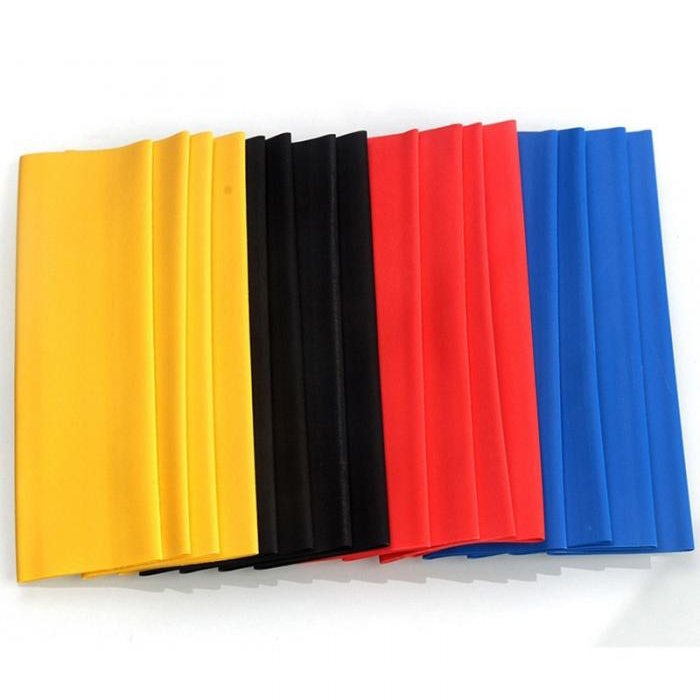

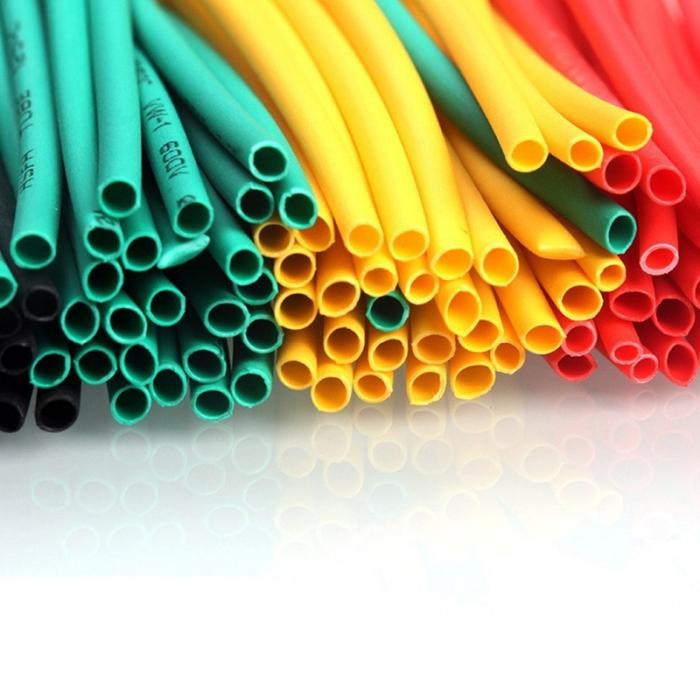

Detail Pictures:
