17 Stepper Motor 42mm 1.68A for CNC Router
- Stock: In Stock
- Model: ST220012547
- SKU: ST220012547
$17.20
Ex Tax: $17.20
Description:
Specification:
Features:
Application: Use for linear actuators and CNC router for plastic and metal.
More Details:

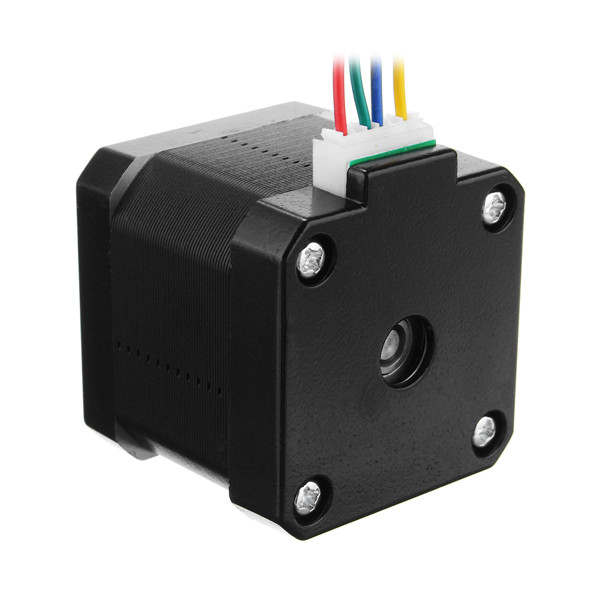

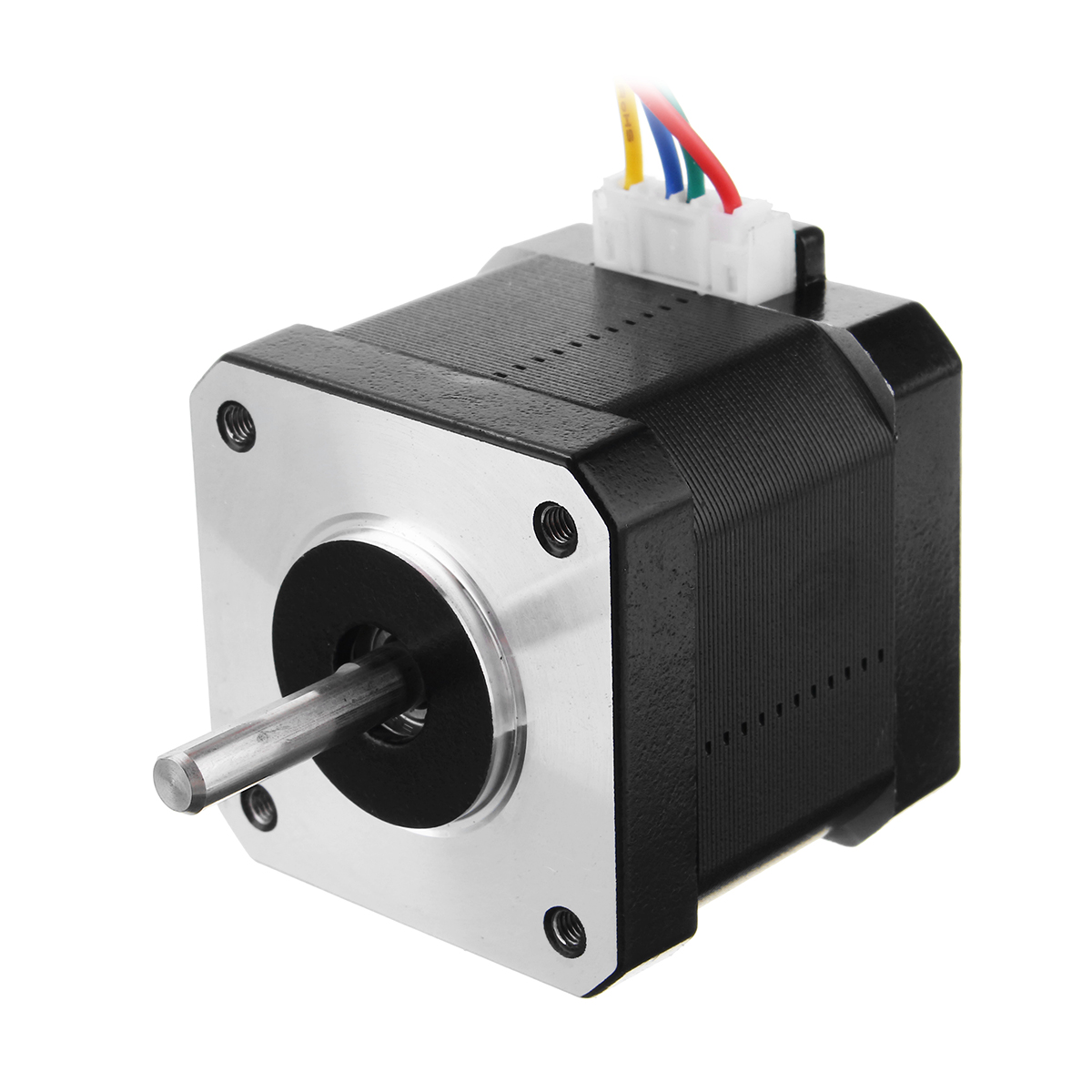

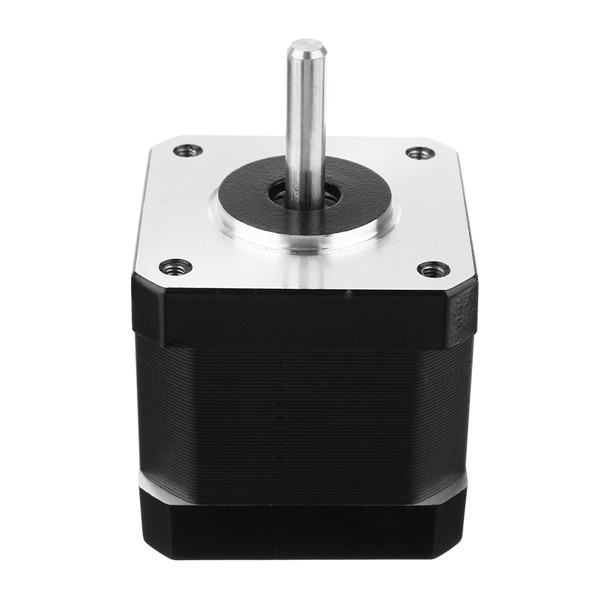

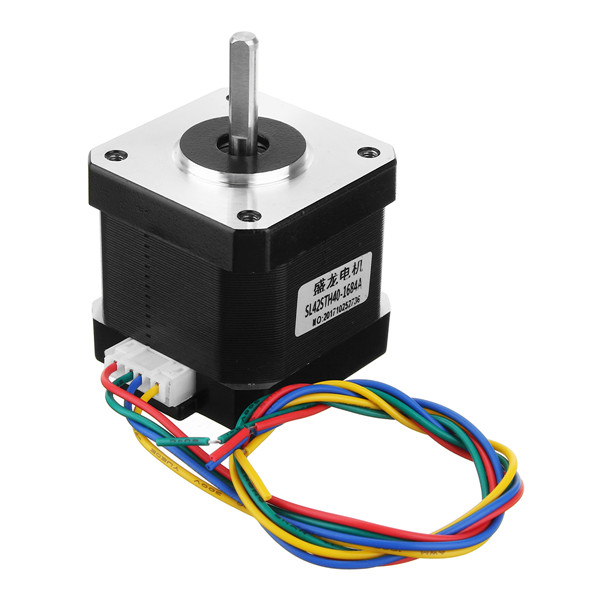

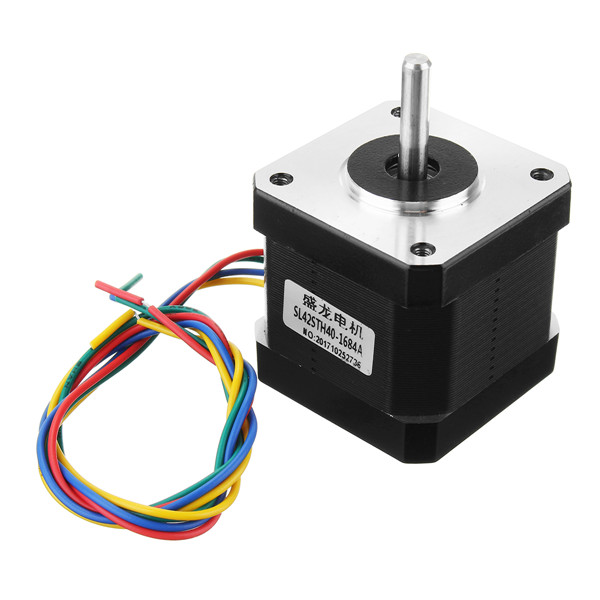

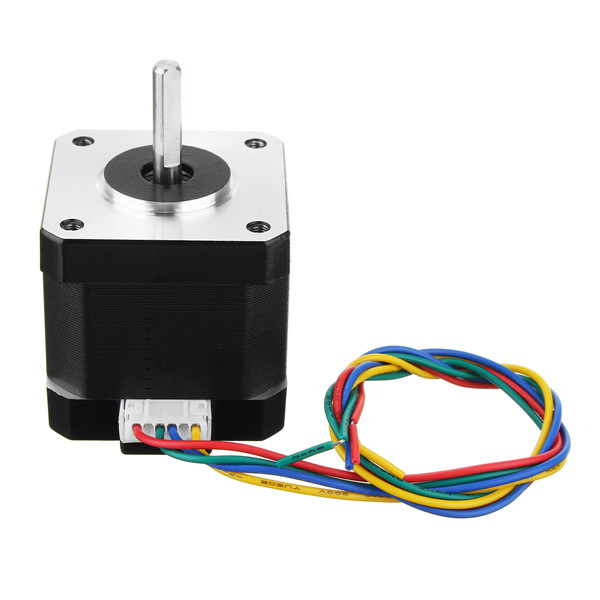

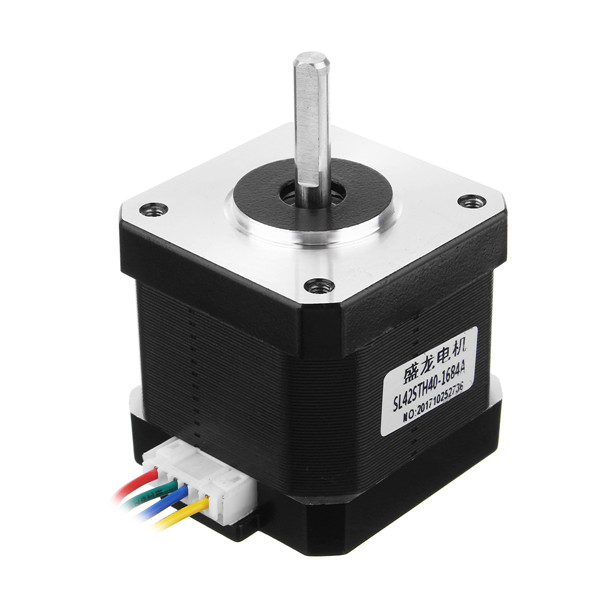

Nema 17 Stepper Motor 42mm 1.68A for CNC Router
Specification:
| Model | SL42STH40-1684A |
| Material | Metal |

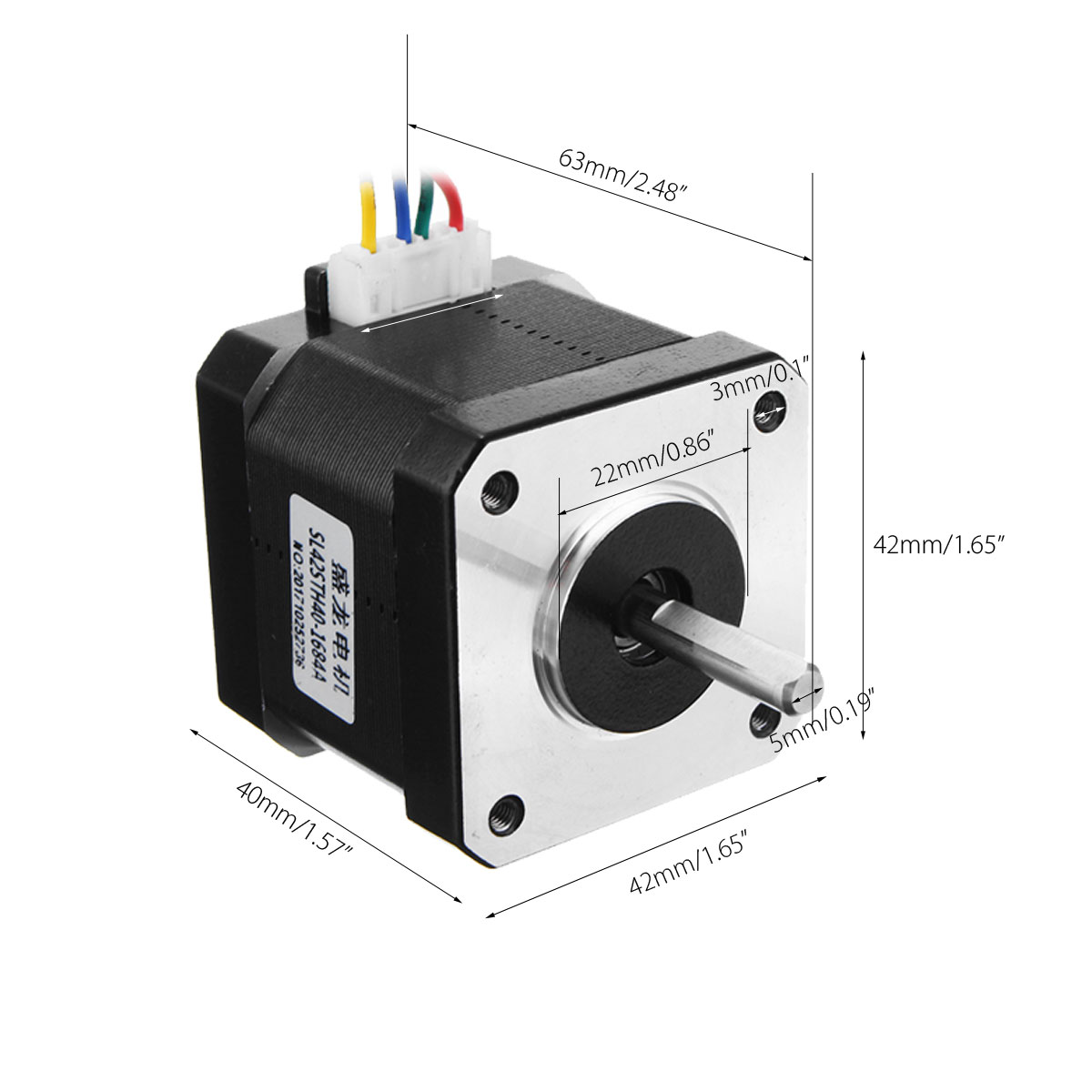

| Dimension | 42x42x40mm/1.65”x1.65”x1.57” |
| Step angle | 1.8° |
| Rated voltage | 2.8V |
| Rated current | 1.68A |
| Resistance/phase | 1.65Ω |
| Inductance/phase | 3.2mH |
| Moment of Intertia | 54g.cm2 |
| Holding torque | 0.4Nm |
| Lead | 4 |
| Orlentation torque | 150 g-cm |
Small vibration and low noise
Low heat, smooth operation, good acceleration performance.
Package Included:
1 x Nema 17 Stepper MotorMore Details:
