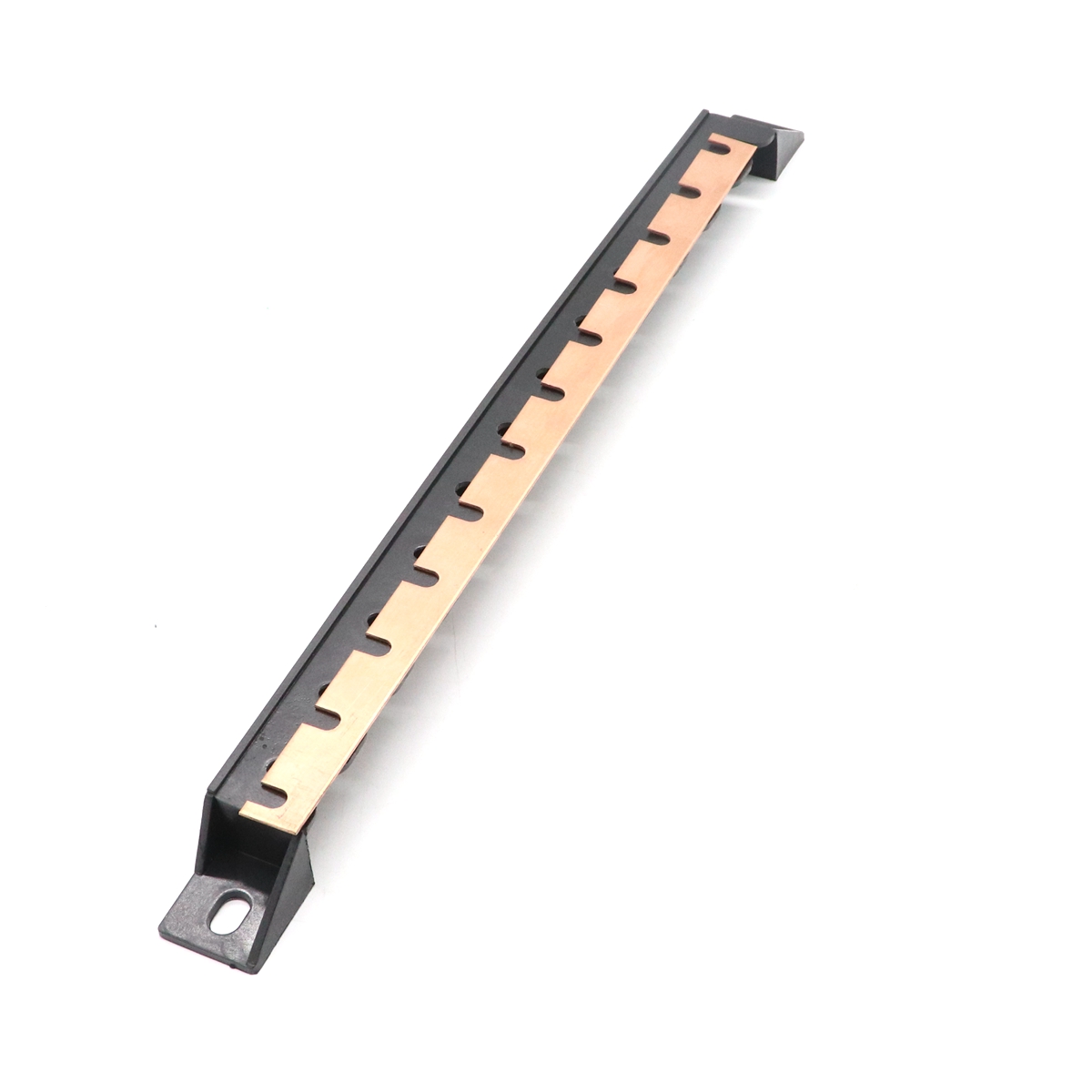

180A 48V E5 Circuit Breaker Mounting Bracket Stud Mount For Car Truck Yacht RV 4/6/8/12/13 Position
- Stock: In Stock
- Model: ST220016142
- SKU: ST220016142
$7.99
Ex Tax: $7.99
Specification:
Color: Black + Copper
Material: Plastic + Copper + Iron
Material: Plastic + Copper + Iron
Maximum rated voltage: 48V
Maximum rated current: 180A
Weight: 25 / 25 / 60 / 65 / 85 / 95g

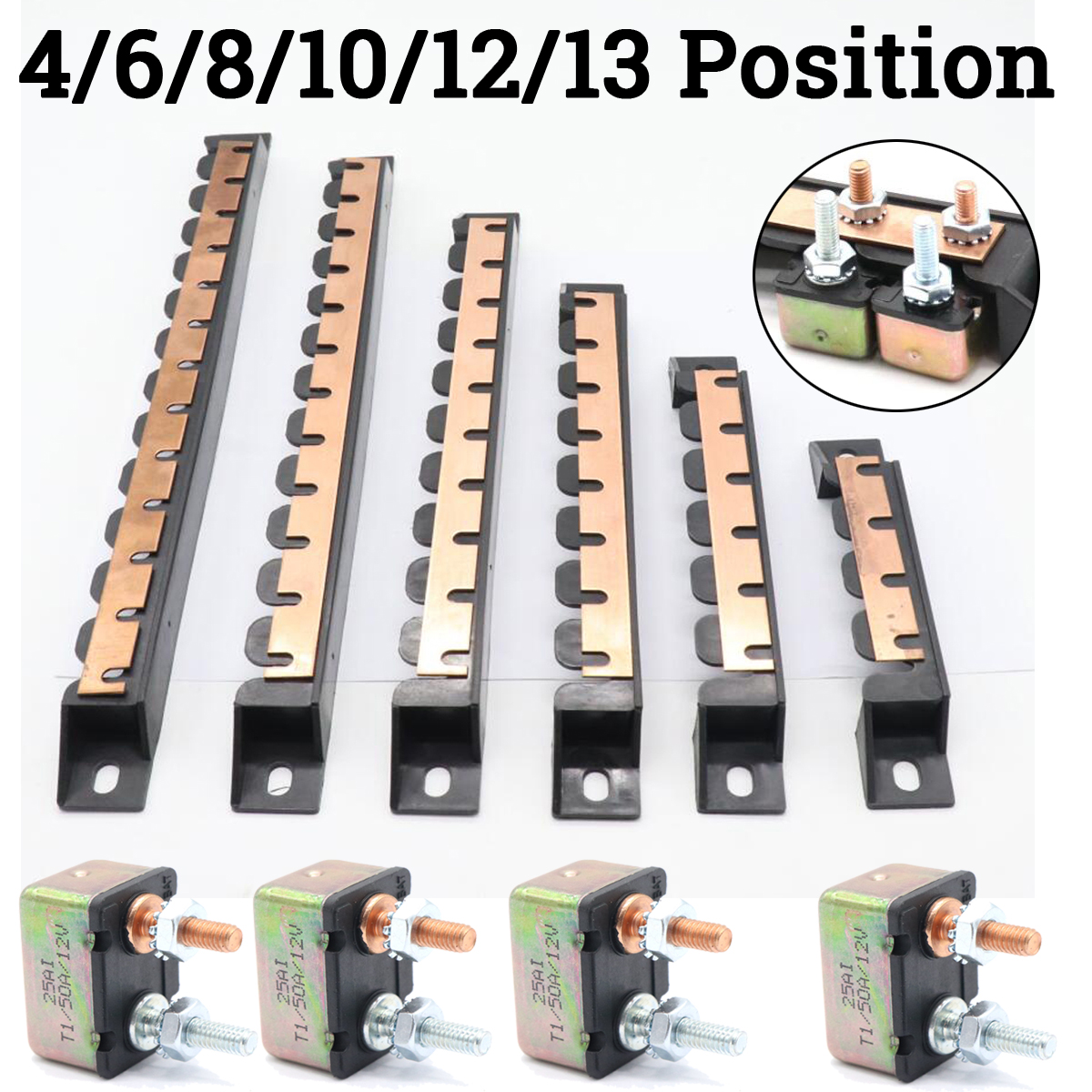

Poles: 4 / 6 / 8 / 10 / 12 / 13positions(optional)
Features:
Applicable for power systems of trucks, yachts, RV, etc

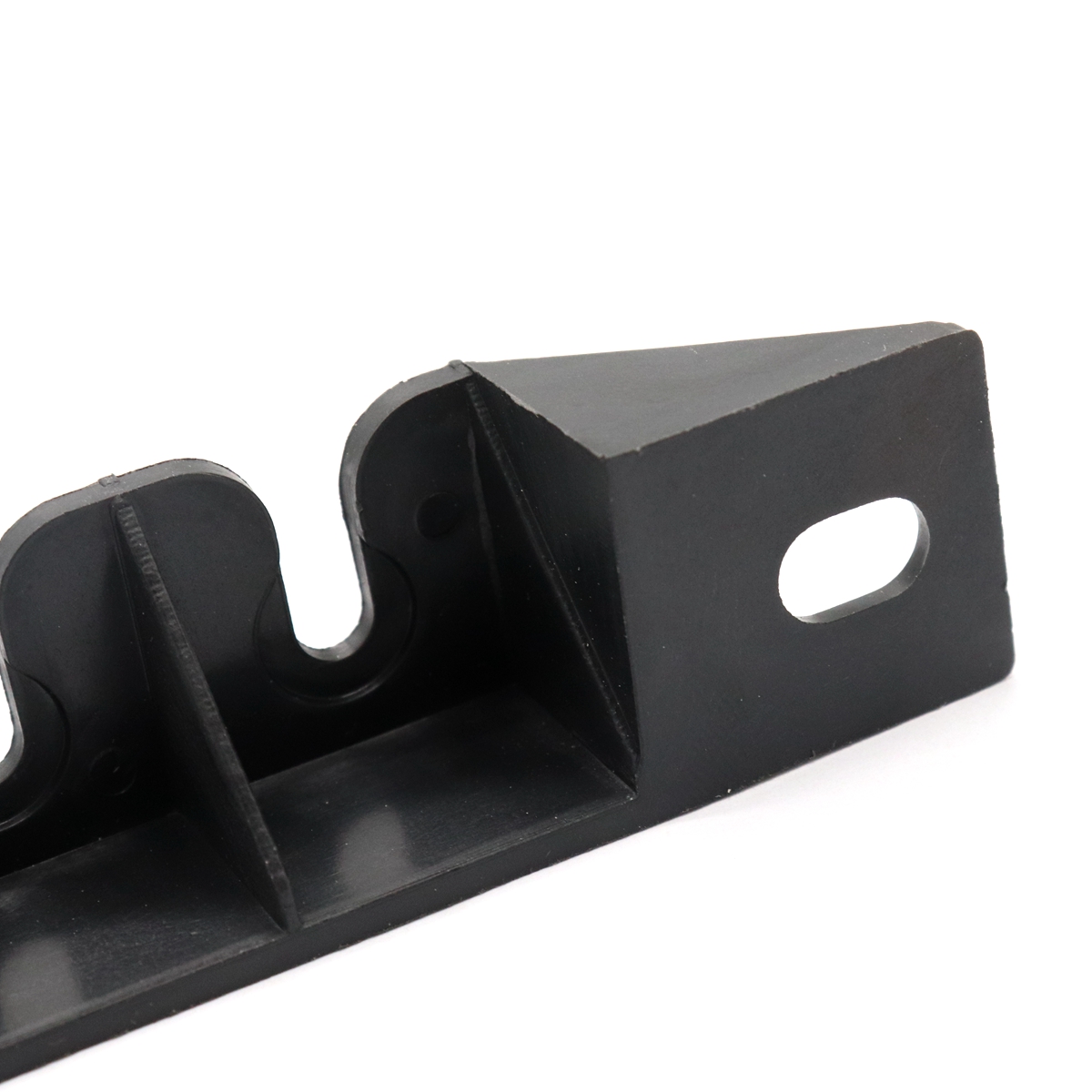

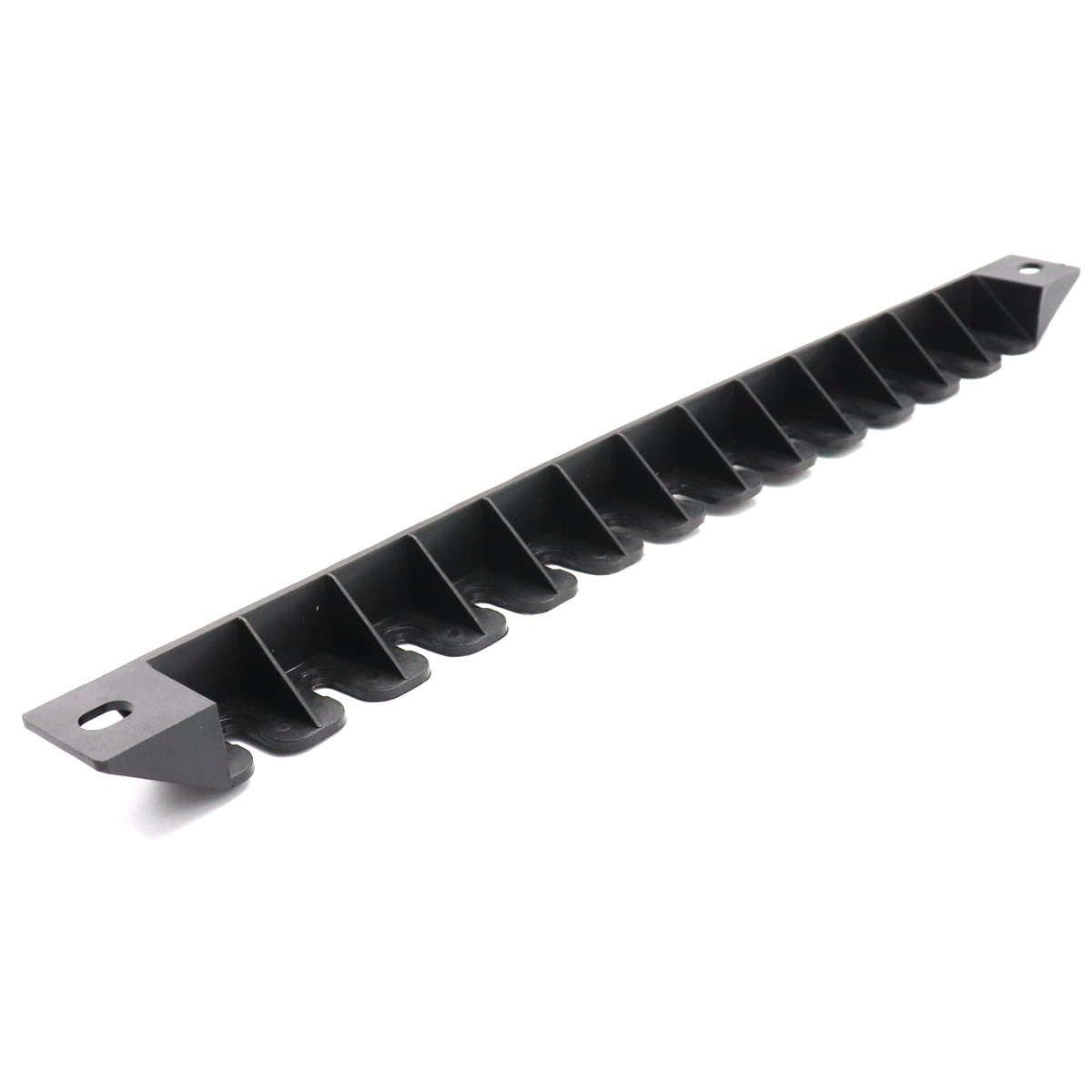

The material of the bracket is resistant to flame retardant, heat, anti-aging and anti-corrosion.
Copper bus slot with the thickness of 1.2mm, can withstand 180A large current, good electrical conductivity.

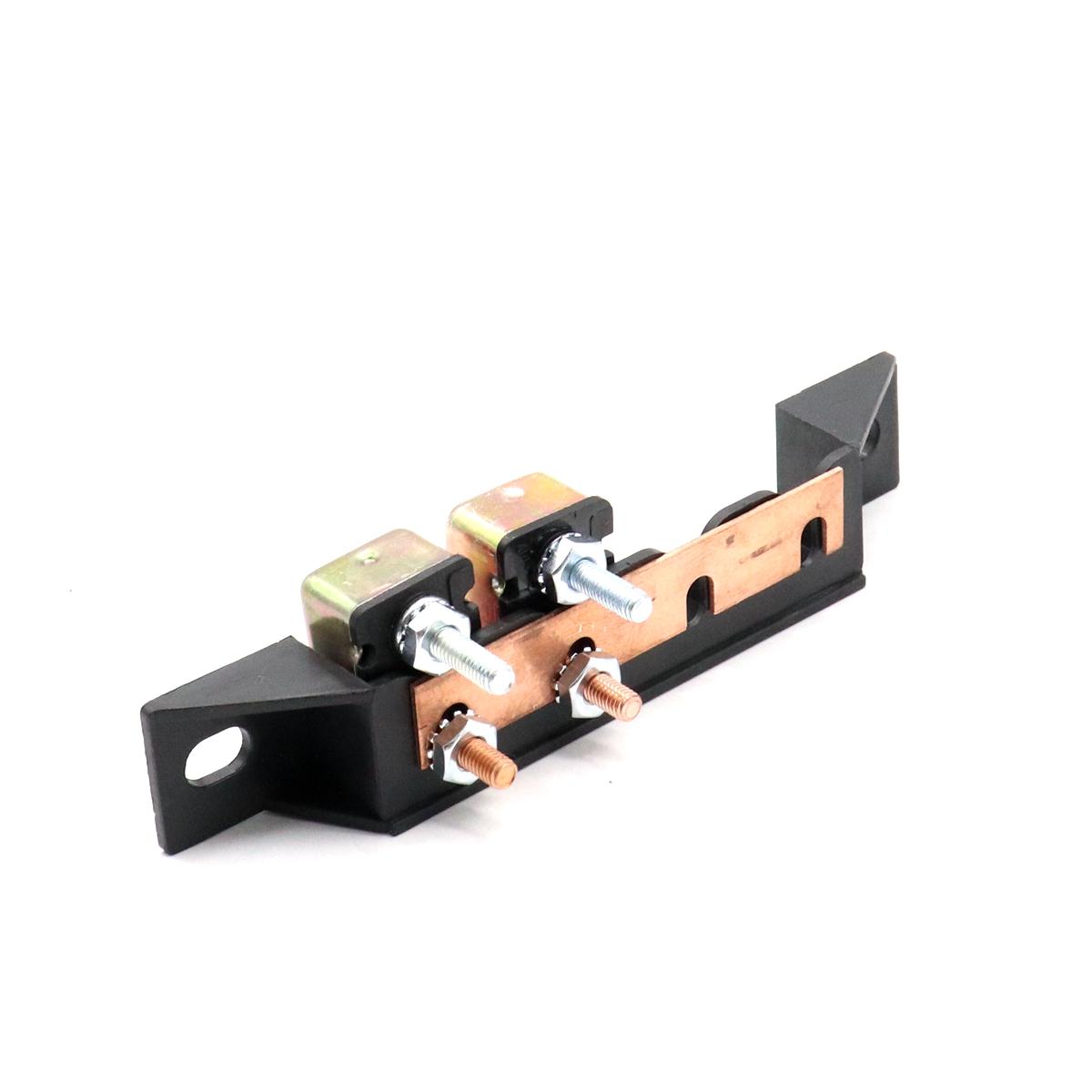

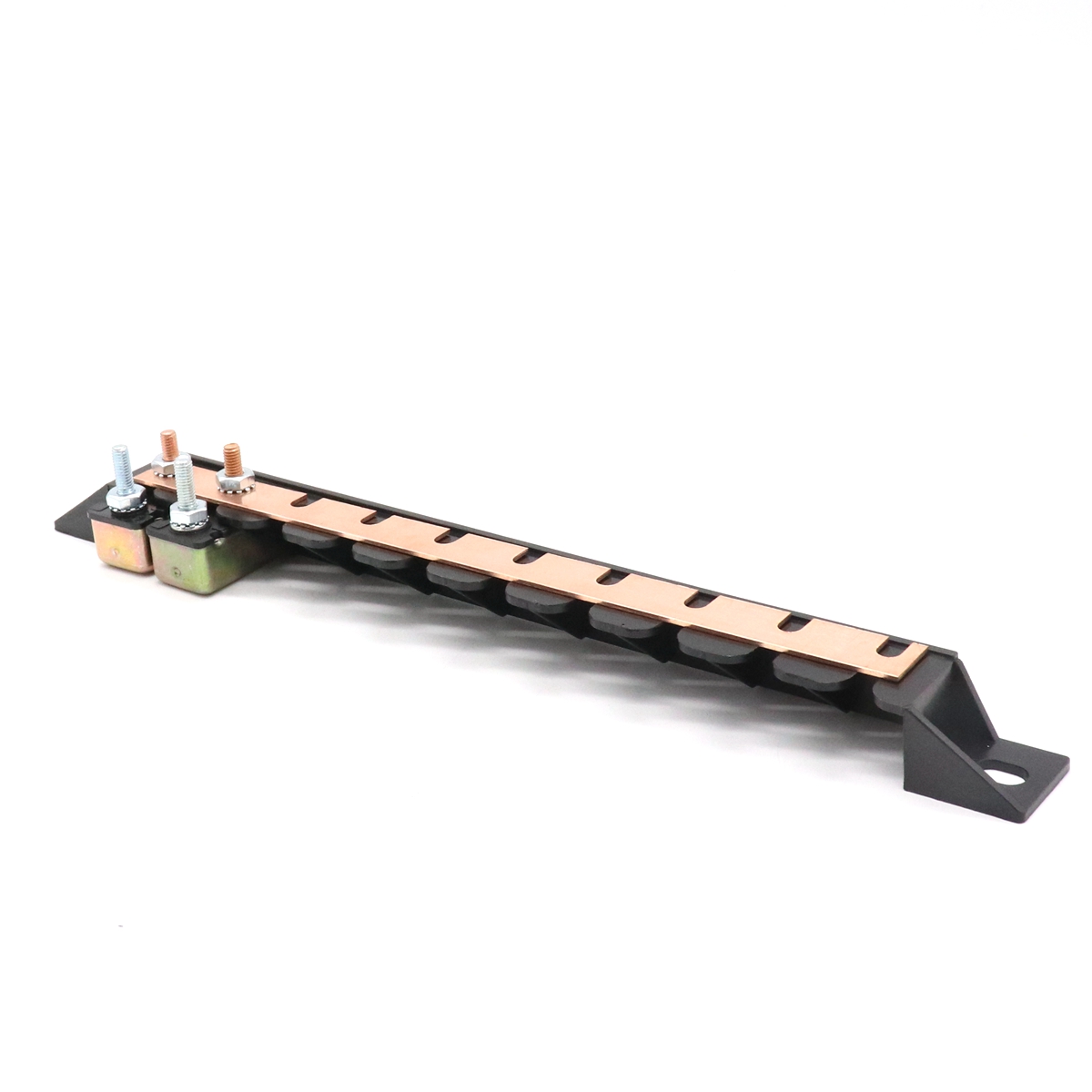

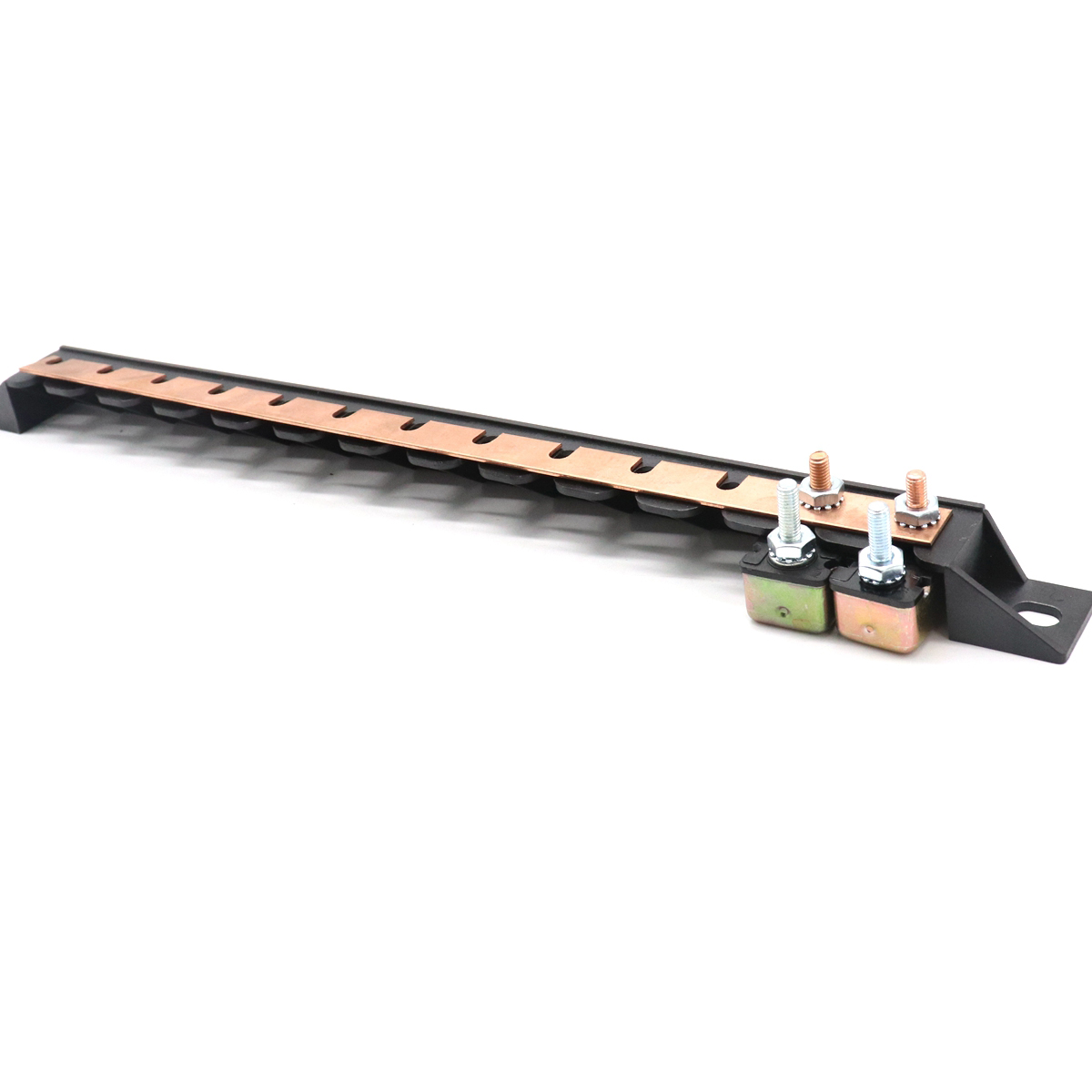

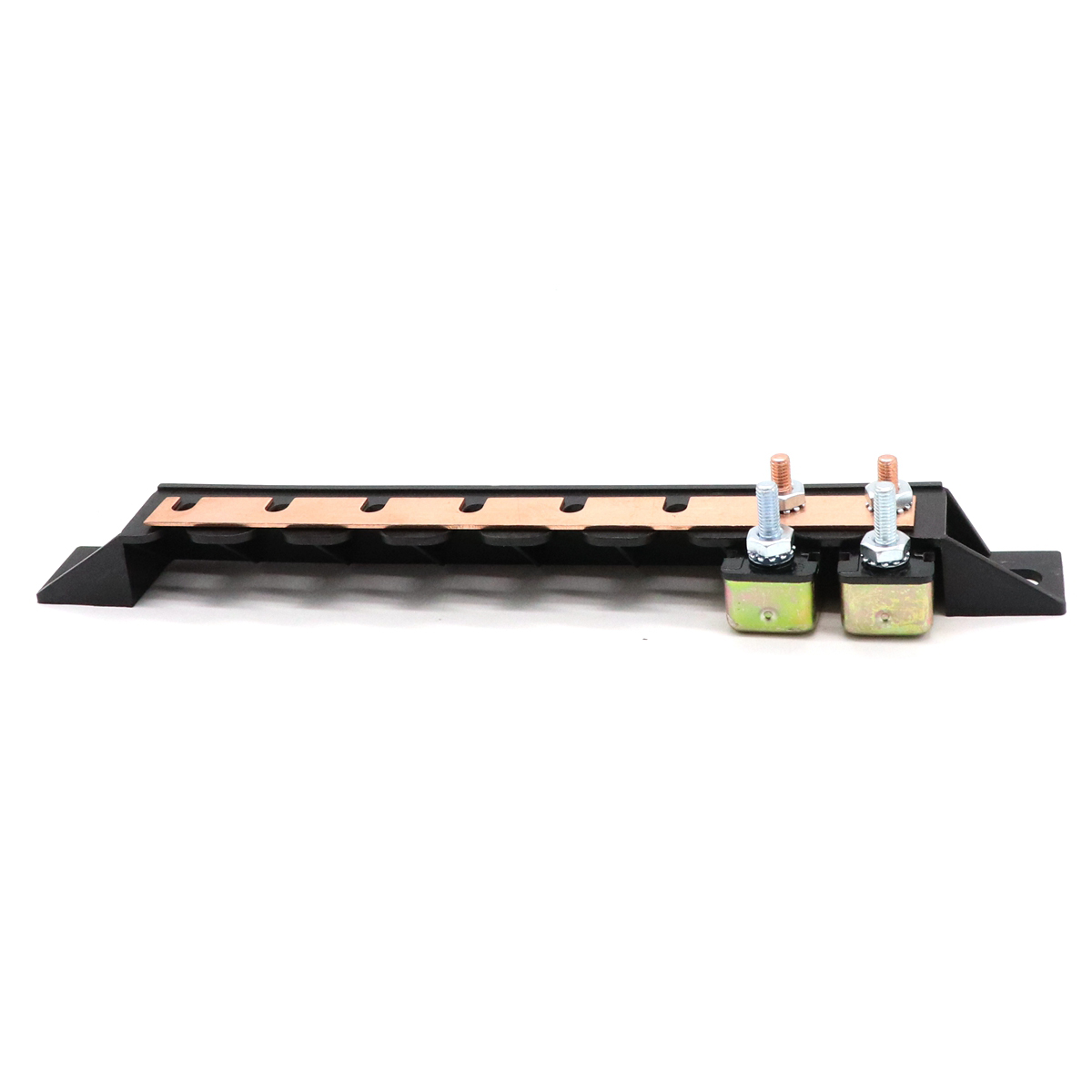

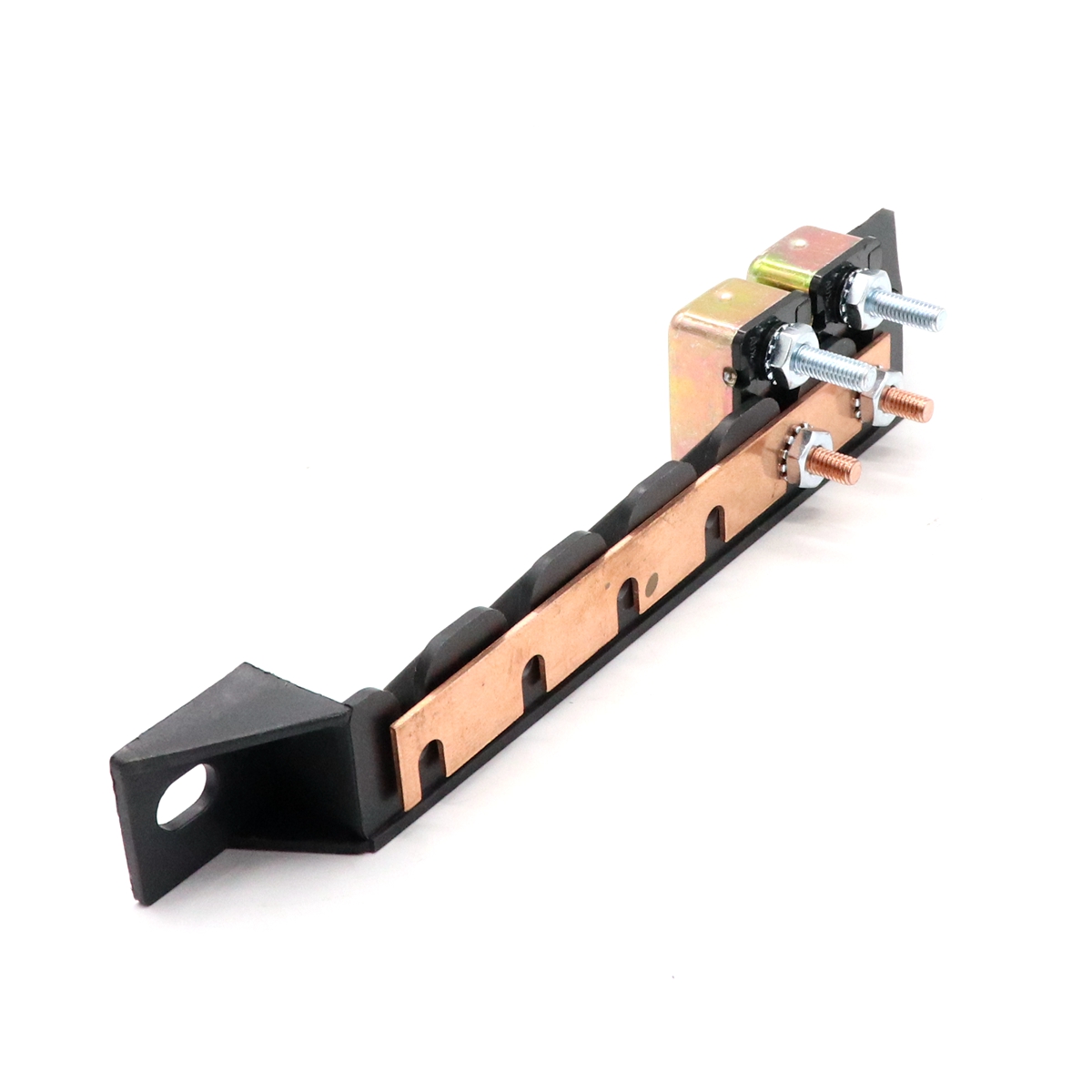

Used for E5 series circuit breakers to be put together, making installation easier and simpler, the line safer and more tidy.| size | |||
| Plastic bracket size | Plastic mounting hole spacing | Copper bus slot size | |
| 4 bits | 144.7*23.3*23.2mm/5.70*0.92*0.92" | 124mm/4.88" | 81.9*14.3*1.2mm/3.22*0.56*0.05" |
| 6 bits | 190.8*23.3*23.2mm/7.51*0.92*0.92" | 170.1mm/6.70" | 128*14.3*1.2mm/5.04*0.56*0.05" |
| 8 bits | 236.9*23.3*23.2mm/9.33*0.92*0.92" | 216.9mm/8.54" | 174.2*14.3*1.2mm/6.86*0.56*0.05" |
| 10 bits | 283*23.3*23.2mm/11.1*0.92*0.92" | 262.3mm/10.3" | 220.3*14.3*1.2mm/8.67*0.56*0.05" |
| 12 bits | 329.2*23.3*23.2mm/13.0*0.92*0.92" | 308.5mm/12.1" | 266.5*14.3*1.2mm/10.5*0.56*0.05" |
| 13 bits | 352.2*23.3*23.2mm/13.9*0.92*0.92" | 331.9mm/13.1" | 289.5*14.3*1.2mm/11.4*0.56*0.05" |
Package included:
1 x Circuit Breaker Mounting Bracket
