1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor

1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor
  • Stock: In Stock
  • Model: ST230044712
  • SKU: ST230044712
$11.99
Ex Tax: $11.99
Instruction:

This is "capacitance substitution box" good low-cost alternative solution, can flexible and quick setting capacitance range from 1nF to 9999nF, step accuracy 1nF. for educational experiments, electronic engineering design or test trimming are excellent applications.

Features:

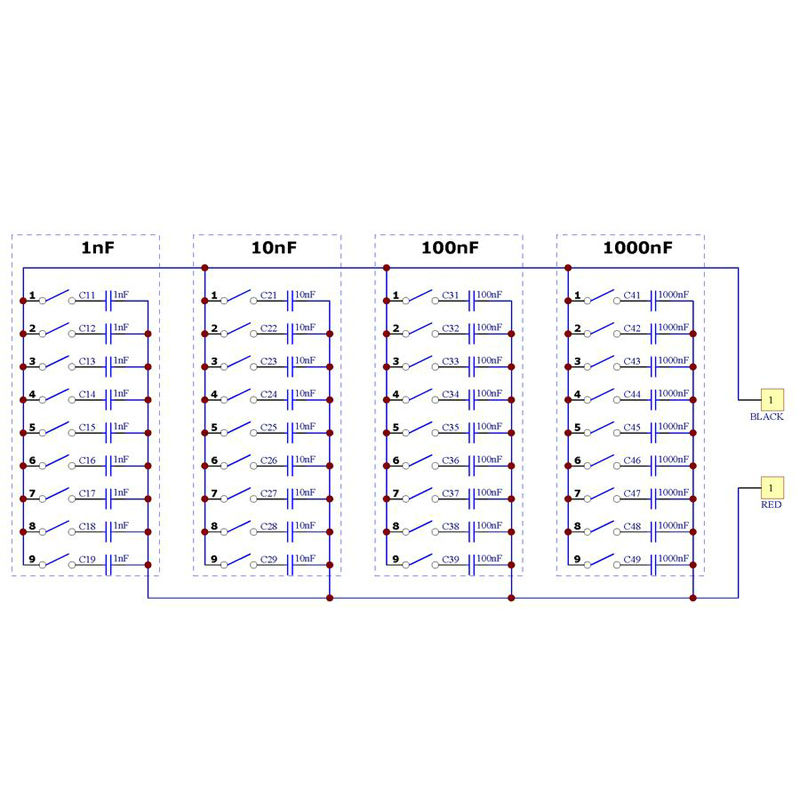

Design based on “capacitor parallel” theorem.
Tolerance +/-5% 100V metal film capacitors.
4mm banana sockets with plugs, easy to connect wires.

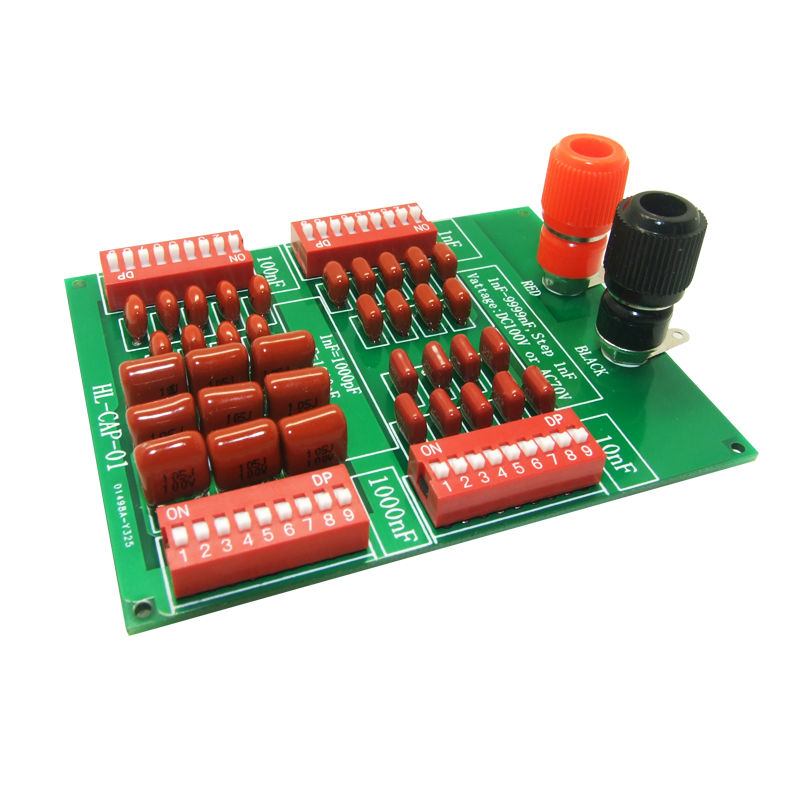

High quality FR4 glass fiber PCB.
Programmable Capacitance: 1nF to 9999nF, 1nF per step.
Capacitance Tolerance: +/-5%
Max. Working Voltage: 100DC / 70VAC.
PCB Size: 89.6 x 72mm

Package includes:

1 x Module

1nF-to-9999nF-Step-1nF-Four-Decade-Programmable-Capacitor-Board-Polypropylene-Film-Capacitor-1956270-1

1nF-to-9999nF-Step-1nF-Four-Decade-Programmable-Capacitor-Board-Polypropylene-Film-Capacitor-1956270-2

1nF-to-9999nF-Step-1nF-Four-Decade-Programmable-Capacitor-Board-Polypropylene-Film-Capacitor-1956270-3

1nF-to-9999nF-Step-1nF-Four-Decade-Programmable-Capacitor-Board-Polypropylene-Film-Capacitor-1956270-4

1nF-to-9999nF-Step-1nF-Four-Decade-Programmable-Capacitor-Board-Polypropylene-Film-Capacitor-1956270-5
