2 Player LED Arcade DIY Kits USB Encoder to PC Joystick + led Arcade Buttons Switch for Raspberry Pi 4 Model Project
- Stock: In Stock
- Model: ST230051102
- SKU: ST230051102
$59.72
Ex Tax: $59.72
Desccription:
This is a LED Arcade Game DIY Parts for 2 Player DIY Project.
The encoder support all the windows systems!
All the buttons are not metal.

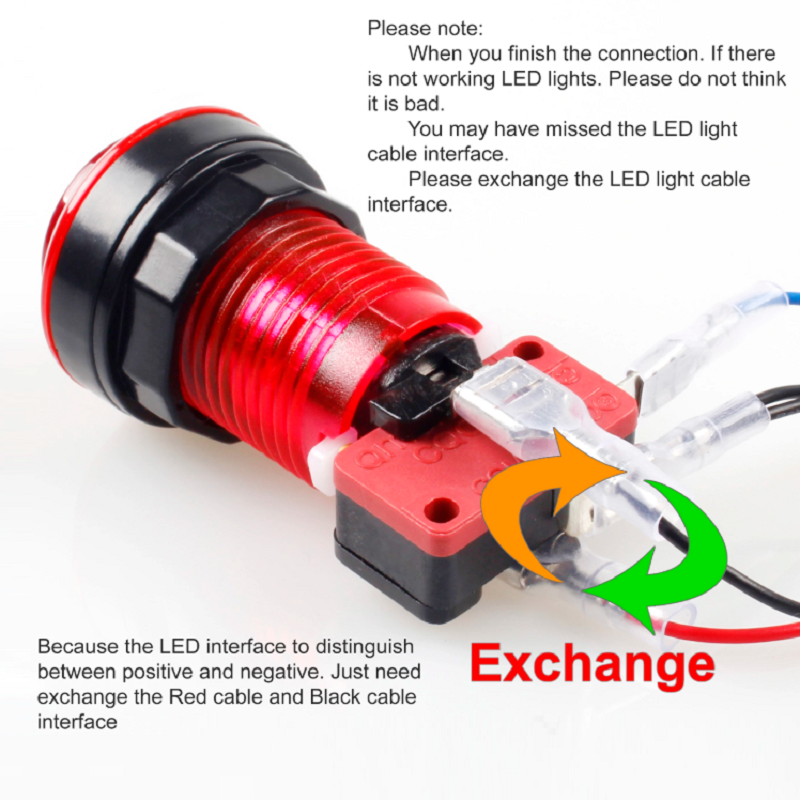

If the LED does not light. Then please exchange the location LED interface.
Each player has its own USB cable to make sure that Multiplayer can play the games in the same condition!

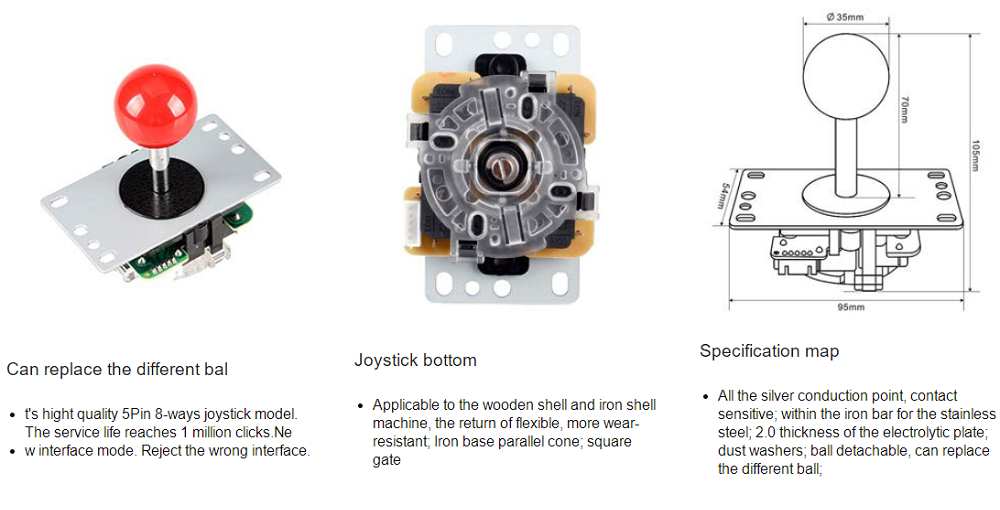

The Joystick is a 8 way professional joystick!

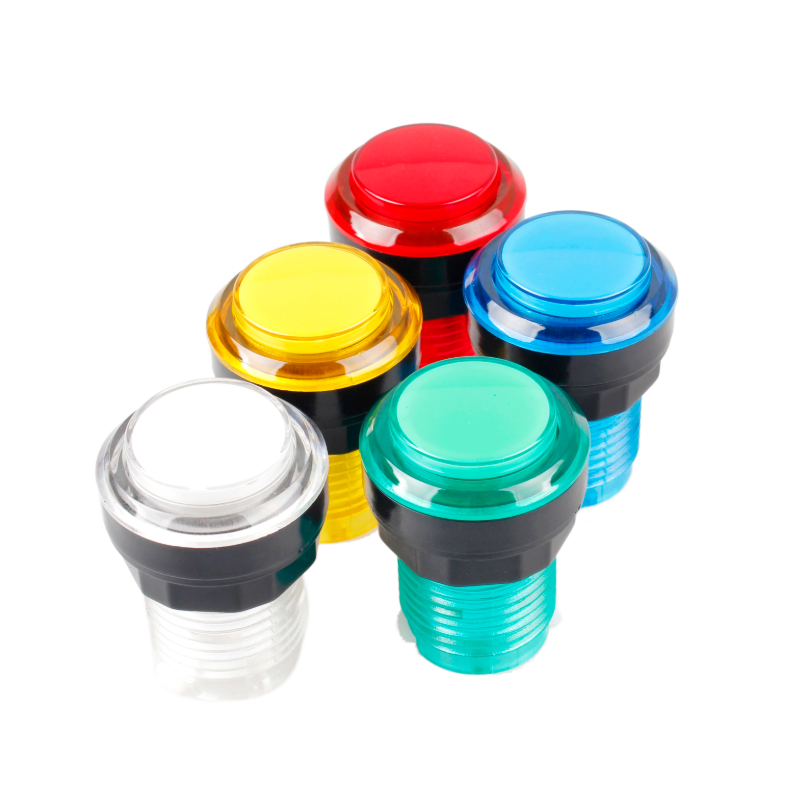

The buttons are 5V Full Colors LED Illuminated push buttons with build-in Microswitches inside.
The default buttons as lighted all the time.

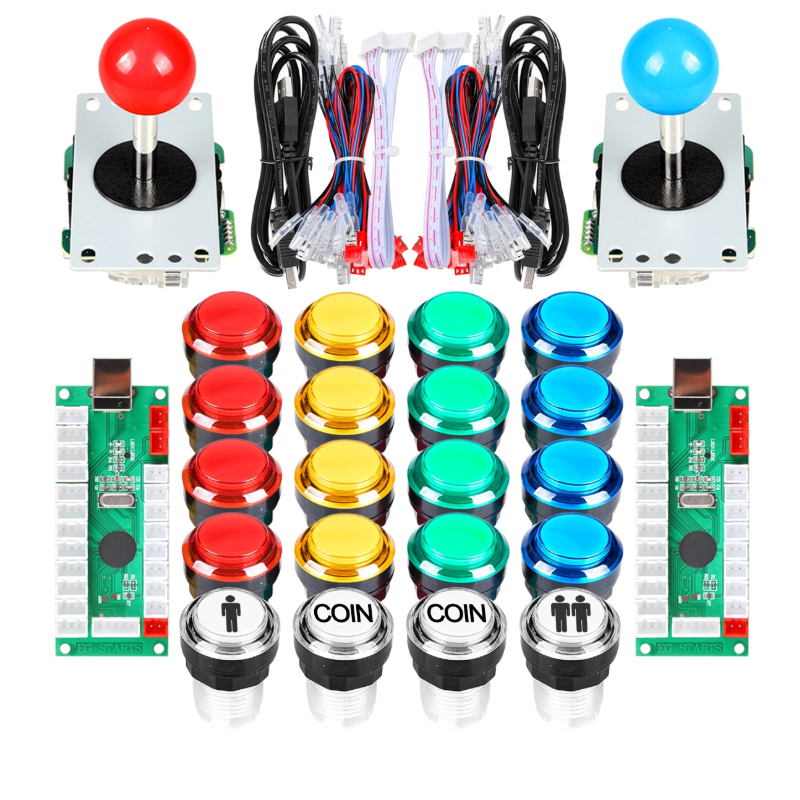

Package included:

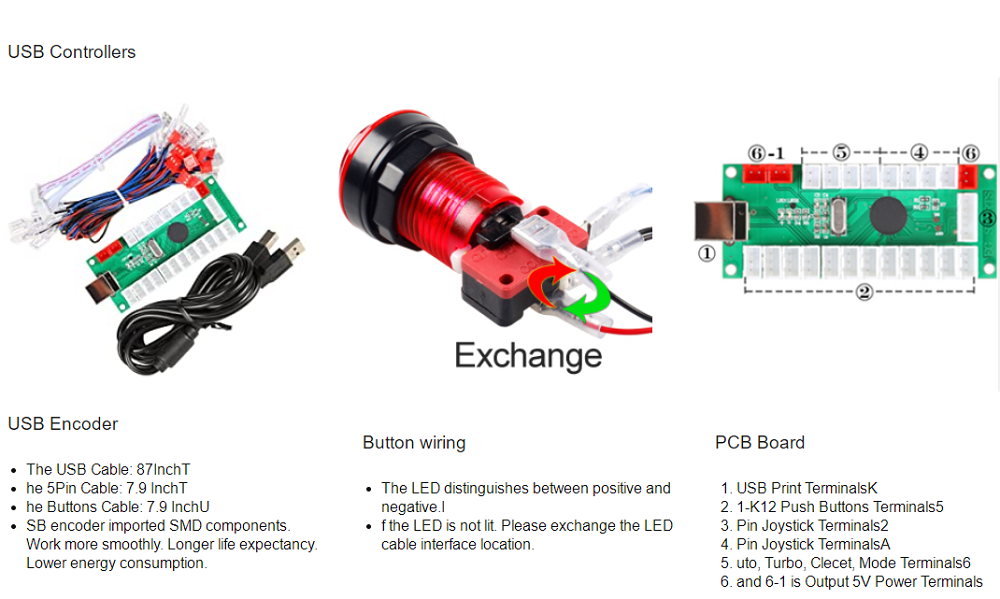

2 x Zero Delay LED USB Encoder
2 x USB Cable
2 x 5Pin wires for Joystick
20 x 3Pin wires for LED Push Buttons
2 x 5Pin Square 8 way joystick

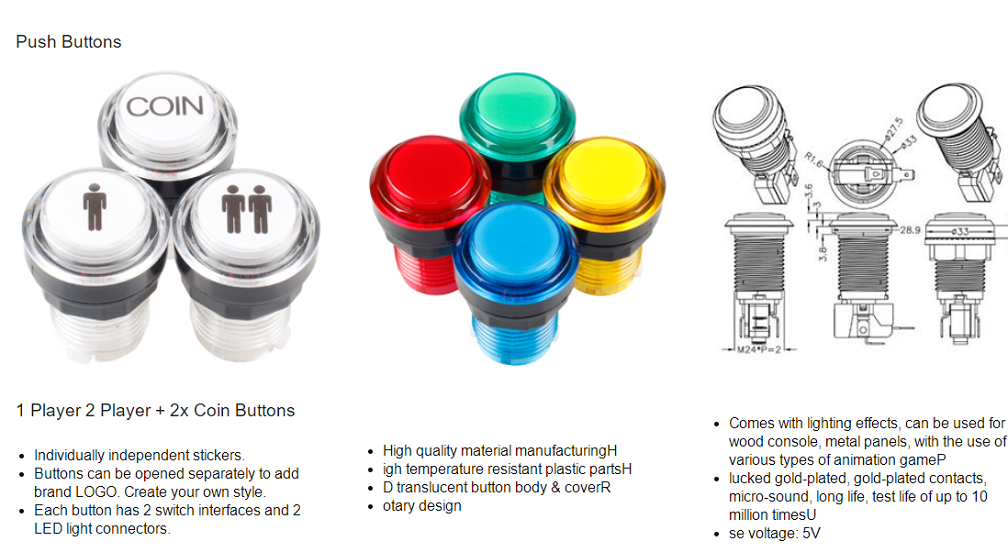

4 x 30MM 5V LED Push Buttons (White) With LED and Micro Switch( 1 Player + 2 Player + 2x COIN )
16 x 30MM 5V LED Push Buttons With LED and Micro Switch
1 x User manual
Tips for installation:
1. Plese read our user manual before starting your diy actions.

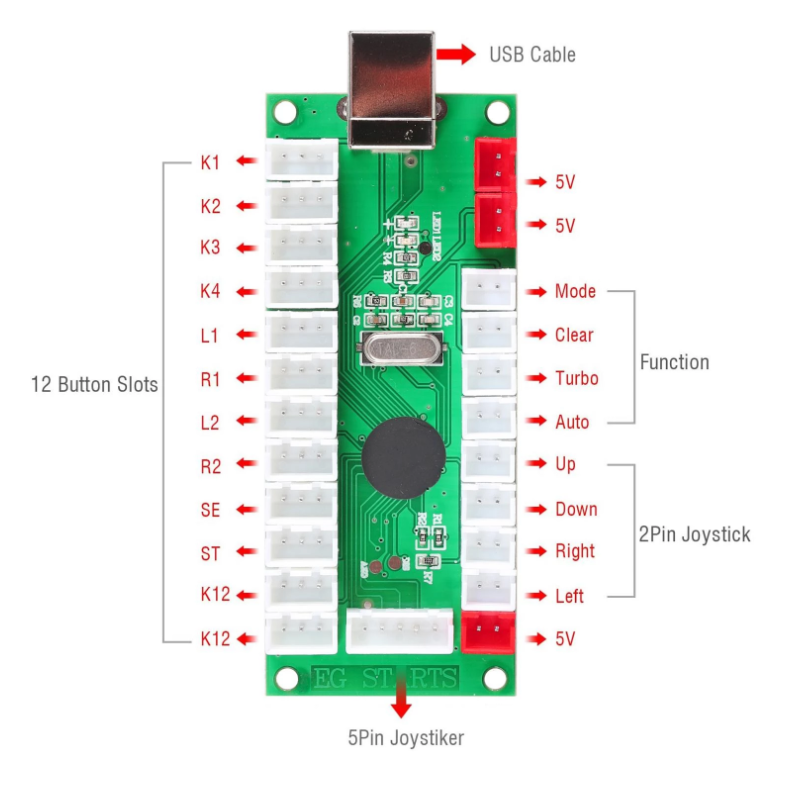

2. It's very important! Connect Joystick's 5Pin cable to the 5Pin slot that opposite the USB-B terminal. A lot people connect the joystick to the wrong 5Pin slot.
3. There is no need separate the button's functions when you connect wire to push buttons and encoder board exept you want add " Auto-Fire", " Tubro", "Clear" & " Mode" Functions.All the fight button functions can be set in MAME or RetroPie. "Auto-Fire", "Tubro","Clear" & "Mode" Functions have its own slot on the encoder board.
4. For Professional Players. We suggest your change all the buttons and joysticks into SANWA Brand or SEIMITSU Brand.
Tips for New User:
1. The item need work with MAME emulator. So before your build your own project, please download one to work with the parts.
2. If you use this kit to build your own Raspberry Pi Retropie Projects. Please search the steps before your DIY.
