220V 6-way Wireless Remote Control Switch Module Lamp Water Pump Motor Controller
- Stock: In Stock
- Model: ST230043670
- SKU: ST230043670
$29.84
Ex Tax: $29.84
Description:
The new 220V learning code 6-way remote control switch is upgraded on the basis of the old model, and adopts exquisite industrial control shell design in appearance, and the style is more high-end. The terminal is upgraded. When the interference is strong, the suction cup antenna and the high-sensitivity receiving module can be connected to enhance the signal receiving ability. Chip IC upgrade, using IC that can be burned multiple times, and the program can be changed according to customer requirements. Each relay has an independent working indicator. Another buzzer prompt function.
There is no need to use traditional jumpers or DIP switch coding, just let the receiving controller receive and store the wireless signal transmitted by the remote control, and then the supporting use can be realized. If the learned remote control is lost during use, you only need to clear the information stored in the receiving controller. The lost remote control will not be able to remotely control the receiving controller. If you want to regain the right to use, the owner must regain the right to use it. Re-learn it before use. There are six switchable output modes.
Mainly used in electric doors, windows, lifting equipment, gateways, elevators, industrial control and security industries and other fields.
Product parameters:
Product name: 220V six-way wireless remote control switch
Working voltage: AC22V
Working frequency: 315MHZ/433MHZ (default 315MHZ)
Working mode: Jog M4/Self-locking T4/Lock L4/Jogging and self-locking co-storage code matching mode: Intelligent learning type
Working environment: -40-+80 degrees
Receiving sensitivity: ≥-105dBm
Output current: ≤3A
Single weight: 0.17KG
Dimensions: outer shell: 90* 115*40mm; inner panel: 87*92.6*16.4mm

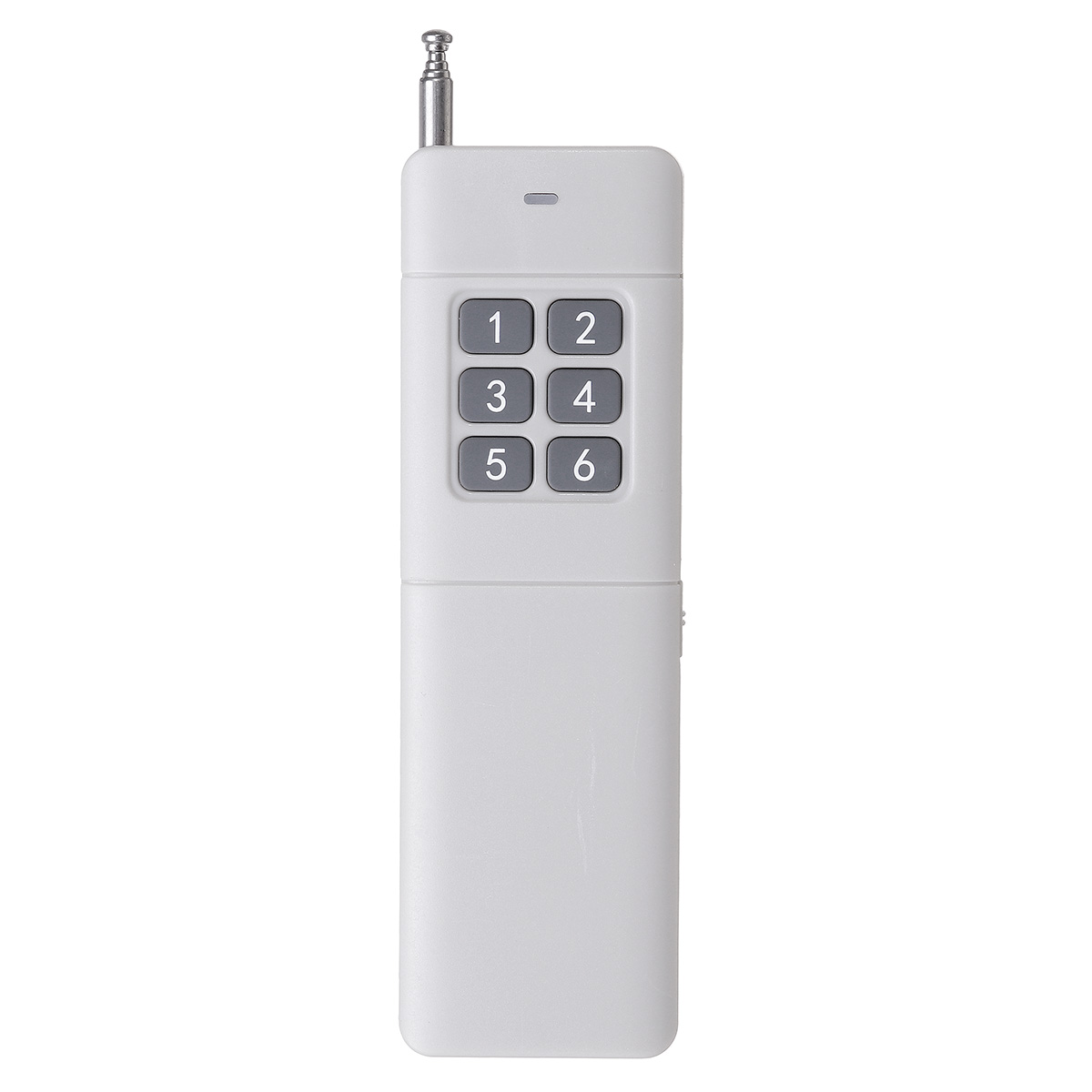

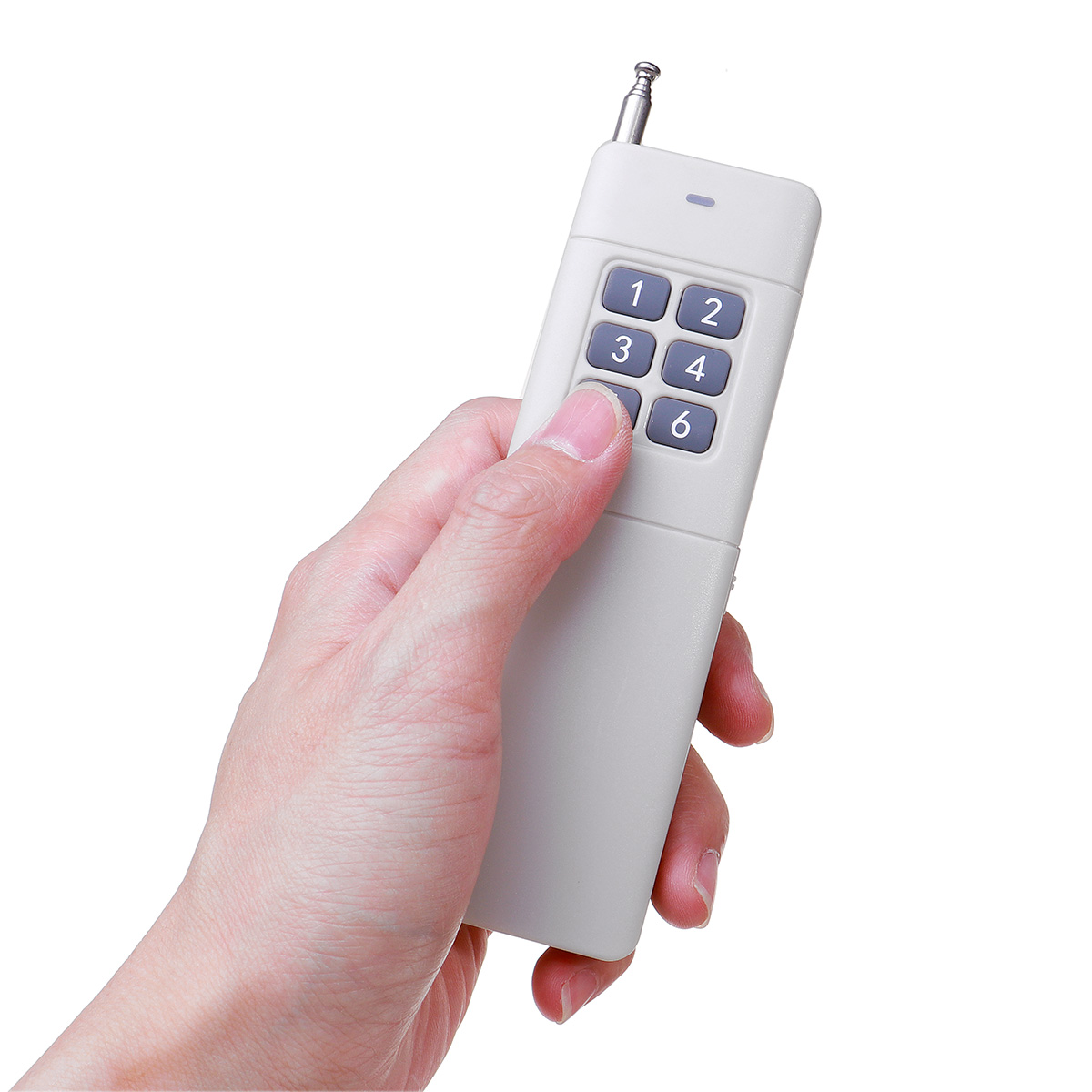

Product name: 4000m 6-key remote control

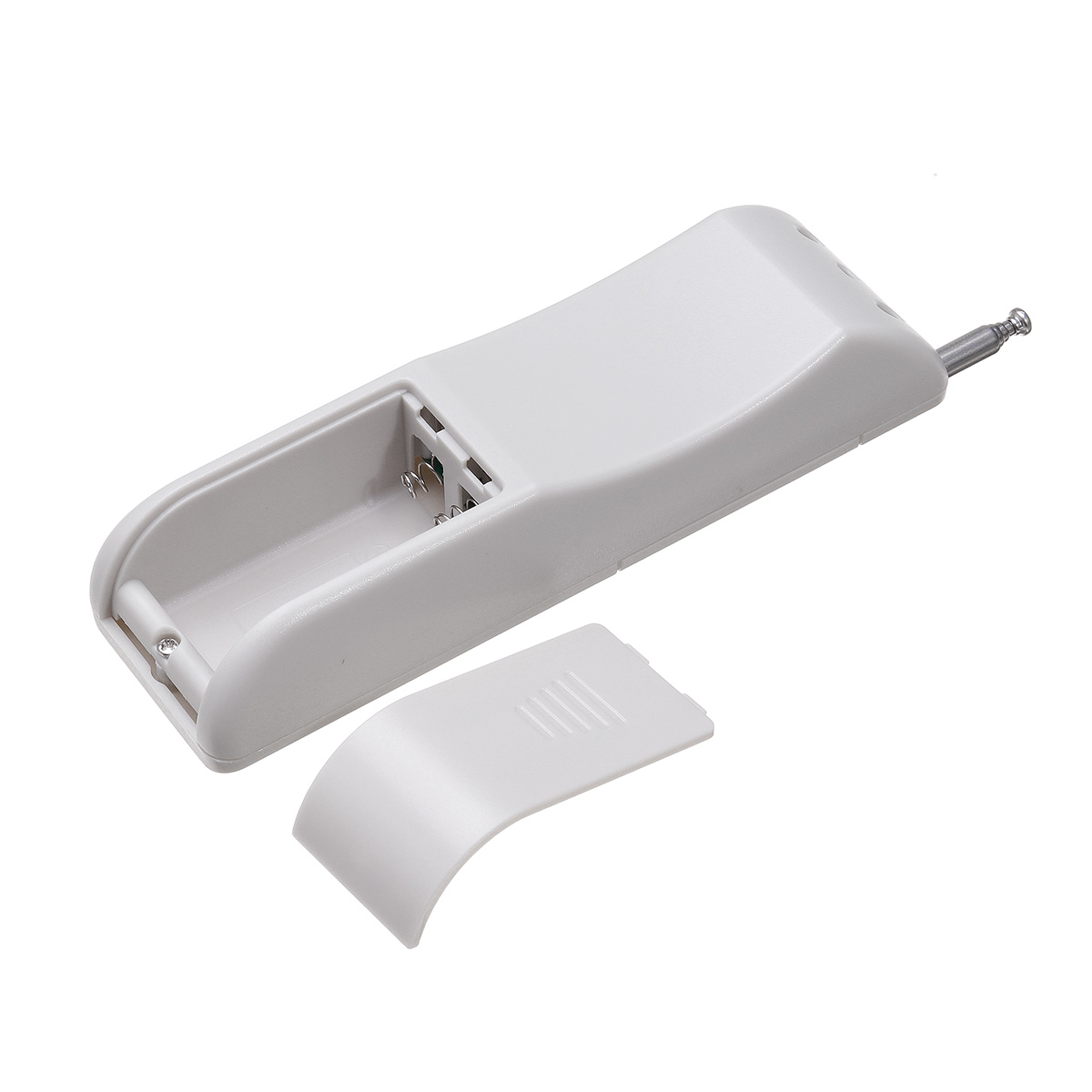

Working voltage: DC9V (1 9V battery)(Not included battery)
Working frequency 315MHZ/433MHZ (default 315MHZ)
Chip model: 1527 or 2264 (different for different batches)
Encoding type: millions of codes or pad type into a password
Oscillation resistance: 4.7 (default)
Modulation method: ASK (stable and less interference)
Remote control distance 4000 meters (see the description below for the theoretical value of open and no interference)
Dimensions 136*42*25mm
Introduction to the scope of application, suitable for lamps, water pumps, motors, electric doors, windows and other electrical equipment below 100W.
Instructions for use:
Working mode and status description:
The receiver has the following 6 working modes can be set, 6-way jog, 6-way self-locking, 6-way interlock, and jog self-locking interlock coexist.
1. Jog: press the remote control button 1 to learn
2. Self-locking: press the remote control key 3 to learn
3. Interlock: press the remote control key 2 to learn
4. 1-3 jog, 4-6 self-locking: press the 4th button on the remote control to learn
5. 1-3 jog, 4-6 interlock: press the 5 key of the remote control to learn
6. 1-3 interlock, 4-6 self-locking: press the No. 6 key of the remote control to learn
Add or remove the instructions for using the remote control:
1. Learning: Press the learning key of the controller, the buzzer will sound; release the learning key, and press and hold the remote control key that needs to be learned; the buzzer will stop after the sound, indicating that the learning code is successful.
2. The 2262, 2260, 1527 chip equivalent frequency fixed code learning code wireless remote control that can learn more than 20 different address codes;
3. Clear the code: keep pressing the controller learning key, the buzzer changes from ringing to no sound, indicating that the clearing is completed.
Package included:

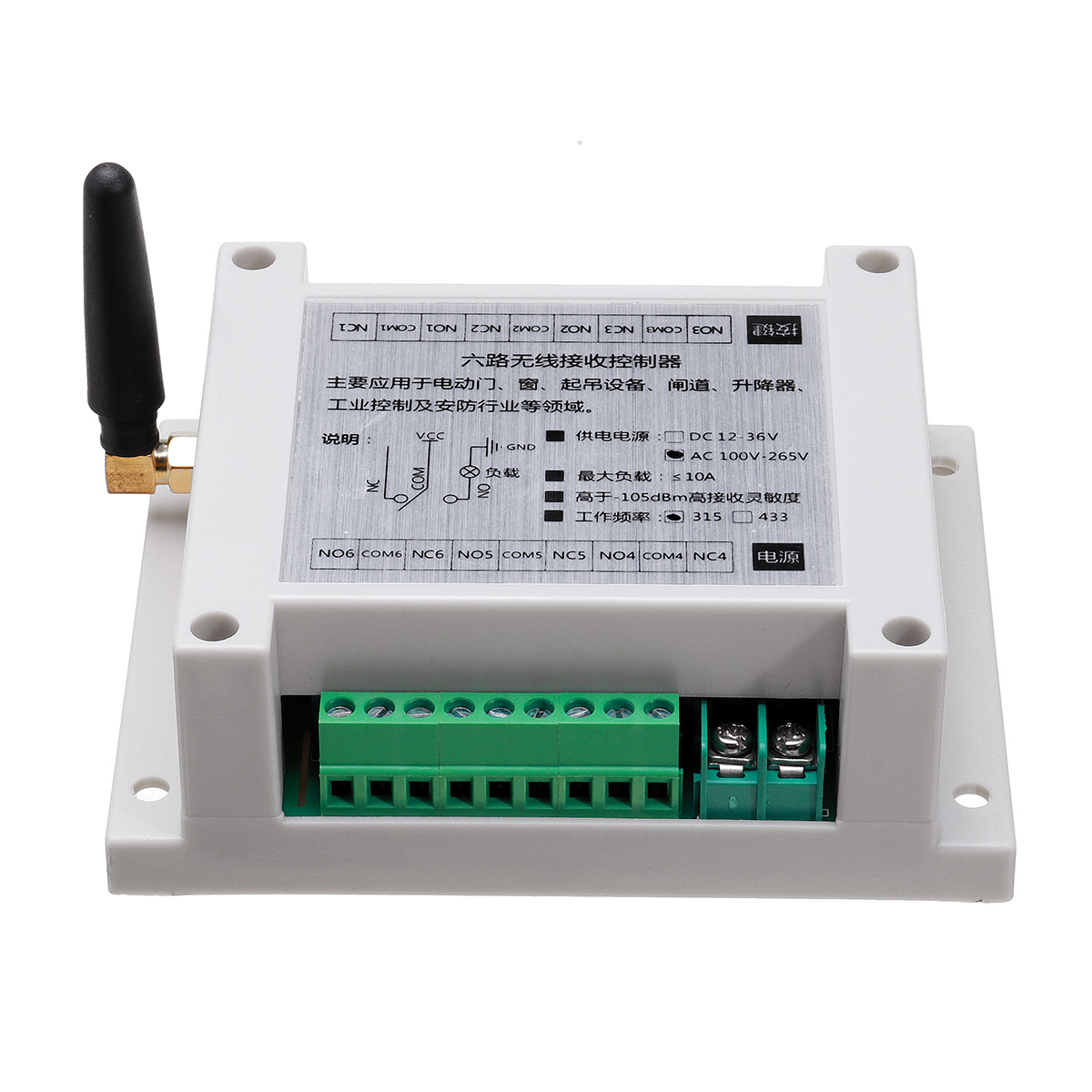

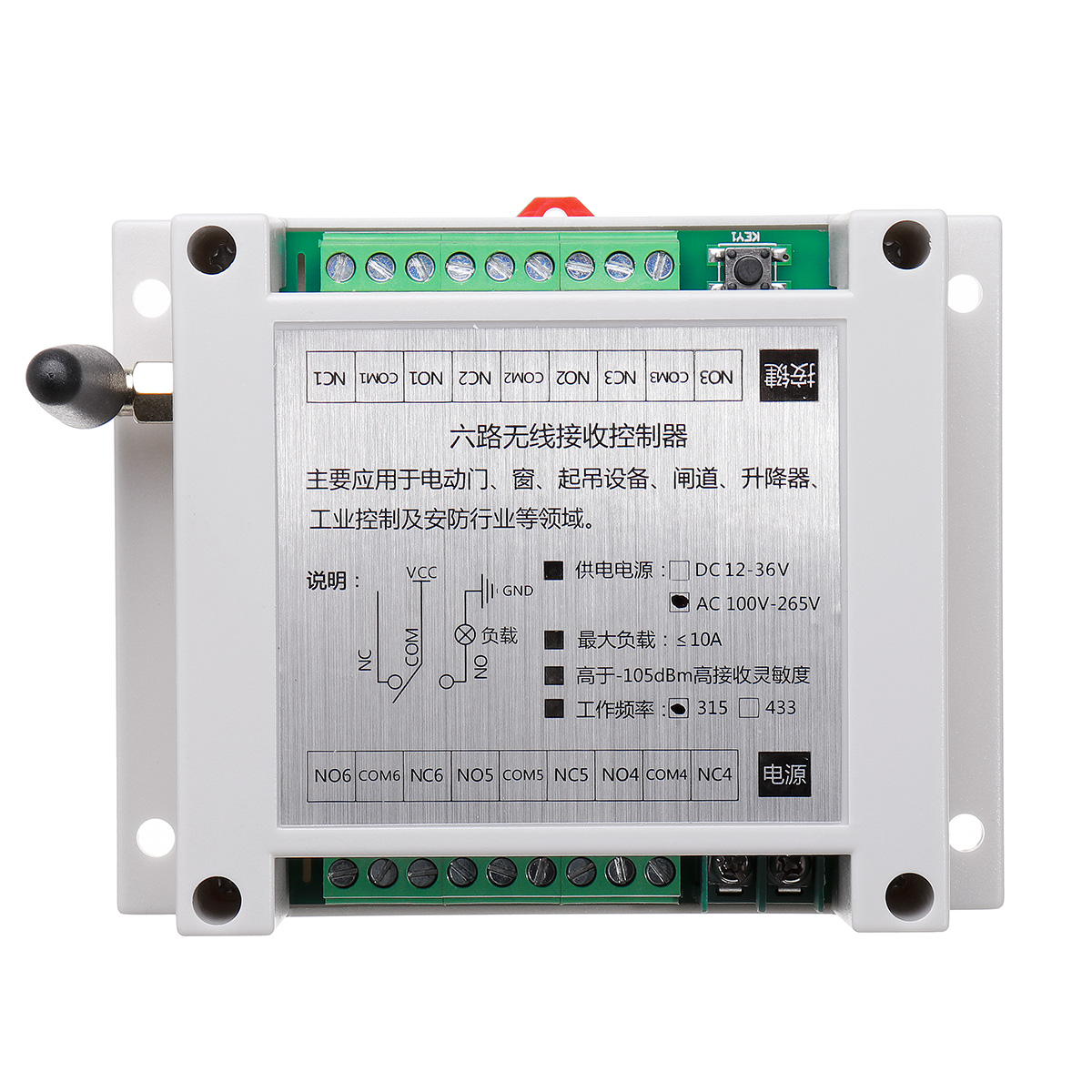

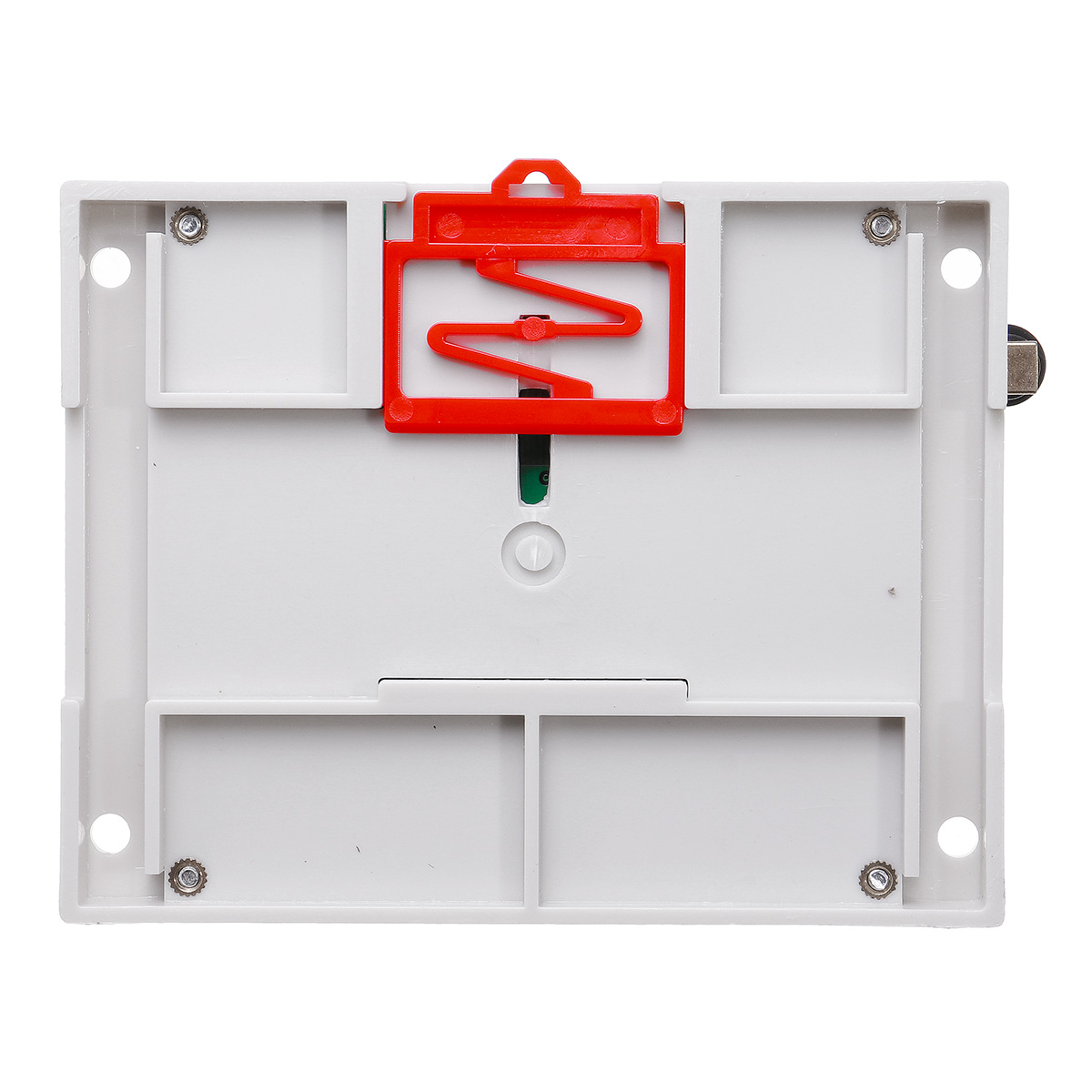

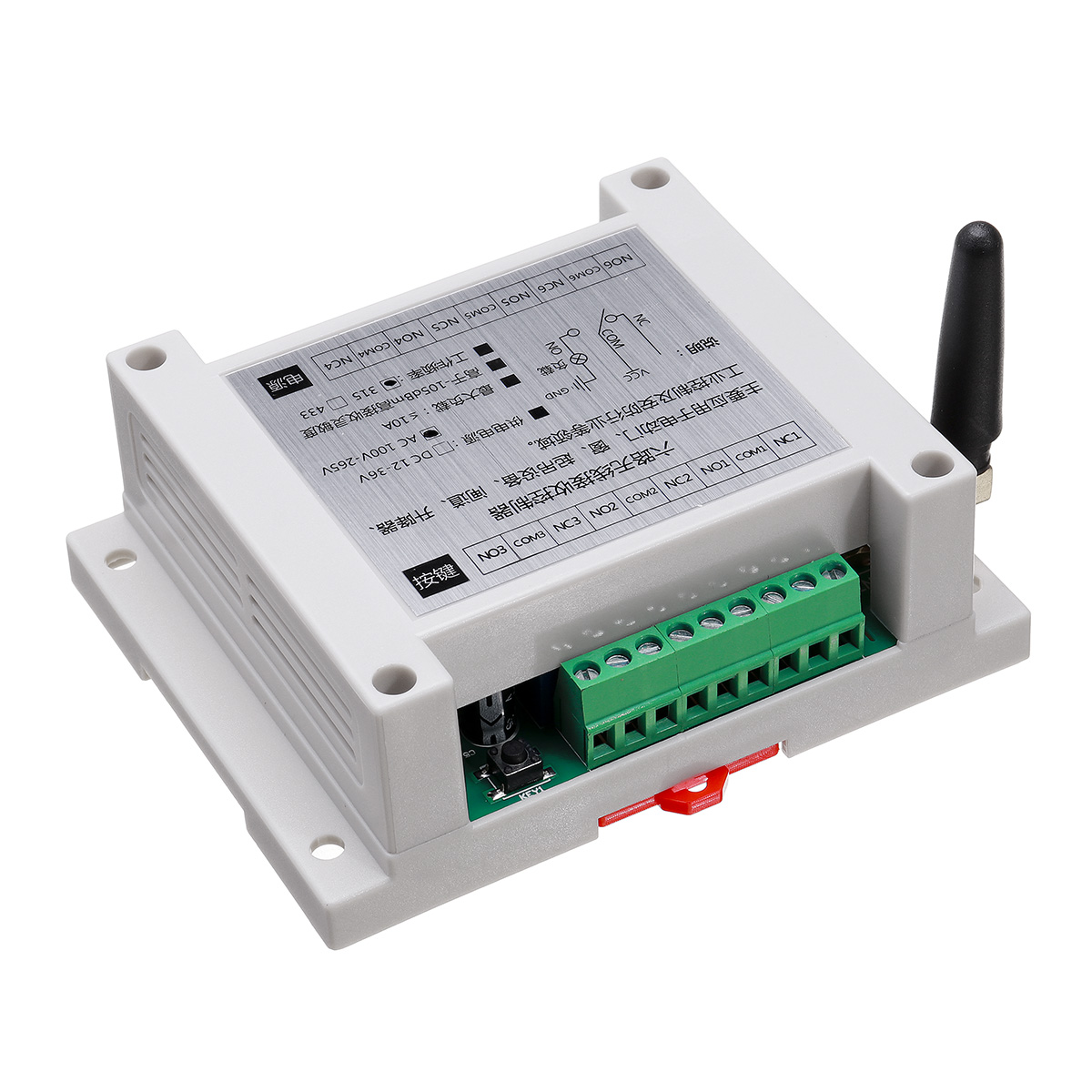

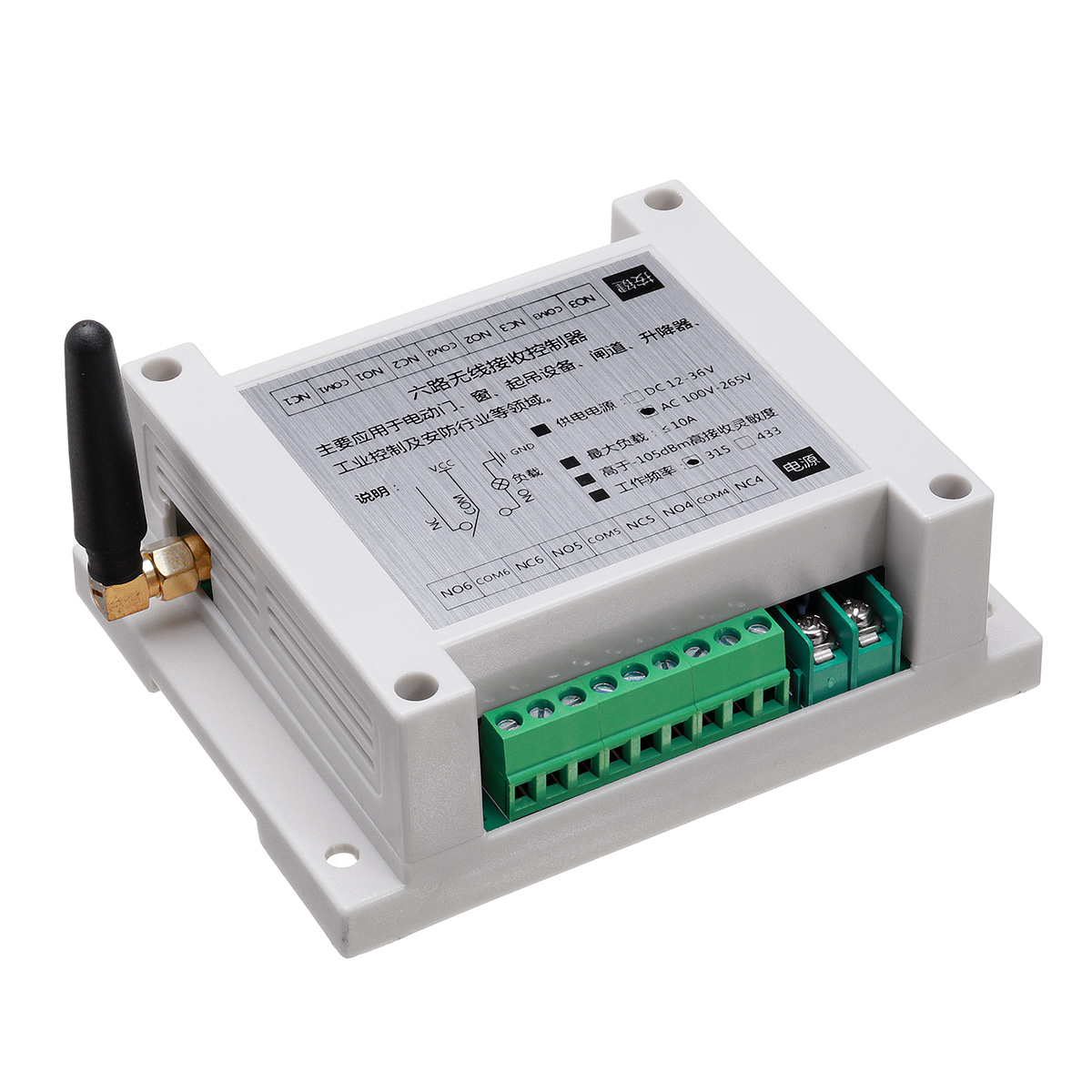

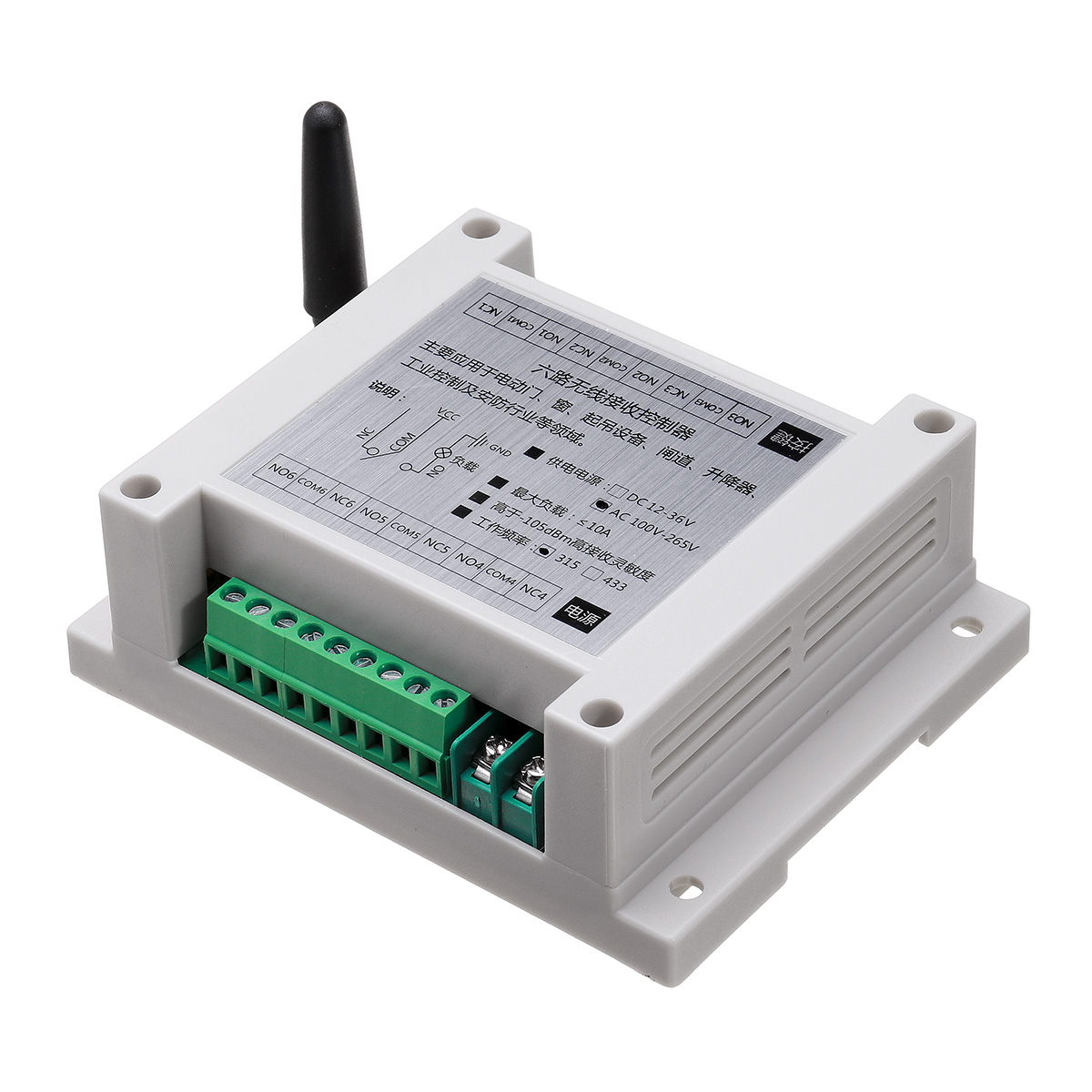

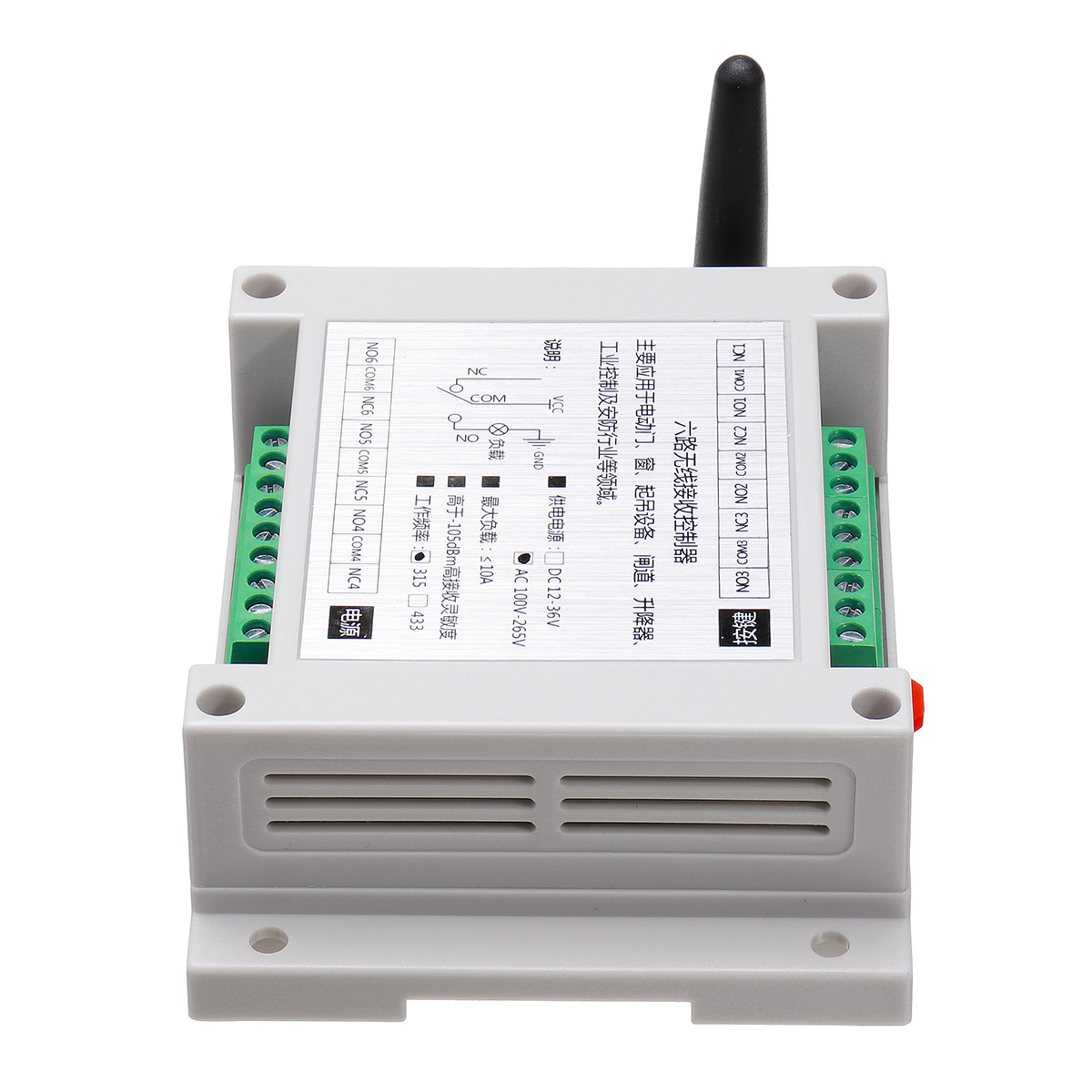

1 x Wireless Remote Control Switch Module with shell
1 x Remote Controller(Not included battery)
