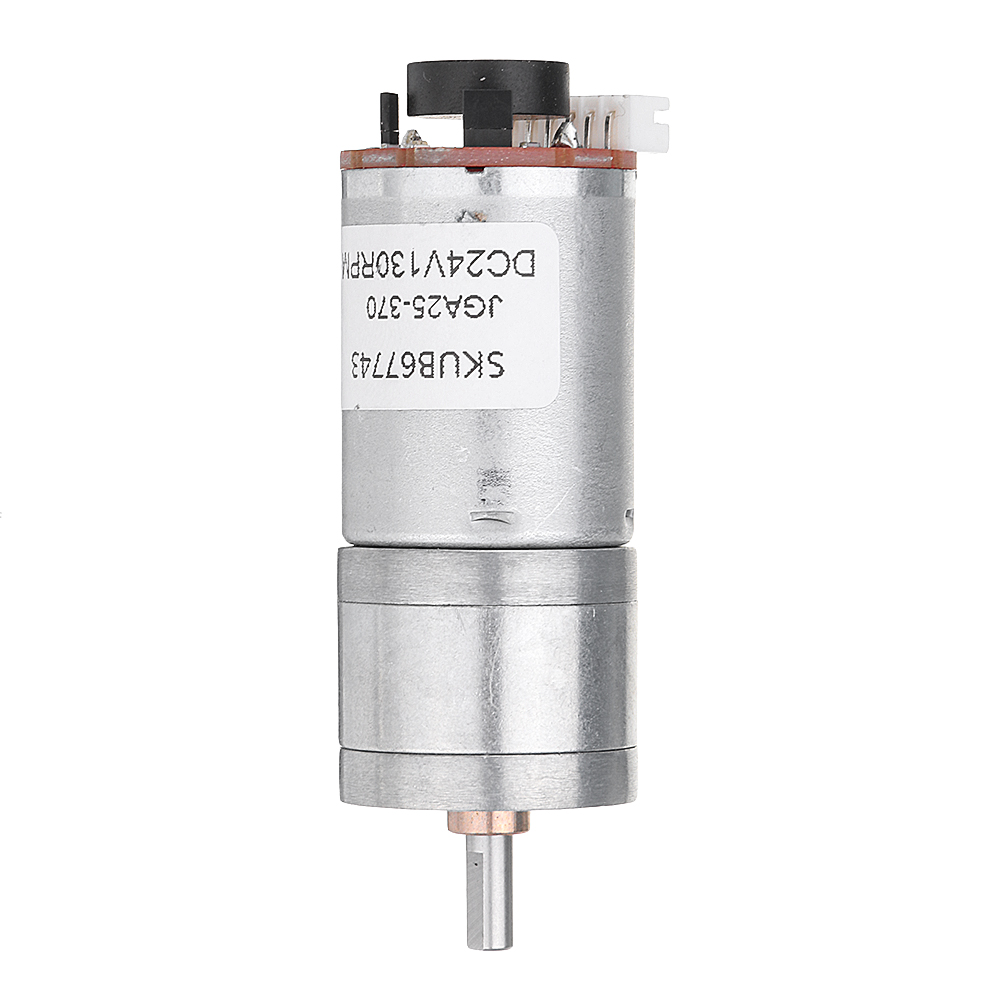

25GA370 DC 24V Micro Gear Reduction Motor with Encoder Speed Dial Reducer
- Stock: In Stock
- Model: ST220012975
- SKU: ST220012975
$13.99
Ex Tax: $13.99
Descriptions:
Machifit 25GA370 DC 24V micro gear reduction motor with encoder speed dial reducer
Specifications:
Material: Metal
Voltage: DC 24V
Power: 3W
Power: 3W
Speed Regulation: Yes
Rotate In Both Two Sides: Yes

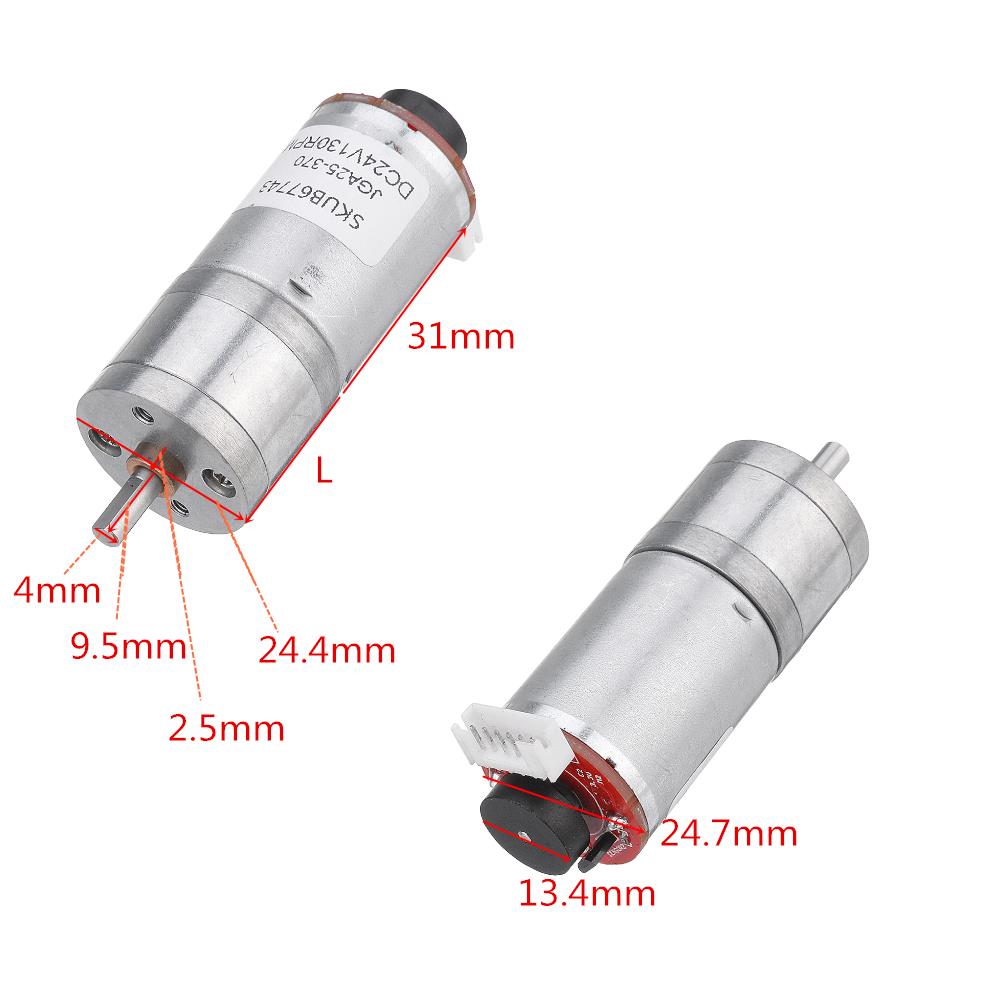

Size(approach):
Output Shaft Dia.: 4mm
Line Length: 142mm
Axis Length: 12mm
Axle Shaft Length: 9.8mm

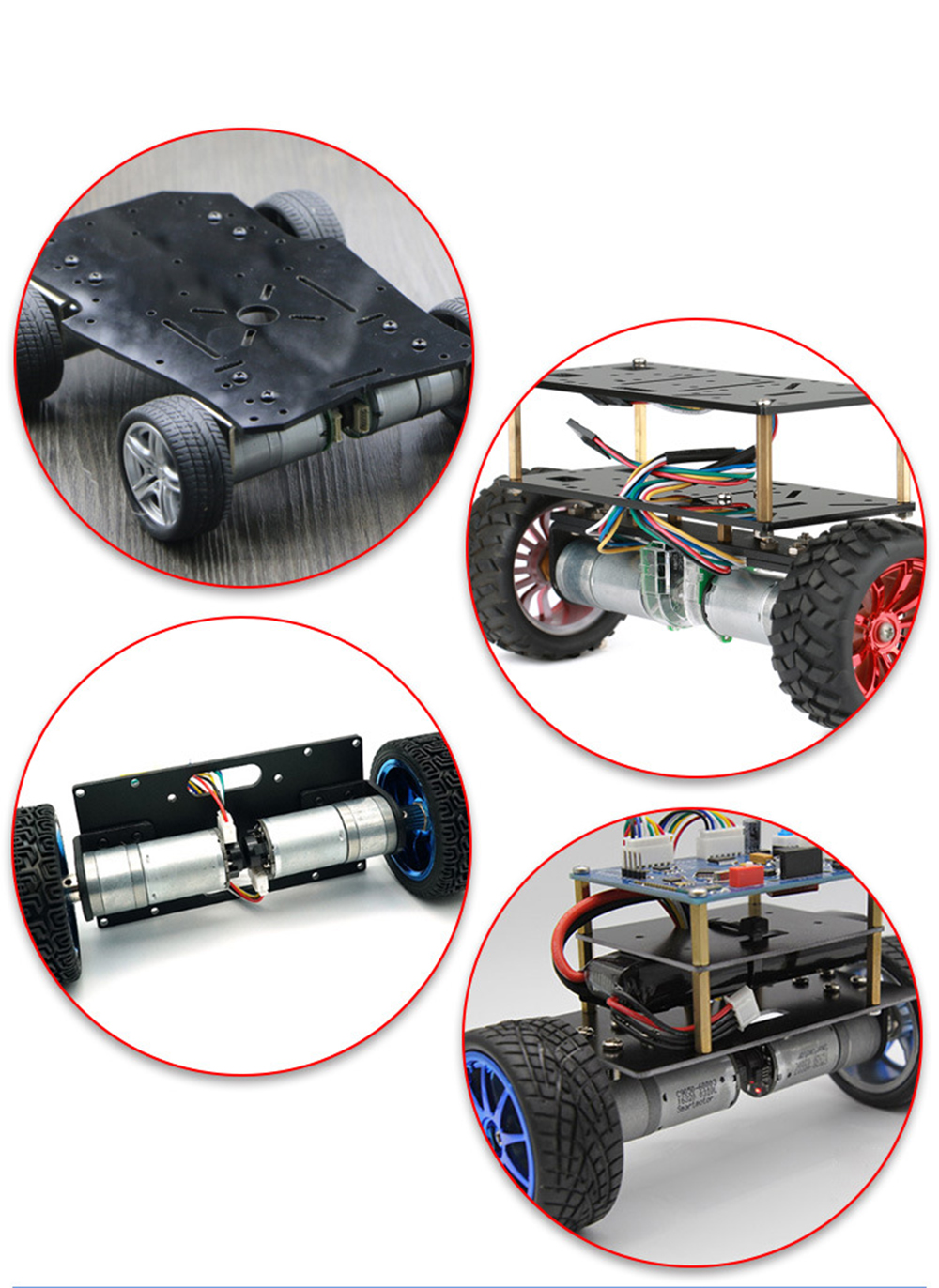

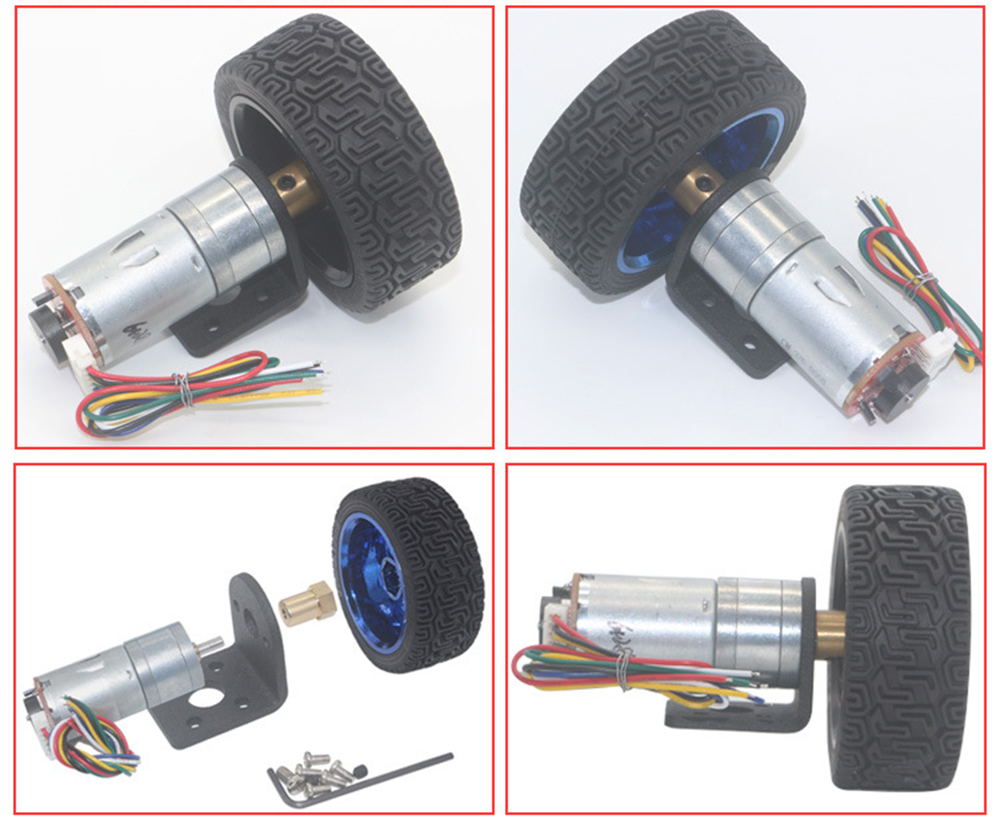

Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Rotate In Both Two Sides: Yes
Size(approach):
Output Shaft Dia.: 4mm
Line Length: 142mm
Axis Length: 12mm
Axle Shaft Length: 9.8mm
Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

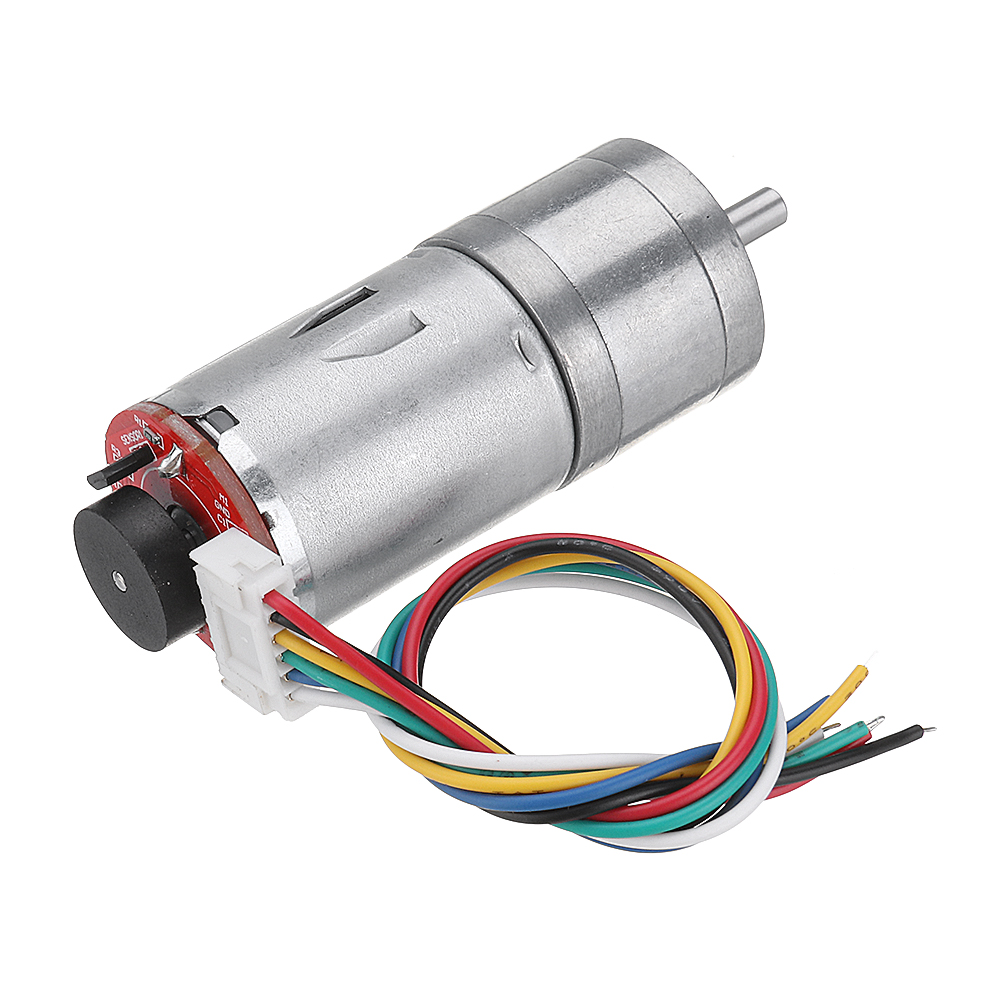

Wiring:
Red: Motor power + positive (change can control motor forward and reverse)
Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V)
Yellow: Signal feedback (11 signals from the motor)
Green: Signal feedback (11 signals from the motor)
Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)
White: Motor power - negative (change can control motor forward and reverse)
Parameter:
Package Included: 1 Pcs x 24V Micro Reduction Gear Motor
More Details:
Parameter:
| Voltage | RATIO | No-load | Rated-load | Stall | ||||||
|
Current (A) |
Speed(rpm) ±10%rpm |
Torque (kg.cm) |
Speed(rpm) ±10%rpm |
Current (A) |
Torque (kg.cm) |
Current (A) | Weight | L Size | ||
| DC 24.0V | 1:12 | 0.04 | 12 | 9.7 | 9 | 0.16 | × | × | 91 | 27 |
| DC 24.0V | 1:35 | 0.04 | 35 | 3.3 | 27 | 0.16 | × | × | 89 | 25 |
| DC 24.0V | 1:60 | 0.04 | 60 | 2 | 46 | 0.16 | 7.3 | 0.6 | 90 | 23 |
| DC 24.0V | 1:130 | 0.04 | 130 | 0.9 | 100 | 0.16 | 4.4 | 0.6 | 88 | 21 |
| DC 24.0V | 1:620 | 0.04 | 620 | 0.2 | 477 | 0.16 | 0.9 | 0.6 | 83 | 17.5 |
Features:
- All the gear of metal mechanism
Wear resistance, strong resistance to torsion, smooth transmission, compact structure.

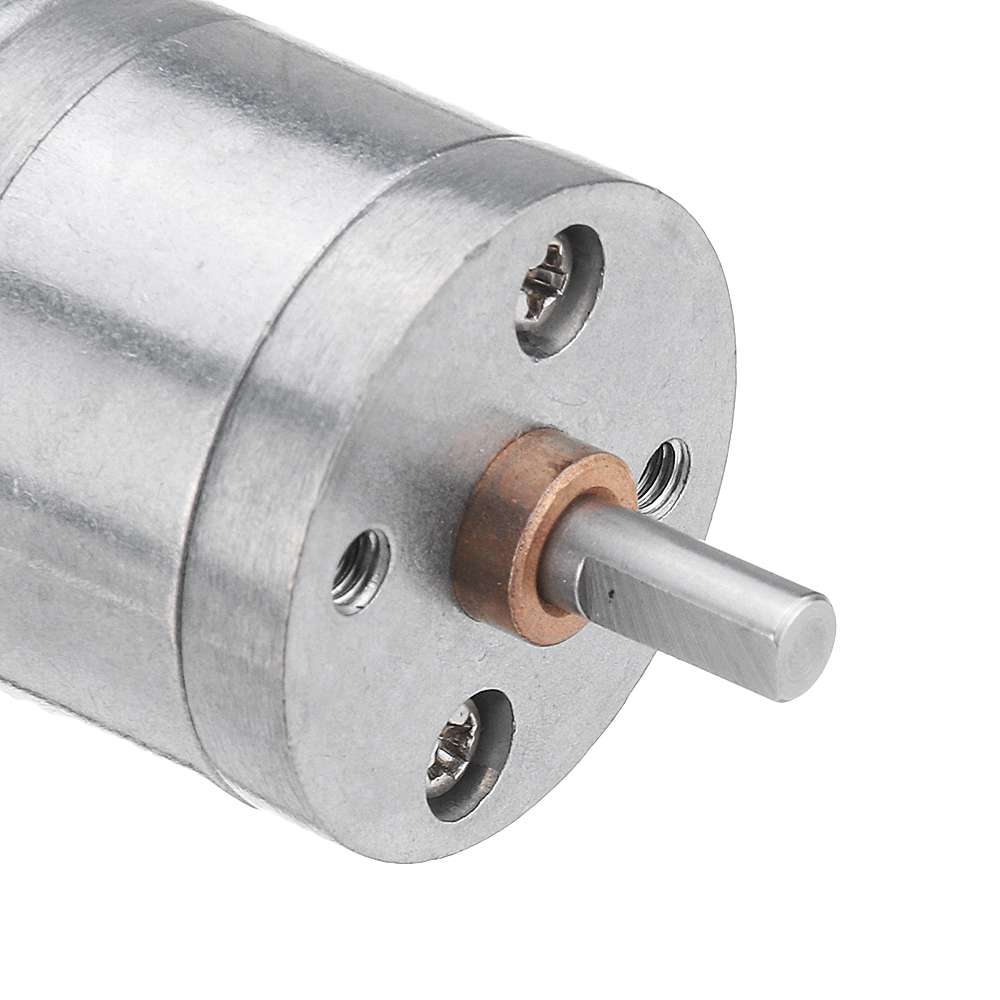

- D-shaped double axis
D-shaped double shaft, excellent thermal conductivity.

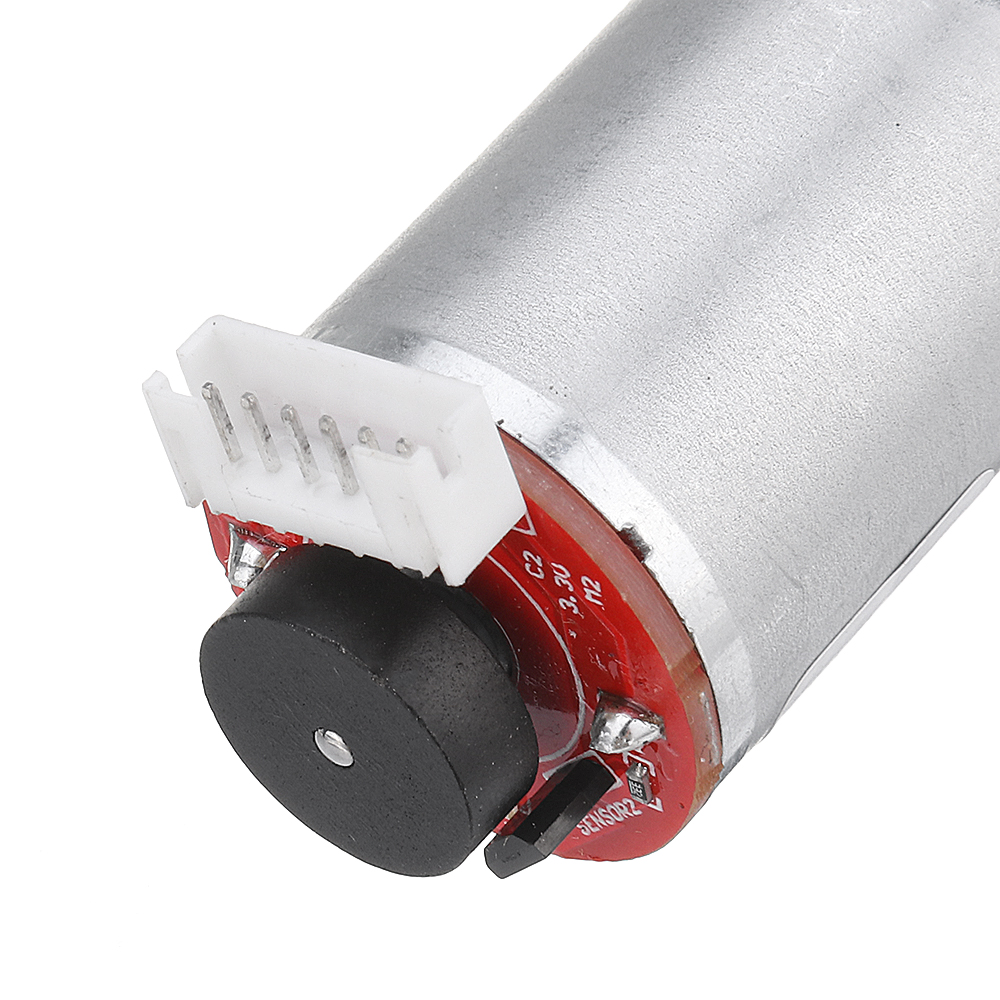

- Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.
- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included: 1 Pcs x 24V Micro Reduction Gear Motor
