25mm Remote Control Electric Roller Blind Motor Remote Transmitter Shade Tubular Bracket
- Stock: In Stock
- Model: ST22005127
- SKU: ST22005127
$89.09
Ex Tax: $89.09
Description:
25mm Motor Kit & Remote Control DIY Electric Roller Blind Motor Remote Transmitter Shade Tubular Bracket
Specification:
Materials: aluminum alloy
Applicable Curtain Type: all apply

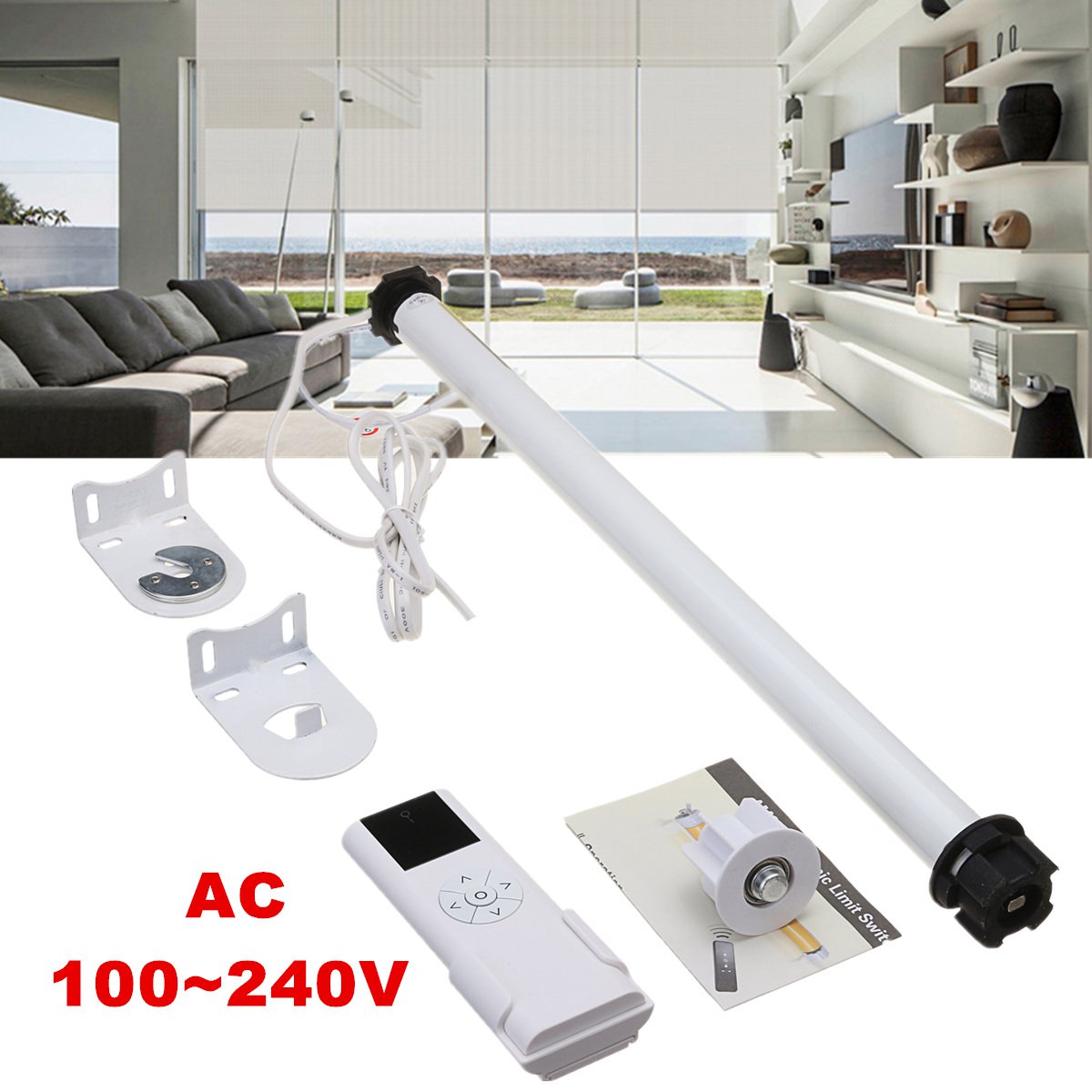

Input: AC 100-240V
Output: DC 24V
Current: 1.2A
Torque: 1Nm
Rotate Speed: 30rpm
Frequency: 433.92MHz
Remote Control Battery Type: AAA x2 (Not included)
Bracket Diameter: 25mm
Features
-Sensor short circuit and open circuit protection function.
-It is easy to switch the jog / interlock state and the running direction of the motor.
-Up to 6 limit points (upper / lower limit and 4 intermediate positions) can be set.
-The motor is running to block the automatic protection stop.
-The displacement generated during the motor braking process can be automatically corrected.
-Power and automatically save the location and function parameters.
-Direct detection of the number of turns of the motor, high positioning accuracy.
-Built-in superheterodyne receiver module, receiving sensitivity -110dBm.
Notice
-Install motor terminal on the same side as power supply.
-Terminal of motor with "Setting" key on the motor should face forward you.

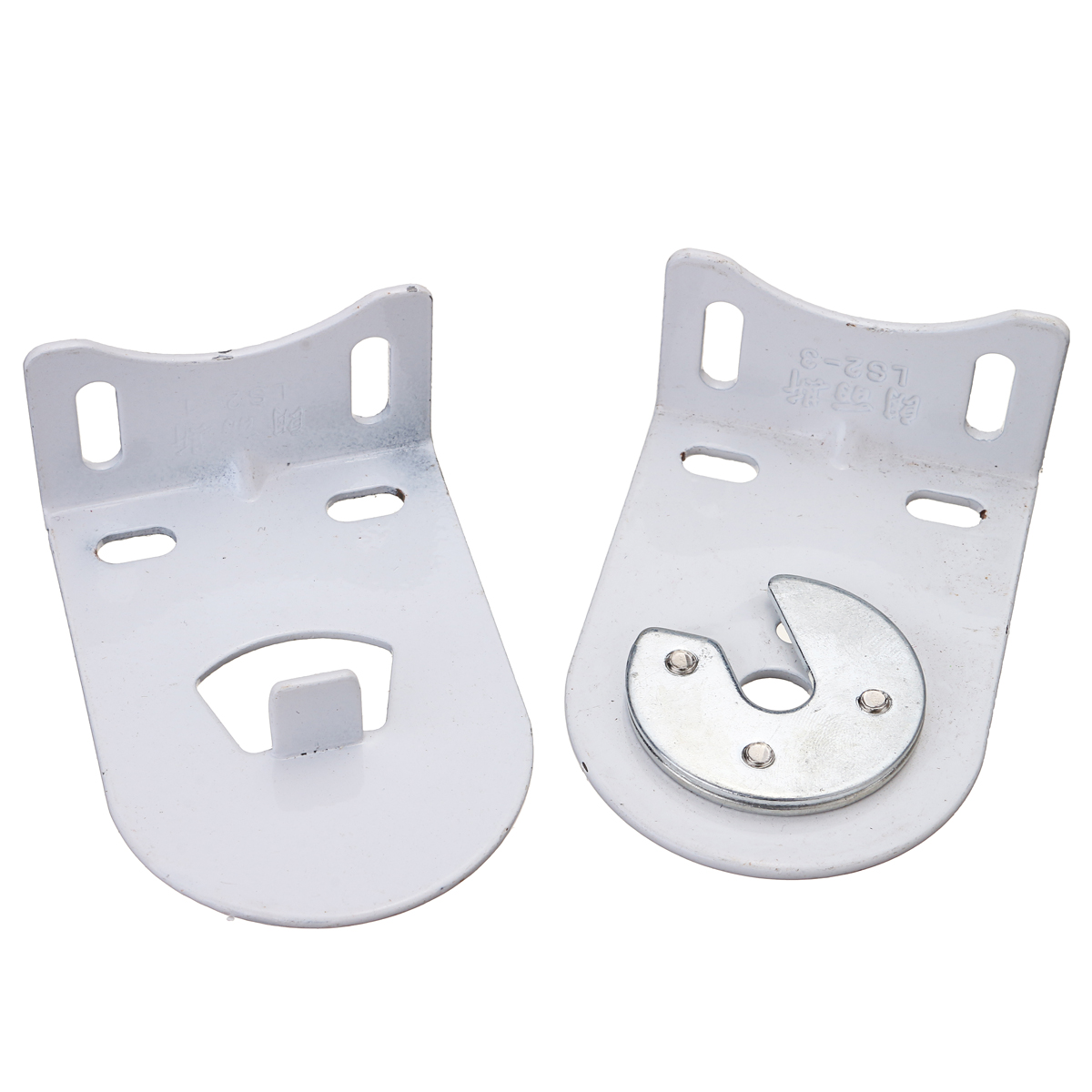

-Tighten brackets until the motor is horizontal.
-Antenna shall be as straight as possible with position far away from metal objects.Directly contact to metal objects is prohibited;otherwise,the receiving distance will be influenced seriously.
-Please replace the battery in time when the remote transmitter indicator does not shine or the remote-controlling distance evidently become shorter.
-Please take out the battery if the remote transmitter will not be used for a long time.

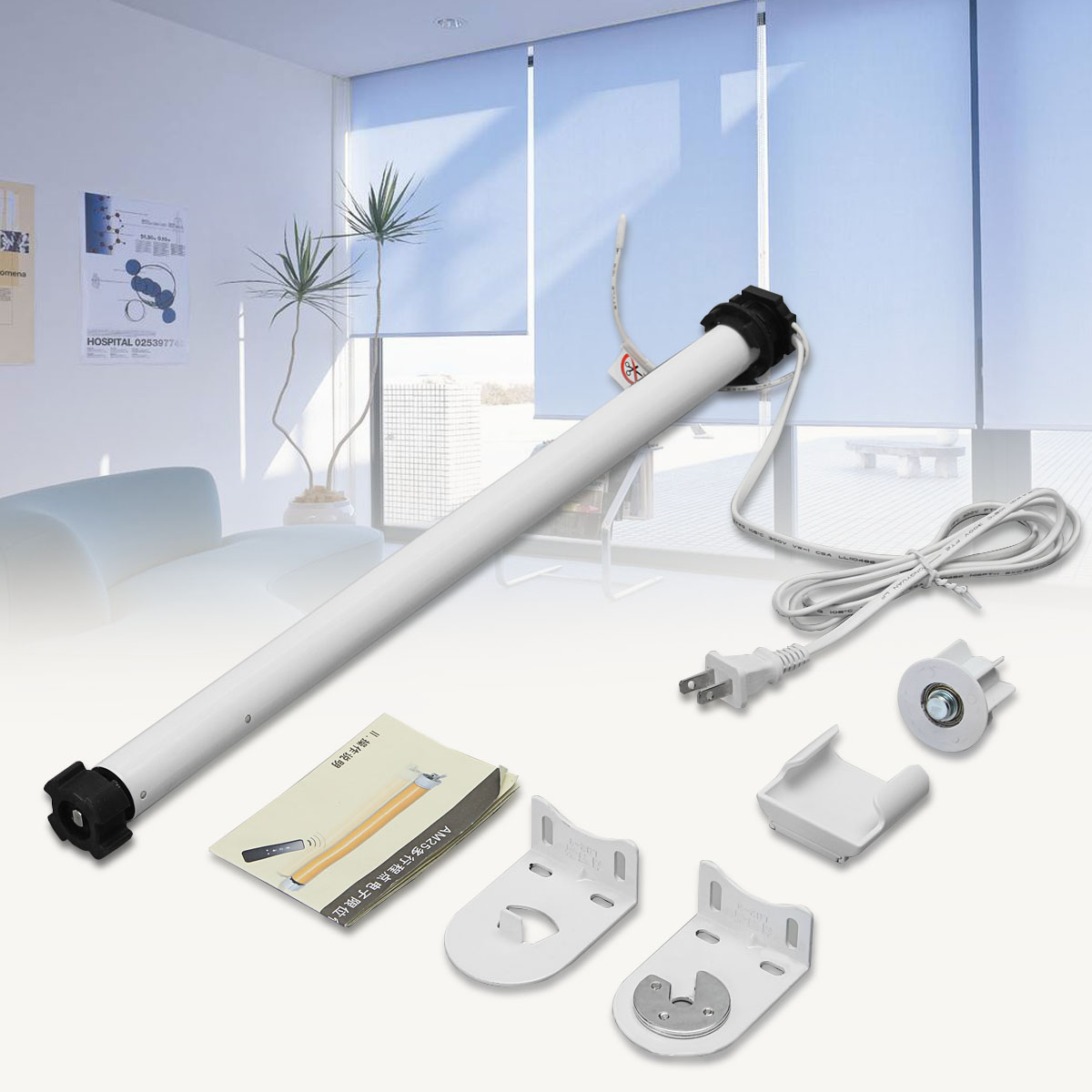

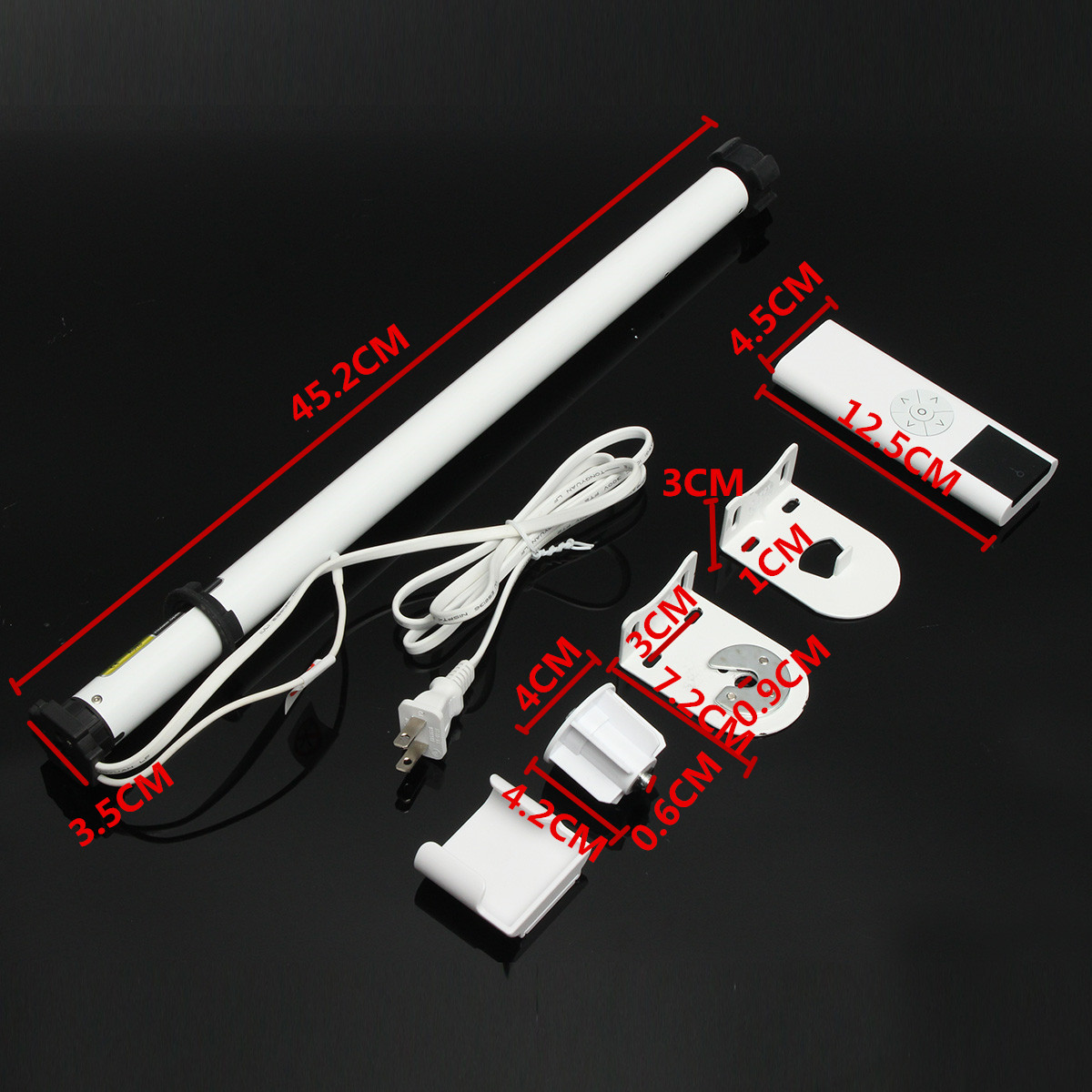

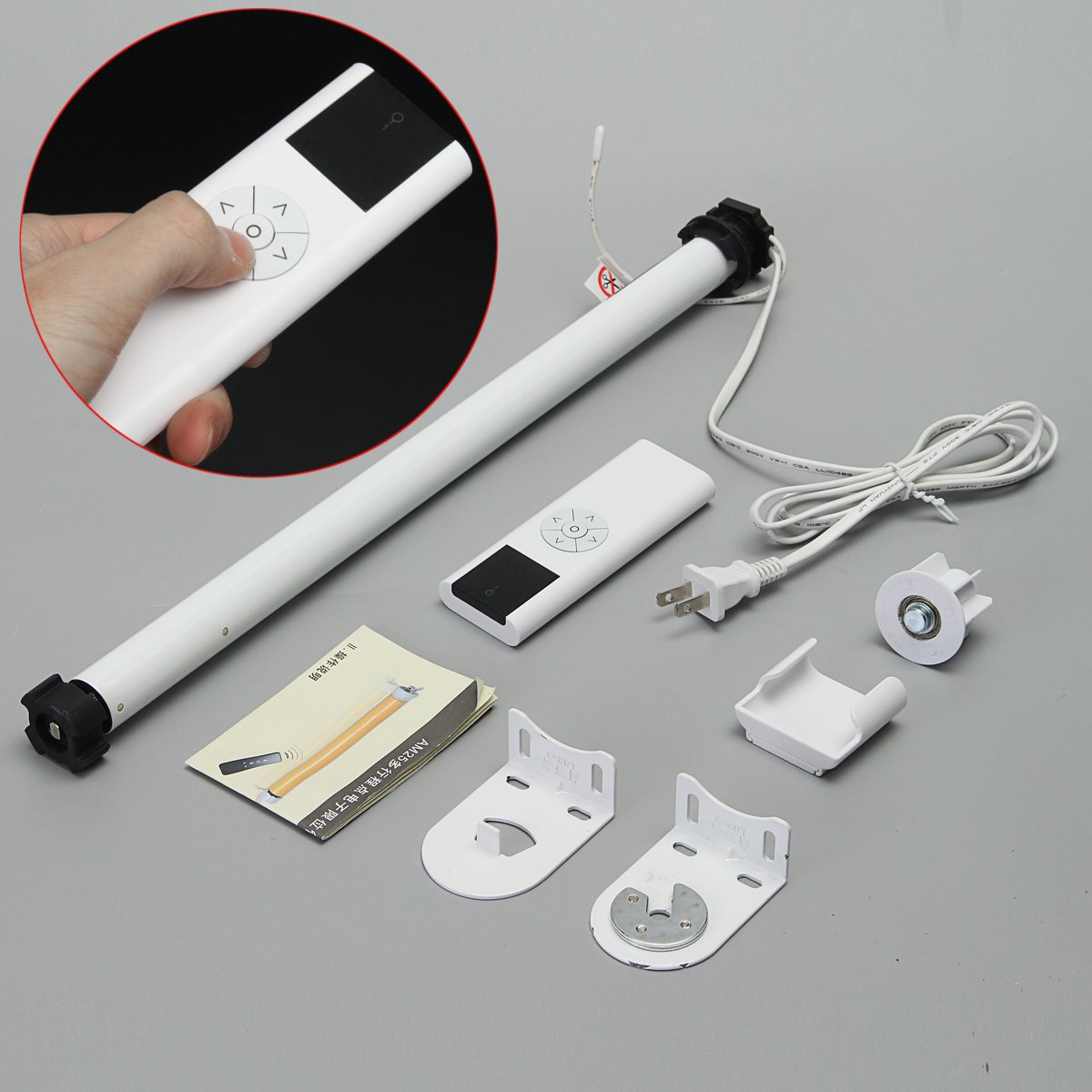

Package Included

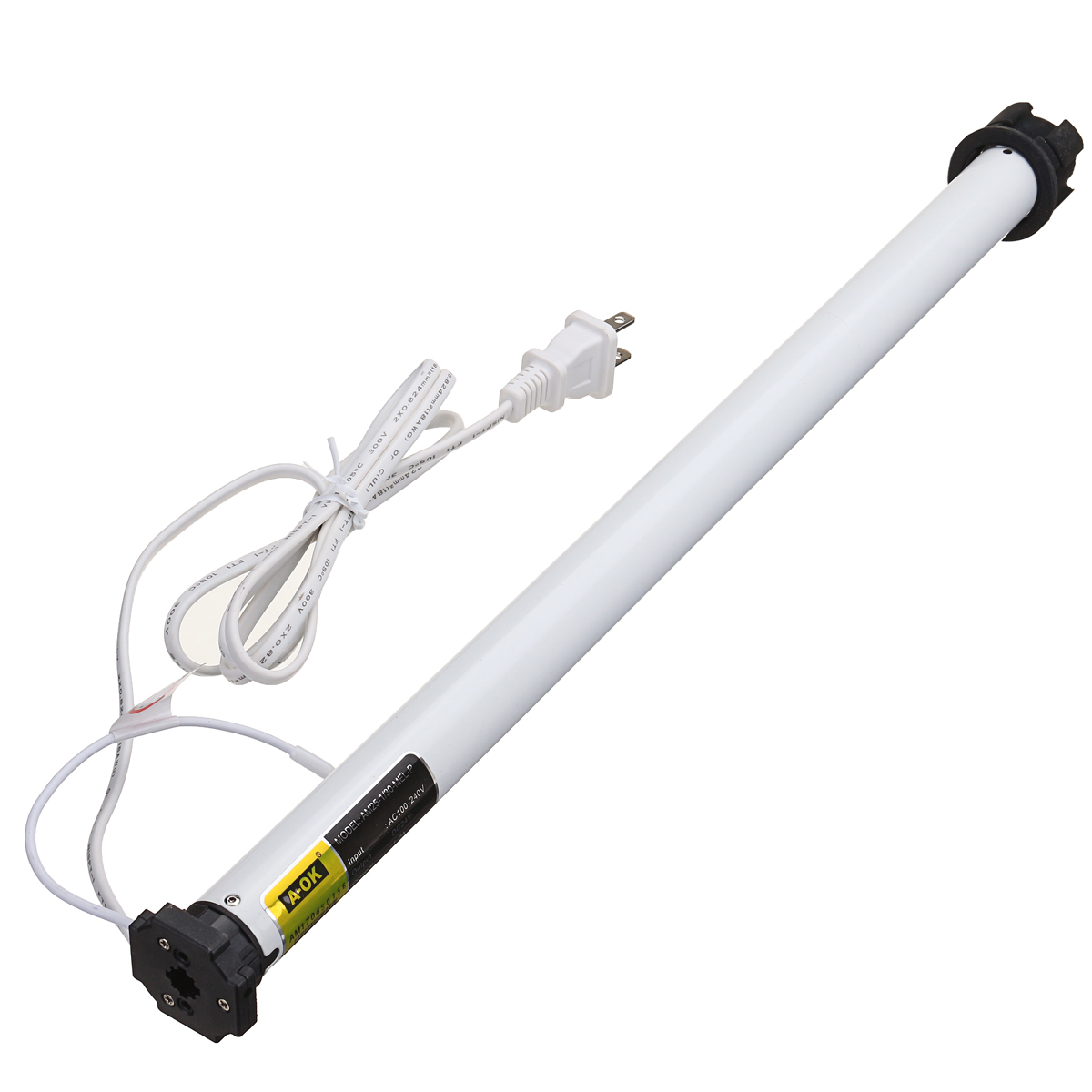

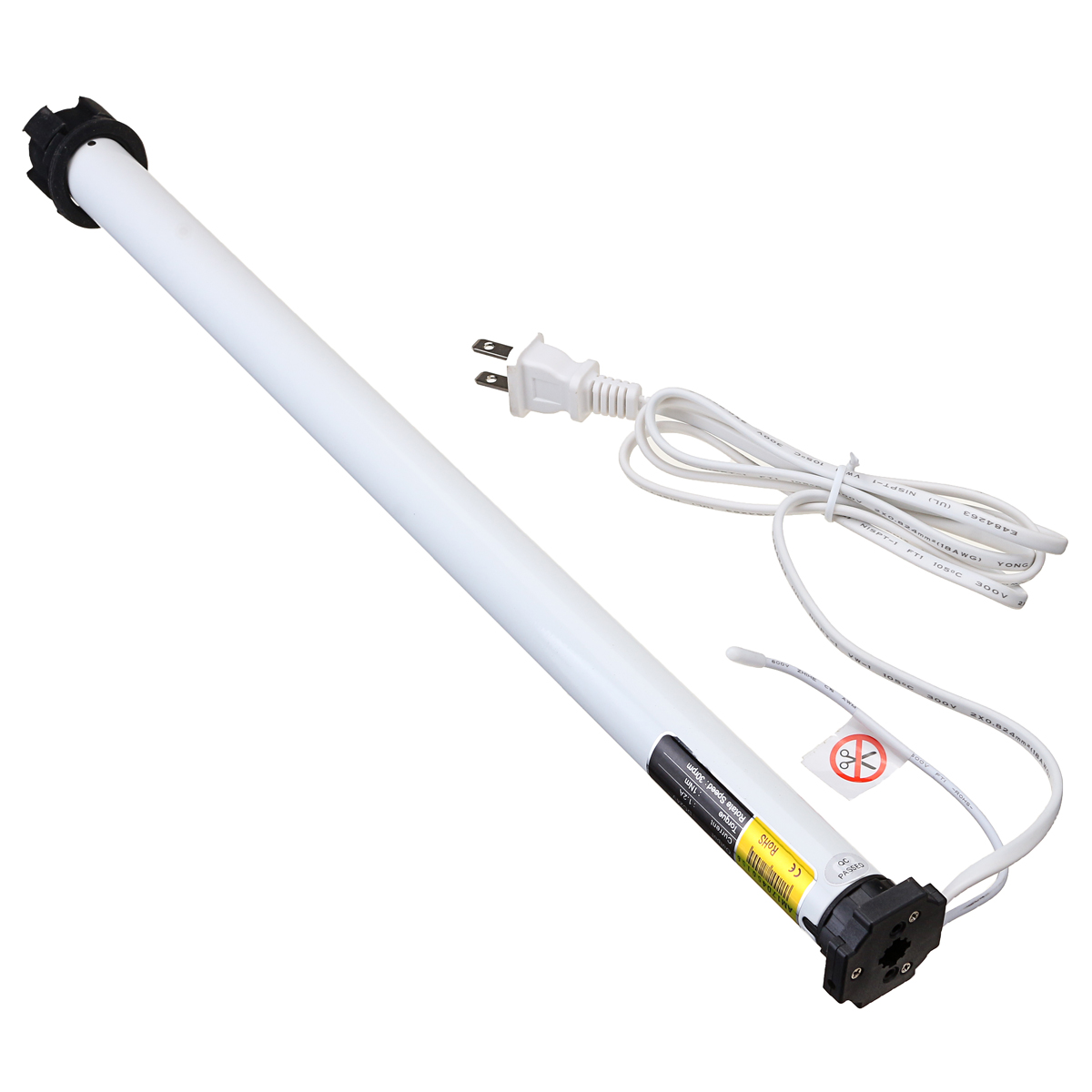

1 x electric shutter motor

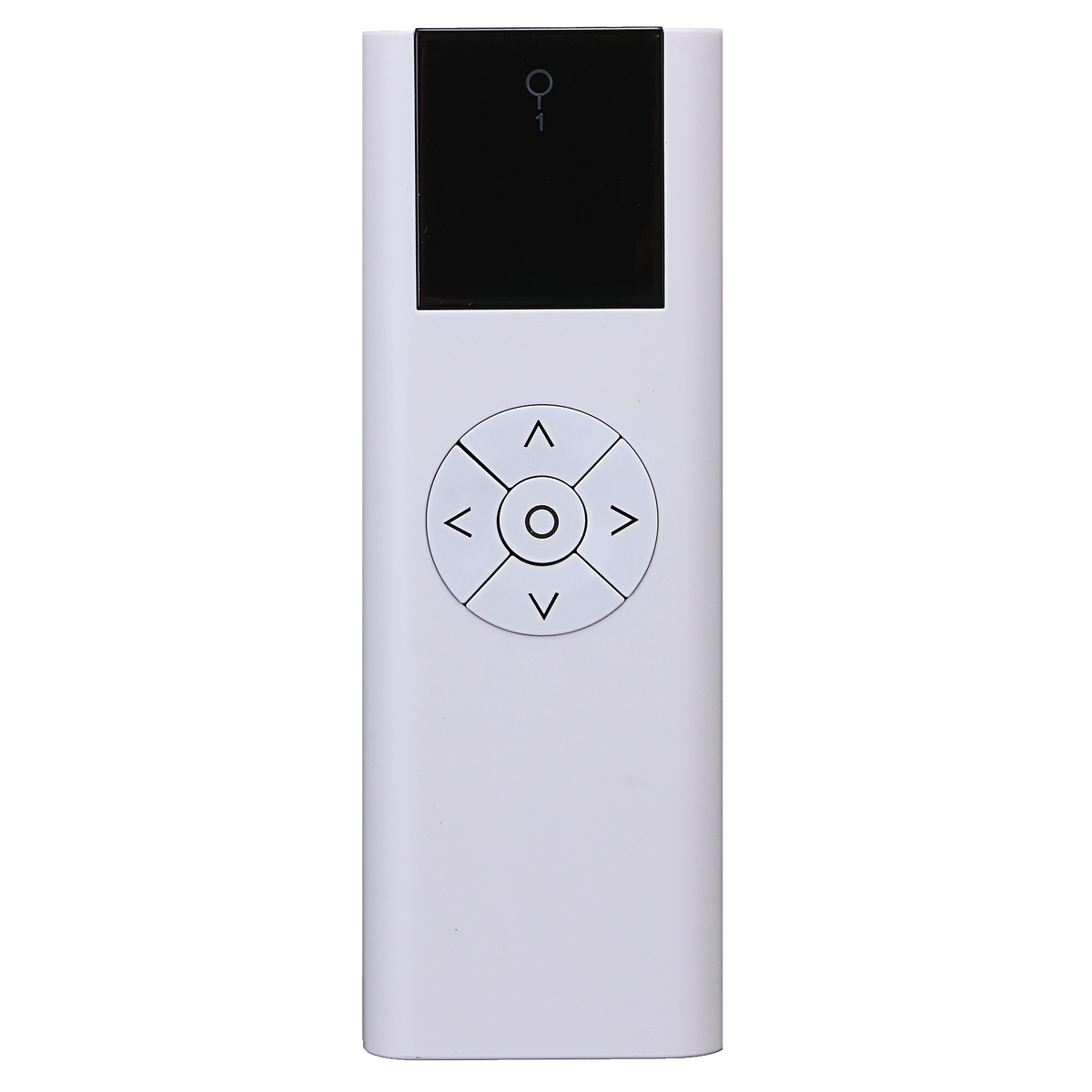

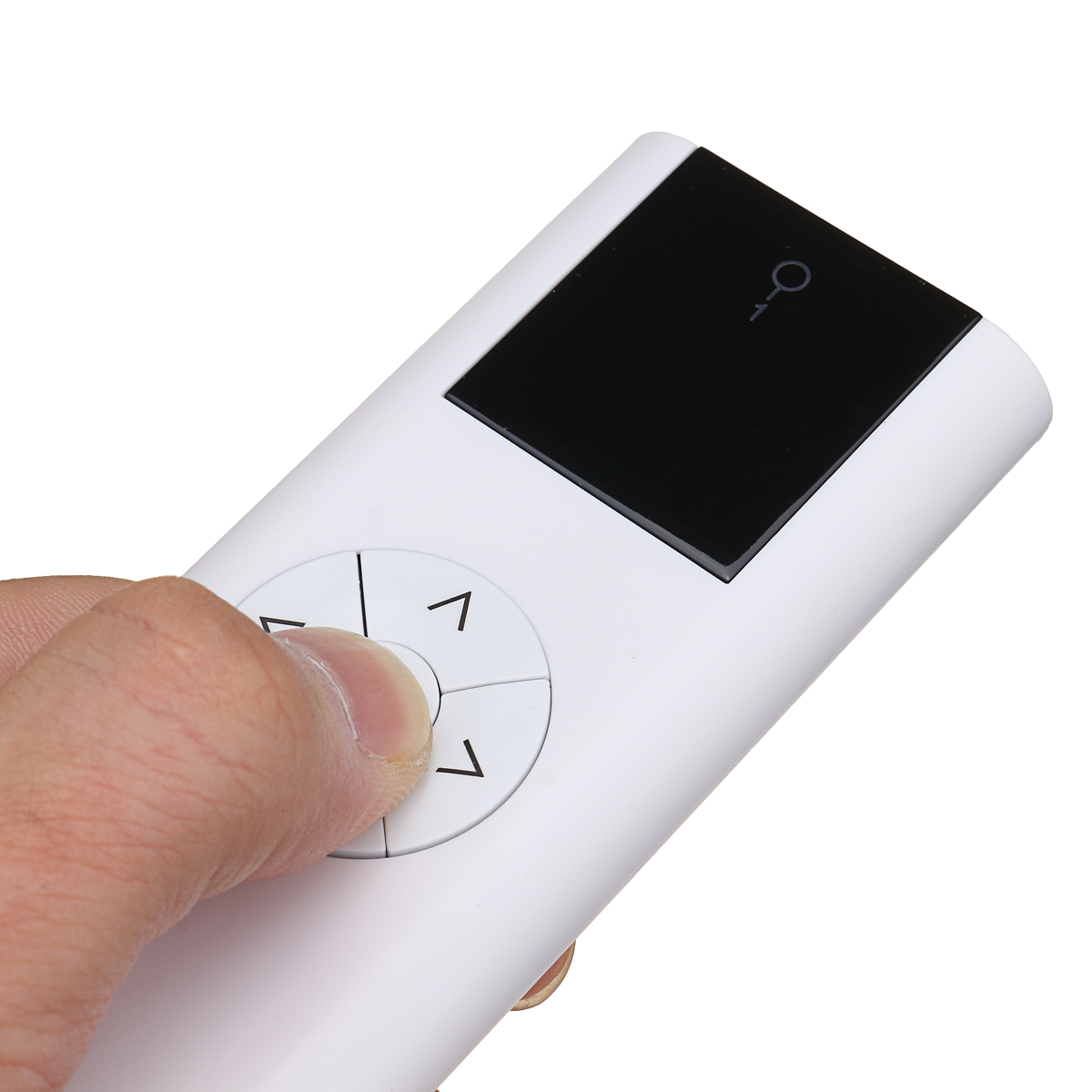

1 x remote transmitter

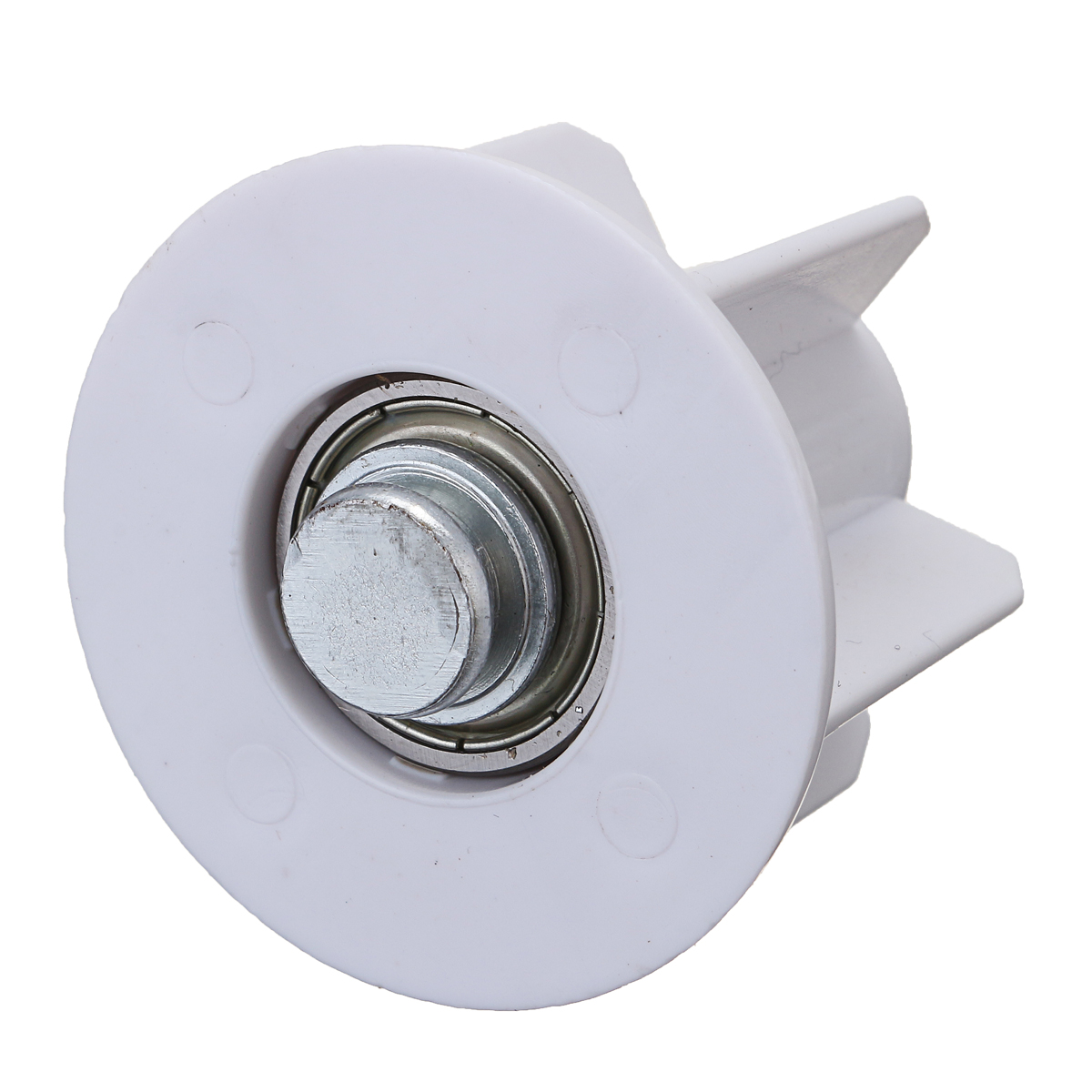

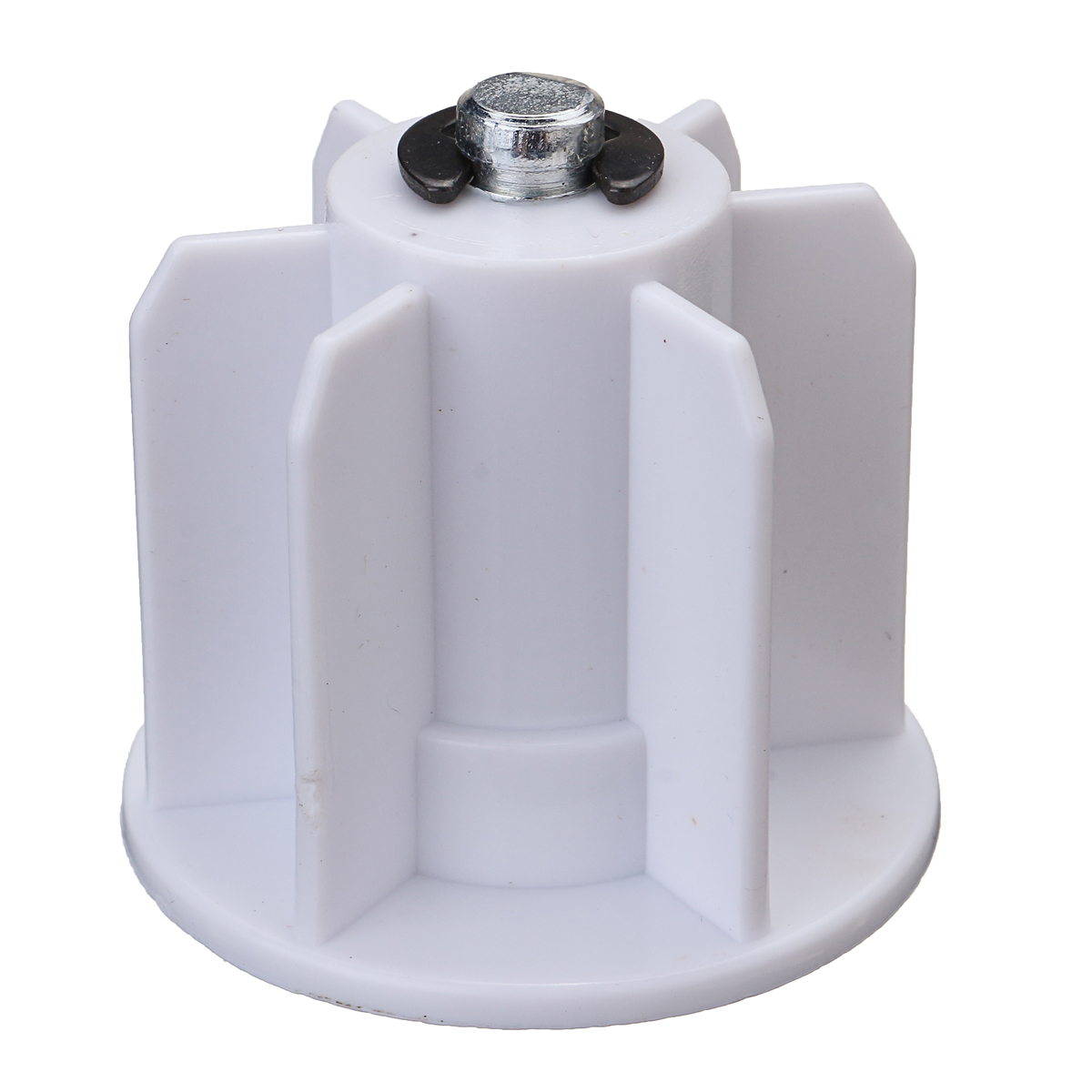

3 x accessories
(Distribute the adapter according to your country)
Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
More Details:
