26MP HDMI Digital Microscope 60fps Hight Frames Rate Microscope Camera with HDR Mode Eliminate Metal Reflection Soldering 2100X Adjustable HY-2070

Significant improvements:

Advantage 1:

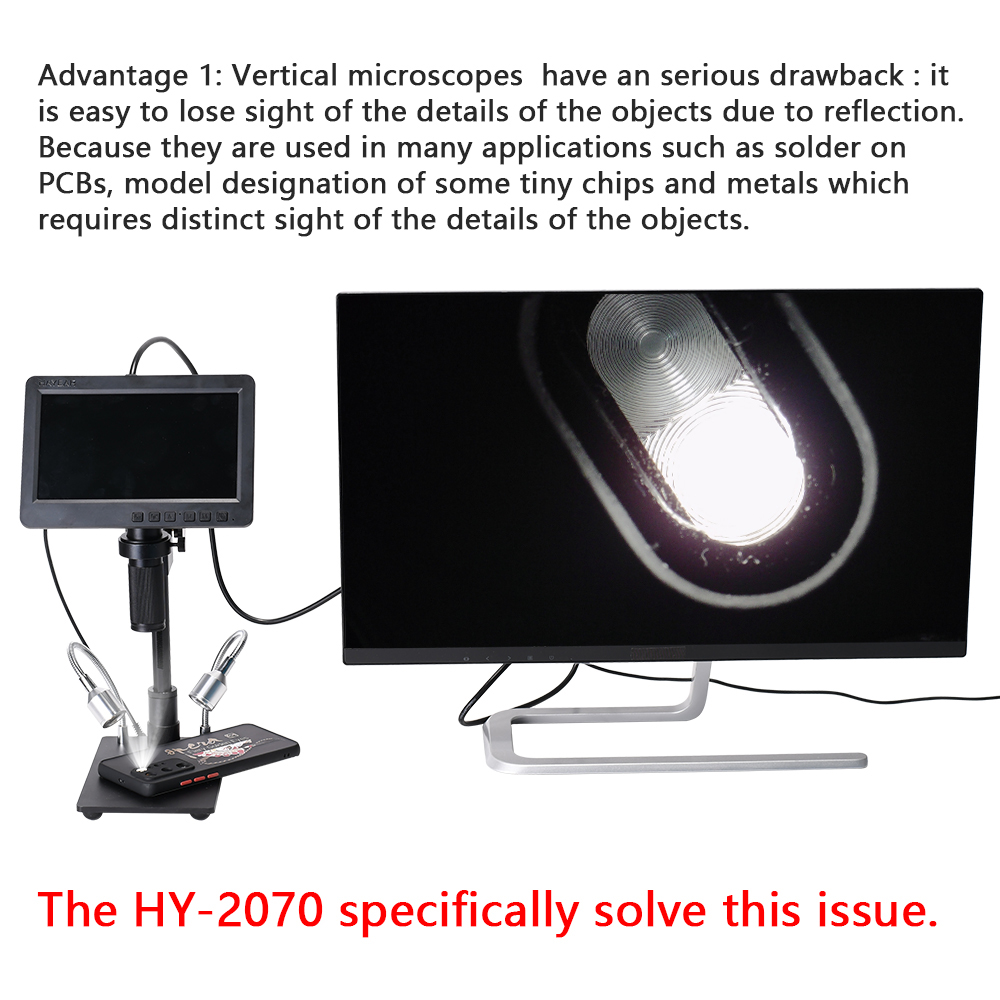

Vertical microscopes have a serious shortcoming: under the illumination of light, tiny components or chip will be unable to see the details due to light reflections.

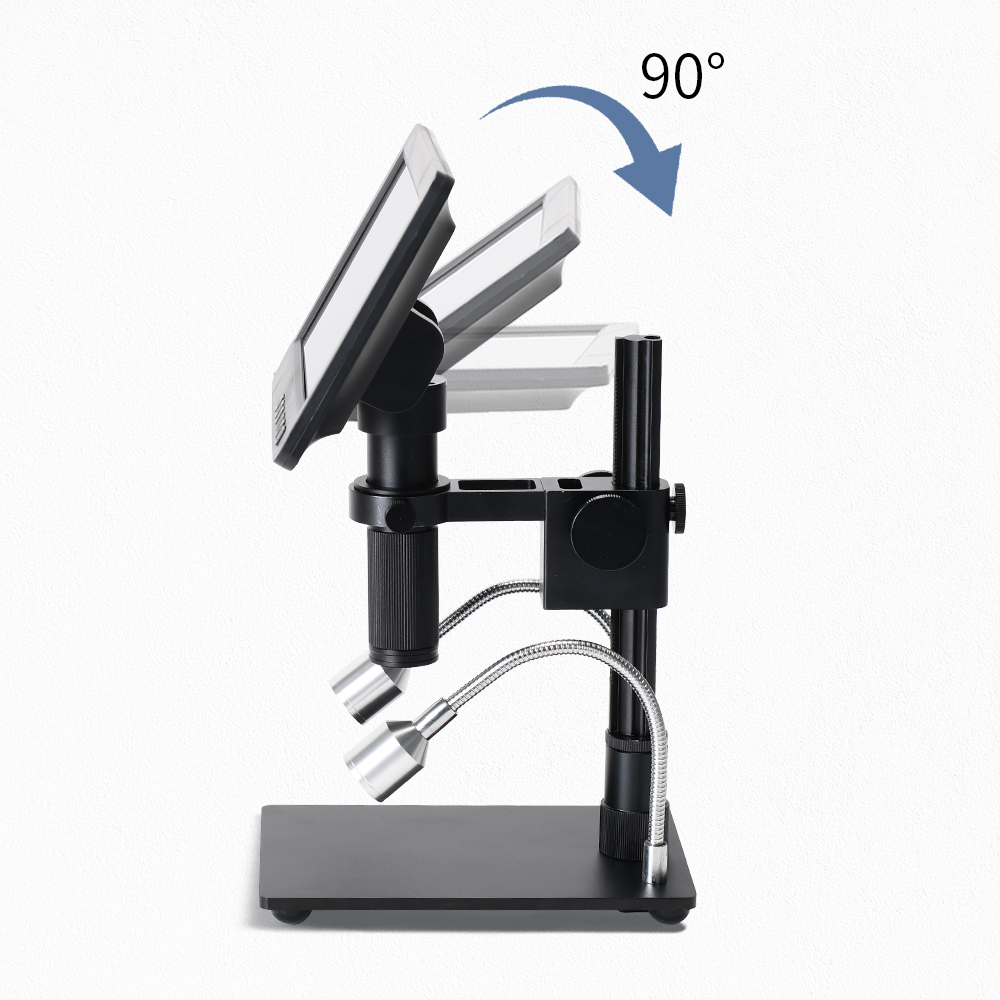

HY-2070 specifically solves this problem. It is an adjustable angle digital microscope that solves the problem of light reflection. It can effectively reduce the reflection of metal objects and clearly display the details of the components.

Advantage 2:

This is a continuous zoom digital microscope, it has a true 300X optical magnification effect (150x microscope lens, 2X objective lens), digital magnification up to 2100x times. With 26MP high-definition resolution, it can meet your various needs

Features:

- Equipped with 26 million pixel CMOS image sensor, HDMI 1080P 60 frames per second high-definition image output, no delay and no smear (compared to other microscopes on the market, most of them are 30 frames)

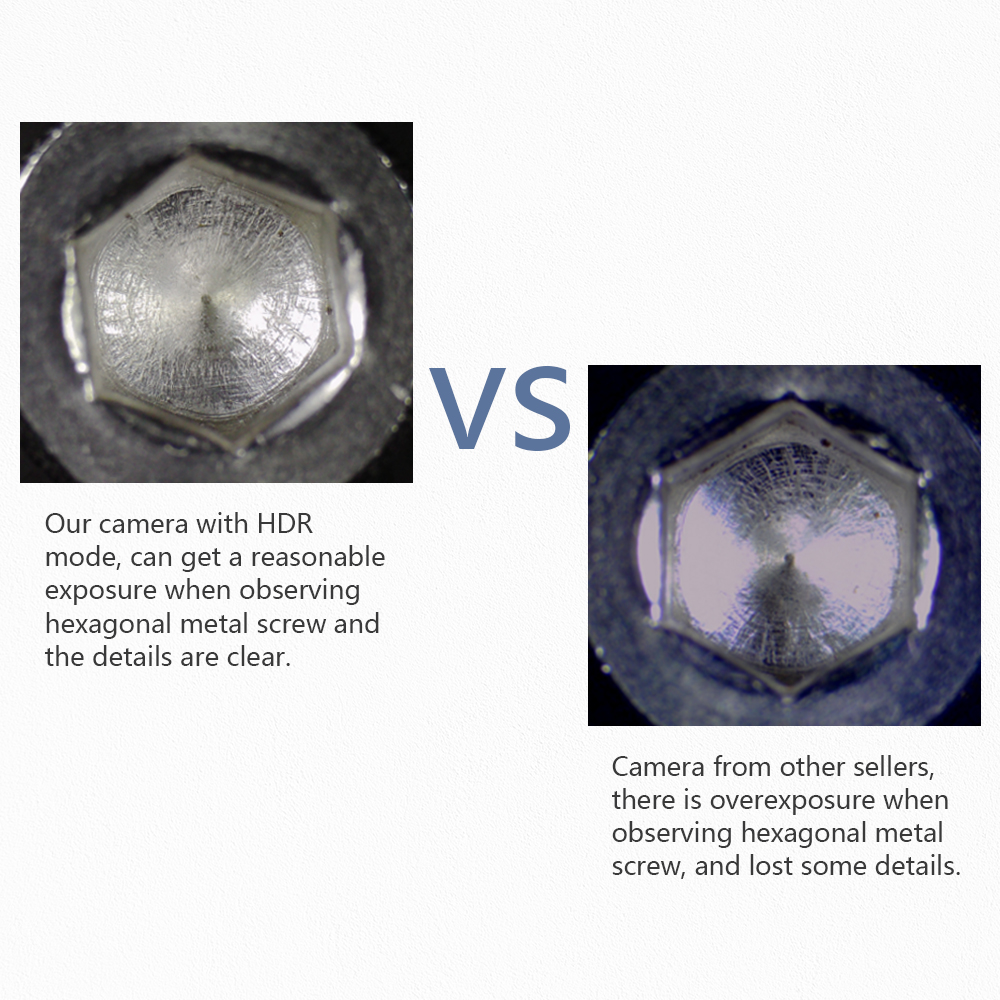

- When the HDR Mode is turned on, it has a strong light suppression function, which can well solve the reflection phenomenon of metal objects, so as not to hurt the eyes and get more object details

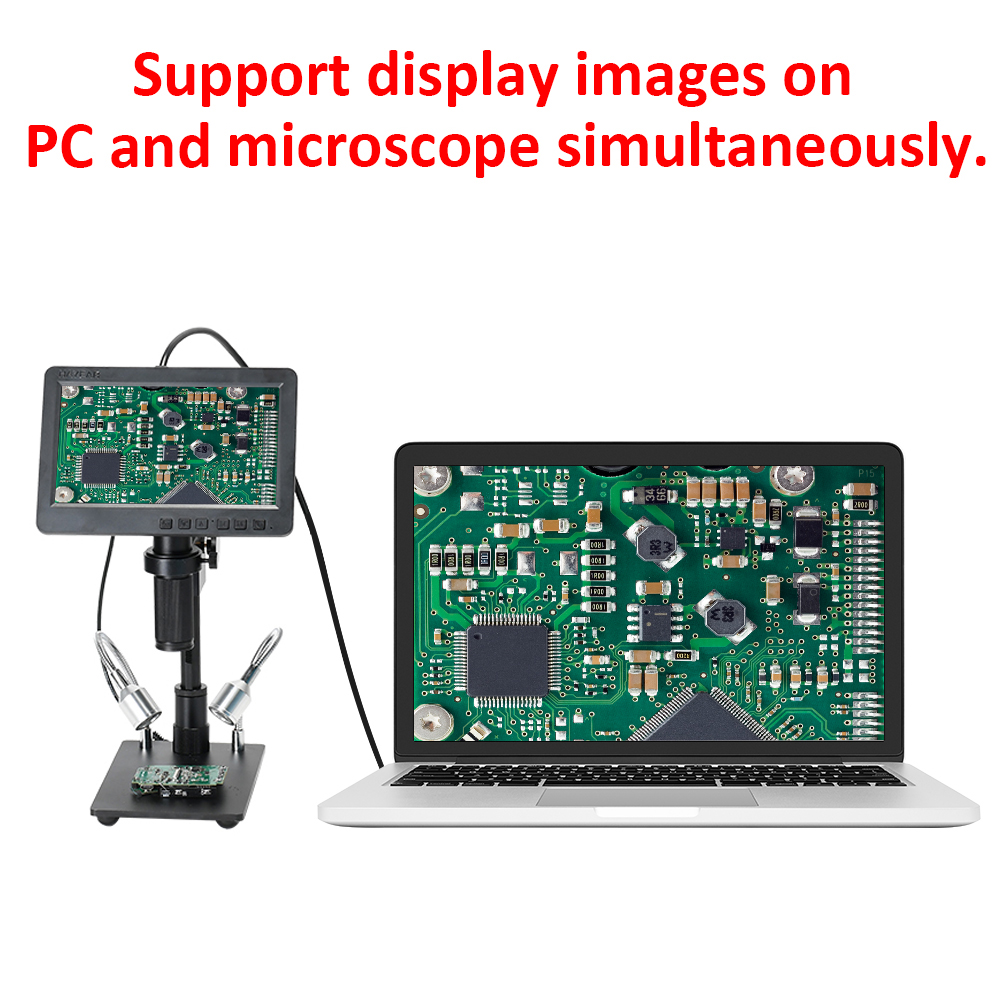

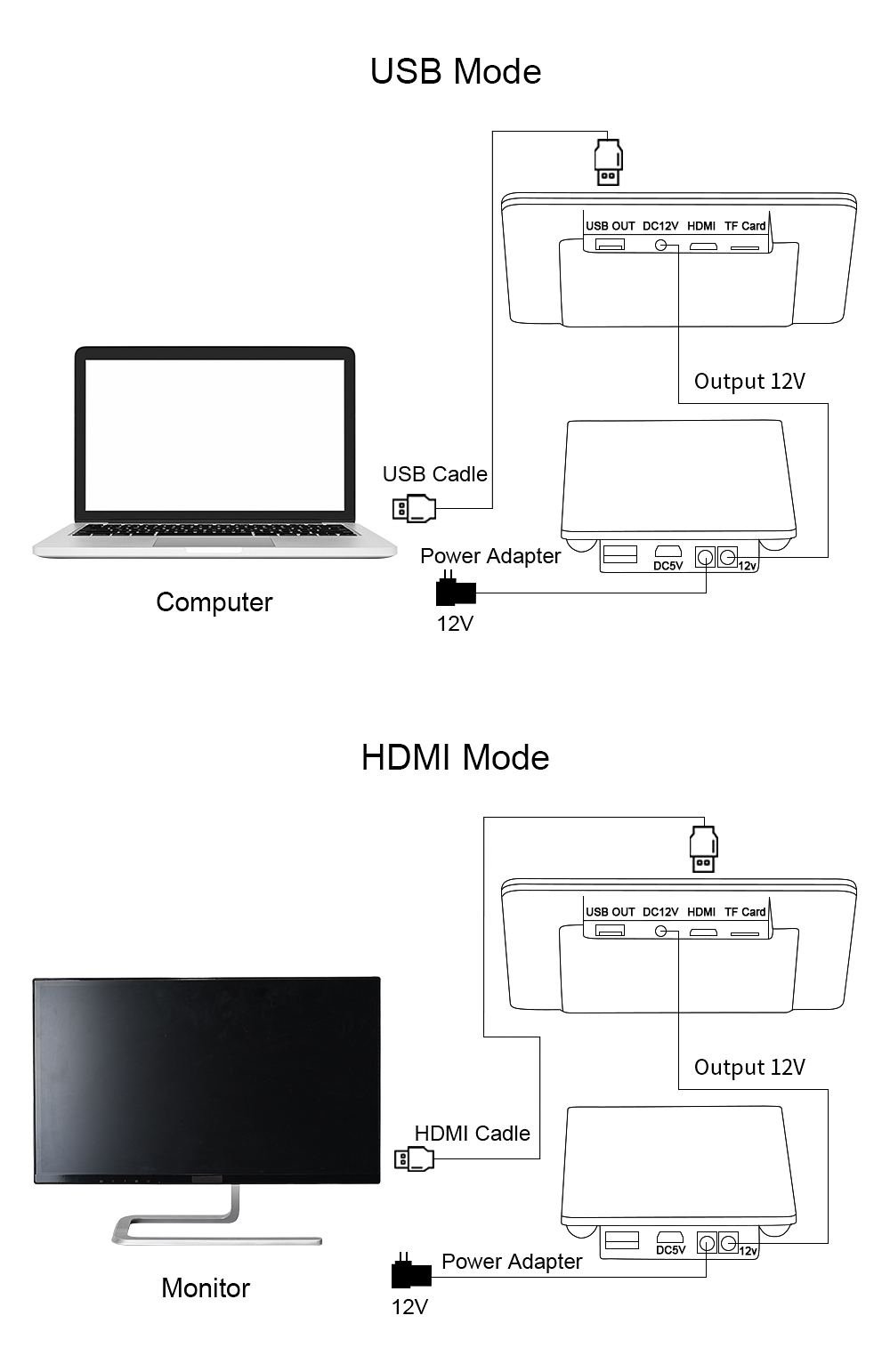

- Continuous zoom, can simultaneously support USB computer and display screen effect real-time display, support computer software measurement function.

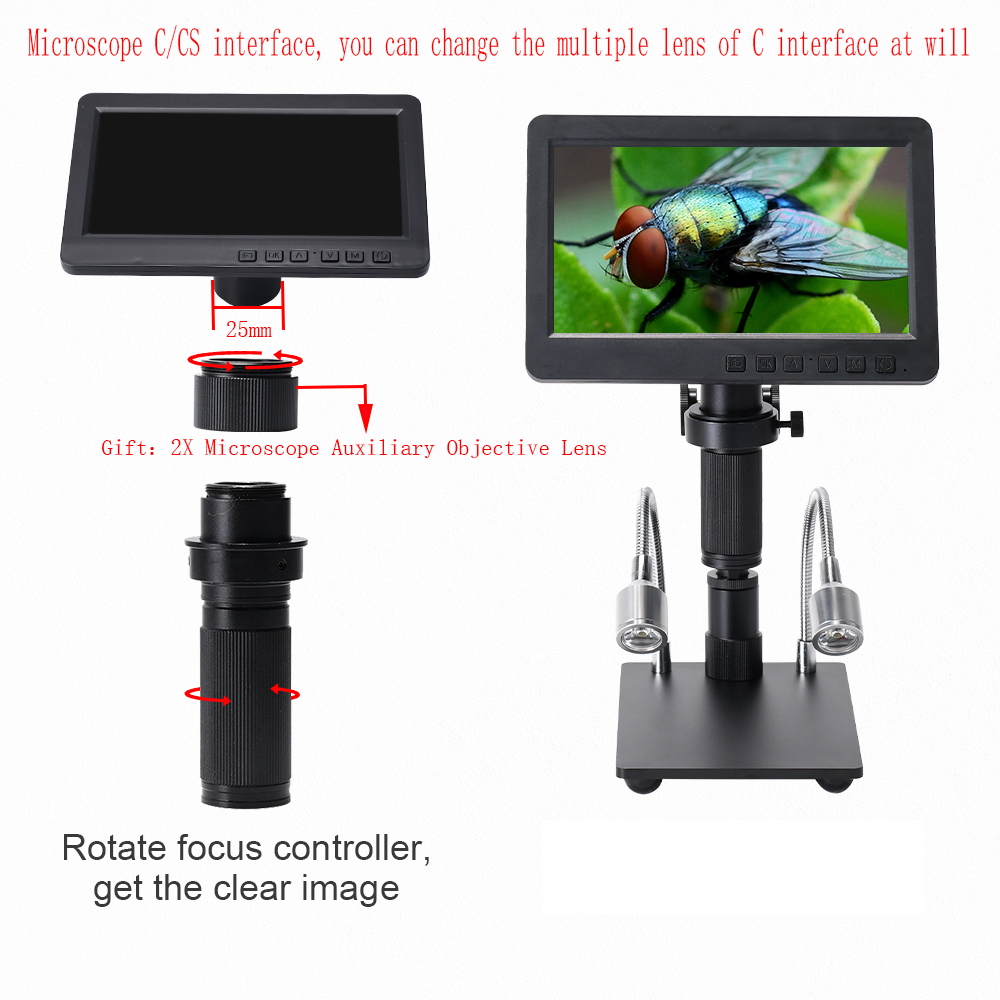

- This microscope is more extensible: C-mount (25mm) is used. Real lens optical magnification: 300X ,digital magnification 2100X. C-mount lenses of other magnifications can be replaced at will (if you need other styles of lenses, please contact customer service )

- Multiple system, support Windows XP/7/8/10 system. Multiple languages: English/Simplified Chinese/French/Spanish/Japanese/German and other languages

- 50mm~350mm Wider operating distance: easy to use tweezers, electric soldering iron and others under this microscope

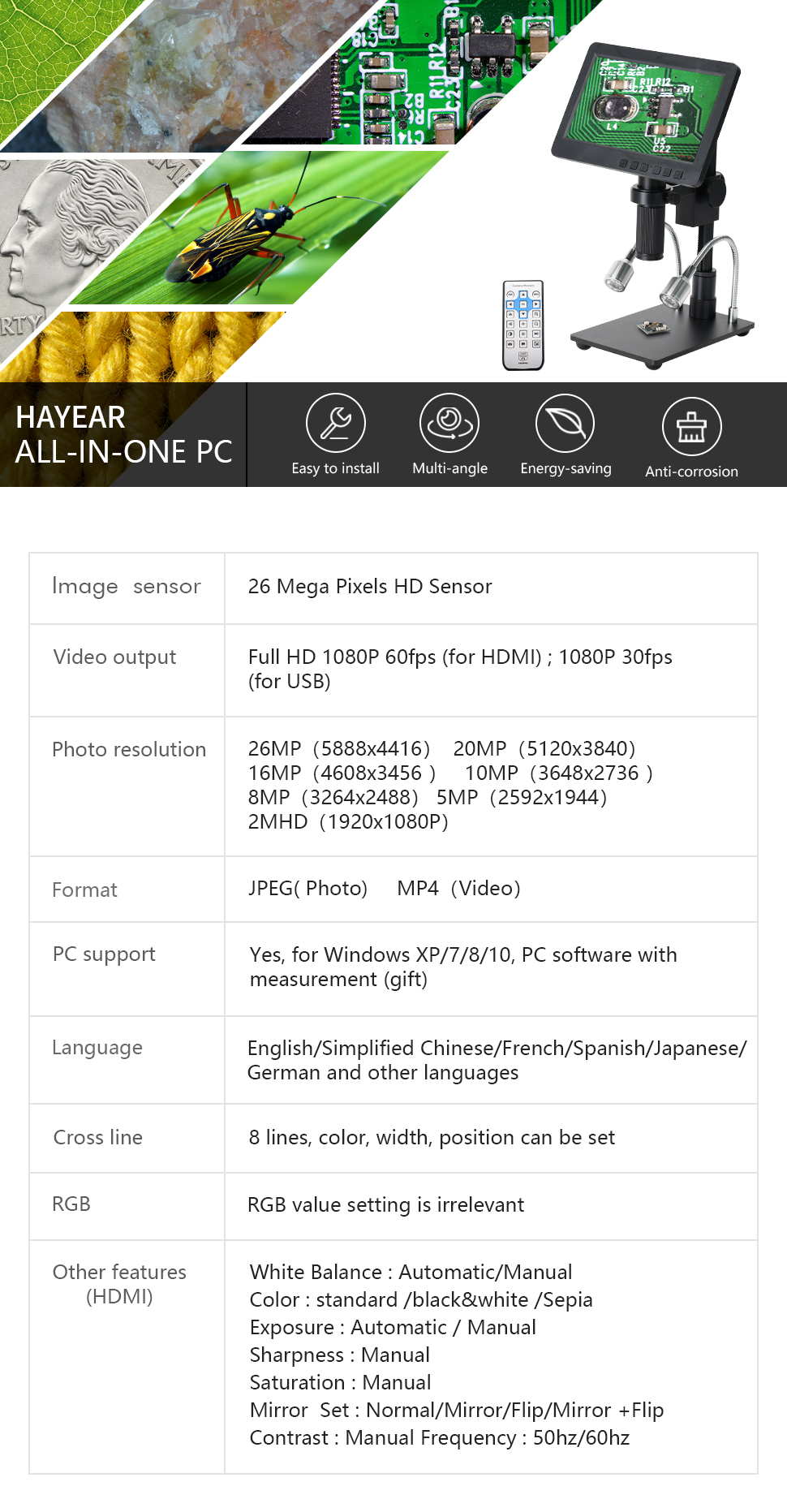

Specifications:

Image Sensor : 26 Megapixel CMOS HD Sensor
Video Output :1080P Full HD (for H'DMI) ;1080P (for USB)
Video Format : MP4
Magnification: Standard optical Magnification 150X (Max up to 300X), digital magnification 2100X
Photo Resolution : 26MP（5888x4416） 20MP（5120x3840） 16MP（4608x3456 ） 10MP（3648x2736 ） 8MP（3264x2488） 5MP（2592x1944） 2MHD（1920x1080P）

Language ：English/Simplified Chinese/French/Spanish/Japanese/German and other languages

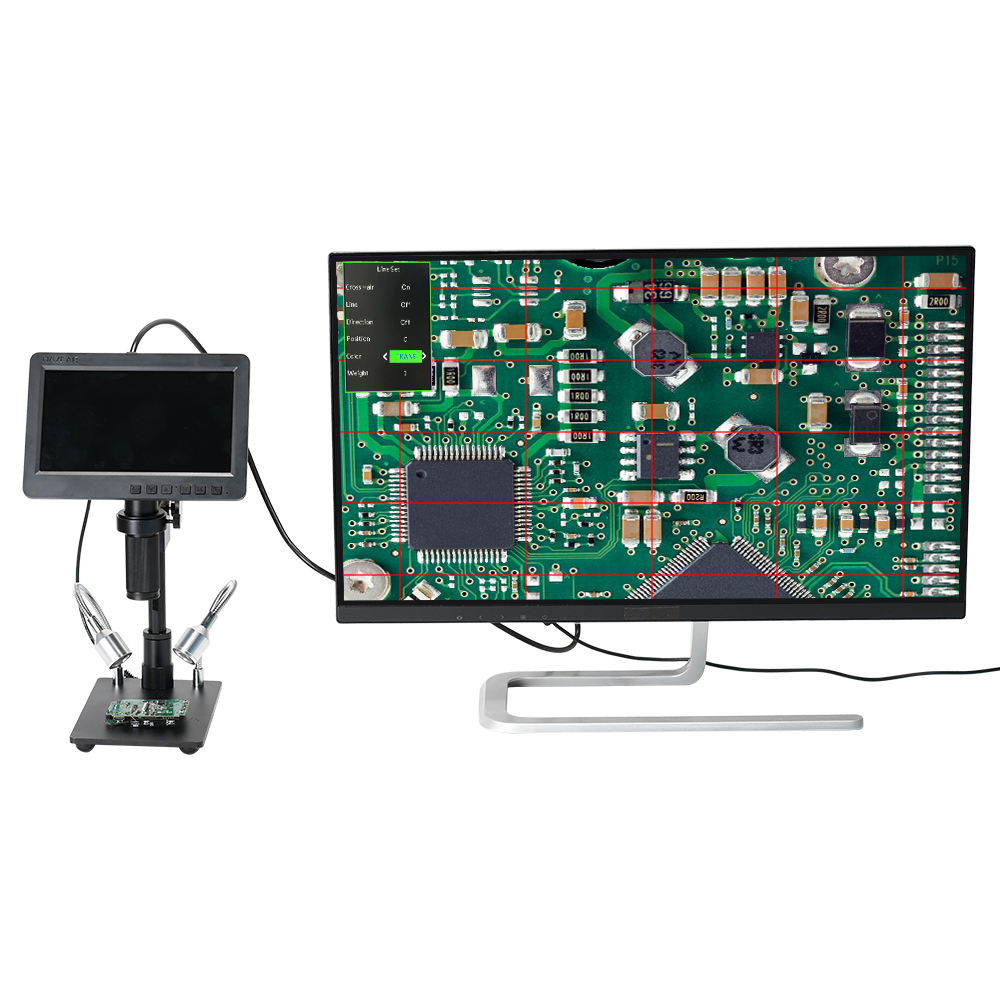

Cross line：8 lines, color, width, position can be set

Photo Format : JPEG
Working distance : 5cm to 12cm
Video Output : HDMI/USB

RGB：RGB value setting is irrelevant
Microphone : Support
Storage : TF card storage, max128G

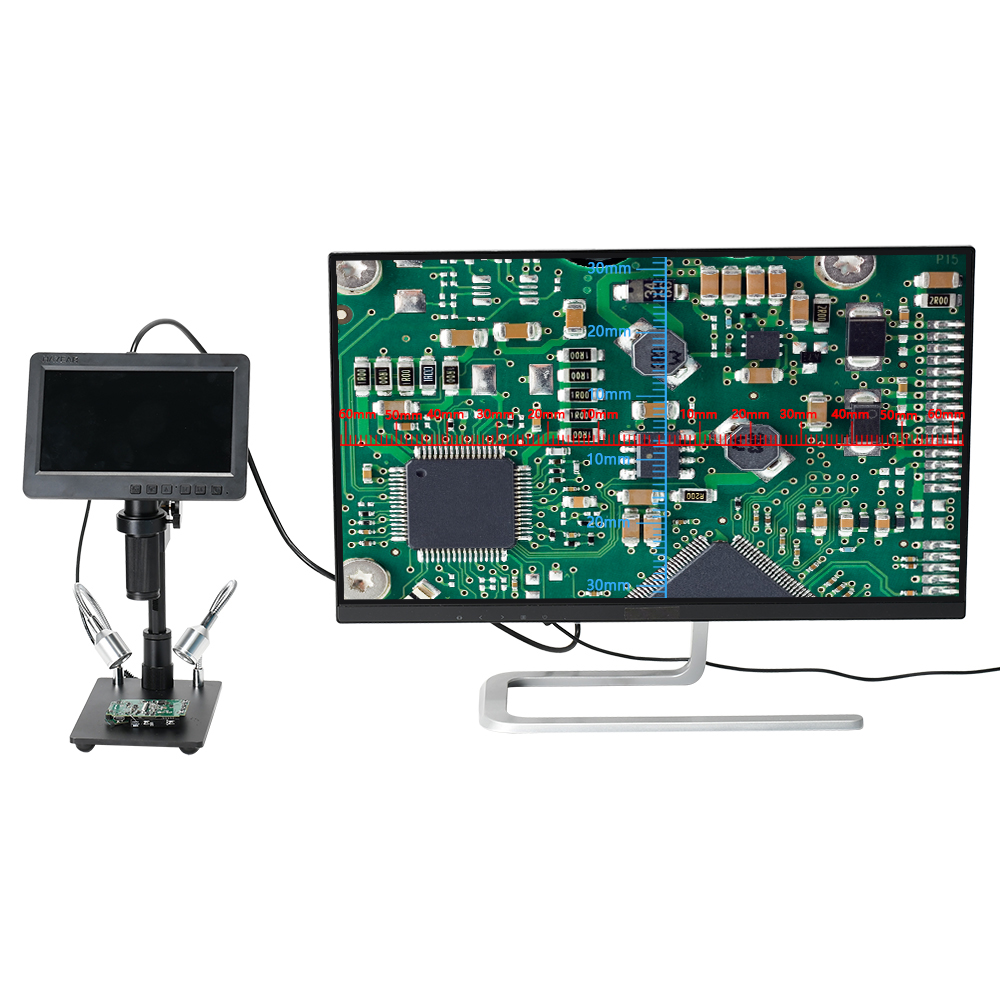

PC Support : Support Windows XP/7/8/10 system, including PC measuring software(gift)

Other features(for HDMI)

White Balance :Automatic/Manual

Color : standard /black&white /Sepia

Exposure : Automatic / Manual

Sharpness: Manual

Saturation: Manual

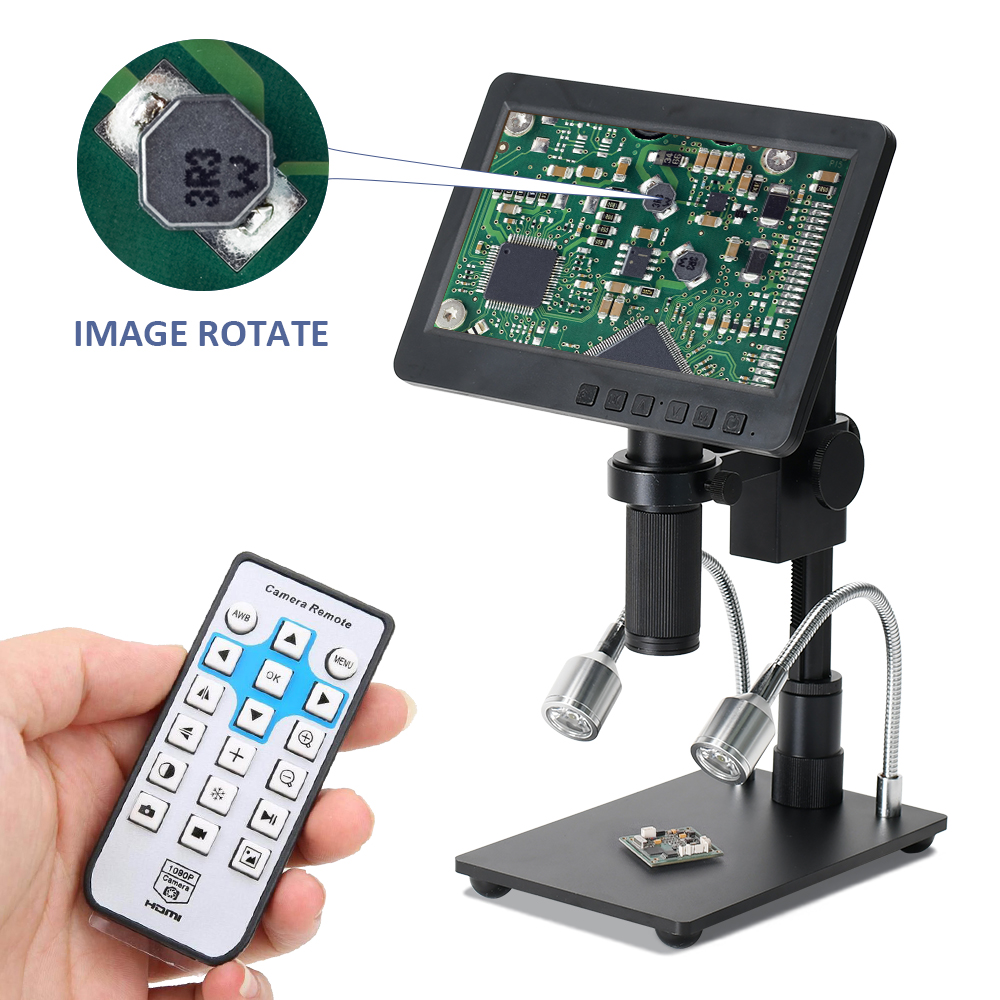

Mirror Set :Normal/Mirror/Flip/Mirror +Flip

Contrast :Manual

Frequency:50hz/60hz
Stand Size :17*11*20cm (LxWxH)

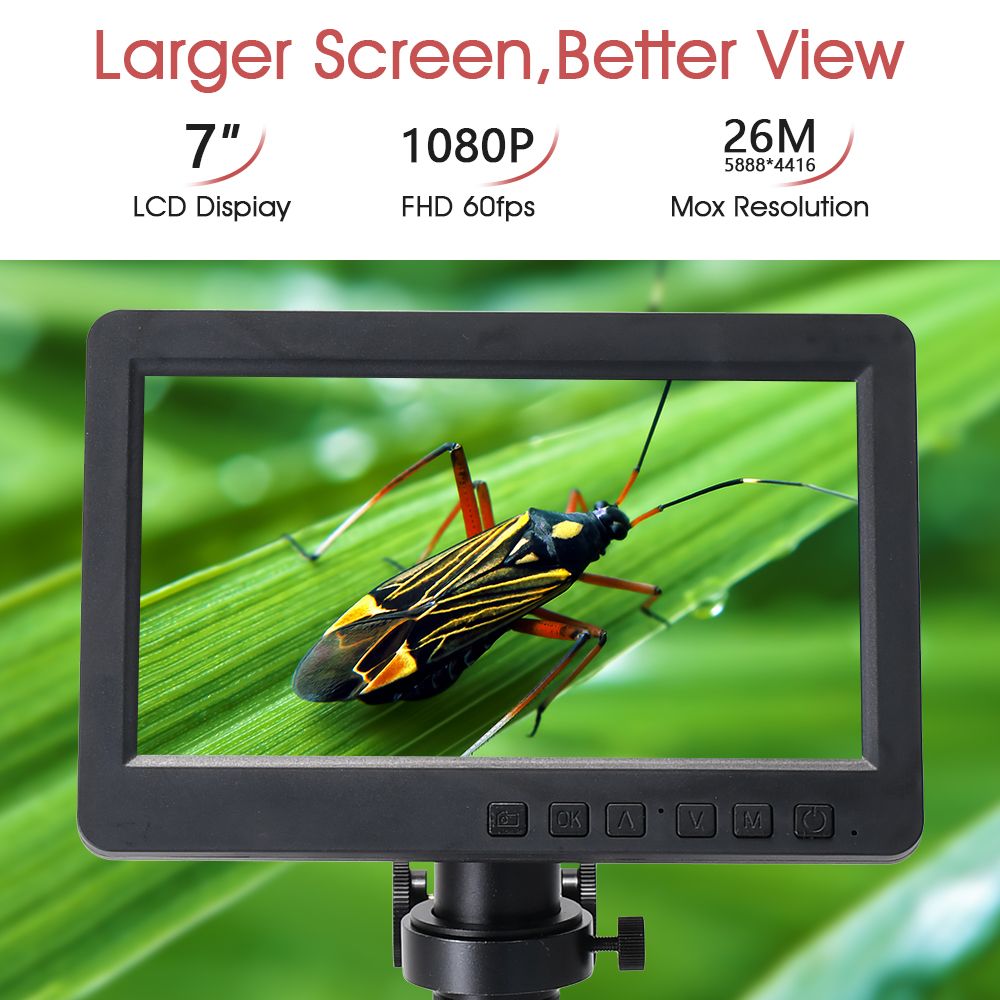

Screen Size :7 inch
Package Size :25.5*15.5*18cm
Package Weight:1.5Kg
Power for remote control:CR2025 battery (built-in)

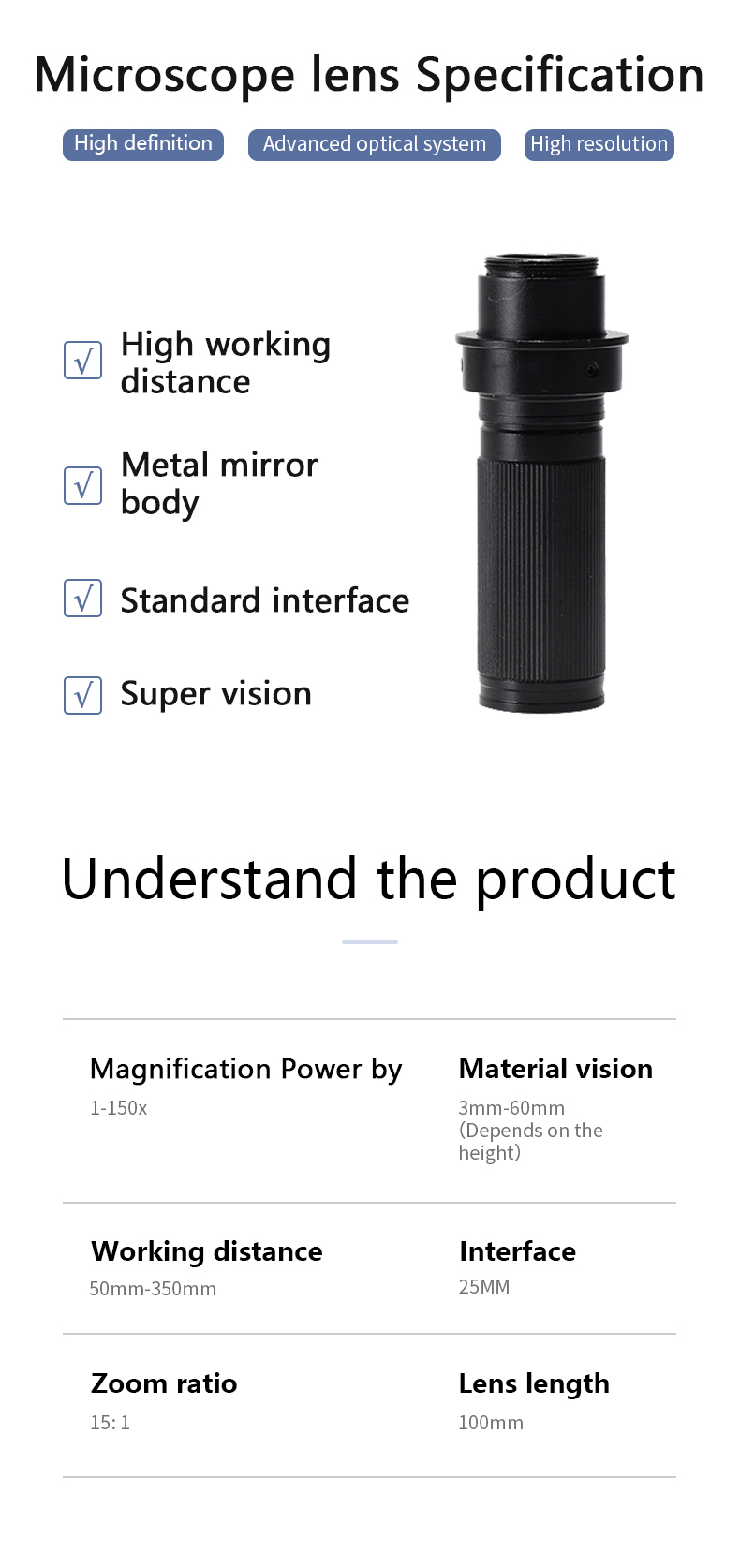

8X-150X Zoom C-mount Lens:

Working distance: 50mm-350mm

Field of view: 3.1mm-66mm

zoom c-mount Lens

zoom ratios: 15:1

Magnification Power by 0.11X-2X(about 8X -150X on the Monitor)

Size: 100mm(L) * 28mm(DIA)

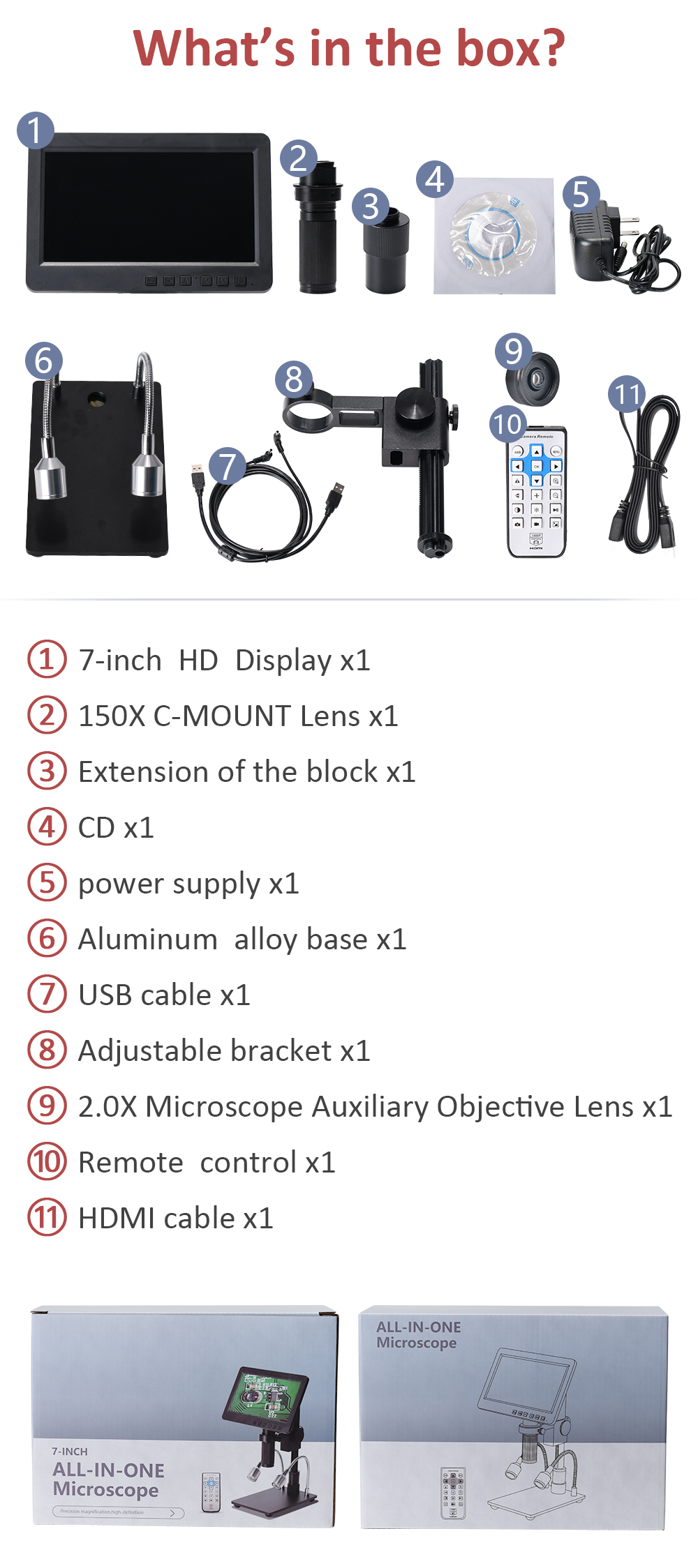

Package included:

1 X 7-inch HD Display

1 X 150X C-MOUNT Lens

1 X Extension of the block

1 X CD

1 X Power supply

1 X Aluminum alloy base

1 X USB cable

1 X Adjustable bracket

1 X 2.0X Microscope Auxiliary Objective Lens

1 X Remote control

1 X HDMI cable
