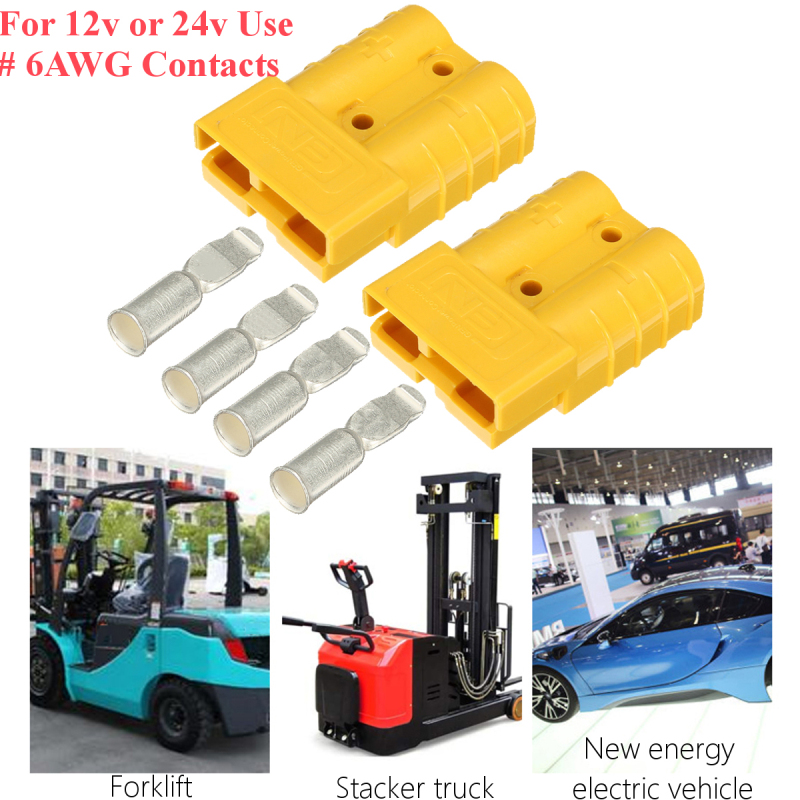

2Pcs 50A DC12/24V Anderson Style Plug Connectors Anderson Power Plug 4X Terminals Yellow
- Stock: In Stock
- Model: ST220015443
- SKU: ST220015443
$14.99
Ex Tax: $14.99
Specifications:
Color: Yellow

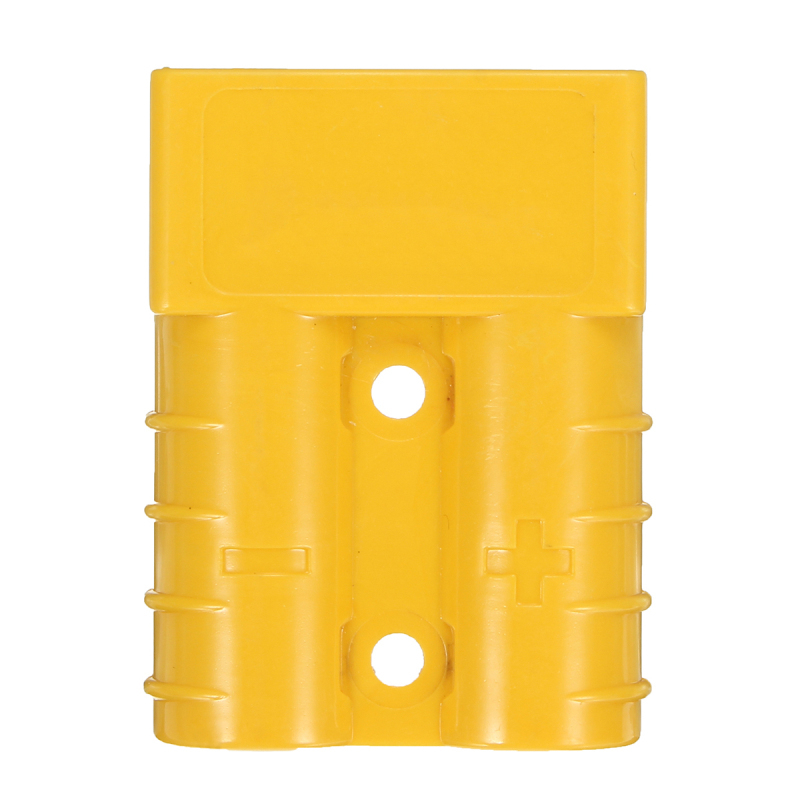

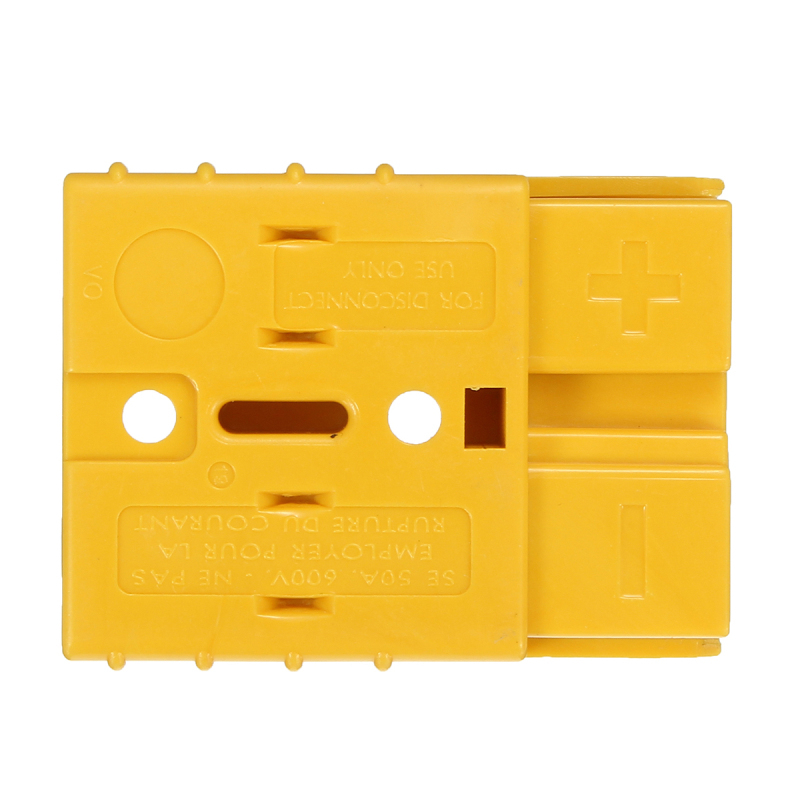

Housing Material: Polycarbonate (PC)

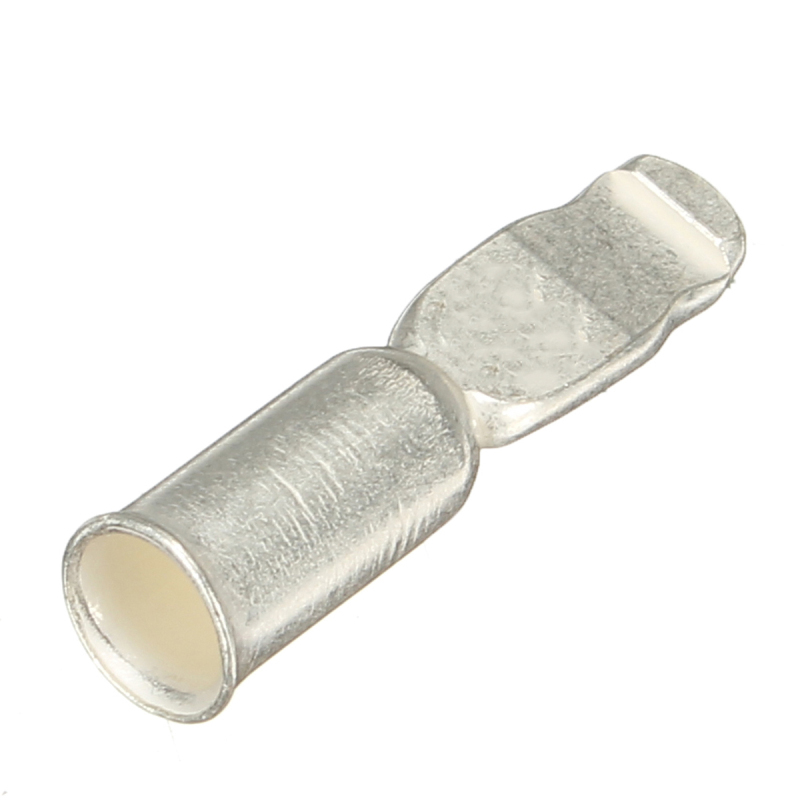

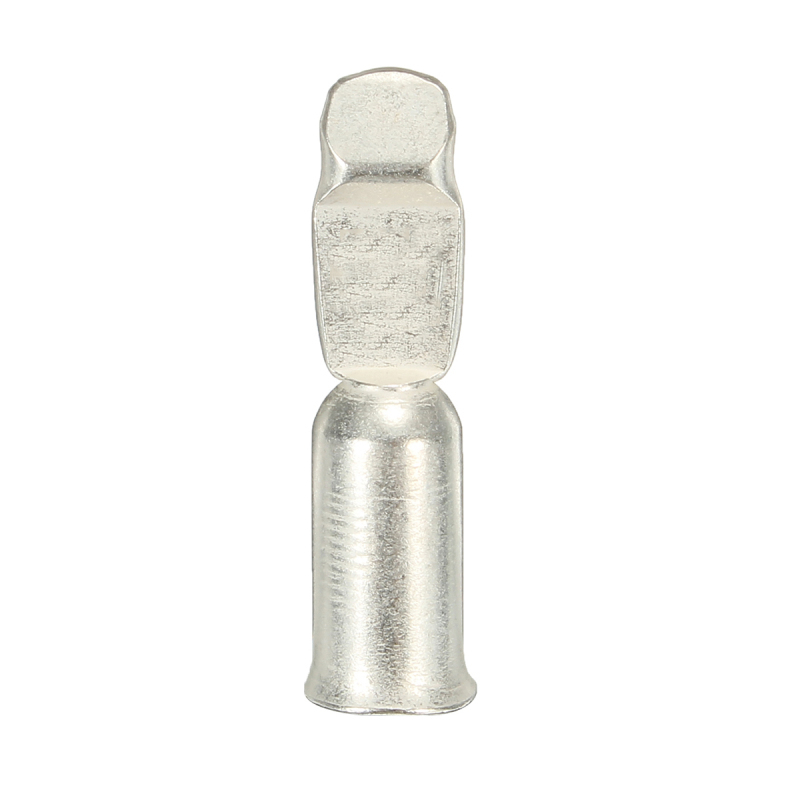

Contact material: Pure copper silver plating
Rated Current: 50A
Rated Voltage: 600V
Voltage:For 12v or 24v Use
Vibration Resistance: Excellent
Impact Resistance: High
Cable Size: 6B&S / 6AWG (up to 13.3 sq mm)
Average contact resistance: 0.05MΩ
Voltage proof: 2200V (DC)
Insulation resistance: 500MΩ
A. No load (Contact/Disconnect Cycles): To 10,000
B. Under load (Hot Plug 250cycless@120V): 50A
Flammability Rating of Housing Material: UL94 V- 0
Operating temperature range: -20°to 105°

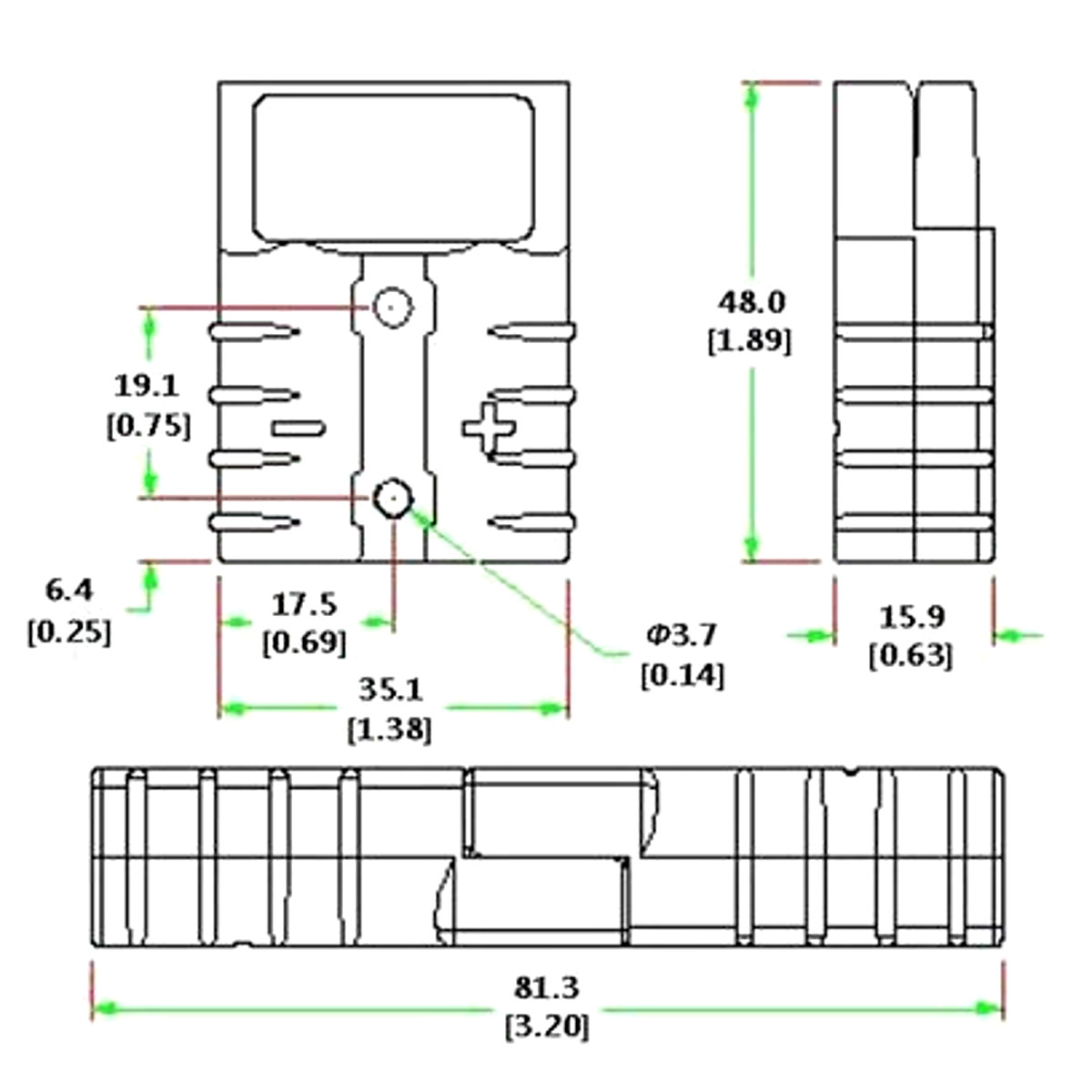

Connector Dimensions: 35.1mm x 48mm x 15.9mm
Features:
● The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.
● Provide simplified assembly and minimize the number of components.
● Silver plated copper contacts inside housings that strongly force the contacts together.
● Contacts feature a sacrificial tip that allows high current circuit interrupt.
● Prevents accidental cross mating of circuits.
● For signal transmission or the added safety of a premate ground position.
● Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.
Application: Common use includes: Battery Connections,Forklifts,Battery Chargers,Solar Panels,Wind Generators,Tow Trucks,Snow Plows,Farm Equipment,Jumper Booster Cables,Welding Equipment,Winches,Electric Vehicles.etc

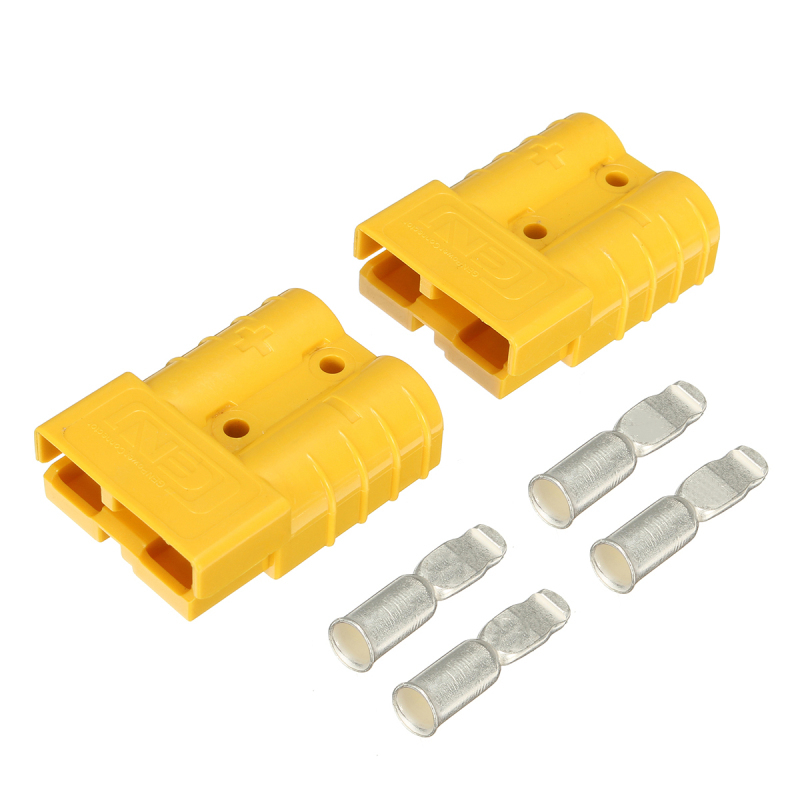

Package Included:

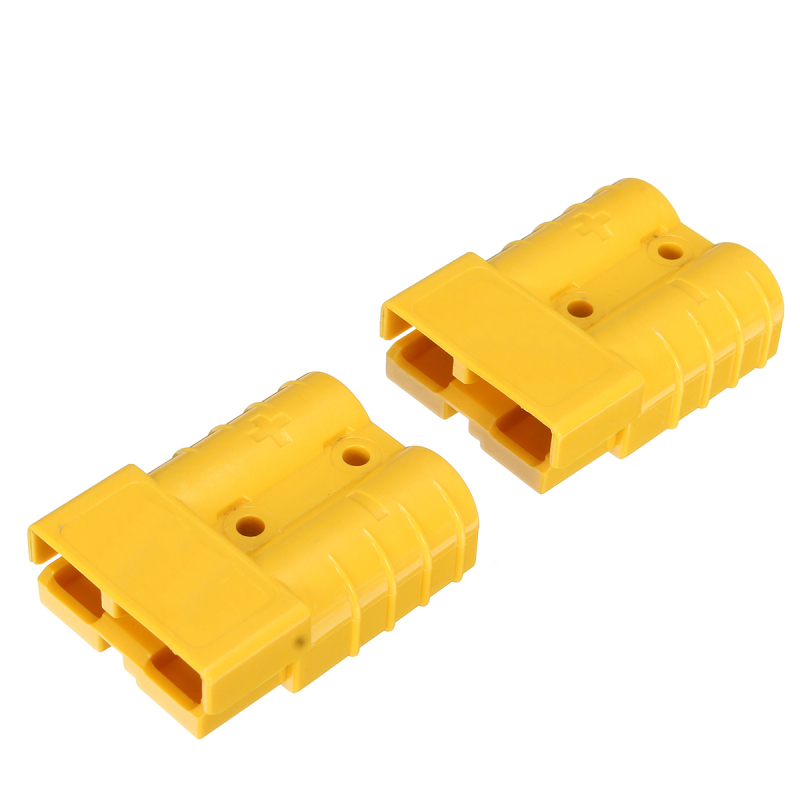

2 x Plugs
4 x Terminals
