2Pcs10CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
- Stock: In Stock
- Model: ST22011797
- SKU: ST22011797
$10.99
Ex Tax: $10.99
Features:
Name: IPEX to RP SMA Jumper Wire
Family: Coaxial, RF pigtail cable
Connector A: U.FL IPX
Connector B: RP-SMA Female (Inner Pin)
Cable Type: RG178 cable
Cable Length:10cm
Cable Length:10cm
Color: Gold Connector
Applications: Wifi router, Commercial-Grade Wireless, phone wireless, AP
Compatible with: WiFi USB Adapter; Wireless Network Router Hotspot; WiFi Signal Booster Repeater; WiFi Range Extender; Wireless Mini PCI Express PCIE Network Card; IP Security Camera; Yagi Antenna;
Compatible with: Wireless Video Surveillance, Security IP Camera, NVR Recorder;
Connector: Reverse Polarity SMA Female 50 Ohm Bulkhead Mount Connector; Connector: Mini PCI U.FL IPX Connector; Cable: RG178 Coaxial Cable
Specification:
Part Number: IPEX -SMA female RG178 cable | |
Specification | |
Impendence | 50 ohm |
Connector 1 | RP SMA Female straight |
Connector 2 | IPX/U.FL Connector |
Cable type | RG178 |
Cable length | You Choose |
Frequency range | DC/6GHz |
Voltage withstand | 1000V maximum |
Jacket spark voltage | 3000Vrms |
Operating Temperature | 45 °C-85 °C |
Durability | ≥500 cycles |
Waterproof Rate | Waterproof Rate |
Package included:
2 x IPEX -SMA female RG178 cable

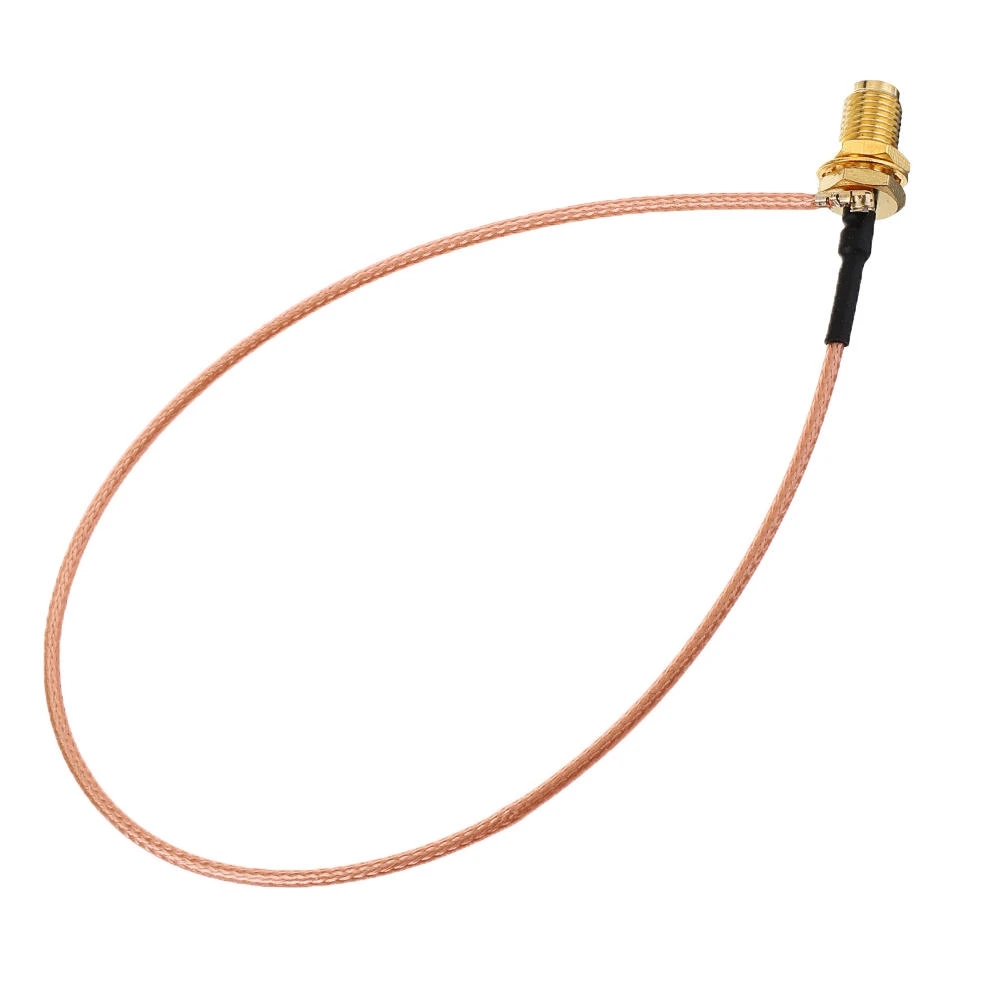

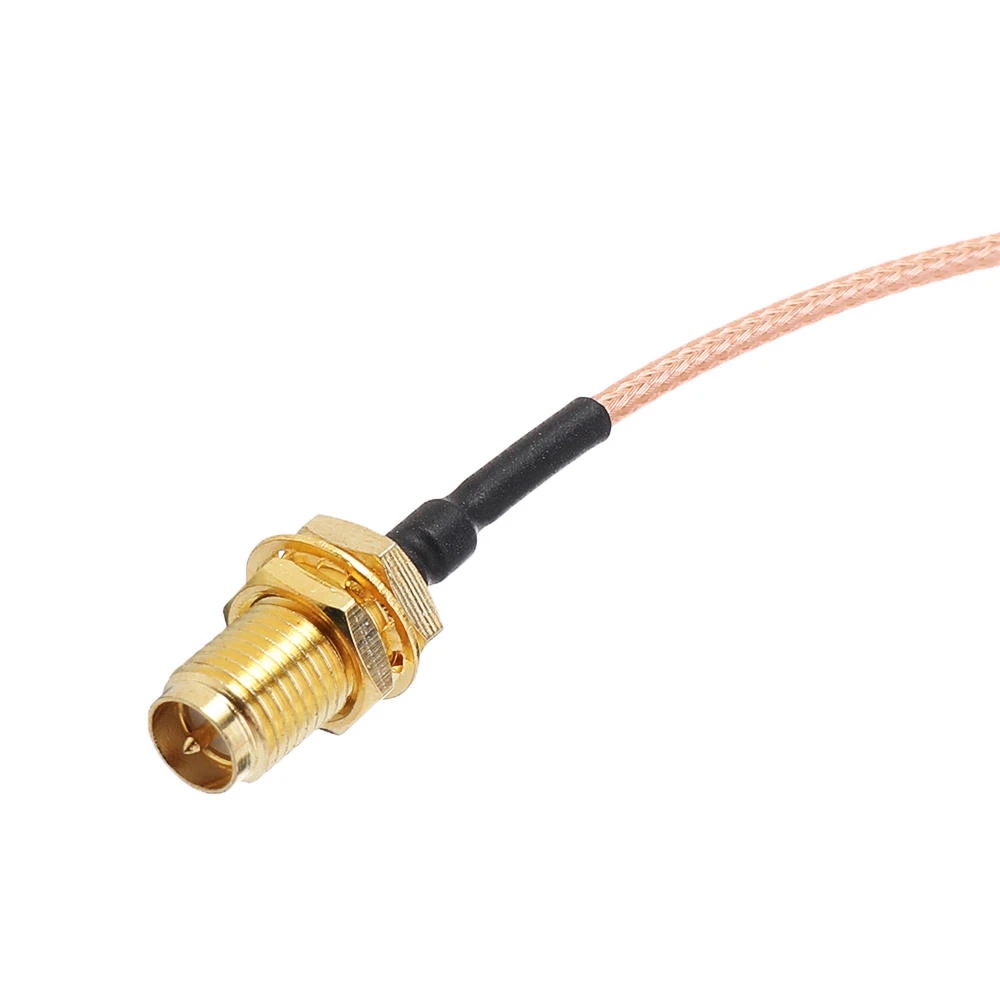

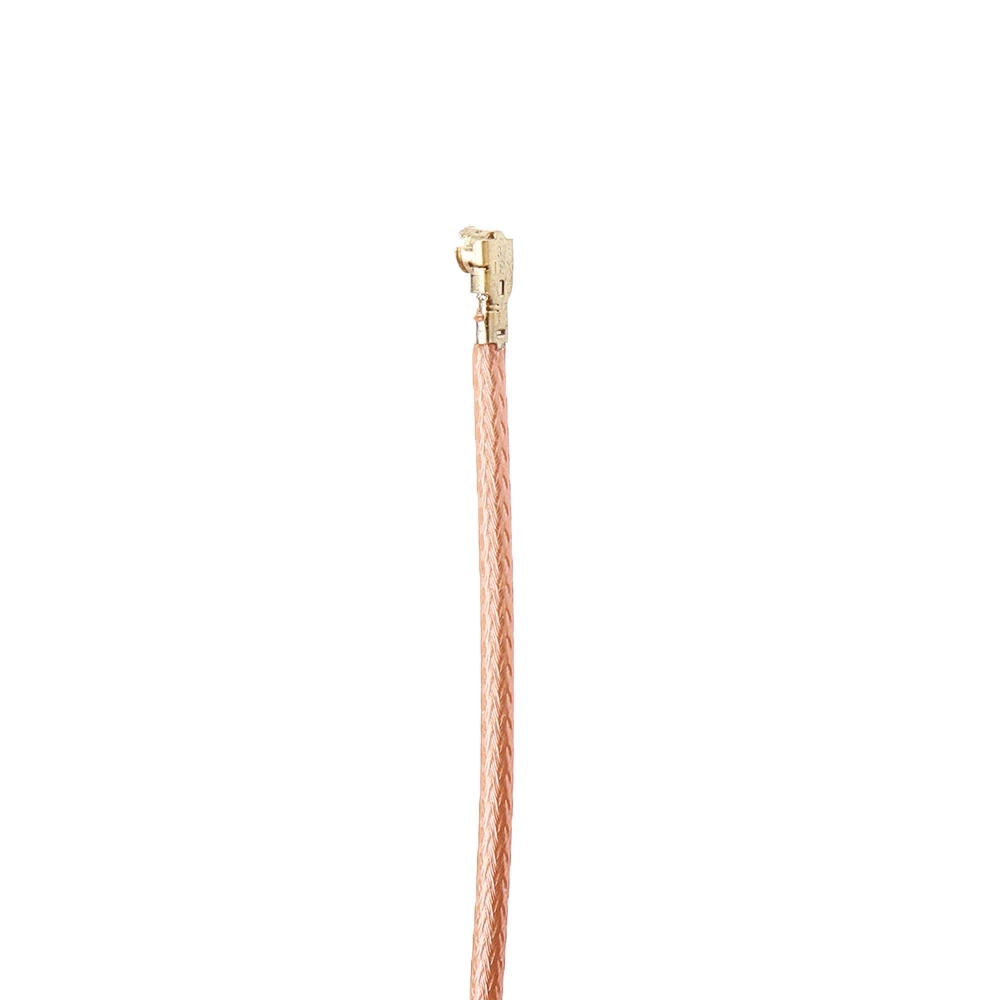

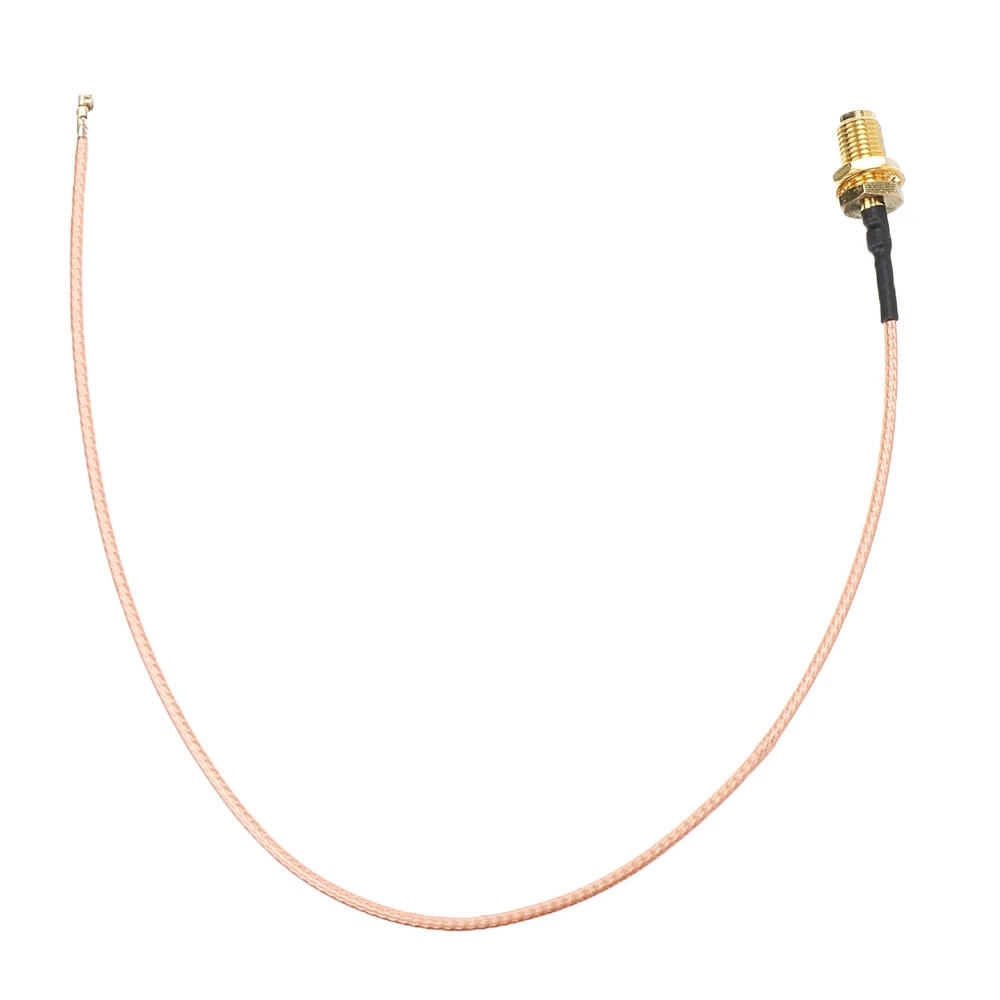

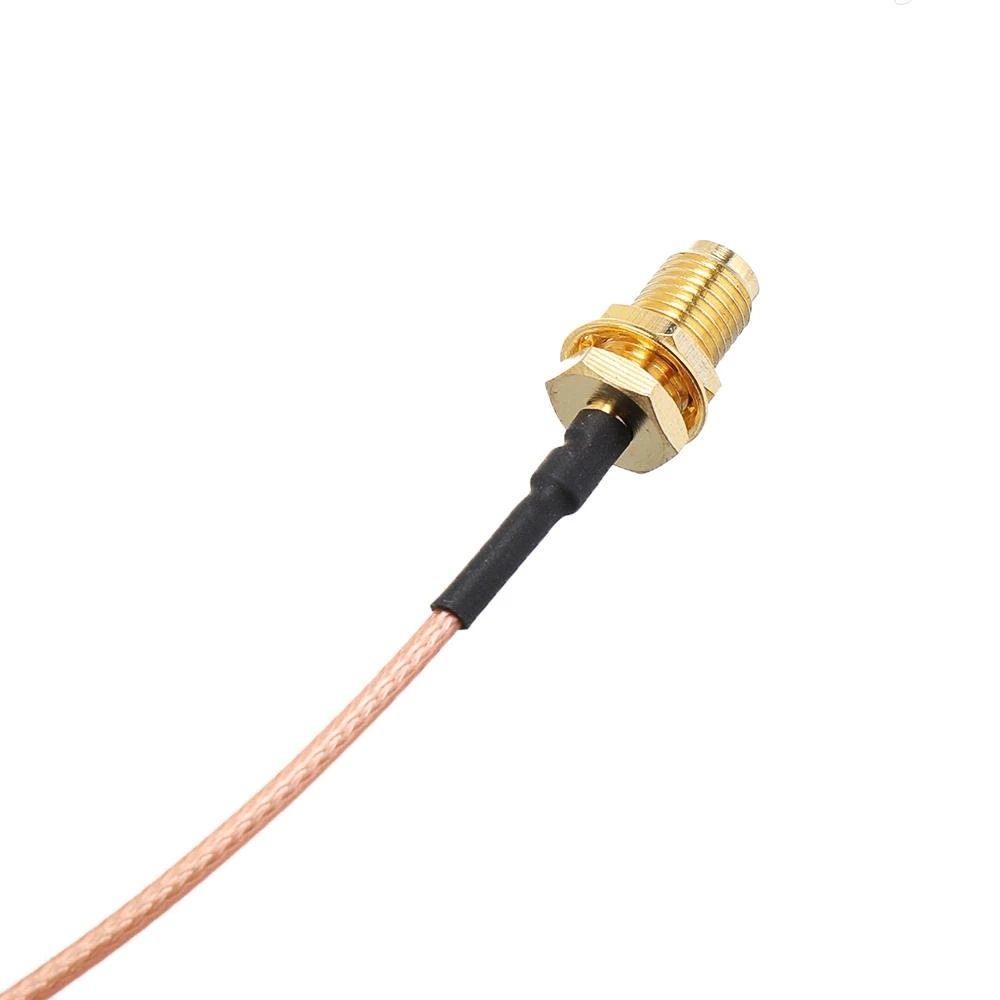

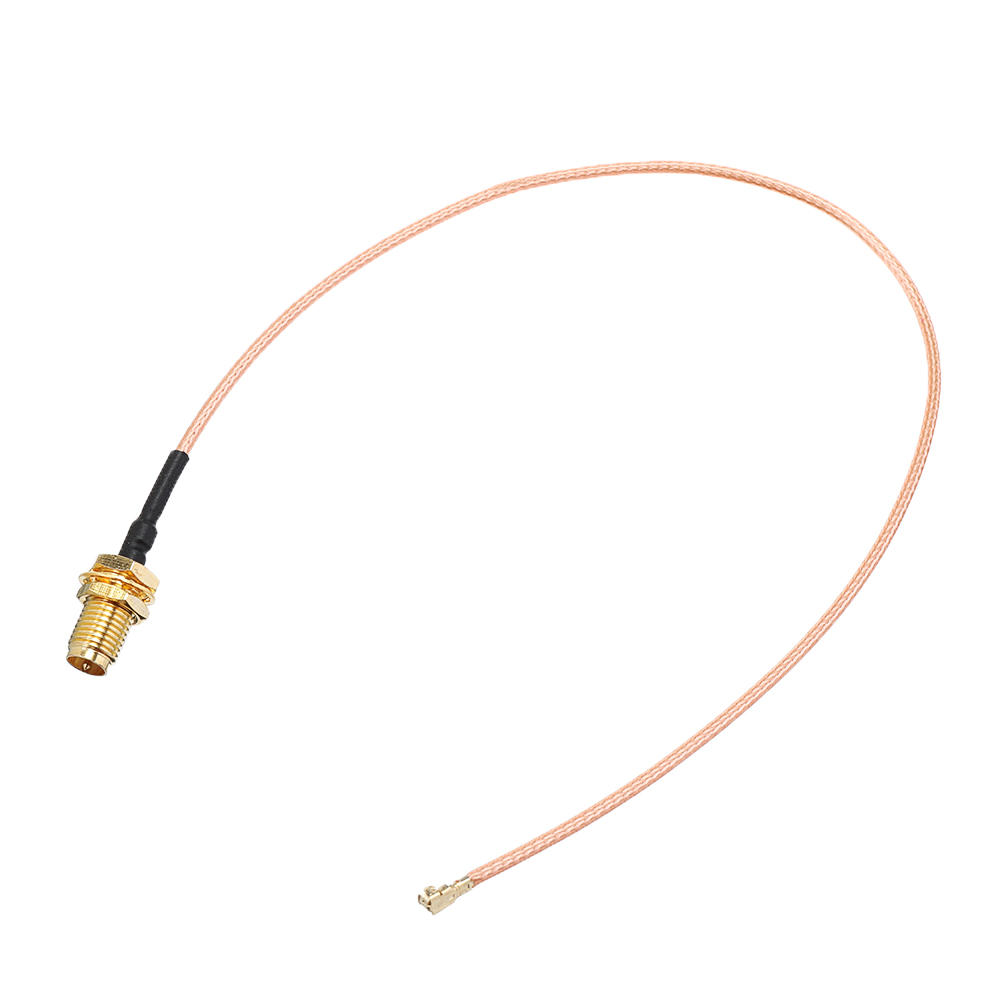

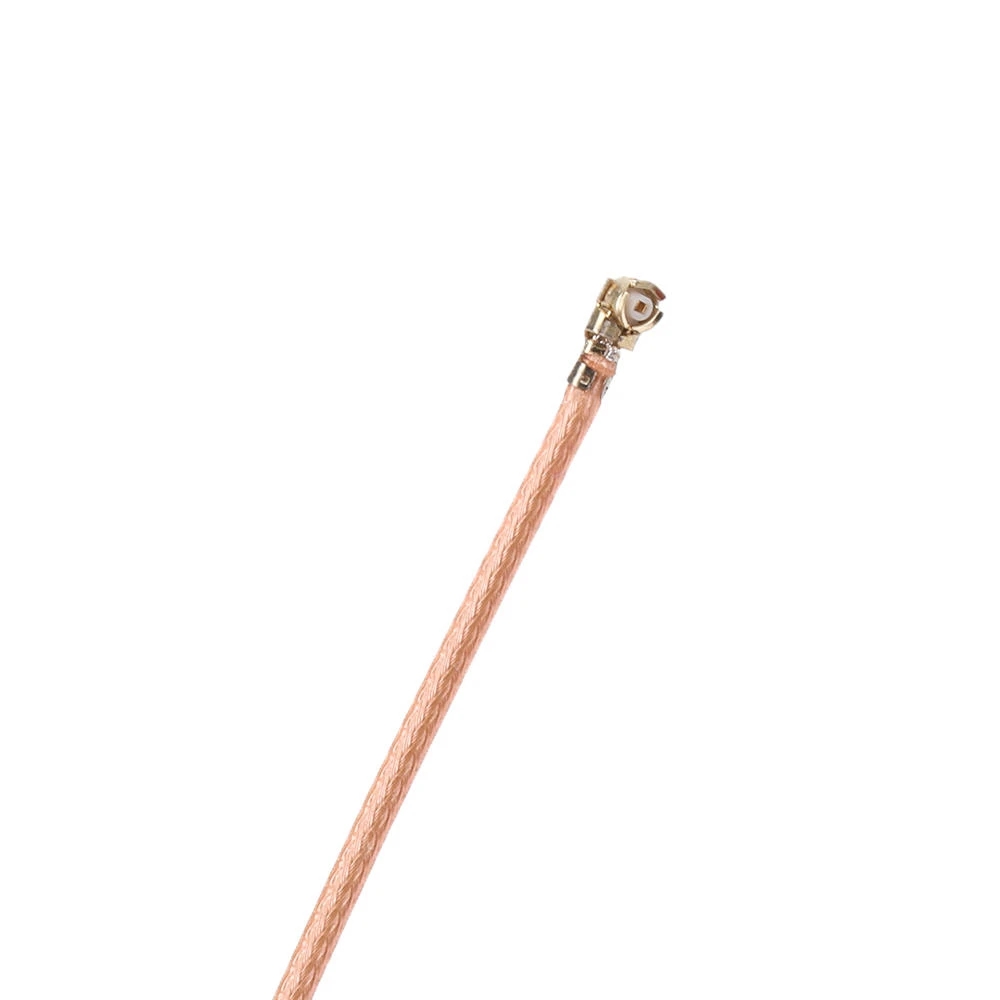

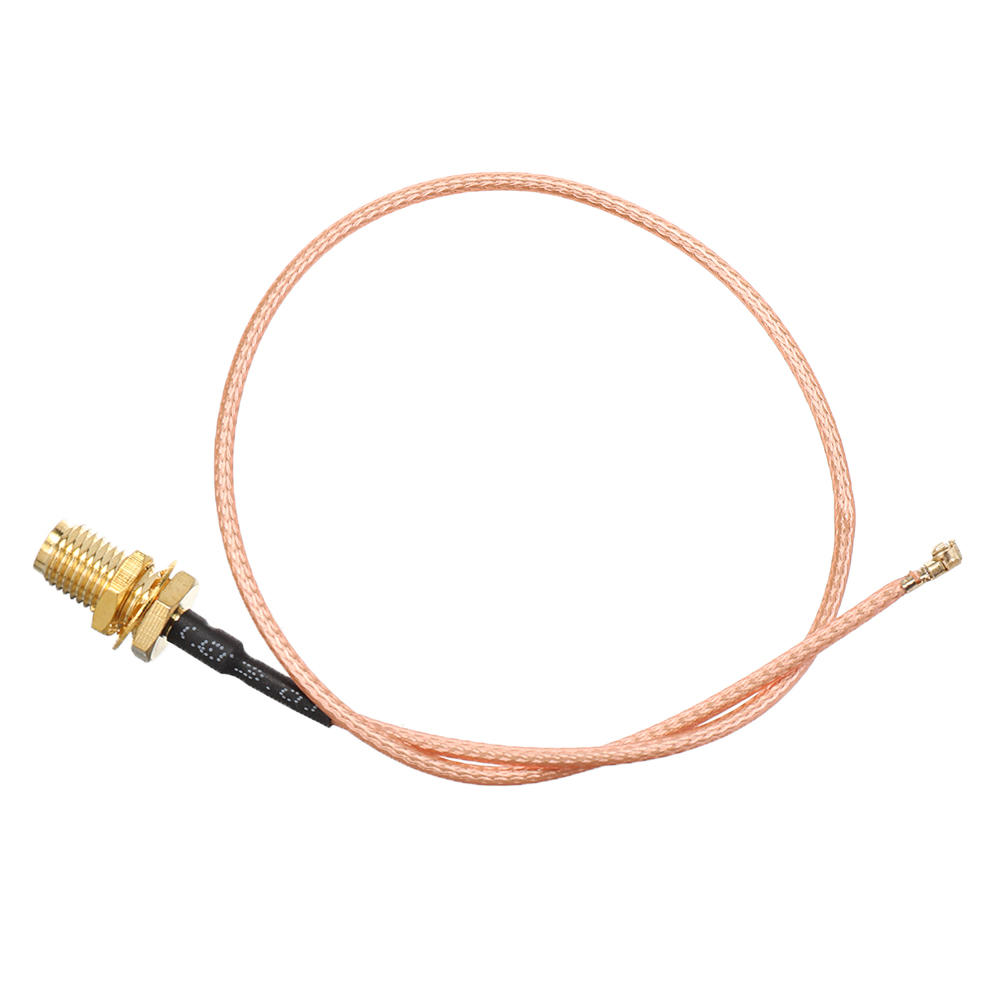

Details Pictures:
