- Stock: In Stock
- Model: ST220013375
- Dimensions: 400.00mm x 330.00mm x 240.00mm
- SKU: ST220013375
Features:
- Assembly requires a certain mechanical skill. All assembly components are included.
- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
Specification:

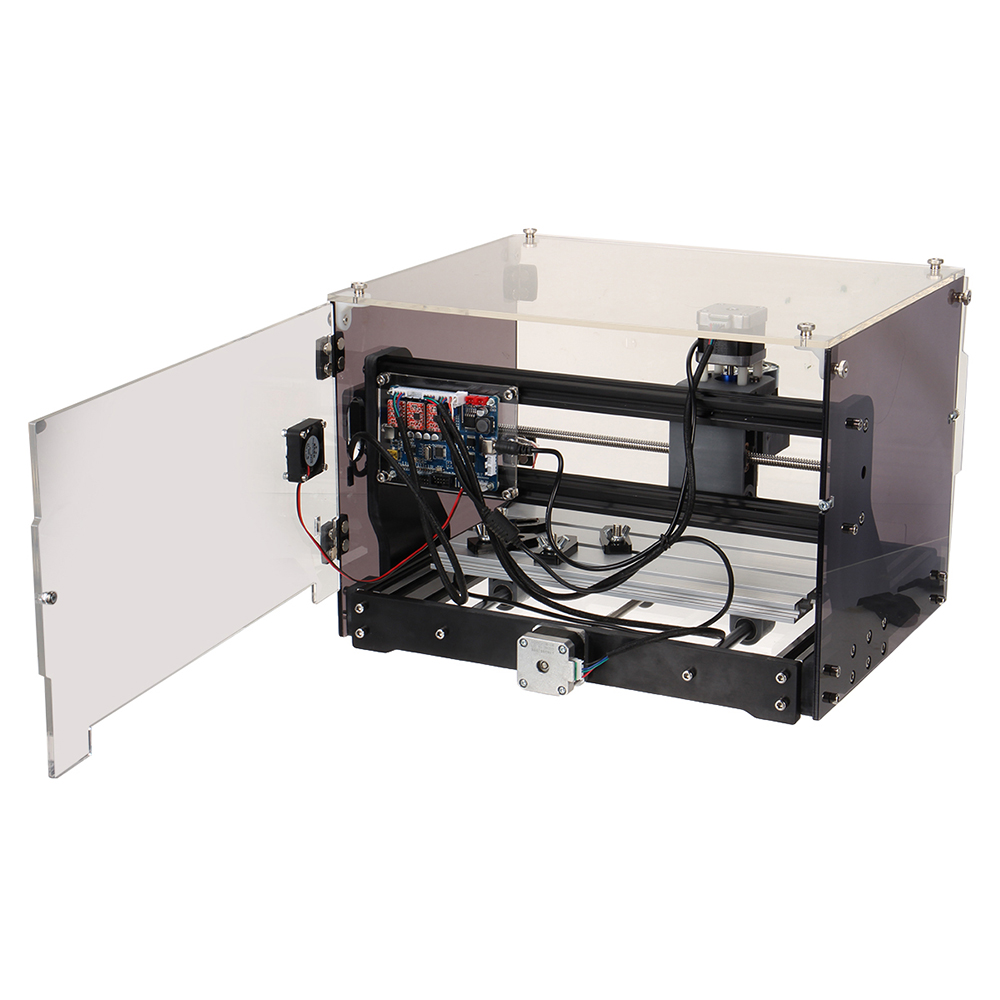

Model | Mini CNC 3018 pro-s 3 Axis |
Frame Material | Aluminum |
Power Supply | DC 24V 5.6A |
Working Area | Approx. 340x160x20mm |
Machine Size | Approx. 400x330x240mm |

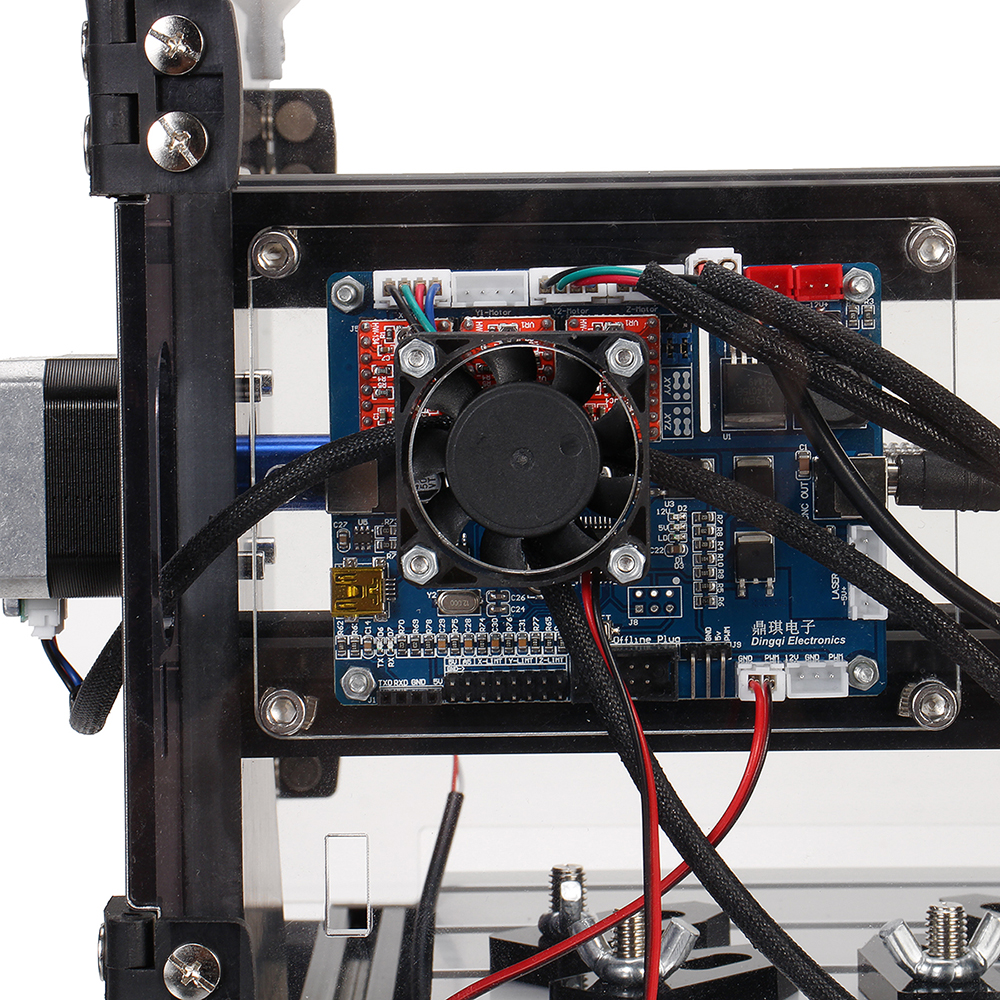

Control Software | GRBL |

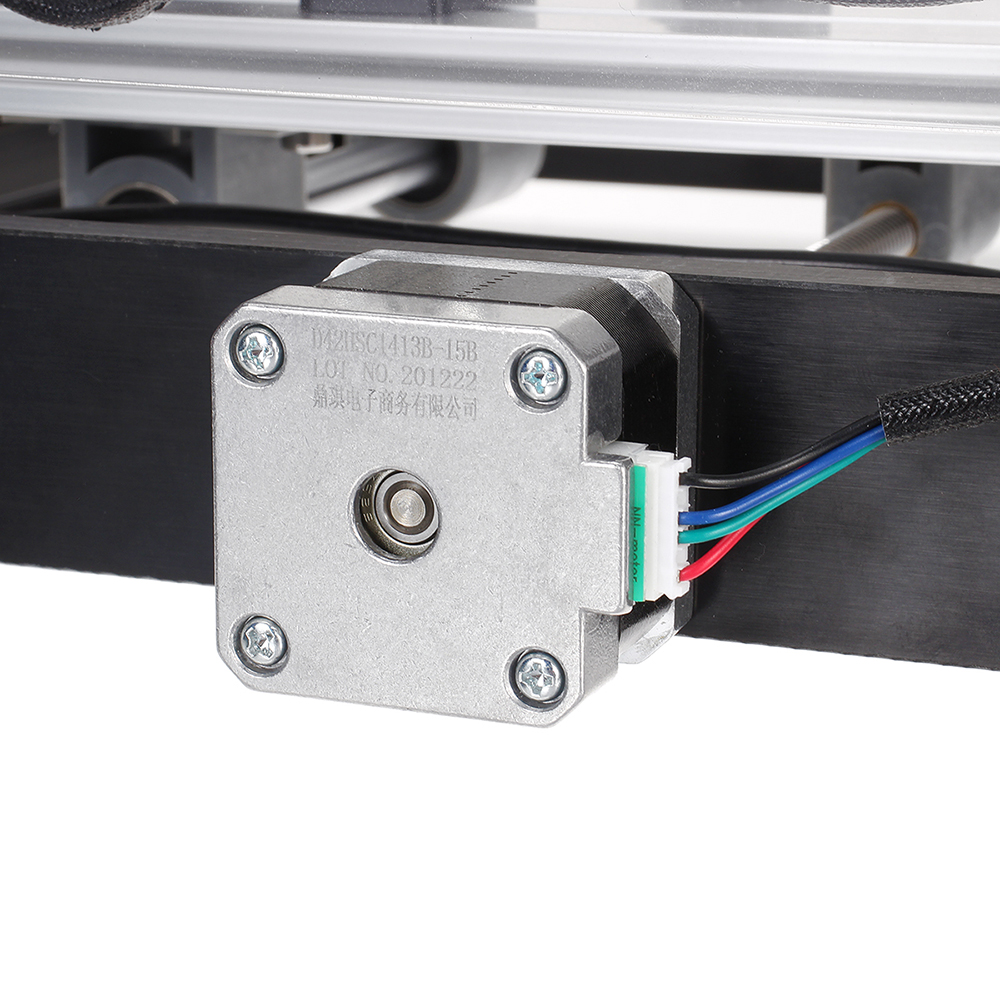

Stepping Motor | 42 stepper motor, voltage: 12V, phase current 1.3A, torque 0.25N.m |

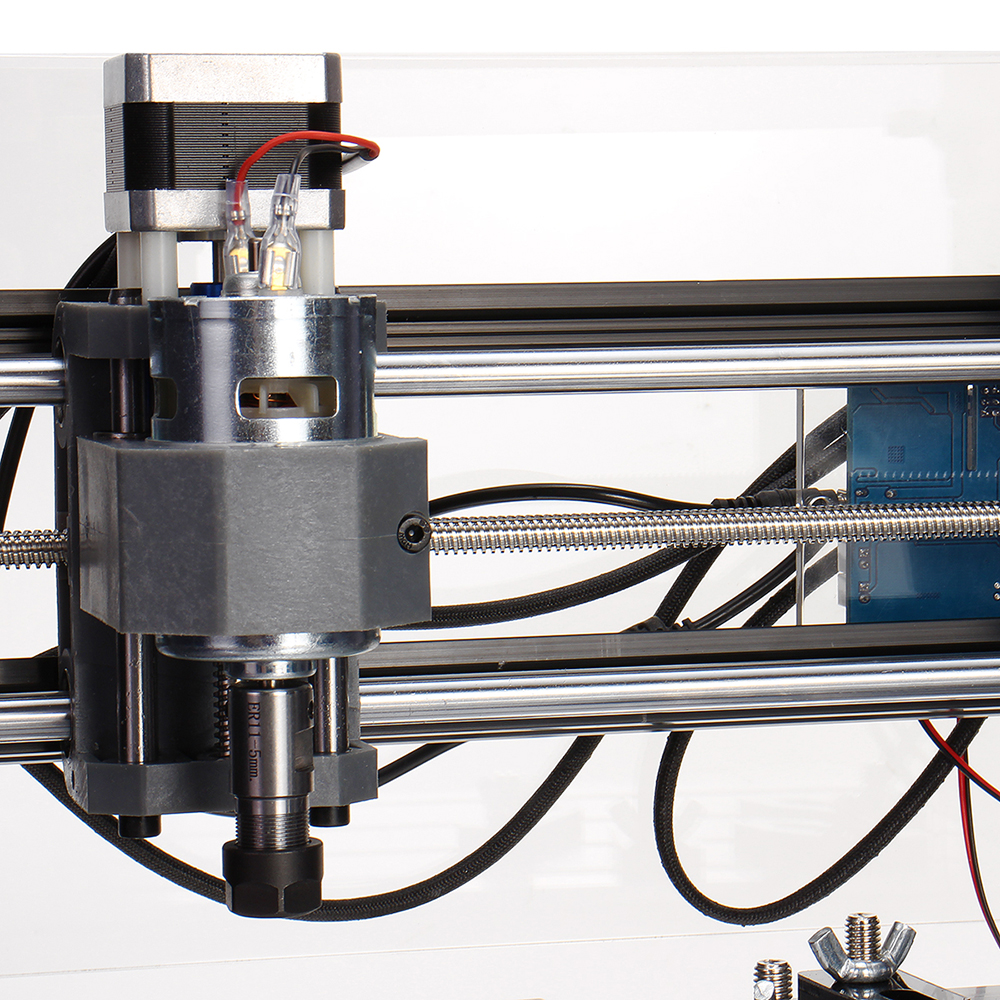

Spindle Motor | 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min |
Support OS | Windows XP, Win7, Win8, Win10 |
Net Weight | 7.5KG |
Note:
1. Instructions & Software: Assembly instructions, control software and further information
2. This item contains both the spindle motor and laser module. More complete and ready to use.
Package Included:

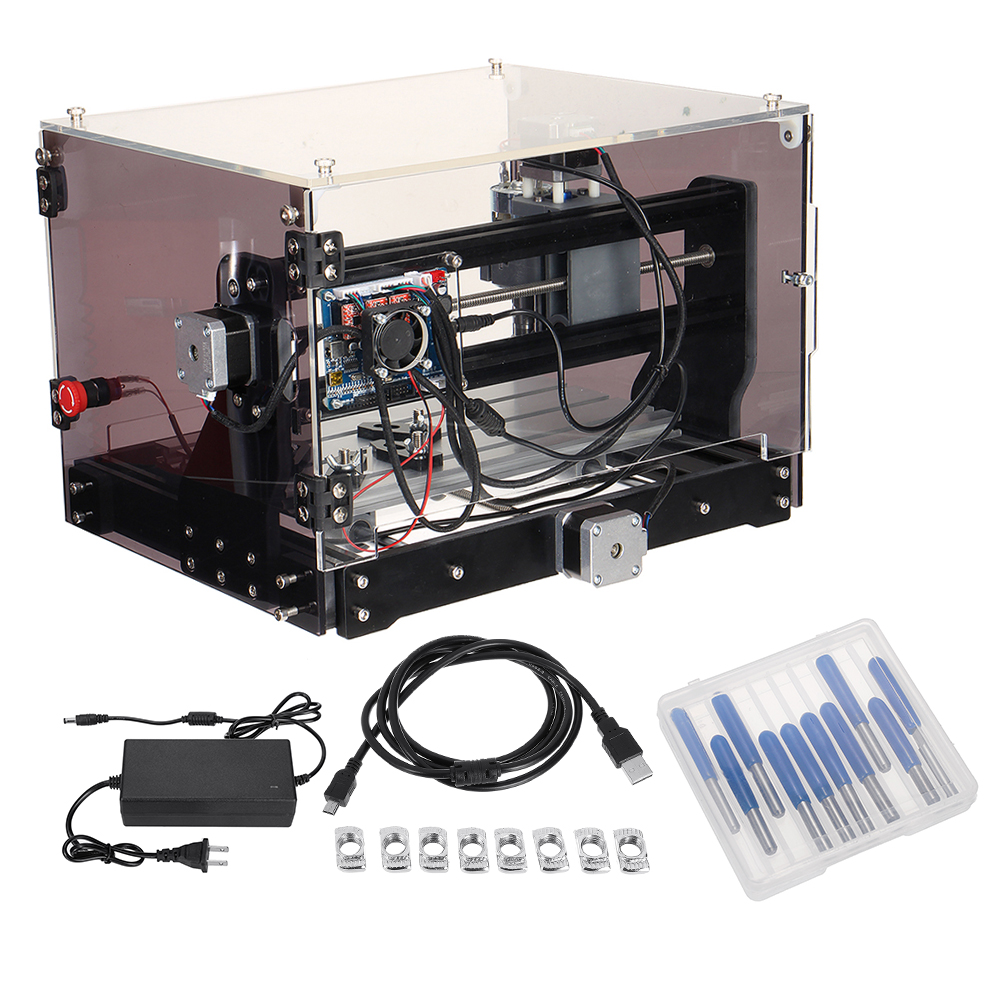

1 X Wood Engraving Machine Full Set (Unassembled Delivery)

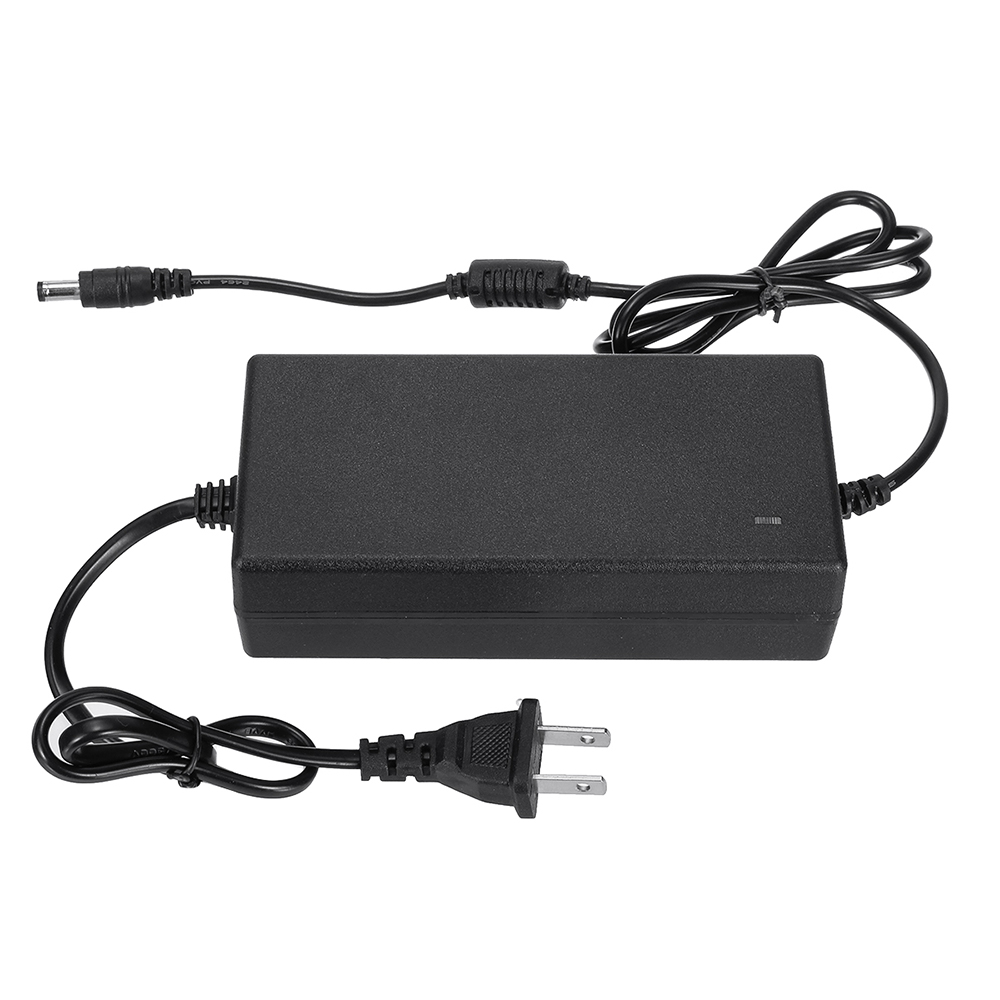

(Comes with power adapter plug according to your country)
