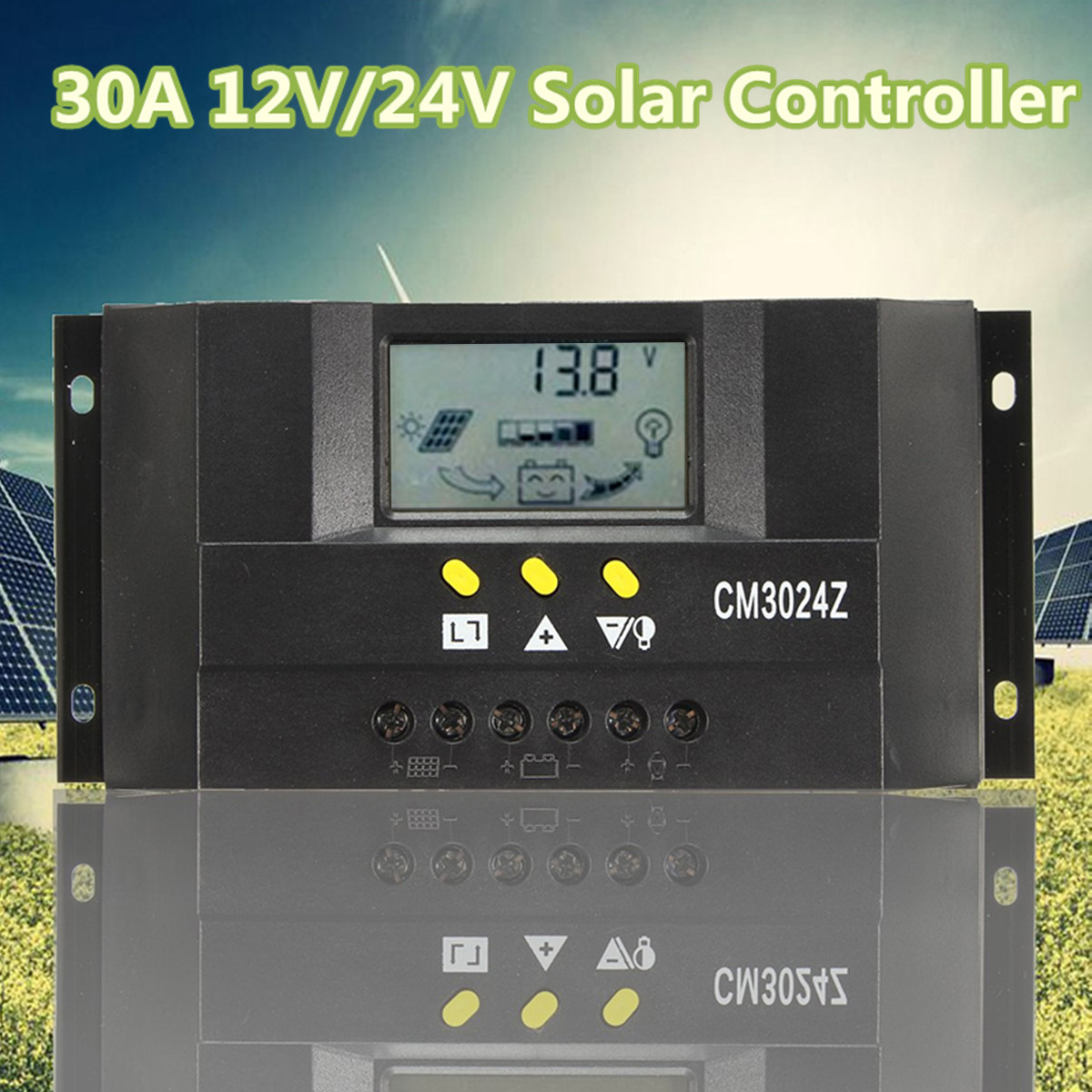

30A 12V/24V 360W/720W Adjustable Solar Regulator Battery Charger Controller
- Stock: In Stock
- Model: ST220017542
- SKU: ST220017542
$32.99
Ex Tax: $32.99
Features:
100% brand new and high quality
It is a kind of intelligent and multifunctional solar charge controller
LCD display screen, which makes the operation on the interface rather convenient.
Intelligent PWM Charging Mode
Auto temperature compensation
Adjustable charging & discharging parameter
Protection for battery low voltage,overloading & short-circuit protection,battery reversed protection
Delayed auto restart after overloading protection
Easy to use for solar panels
Specification:
Rated Voltage: 12V / 24V ( Auto Switch )
Rated Current: 30A
Max Input Solar Panel Power:720W ,Connect 24V Battery ( Connect 12V Battery, Max solar Panel Power: 360W )
Open Voltage of Solar Panel : ≤ 50V
Over-charging Protection : 13.8V / ( 27.6V )
Low Voltage Disconnection / LVD: 10.7V / ( 21.4V )
Low Voltage Reconnected / LVR: 12.5 V / ( 25V )
No Load Loss: ≤ 30mA
Loop Voltage Drop: ≤170mV
Charging Mode: PWM mode
Temperature Compensation: -4mV / Cell / °C
Installation Cable area: ≤ 7# AWG (16 mm² )
Operating Temperature: -10 ~ 60 °C
Storage Temperature: -30 ~ 70 °C
Humidity Requirements: ≤ 90% , no condensation
Color:Black

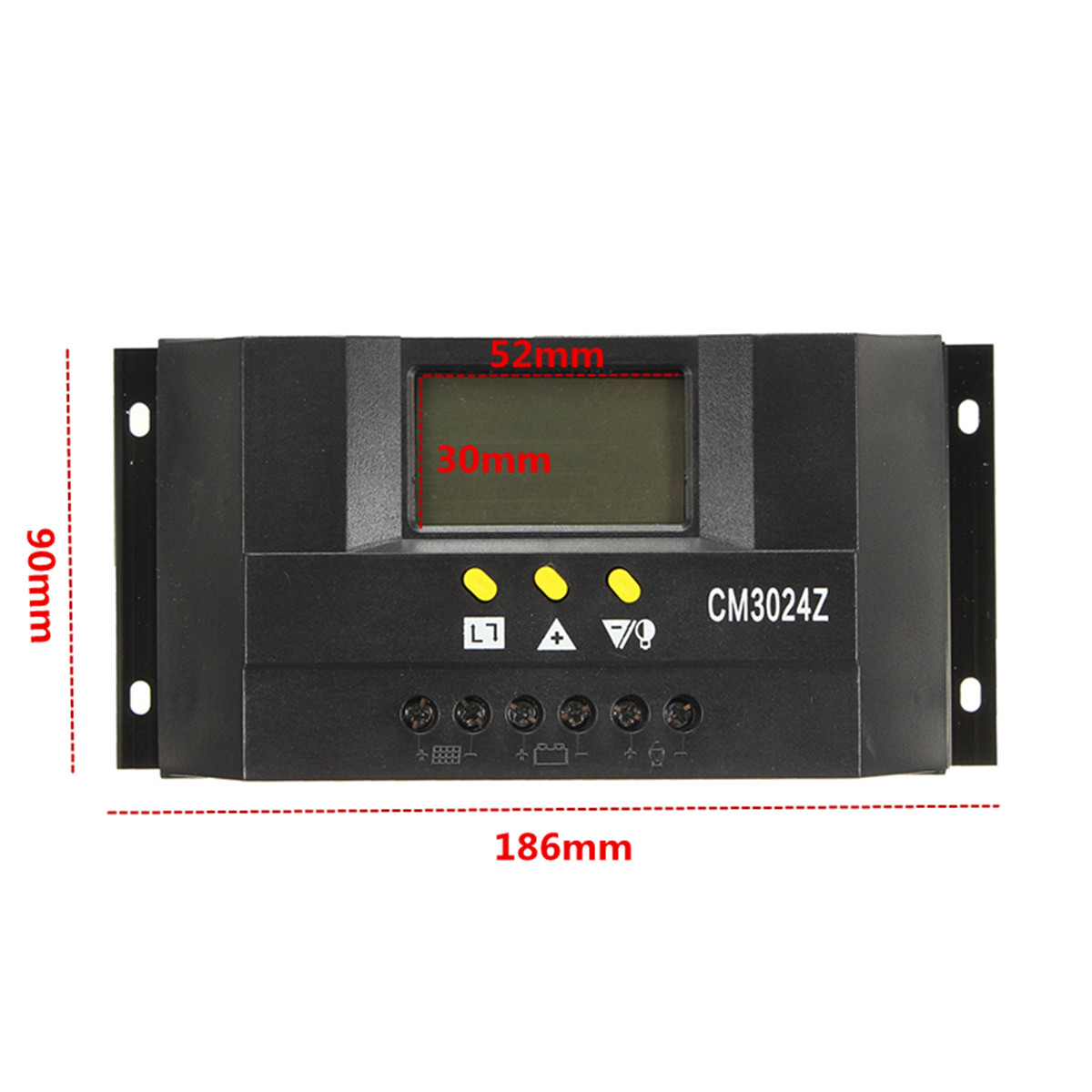

Dimensions: 90 x 186 x 48 mm
Mounting Hole Spacing: 60 x 178 ---φ5 mm

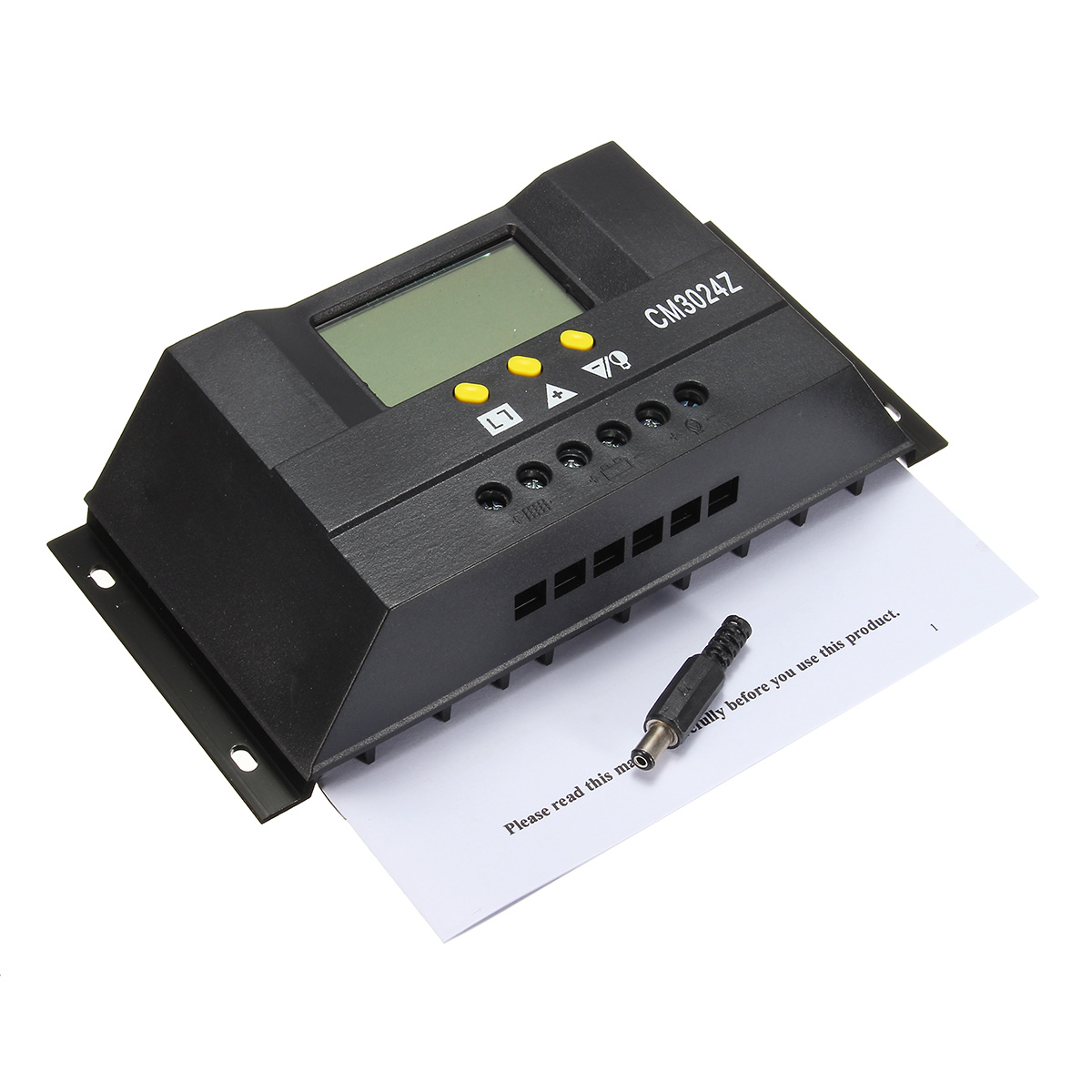

Package includes:
1 x Solar Controller

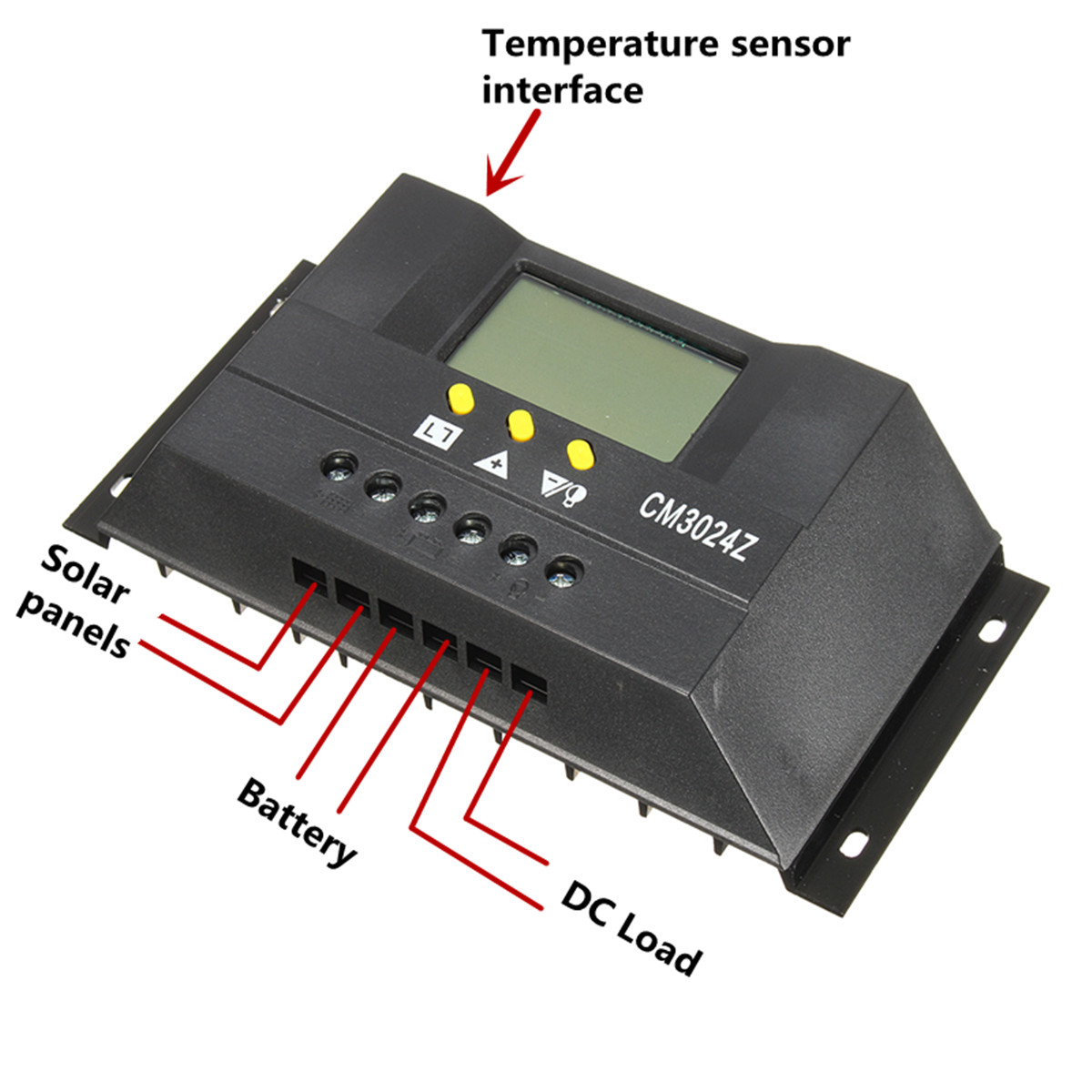

1 x Temp. Sensor
1 x English Manual

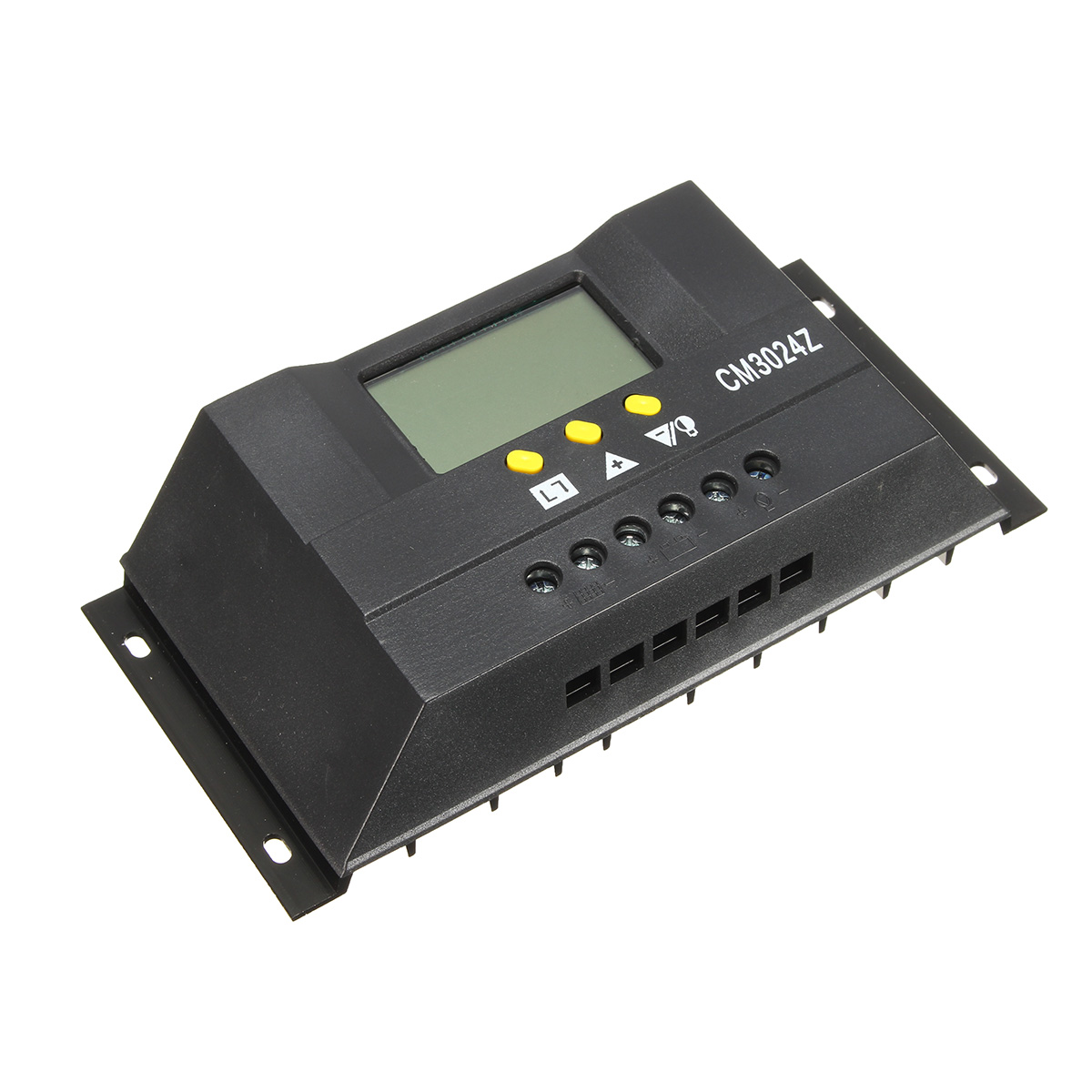

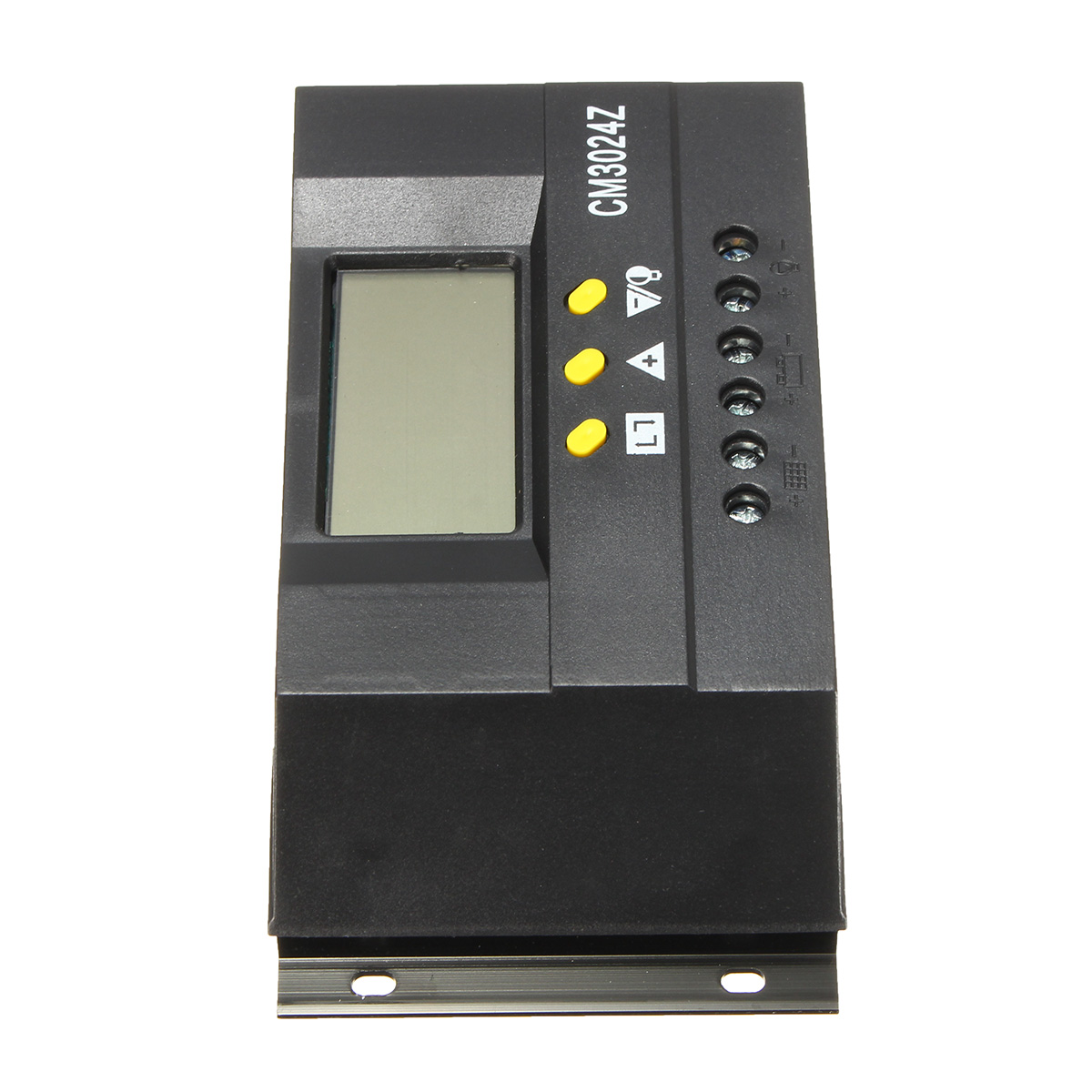

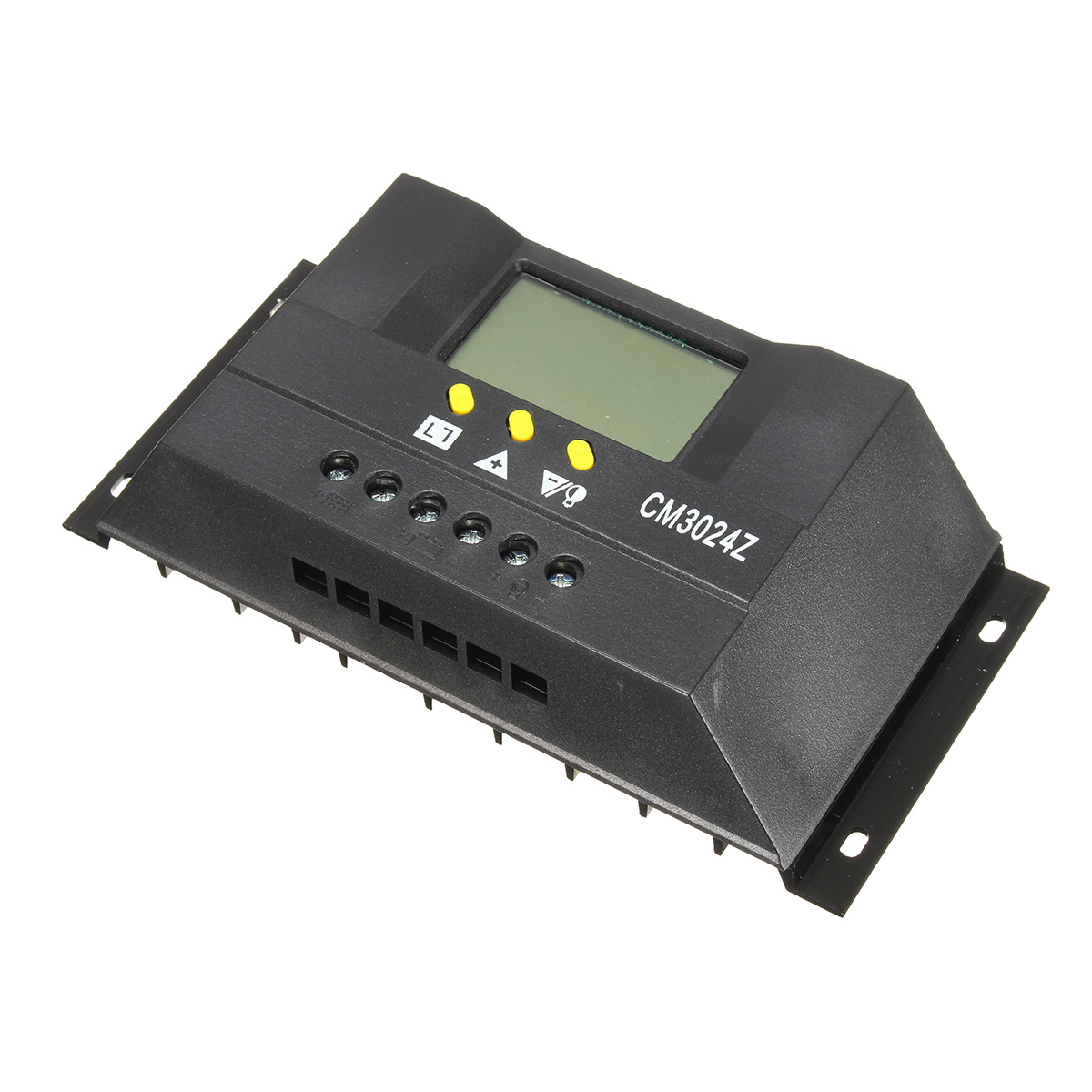

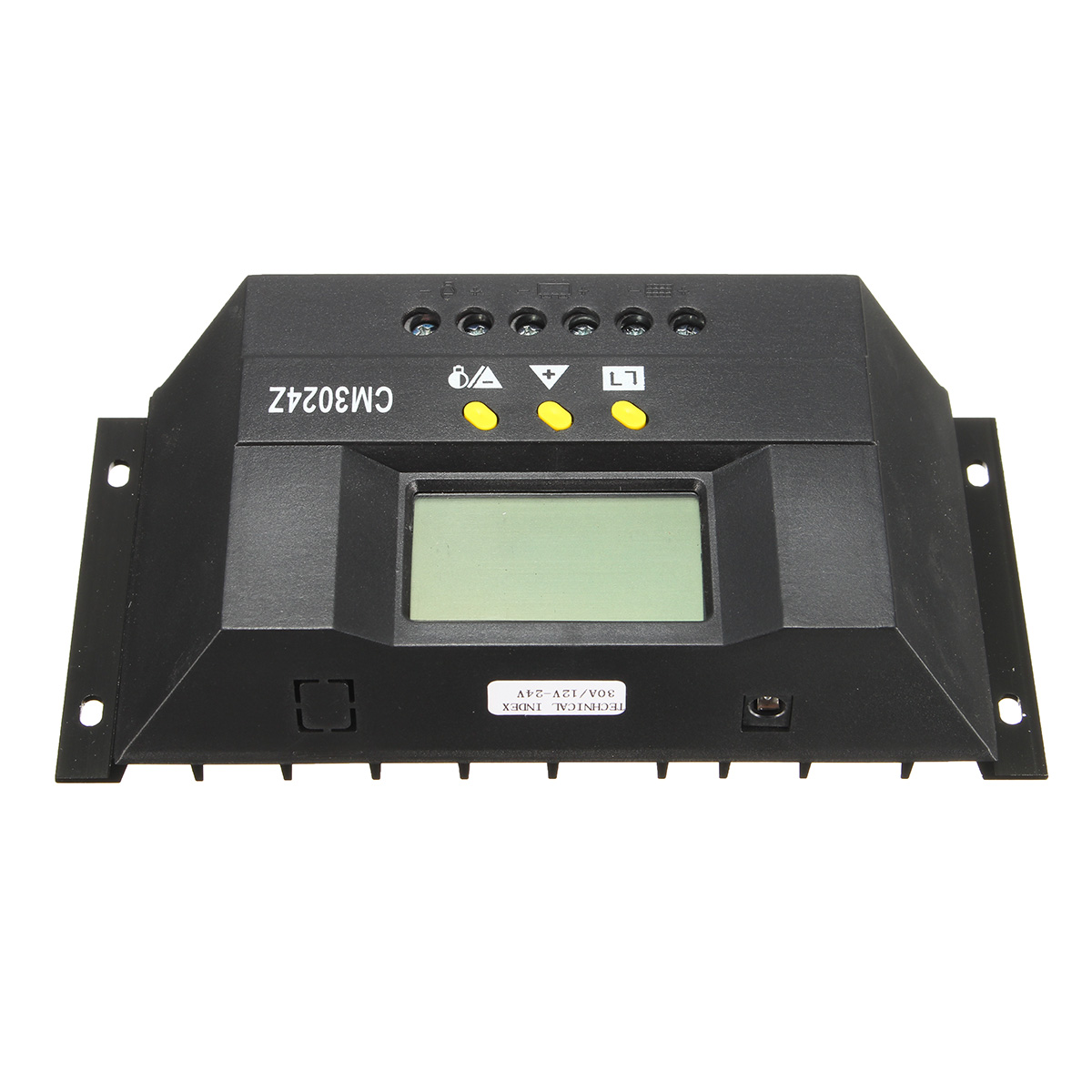

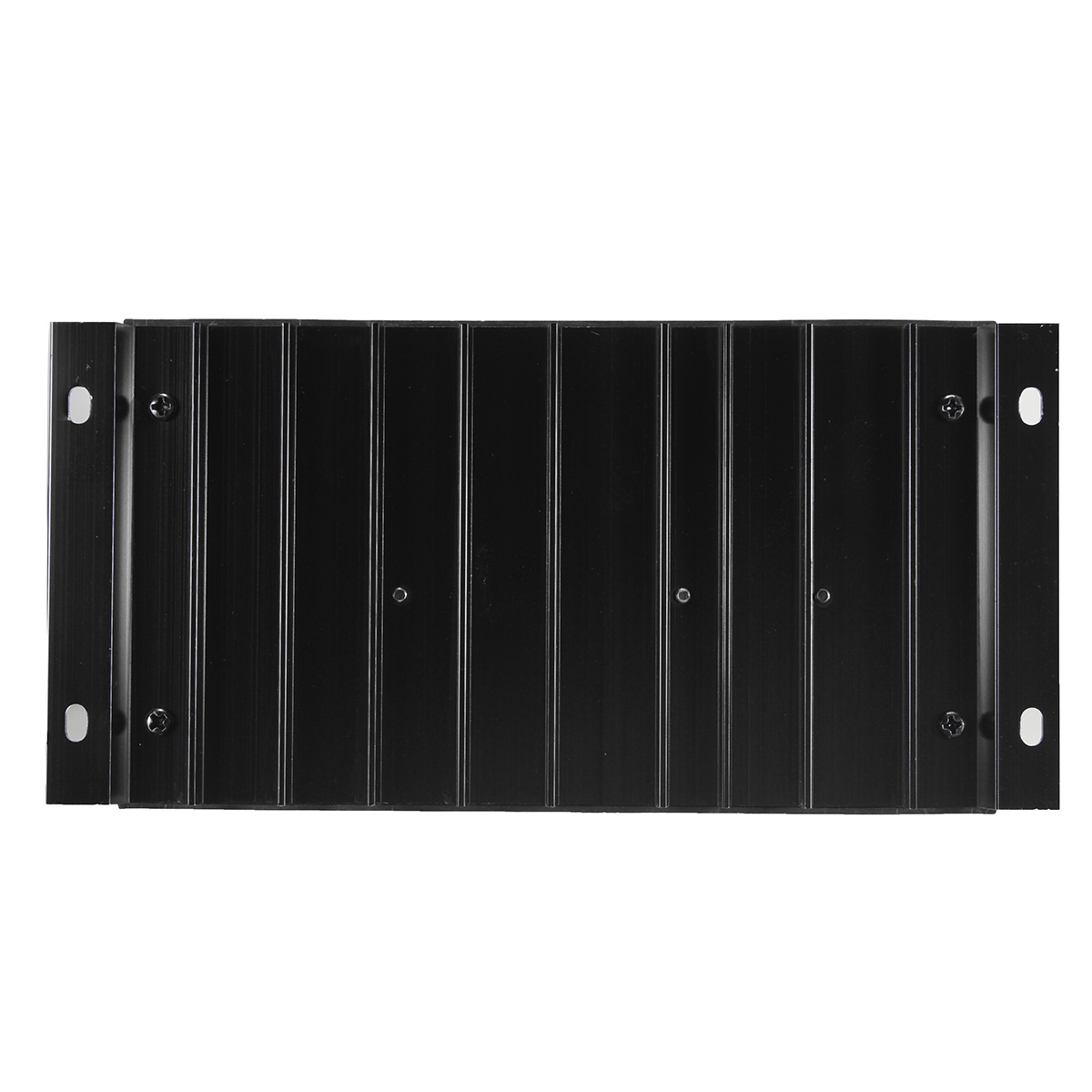

Details pictures:
