315MHz/433MHz Rolling Code Remote Control Transmitter For Wireless Power Supply Relay Switch Receiver Module
- Stock: In Stock
- Model: ST230038694
- SKU: ST230038694
$5.59
Ex Tax: $5.59
Description:
Battery voltage: DC9V
Battery current: 27A
Operating frequency: 433/315MHz
Receiver maximum load: 10A
Receiver sensitivity: -100dB
Encoding type: Rolling Code
Output mode: four sets of switching signals
Remote distance: 20-100 meters
How to set and learning code:
1) Output mode selection and learning method: Press any key of the remote control, the learning indicator should flash continuously, otherwise the controller cannot learn the remote control. First select the output mode and then learn the remote control.
2) Selection of output mode: Press and hold the learning button all the time until the learning indicator light is on. After four seconds, the learning indicator will turn off (actually, this step is call clear operation). Continue to press the Learn button. After two seconds, the indicator will flash once; after two more seconds, it will flash twice; after two more seconds, it will flash three times. After the learning indicator flashes once, released the learning button, this output mode is call jog mode; after the indicator light flashes twice, released the learning button, this output mode is call self-locking mode; after the indicator light flashes three times, released the learning button, the output mode is interlocked.
To put it simply:
One flashing >>> Jog mode
Two flashes >>> Self-lock mode
Three flashes >>> Interlock mode
3) Learning method: Press and hold the learning button. After two seconds, the indicator light will be on. Release the learning button and press any button of the remote controller to be learned. The learning indicator will flash three times, indicating that the learning is successful. This control can memorize up to 16 different coded remote controls, and 17 times will cover the first memory remote control. The same type of remote control can be used to control other remote controllers with the same code as the first one, and can be equipped with any number. For different types of remote controllers, repeat step 3 to learn.
4) Clear the learning code: Keep pressing the learning button. After two seconds, the learning indicator will light up. After another four seconds, the learning indicator will turn off and light, indicating that the clearing is successful. The remote control paired before clearing will no longer work.
Package includes:

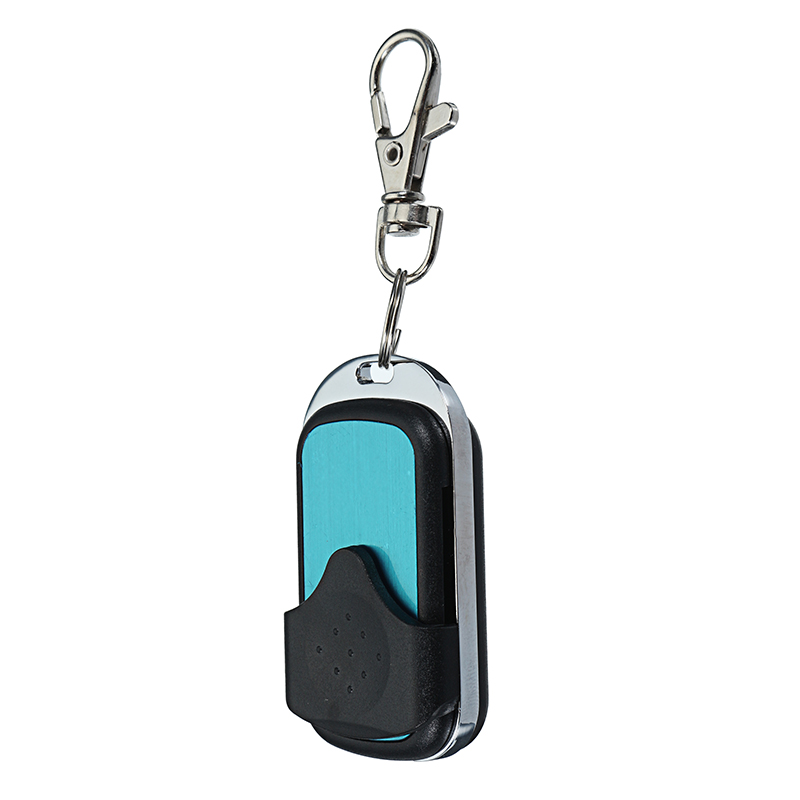

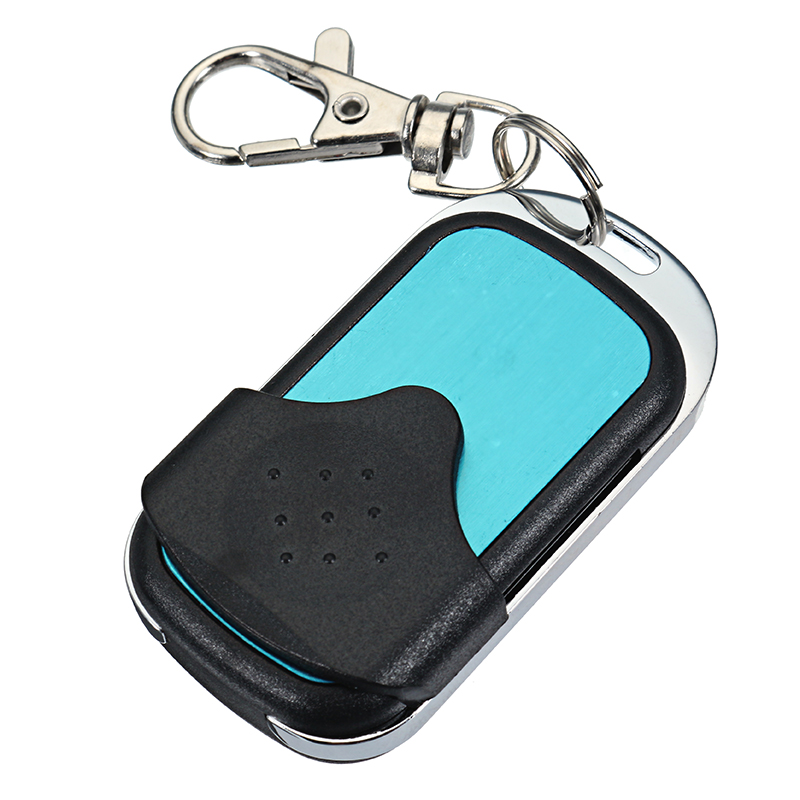

1 x 433MHz remote control (battery includes)
