  • Stock: In Stock
  • Model: ST22000978
  • SKU: ST22000978
$119.89
Ex Tax: $119.89

Available Options



Specifications:

Item Name: WASP V2 2S Toothpick FPV Racing Drone

Wheelbase: 100mm

Size: 79x79x45mm

Weight: 35g(without battery)

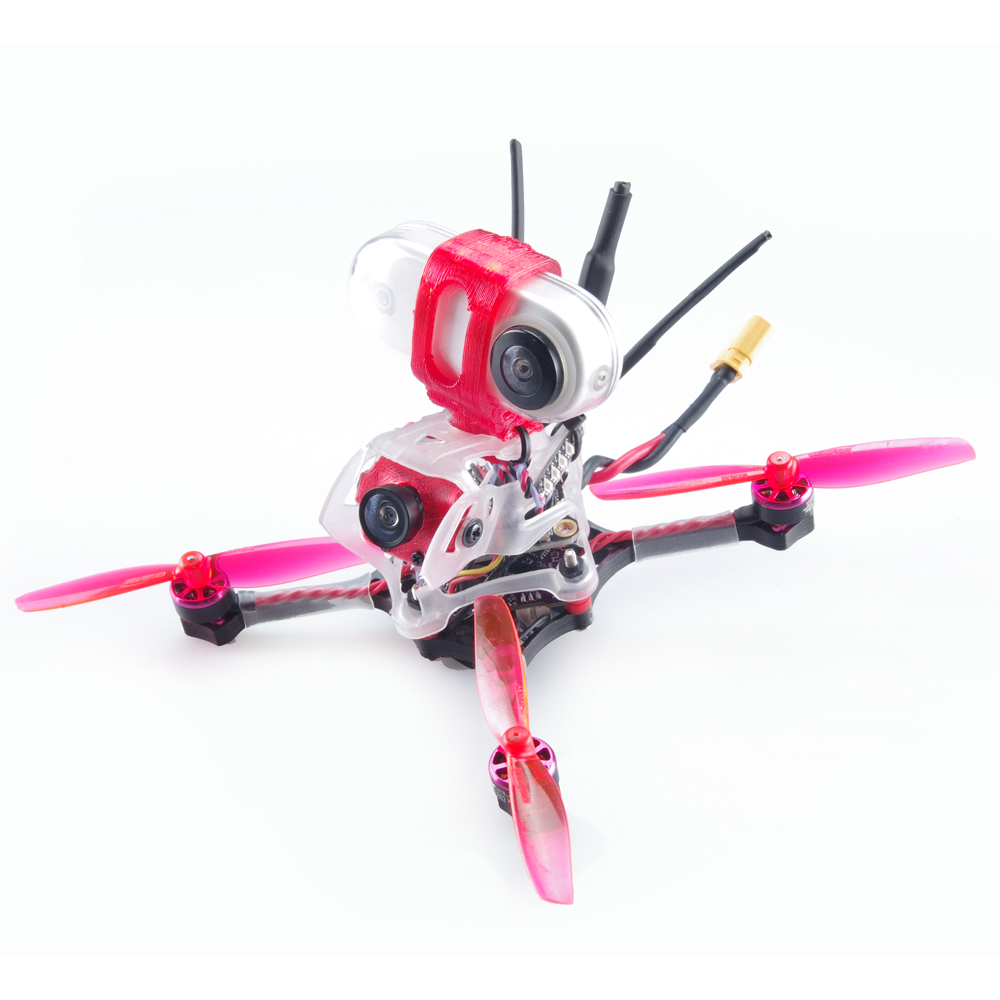

Note: 360GO Camera is not included.


Motor

Motor Mode: GL0802 14000KV

Configu-ration: 9N12P

Stator Diamter: 8mm

Stator Length: 2mm

Shaft Diameter: Φ1mm

Motor Dimension(Dia.*Len): Φ10.5mm*14.5mm

Weight(g): 1.9g

No.of Cells(Lipo): 1S-2S

Flight Controller

& 4 In 1 ESC

Flight Controller:Play F4 whoop

Version: F411CEU6

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board Size: 28.5 * 28.5mm

Power Supply: 1-2S Battery Input (DC 3.2-8.4V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD (SPI Control)

Built-in 5V 2A BEC

Built-in Voltage Detection

Firmware Version:Betaflight Configurator4.2.0


Onboard 4 In 1 ESC Onboard MCU upgraded to EFM8BB21

Power Supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)

Con. Current: 5A

Peak Current: 7A (3 seconds)

Support BLHeliSuite Programmable

Factory Firmware: S_H_50_REV16_77.HEX

Default Protocol: DSHOT300

Power Input: XT30

Frsky NON-EU/EU-LBT XM+ Receiver

Frsky NON-EU/EU-LBT XM+ receiver Version SBUS receiver

Frsky D8/D16 switchable

Compatible Non EU transmitter both D8 and D16 mode

Channels: 8CH or 16CH

Failsafe Support

No Ground Interference ( Transmitter and receiver 1 m from the ground): 300m

Operating Voltage Range: 3.7~10V

Operating Current: 30mA @5V

Operating Range: Full Range

With RSSI Output on Board: Analog 0~3.3V

Firmware upgrade-able, can be upgrade to EU-LBT with RSSI

Frsky AC900 Receiver

Frsky AC900 receiver Version SBUS receiver

Frsky D16 switchable

Compatible Non EU transmitter both D16 mode

Channels: 8CH or 16CH

Failsafe Support

No Ground Interference ( Transmitter and receiver 1 m from the ground): 300m

Frsky D8 Receiver

Frsky D8 receiver Version SBUS receiver

Frsky D8 Compatible Non EU transmitter both D8 mode

Channels: 8CH

Failsafe Support

No Ground Interference ( Transmitter and receiver 1 m from the ground): 200m

Flysky Receiver

Flysky receiver Version IBUS receiver

Protocol: AFHDS-2A

Channels: 14ch(AFHDS-2A)

No Ground Interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe Support

DSM2/DSMX Receiver

DSM2/DSMX receiver version Serial bus receiver

Protocol: DSM2/DSMX Compatible

Channels: 6-9CH (Depend on your radio)

No Ground Interference ( Transmitter and receiver 1 m from the ground): 300m

TBS NANO Receiver

TBS NANO receiver version CRSF Protocol , Official TBS transmitter compatible

Protocol: CRSF

Channels: 8CH

Failsafe Support

No Ground Interference ( Transmitter and receiver 1 m from the ground): 500m

PNP

PNP receiver version Support any bus and other protocols, users can install by themselves

VTX

5.8G VTX Power Switching: Third Gear(25MW 、 100MW 、200MW)

Frequency: 40CH

Input Voltage: 3.3V 5.5V

Current Consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 Channels

With Raceband

Smartaudio Ready(Frsky EU-LBT and DSMX version not compatible)

Weight: 2.0g

Camera

Camera GL950PRO: 1/4 COMS sensor

Horizontal: 800TVL 800x600

TV System: Ntsc 4:3 non-changeable

Power Input: DC 5-12V

FOV: F1.2

Colorful: 0.1Lux(F1.2,50IRE,AGC ON)

Black and White: 0.01Lux(F1.2,50IRE,AGC ON) Lens: m7

Signal to Noise Ratio: > 50dB Dynamic Range: >60dB

White Balance: Auto White Balance

Image: Color

BLC: Stand By

Video Format: NTSC

Weight: 1.5g

Propeller


Item Name: 65MM 1mm PC propeller

Length/Inch: 65mm

Pitch/Inch: 25mm

Color: Red

Material: PC

Weight: 0.4/piece

Recommended Battery (No Included)

Species : Lipo/LipoHV

Capacity: 250mAh/300mAh/450mAh

Voltage: 3.8V

Continuous Discharge Rate: 30C

Instantaneous Discharge Rate: 60C

Connector: XT30


Features:

1. Use Play F4 flight controller to support 1-2s lithium battery power. Integrated Betaflight OSD function, display the flight voltage, receiver signal, and can observe the situation in real time during the flight.

2. Prepare Smartaudio, change the VTX frequency band and channel through OSD.

3. Adjust the settings and PID of the flight controller via OSD

4. 2S ultralight toothpick drone has strong power, low noise and long flight time.

5. Support Betaflight adjustment, multiple flight modes, carefully adjusted by the original factory, suitable for novice flight practice, stable style.

6. The nacelle cover is made of a one-piece injection molded plastic of a special material. Sturdy structure and light weight. It supports multiple camera adjustments. If there is enough space, the heat dissipation effect will be better.

7. The receiver version is used independently, and the electronic control is more stable. The flight control adopts the newer version of bf4.2, the ESC adopts version 16.77, the bidirectional DSHOT mode and the gyroscope RPM filter are turned on, making the flight control more stable

Using the latest GL0802 motor with a power input of 2S and a 65mm two-blade propeller, the efficiency is extremely high. Flight control is stable.

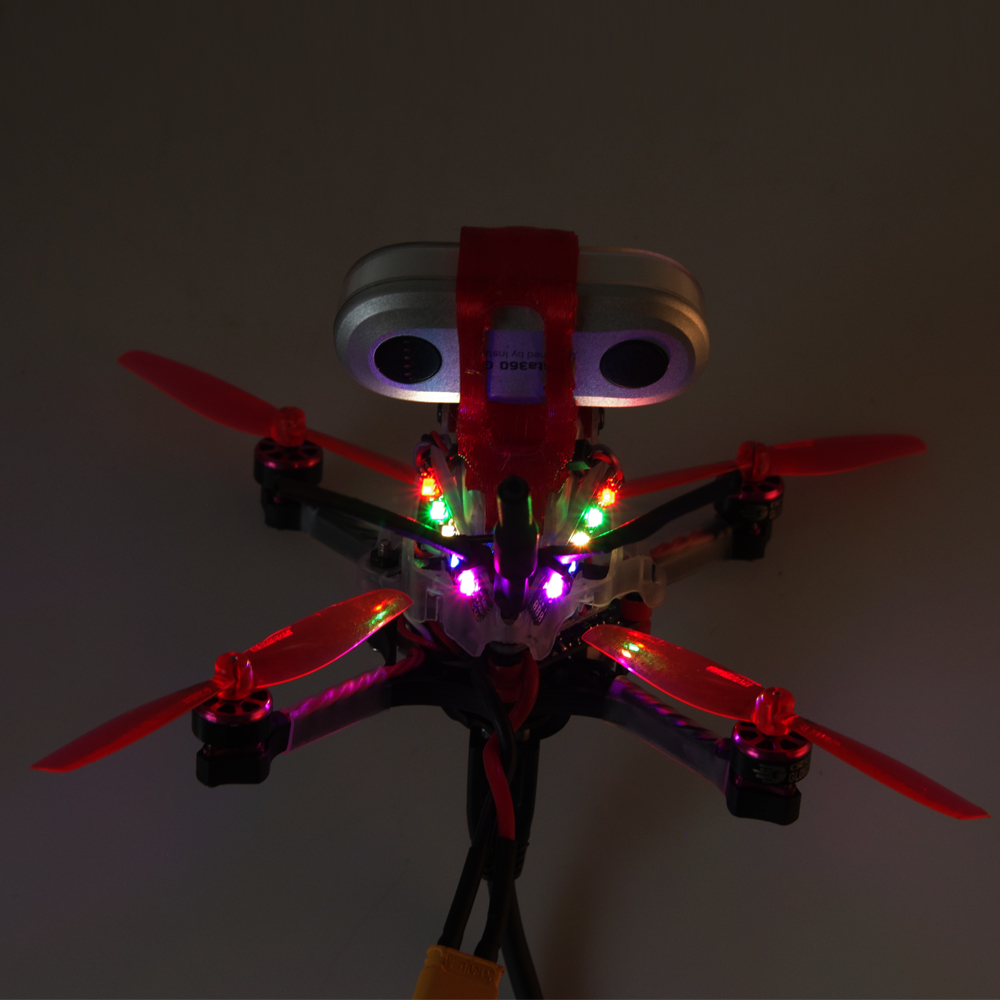

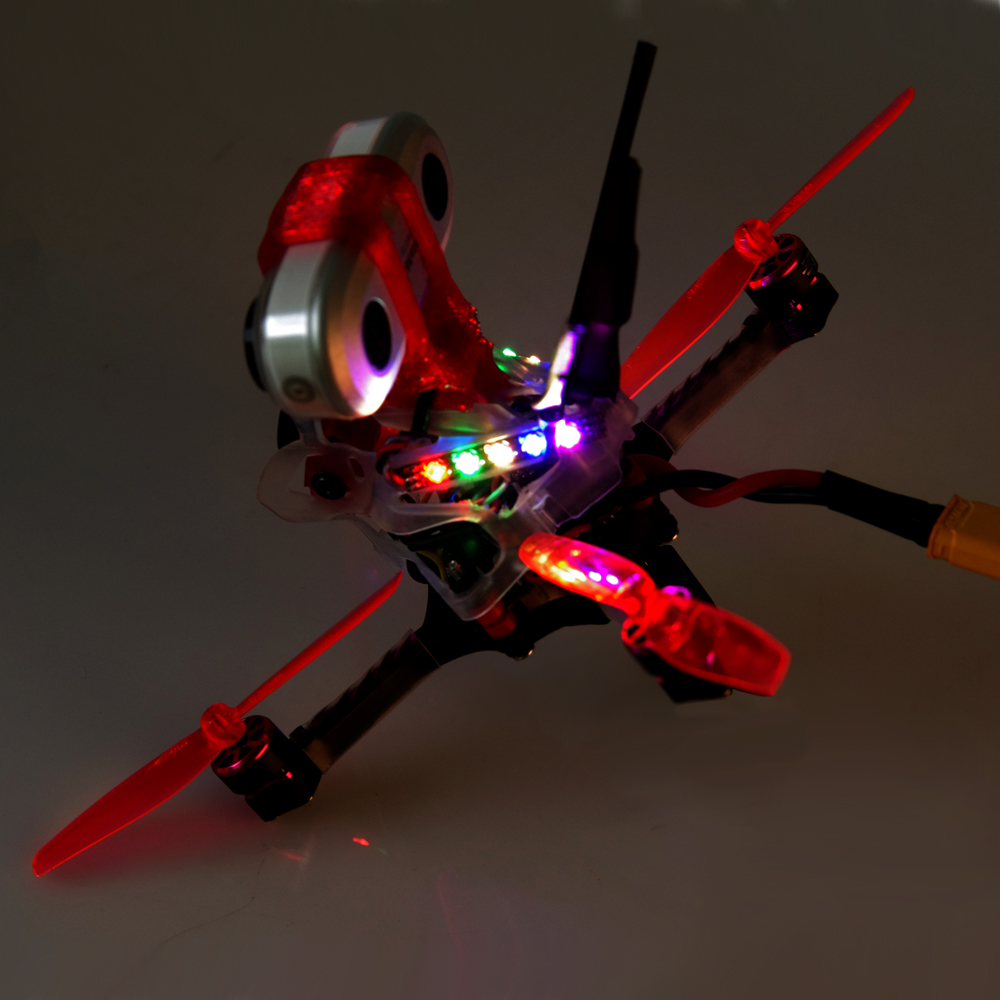

8. Double-sided RGB LED ready.

9. The thickness of the fuselage carbon plate material is 4mm, which will not deform or vibrate during high-speed flight.

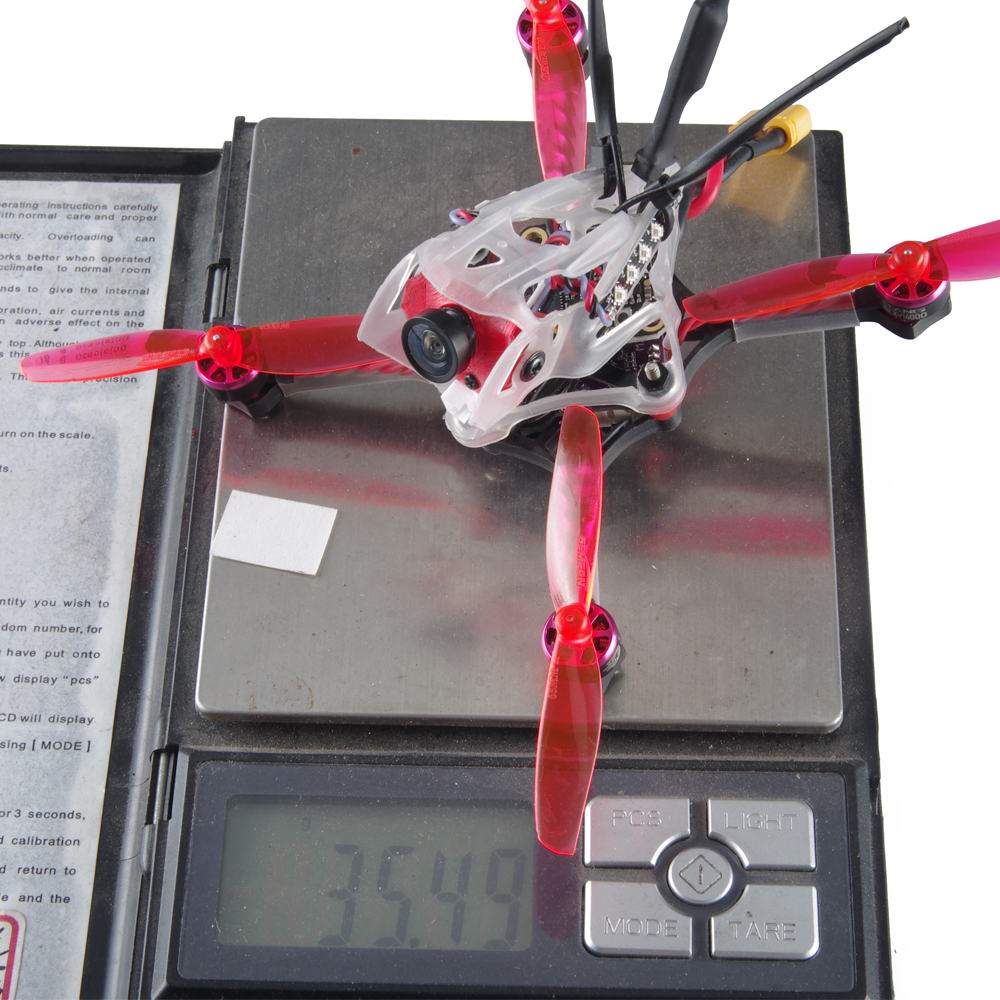

10. The whole machine is controlled at about 35 g to achieve ultra-high and flexible control. Body weight becomes a professional indicator.

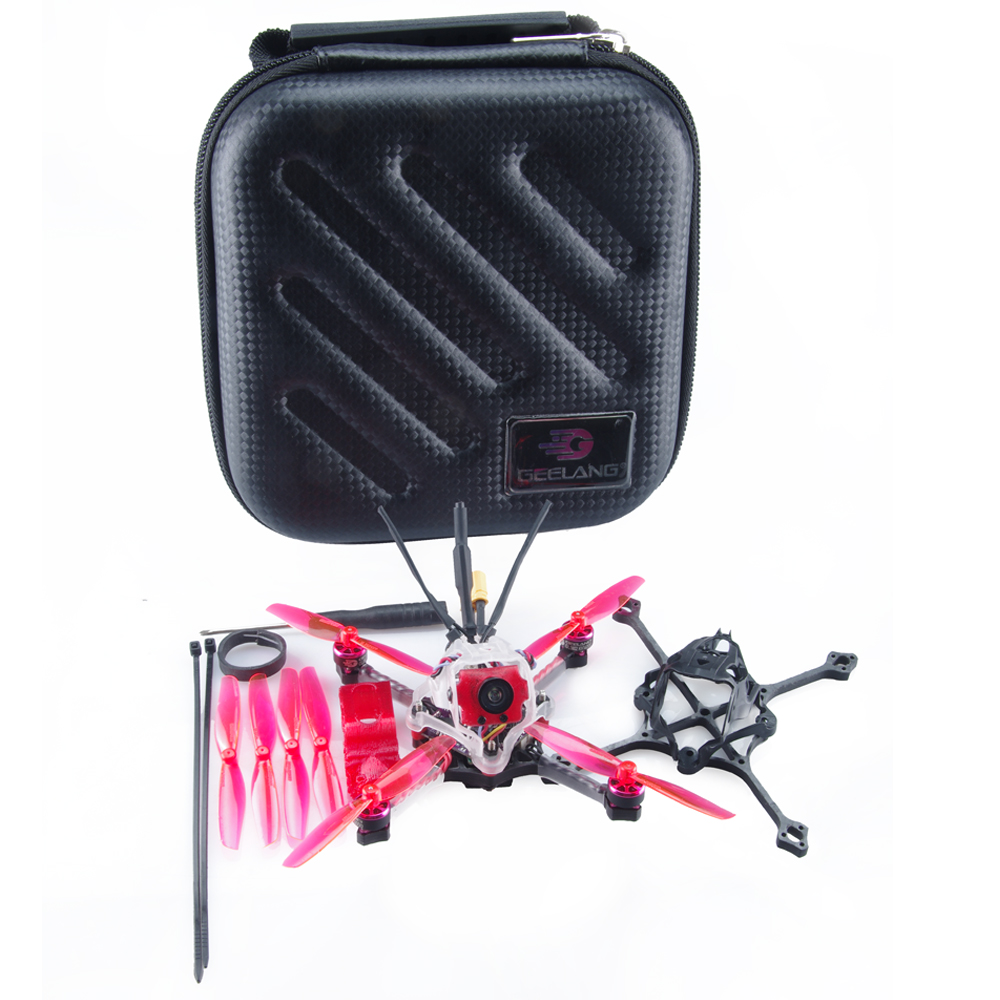

Package Included:

2 X 100mm Brushless Carbon Fiber Frame

2 X Plastic Cabin Cover

Option1: 1 X Play F4 FC external Frsky NON-EU xm+ receiver

Option2: 1 X Play F4 FC external Frsky EU-LBT xm+ receiver

Option3: 1 X Play F4 FC external Frsky AC900 NON-EU for Futaba receiver

Option4: 1 X Play F4 FC external Frsky D8 receiver

Option5: 1 X Play F4 FC external FLYSKY receiver

Option6: 1 X Play F4 FC external DSMX receiver

Option7: 1 X Play F4 FC external TBS NANO receiver

Option8: 1 X Play F4 FC PNP NO RX receiver

4 X GL0802 KV14000 Motor

1 X 65mm Propeller(4CW+4CCW)

1 X 5.8G VTX5840

1 X RGB LED

1 X Screwdriver Removal Tool

1 X Battery Installation Rubber Band

1 X Handbag

1 X Propeller Disassemble Tool

1 X Screwdriver

No Included Battery.
