3D Printer FFC FPC Flexible Display Cable for Lerdge Board
- Stock: In Stock
- Model: ST230046735
- SKU: ST230046735
$6.99
Ex Tax: $6.99
Overview:

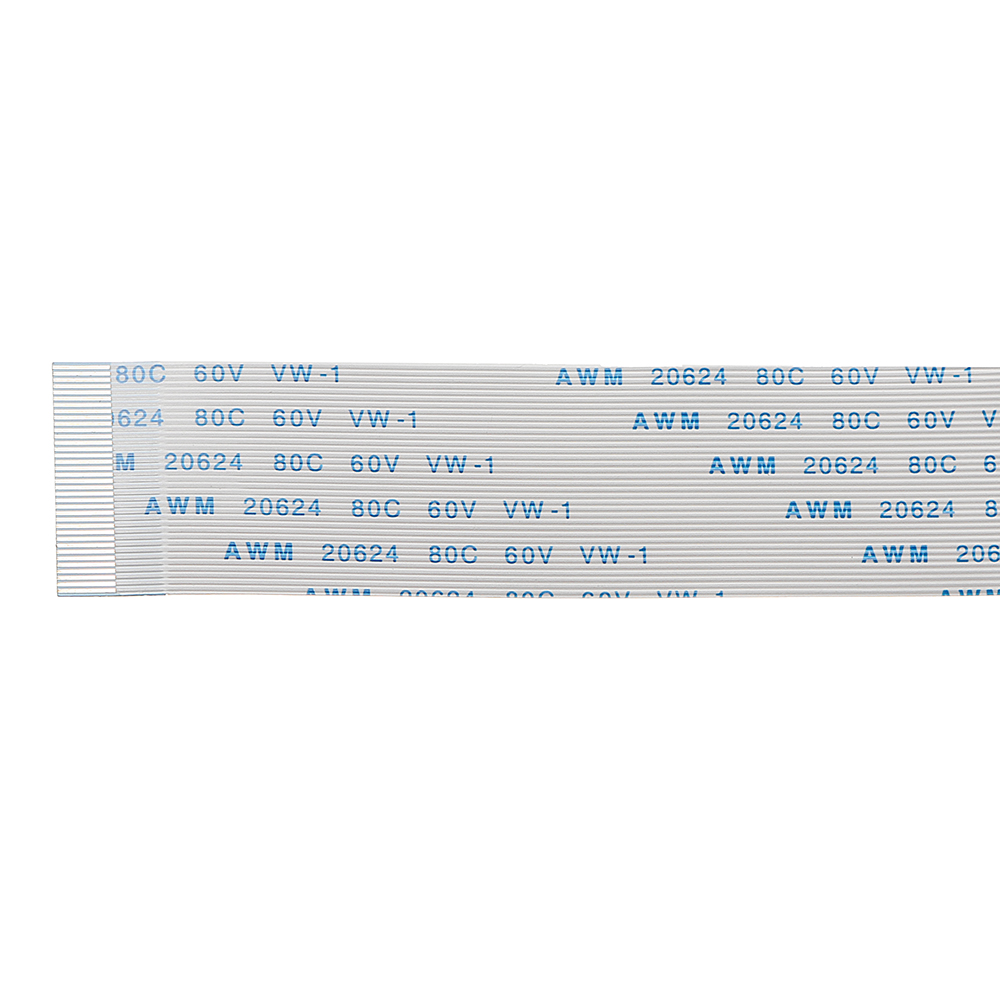

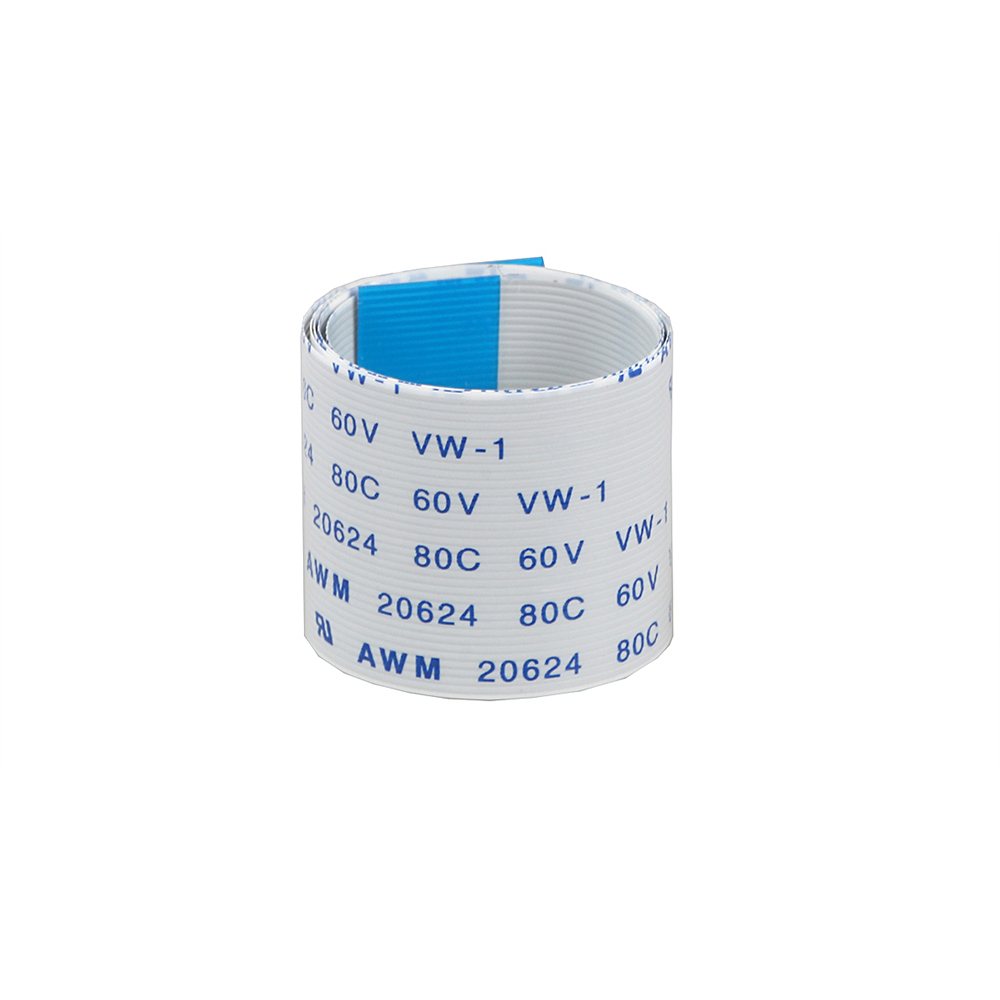

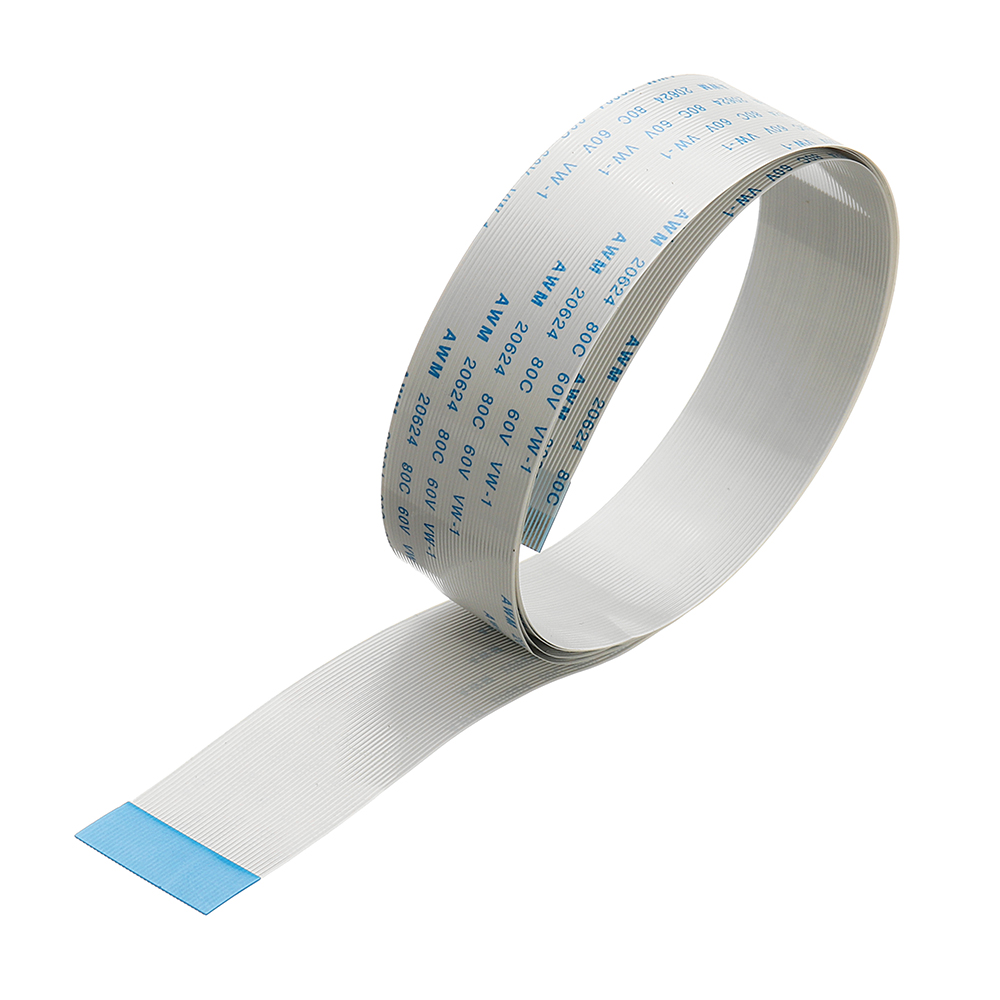

0. FFC soft cable 0.5 pitch 36pin, the direction is of the same direction
1. P = bit = core = pin (number of copper)

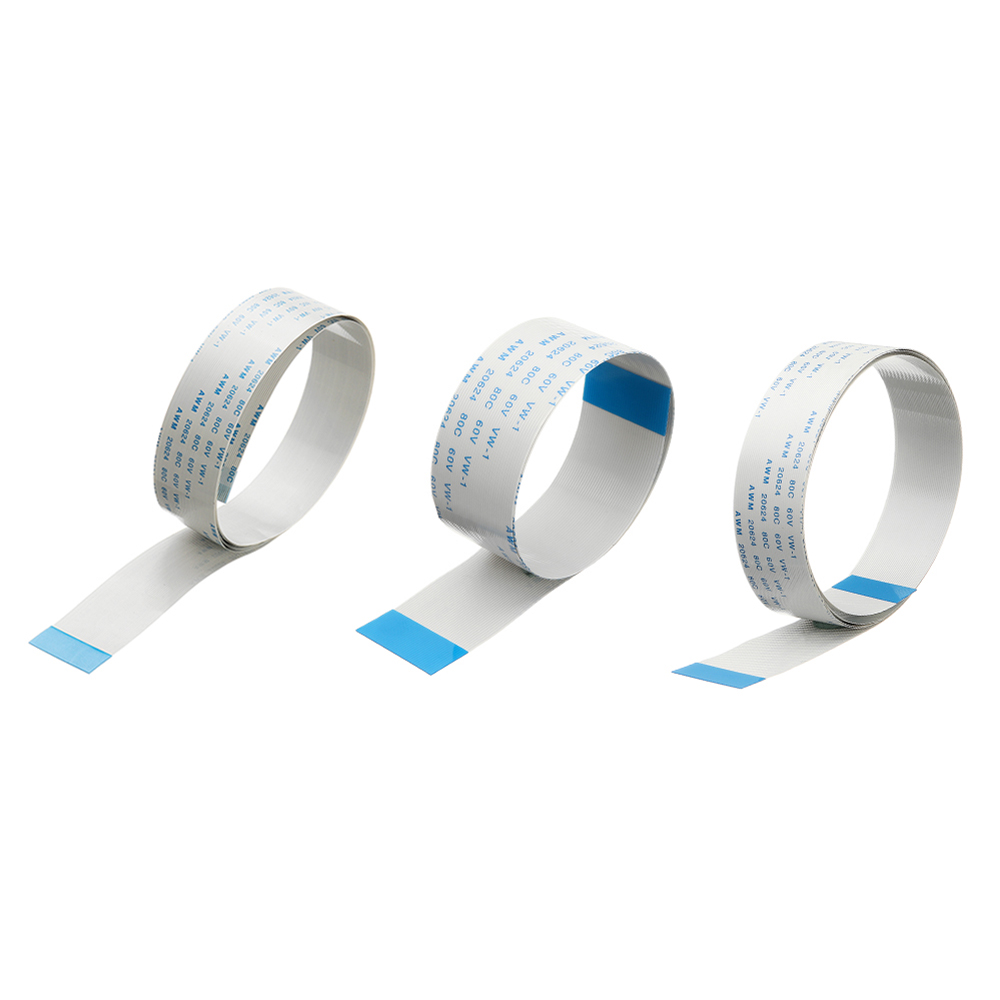

2. Cable length optional. 30cm, 70cm and 100cm.
3. Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm)
Spacing algorithm: bus width / (number of pins+ 1)

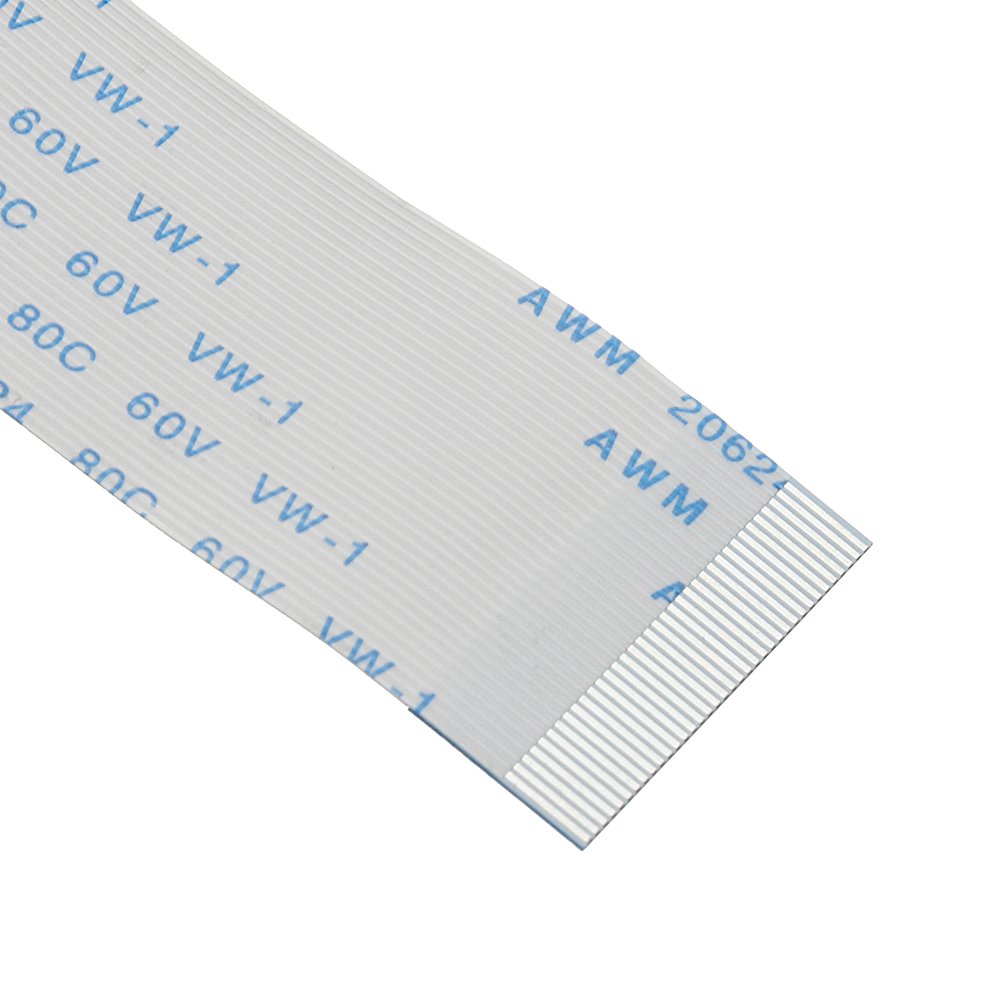

4. Direction (check the ends of the cable): A with the same direction (metal surface in the same side)
5. Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.
Package Included:
1 x 100/70/30cm Display Cable
