  • Stock: In Stock
  • Model: ST220013132
  • SKU: ST220013132
$8.99
Ex Tax: $8.99

Available Options

Description: 3V 12mm Momentary  Push Button Switch LED Switch Waterproof Switch

Feature:
Resetable button switch, it is on when pressing and off automatically when not using it.
Suitable for cars and computer case.

Specification:
Operation Type Resetable
Material of Contact Silver alloy
Material of Button Nickel plated brass / Stainless steel
Material of Enclosure Nickel plated brass / Stainless steel
Protective Mode Waterproof
Shape of Head Flat
Mounting Hole Size ф12mm
Switch Rating 2A/3VDC
Working Voltage  3V
Rated Thermal Current  2A
Working Current 2A
Contact Resistance 50Ω
Insulation Resistance 1000MΩ
Switch Combination 1NO
Degree of Protection IP67, IK08
Machanical Life
50,000 cycles
Color Red, Blue, Green

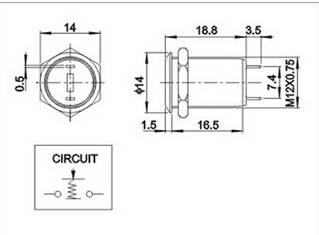

Mechanical Drawing:
3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-1
Package Included: 1x Button Switch

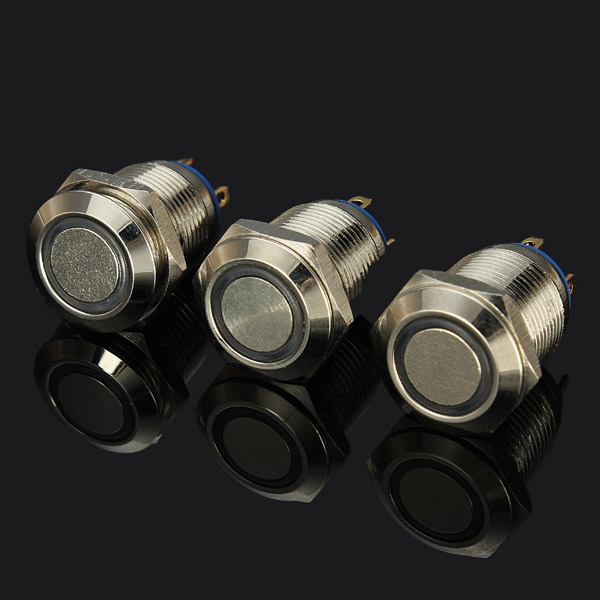

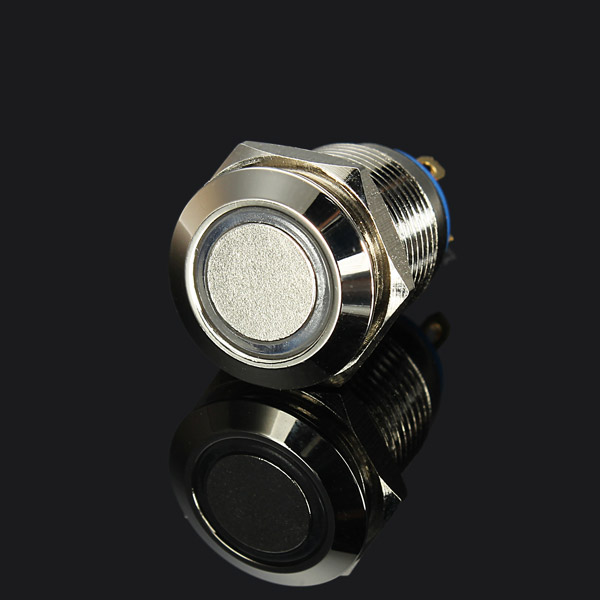

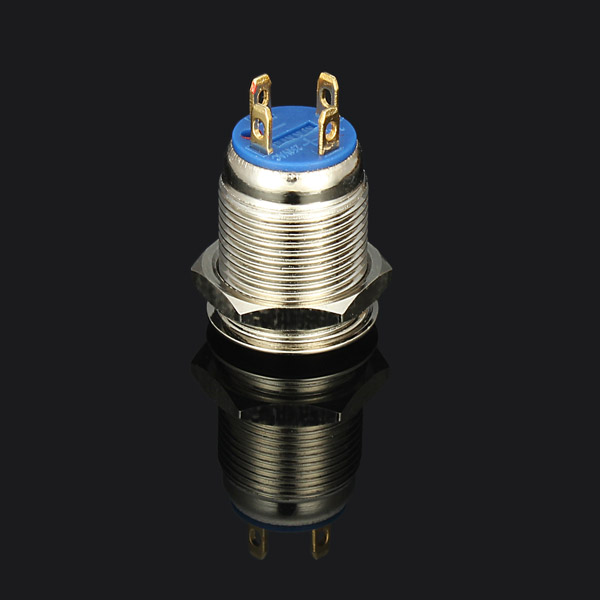

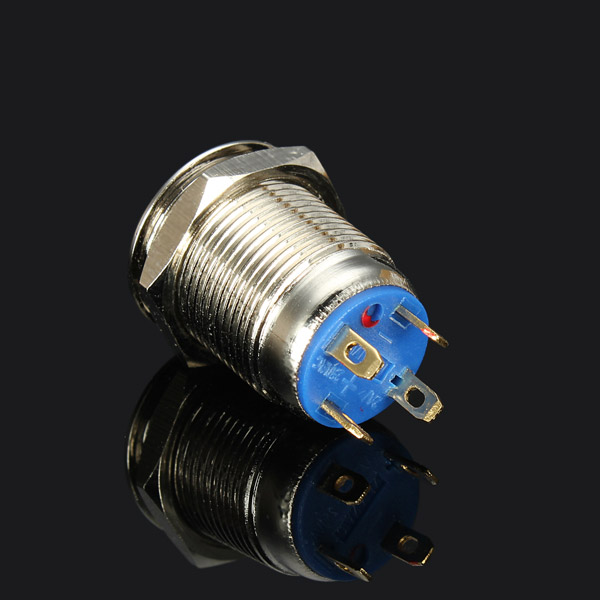

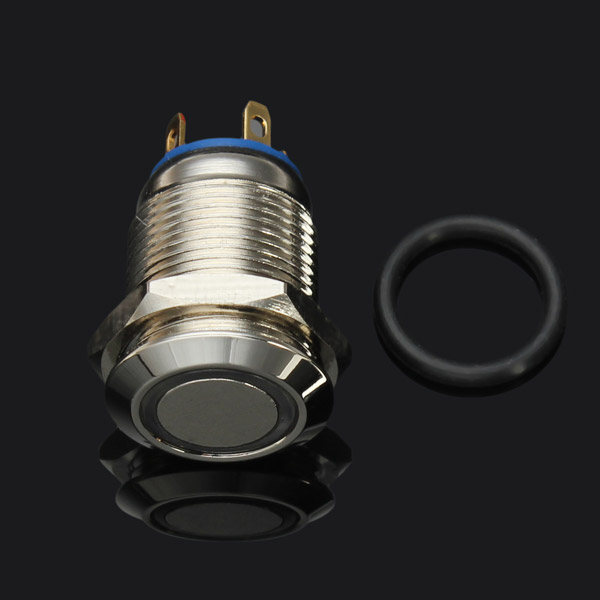

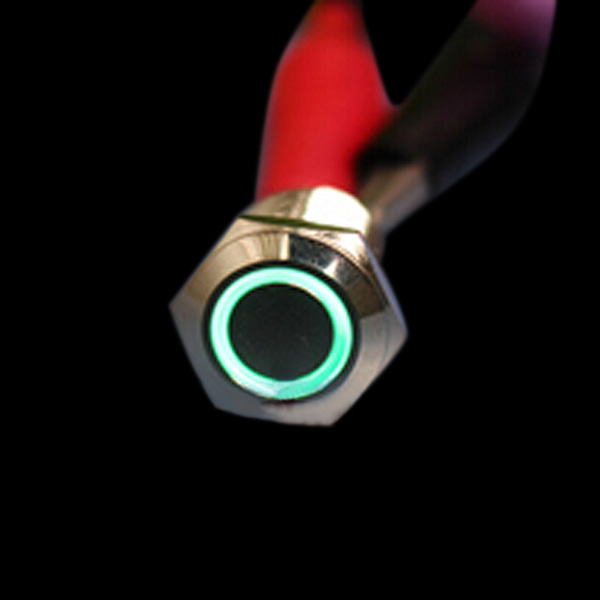

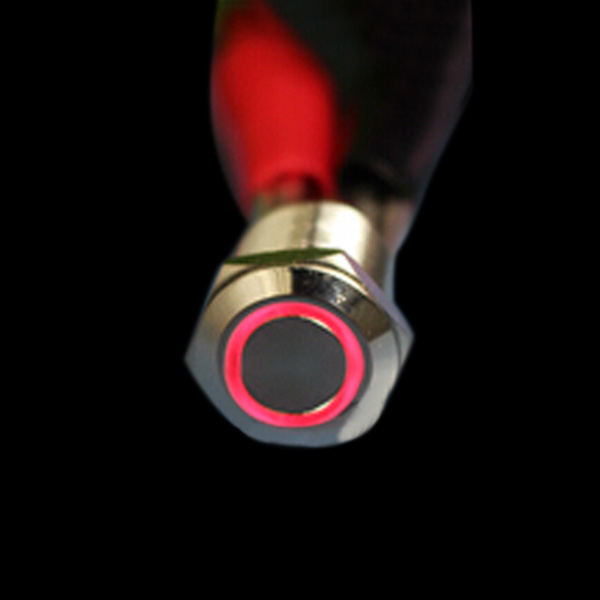

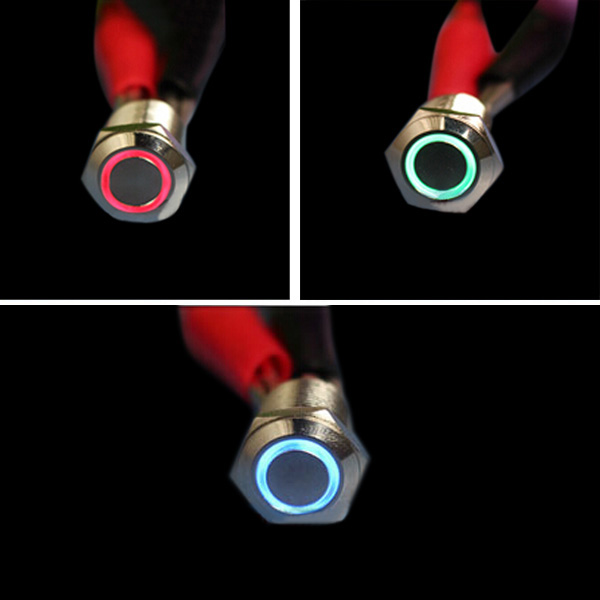

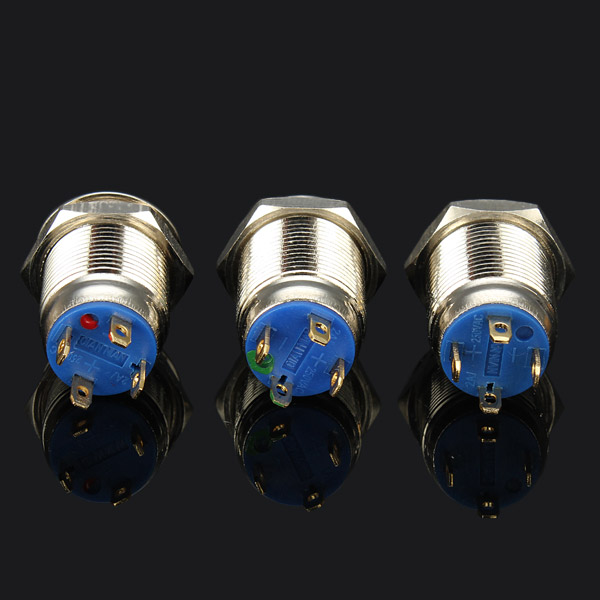

More Details: 3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-2

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-3

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-4

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-5

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-6

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-7

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-8
3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-9

3V-12mm-Momentary-Push-Button-Switch-LED-Switch-Waterproof-Switch-994547-10
