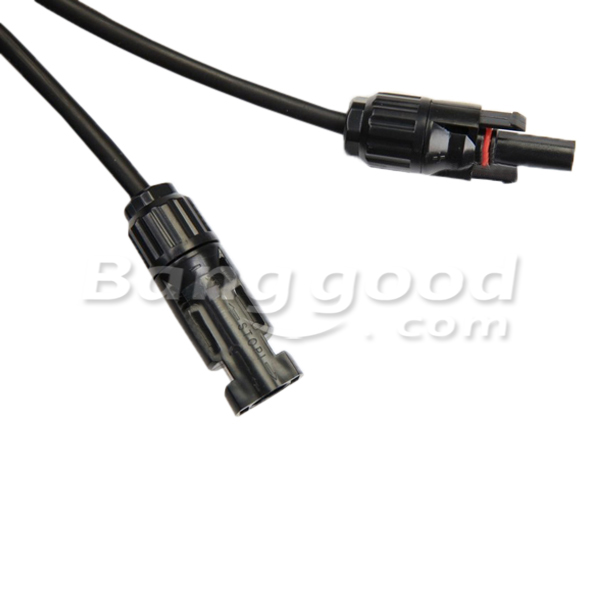

3inch/10inch/20inch/30inch/50inch/100inch 6MM2 Solar Extension Cable Wire with Male Female MC4 Connector

Description :

3,10,20,30,50,100 inch 6MM2 Solar Extension Cable Wire W/Male Female MC4 Connector
100% New and high quality
Flexible, easy to strip
Suitable for solar power station, pv connector and pv junction box
Double insulation jackets,all-weather adaptability
Good abrasion resistance,excellent softness and stripping performance
High current carrying capacity

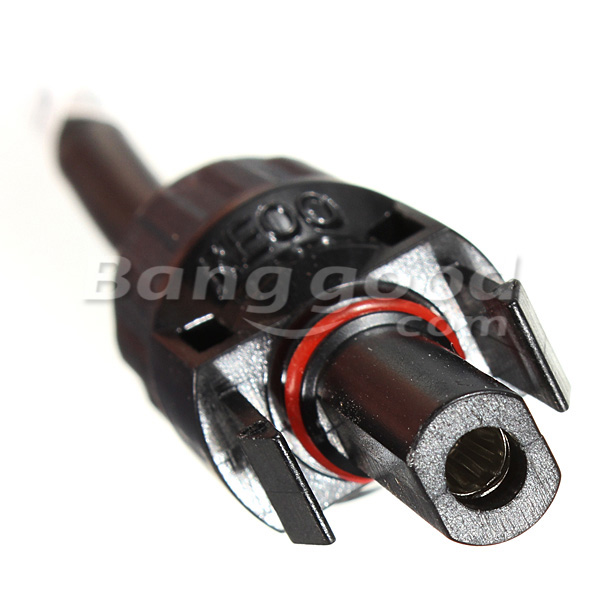

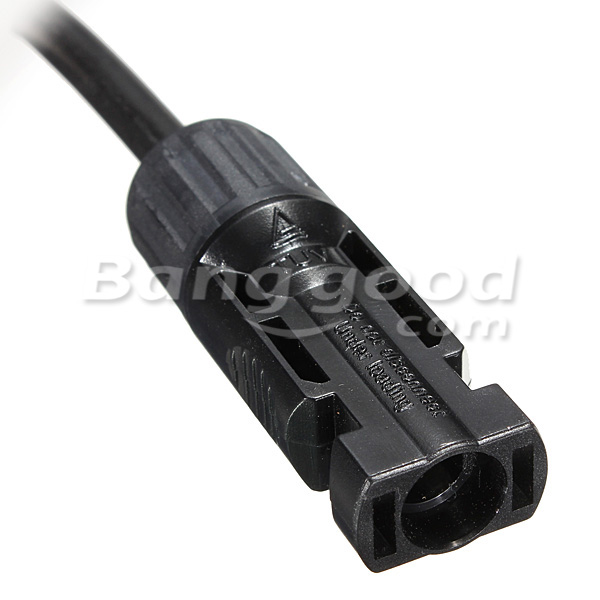

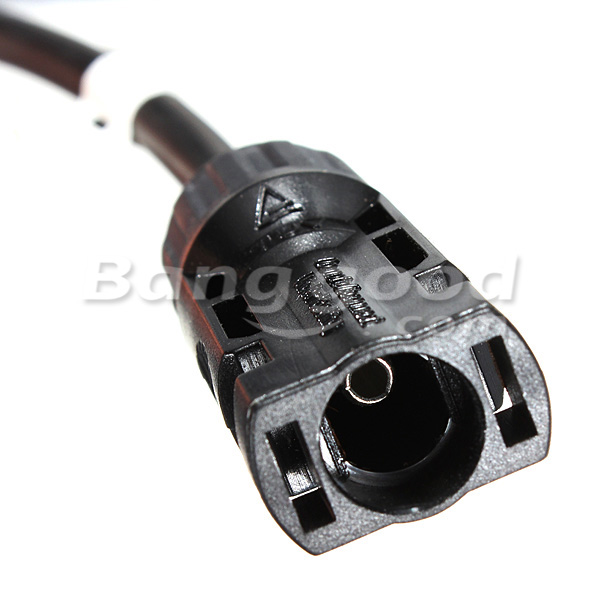

MC4 Connector :

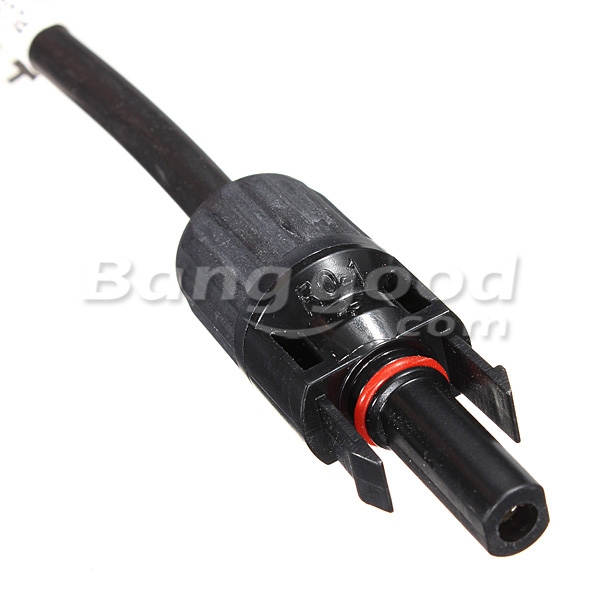

Model : RO-1
Maximum working current : 25A (4mm2)
Maximum working voltage : DC1000V
Contact resistance : ≤ 0.5mΩ
Insulation resistance : > 500MΩ
single-core cable cross-section : 6mm2
Cable OD Range : Φ5mm ~ Φ 7mm
Ambient temperature : -40 ℃ ~ + 105 ℃
Protection class : IP67

Safety class : Ⅱ
Pollution degree : 2
Operating temperature : -40 ~ +85 ℃
Insertion force : ≤ 50N
Withdrawal force : ≥ 50N
Insulation Material : PC, black
Contact : Copper cn, sn Nickel
Flammability rating : UL94-VO
Terminal Connection : Crimp

Cable :
Model : PV1-F
Nominal cross section : 6.0mm2
Rated Current : 70A
Rated Voltage : 600V/1800V (AC/ DC)
Ambient Temperature Range : -40 ℃ ~ + 125 ℃
Strand Design(No.xø(mm)) : 84 /0.30
Connector Type : MC4
Conductor diameter : 3.42mm
Outer diameter : 7.15mm
Available Cable Length : 3,10,20,30,50,100FT

Package included :

1 x 6MM2 Solar Extension Cable With MC4 Connectors Male And Female
