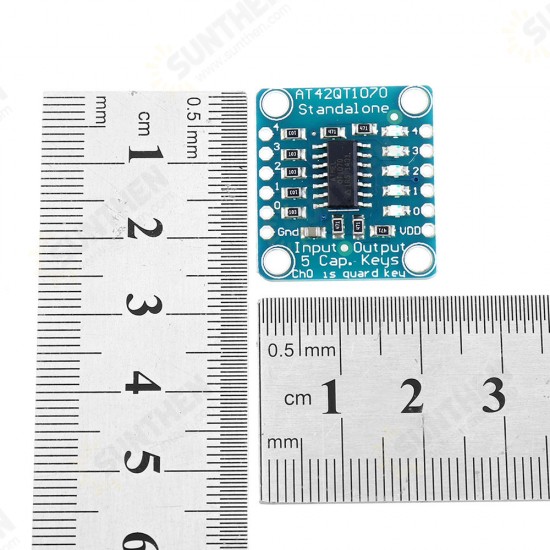

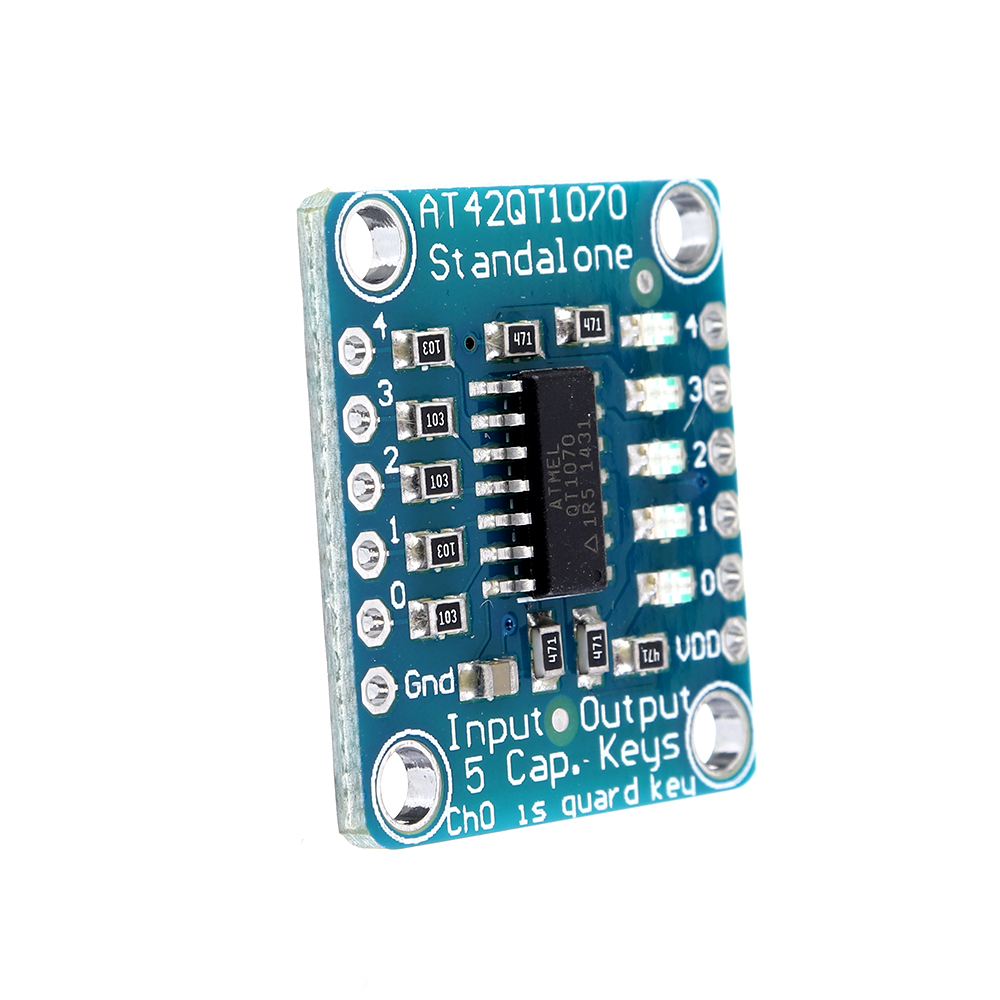

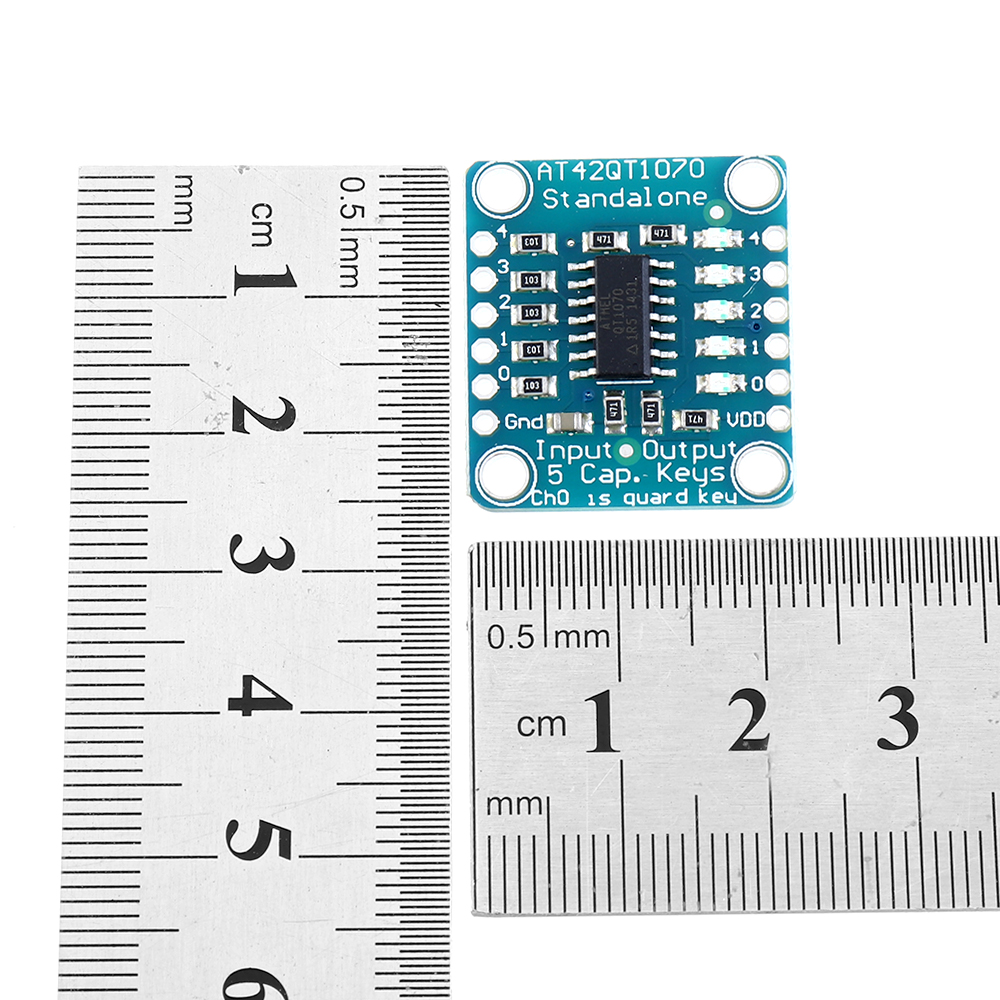

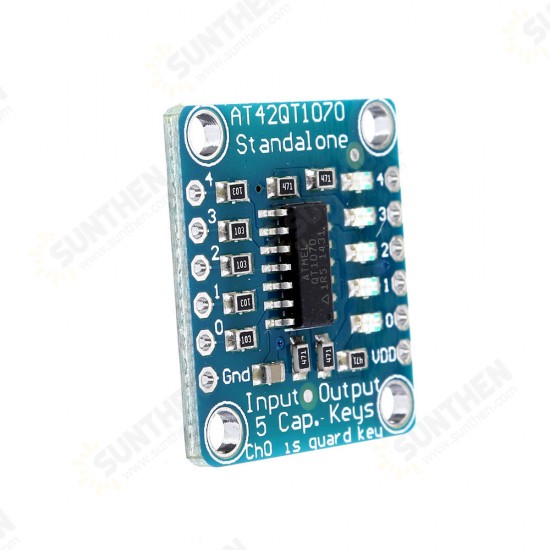

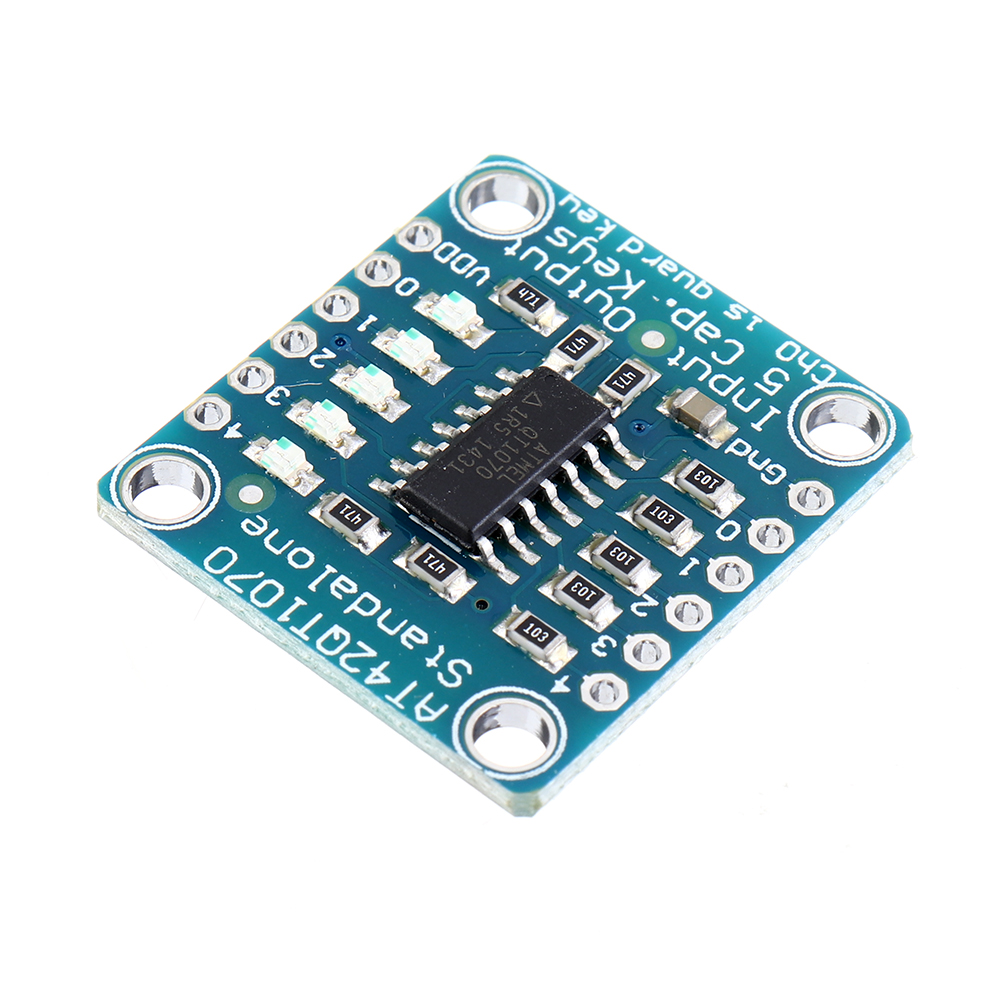

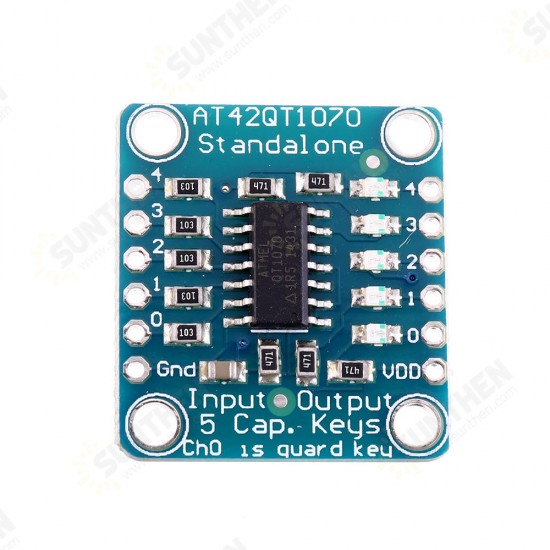

3pcs AT42QT1070 5-Pad 5 Key Capacitive Touch Screen Sensor Module Board DC 1.8 to 5.5V Power For Standalone Mode
- Stock: In Stock
- Model: ST230045477
- SKU: ST230045477
$29.99
Ex Tax: $29.99
Features:
This board is the simplest way to create a project with multiple capacitive touch sensors.

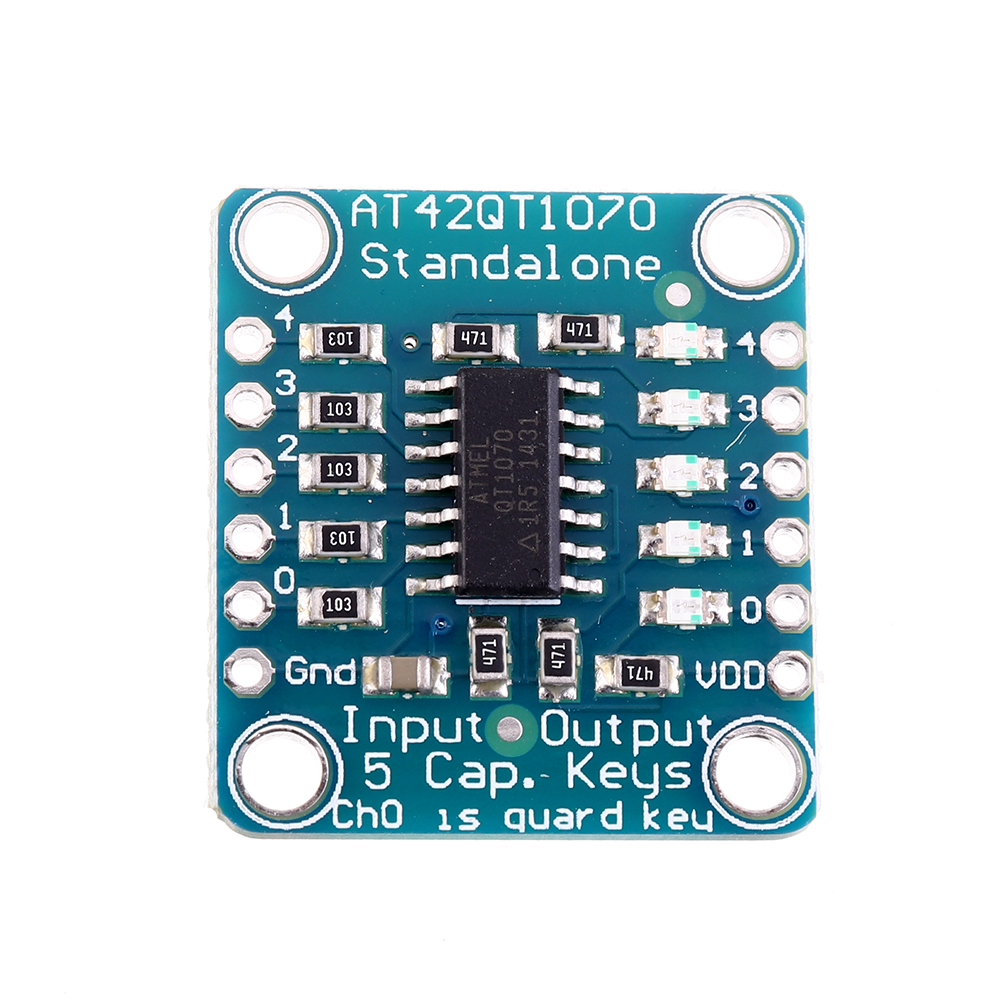

No microcontroller is required here - just power with 1.8 to 5.5VDC and connect up to 5 conductive pads to the 5 left-hand pins.
When a capacitive load is detected (e.g. a person touches one of the conductive contacts) the corresponding LED on the right lights up and the output pin goes low.

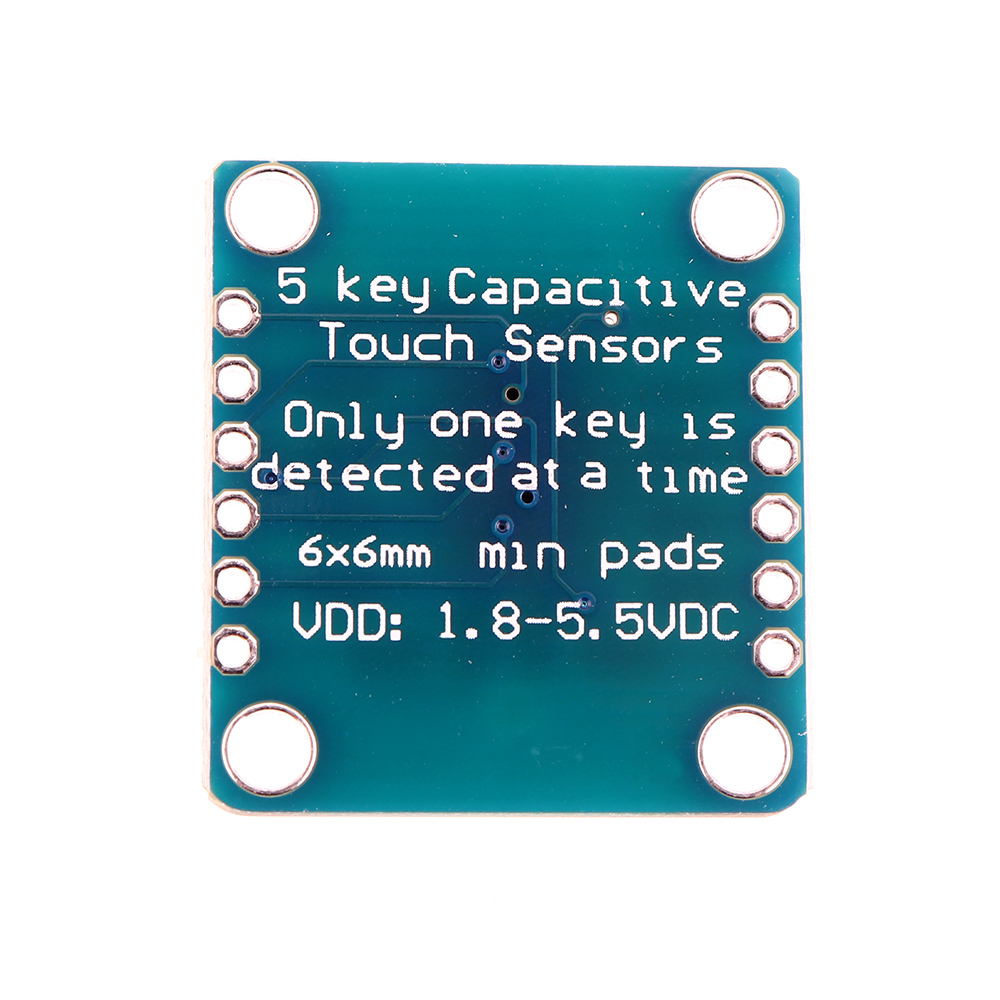

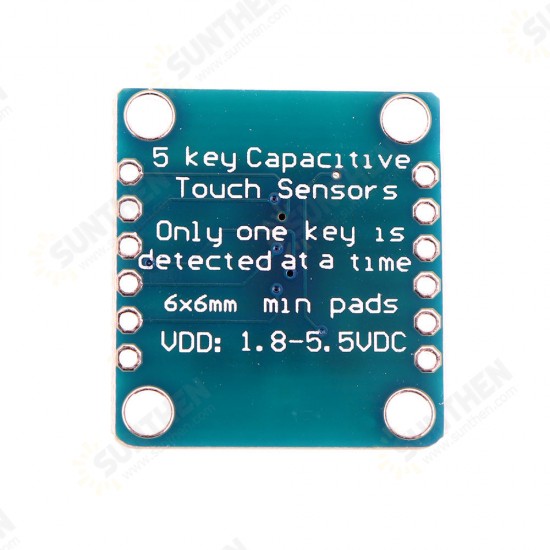

You can use this to update an existing normal-button project where buttons connect to ground when pressed. (Note that one contact will be detected at once (this is to protect against having a hand brush against two or more contacts at once.)
The datasheet has many details on sensitivity, power usage, etc. - note that this board uses the chip in 'standalone' mode, it cannot be used in I2C mode.
Specification:
Model: AT42QT1070
Type: 5-Pad Capacitive Touch Sensor
Package includes:

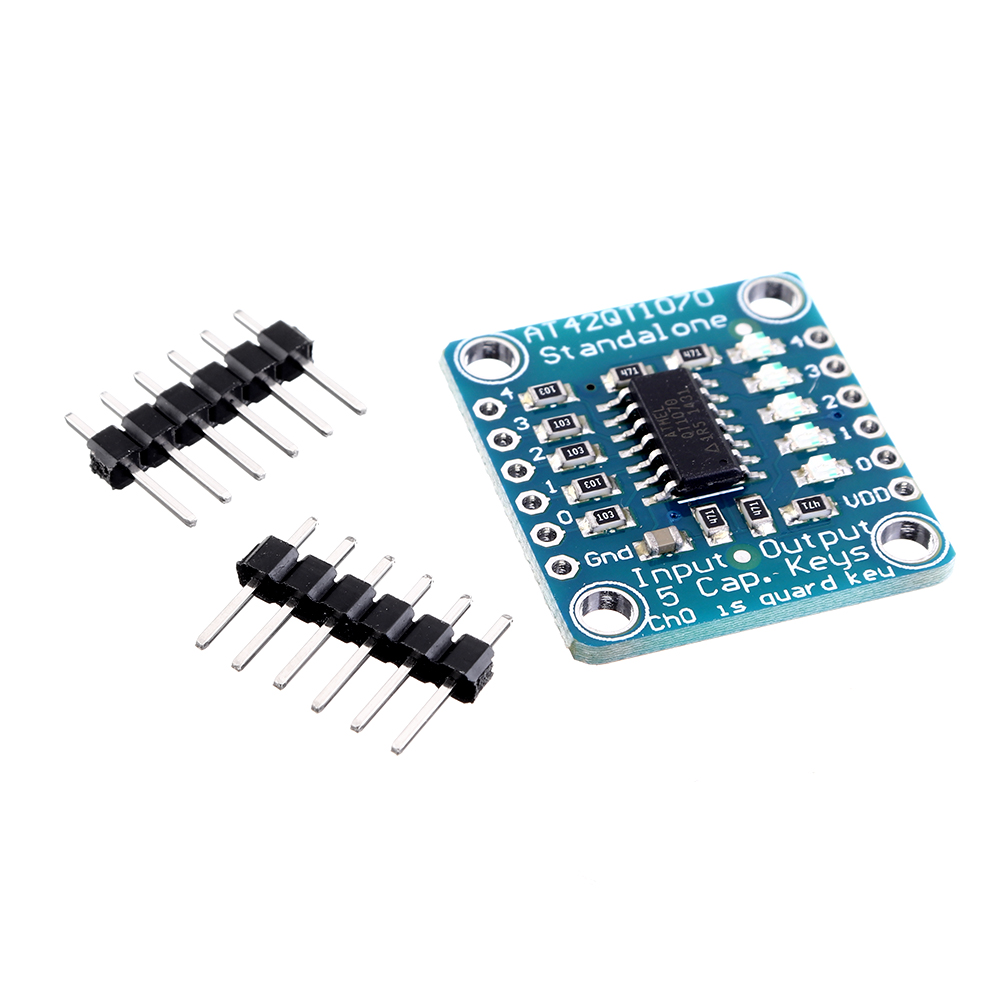

3 x Capacitive Touch Sensor Board
