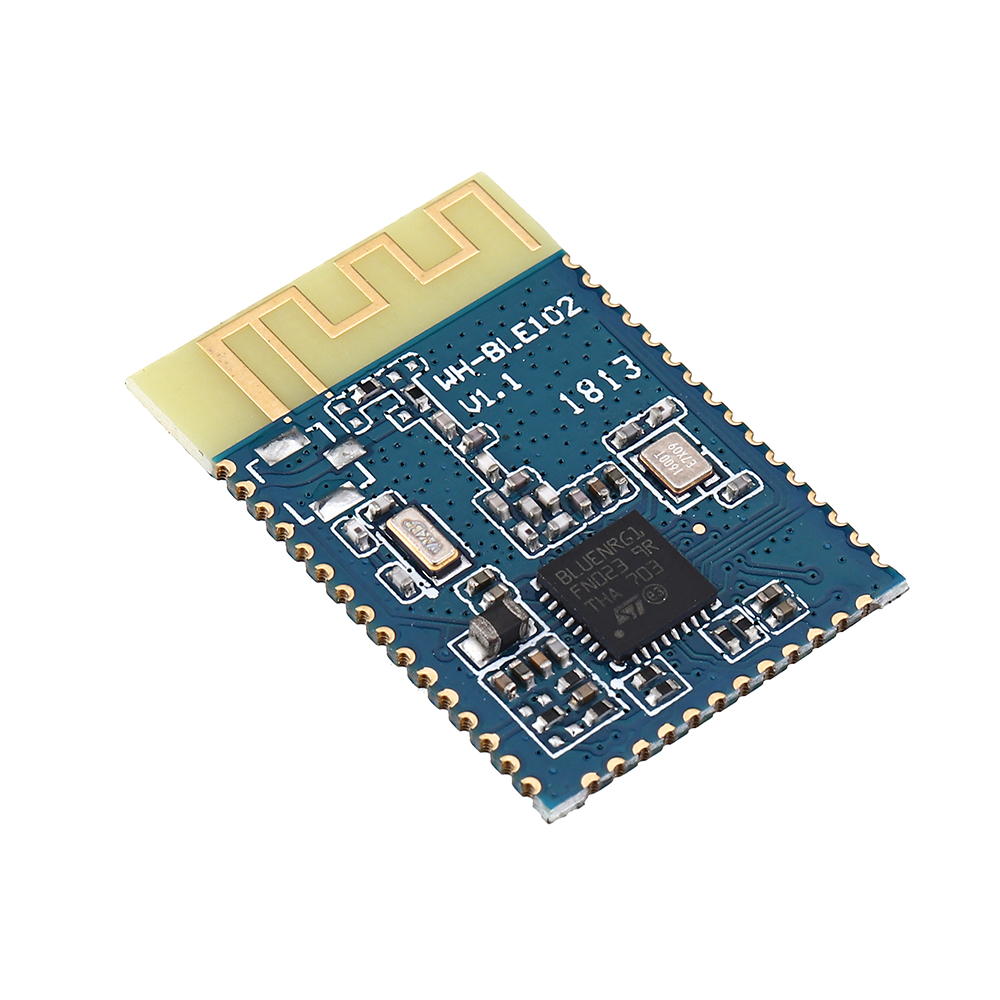

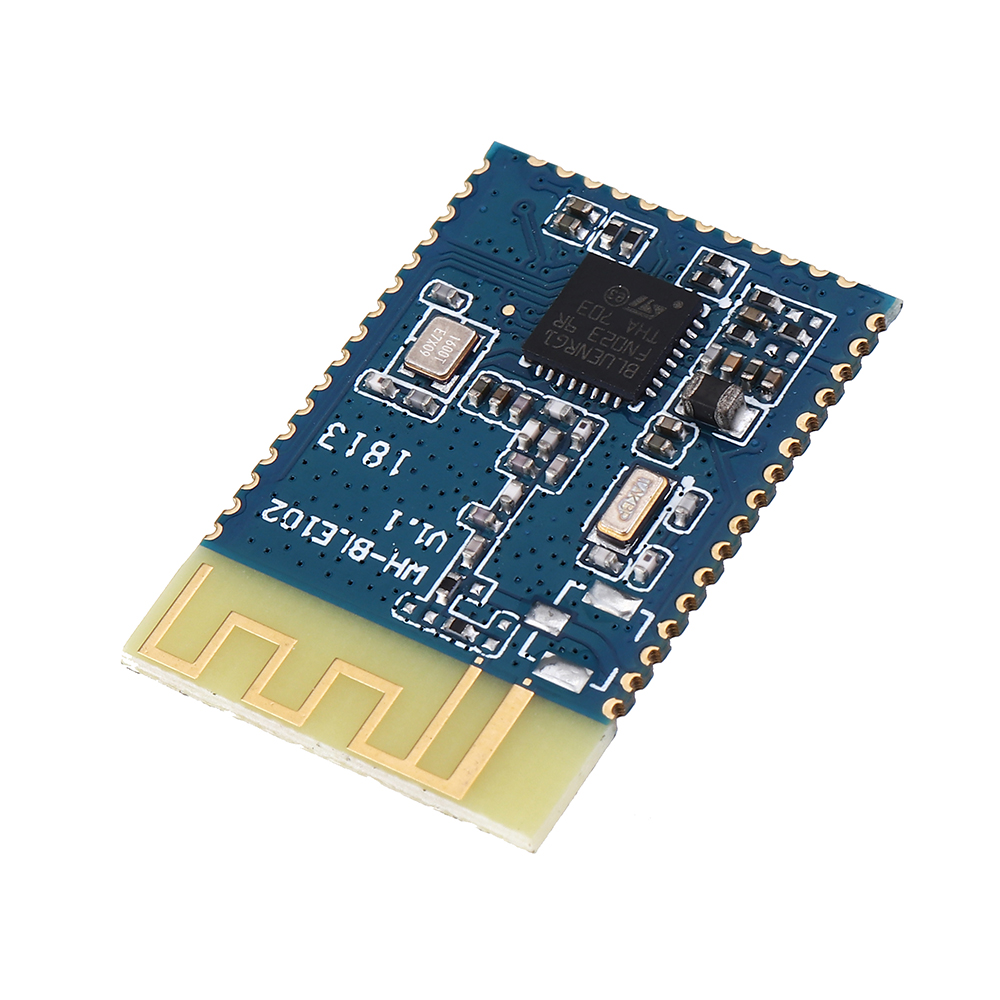

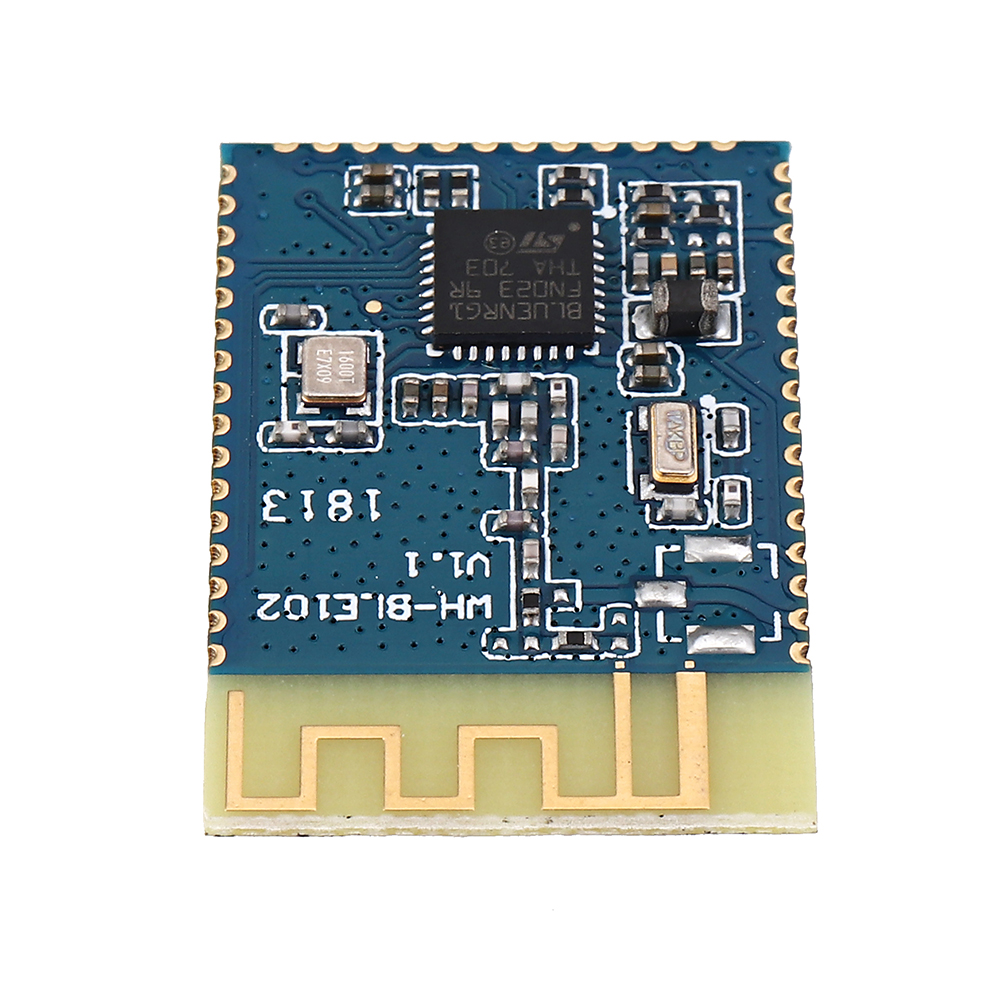

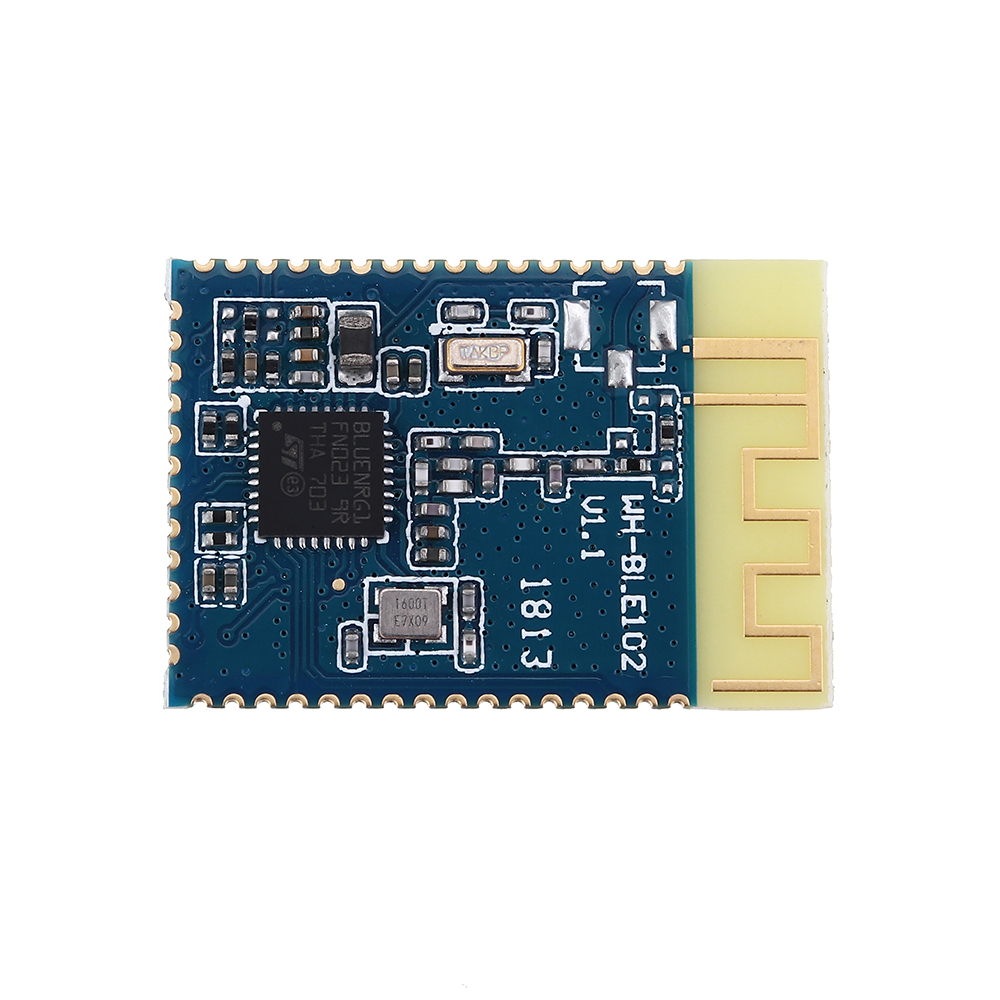

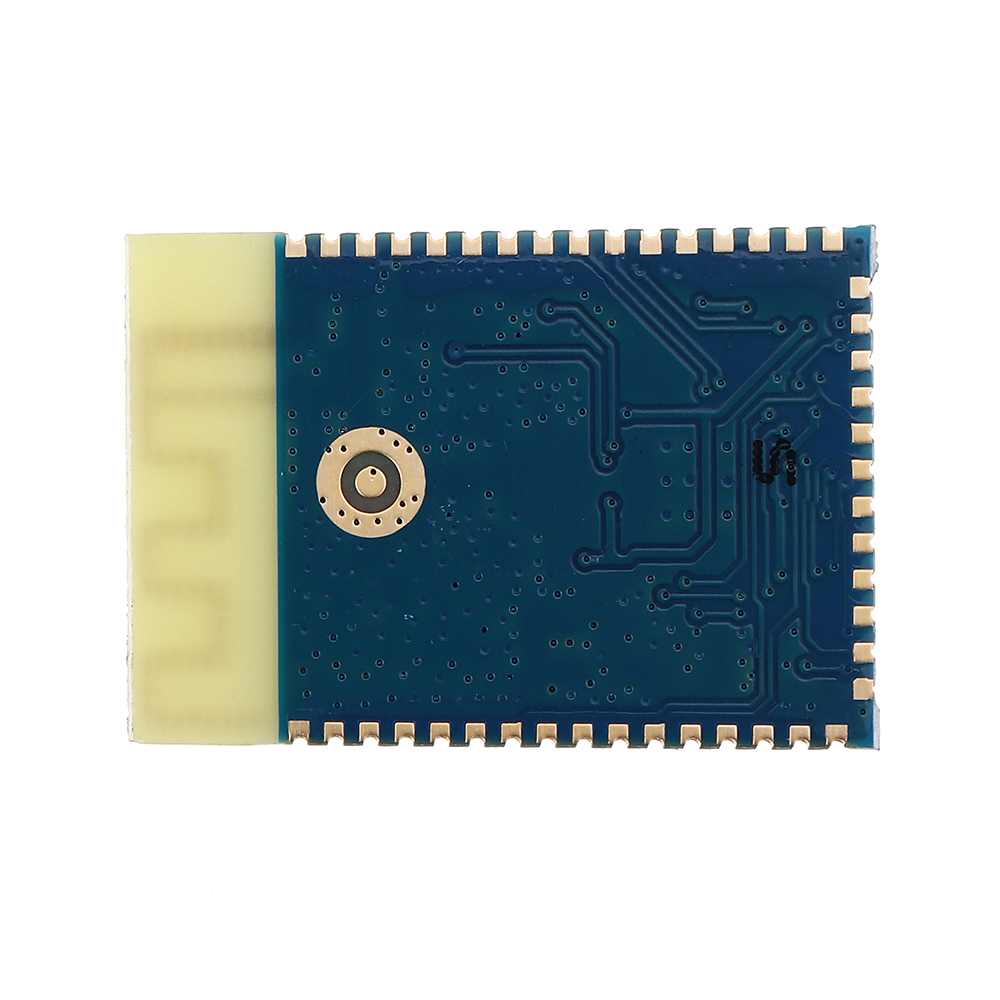

3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade

3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
  • Stock: In Stock
  • Model: ST230047134
  • Dimensions: 18.20mm x 26.70mm x 3.00mm
  • SKU: ST230047134
$17.99
Ex Tax: $17.99
Feature:

Classification Description Value
Wireless parameter Wireless standard 802.15.1
Bluetooth specification V4.2
Frequency Range 2.402GHz-2.480GHz
Transmit power -14dBm to +8dBm
User can configure via AT command
Receiving sensitivity -85dBm
Antenna option External: I-PEX connector
Built-in: onboard antenna
Hardware parameter Data interface UART: 1200bps -921600bps
Operating Voltage 1.7V~3.6V
Working current 500nA~10mA
Operating temperature -40°C- 85°C
Storage temperature -40°C-85°C
Size 18.2×26.7×3 (mm)
Software parameter Equipment type ma-ster/slave
Security Mechanism 128-bit AES engine
Data encryption PC1 encryption
Operating mode ma-ster mode, slave mode, broadcast mode, Mesh networking
Setting command AT+ command structure
User configuration Serial AT command, transparent transmission of AT commands
Customer application software Support customer customized application software

Package includes:

3 x Module
