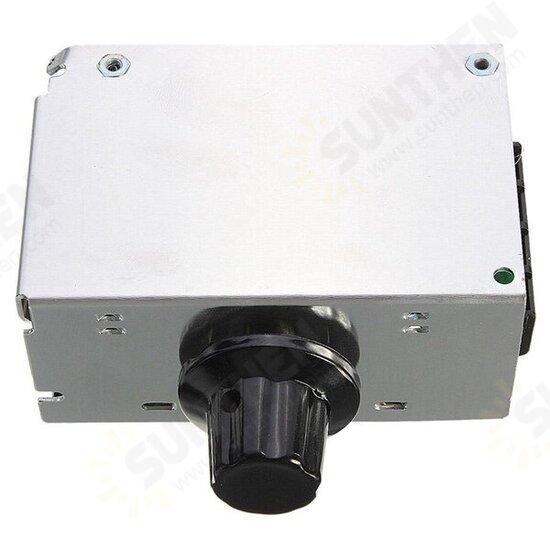

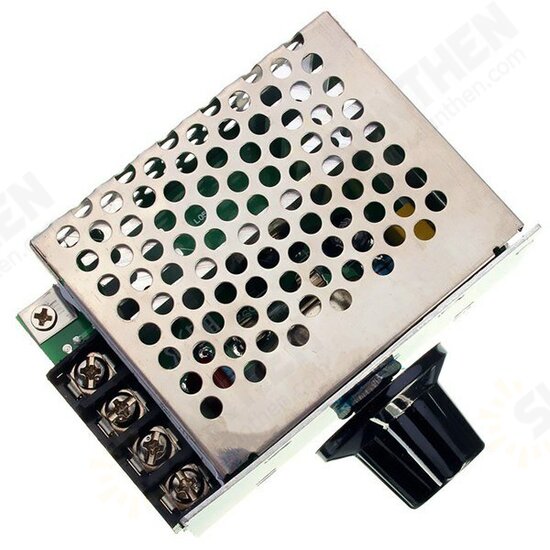

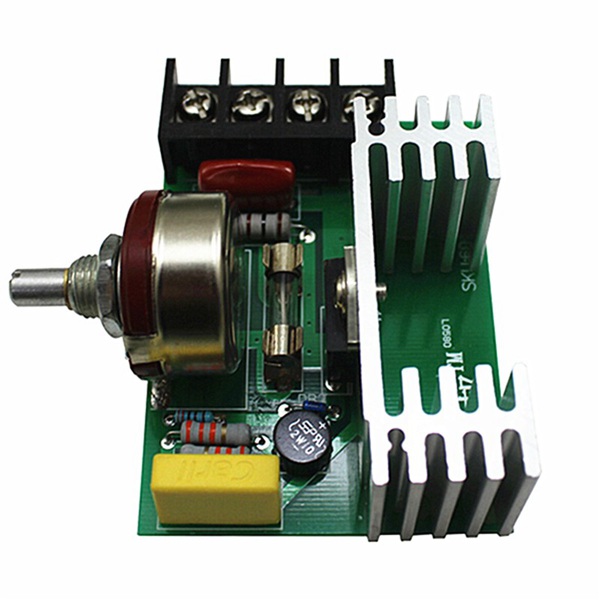

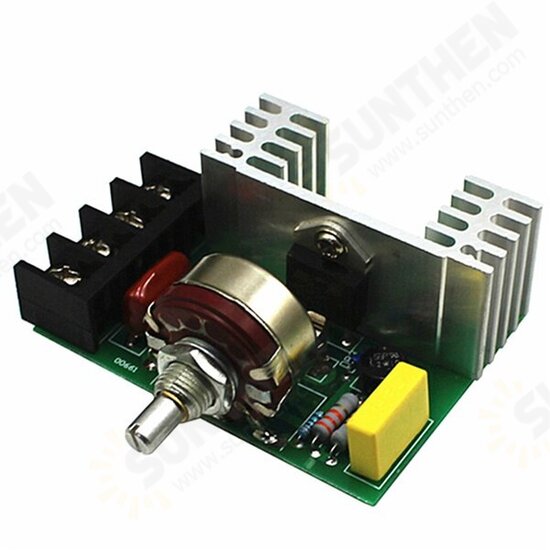

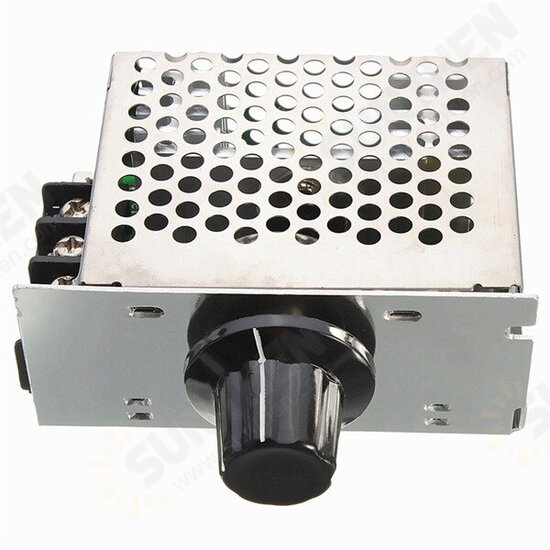

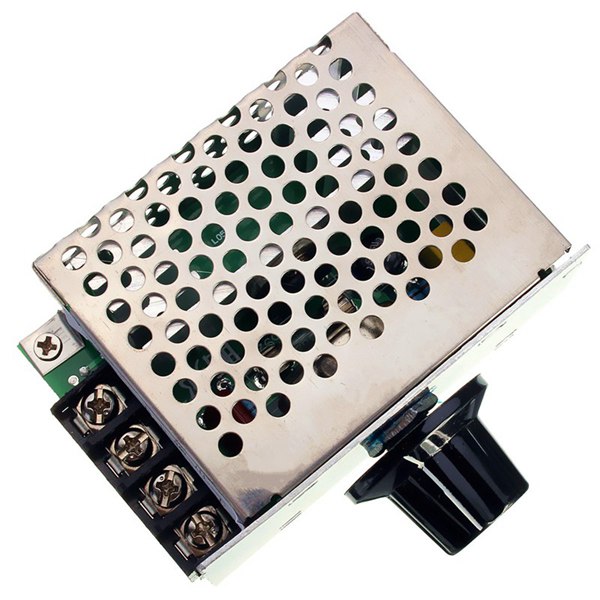

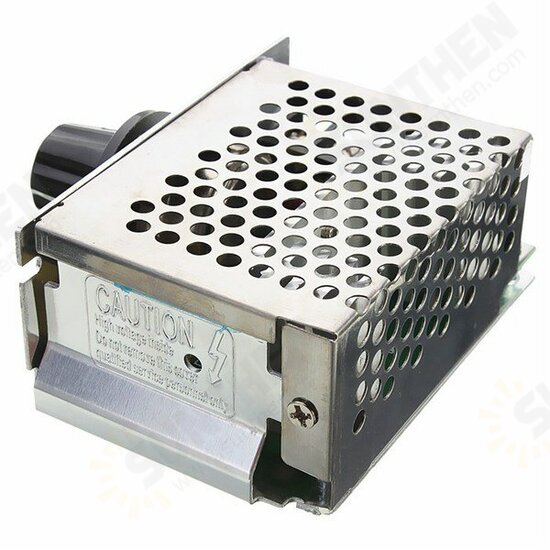

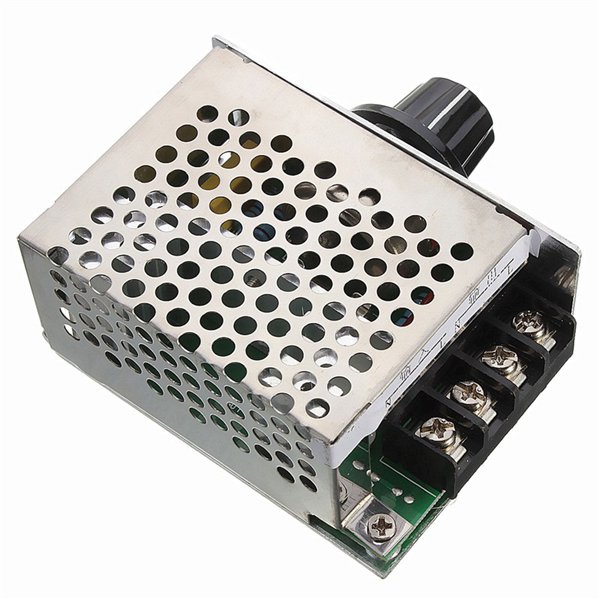

4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller

Feature:


Work Voltage: AC 220V

Maximum power: 4000W

Voltage Regulation: AC 0-220V

Size: L85mm x W60mm x H40mm rotation hole 6mm

SCR Model: BT-800B



Instruction:

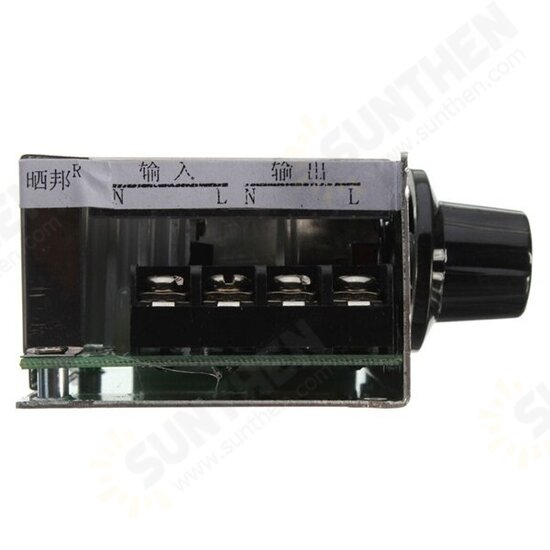

The role of the product access AC 0-220V, output is connected to the electric wire or electrical appliances, rotary potentiometer, can play speed, pressure, thermostat



Suitable for:


Using the new two-way high-power thyristor, because the design maximum current can reach 20A, a good solution to the problem of over-current electric wire in the case of cooling caused by the resistance is too small, can easily adjust the output voltage at DC0 ~ any adjustment between DC220V



Precaution:


Note that the load can not exceed the specified maximum power, otherwise it will burn the module and electrical.

Try using a resistive load, inductive capacitive load power to be greatly reduced.

Do not try to open or modify regulator.


Package included:


1 x 4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller

,,,,,,
