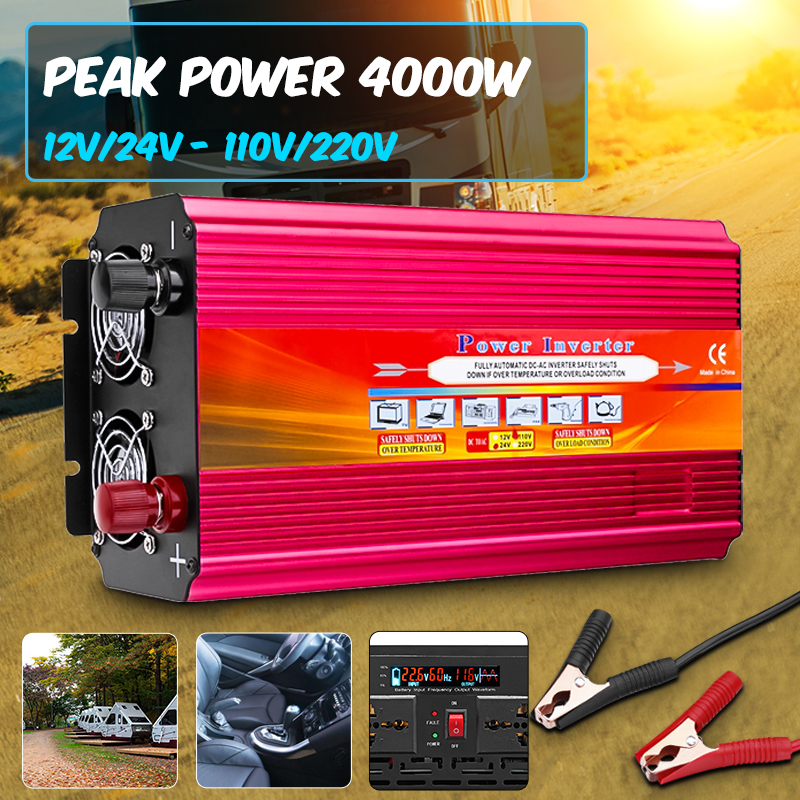

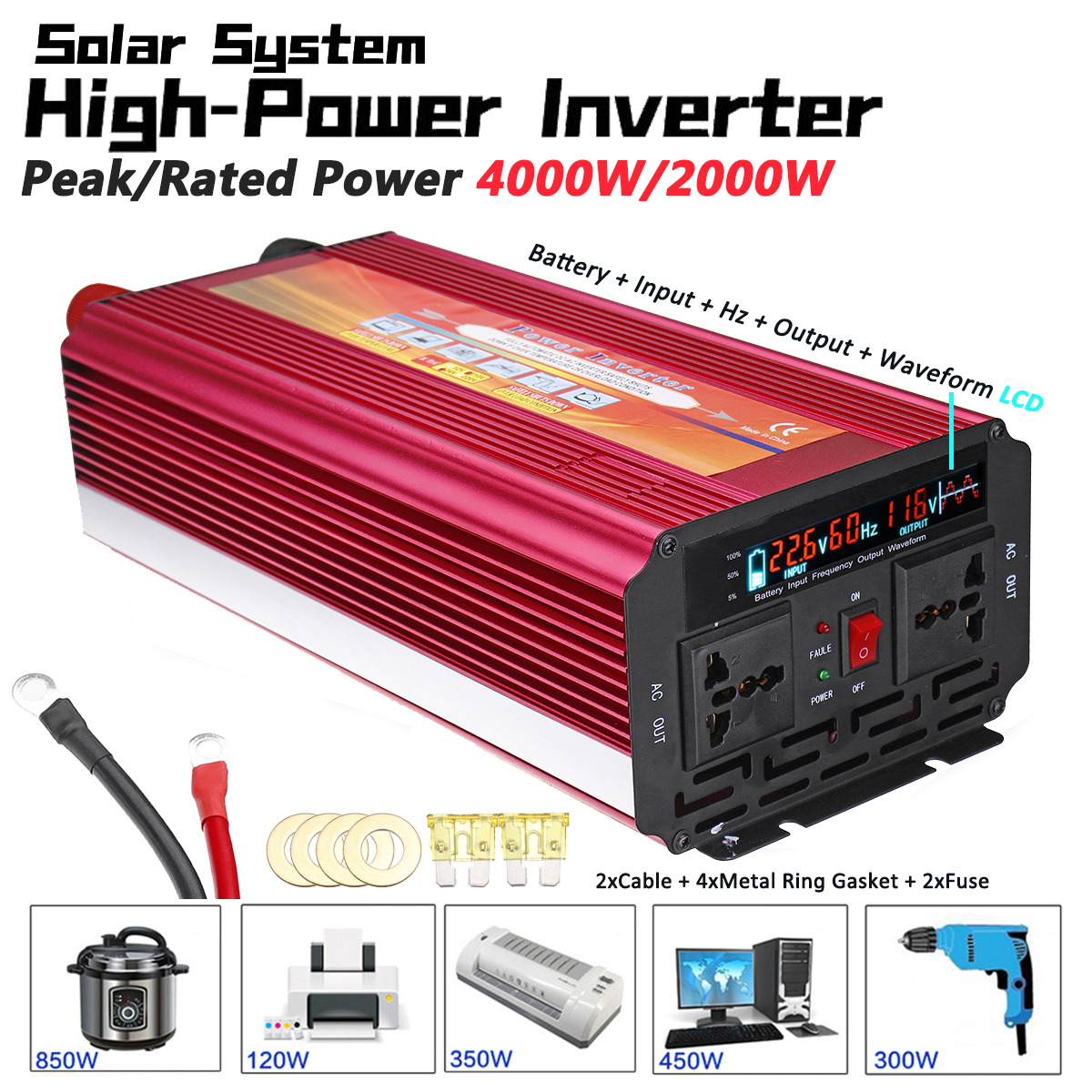

4000W Car Caravan Solar Power Inverter 12/24V- 220V Sine Wave Charger Converter

1* Solar Inverter

2* Alligator-Clip Battery Cable (Red for Positive & Black for Negative)

2*Rotating Terminal (Red for Positive & Black for Negative)

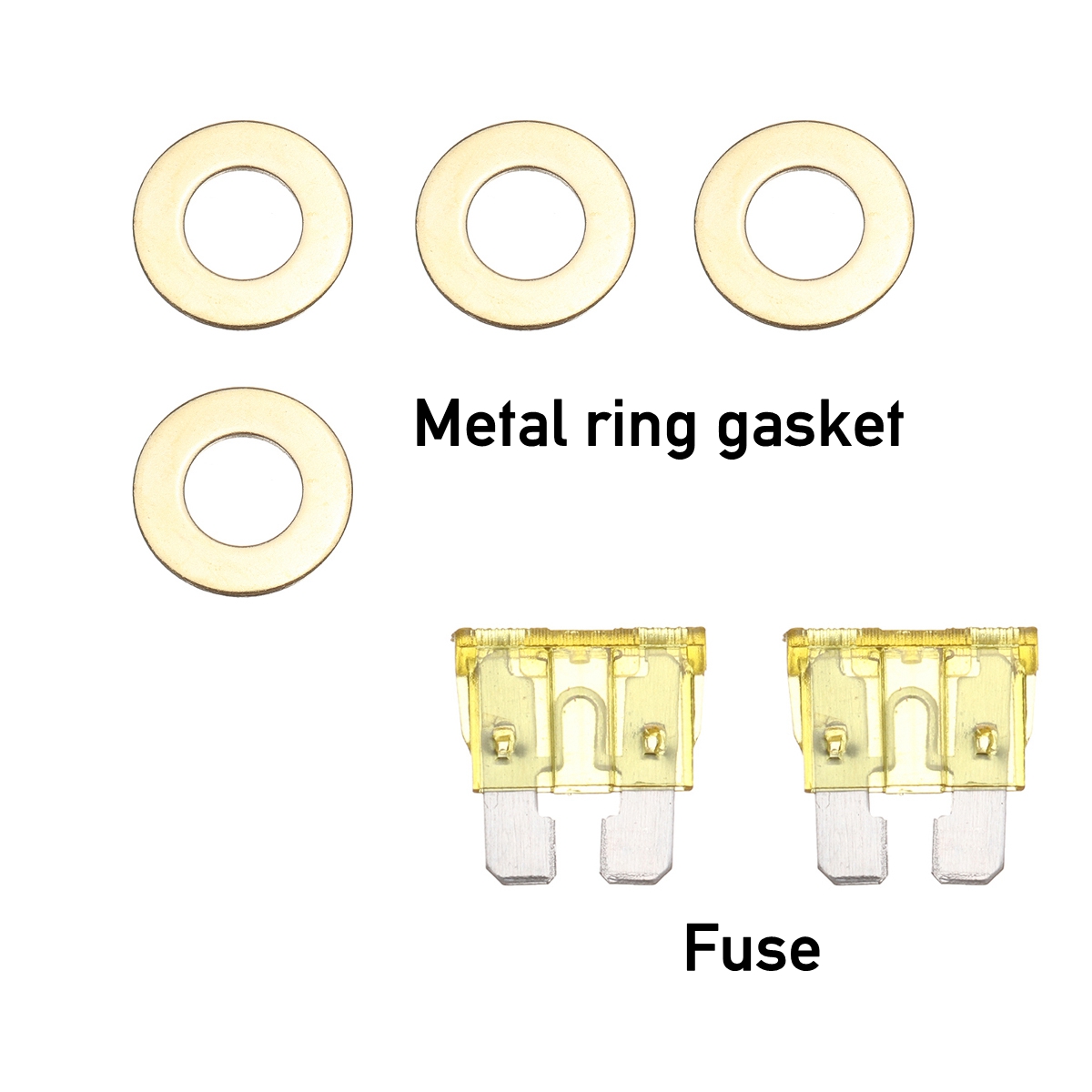

2* Insurance Fuse

4*Metal Ring Gasket

Peak Power : 4000W

Rated power : 2000W (Please Ensure the Rated Power is Higher than the electric appliance you wanna apply to.)

Input Vottage: 12V/24V

Output voltage: AC 220V/50Hz ± 3Hz

AC 110V/60Hz ± 3Hz

No load current: <0.9A

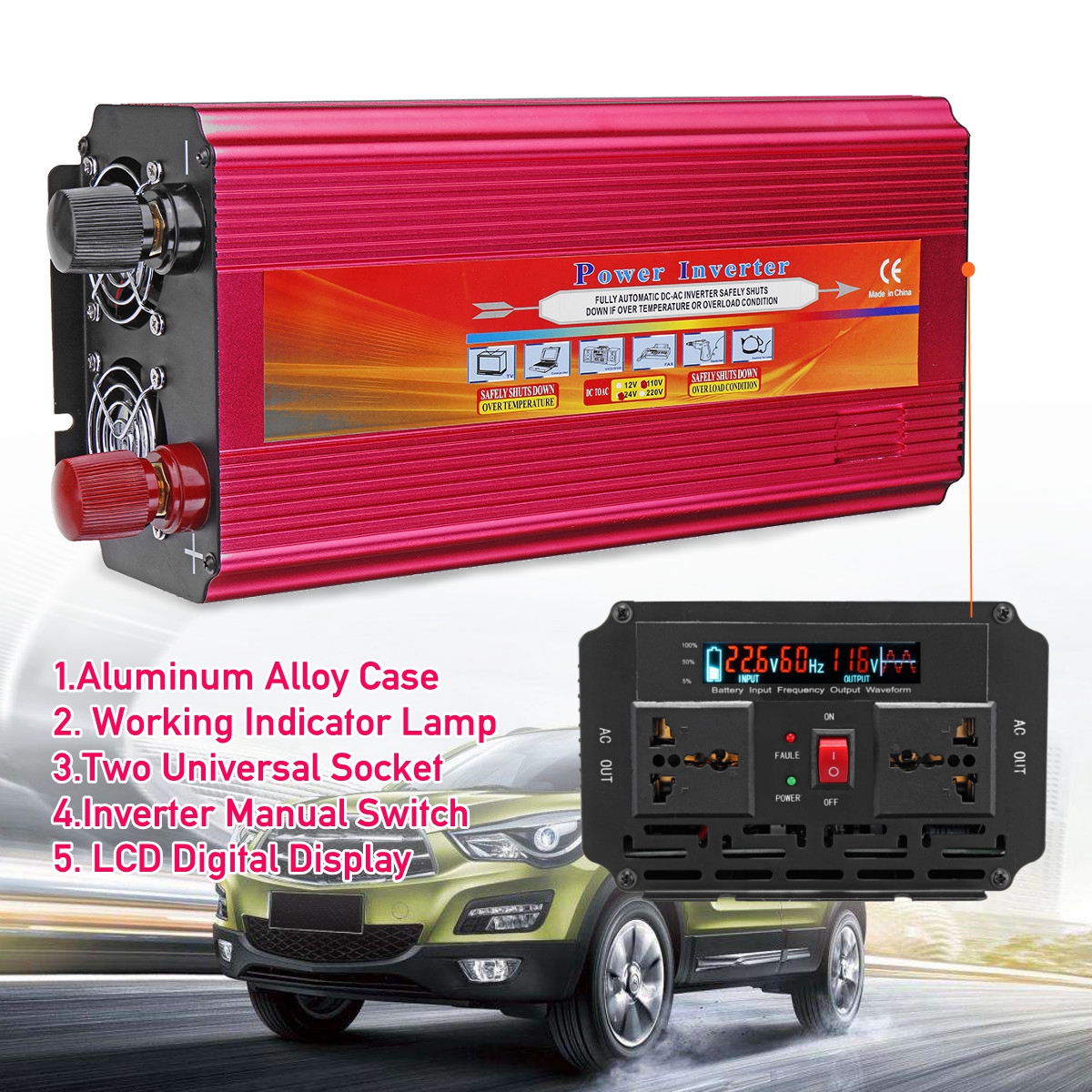

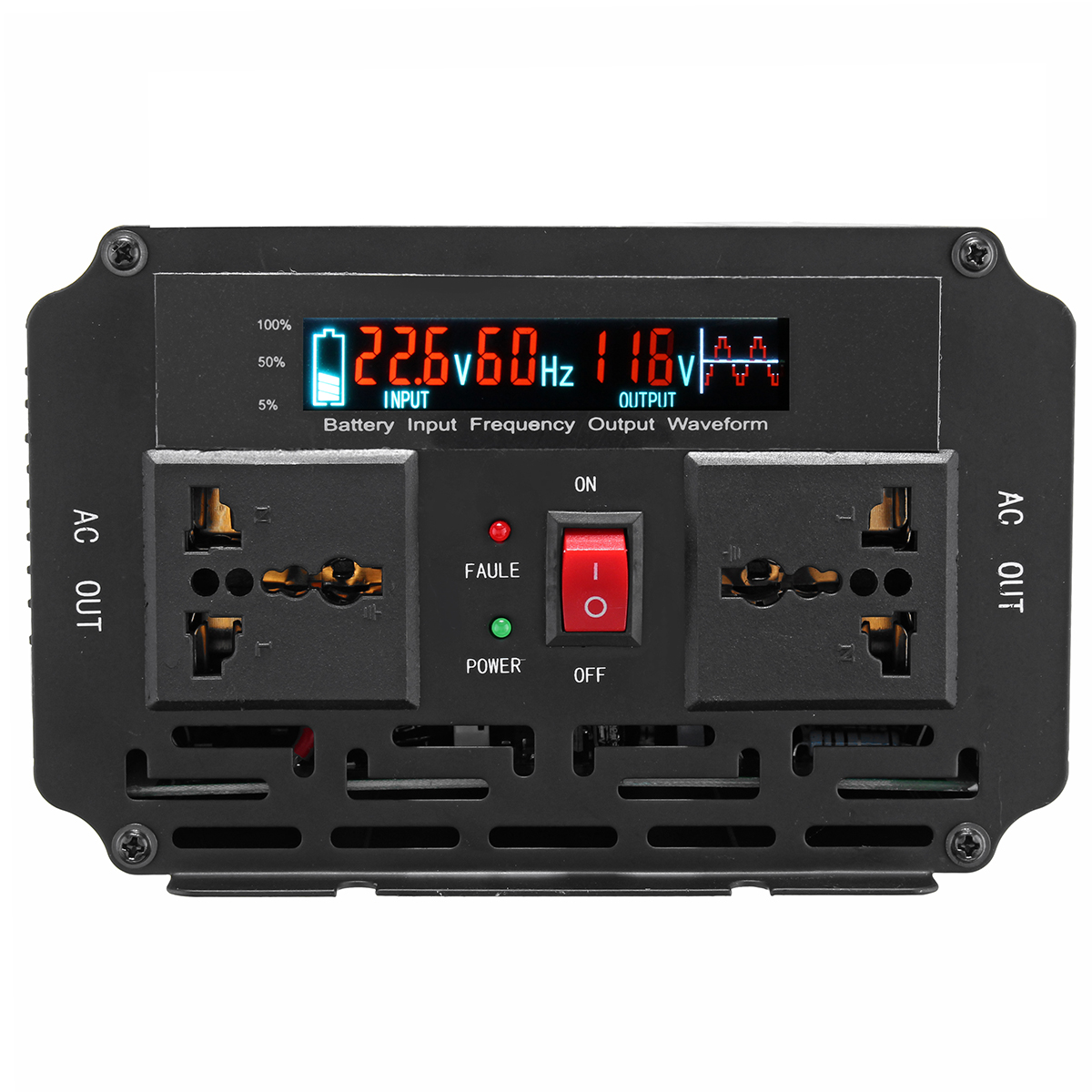

5 Digital Display Content：Battery Electric QuantityInput/Output Voltage LCD Display

Output voltage waveform: Modified Sine Wave

Conversion Efficiency:90%

- Color: Red

- Material: Aluminum Alloy

- Socket Style: Universal Socket

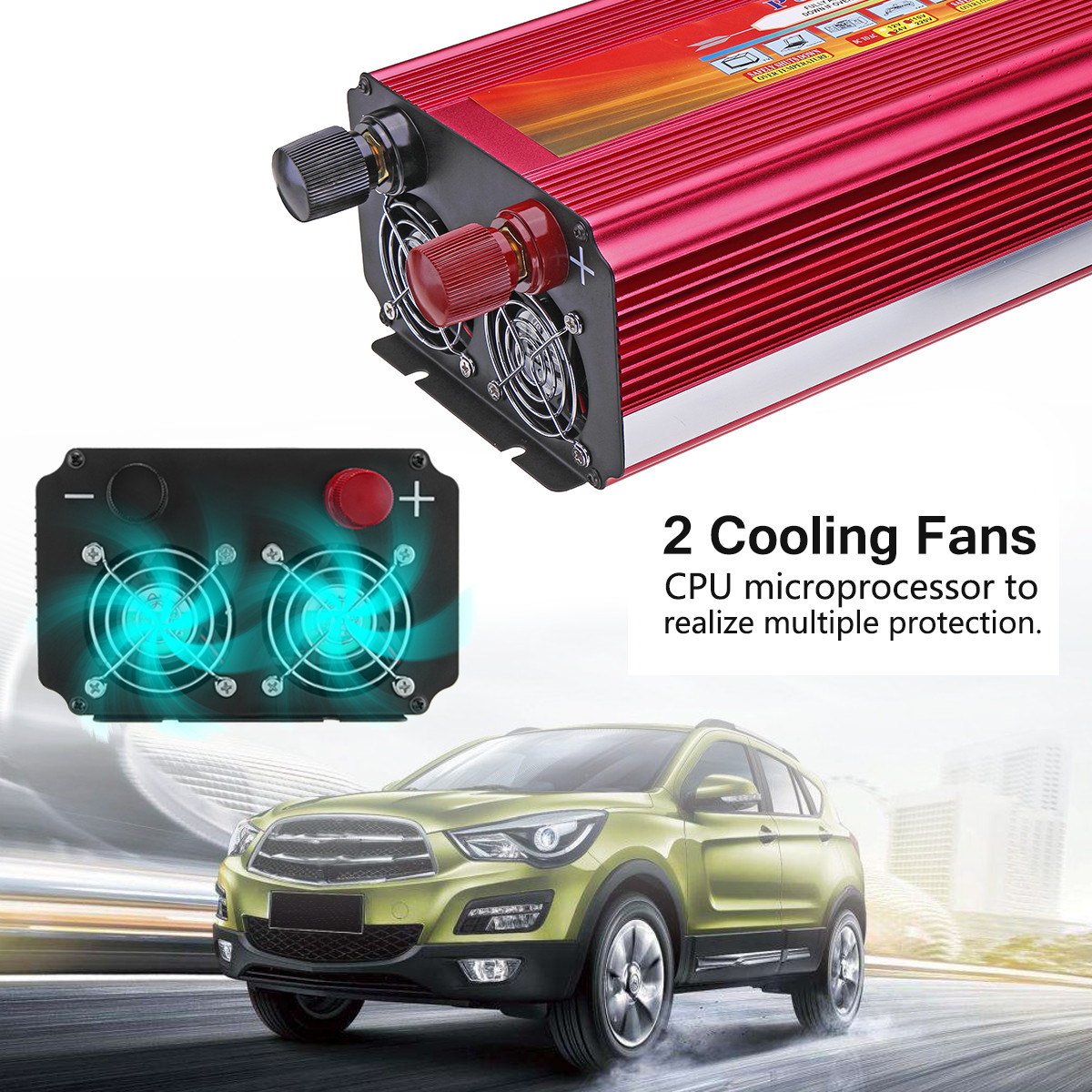

- Double Cooling Fan: Intelligent Self-control, will auto-start when it`s overheat or when you use high-power load.

- USB output Charging interface available.

- 2 Pole Terminal: Red for Positive & Black for Negative

- Manual Switch (you must turn on it after connecting the battery and appliance, and turn off before disconnecting)

- The inverter can convert DC12/24V to AC 110V/220V.

- 12V is generally for cars, 24V for trucks.

- Available Range Of Rated Voltage Of Electrical Appliances : 210~230V, 110~130V

- Safe Range Of Input Voltage:

①12V : 9.8~15V

②24V : 20~28V

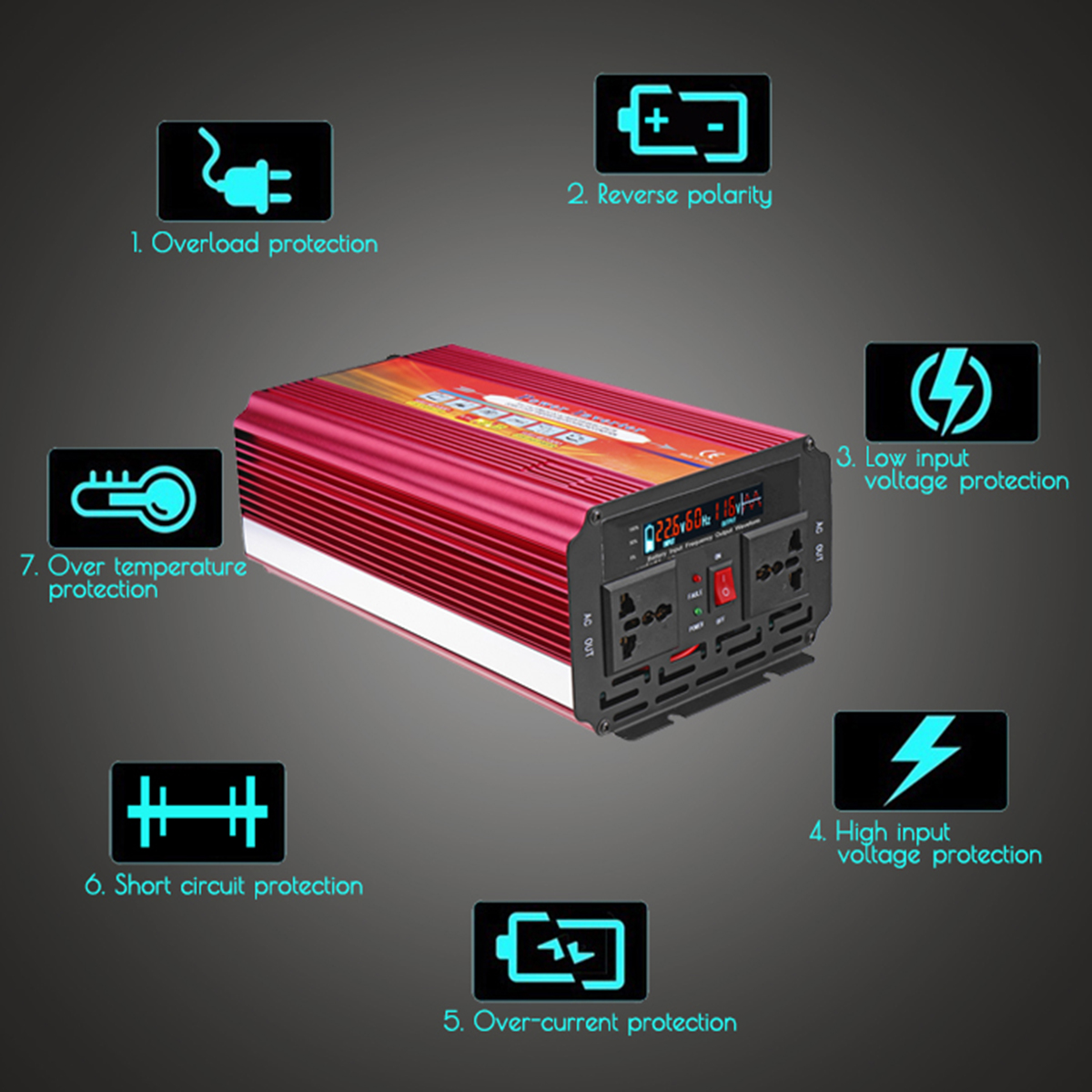

- 8 Safety Protection Function:

①Reverse polarity protection

②Low input voltage protection

③High input voltage protection

④Over-current protection

⑤Short circuit protection

⑥Over temperature protection

⑦Overload protection

⑧Internal fuses

▲Main Applicable Loads for Rated Power 2000W:

20W-LED Lamp

60W-Mechanical Electric Fan

100W-Non-laser Printer

200W-Desktop Computer

300W-Audio Amplifier Equipment

300W-Electric Hand Mill

300W-Electric Hand Drill

500W-Rice Cooker

600W-Heater

900W-Intelligent Rice Cooker

1000W-Induction Cooker

1000W-Hair Drier

1200W-Electric Kettle

1400W-Steam Iron

①Inductive load (appliance that equipped with motor, compressor) like Fan, Dust Cleaner, Sinking Pump of a power over about 800W will be inapplicable, coz this item is a modified sine wave inverter.

②Low-power inductive load like 80W-Car Refrigerator, 80W-Aquariums Pump, 150W-Household Refrigerator, 150W-Sinking Pump,600W-Percussion Drill, 600W-Dust Cleaner will be applicable, but you`d better not to use it for long time.

Note:

①Please Ensure the Rated Power is higher than the electric appliance you wanna apply to.

②And if you wanna run several appliance at the same time, you should refer to the total Wattage. For example, an inverter of rated power 1500W won`t work if you run two 800W rice cooker at the same time, instead you should get a a rated power 2000W one.

③If you wanna run a inductive load for a long time, it`s suggested to buy a pure sine wave inverter.
