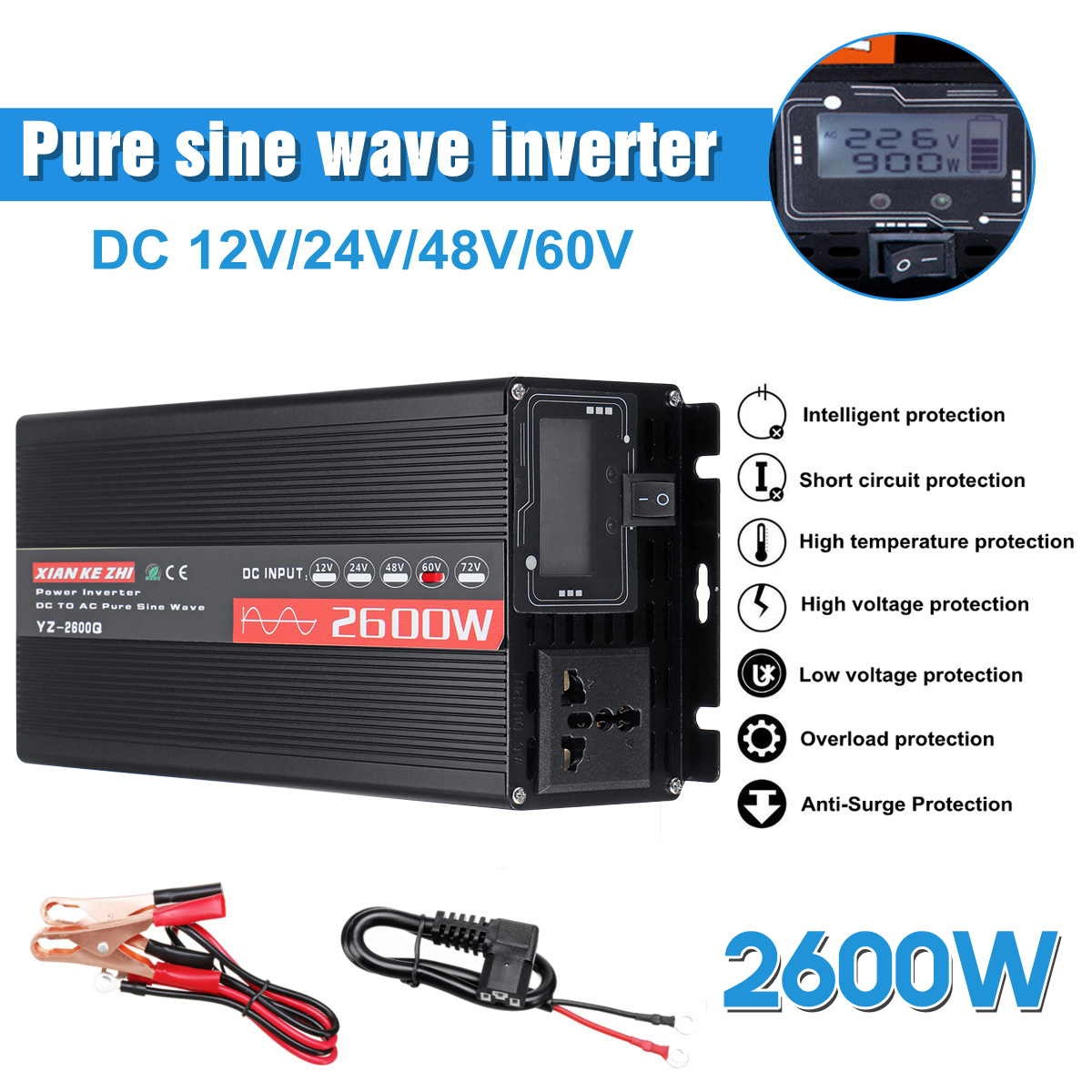

4200W/2600W LCD Display Pure Sine Wave Inverter 12/24/48/60V TO 220V Hpusehold Car USB High Power Inverter W/ 6 Protections Converter
- Stock: In Stock
- Model: ST220016585
- SKU: ST220016585
$116.99
Ex Tax: $116.99
4200W/2600W Pure sine wave inverter 12/24/48/60V TO 220V LCD Display Six major protections
Features
Intelligent protection short circuit protection low voltage protection overload protection high temperature protection surge protection
- 90% efficient conversion rate.
Save battery power and increase usage time.
- SMT placement process.
After adopting SMT chip technology, it has high reliability, strong anti-vibration ability, low solder joint defect rate, high frequency characteristics, reduced electromagnetic and radio frequency interference, and better protection of electrical and battery safety.
- Aluminum-magnecium alloy casing, quality assurance.
The inverter shell is made of high-quality aluminum-magnecium alloy material with excellent texture, light weight and good thermal conductivity, so that the inverter in operation can maintain excellent heat dissipation.
- Built-in cooling fan.
When the temperature is too high, the fan will automatically turn on to prevent overheating.
- Built-in buzzer reminder.
Once any protection to the inverter is triggered, the inverter immediately disconnects the power supply, the load enters the protection mode, and alerts the person via a buzzer reminder.
Specification
Type: pure sine wave inverter
DC voltage (input voltage): 12V/24V/48V/60V(Optional)
AC voltage (output voltage): 220V ± 10%
Frequency: 50HZ
Low battery alarm (no load): DC10.5±0.5V
High battery alarm (no load): DC15.5V±0.5V
Low battery off (no load): DC9.5±0.5V
High battery off (no load): DC16V±0.5V
No load current consumption: 0.5A
Working temperature: -10° - + 50°
Storage temperature: -30° - + 70°
Socket style: universal socket
Built-in cooling fan for low noise.
Positive and negative terminals
Inverter manual switch
Digital Display: LCD Display
Output voltage: 220V
Output waveform: pure sine wave
Efficient conversion: yes
Material: high quality aluminum shell
2600W:
Startup peak: 2600W
Rated power: 1300W
Input voltage: 12V/24V/48V/60V(optional)
Product weight: 1.8kg
Product size: 28CM*13CM*7CM
Dual display: input voltage output voltage display
Scope of application: rice cooker, 1P frequency conversion air conditioning, freezer, refrigerator, electric hammer (for reference only) Angl impact drill, stereo amplifier and so on
The wiring length is about 50CM
4200W:
Startup peak: 4200W
Rated power: 2100W
Input voltage: 12V/24V/48V/60V(optional)
Product weight : 3KG
Product size : 38.2cm * 15.5cm * 7.5cm
LCD digital display: power, input and output voltage, load power, under voltage, over voltage, short circuit display
Scope of application: induction cooker, air conditioner, freezer, refrigerator, water pump, air pump (for reference only) kettle, soybean milk machine, sausage roasting machine, electric hoist and so on
The wiring length is about 50CM
Package Content
1 x Pure sine wave inverter
2 x Battery Terminal(Only 12V, 24V including)
2 x Terminal line(Only 12V, 24V including)
2 x Crocodile clip line (Only 48V, 60V including)
1 x Electric car line (Only 48V, 60V including)
1 x User Manual
Rated power 2000W 3000W 4000W Some main applicable loads
20W-LED light
60W compact fluorescent lamp
60W-mechanical fan
80W car refrigerator (inductive load)
100W non-laser printer
150W household refrigerator (inductive load)
150W immersed tube pump (inductive load)
200W desktop computer
300W audio amplifier equipment
300W-electric hand grinder
300W electric hand drill
350W-plastic laminator
500W rice cooker
600W heater
600W-dust collector
800W smart rice cooker
800W-juice machine (inductive load)
800W-microwave oven (inductive load)
850W soya-bean milk machine (inductive load)
1000W induction cooker
1000W-hair dryer (inductive load)
1200W-electric kettle
1400W-Steam Iron
Unsuitable load with rated power of 2000W
1. Power supply of more than 800W fan, dust collector, sinking pump and other power loads (equipment equipped with motor, compressor) will not be applicable, this project is an improved sine wave inverter.
2. Low-power induction load such as 80W car refrigerator, 80W aquarium pump, 150W household refrigerator, 150W sink pump, 600W impact drill, 600W-dust collector will be applicable, but you should not use it for a long time.
Note
1. Please allow 0.5-1 cm differences due to manual measurement.
2. Due to the light and screen difference, the item's color may be slightly different from the pictures.
