433Mhz Wireless Receiver Module RF Transmitter Kit For ARM MCU
- Stock: In Stock
- Model: ST230046731
- SKU: ST230046731
$3.99
Ex Tax: $3.99

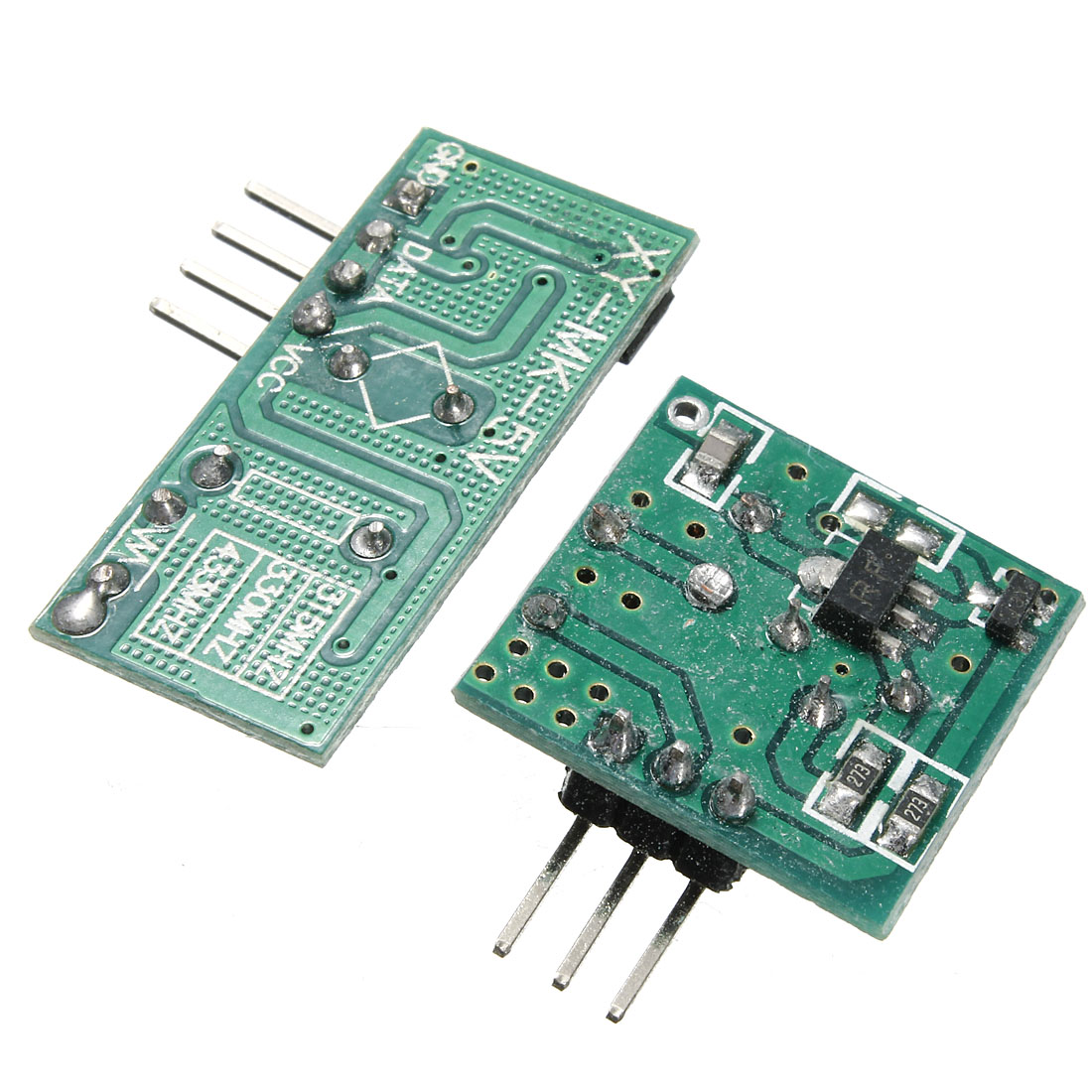

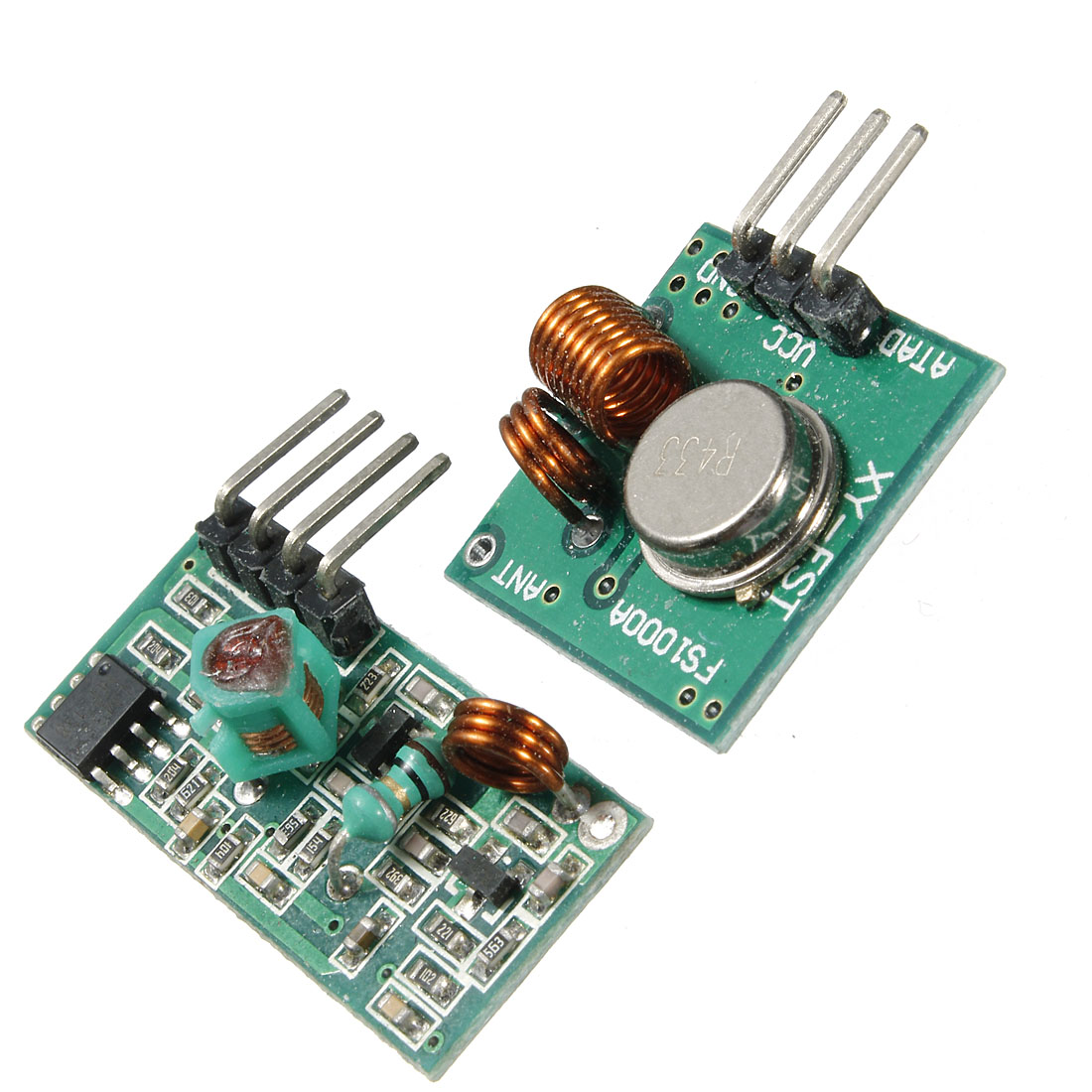

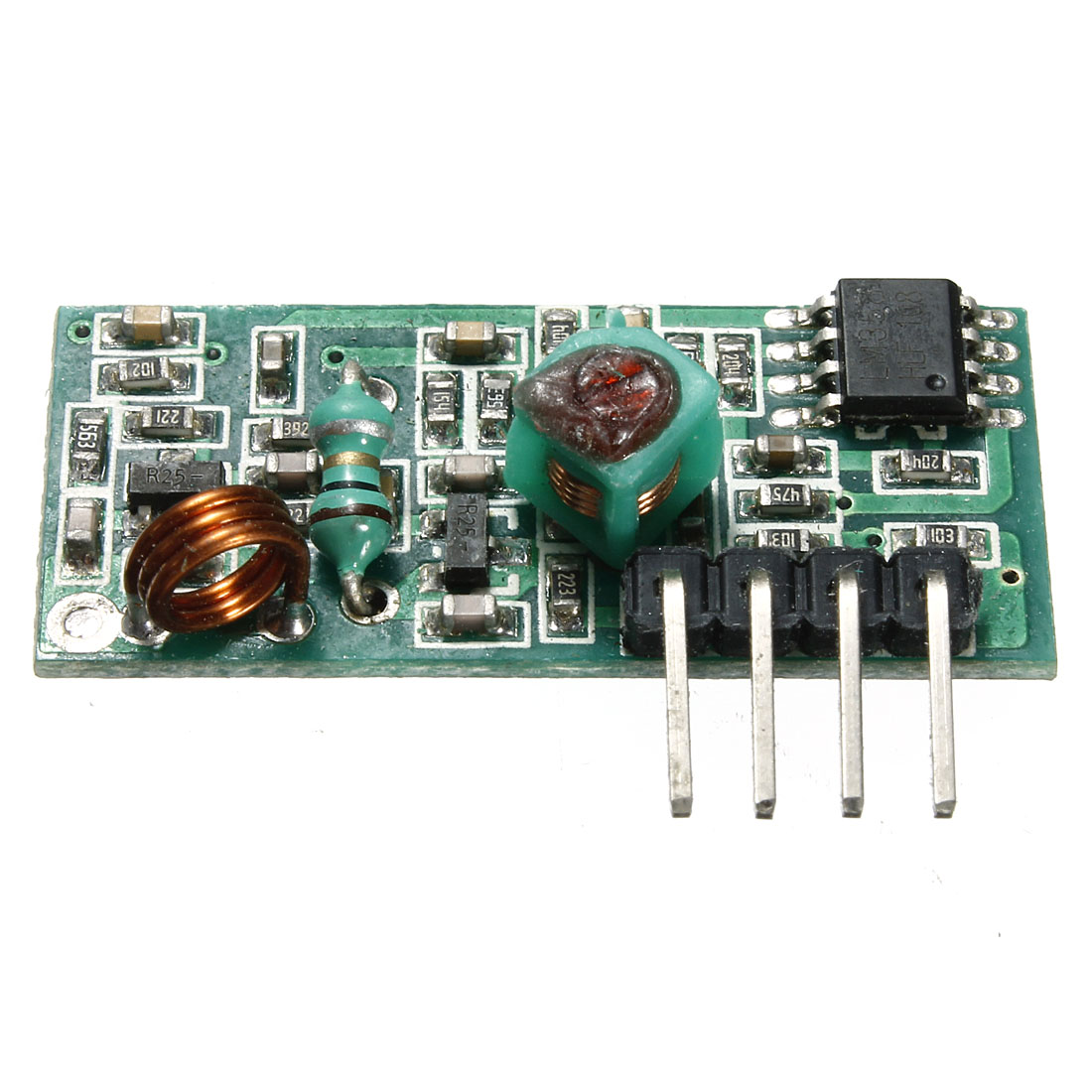

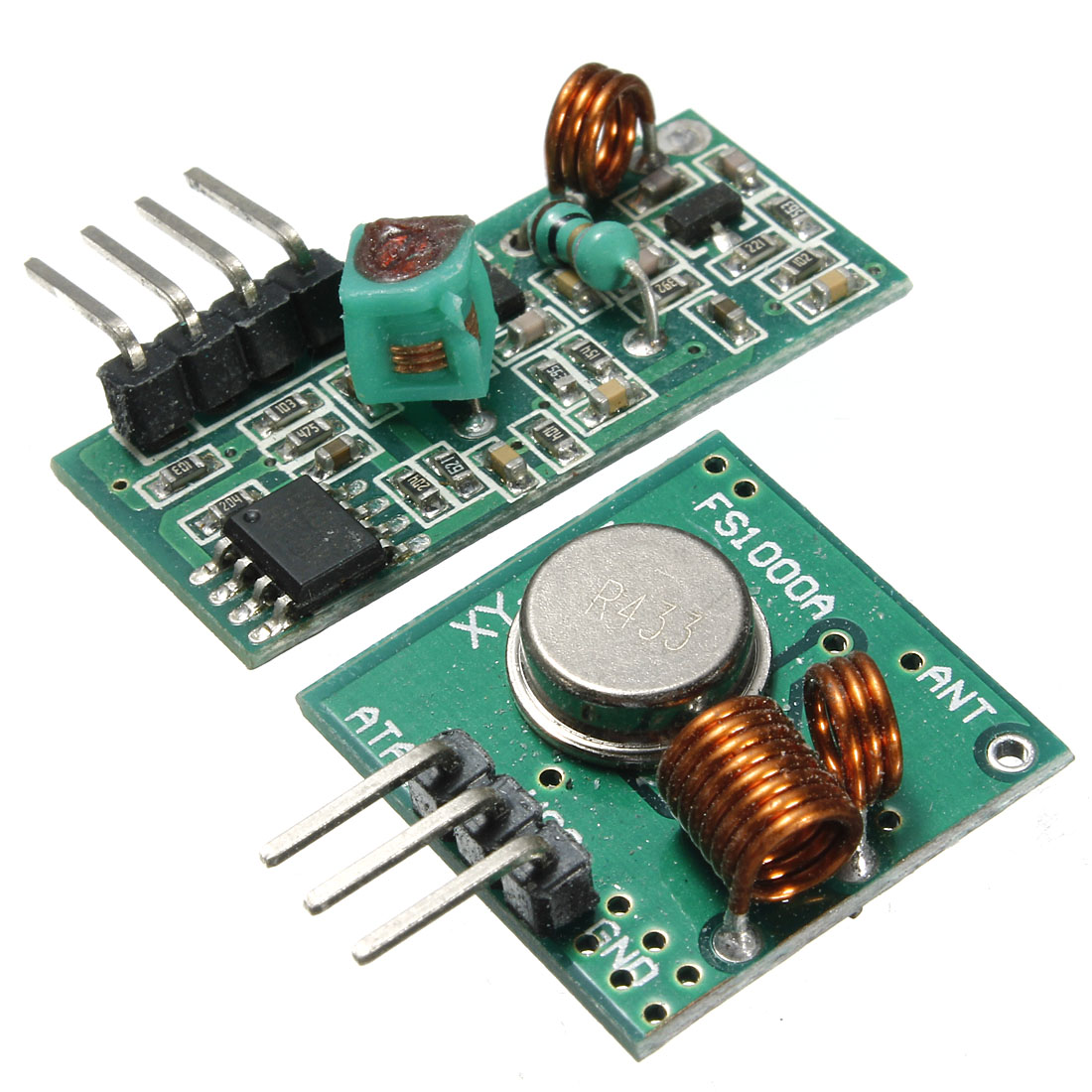

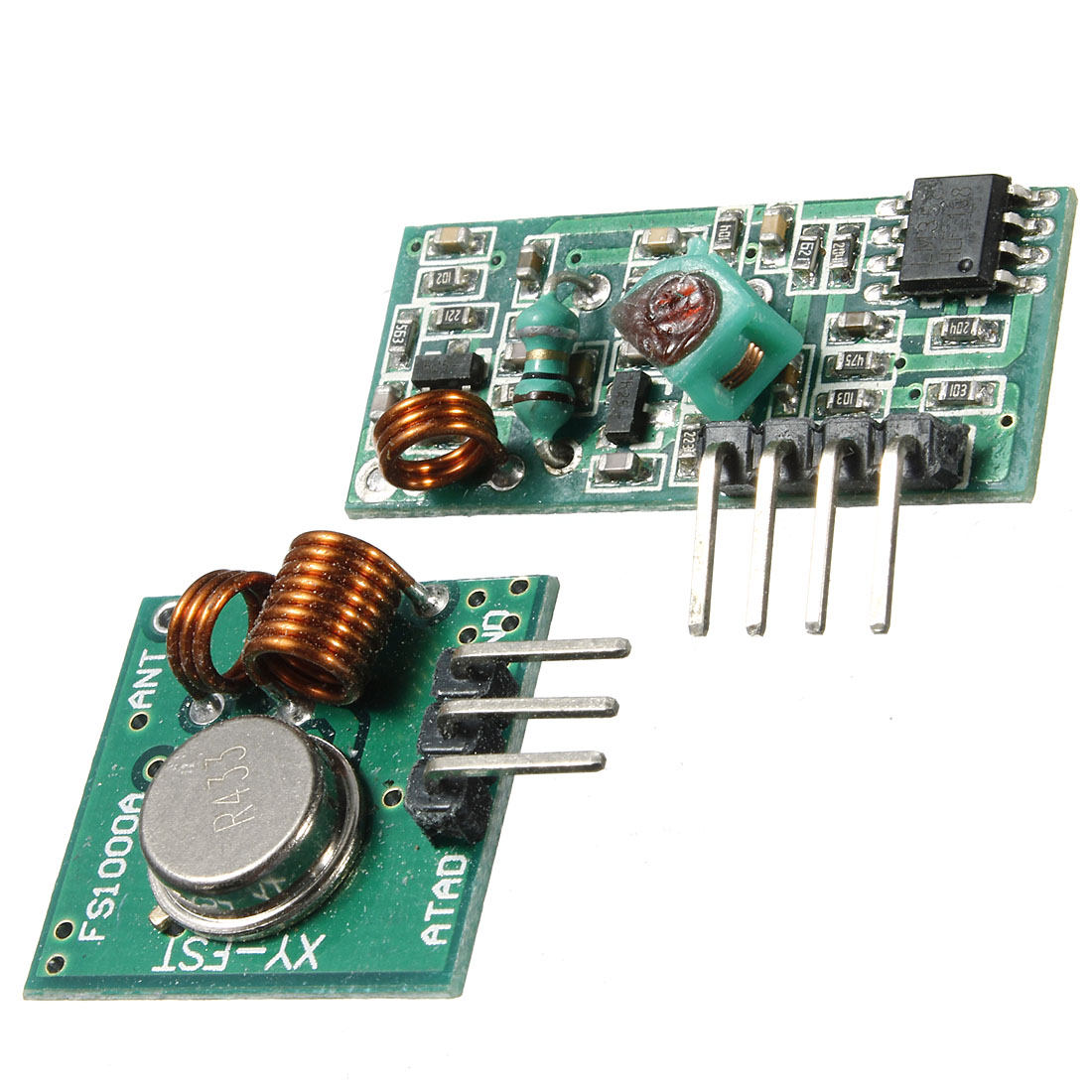

Receiver module parameters:
Product Model: MX-05V
Operating voltage: DC5V
Quiescent current: 4mA
Receiving frequency: 433MHZ
Receiver sensitivity: -105DB
Size: 30 x 14 x 7mm
An extra antenna is needed, please use spiral 50Ω a quarter wavelength antenna.

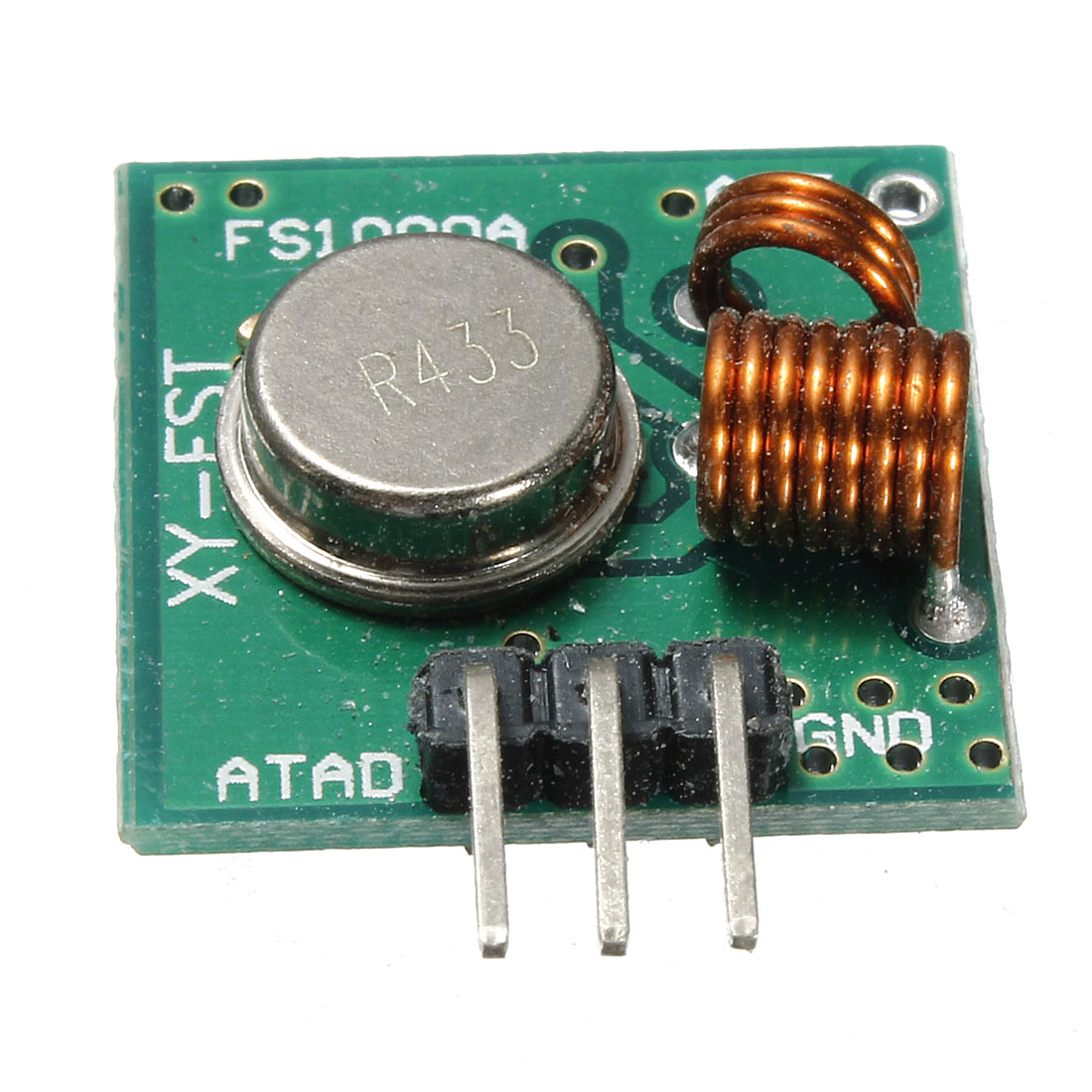

Technical parameters of the transmitter head:
Product Model: MX-FS-03V
Launch distance: 20-200 meters (different voltage,different results)
Operating voltage: 3.5-12V
Dimensions: 19 x 19mm
Operating mode: AM
Transfer rate: 4KB/s
Transmitting power:10mW
Transmitting frequency: 433M

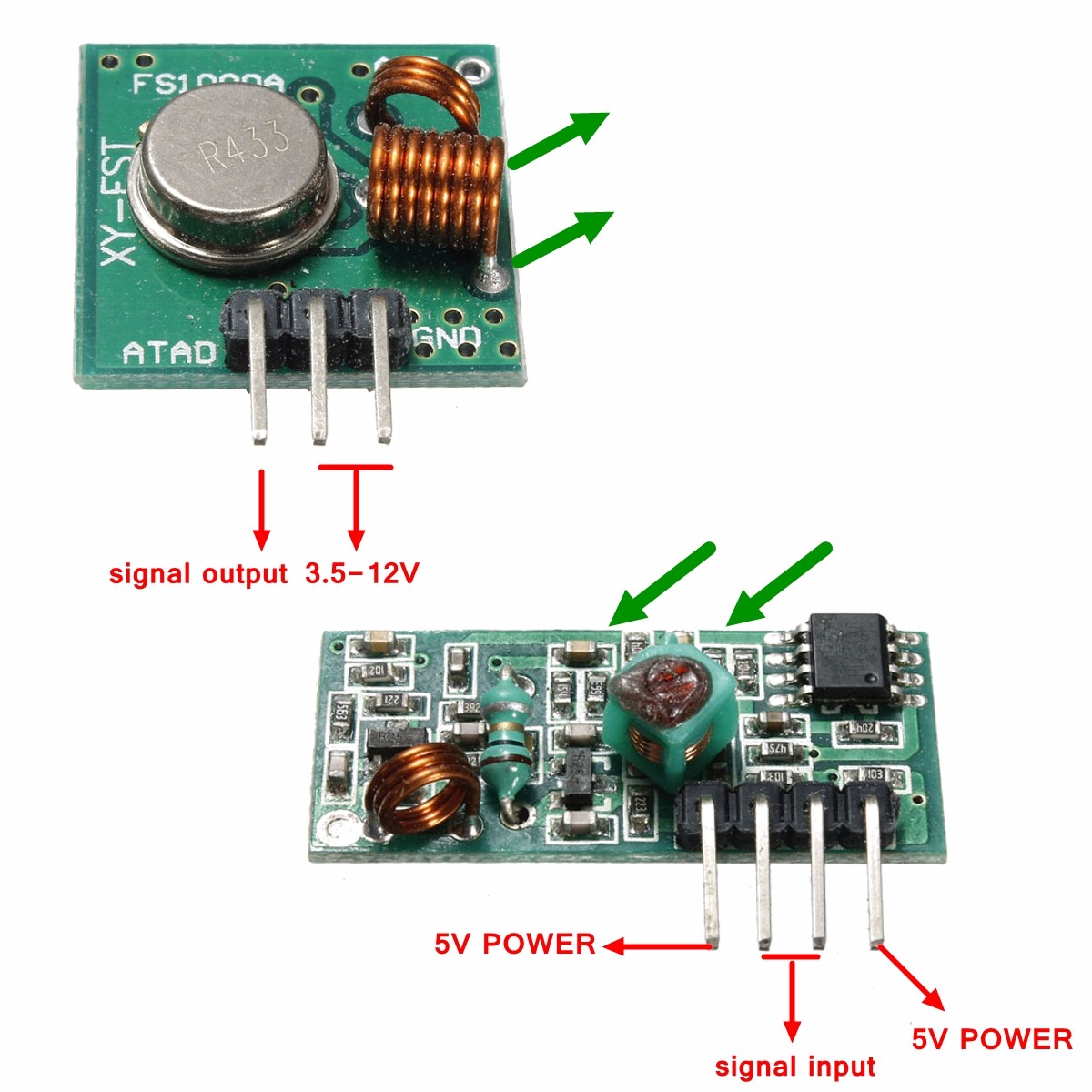

Pinout from left to right:(DATA; VCC; GND)
Package includes:
1 x Receiver Module
1 X Transmitter Module
