480 FBL 6CH 3D Flying Flybarless RC Helicopter
- Stock: In Stock
- Model: ST22001814
- SKU: ST22001814
$359.69
Ex Tax: $359.69
Description:

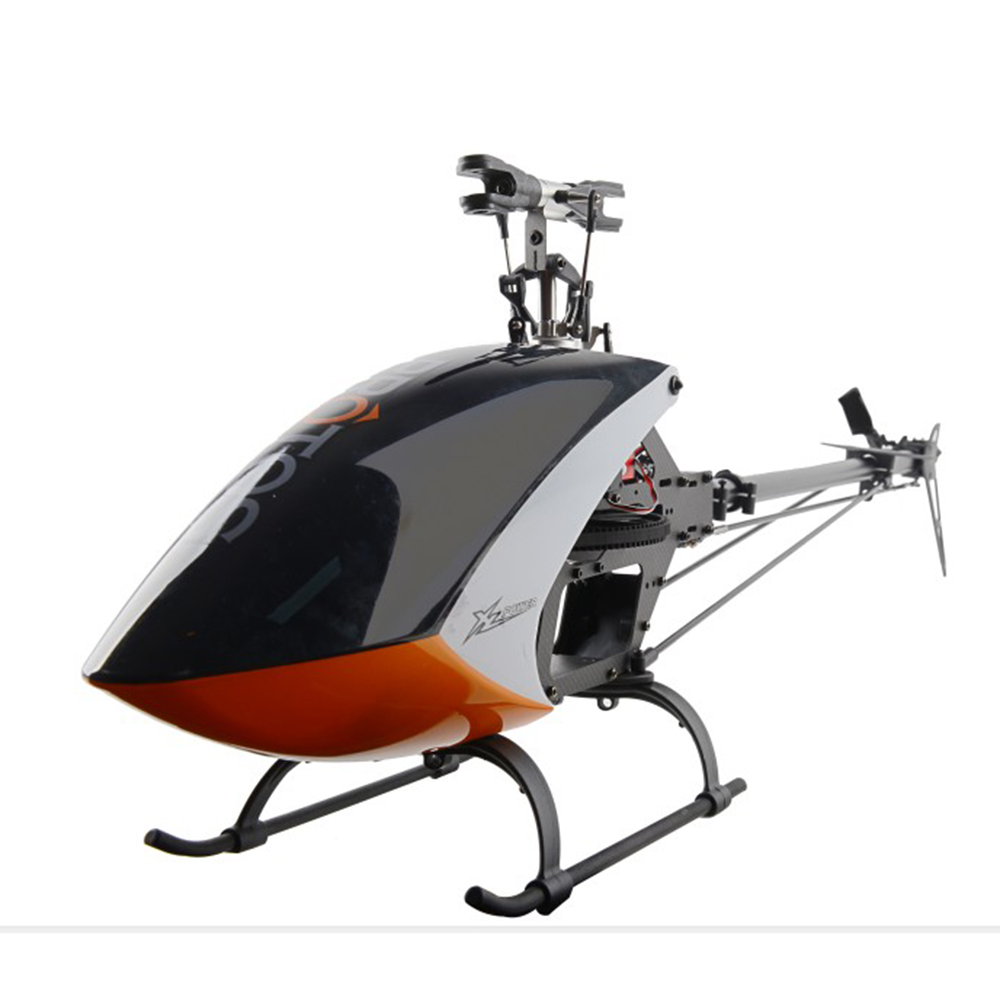

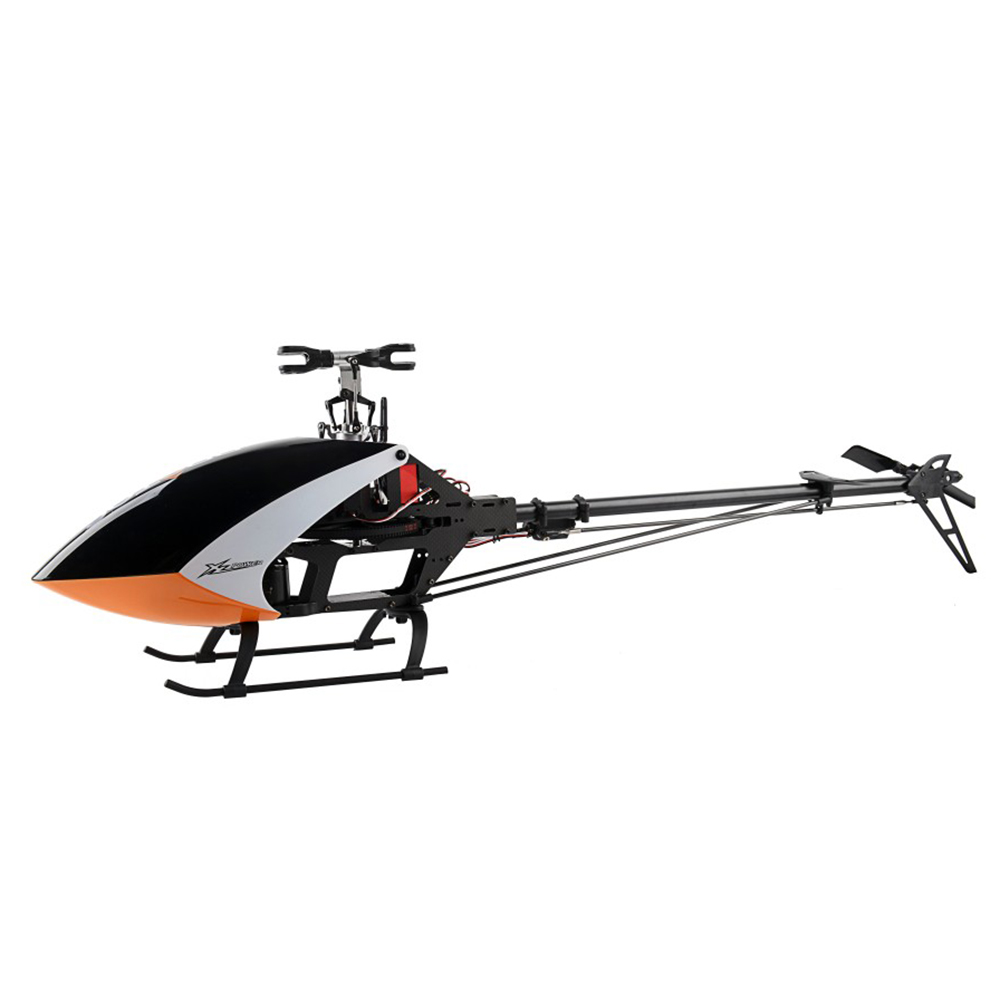

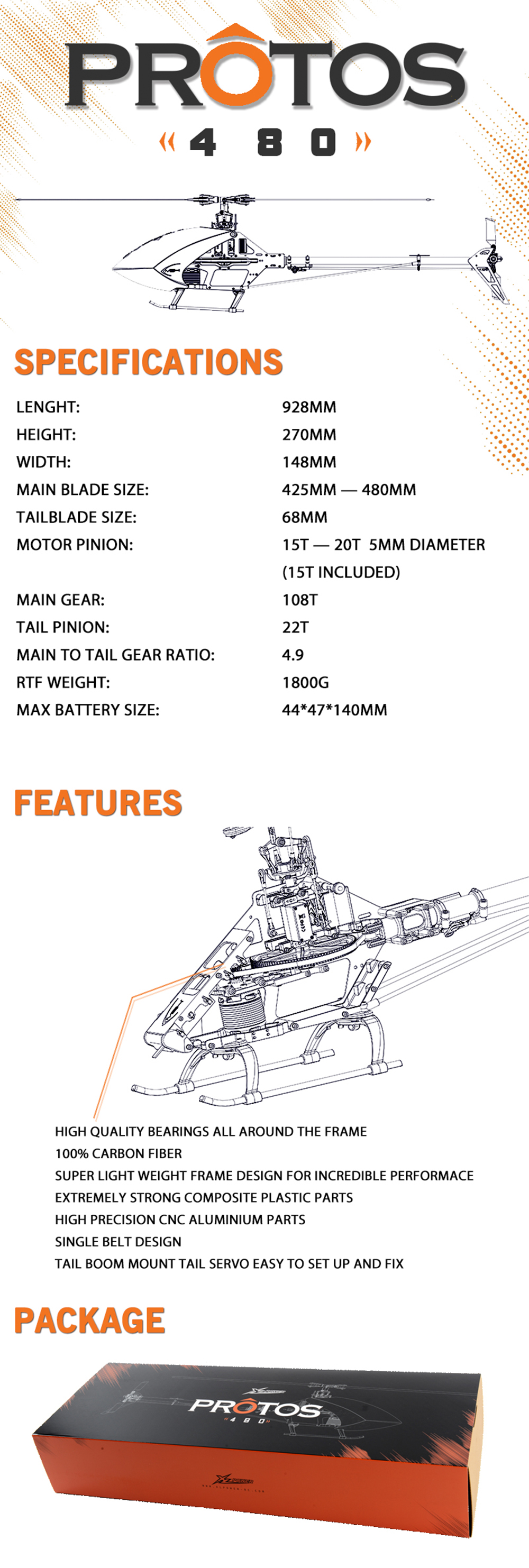

Item: MSH PROTOS 480 RC Helicopter
Length: 928mm
Height: 270mm
Width: 148mm
Main blade size: 425mm - 480mm
Tail blade size: 68mm
Motor pinion: 15-25T 5mm Diameter(15T include)
Helical CNC Main gear: 108T
Tail Pinion: 22T
Autorotation Gear: 94T
Main to Tail Gear Ratio: 4.9
RTF Weight: 1800g Approx.
Max battery size: 44*47*140mm
Motor: 4015-880KV Motor
DS512HV Servo:
Working Voltage: 6.0-7.4V
No-load Speed: 0.067sec/60°@6.0V/0.055sec/60°@7.4V
No-load Current: 60mA@6.0V/70mA@7.4V
Stall Torque: 8kg.cm@6.0V/ 10kg.cm@7.4V
Rotation: 180°±10°
Neutral: 1500us
Opetating Angle: 90°(1000-2000us)
DS747RS Servo
Working Voltage: 6.0-8.4V
No-load Speed: 0.058sec/60°@6.0V/0.047sec/60°@7.4V/0.040sec/60°@8.4V
No-load Current: 80mA@6.0V/90mA@7.4V/100mA@8.4V
Stall Torque: 5kg.cm@6.0V/ 6kg.cm@7.4V /7kg.cm@8.4V
Rotation: 180°±10°
Neutral: 750us
Opetating Angle: 90°(1000-2000us)
Platinum 60A V4 ESC:
Type: Brushless
Specifications: Cont./Peak Current: 60A/80A
Input: 3-6S Lipo
BEC: 5-8V, 7A
Output Connectors: 3.5mm Gold Connectors(Female)
Package List (It is optional):
Helicopter Kit Version:
1* Helicopter Kit (without the main blade)

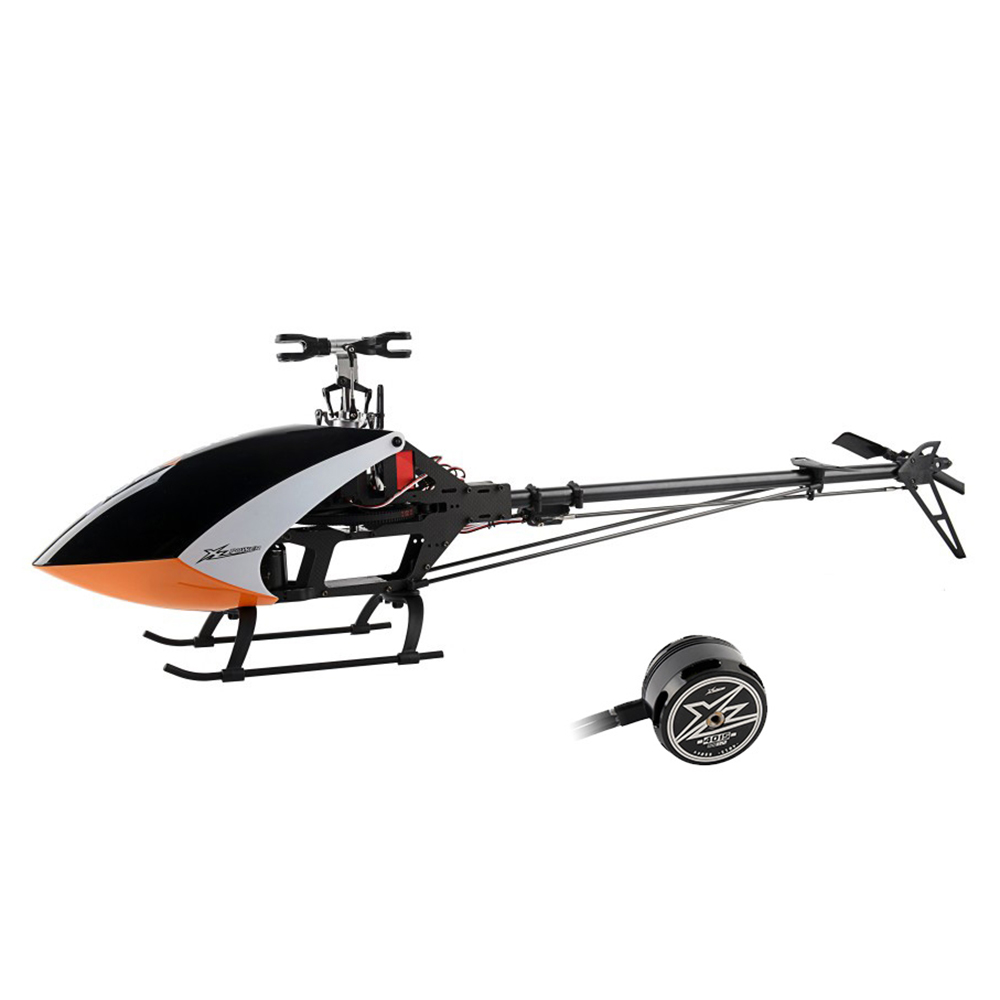

Helicopter Kit + Motor Version:
1* Helicopter kit (without the main blade)
1* 4015-880KV Motor

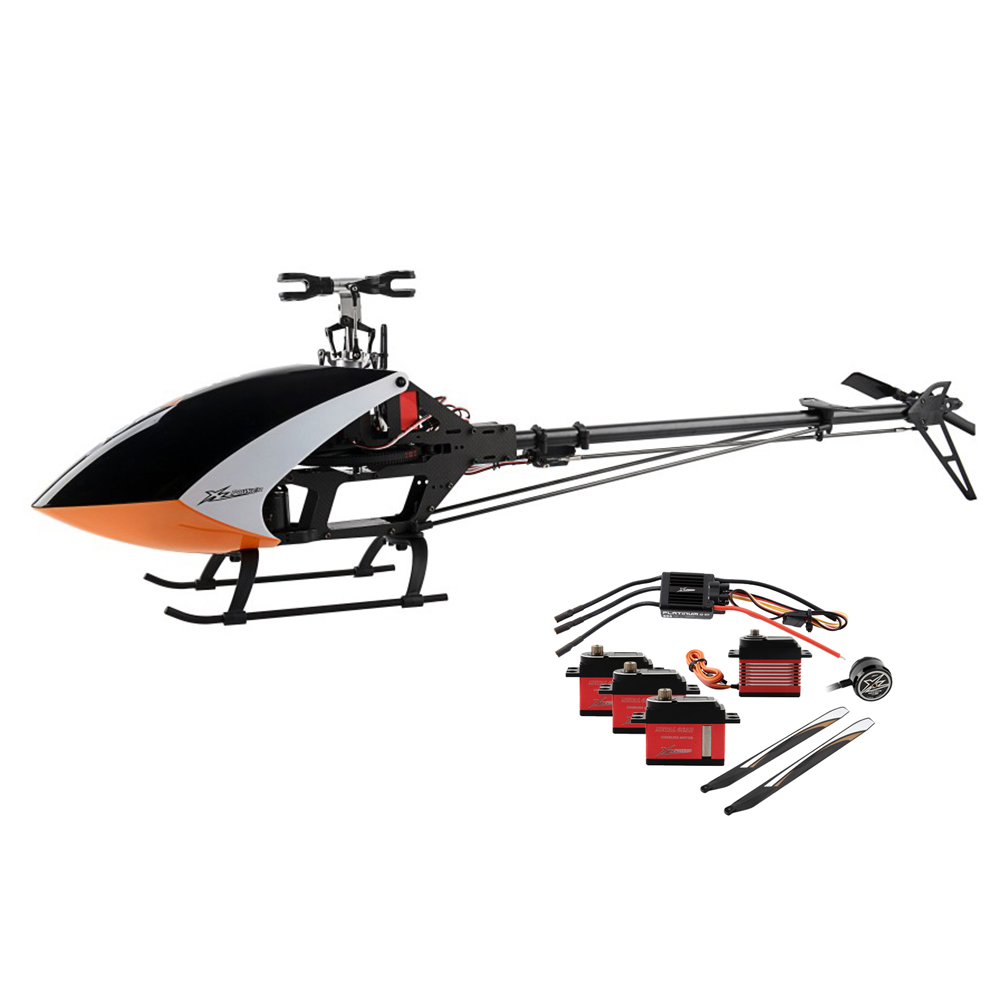

Combo Version:
1* Helicopter Kit (included the main blade)
1* 4015-880KV Motor
3* DS512HV Servo
1* DS747RS Servo
1* Platinum 60A V4 ESC
2* RT480 Main Blade
