4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board

4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
4S 16.8V 6A Same Port Lithium Battery Protection Board Fascia Cavity LED Device 18650 Battery Protection Board
  • Stock: In Stock
  • Model: ST230049436
  • SKU: ST230049436
$4.89
Ex Tax: $4.89
Specification:

Model: CF-4SCT12A-A
Product name: 4S 16.8V 6A Same Port Lithium Battery Protection Board
Discharge current: 6A
Rated voltage: 16.8V
Charging current (Same port): ≤5A
Main circuit conduction internal resistance: ≤30MΩ
Charging voltage: 16.8V
Short circuit protection: 300US
Working temperature range: -30℃~+80℃
Working power consumption: ≤30UA
Overcharge: 4.25±0.025V
Over discharge: 2.7±0.1V

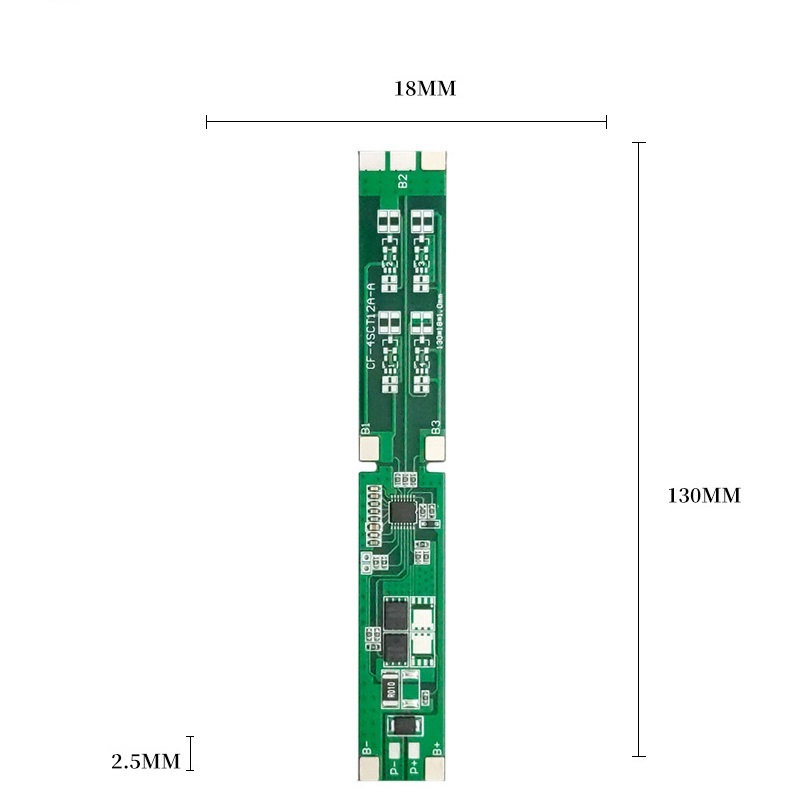

Product size: 130 *18*2.5mm

Package included:

1 x Lithium Protection Board


4S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-1
4S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-24S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-34S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-44S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-5


4S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-6

4S-168V-6A-Same-Port-Lithium-Battery-Protection-Board-Fascia-Cavity-LED-Device-18650-Battery-Protect-1800226-7
