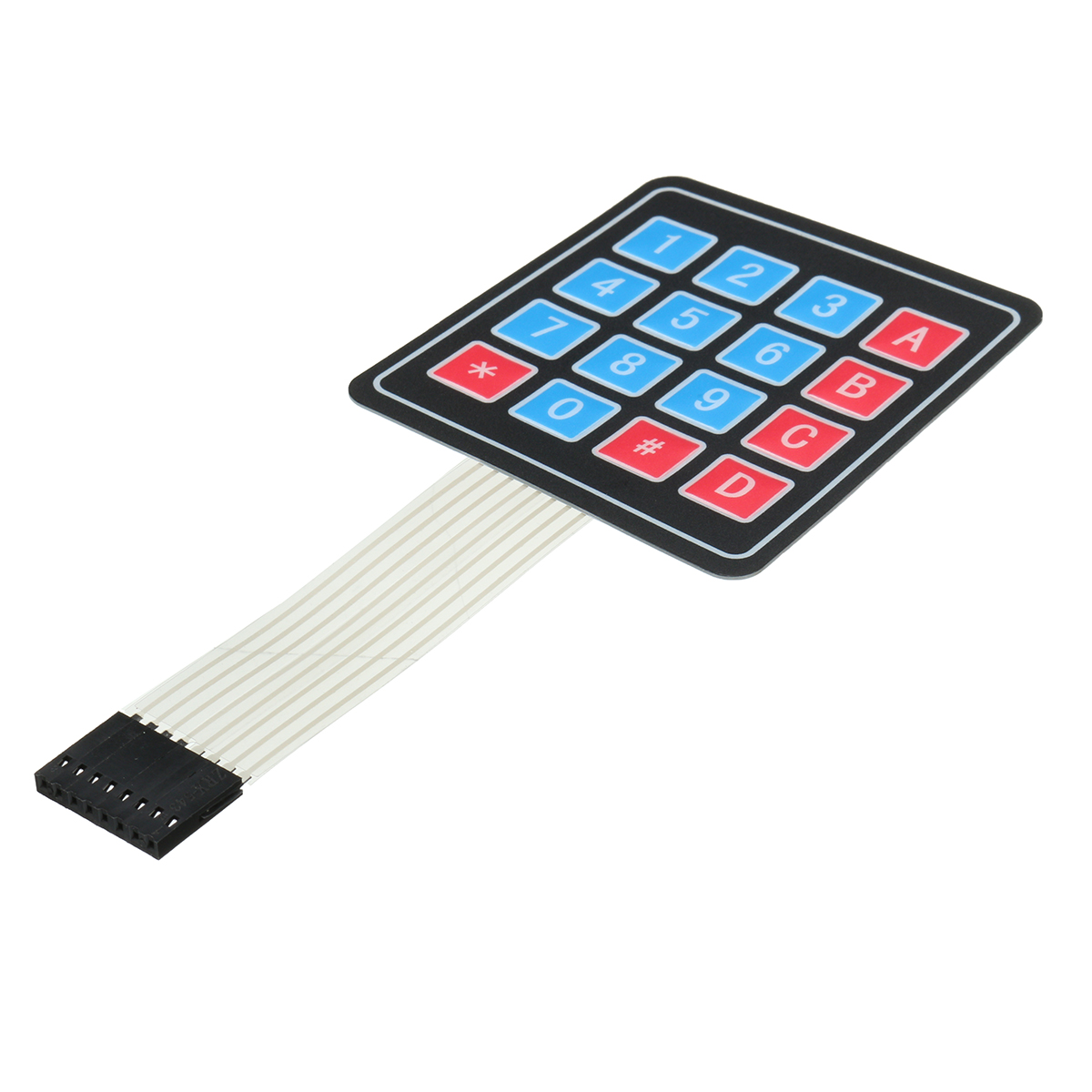

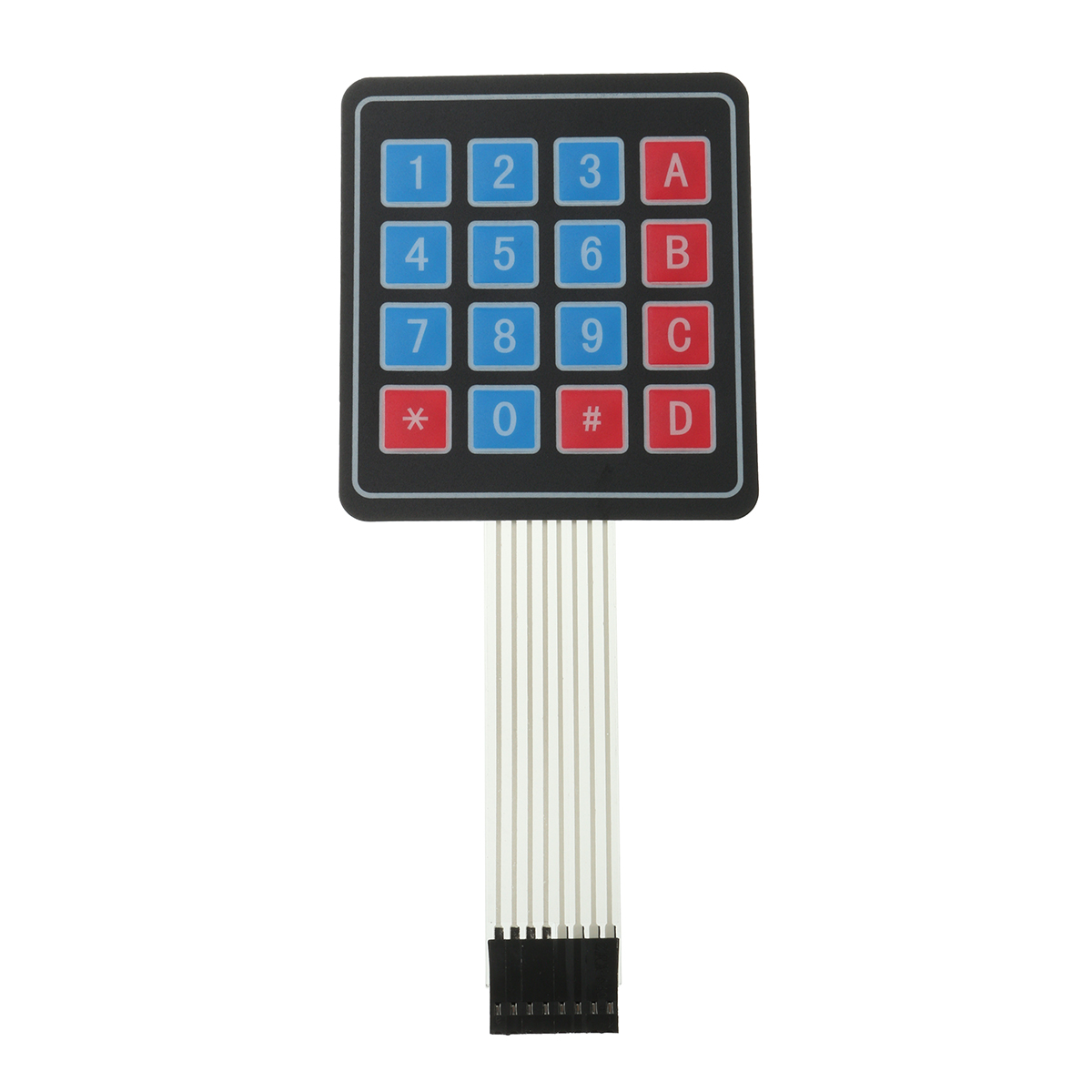

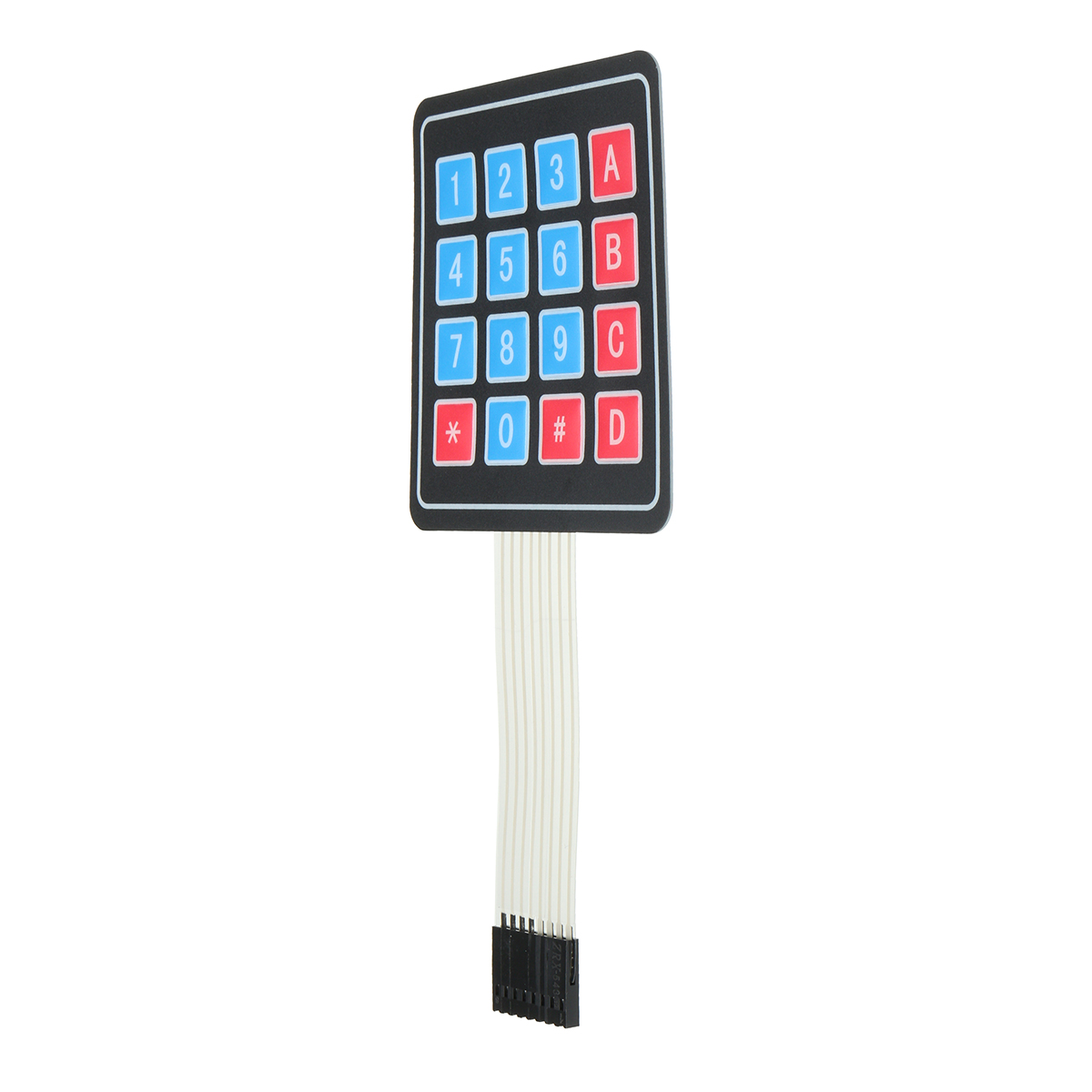

4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino/AVR
- Stock: In Stock
- Model: ST230038804
- SKU: ST230038804
$2.99
Ex Tax: $2.99
Features:
4x4 matrix

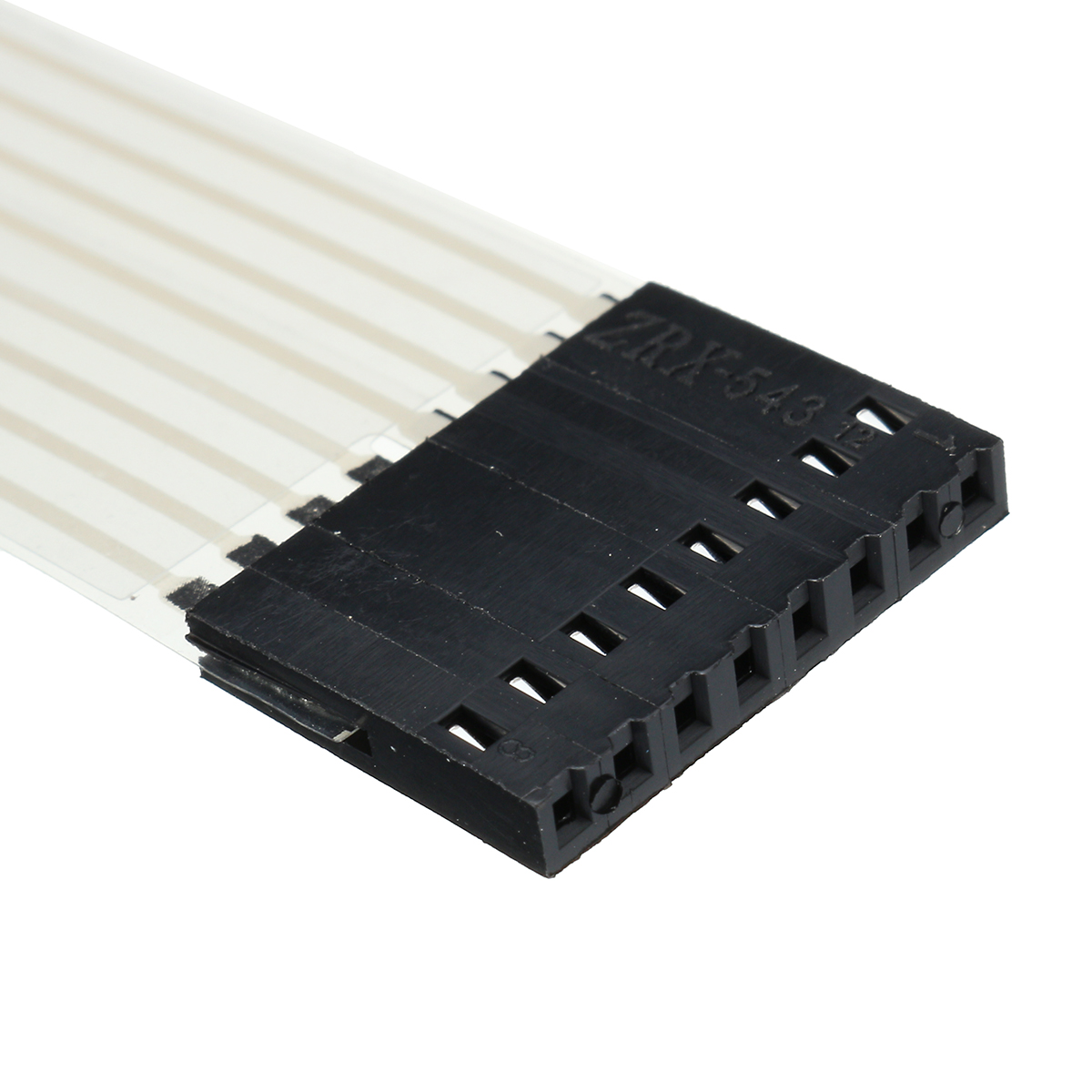

8P Dupont, Spacing 2.54mm, can connet the circuit by pin

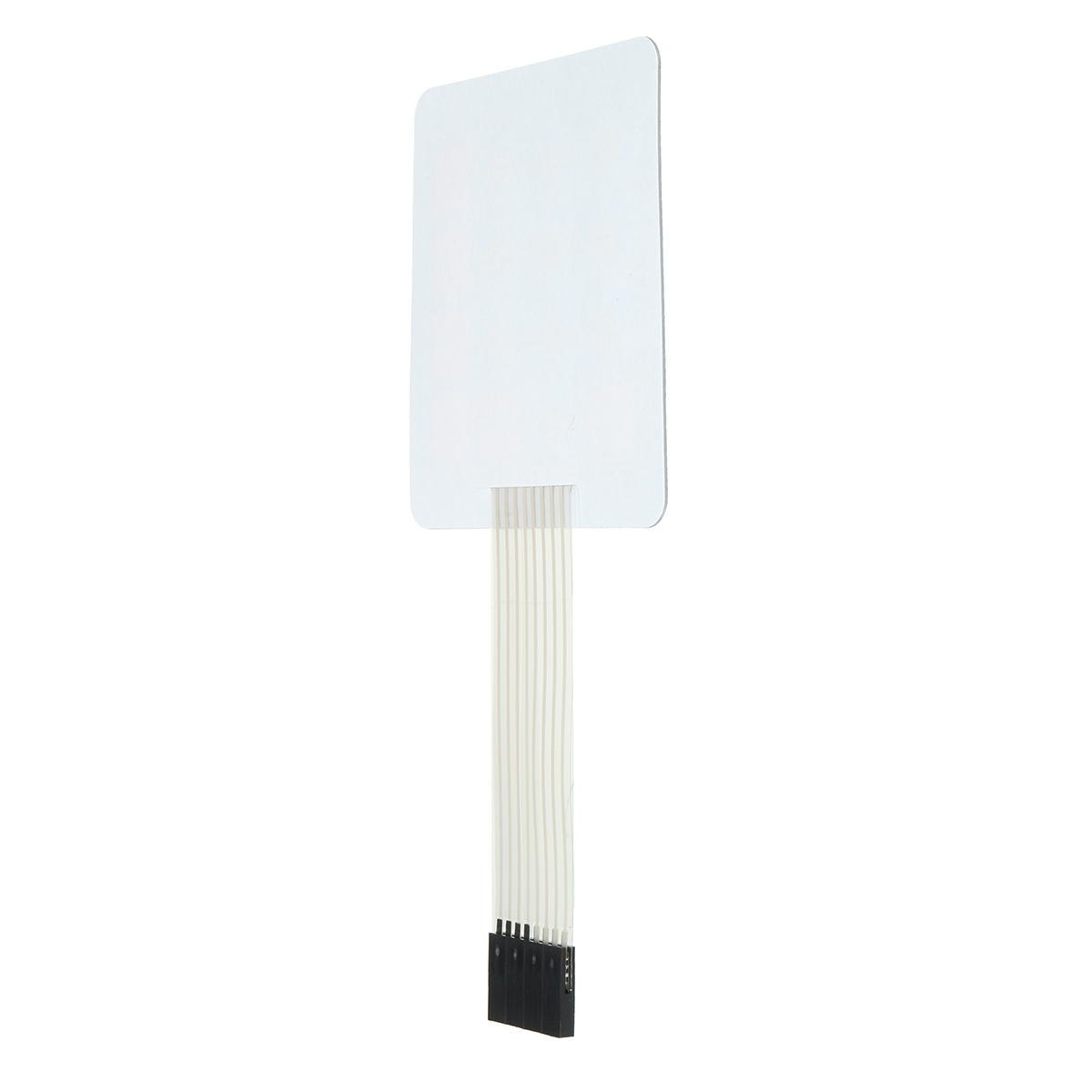

Pull aprt the white paper back, it can be attached on the Chassis
Contact Resistance: 10Ω-500Ω
Insulation Resistance: 100MΩ 100V
Key Operating Force: 150-200N
Circuit Rating: 35V DC, 100mA, 1W
Dielectric Strength: 250VRms(50-60HZ/Min)
Electric Shock Jitter: <5ms
Operating Temperature: -40~+80°C
Storage Temperature: -40~+80°C
Vibration: 20G, max
Size: 6.8x7.6cm
Package includes:
1pcs 4x4 Matrix Array Keyboard Keypad Expanded Module For Arduino/AVR/PIC
