- Stock: In Stock
- Model: ST22001129
- SKU: ST22001129
Concept

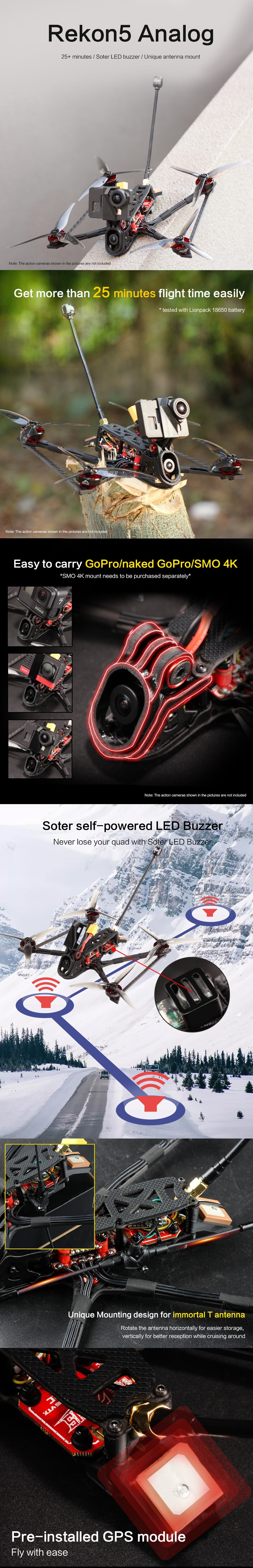

The REKON 5 is based on the original Dave_C FPV MiniLongRange design. This five-inch platform is an evolution of the MicroLongRange concept adapted to carry more payload. Like its smaller 4" cousin, this 5" platform can reach flight times of over 25 minutes while being very quiet, efficient, and relatively low cost compared to 7" quads that are usually used for long-range flights. The main advantage of 5" compared to the 4" is the ability to carry loads like GoPros and Lithium-Ion batteries without affecting flight performance and noise level too much. On top of that, the cruising speed is increased and the ability to do acrobatic freestyle maneuvers is noticeably improved. This platform can also be used with a wider variety of batteries depending on the intended use: 550-1300mAh on the 6S version will work without issues. Both versions are also compatible with 3000mAh 4S Li-Ion packs if you are looking for maximum flight time.
Frame Design
The REKON 5 features an innovative frame design using single-piece front and rear arms locked by an aluminum bolt. The bolt is used to create a strong and stiff center section of the frame, locking the arms and de-coupling forces from the rest of the frame. This allows the use of use very light M2 hardware and thin carbon plates on the other parts of the frame, reducing the overall weight for maximum efficiency. On top of that, the bolt makes it possible to apply much more torque and it's not prone to break or strip like M2 or M3 hardware often does. A lot of attention was also put toward the design of the front and camera mount. Dead cat frames are inherently prone to take heavy impacts in this area since the arms are swept backward and the front is exposed. This is why the REKON5 uses a flexible, 3D printed canopy supported by a carbon brace to absorb impact energy and protect the camera in case of a crash.
Key Features
- Lightweight frame with 10mm aluminum bolt construction, compact 25/20mm standoff split deck main body for double 20x20 stacks
- Shock absorbing TPU front with integrated GoPro mount
- Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
- Mild dead cat design reducing the props in view while not affecting flight performance

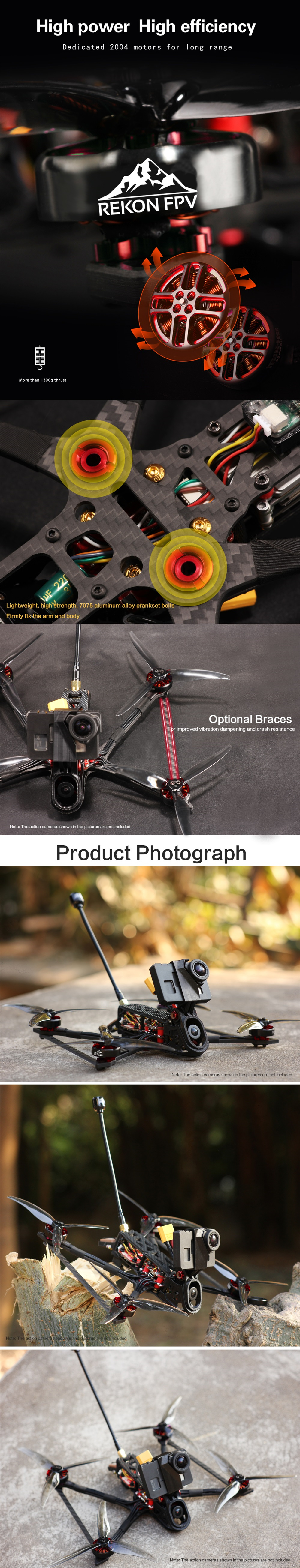

- Optional braces for improved vibration dampening and crash resistance
- Optimized for 2004 - 2204 motors with 12x12 M2 mounts
- GPS mount for M80 GPS
- External buzzer mount for Soter Buzzer
| Rekon Freestyle Frame 5 inch | Type:5" frame Wheelbase:210mm Support for propellers:Up to 5 inches Overall size:210 * 155mm Weight:53g (Including TPU) |
| Zeus F722 mini Flight Controller | MPU:MPU6000 CPU:STM32F722 RET6 Input Voltage:3-6S Lipo BEC Output:5V/3A,9V/2A Weight:8.1g |
| Zeus 30A BL32 3-6S 4in1 ESC | CPU:STM32F051 Input Voltage:3-6S Lipo Steady Current:30A Peak Current:35A（10 Sec） Weight:7g |
| Zeus VTX 800mW | Output power:PIT/25/100/200/400/800mW Input:DC 6-26V Antenna:MMCX Weight:4.8g |
| Caddx Rate V2 FPV Camera | Image Sensor:1/1.8 " 1200TVL CMOS |
| 2004 1800KV Brushless Motor | No.of Cells(Lipo):6S Recommended Prop(inch):5Inch Weight:15.5g |
| M80 GPS | M80 GPS Power Supply:5V Size:18.5mm x 18.5mm x 7.1mm Weight:9.4g |
| Soter FPV drone buzzer | Input voltage: 5V Size:22mm x 12mm x12mm Weight:4g |
| Propeller | GEMFAN 5125 5 Inch 3-Blades propeller Quantity:4 CW & 4 CCW |
| Recommended battery | 4S:850mAh-1300mAh (Not Included) |
| Receiver | PNP(without receiver), TBS Crossfire Nano receiver, FRSKY R9MM OTA receiver, Frsky XM+ receiver, Frsky R-XSR receiver (Optional) |
Package Included: 1x Rekon5 5 inch Freestyle Frame 1x F722 mini Flight Controller 1x 30A BL32 3-6S 4in1 ESC 1x Zeus VTX 800mW 1x Caddx Ratel V2 FPV Camera 4x 2004 1800KV Motors 1x M80 GPS 1x Soter FPV drone buzzer 8x GEMFAN 5125 1x SMA Inner needle Small hammer antenna (RHCP) 2x Battery Straps 1x TPU naked Gopro mount 1x Receiver（Optional） |
