- Stock: In Stock
- Model: ST22006021
- SKU: ST22006021
Available Options
Features:
- [Output Stable]: Laser single-mode output, it is excellent in laser spot mode, delicate spot, has strong laser energy, higher penetrability, and more stable high-power output,and a long service life.
- [Glass tube body]: The tube body is made of high-strength GG17 glass, which has strong heat resistance, high temperature resistance, and is not easy to crack.

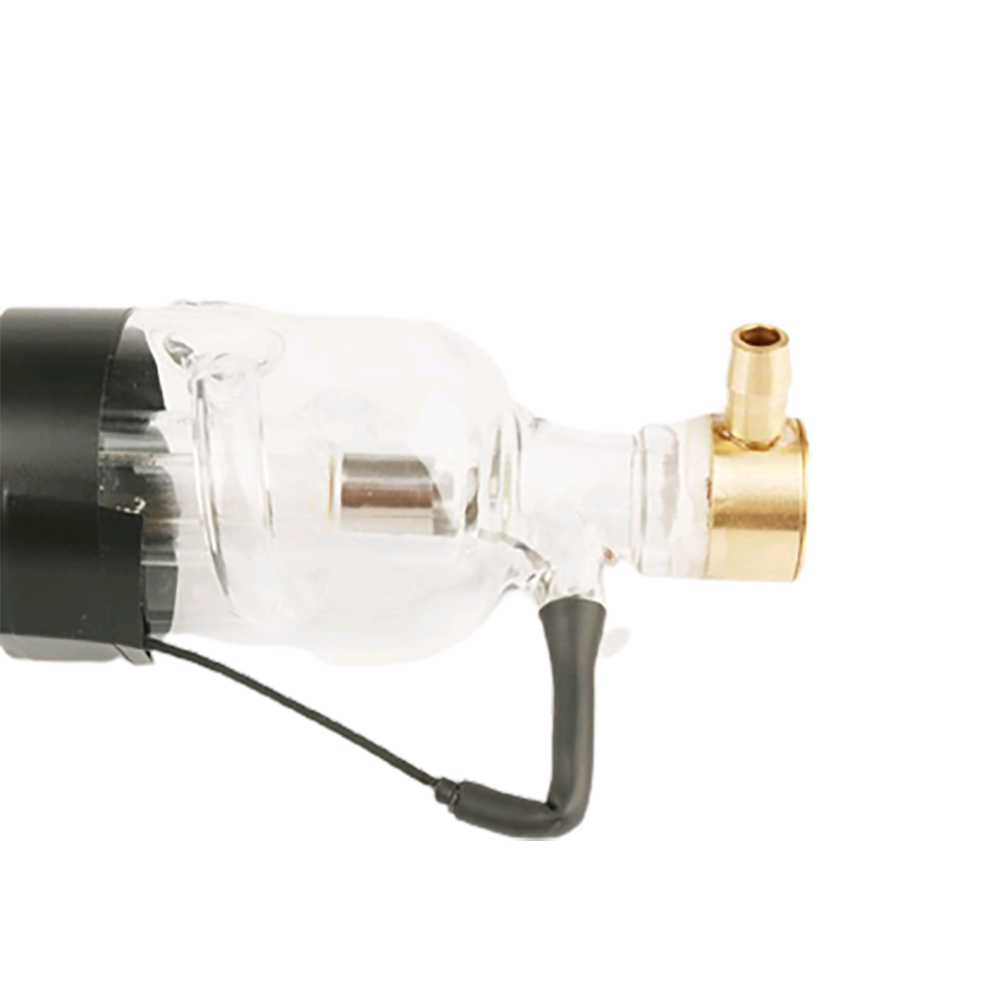

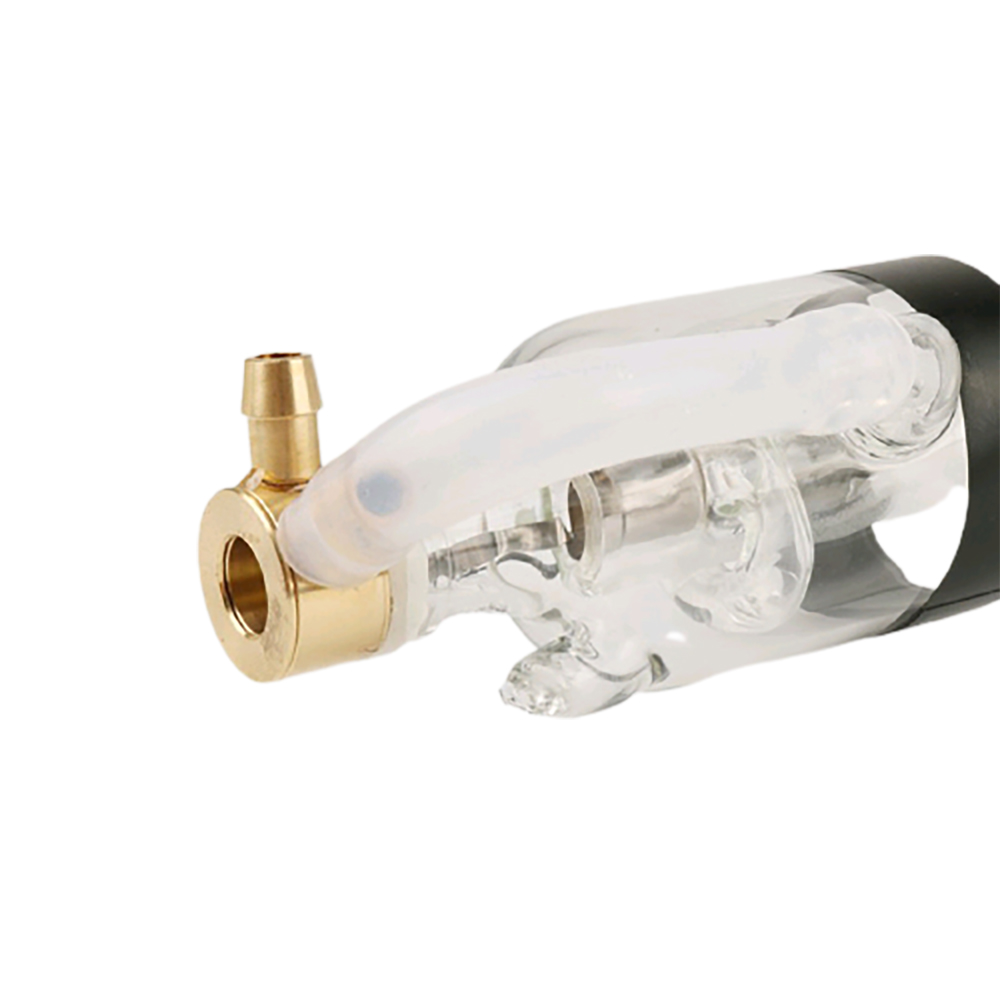

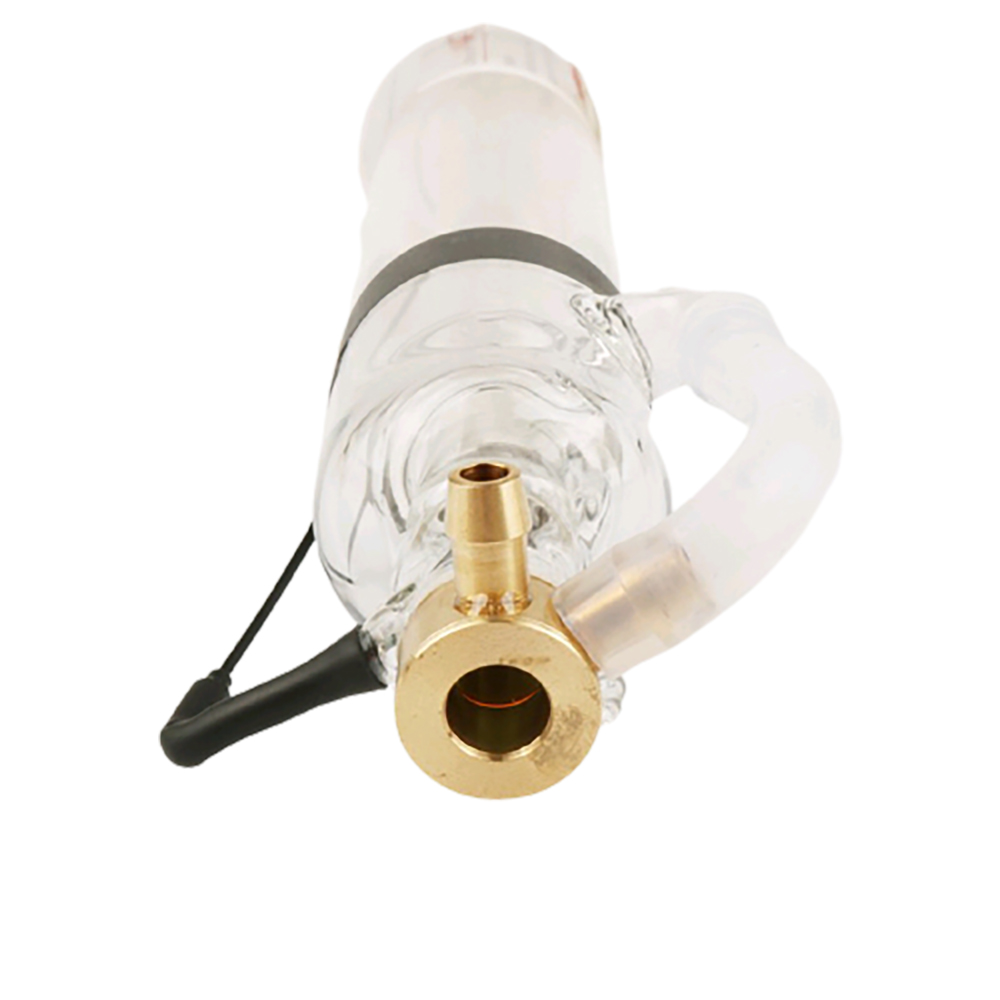

- [TEMOO Laser Process]: The metal head surrounds and locks the output mode of the laser tube to ensure that the light spot is in TEMOO mode, and there is no change in the light spot mode after long-term use.

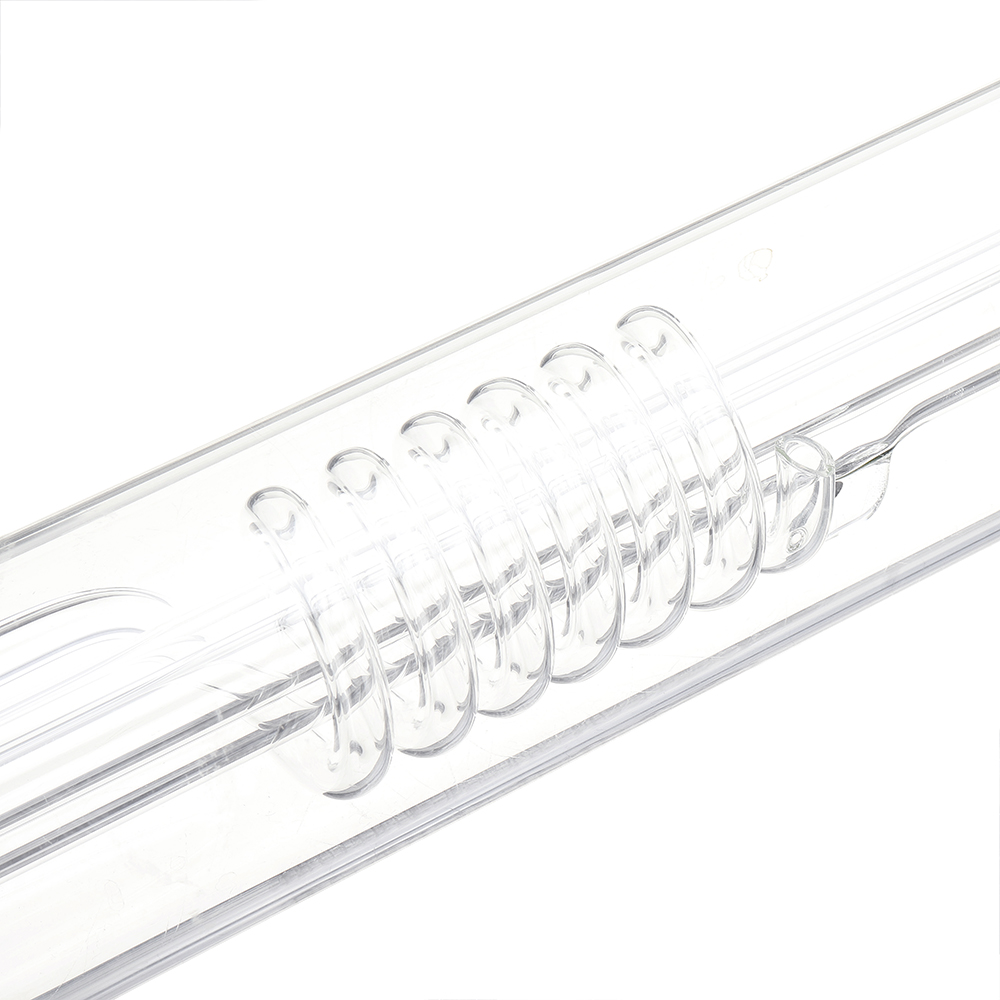

- [Unique technology]: The unique electrode processing technology in the discharge tube, equipped with high-end total reflection mirror and output mirror, reduces power attenuation and high output power density.
- [Wide application]: Professional water cooling and hermetic CO2 glass laser tube, mainly used for laser engraving machine, laser marking machine, laser engraving machine, laser cutting machine, is Replacement parts for laser machine, and can be carved and cut acrylic, cloth, leather, bamboo , wood, engraving, etc.
Specification:

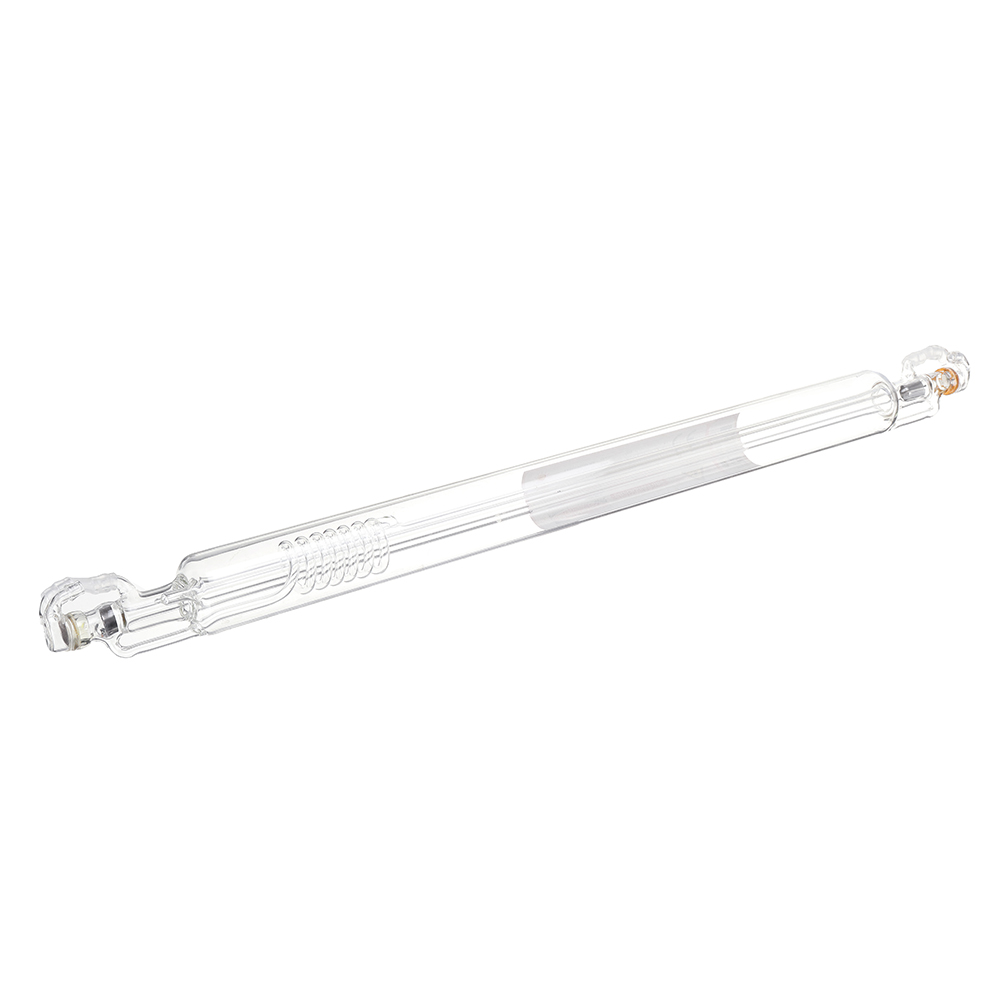

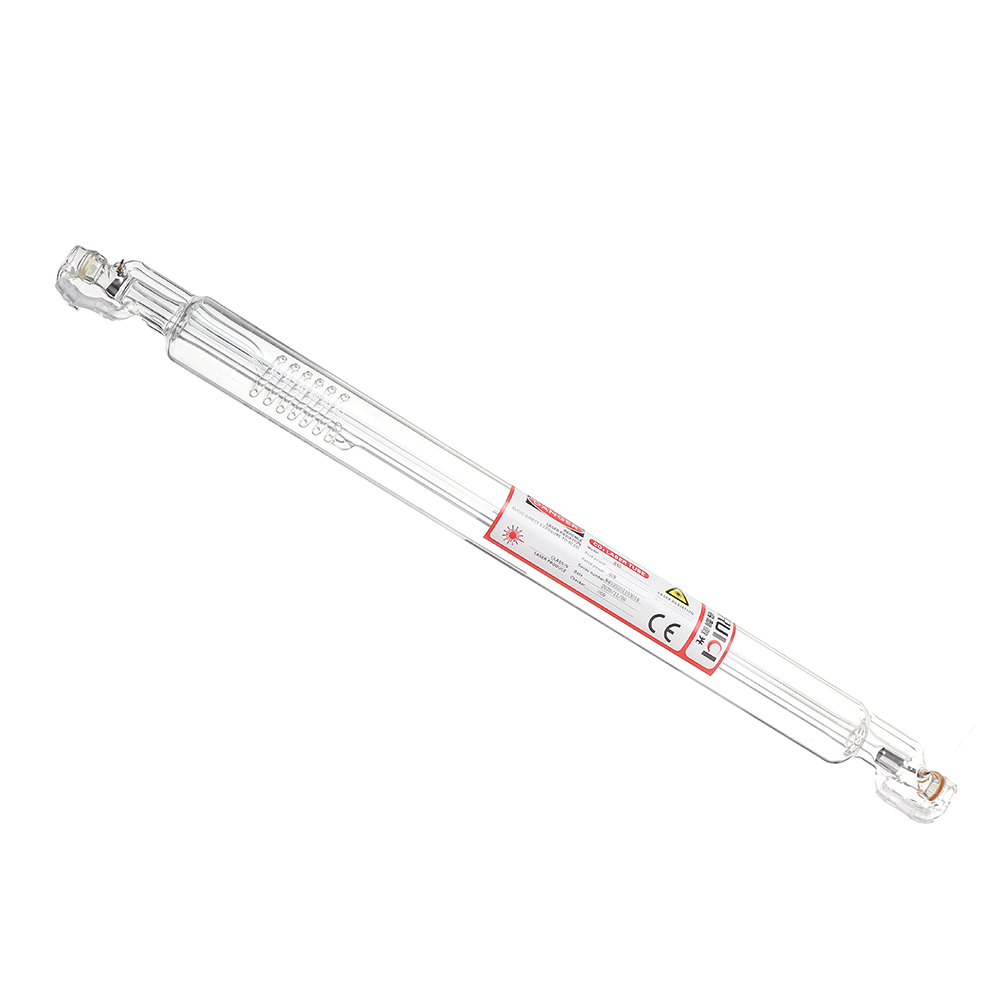

Produce name | Co2 Glass Laser Tube |
Model | W1 |
Power (Optional) | 50W, 60W, 80W |
Wavelength | 10.6μm |
Way to control | CNC |
Current | DC |
Max marking depth | 25mm |
Model | Length | Diameter | Power (Standed) | Max power | Shelf life | Working Hours |
F50 | 1000mm | 50mm | 50W | 80W | 6 | 5000 hours |
F60 | 1250mm | 60mm | 60W | 90W | 6 | 5000 hours |
F80A | 1250mm | 80mm | 80W | 100W | 10 | 5000 hours |
Produce Included:
1 Pc x | Co2 Glass Laser Tube |
More Detail:
