50 M Detection Distance Red Laser Level Crosshair Receiver Or Detector With Clamp
- Stock: In Stock
- Model: ST22010964
- SKU: ST22010964
$49.99
Ex Tax: $49.99
Feature:
-High detection accuracy
-Carrying horizontal bubbles
-Can switch to voiceless state
-With indicator light
-Single short sound, double short sound, long sound functions
Specification:
Detection distance: 50m
Detection frequency: 8KHz-12KHz (Red)
Detection accuracy: ±0.5mm/<15m
±1mm/<35m
±1.5mm/>35m
Working voltage: DC 9V
Sound function: single short sound, double short sound, long sound
Luminous tube indication: upper ,lower,middle
Size: 150x55x25mm
Power :9V Battery
Power :9V Battery
Note: The instrument should be kept stable during detection.

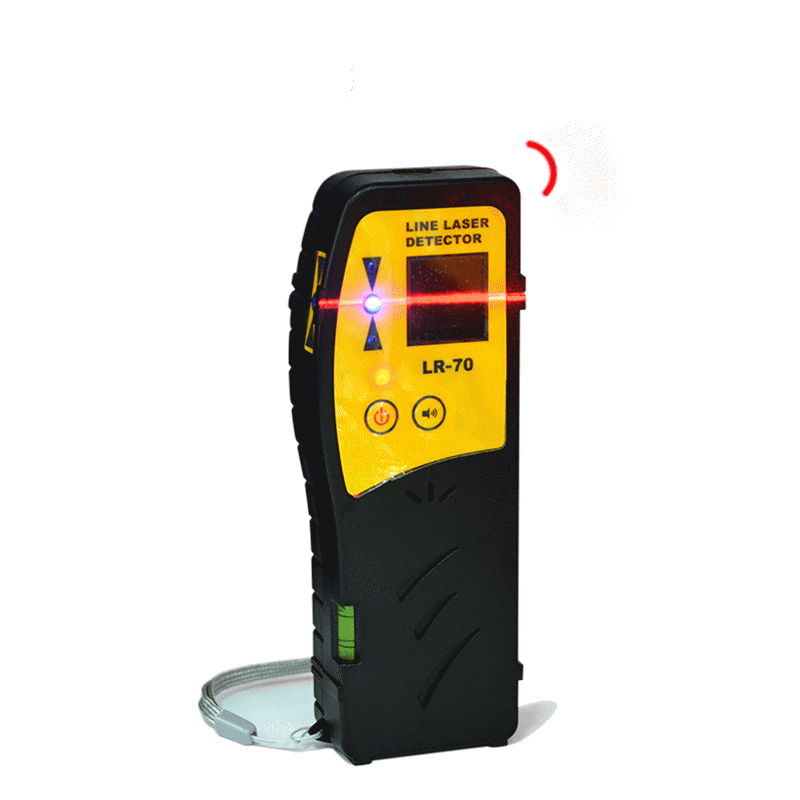

Detect the horizontal laser signal, place the instrument vertically (observe the horizontal level horizontal bubble), and the detection window faces the direction meter to receive the horizontal laser signal.
1. If the laser signal is off, the down indicator lights up
1. If the laser signal is off, the down indicator lights up
2. If the laser signal is on, the up indicator lights up
3. If the laser signal is centered, the middle indicator lights up
Detect the vertical laser signal, place the instrument horizontally (observe the vertical horizontal bubble), the side with the indicator light on the left side up, the detection window facing the direction meter, receive the vertical laser signal.
1. If the laser signal is on the left, the right indicator is on.
1. If the laser signal is on the left, the right indicator is on.
2. If the laser signal is on the right, the left indicator is on.
3. If the laser signal is centered, the middle indicator lights up
Press the sound button in the power on state to switch between voiced and silent states.
In the silent state, the buttons keep the tone
If the laser signal is in the upper (right) half, make a short tone
If the laser signal is in the upper (left) half, a double short tone
If the middle part of the laser signal, the long sound
Package includes:
1 x Laser Level Detector(Battery Not Included)
Detail pictures:
Package includes:
1 x Laser Level Detector(Battery Not Included)
Detail pictures:
