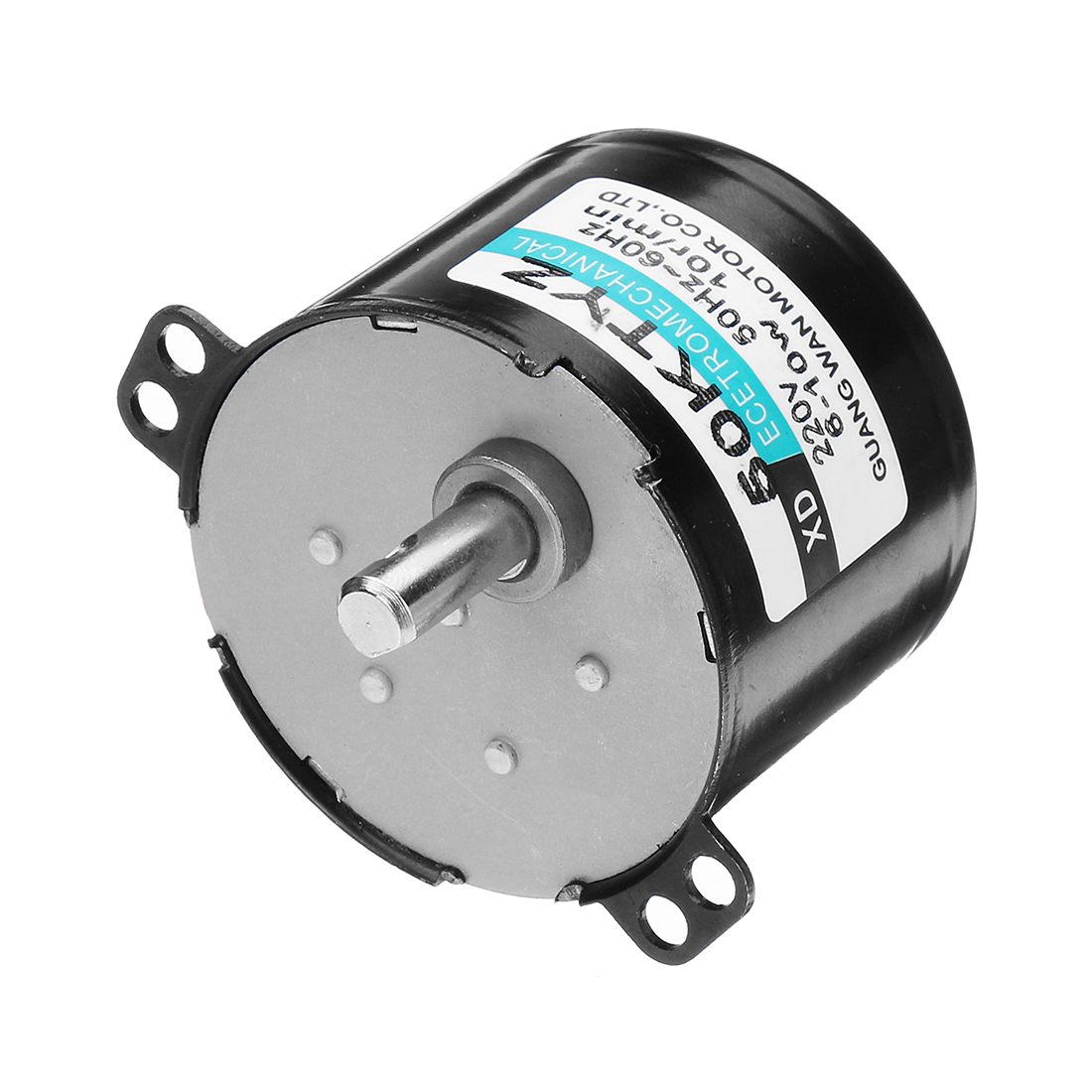

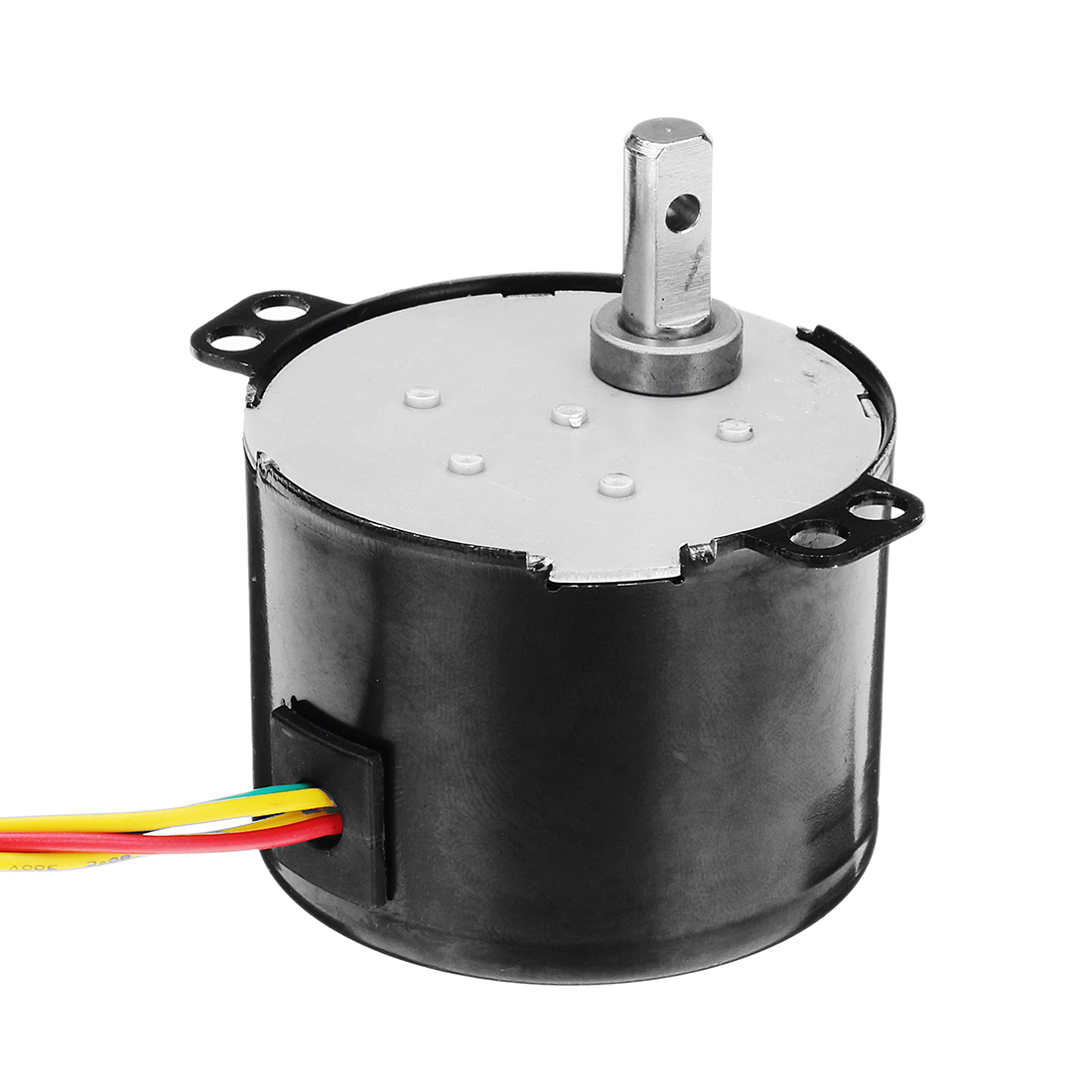

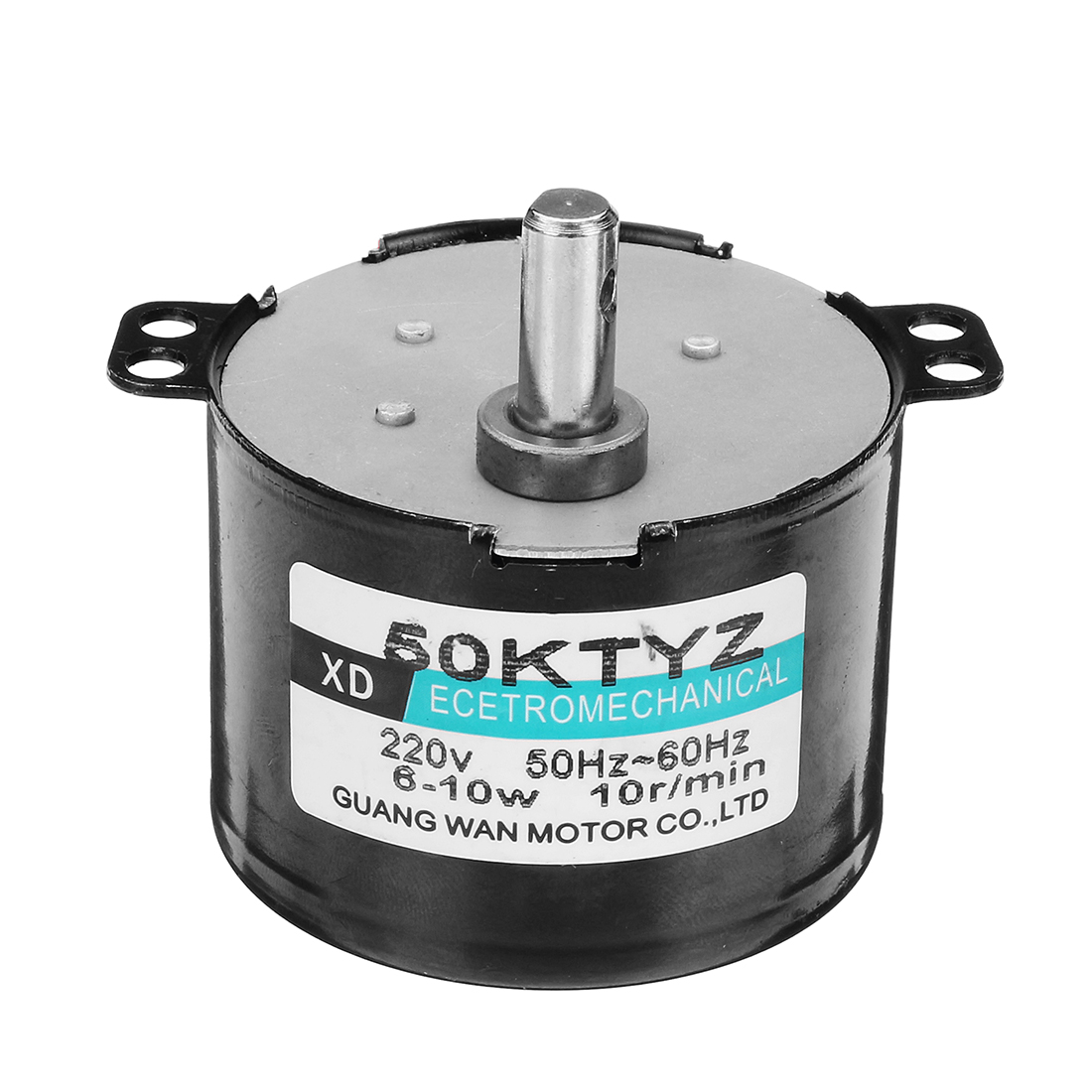

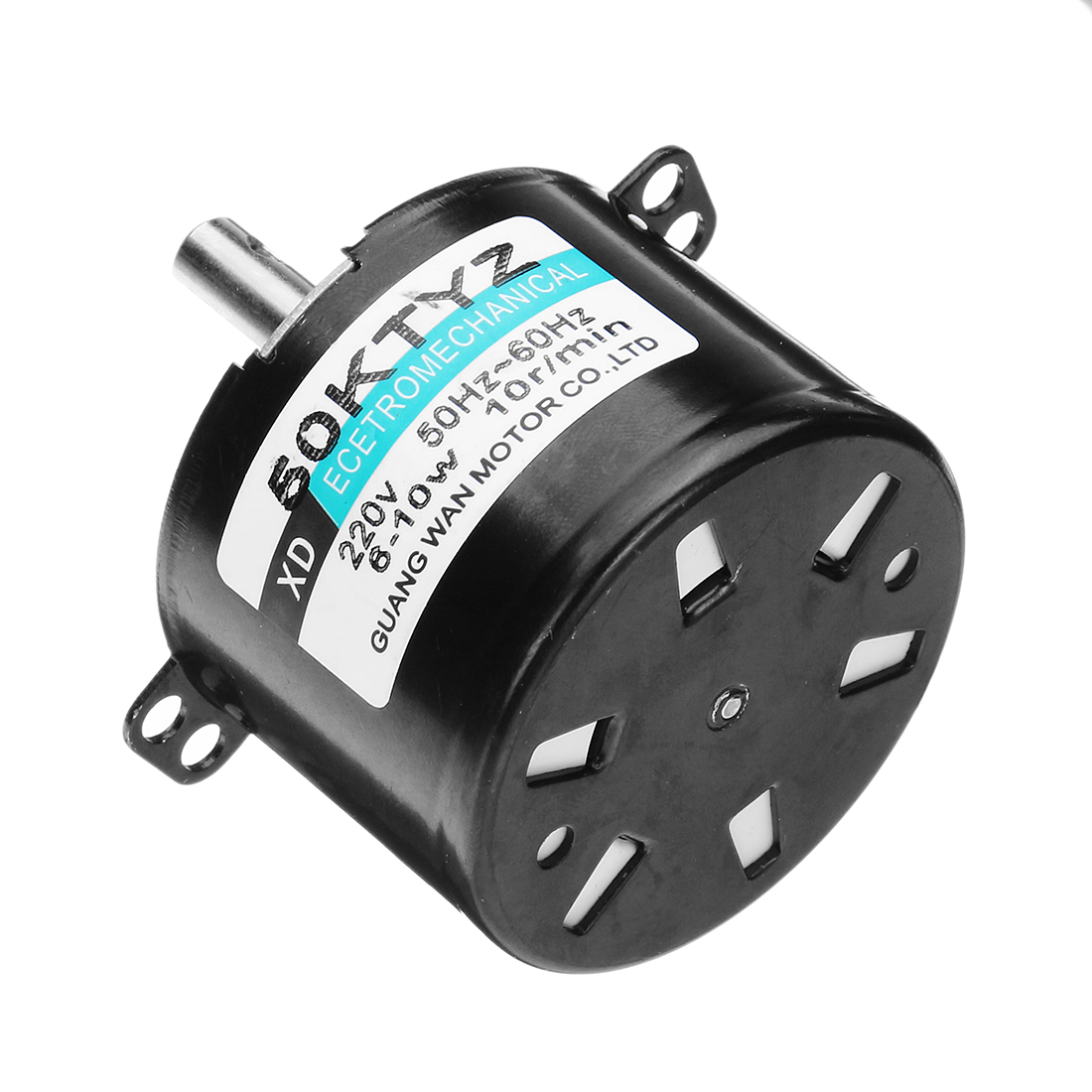

50KTYZ 220V 30/50/100rpm Electric Synchronous Motor 10W Permanent Magnet Motor AC Motor
- Stock: In Stock
- Model: ST220012698
- SKU: ST220012698
$11.99
Ex Tax: $11.99
Description:
50KTYZ 220V Synchronous Motor 10W Permanent Magnet Gear Reduction Motor Reversible Controllable Micro Moteur Motor
Specification:
| Model | 50KTYZ |
| Voltage | AC220V |
| Frenquency | 50Hz-60Hz |
| Power | 6-10W |
| Speed | 30/50/100RPM/Min |
| Torque | 30kfg.cm |

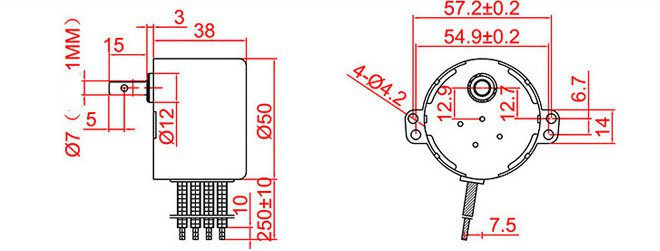

| Motor Dimension | 38mm x 50mm |

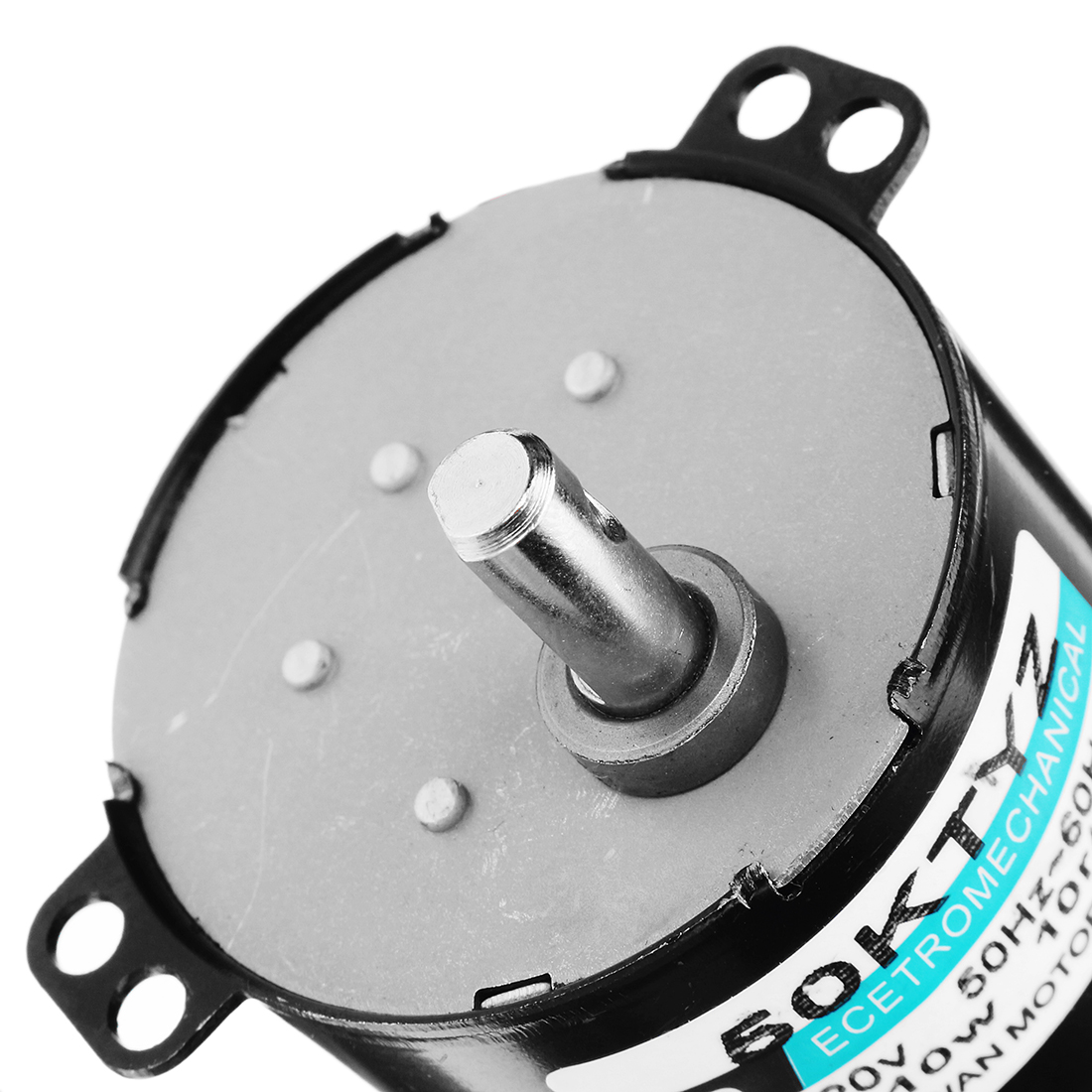

| Shaft Type | D-Type (Edge Milling: 1mm) |
| Output Shaft Diameter | 7mm |
| Output Shaft Length | 15mm |
Features:
Small volume but large torque
Motor gets constant under the rated frequency, not affected by voltage.
With pure copper wire production, metal gear, constant speed.

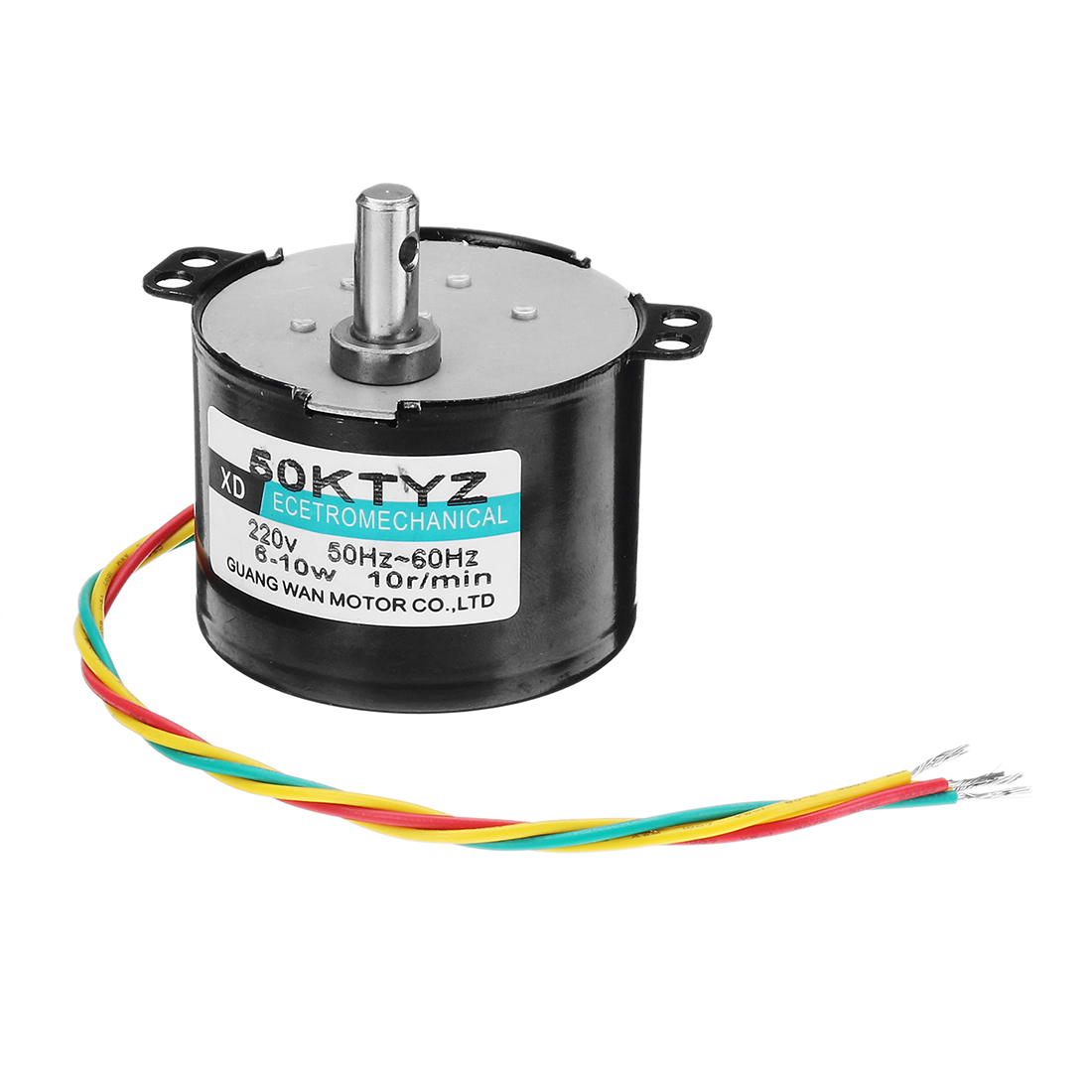

How to wire:
1. Two yellow wires are connected to one side of the power cord;
2. A blue wire connects the other side of the power cord and the capacitor side at the same time;
3. A red wire connects to the other side of the capacitor.
Application:
Mainly used in instrument, automation, gluing machine, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, electric image, etc.
Package Included:
1 x 50KTYZ Synchronous Motor
