50W Solar Panel Battery Charger Solar Cell Portable Flexible Monocrystalline Silicon for Car Yacht Outdoor Camping
- Stock: In Stock
- Model: ST220017170
- SKU: ST220017170
$104.99
Ex Tax: $104.99
2020 new high-efficiency solar panel 50W black panel battery charger for car yacht yacht RV campervan
Features:
High efficiency, conversion rate 21-25%,
Flexible and suitable for surface mounting.
Lightweight and easy to install and maintain.
Wide range of adaptation: cars, boats, roofs, outdoor, mountains, grass, etc.
Specification:
Rated Power: 50W
Maximum-power (Pmax): 100W
Output tolerance: ± 3%
Maximum-system voltage: 700V DC
Open circuit voltage (Voc): 19.2V
Maximum-power voltage (Vmp): 16V
Battery efficiency: 21-25%
Working temperature: (45 NOCT) ± 2 ℃
Temperature range: -40 ℃ ~ + 80 ℃
Number of batteries: 32
Standard test conditions: lrradiance: 1000w / m, temperature 25 ℃, = 1.5
Note:
1. Use high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of traditional polycrystalline silicon, and the overall area is smaller at the same power.
2. Using the latest component packaging technology,,lighter, softer and longer life.

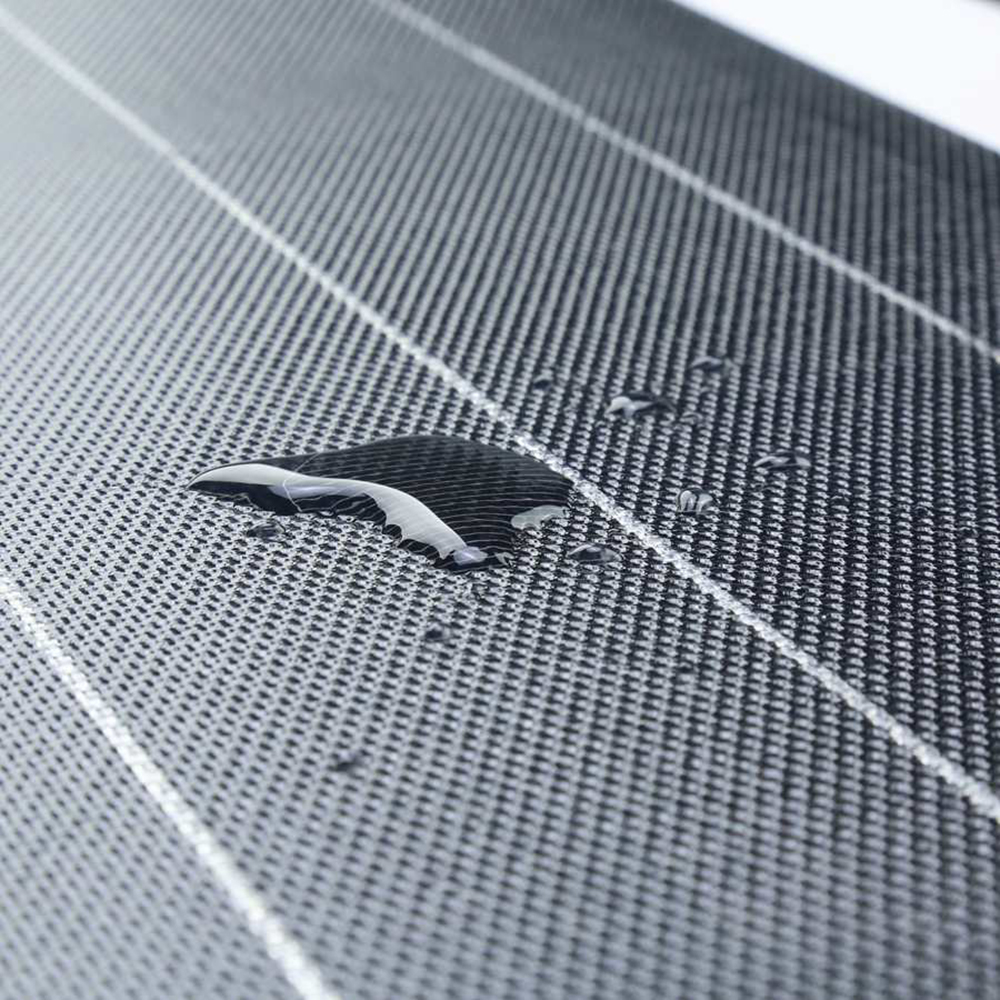

3. The surface is made of PET material, after special treatment, the wear resistance is stronger, and the absorption efficiency of sunlight is improved.
4. High light transmittance, safe and reliable, not afraid of high temperature, no risk of burning or explosion.
5. The junction box adopts IP67 waterproof design, built-in bypass diode, the circuit uses overcharge and reverse current protection design.

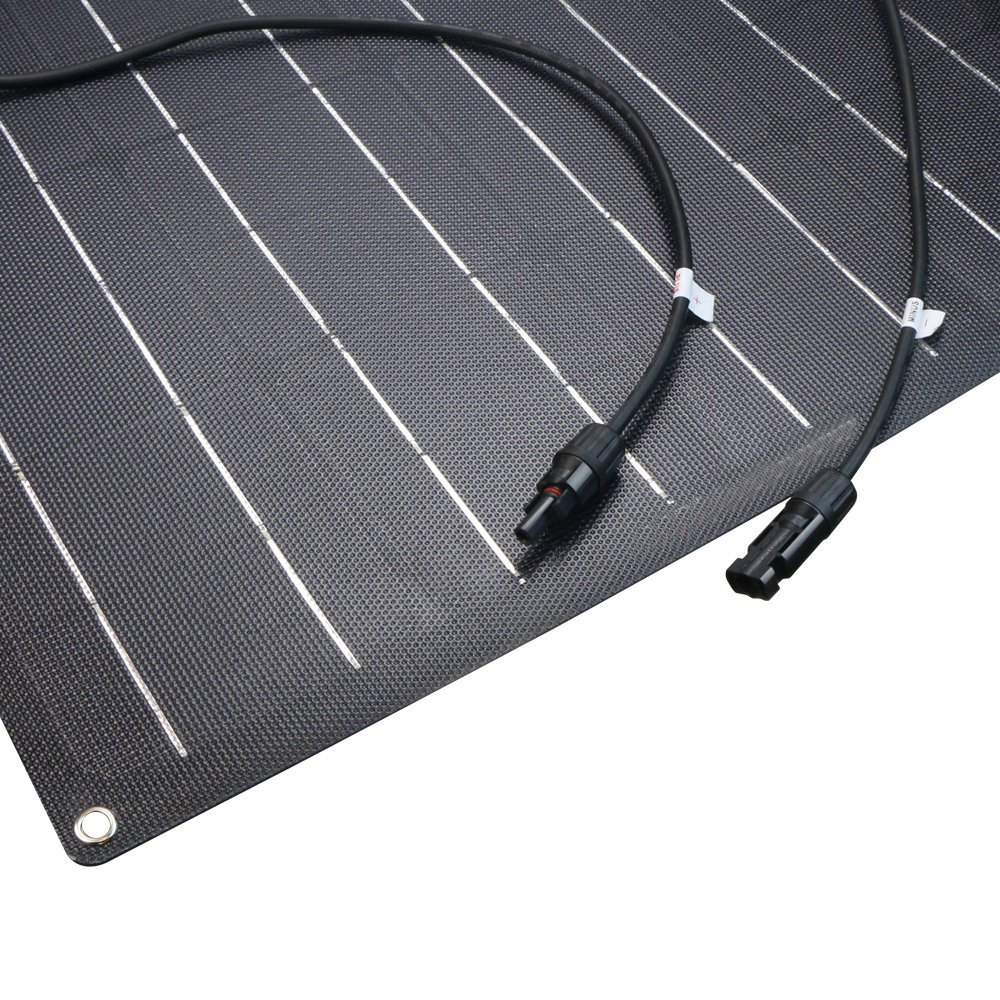

6. Adopt photovoltaic special cable and--connector, safe for outdoor use, waterproof, high temperature resistance and good weather resistance. The--connector is easy to use, plug and play.
7. This product is a solar module. It is recommended to use with controller and battery. It can be used in various scenarios, such as homes, camping, RVs, yachts, street lights, and solar power stations.
use:
1. This product must not come into contact with highly corrosive substances.
2. It is strictly forbidden to modify, disassemble, drop or hit the junction box and the product by yourself. Avoid stepping on the surface and scratching the surface with hard objects during use.
3. A large number of scratches or dirt on the surface of the solar cell panel may cause inefficiency of the solar cell module, and may cause burnout in severe cases.
4. The applicable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
5. The solar panel must be installed in a place with sufficient sunlight and no shadow. The long-term operation of solar cell modules may be in danger of burning in the shaded sun.
6. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product in water or fire, otherwise it will damage the product.
7. The total power of the photovoltaic modules must be less than the rated power of the controller (rated voltage × rated current). Do not overload the controller.
8. The total voltage of the photovoltaic modules connected to the controller must be within the photovoltaic input voltage range of the controller.
9. The inverter can only be connected to the battery, not directly to the controller.
Package includes:
1 X Solar panel
