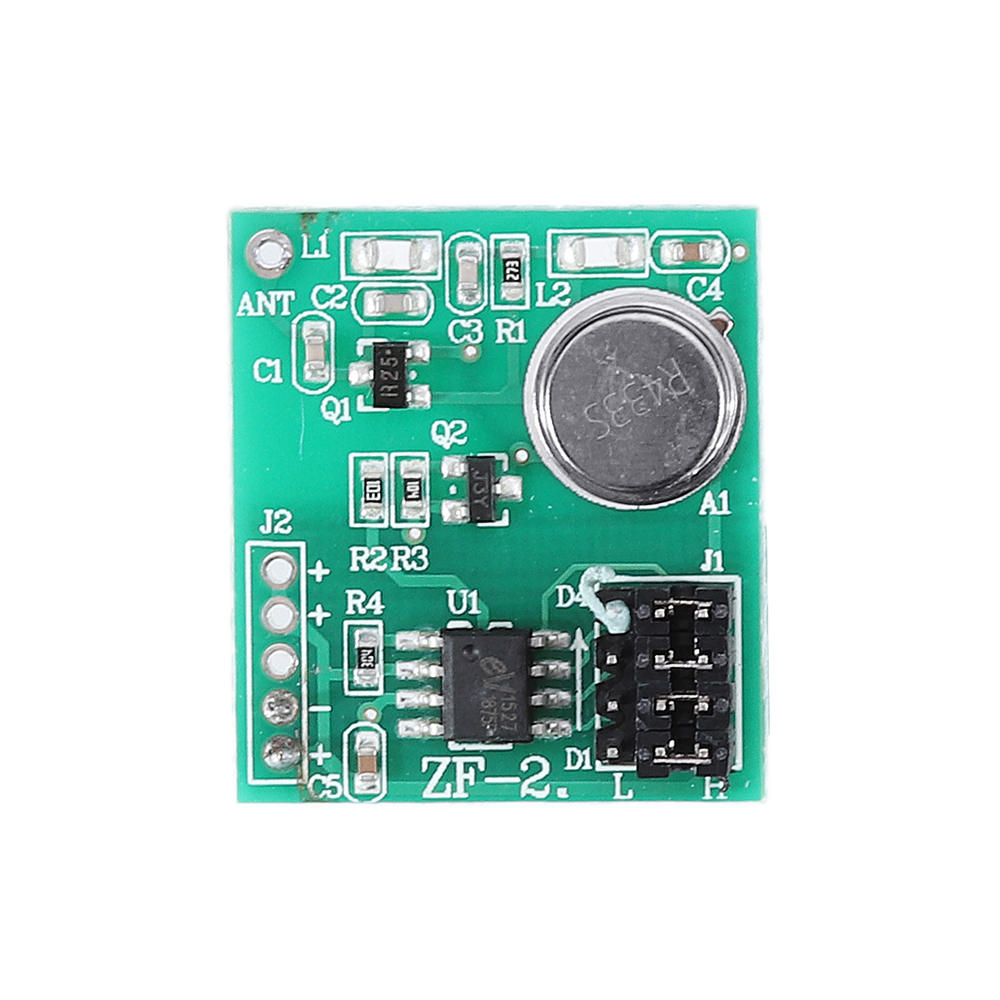

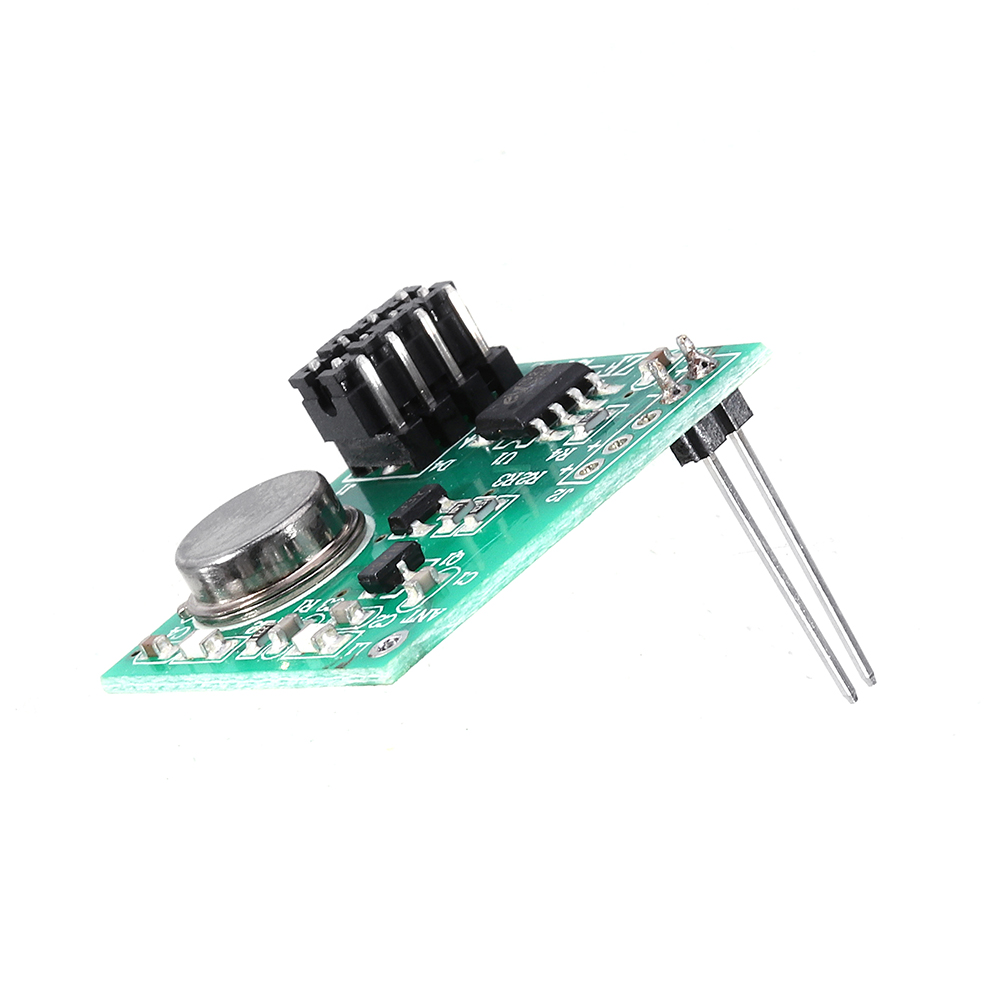

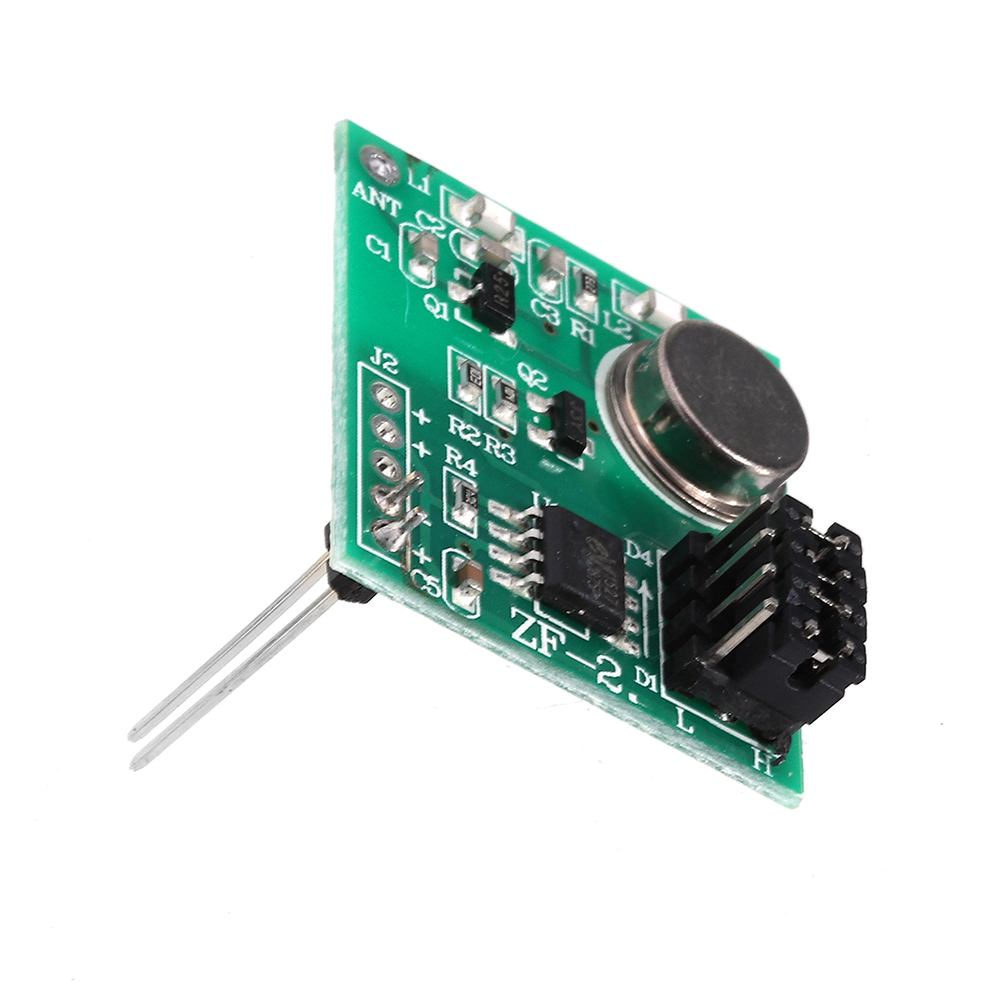

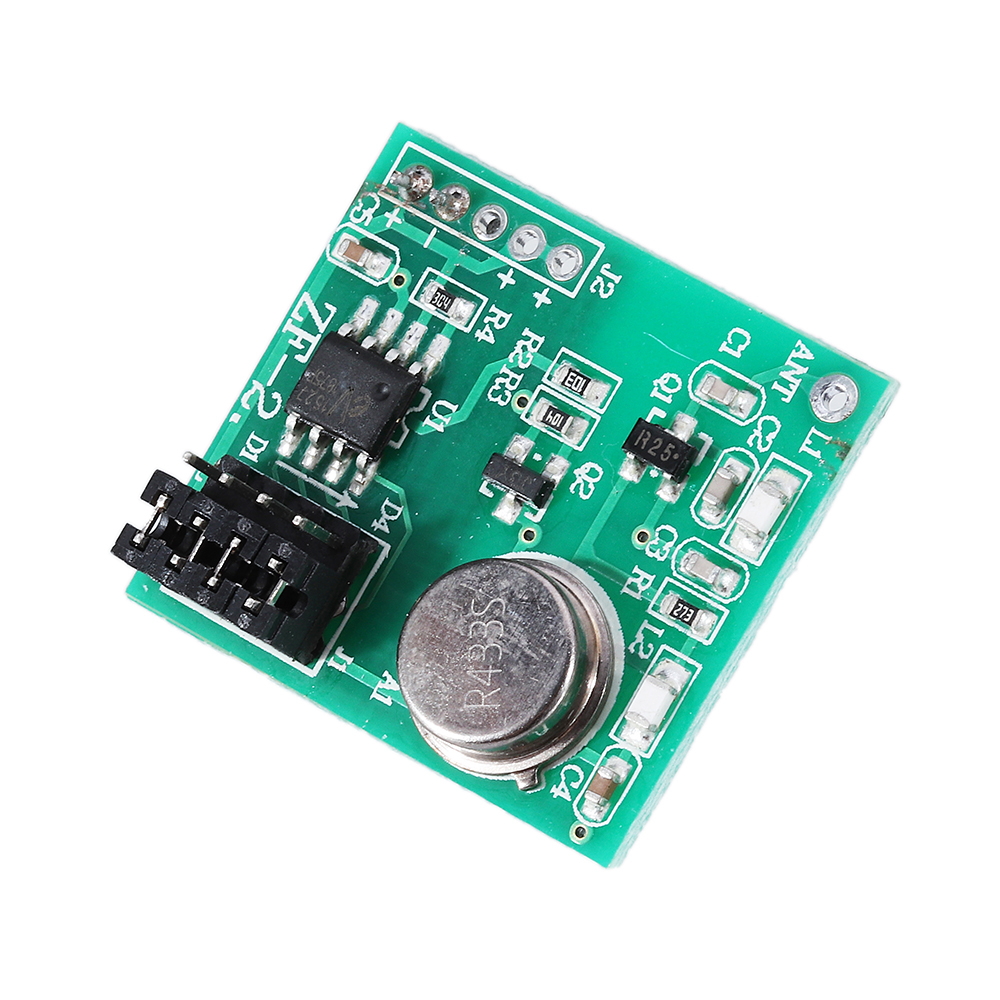

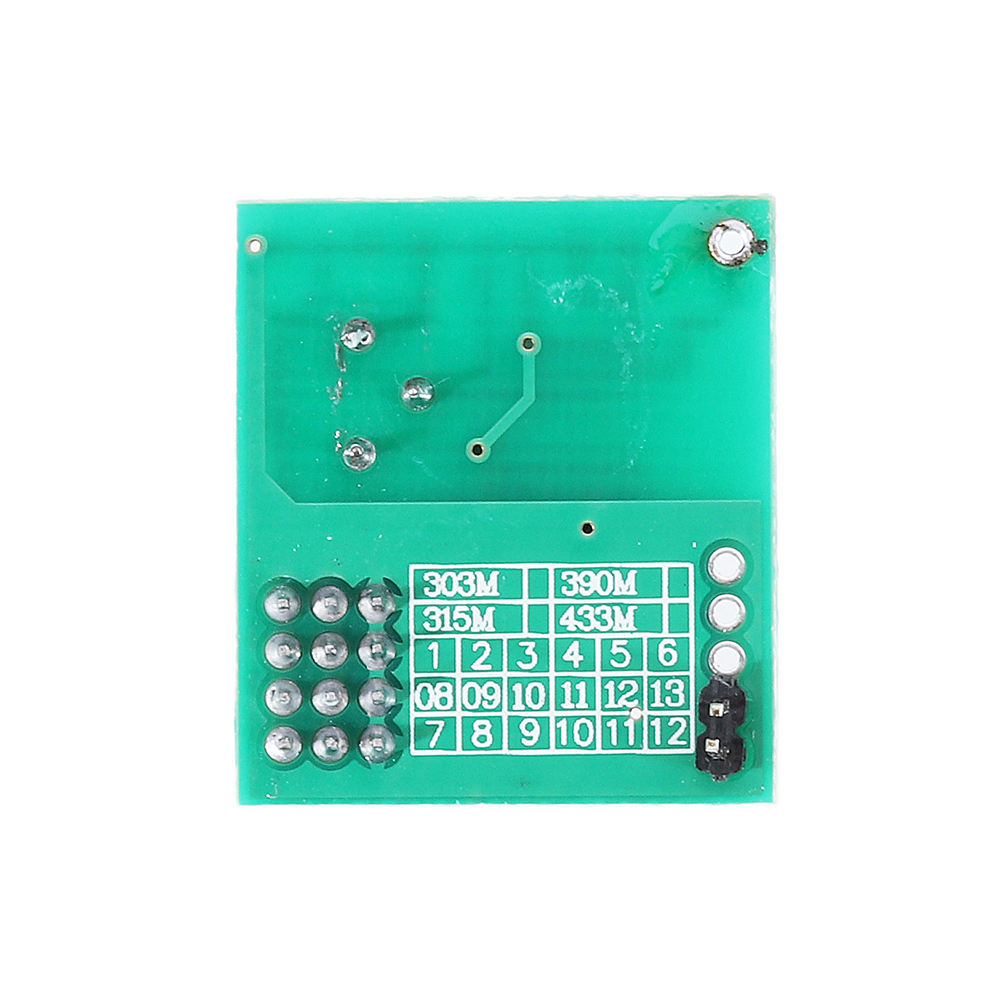

5pcs 315MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board
- Stock: In Stock
- Model: ST230043470
- SKU: ST230043470
1,037.19Rs.
Ex Tax: 1,037.19Rs.
Technical request :
Product model: ZF-2 (with code)
Transmission frequency: 315MHZ
Working voltage: DC 9V ~12V
Modulation method: ASK
Quiescent current: 0uA
Working current: 8~10mA
Coding type: learning code (EV1527)
Radiated power: 10~15mW
Shooting distance: 100-200 meters (receiver sensitivity -108dBm)

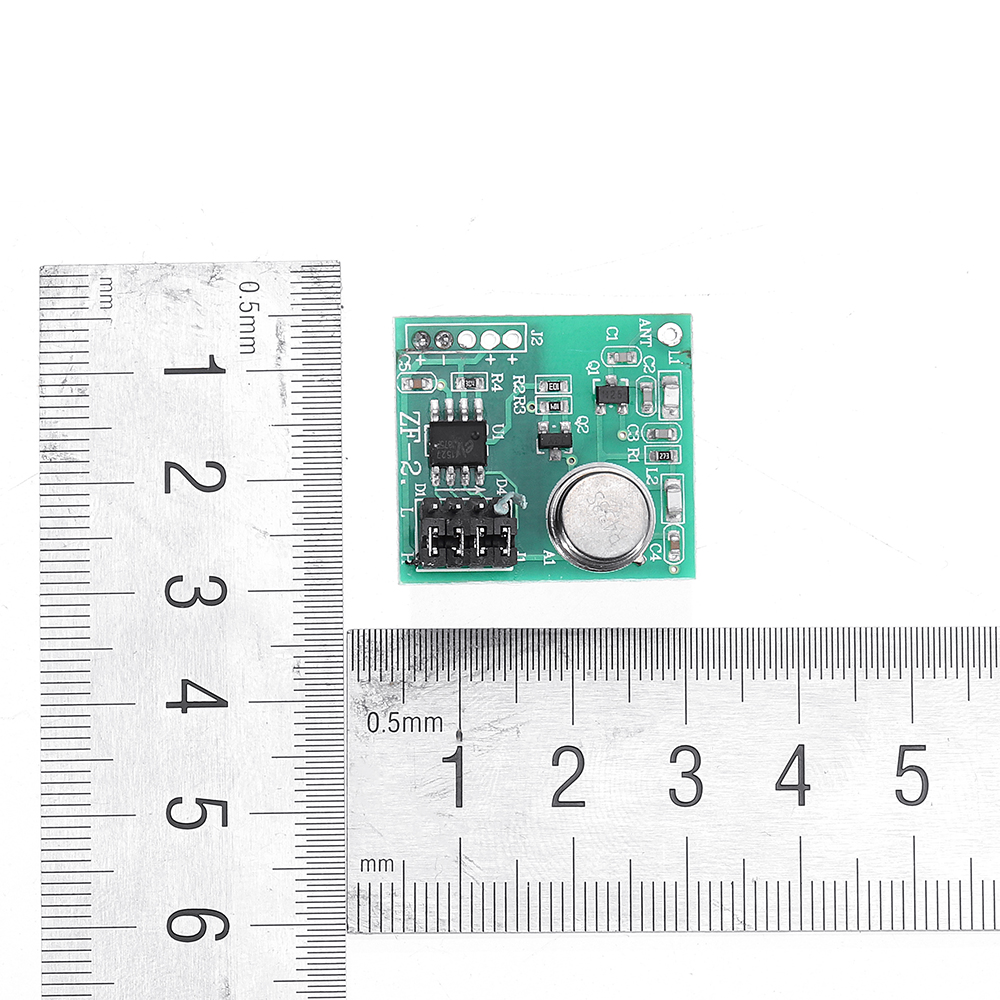

Volume: 26.3mm*23.3mm*9mm
Package includes:
5 x Receiving board

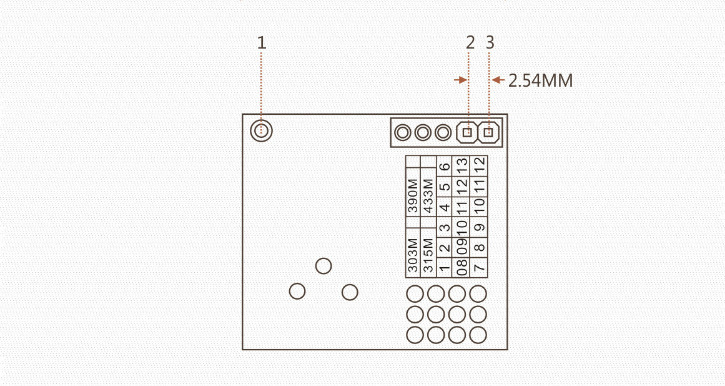

| PIN | NAME | Function |
| 1 | ANT | RF signal input pin, this pin needs to be connected to the antenna |
| 2 | 12V- | DC power supply negative input pin |
| 3 | 12V+ | DC power supply positive input pin |
| Rated parameter | Symbol | Value |
| DC power supply | VDD-VSS | 9V-12V |
| Storage temperature range (TS) | TSTG | -12°C to 75°C |
| Welding temperature | +260°C |
Package includes:
5 x Receiving board
