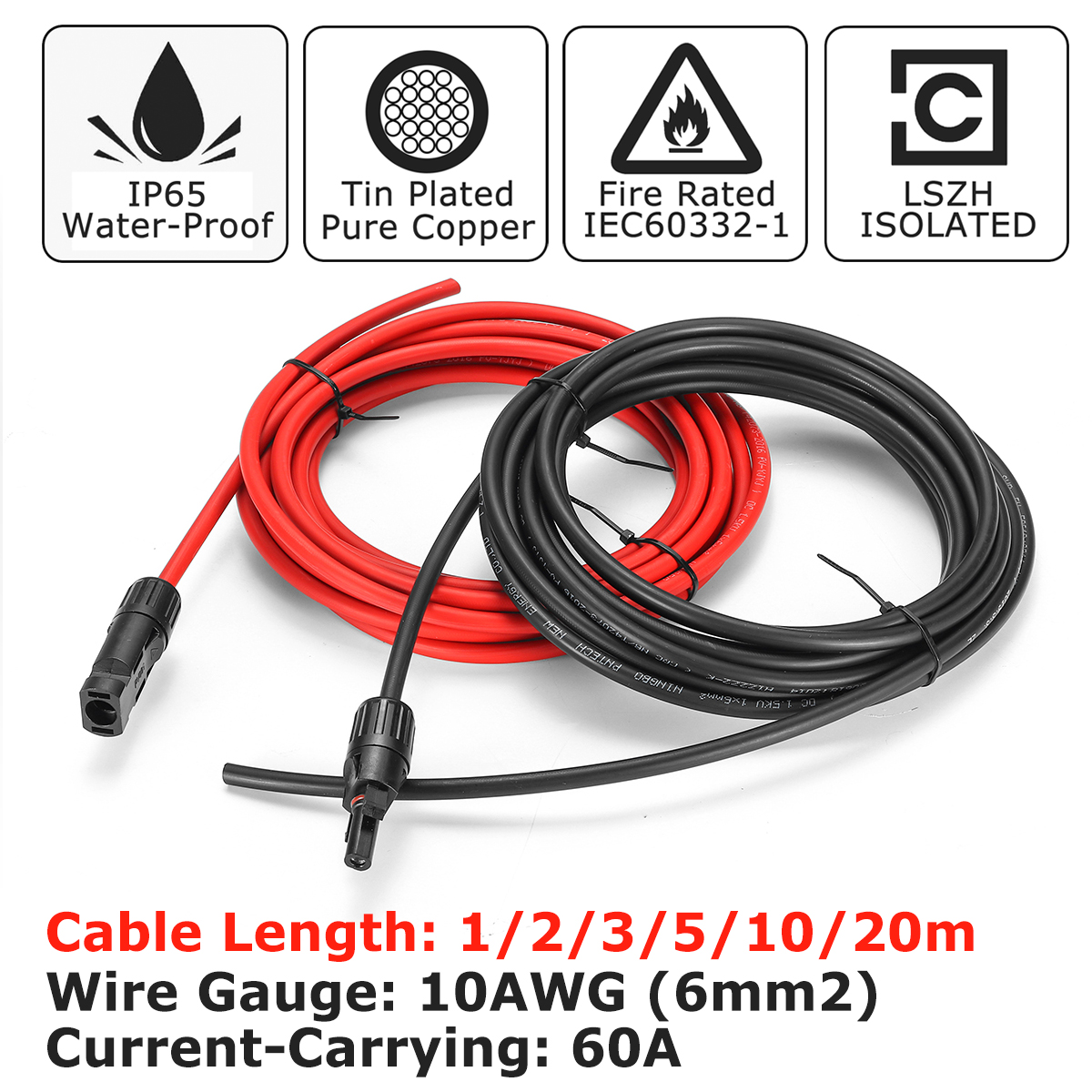

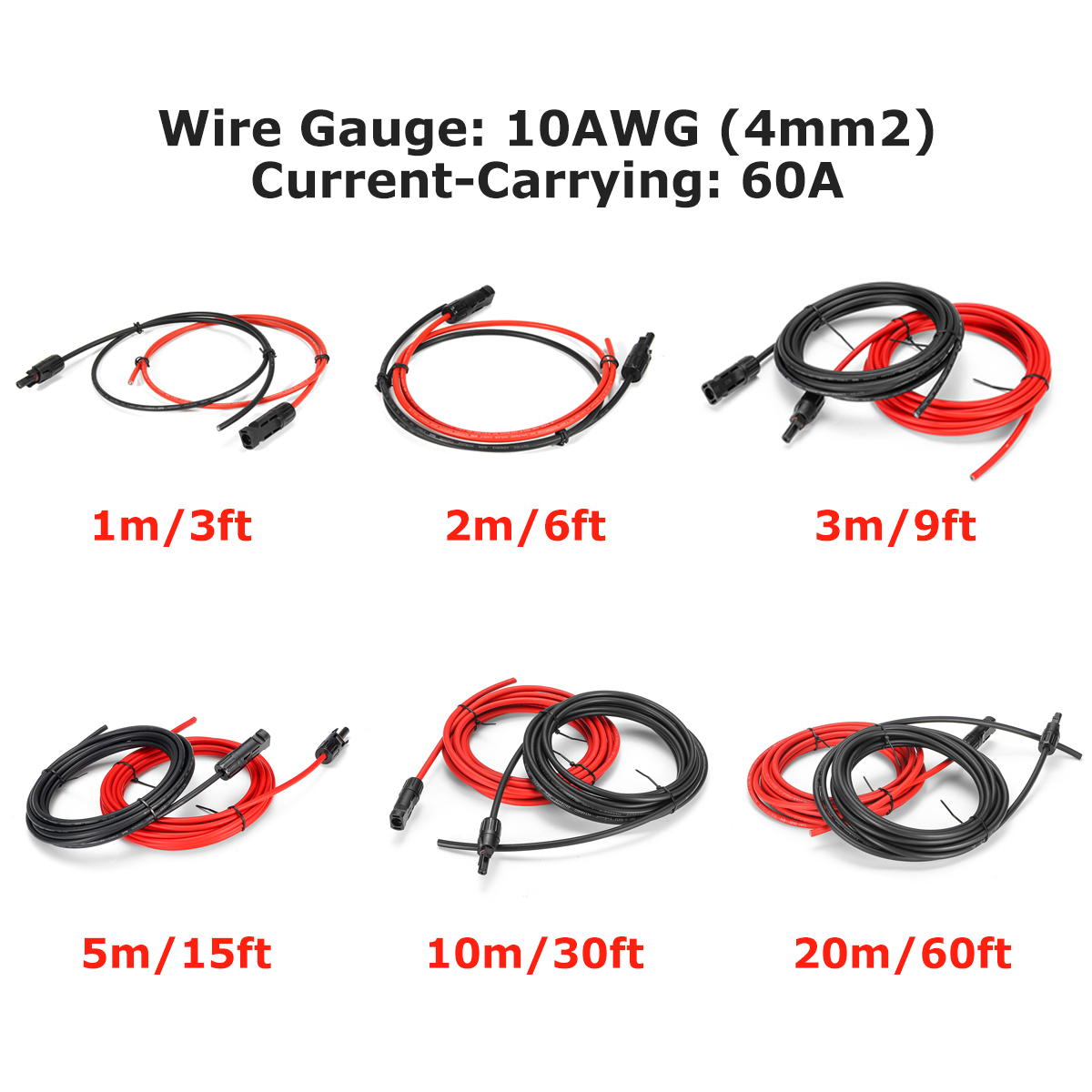

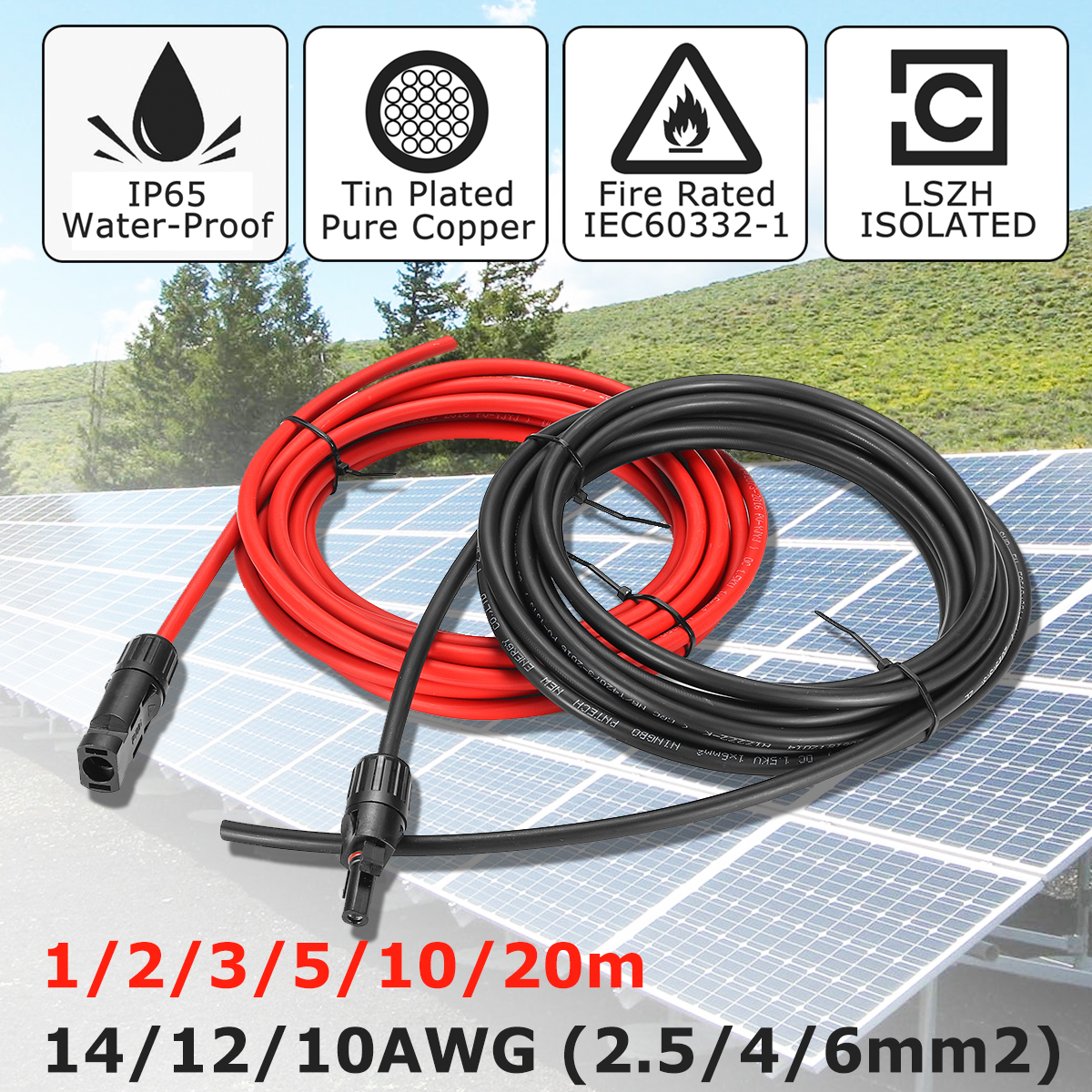

60A 1/2/3/5M 6mm2 10AWG Eternal 6.9mm Solar Panel Extension Cable Wire MC4 Connector Copper Wire Solar PV Cable

60A 1/2/3/5M 6mm2 10AWG Eternal 6.9mm Solar Panel Extension Cable Wire MC4 Connector Copper Wire Solar PV Cable
60A 1/2/3/5M 6mm2 10AWG Eternal 6.9mm Solar Panel Extension Cable Wire MC4 Connector Copper Wire Solar PV Cable
  • Stock: In Stock
  • Model: ST220016827
  • SKU: ST220016827
$28.99
Ex Tax: $28.99

Available Options

Cable(2 PfG 1169) for Photovoltaic Equipment

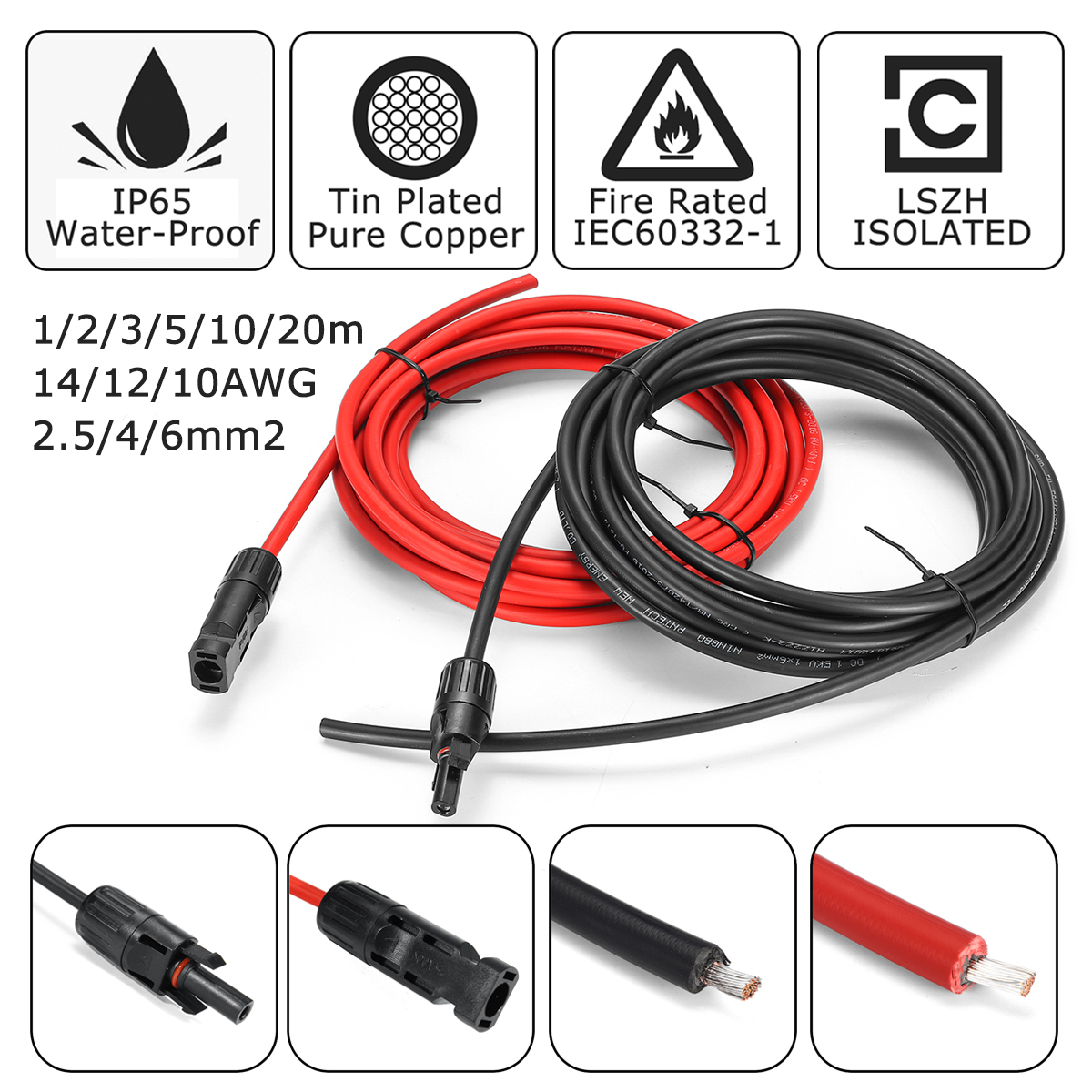

FEATURE:
Conductor: Stranded Tinned Copper
Insulation: Halogen Free Crosslinked Polyolefin
Sheath: Halogen Free Crosslinked Polyolefin
Nominal Cross-Section:2.5, 4.0, 6.0mm2
Rated Temperature: -40~+90℃
Rated Voltage DC: 1/1.8kV
Rated Voltage AC: 0.6kV
Rated Current: 33~57a
Weathering Resistance: Sun Res.
Burning Behavior: (IEC60332-1)

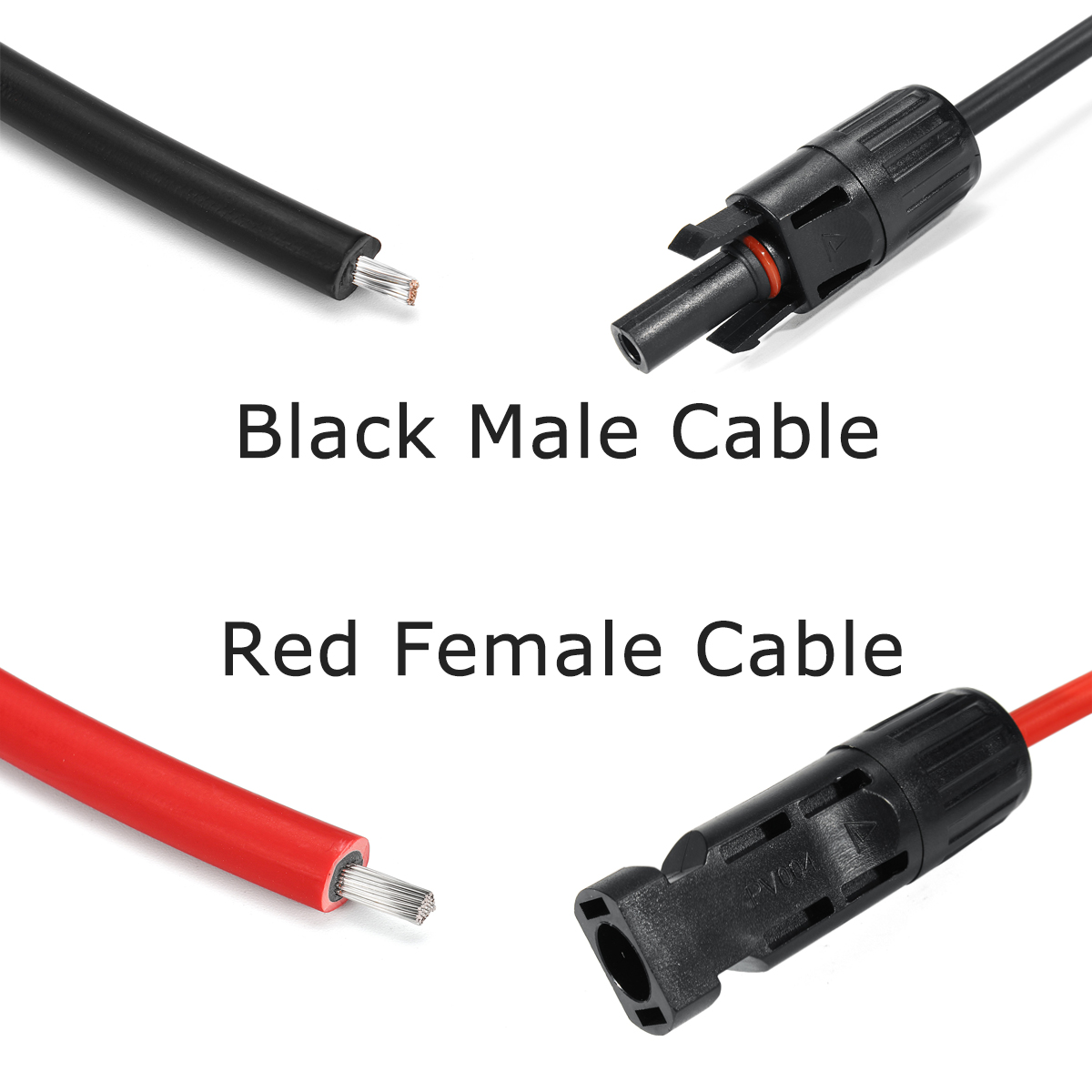

Black Cable MC4 Connector: Male
Red Cable MC4 Connector: Female

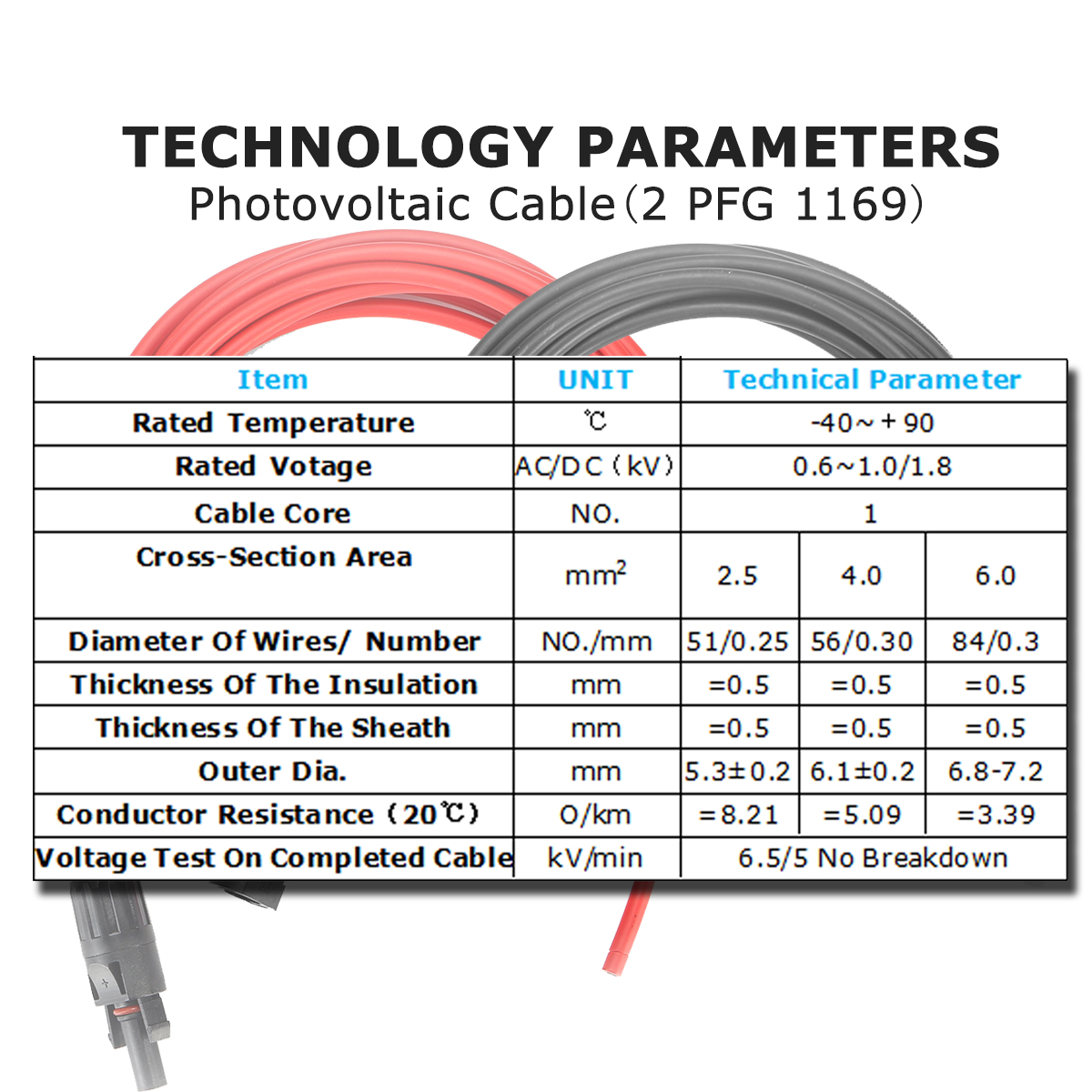

TECHNOLOGY PARAMETERS 0f 10AWG(6mm2):
Rated Temperature(℃) = -40~90℃
Rated Votage(AC/DC(kV)) = 0.6~1.0/1.8
Cable Core(NO.) = 1
Cross-Section Area (mm2) = 6
Cross-Section Area (AWG) = 10
Diameter Of Wires/ Number(NO./mm) = 84/0.3
Thickness Of The Insulation(mm) = ≥0.5
Thickness Of The Sheath(mm) = ≥0.5
Outer Dia.(mm) = 6.8-7.2
Conductor Resistance(20℃)(Ω/km) = ≤3.39
Voltage Test On Completed Cable(kV/min) = 6.5/5 No Breakdown
