- Stock: In Stock
- Model: ST220015820
- Dimensions: 270.00mm x 180.00mm x 80.00mm
- SKU: ST220015820
Description:

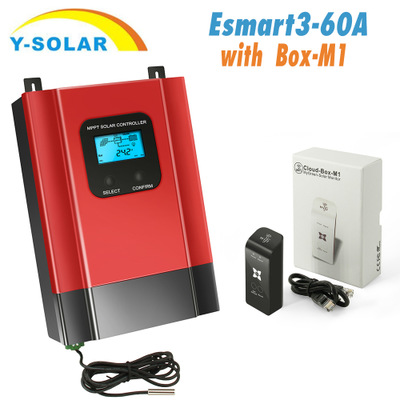

1. Item features an efficient MPPT control algorithm to track the maximum power position of the PV array. Greatly improve the utilization of solar panel. Its intelligent LCD and upper PC display, mostly convenient for customers to check, records and parameter setting. It widely used in off-grid solar system, communication base station solar system, household solar systems, street light solar systems, field monitoring and other fields etc.

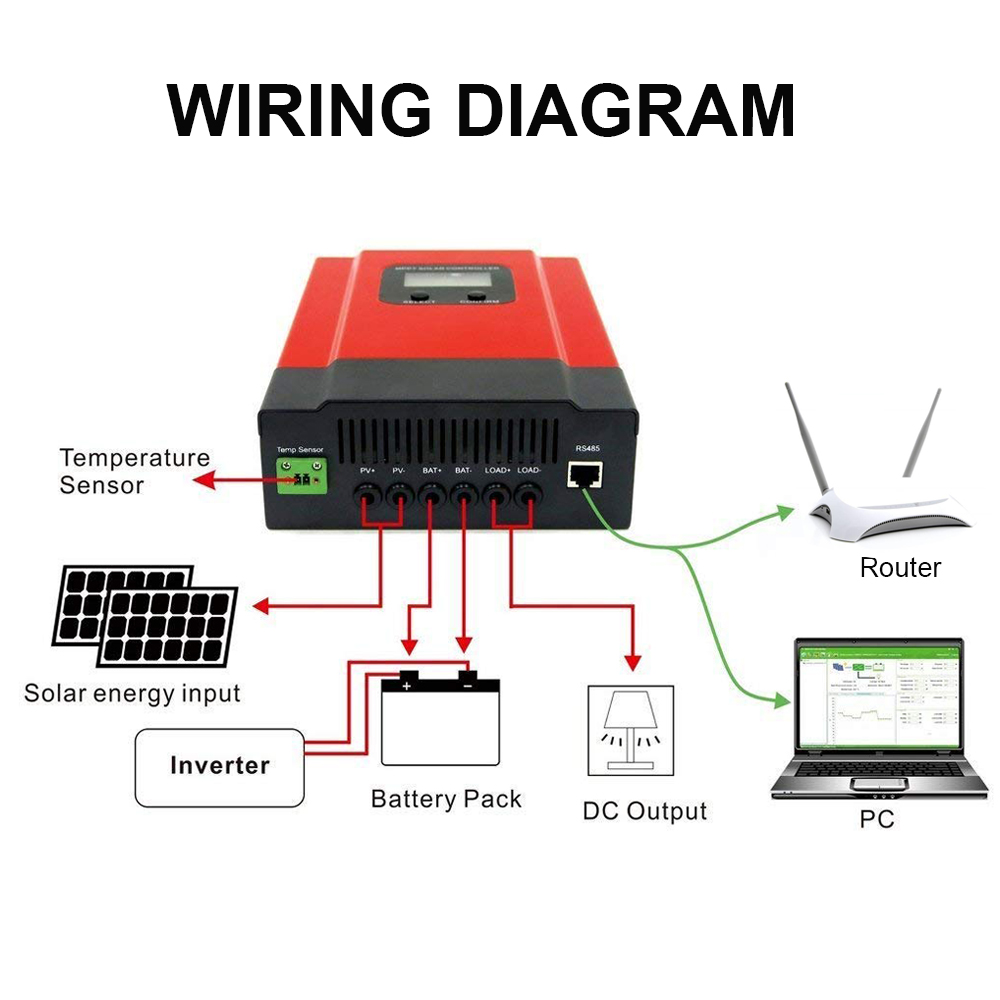

2. For this mppt solar charge controller , you need to connect with battery first , then connect with the solar panel . Because this solar charge controller , the power is supplied by the battery , so no matter day time or night time , if this solar charge controller is connected with battery , it will be on all the time when it is turn on .
Specification:
System Voltage | DC12V/24V/36V/48VDC Auto |
Maximum Solar Panel Input Power | 780W/1560W/2340W/3120W |
Rated Current | 60A |
Maximum PV(voc) Voltage | DC150V |
MPPT Efficiency | ≥99.5% |
Communication | RS485 |
Battery Types | Flooded, Sealed Lead Acid, Gel Battery |

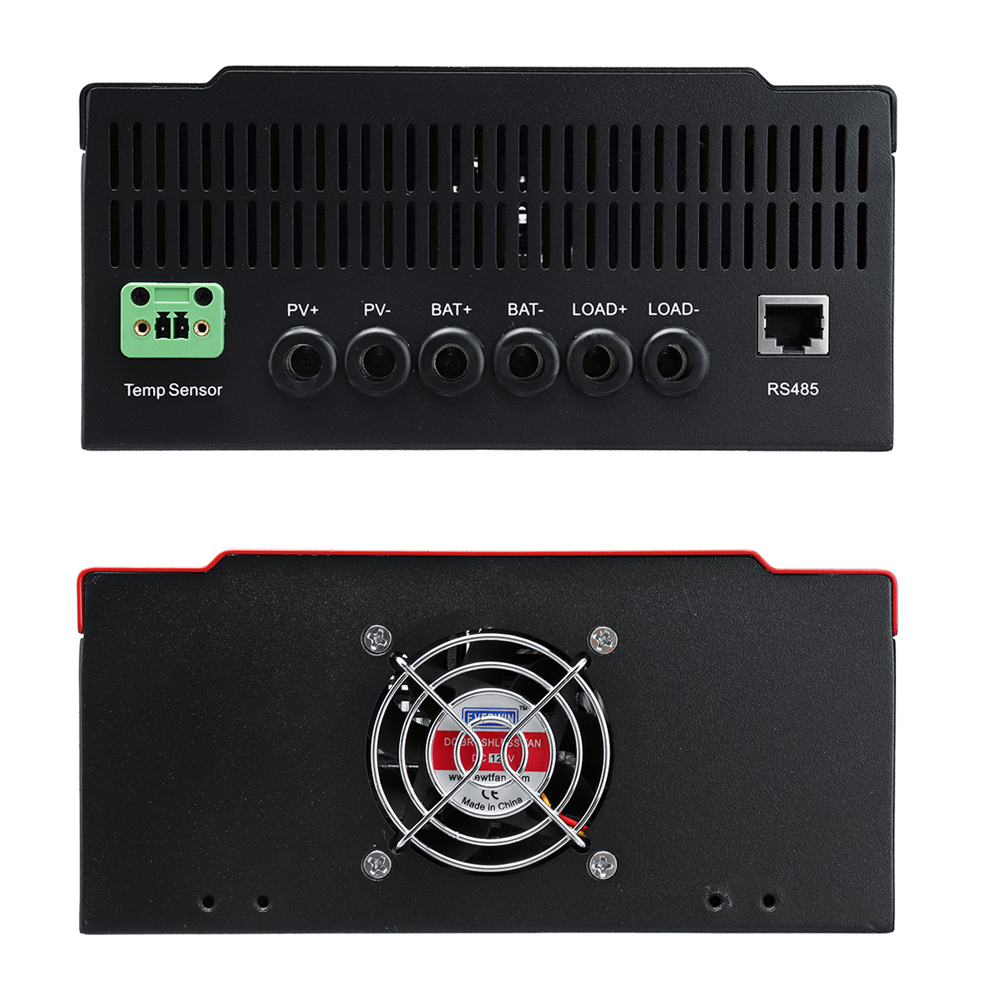

Heat Dissipation Method | Fan Cooling |
Working Temperature | -20°C ~ +50°C |

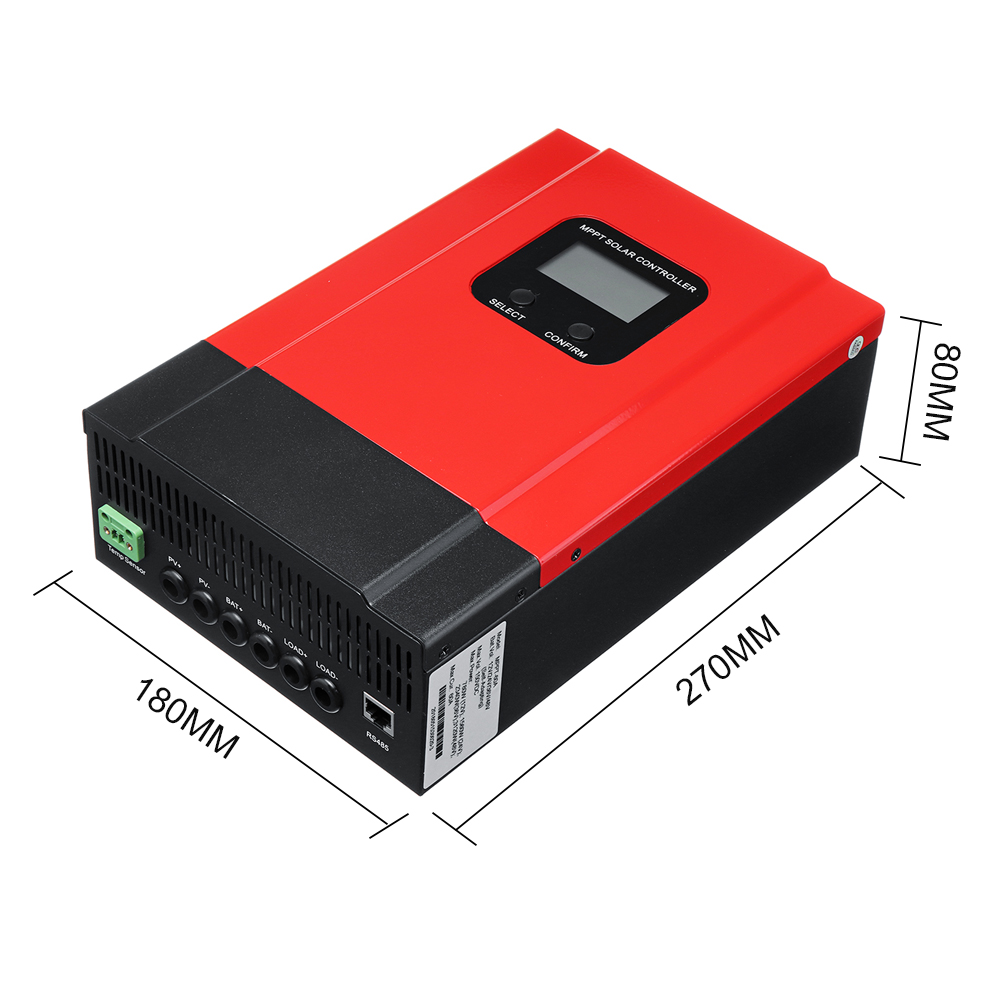

Size | 270*180*80mm |
Feature:
1. High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%.
2. 12V/24V/36V/48V system Automatic Recognition，users can use it in different system conveniently.
3. Charge mode: three stages (fast charge, constant charge, floating charge). It prolongs service life of the batteries.
4. Discharge mode: ON/OFF mode, PV voltage control mode, Time control, PV & Time control mode.
5. Recommended battery types: Flooded, Sealed lead acid, Gel battery. Other types of the batteries can also be defined.

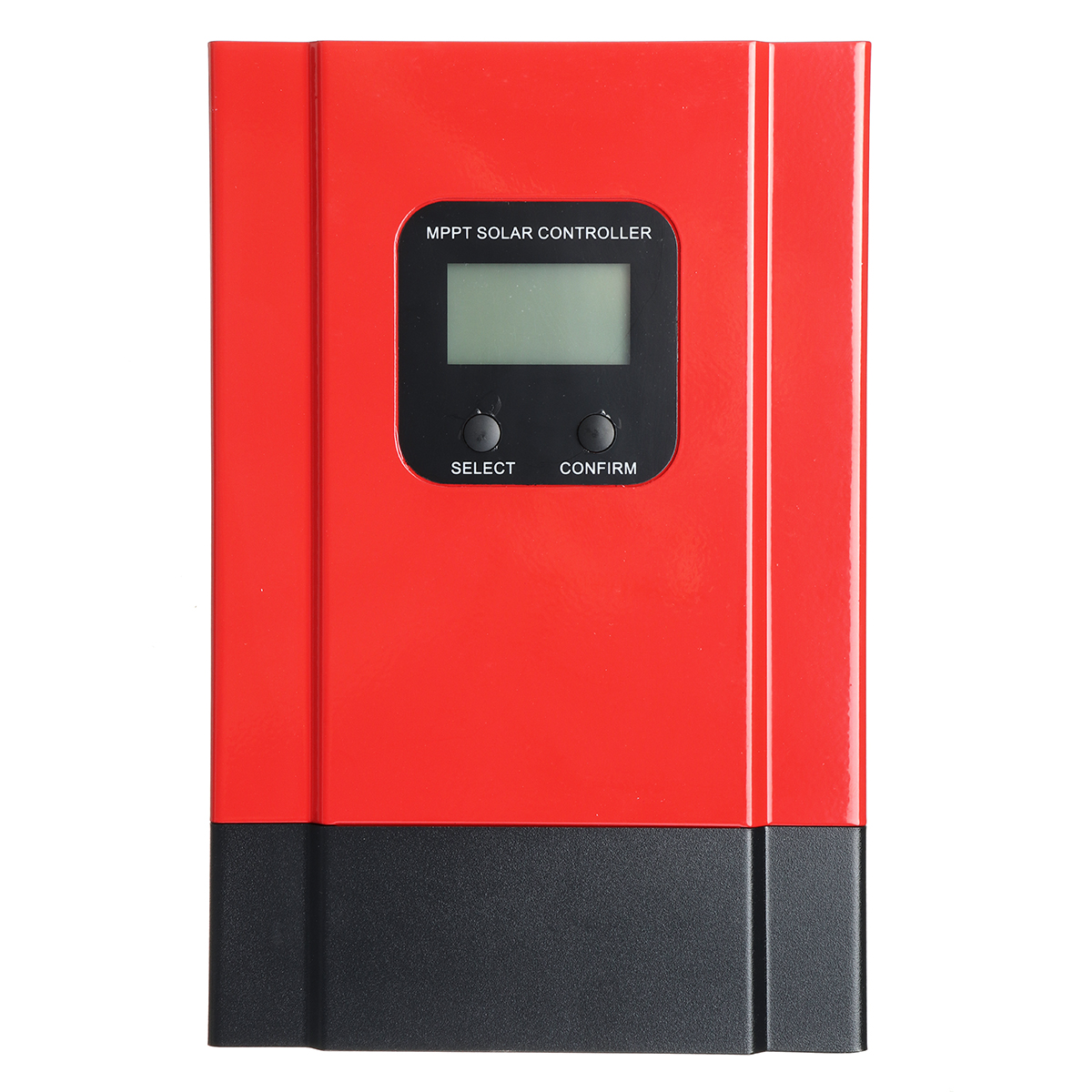

6. Most information could be provide by LCD like: model No., PV input voltage, battery type, battery voltage, charging current, charging power, working status and so on. Also customer's information like company name, website and logo can be added into Solar Eagle software.
7. RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.
8. CE, RoHS, FCC certifications approved. We can help clients to approve other certifications.

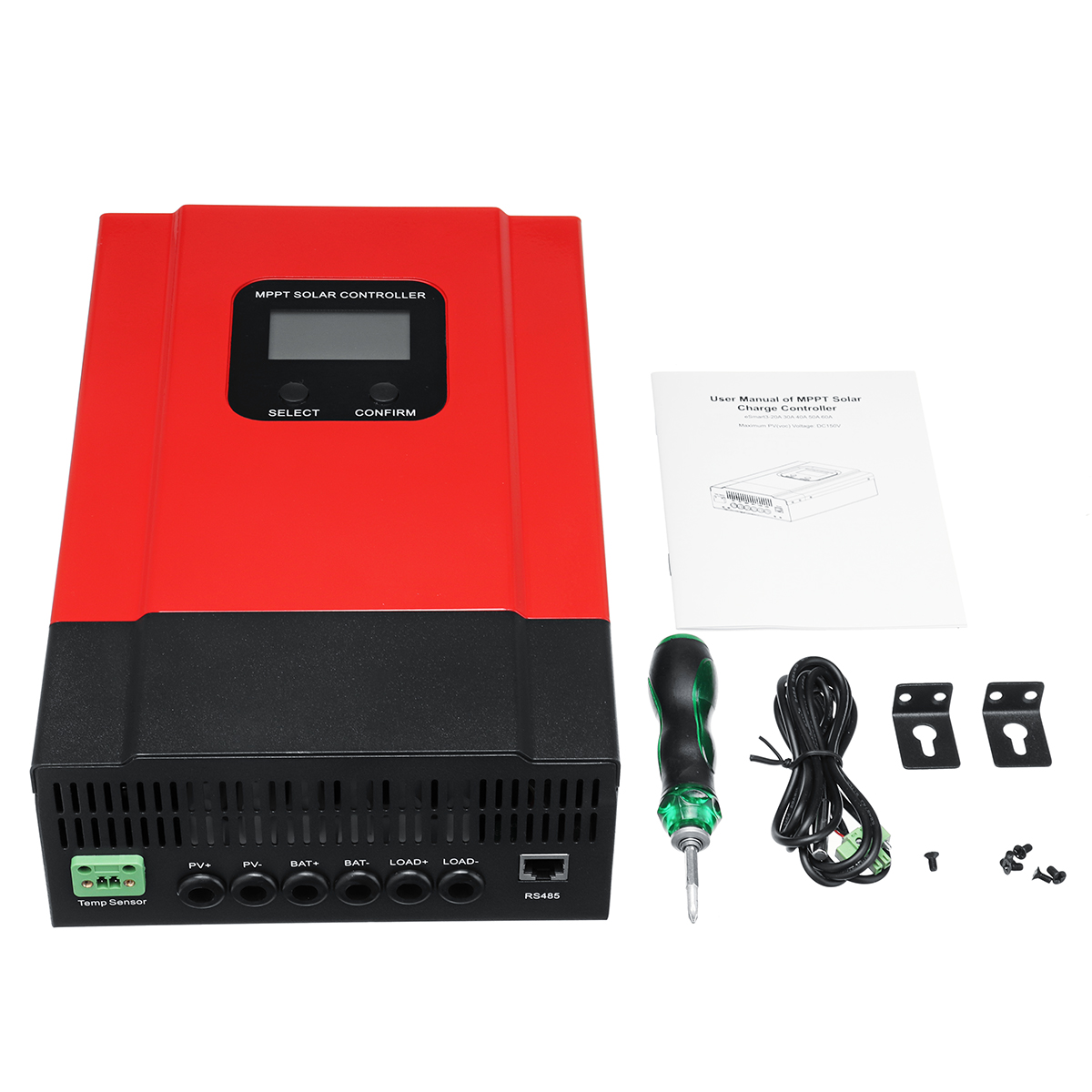

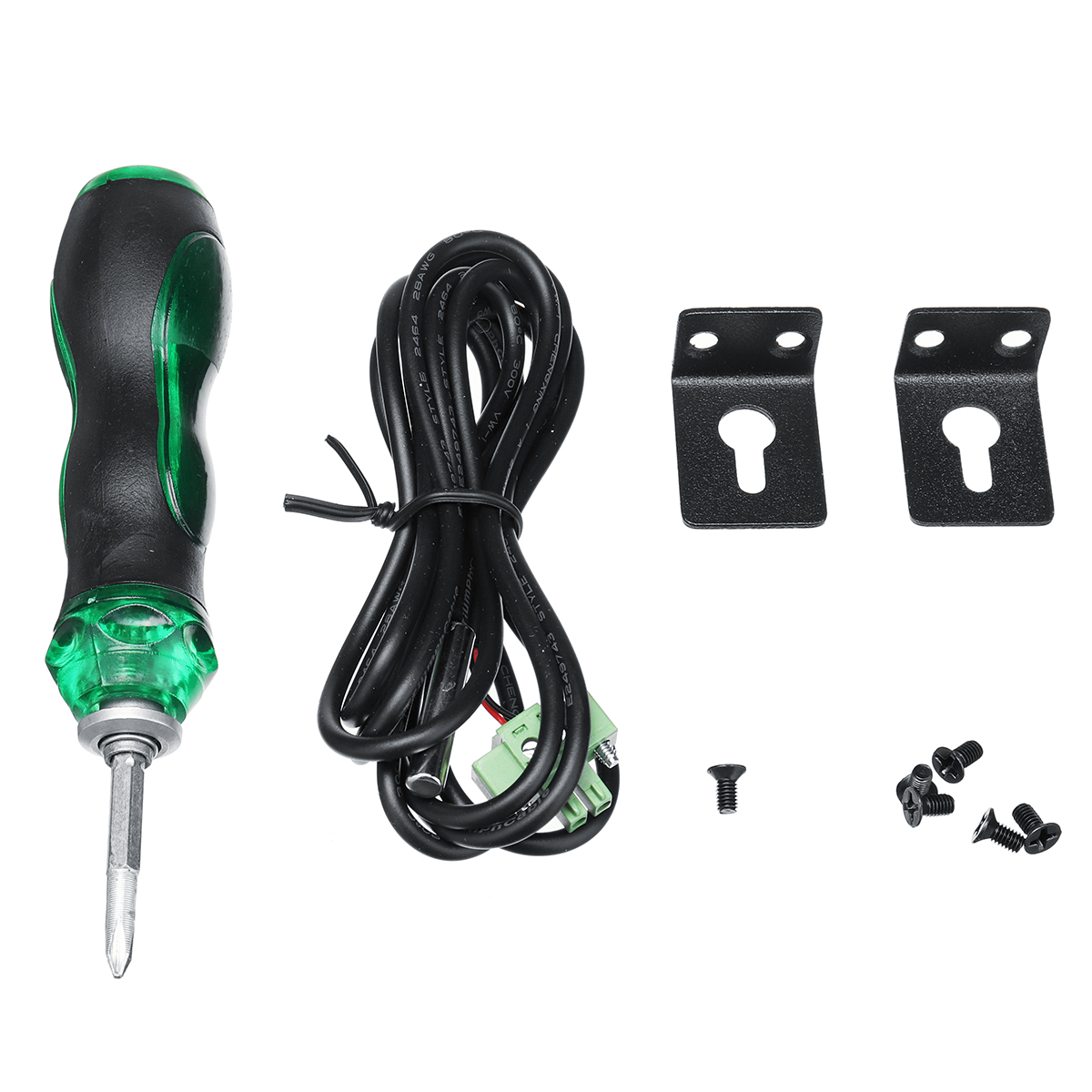

Package Included:
1x MPPT Solar Controller
1x Connected Cable
1x Screwdriver
2x Brackets
6x Screws
1x User Manual
