709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine

709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
709AD 2.2KW 110V/220V Spot Welder High Power Battery Digital Mobile Soldering Welding Machine 18650 Pulse Spot Weld Machine
  • Stock: In Stock
  • Model: ST22008051
  • SKU: ST22008051
$317.39
Ex Tax: $317.39

Available Options

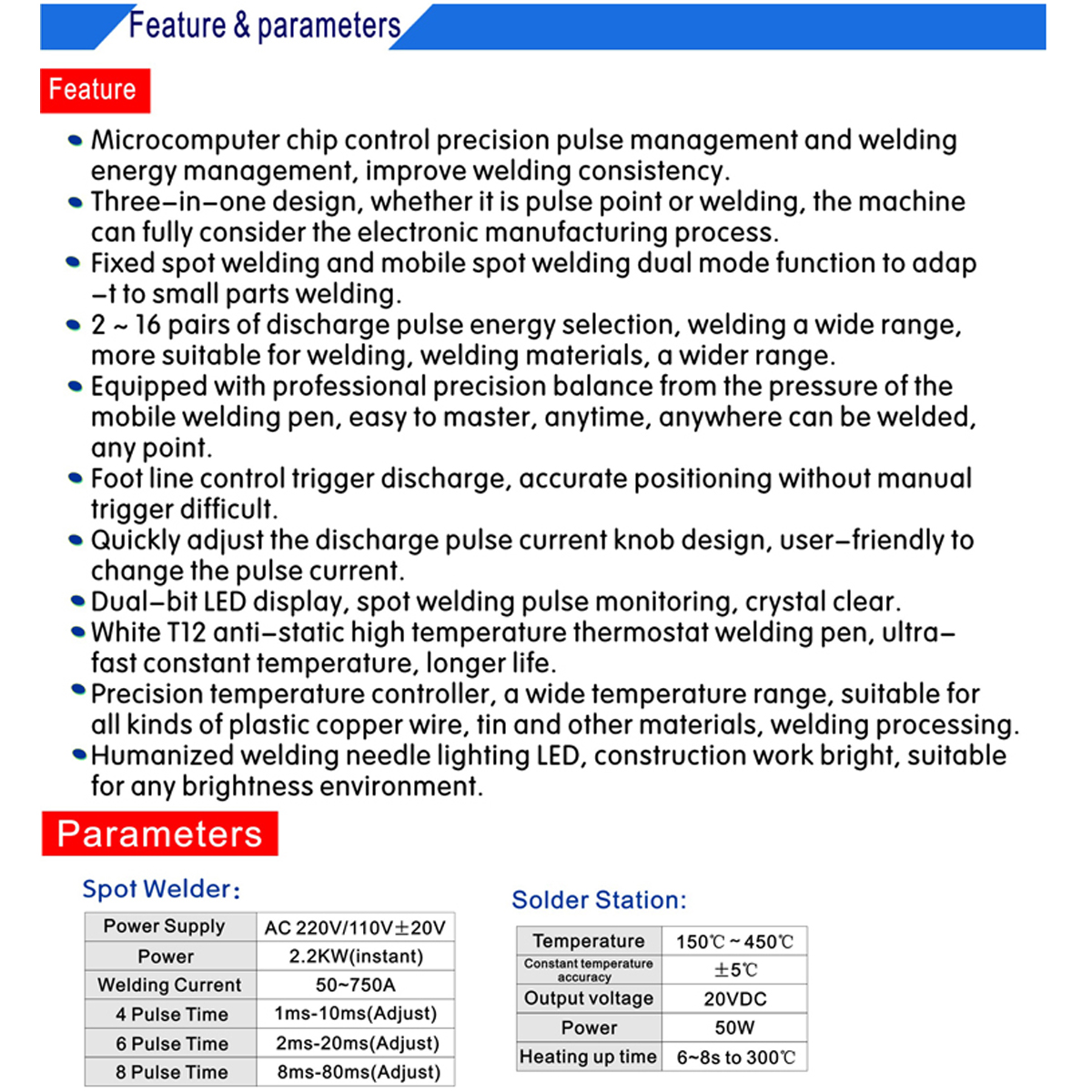

Specification:

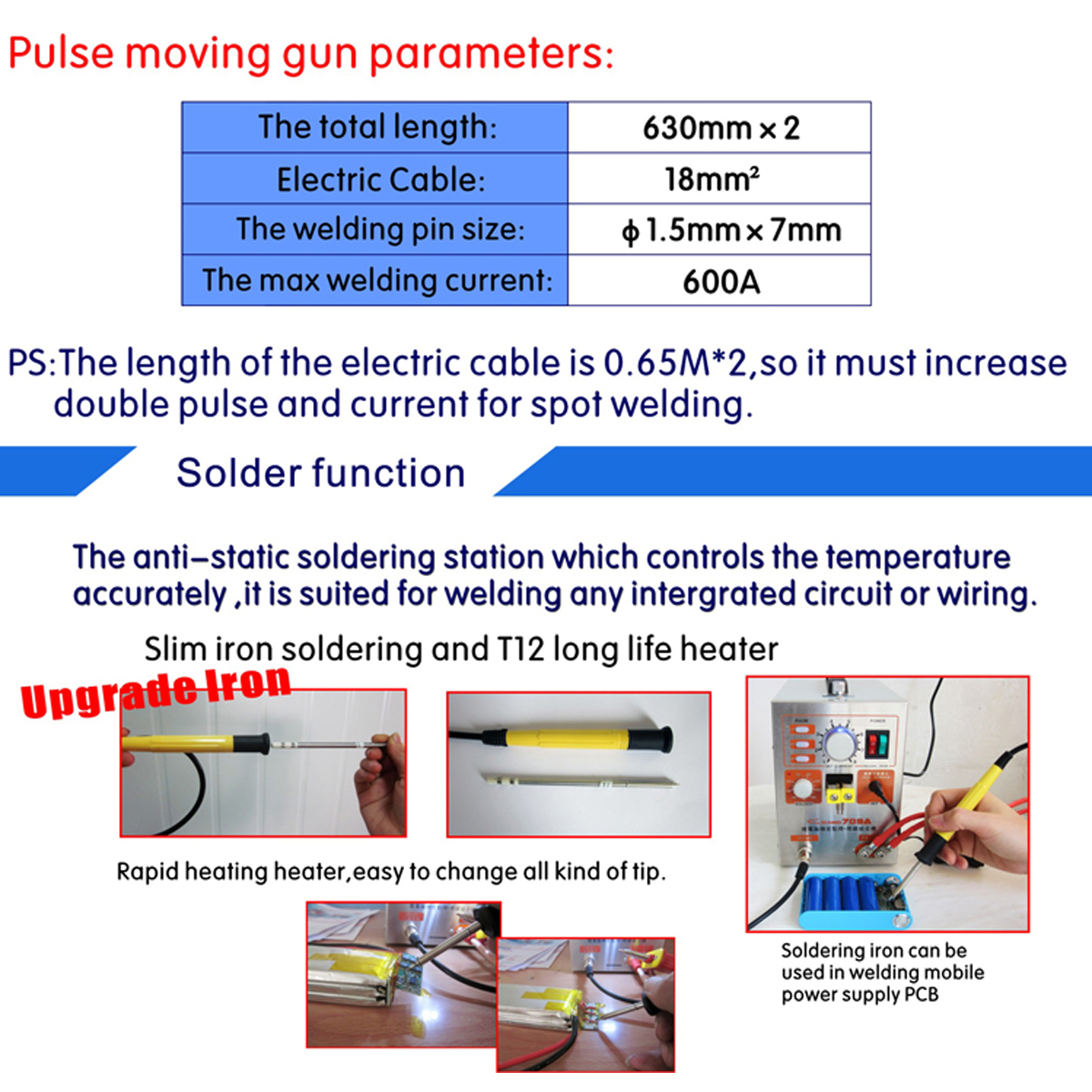

Pulse mobile soldering part:
Soldering pen and cable length: 570mm x 2
cable sectional area: 18mm x 2
welding needle size: 1.5mm x 7mm
the largest welding pulse current: 600A
Thermostat soldering station part:
Temperature: 150 to 450℃
constant temperature precision :+-5
Power: 50W
soldering station ouput Output voltage: 20VDC
heating up time: 6-8s to 300
Spot-welder part:
Supply voltage: AC120V 220V±20V
Power: 2.2KW (Instantaneous)
Current: 50-600A

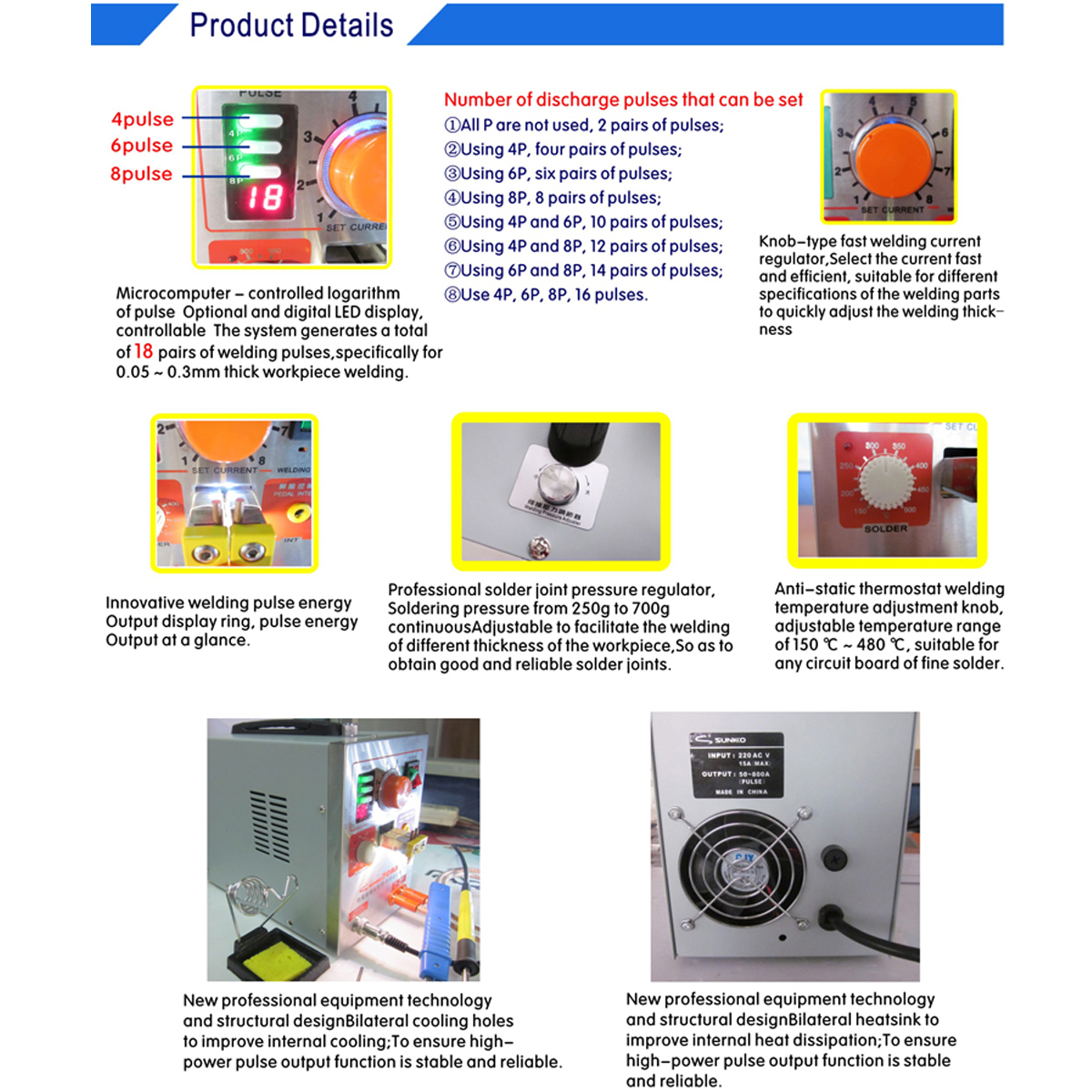

Time of double pulse: 1~10ms (adjustable)
Time of four pulses: 2~20ms (adjustable)
Time of eight pulses: 8~80ms (adjustable)

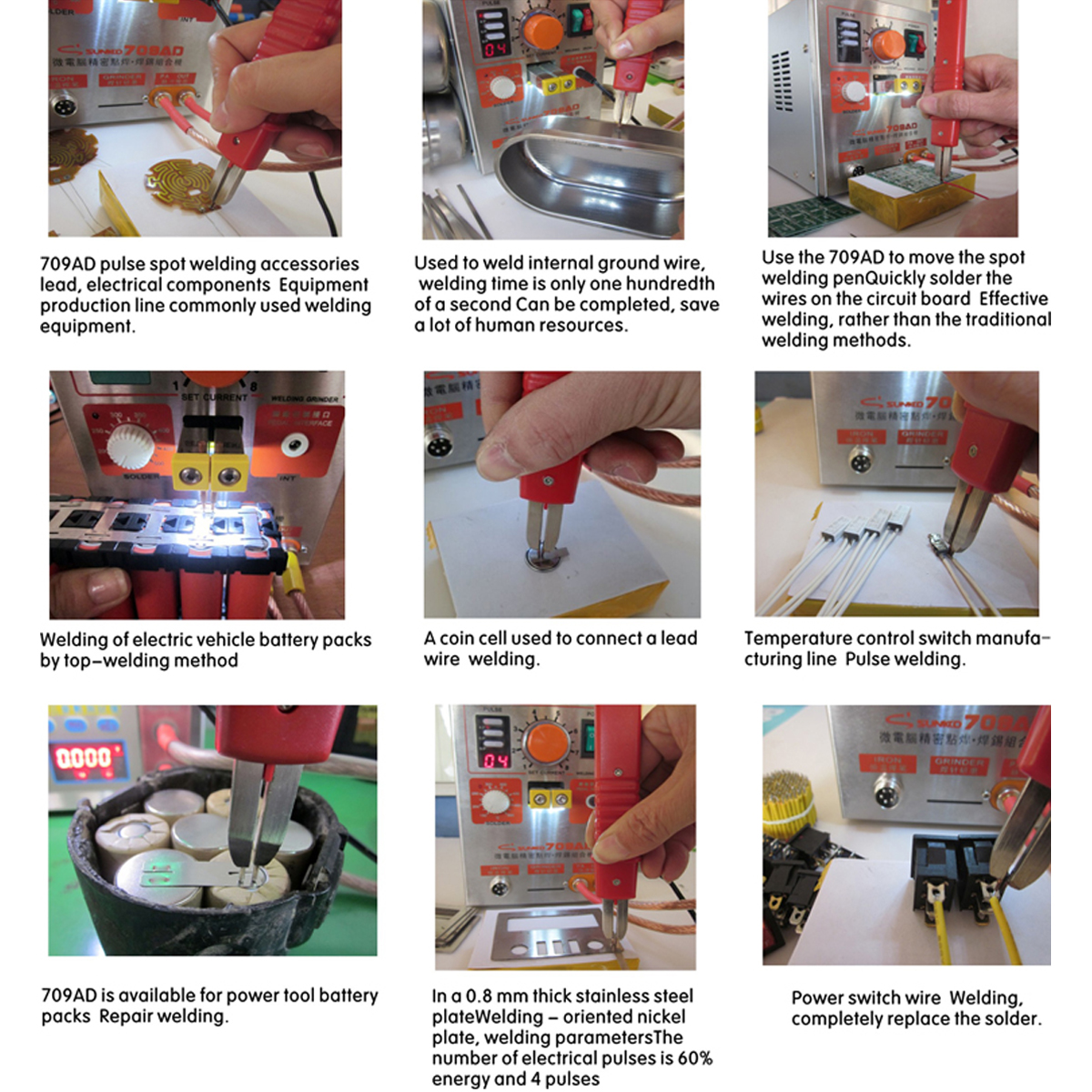

Application:

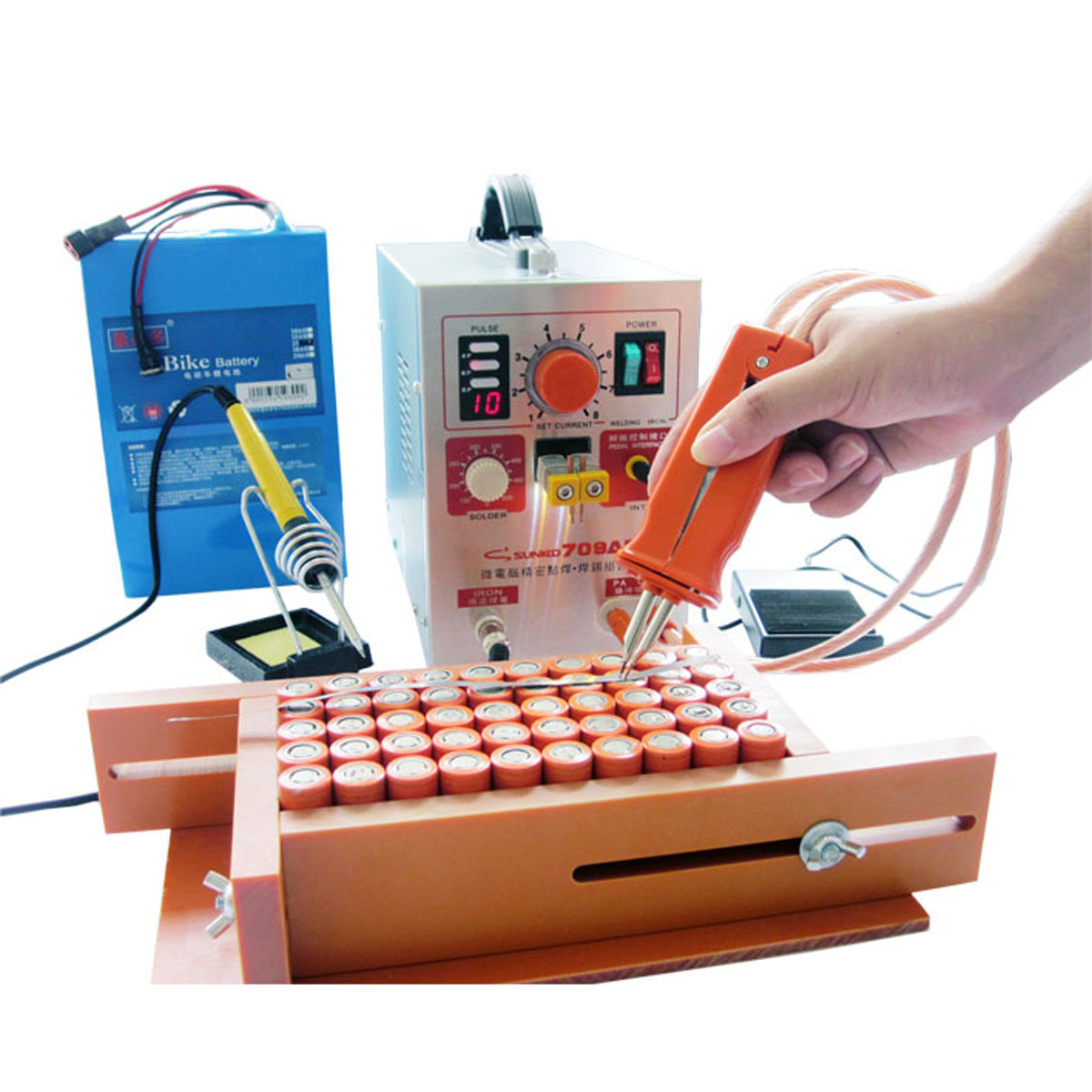

Lead sheets of rechargeable battery can be welding rapidly.
The production,installation,welding of lithium battery or mobile power.
The welding of lead sheets and wires from metal parts.

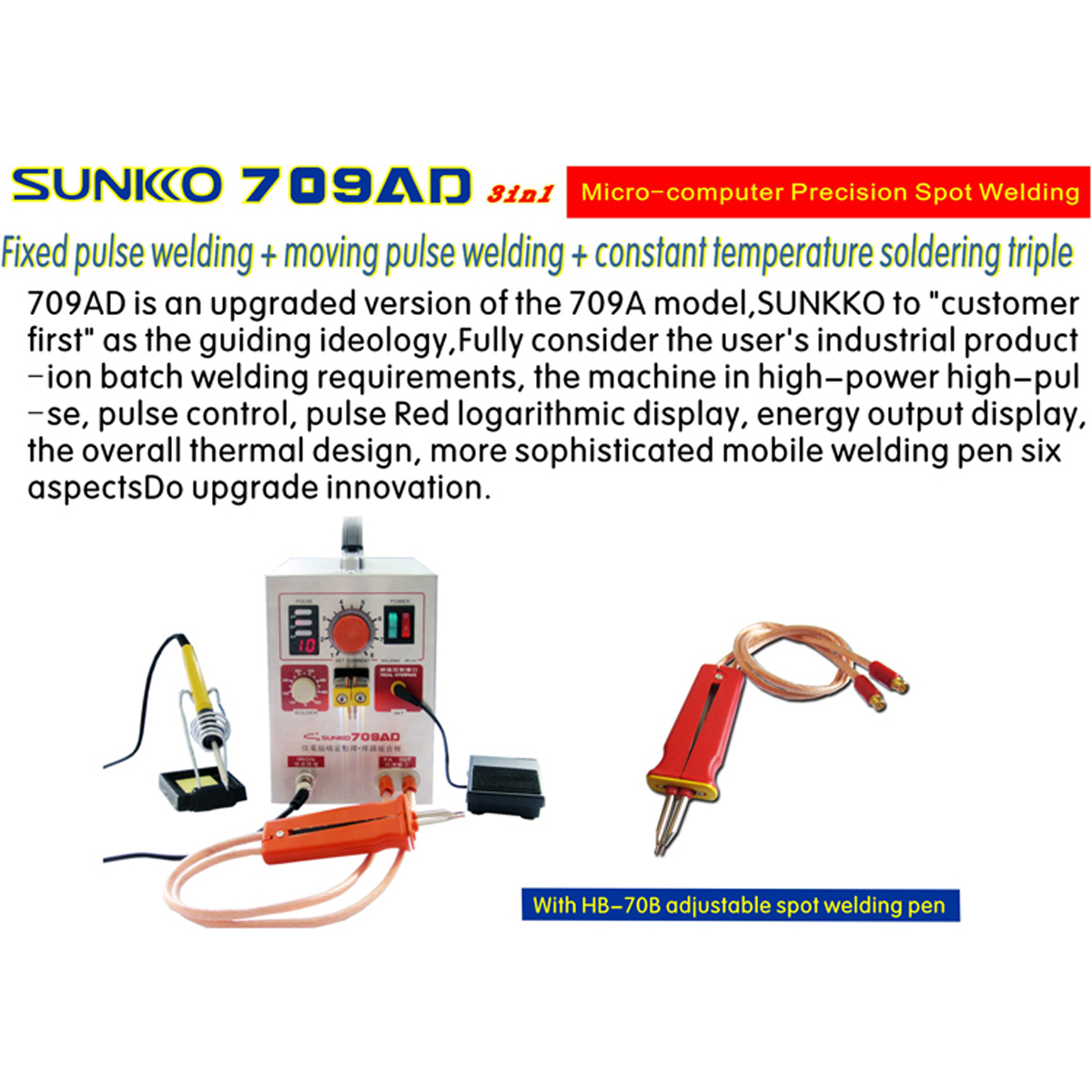

The difference between the 709A
1. 709AD with pulse display.
2. 709AD fixed spot welding distance, but 709A can adjust spot welding distance.

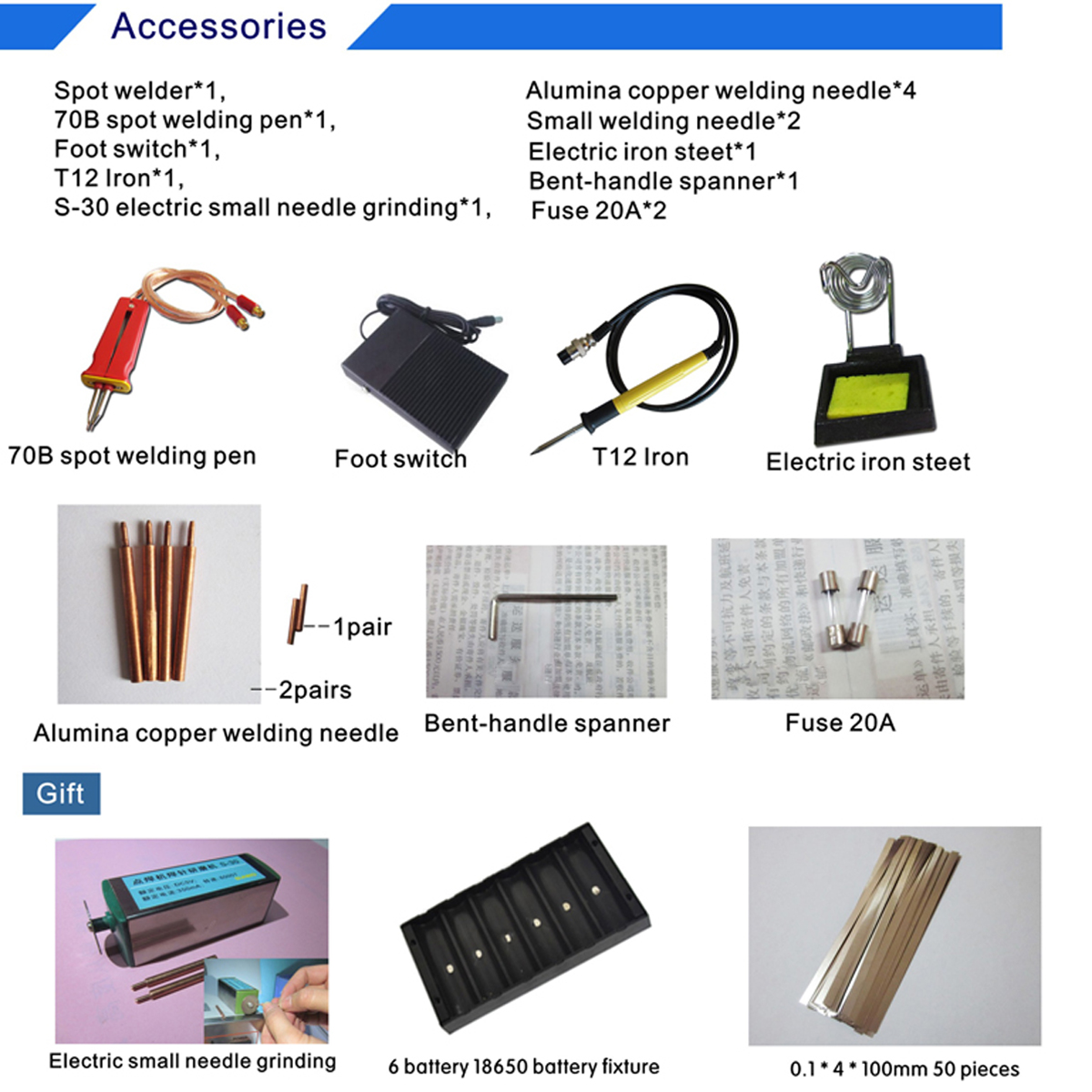

Package Included:
1 x

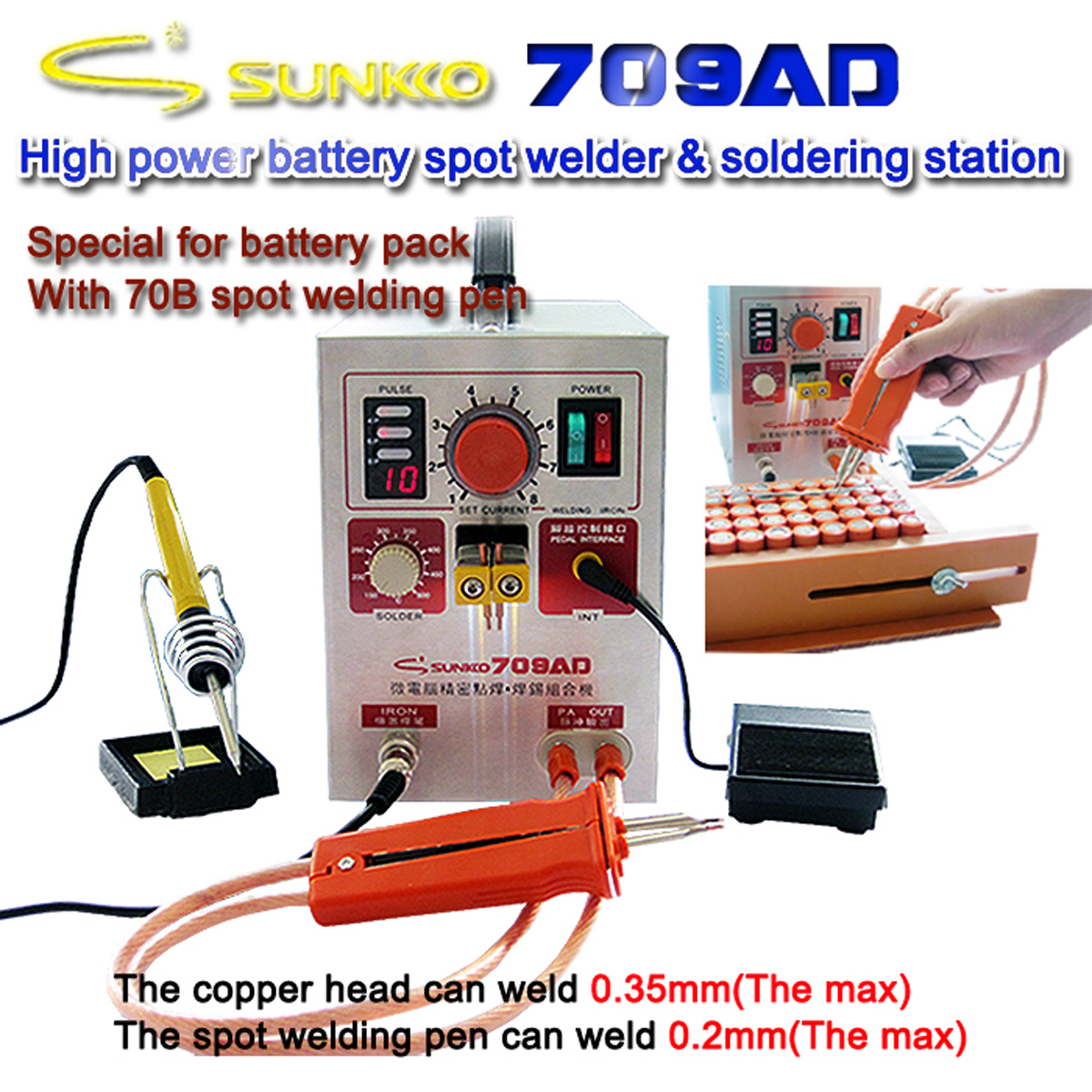

SUNKKO 709AD 2.2KW 110V/220V Spot Welder


Detail Pictures:


SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-1

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-2

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-3

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-4

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-5

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-6

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-7

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-8

SUNKKO-709AD-22KW-110V220V-Spot-Welder-High-Power-Battery-Digital-Mobile-Soldering-Welding-Machine-1-1479650-9
