72x56x19.2mm German Version 17mm Shaft Length DIY Mute Clock Movement Three Sets Hands Clock Mechanism Repair Kit

Description:
The clock movement repair kit is ideal for replacing defective units or for creating your own personalized clock projects.

Specification: Material: Plastic
Color: Black
Battery: Not Included
Shaft Length: 17mm (Screw 9.7mm)
Hour Hand Length: 70/69.5/59mm
Minute Hand Length: 92/93/86mm
Second Hand Length: 90/90/90mm
Clock Movement Sizes: 72x56x19.2mm
Crystal Frequency: 77.5KHz
Operating Voltage: 1.25V to 1.7V
Working Temperature: -5℃-55℃
Storage Temperature: -20℃-70℃
Average Power Consumption Current: Under 175uA at 1.5V
Receiving Current: <105uA
Receiving Times: 12x/day
Applicable Clock Size: 6mm Thickness

Features: 1. A quartz crystal controller clock movement with hour, minute and second hands.
2. Ideal for replacing defective units or for creating your own personalized clock projects.
3. Great for repairing, replacing or making a clock.
4. German wireless motor core, it automatically receives local time locally.
5. The quartz clock movement is German Version and only for European region.
6. Comes with 3 sets of hour hand, minute hand and second hand, you can choose as your requirement.

Instructions: 1. Fix the movement on the product to be installed.
2. It will be installed in accordance with the standard 12 points.
3. Pull out the positioning pin behind the movement and then install the battery.
(Do not install the battery and then unplug the locating pin)

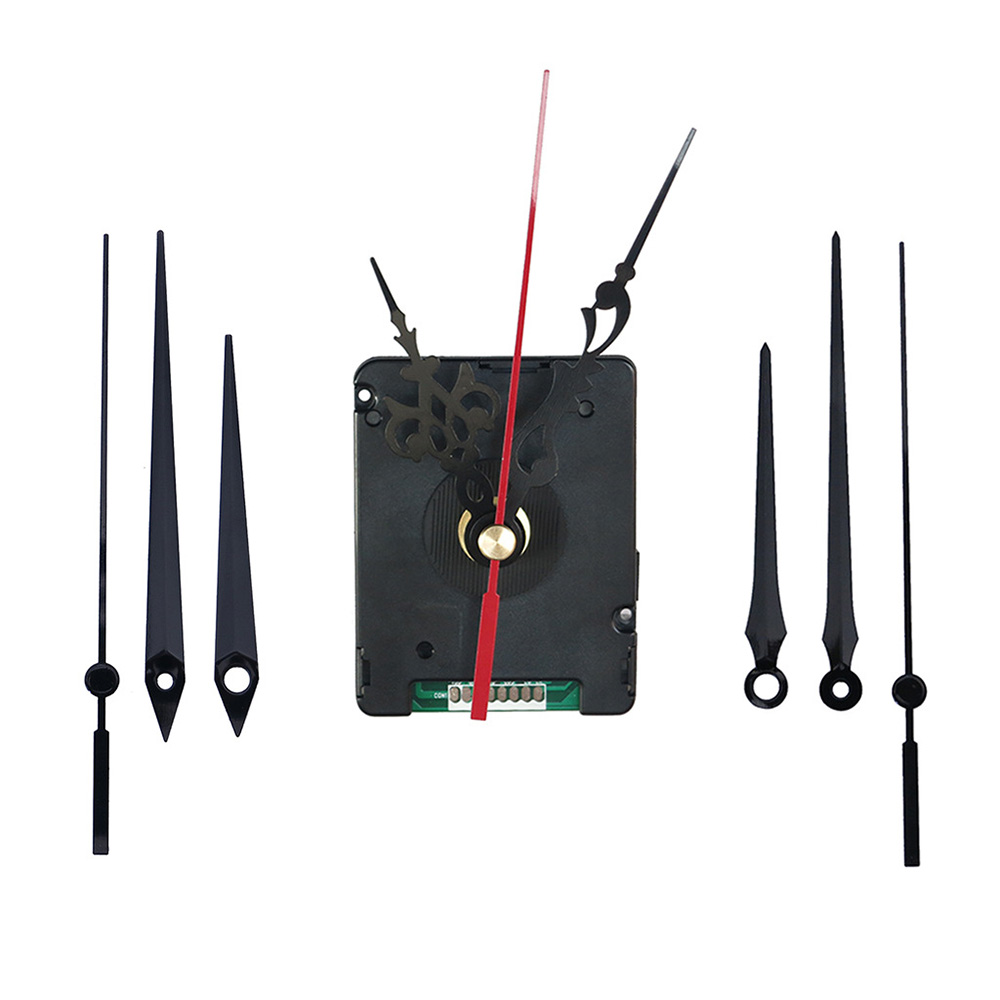

Package Included: 1 x Quartz Clock
3 x Hour Hands
3 x Minute Hands
3 x Second Hands
(The Batteries not Included)
