- Stock: In Stock
- Model: ST22001199
- SKU: ST22001199
Specifications:
Item Name: Anger 75X v2 whoop
Wheelbase: 75mm
Size: 106x98x 53mm

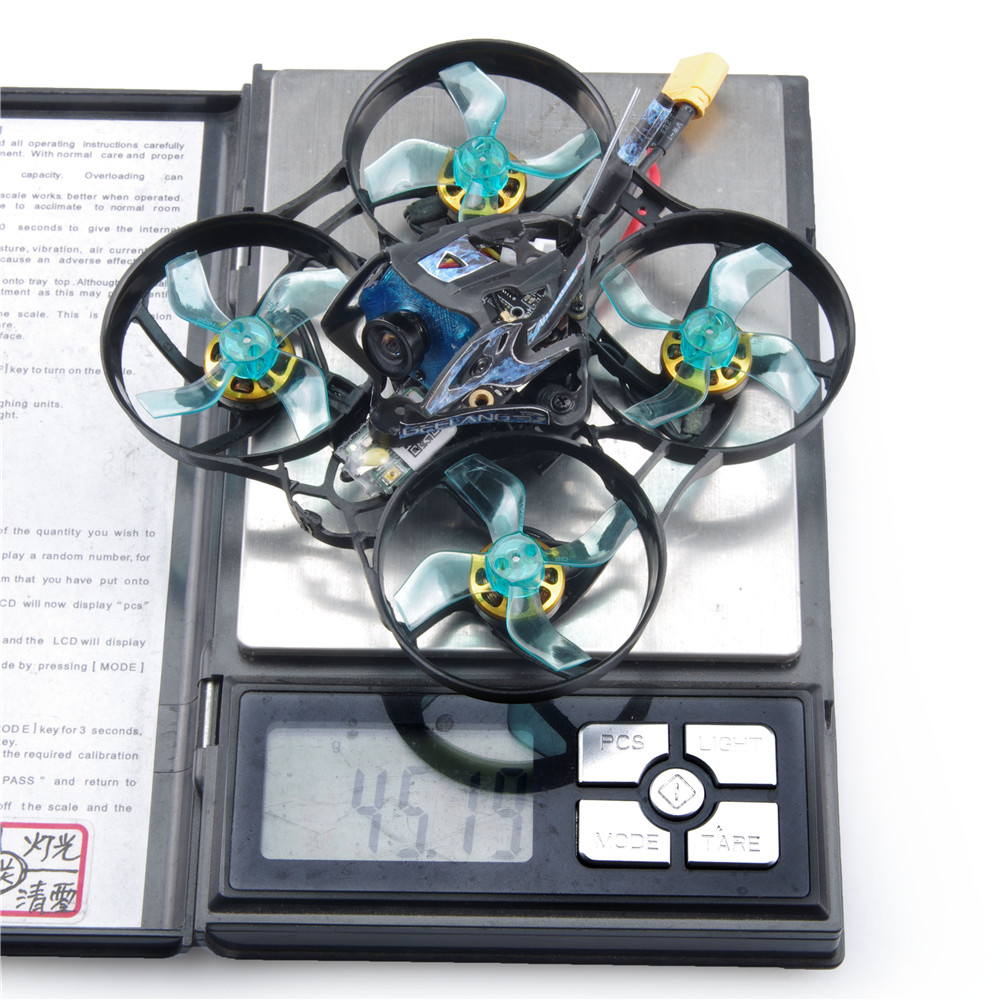

Weight: 46g (without battery)
Weight: 76g (with Original 4s 260mah Lipo Battery)
specifications:
Motor Mode：GL1202 KV6900
Stator specifications：D12 * H2 0.2mm Kawasaki
Configu-ration: 9N12P
Stator Diamter: 12mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len): Φ13.8mm*15.5mm
Magent specifications: N52H
Shift specifications: 2mm High strength steel
Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
WindingSpecifications: 180℃ Class Multiple oxygen-free copper
Weight(g):3.7g
No.of Cells(Lipo)：3S-4S
Flight controller:
Flight controller：SI-F4FC Three-in-one tower Version:MATEKF411
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 21 * 21MM
Power supply: 2-4S battery input (DC 7-17V)
Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 480
Built-in 5V 2A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 12A continuous peak 13A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: G_H_30_REV16_7.HEX
Default protocol: DSHOT600
Receiver:
External receiver matching:
compatible Frsky (ac900)SPI receiver
Frsky D16switchable
compatible futaba s-fhss switchable
Failsafe support
No ground interference (Transmitter and receiver 1 m from the ground): 300m
Frsky Mini XM EU version SPI receiver
Frsky D16switchable
No ground interference (Transmitter and receiver 1 m from the ground): 300m
compatible Flysky receiver Version SPI BUS receiver
Protocol：AFHDS-2A
Channels：14ch (AFHDS-2A)
No ground interference (Transmitter and receiver 1 m from the ground): 300m
Failsafe support
spektrum External receiver (DSM2 DSMX)
Power Input：3.3-5V Compatible
compatible ：DSM-X(stand by DSM2)Automatic retrieval
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.
5.8g vtx transmitter:
VTX Output power：25~200mw switchable
Frequency：40CH
Input voltage: 3.2V- 5.2V
Current consumption: 320mA(type)
Power switching: third gear(25MW 、 100MW 、200MW)
Antenna: RG178s antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight:1.7g
Camera:
GL950PRO: 1/4 COMS sensor
Horizontal: 800TVL 800x600
TV system: ntsc 4:3 non-changeable
Power Input: DC 5-12V
FOV：F1.2
Colorful：0.1Lux(F1.2,50IRE,AGC ON)
Blackandwhite0.01Lux(F1.2,50IRE,AGCON)
Lens:m7
Signal to noise ratio:>50dB
Dynamic Range：>60dB
White balance：Auto white balance
image：color
BLC：stand by
Video format:NTSC
Weight:1.5g
Battery:
Lihv Battery Capacity:260mAh
Voltage:15.2v
Maximum charging voltage：Single section4.35v Total 17.4v
Continuous Discharge Rate：40C
Instantaneous discharge rate：80C
Size：52mm x25mmx12mm
Weight：31g
Connector：XT30
Features:
After long-term debugging and testing, we call it "Violence 75 X." The structure is reliable, lightweight, and boldly matched to the 4s 260mah lithium battery, with satisfactory control and powerful output performance during flight. The indoor environment crossing performance is very good. The new 1202 motor supports 3-4 s of power. The potential is huge. si-f4fc Flight controller 2-4s Lipo compatible，Powerful and smoothly
GL950PRO Camera ready
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Flight controllers are more flexible with an external receiver combination
NO RX Version supports players to freely match the receiver。
compatible 3s-4s Lipo / LIHV

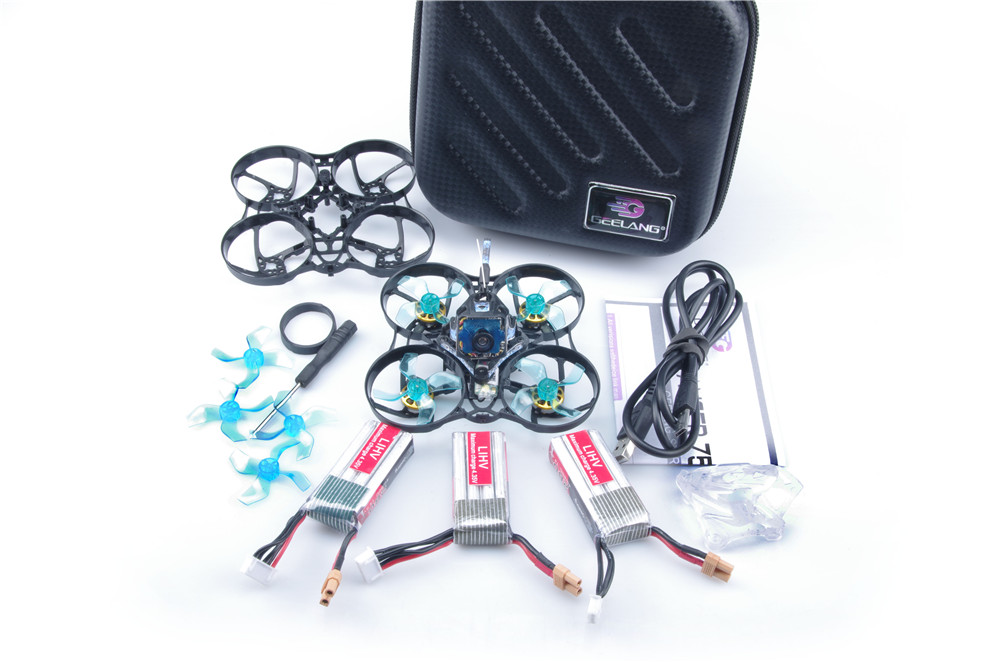

Package Included:
1 x Anger 75X V2 Racing Drone
3 x Batteries
1 x Bag
1 x Replacement Canopy
1 x Replacement Frame
4 x Propellers
1 x USB Cable
1 x Screwdriver
1 x Manual
