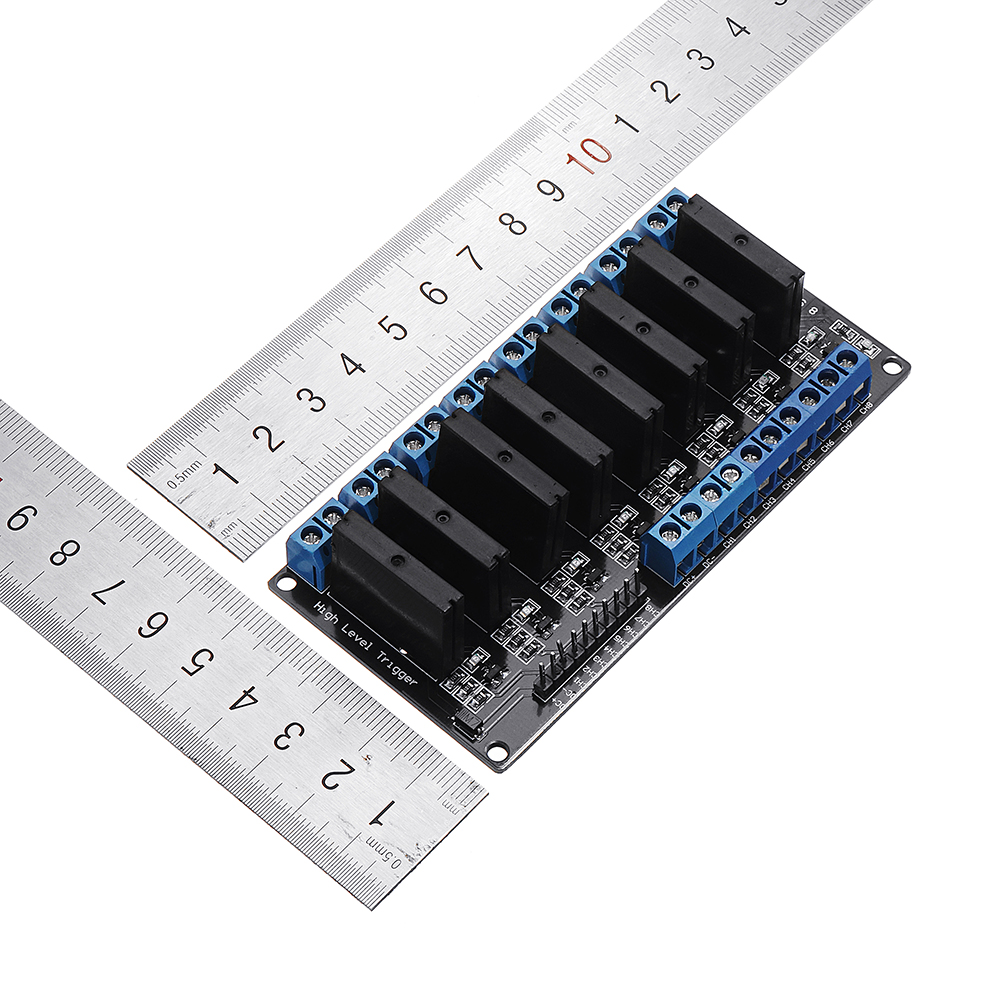

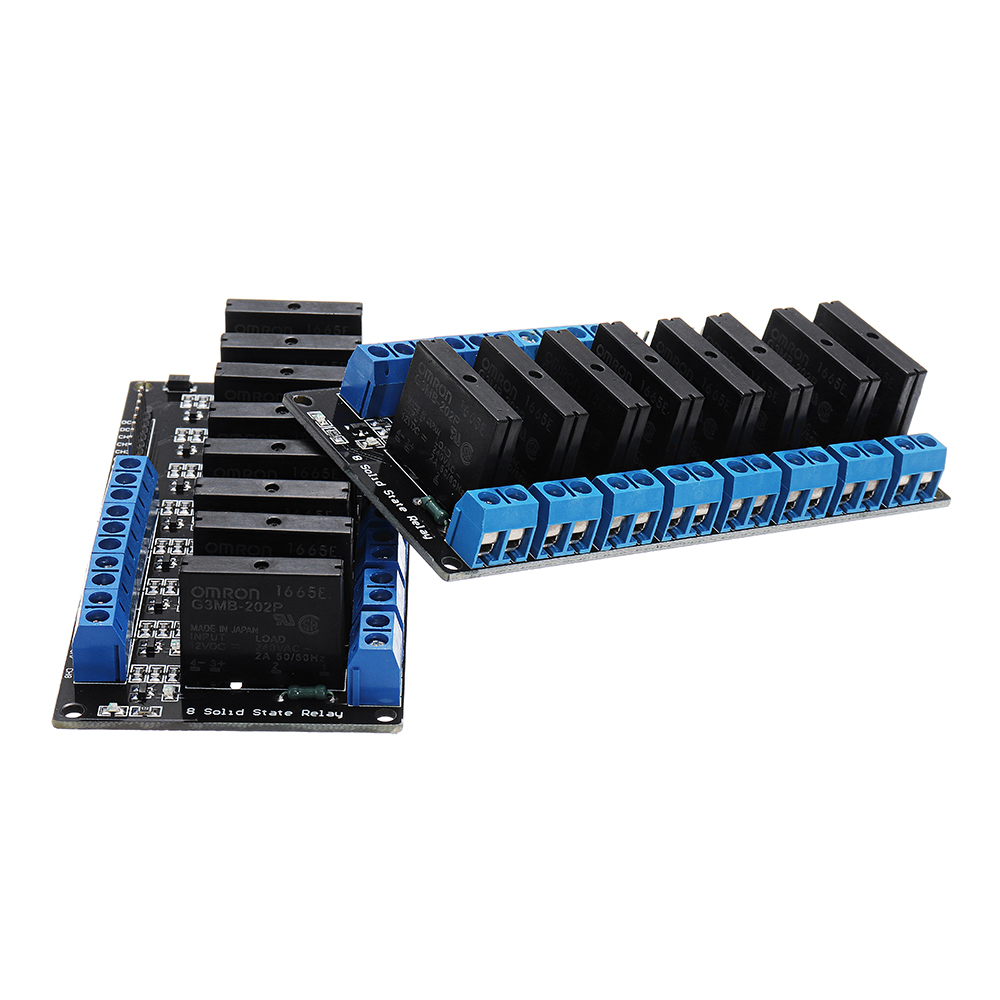

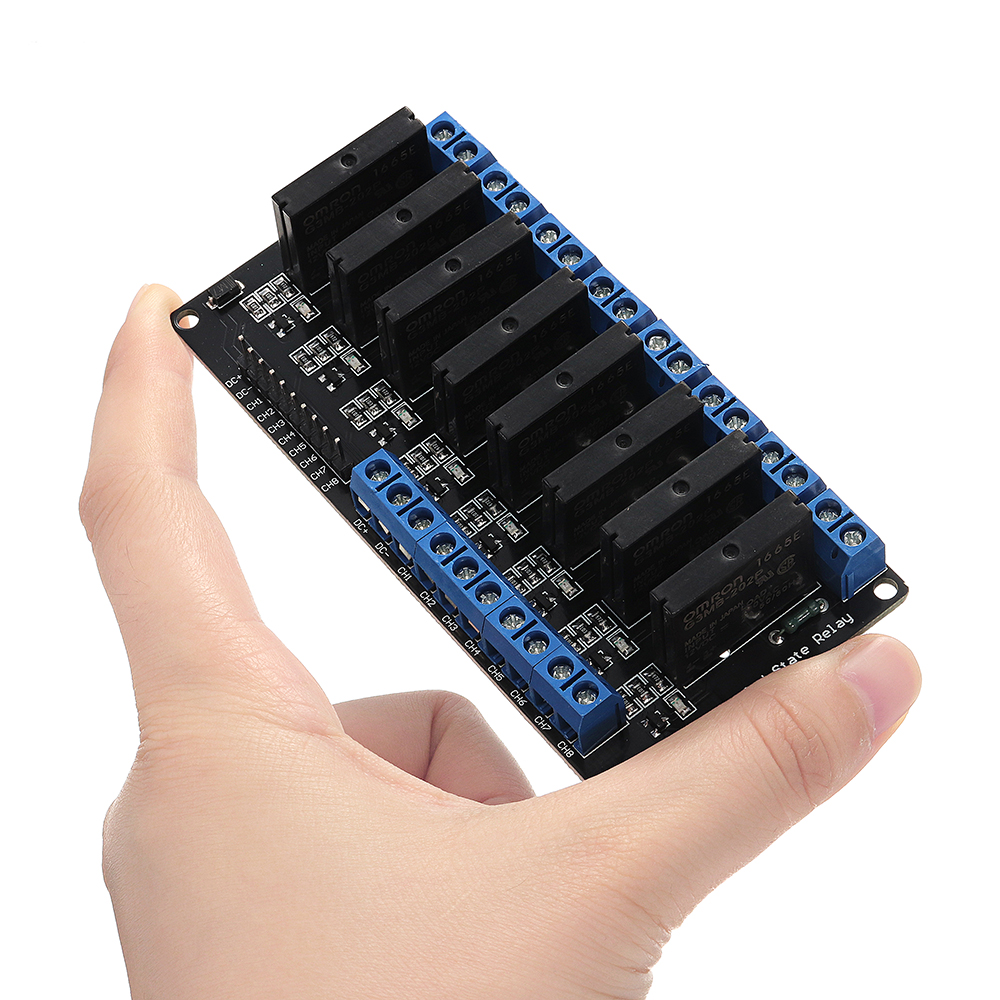

8 Channel DC 12V Relay Module Solid State High and low Level Trigger 240V2A
- Stock: In Stock
- Model: ST230045845
- SKU: ST230045845
$11.55
Ex Tax: $11.55
Specification:
Input Power Supply: 12V DC
Load Voltage: AC240V 2A
Maximum operating current: 90mA
Trigger mode: high level / low level
Input control signal voltage:
(0-2.5V low state relay OFF)
(3.3-5V state high relay ON)
Blue KF301 terminal connection control line is more convenient.

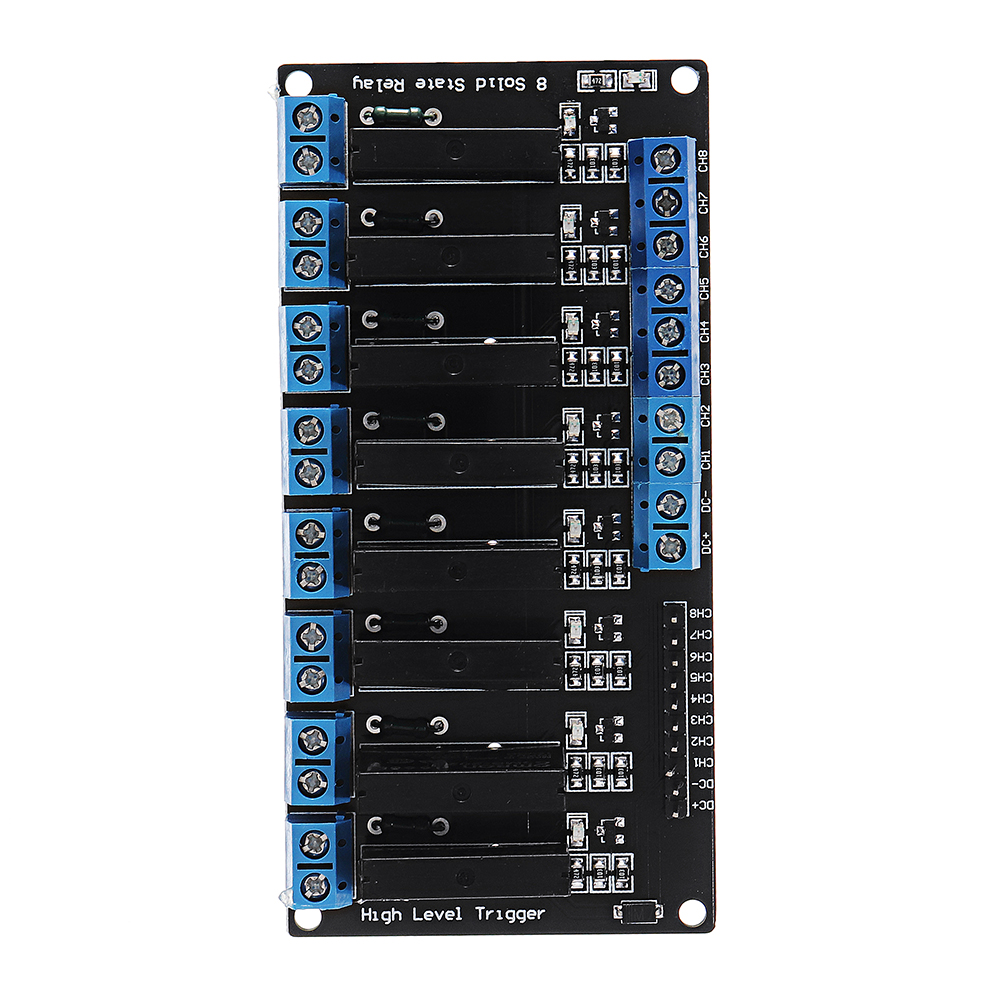

Module interface:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative

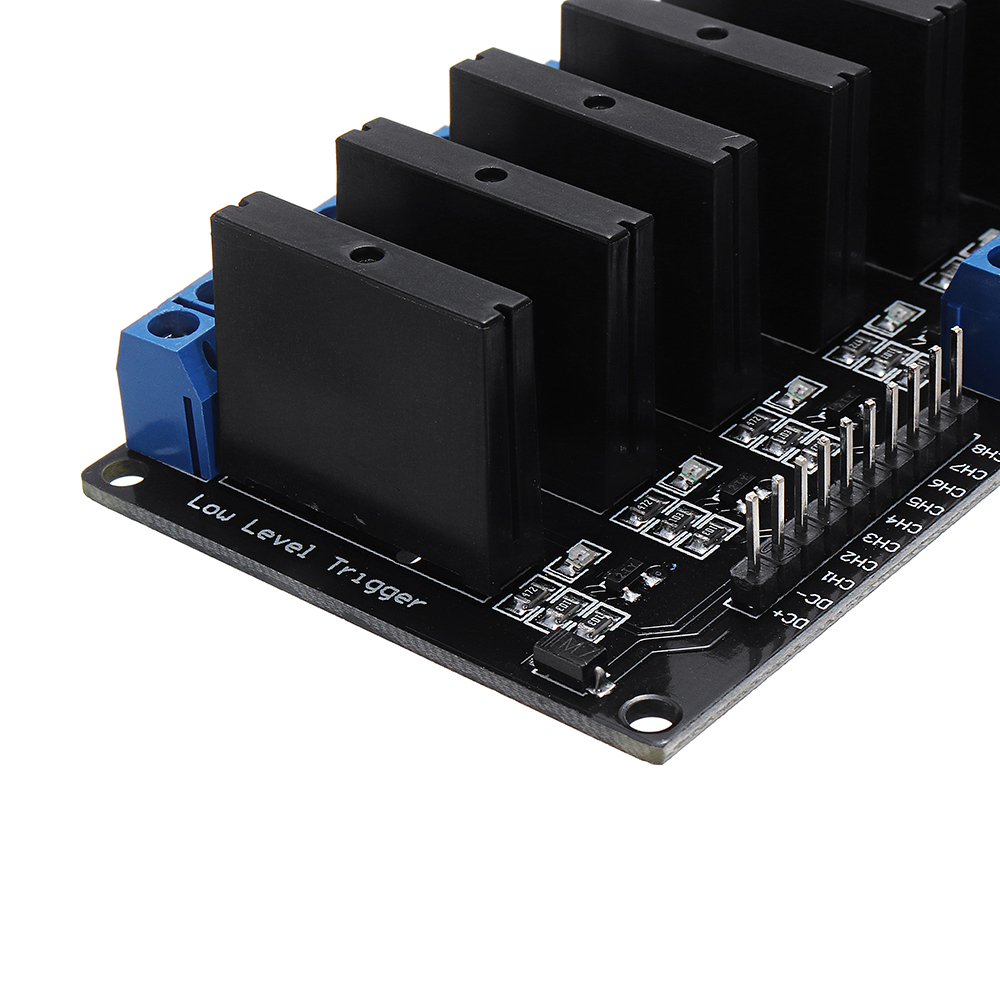

CH: Relay Module signal triggering end (Low level trigger effective)
Note: Power must be DC voltage and need to be consistent with the voltage relay
Package Included:
1x High Level / Low Level Relay
