8310D 3 in 1 220V/110V Multi-function Soldering Station Digital Display Hot Air Gun+Electric Soldering Iron+Preheat Station
- Stock: In Stock
- Model: ST22008336
- SKU: ST22008336
$262.51
Ex Tax: $262.51
Features:
1. Using the micro processor programmable PID temperature control technology, procedures to detect cycles every 20 milliseconds actual temperature heating element, and a quick correction. Back to temperature quickly, temperature stable. With LED display, accurate display preheat station / hot air gun / soldering iron temperature.
2. Preheat station is the use of glaze layers with high thermal effects, good thermal shock resistance of ceramics as a body, high-quality nickel-chromium alloy wire once sintering. It has a high thermal effect, integrity, good thermal stability, even heating, high dielectric strength, clean, convenient installation.
3. Air gun heater ceramic heater, heating wire wound on ceramic solid skeleton, heat quickly and evenly. Using an upgraded version of the fan, the wind than ordinary fan large, spiral out of the wind, long life!
4. Some imported iron core fever, rapid heating, temperature temperature, long life; anti-static design to prevent electrostatic damage to the delicate SMD components.
5. Each part of the machine has a self-test function of the device, all intelligent over-temperature, short circuit, open circuit, overload fault display and protection.
6. Preheat station use and simple operation, the card holder uses a sliding plate bearing technology, moves back and forth freely, durable, easy card board, while sliding bracket with fixing screws, card board stable and reliable.
Application:
1. For a variety of components desoldering as: SOIC, CHIP, QFP, PLCC, BGA, etc. (especially suitable for phone cable and cable seat desoldering).
2. For the heat shrink, drying, paint, except revolves, thawing, preheat, plastic welding.
Specification:
Model: 8310D
Type: LED digital display microcomputer
Input voltage: 220V / 50Hz
Weight: 6kg

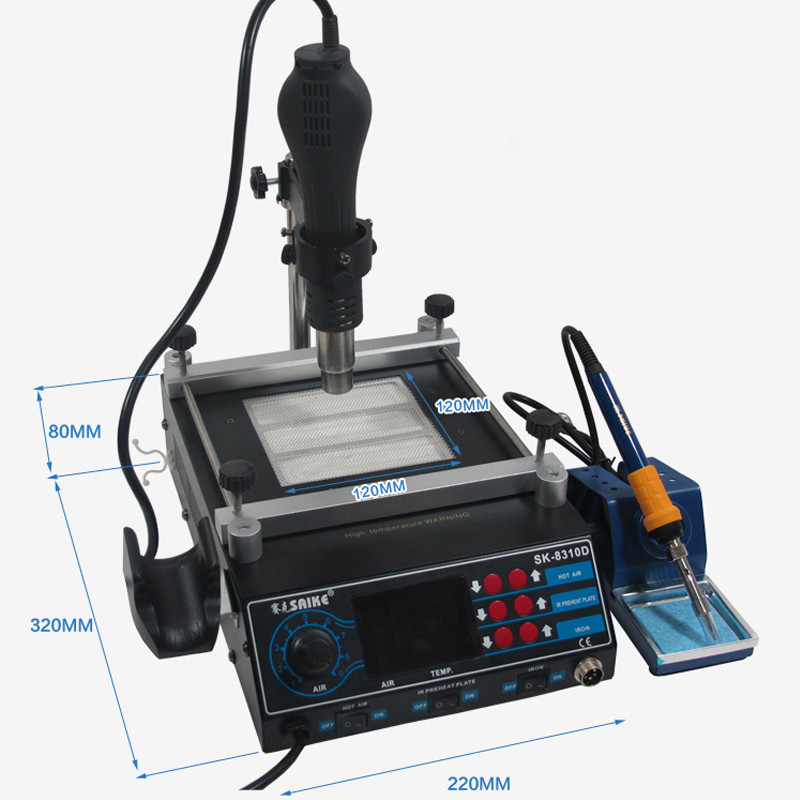

Case Size: 32cm (length) × 22cm (width) × 8cm (high)
Hot Air Gun Part
Operating voltage: AC220V / 50HZ
Power consumption: 650W
Heating element: ceramic heating core skeleton
Temperature range: 100℃ ~480℃
Display form: LED Digital
Temperature stability: ± 1℃
Type of pump flow: brushless fan soft wind
Air flow: 120 l / min (maximum)
Noise: Less than 45db
Handle length: 100cm (including handle lines)
Iron Part
Operating voltage: AC220V / 50HZ
Output voltage: AC24V
Power consumption: 60W
Heating element: A1321 ceramic heater
Temperature range: 200℃~480℃
Display form: LED Digital
Temperature stability: ± 2℃ (no load)
Handle length: 100cm (including handle lines)
Preheat Part:
Operating voltage: AC 220V / 50HZ
Power consumption: 500W
Temperature range: 50℃ ~400℃
Display form: LED Digital
Package included:
1 x Soldering Station
