8586 700W 2 in 1 ESD Soldering Station LED Digital Solder Iron Desoldering Station BGA Rework Solder Station Hot Air G-un
- Stock: In Stock
- Model: ST22008495
- Dimensions: 171.00mm x 100.00mm x 142.00mm
- SKU: ST22008495
$106.94
Ex Tax: $106.94
Description:
Package Included:
1 x 8586 700W 2 in 1 ESD Soldering Station
Detail Pictures:
This is a brand new 2 in 1 SMD Rework Soldering Station 8586. Alloy metal body with highquality silicone shell features elegant appearance and power saving. You can use hot air g-un and soldering iron separately, with no interference with each other.
Because of the handle with sensor switch, the system can quickly access operating mode while gripping handle. Meanwhile, the system will transfer to standby mode while handle released. Especially suitable for mounting and reworking SMD components by hand. Really a must have!
Features:
Hot air and hot iron 2in1 rework soldering station.
Extremely low noise and space saving design.

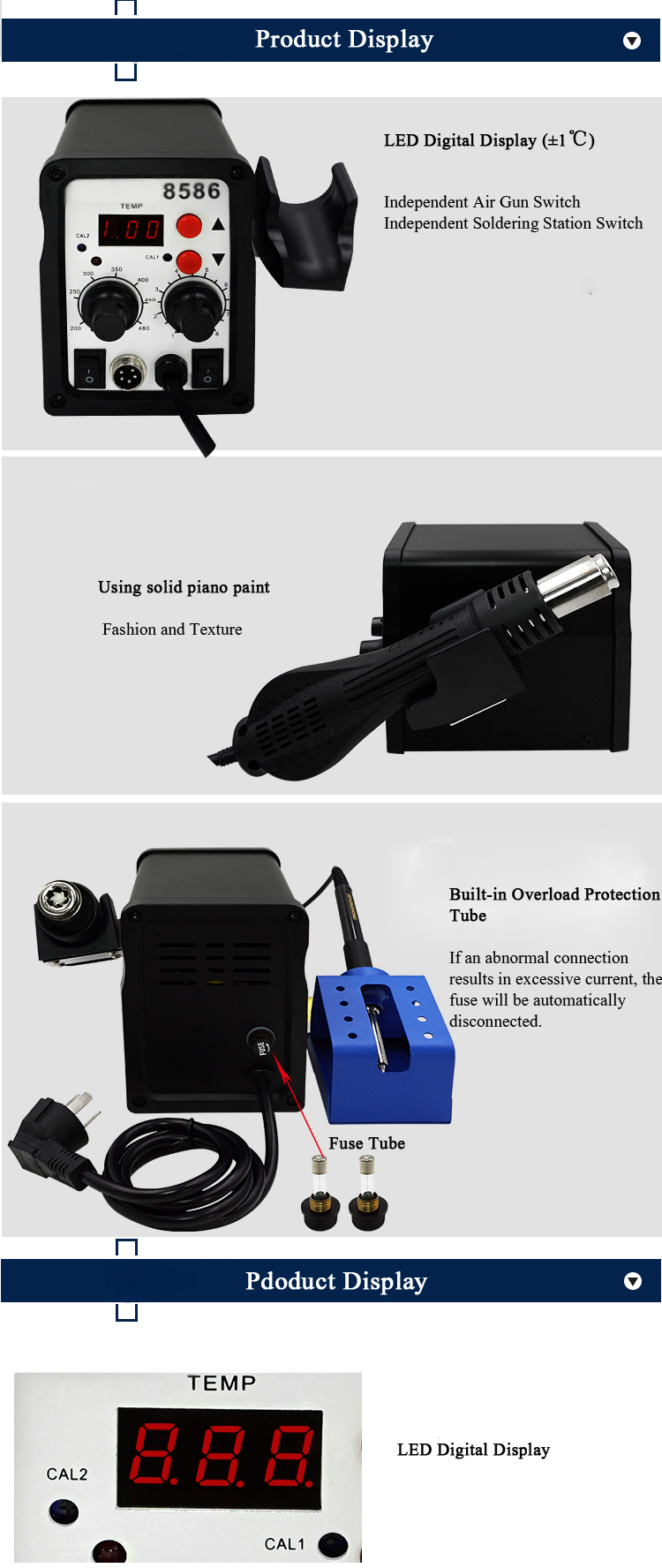

LCD digital displays to show precision temperature.
Microcomputer control, quick warming-up.
PID technology to enhance temperature stability.

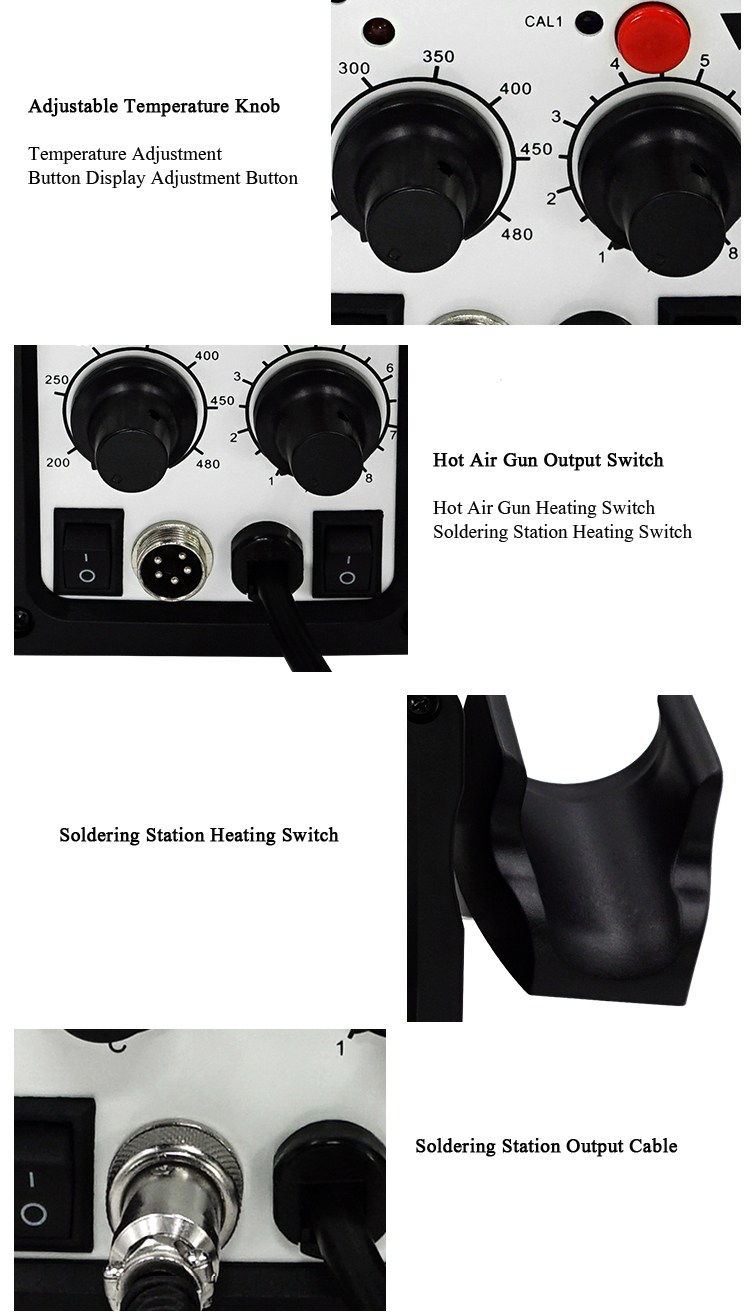

Adjust the airflow and temperature control rotation easily.

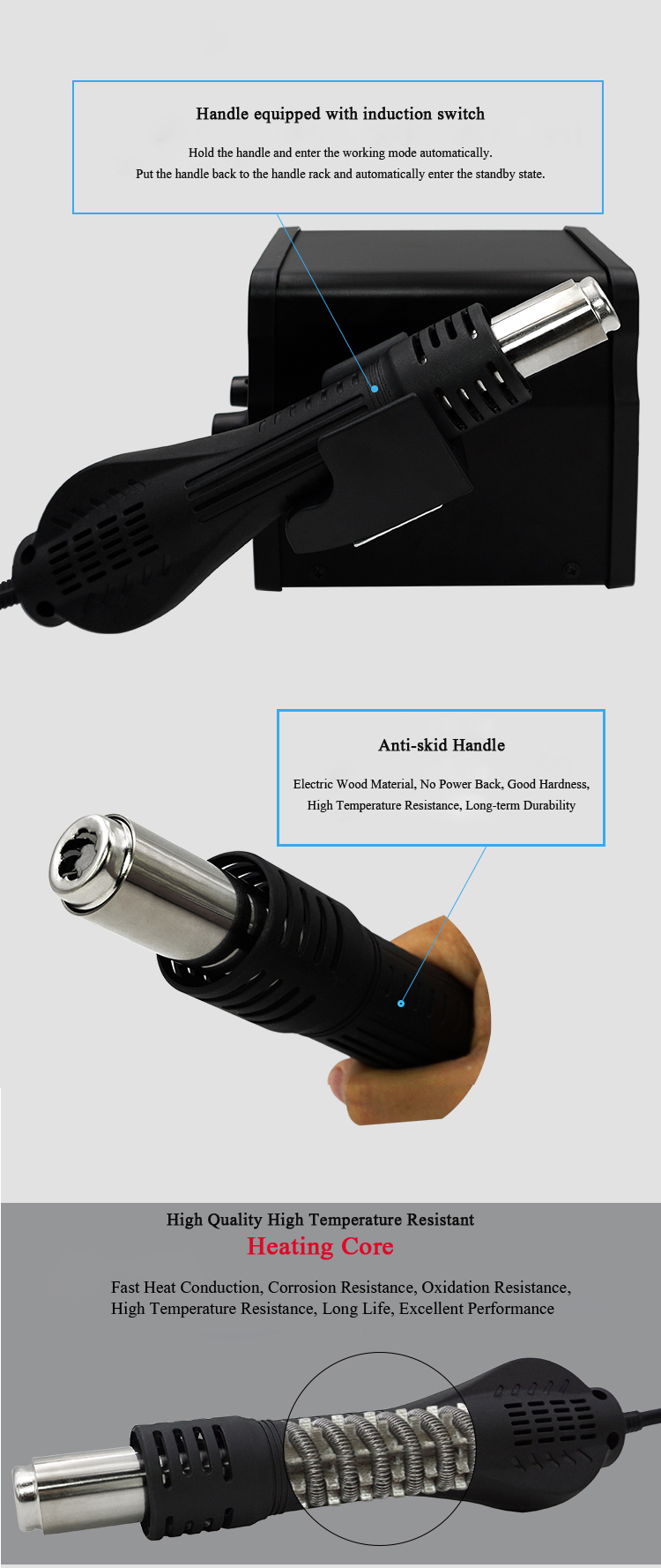

Handle with sensor switch features access operating mode when picks up or standby mode when lays down.
Automatic cooling function for effectively prolonging the heater's life and protecting the hot air g-un.
ESD design of soldering iron to protect sensitive components.

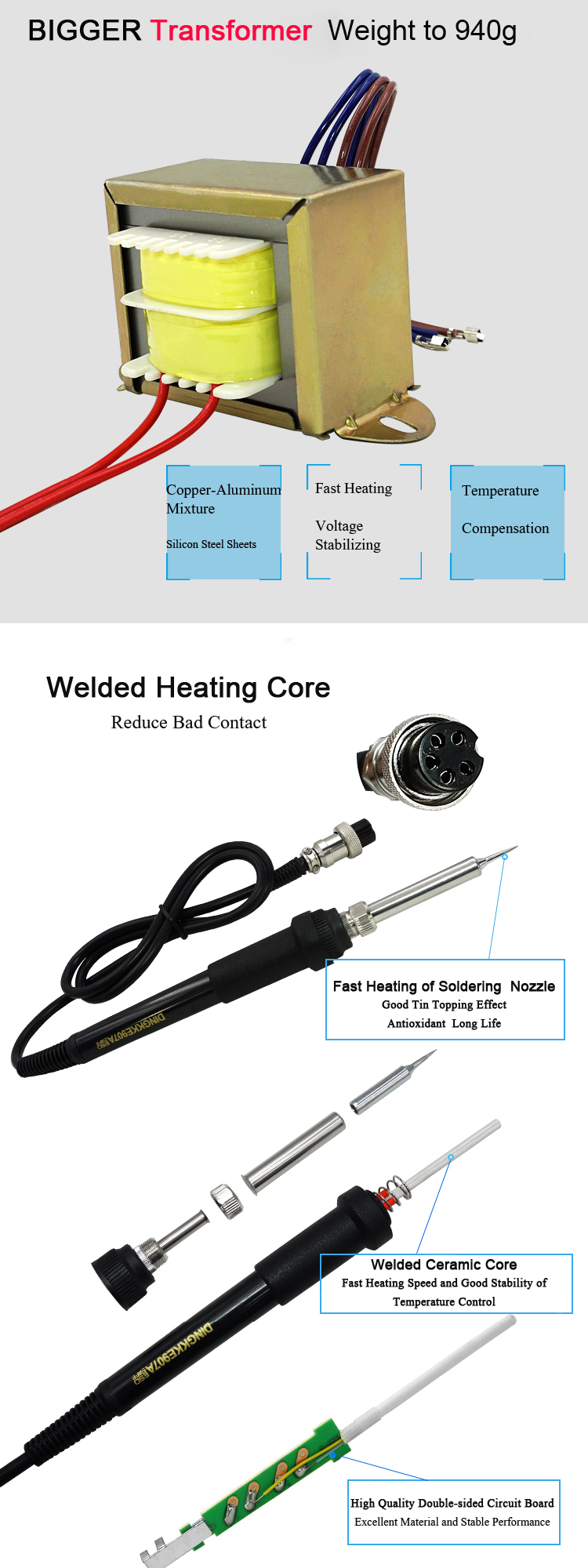

International standard heater for convenient use and exchange.
High-quality resistance for durable use.
Plastic holder for placing the hot air g-un.
Metal stand for keeping the iron from flammable materials.
Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering.
Specification:| Power Consumption of the Whole Machine | 750W (MAX) |
| Power Consumption of Hot Typhoon | 700W (MAX) |
| input voltage | 220VAC + 10% 50Hz (110VAC 60HZ optional) |
| Display mode | LED screen display |
| temperature range | 100-500℃ |
| Air flow rate | 120L/min (MAX) |
| noise | <52dB (A) |
| Type of air pump | Fan type |
| Power Consumption of Welding Station | 50W |
| temperature range | 200-480℃ |
| Temperature Accuracy | ±15℃ |
| Temperature stability | ±2℃ |
| Welding Nozzle Ground Voltage | <2mV |
| Working Voltage of Heating Core | 28VAC |
| Overall weight | 2.6kg |
| Outward Size of Main Engine | 171×100×142mm |
Package Included:
1 x 8586 700W 2 in 1 ESD Soldering Station
Detail Pictures:
