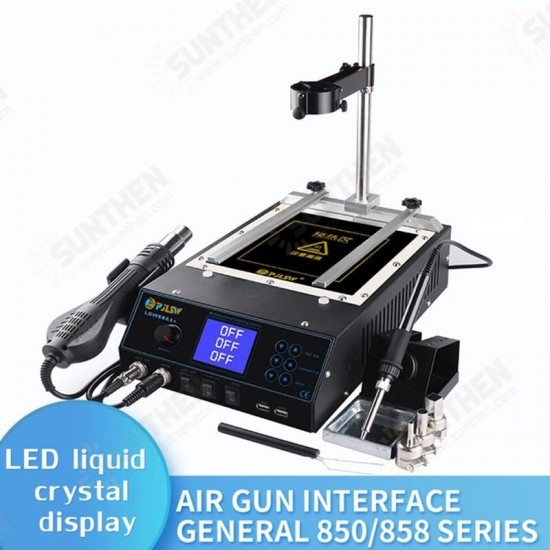

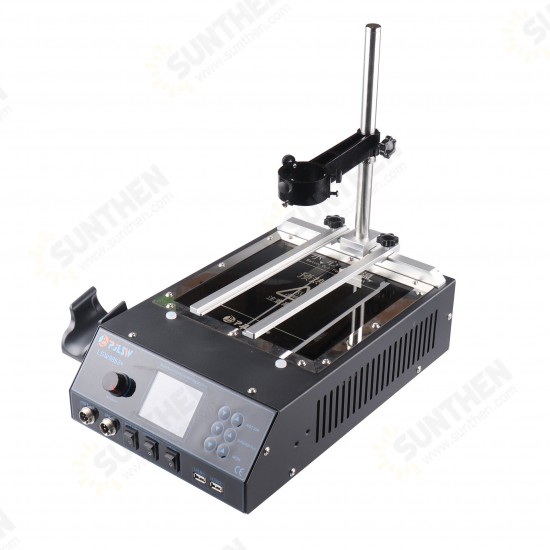

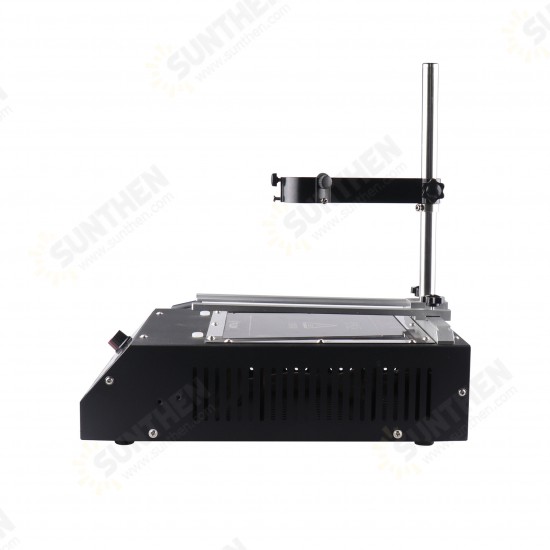

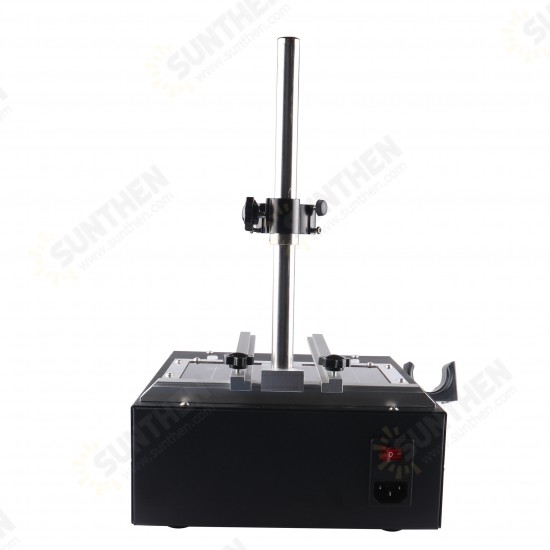

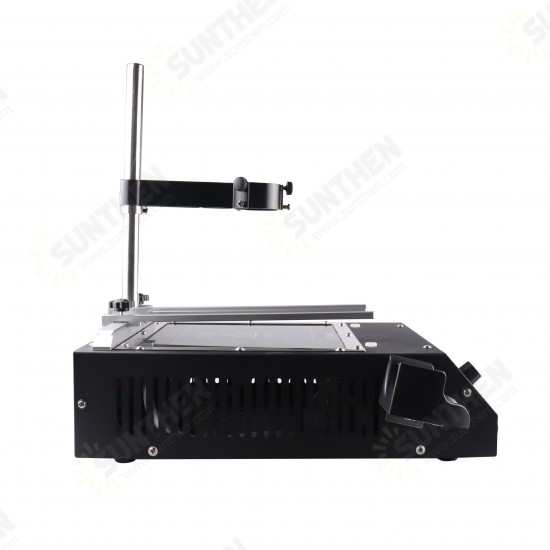

8863+ 4-in-1 Soldering Station Hot Air Gun Infrared Preheating Combination BGA Rework Station
- Stock: In Stock
- Model: ST22008284
- SKU: ST22008284
$287.49
Ex Tax: $287.49
General Usage:
Suitable for de-soldering and soldering BGA, SOIC, CHIP, QFP, PLCC package SMD IC, particularly suitable for de-soldering BGA module, computer mother board north and south bridge, all kind of mobile phone motherboard SMTIC and LED lights. Shrinking, paint drying, adhesive removal, thawing, warming, plastic welding etc.
Feature:
1. Using microcomputer processor PID programmable temperature control technology, the program cycle every 20 milliseconds to detect the actual temperature of the heating element and a quick correction, rapid return temperature, temperature stability LED display, precise preheating station, hot air gun and soldering iron temperature.
2. Preheating station is to use a glaze layer having a high thermal effect, good thermal shock resistance of the ceramic as the substrate, high-quality nickel branded alloy wire once sintering. It has a high thermal effect, overall good, good thermal stability, uniform heating, high dielectric strength, clean, easy to install and so on features.
3. 853 series preheating station practical and easy to operate,the card plate sliding bracket bearing technology, to move around durable, convenient card board,coupled with a fixed sliding bracket screws at the same time, the card board is solid and reliable.
1. Inherite the characteristics of the 853A that the air gun heating element is made of ceramic heating core, and the heating wire is tightly wound on the ceramic skeleton with rapid and uniform heating. With the upgraded version of the fan, air volume is stronger than the ordinary fan and the service life is longer with spiral wind.
2. The machine has a self-test function full intelligent over-temperature, short-circuit, overload and fault display and protection functions.
3. Temperature correction function:
Or replace the heating element, soldering iron tips etc. Spare parts caused by temperature deviation, can use this function calibration temperature. The correction temperature range is-50℃~+50℃.
4. Celsius/Fahrenheit temperature display function:
Meet different market needs to design the temperature display mode, you can choose under customary interest.
1.Digital temperature correction function, the soldering iron temperature and display temperature deviation which caused by the environmental impact or replacement of heating element, iron tips and other spare parts, you can use this function to correct.
2. Air gun manual I automatic function:
A. When choosing the automatic function, put the gun handle back on the holder, the machine automatically cut off the heating up and cooling, its effectively improve the heater service life and energy saving, good for environmental protection and high safety factor, can be effective to avoid hot air gun handle caused by fire or other accidents.
3.Add to soldering iron function, iron part used imported heating element,heating up quickly, the temperature is stable, long service life. Anti-static design to prevent static damage to delicate delicate SMD.
Specification:
Model: 8863+
Power supply voltage: AC110V±10%60Hz/AC220V-240V50Hz
Power: ≤1200W
Size: L430 x W350 x H 180mm
Weight: 5.3kg
Work environment: 0-40℃/32~104°F
Storage environment: -20-80℃/-4-176°F
Store humidity: 35%〜45%
Soldering Iron:
Temperature Range:200℃-480℃
Temperature Stability:± 1℃ ( stat ic
Type of heating core:IMPORTED CERAMICS 1321
Up ground impedance :<2mV
Display Type: LED
Handle cable length: ≥100cm
Fahrenheit/Celsius Conversion: YES
Temperature correction:YES
High temperature protection:YES
Gun Type: Brushless fan
Control Temperature way: Digital PID
Hot Air gun manual / automatic function:YES
Package included:
1 x Preheating station
1 x Hot air reworks
1 x Soldering station
1 x Soldering Iron
3 x Nozzles
